Sayfa 8-71 - Isuzu EPC

8-71 — COMPRESSOR; AIR CONDITIONING (#40396) — 190 parça

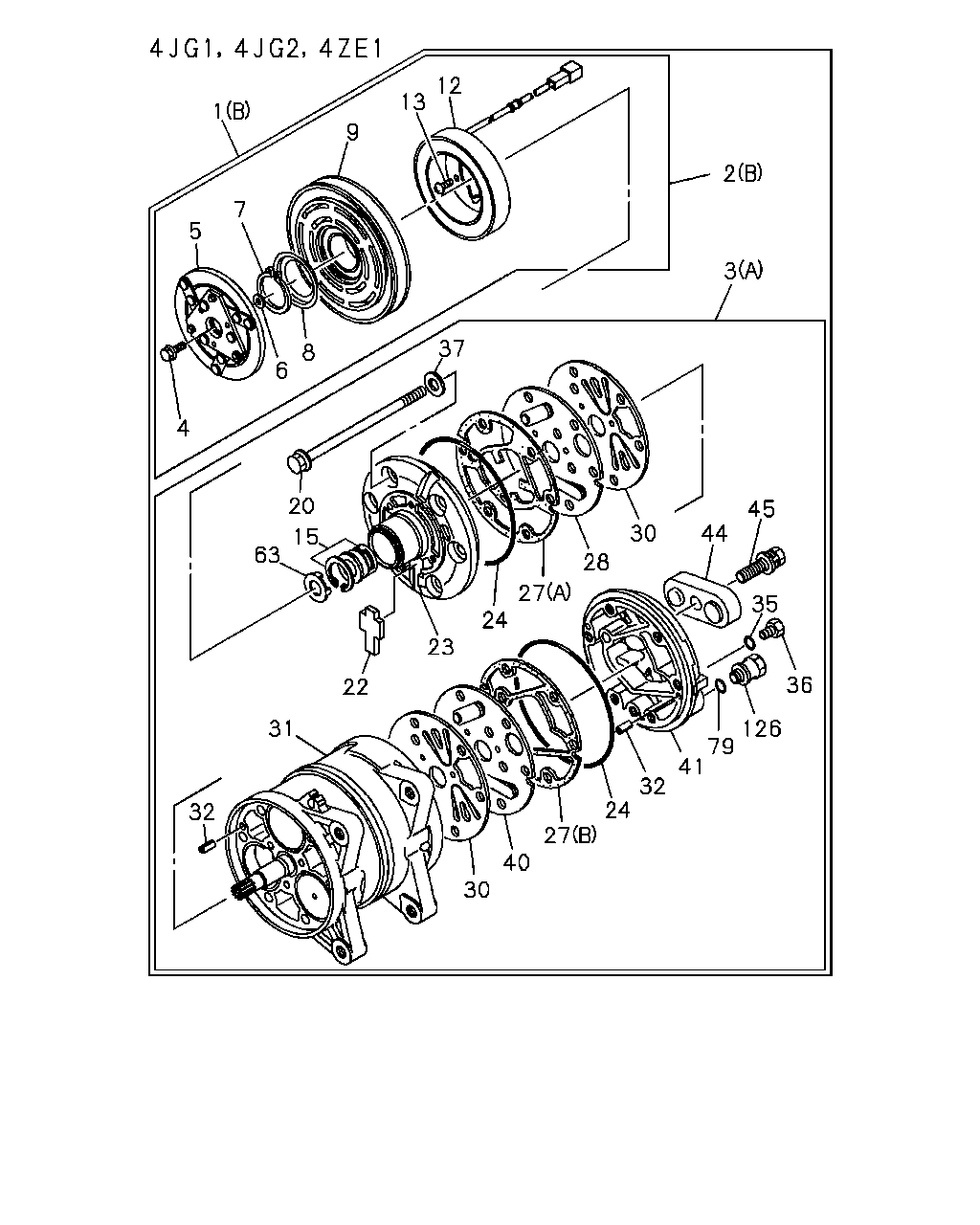

1 5 7 9 13 12 8 6 4 2 3 37 20 63 15 22 23 24 27 28 30 44 45 35 36 126 79 41 32 24 27 40 30 32 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94376-097-0	01	1	9112-9303	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97070-714-1	01	1	9304-9504	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97070-714-1	01	1	9505-	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S) (B)	8-94376-096-0	01	1	9112-9208	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94376-096-0	01	1	9209-9303	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97085-895-2	01	1	9304-9504	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-895-2	01	1	9505-	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97021-756-3	01	1	9112-9202	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.710 (A)	8-97074-660-0	01	1	9203-9208	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97075-366-0	01	1	9209-9303	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) "R-134A"	8-97085-898-0	01	1	9304-9504	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-898-0	01	1	9505-9602	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-896-0	01	1	9603-	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97045-884-0	01	1	9112-9311	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97114-213-0	01	1	9312-9504	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97114-213-0	01	1	9505-	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S) (B)	8-97045-873-0	01	1	9112-9311	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S) (B)	8-97114-212-0	01	1	9312-9504	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97114-212-0	01	1	9505-	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97045-886-0	01	1	9112-9208	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97079-274-0	01	1	9209-9504	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97079-274-0	01	1	9505-	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97045-872-0	01	1	9112-9303	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) "R-134A"	8-97095-746-0	01	1	9304-9311	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97114-230-0	01	1	9312-9504	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97114-230-0	01	1	9505-	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97101-655-0	01	1	9304-9311	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) "R-134A"	8-97114-233-0	01	1	9312-9504	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97114-233-0	01	1	9505-	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97045-885-3	01	1	9112-9202	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97079-209-0	01	1	9203-9208	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97079-273-0	01	1	9209-9303	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97096-149-0	01	1	9304-9504	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97096-149-0	01	1	9505-9602	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97095-490-0	01	1	9603-	●	●
4	09.181 BOLT; MAGNET CLU 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9112-9208	●	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9209-9504	●	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	9505-	●	●
4	09.181 BOLT; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97021-324-0	01	1	9112-9607	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97034-789-0	01	1	9112-9504	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97034-789-0	01	1	9505-	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S)	8-97034-788-0	01	1	9112-9504	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97034-788-0	01	1	9505-	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9112-9504	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	9505-	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9112-9504	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	9505-	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9112-9504	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	9505-	●	●
6	09.181 SHIM; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.188 T=0.8	8-94380-751-0	AR	1	9112-9504	●	●
6	09.181 SHIM; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 09.188 T=0.8	8-94380-751-0	AR	1	9505-	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	9112-9504	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	9505-	●	●
7	09.181 RING; SNAP,PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-752-0	01	1	9112-9504	●	●
7	09.181 RING; SNAP,PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94380-752-0	01	1	9505-	●	●
8	09.181 COVER; PULLEY 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94120-725-0	01	1	9112-9504	●	●
8	09.181 COVER; PULLEY 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94120-725-0	01	1	9505-	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97044-906-0	01	1	9112-9504	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97044-906-0	01	1	9505-	●	●
9	09.181 PULLEY; MAGNET CLU 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S)	8-97034-790-0	01	1	9112-9504	●	●
9	09.181 PULLEY; MAGNET CLU 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9505-	●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-874-0	01	1	9112-9208	●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97079-275-0	01	1	9209-9504	●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97079-275-0	01	1	9505-	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97044-907-0	01	1	9112-9504	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97044-907-0	01	1	9505-	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S)	8-97045-883-0	01	1	9112-9504	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97045-883-0	01	1	9505-	●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-887-0	01	1	9112-9504	●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97045-887-0	01	1	9505-	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	9112-9504	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	9505-	●	●
13	09.186 SCREW; COIL FIELD 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94164-438-0	03	1	9112-9504	●	●
13	09.186 SCREW; COIL FIELD 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94164-438-0	03	1	9505-	●	●
15	09.175 SEAL; SHAFT 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-882-0	01	1	9112-9303	●	●
15	09.175 SEAL; SHAFT 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-397-0	01	1	9304-9311	●	●
15	09.175 SEAL; SHAFT 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97114-217-0	01	1	9312-9504	●	●
15	09.175 SEAL; SHAFT 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-217-0	01	1	9505-	●	●
20	09.174 BOLT; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-881-0	06	1	9112-9504	●	●
20	09.174 BOLT; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97045-881-0	06	1	9505-	●	●
22	09.172 FELT; CYL HD,FRT 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94441-396-0	01	1	9112-9311	●	●
23	09.174 HEAD; CYL,FRT 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-876-0	01	1	9112-9311	●	●
23	09.174 HEAD; CYL,FRT 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97114-216-0	01	1	9312-9504	●	●
23	09.174 HEAD; CYL,FRT 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97114-216-0	01	1	9505-	●	●
24	09.172 GASKET; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.174	8-94466-682-0	02	1	9112-9303	●	●
24	09.172 GASKET; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97095-758-0	02	1	9304-9504	●	●
24	09.172 GASKET; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97095-758-0	02	1	9505-	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97045-877-0	01	1	9112-9504	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97045-877-0	01	1	9505-	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97045-880-0	01	1	9112-9504	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97045-880-0	01	1	9505-	●	●
28	09.172 PLATE; VLV,CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94466-688-0	01	1	9112-9504	●	●
28	09.172 PLATE; VLV,CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94466-688-0	01	1	9505-	●	●
30	09.172 VALVE; SUCTION 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-878-0	02	1	9112-9504	●	●
30	09.172 VALVE; SUCTION 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97045-878-0	02	1	9505-	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-875-0	01	1	9112-9303	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-754-0	01	1	9304-9504	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-754-0	01	1	9505-	●	●
32	09.174 PIN; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94154-711-0	04	1	9112-9504	●	●
32	09.174 PIN; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	9505-	●	●
35	09.175 GASKET; PLUG,CYL 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-395-0	01	1	9112-9504	●	●
35	09.175 GASKET; PLUG,CYL 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	9505-	●	●
36	09.173 PLUG; CYL 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94164-473-0	01	1	9112-9504	●	●
36	09.173 PLUG; CYL 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	9505-	●	●
37	09.172 GASKET; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.174	8-94466-678-0	06	1	9112-9504	●	●
37	09.172 GASKET; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.174	8-94466-678-0	06	1	9505-	●	●
40	09.172 PLATE; VLV,RR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94466-692-0	01	1	9112-9504	●	●
40	09.172 PLATE; VLV,RR 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94466-692-0	01	1	9505-	●	●
41	09.174 HEAD; CYL,RR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-879-0	01	1	9112-9303	●	●
41	09.174 HEAD; CYL,RR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-879-0	01	1	9304-9504	●	●
41	09.174 HEAD; CYL,RR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97045-879-0	01	1	9505-	●	●
41	09.174 HEAD; CYL,RR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97101-633-0	01	1	9304-9504	●	●
41	09.174 HEAD; CYL,RR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97101-633-0	01	1	9505-	●	●
44	09.172 PLATE; CYL HD,RR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94466-698-0	01	1	9112-9303	●	●
44	09.172 PLATE; CYL HD,RR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94466-698-0	01	1	9304-9308	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9112-9504	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9505-	●	●
63	09.175 COVER; CMPR 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.172	8-94441-395-0	01	1	9112-9311	●	●
79	09.172 GASKET; VLV,CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-781-0	01	1	9304-9504	●	●
79	09.172 GASKET; VLV,CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-781-0	01	1	9505-	●	●
126	09.172 VALVE; RELIEF,CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-780-0	01	1	9304-9504	●	●
126	09.172 VALVE; RELIEF,CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-780-0	01	1	9505-	●	●

1 3 12 13 4 6 7 9 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94376-097-0	01	1	9112-9303	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97070-714-1	01	1	9304-9504	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97070-714-1	01	1	9505-	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S) (B)	8-94376-096-0	01	1	9112-9208	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94376-096-0	01	1	9209-9303	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97085-895-2	01	1	9304-9504	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-895-2	01	1	9505-	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97021-756-3	01	1	9112-9202	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.710 (A)	8-97074-660-0	01	1	9203-9208	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97075-366-0	01	1	9209-9303	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) "R-134A"	8-97085-898-0	01	1	9304-9504	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-898-0	01	1	9505-9602	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-896-0	01	1	9603-	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97045-884-0	01	1	9112-9311	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97114-213-0	01	1	9312-9504	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97114-213-0	01	1	9505-	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S) (B)	8-97045-873-0	01	1	9112-9311	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S) (B)	8-97114-212-0	01	1	9312-9504	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97114-212-0	01	1	9505-	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97045-886-0	01	1	9112-9208	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97079-274-0	01	1	9209-9504	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97079-274-0	01	1	9505-	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97045-872-0	01	1	9112-9303	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) "R-134A"	8-97095-746-0	01	1	9304-9311	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97114-230-0	01	1	9312-9504	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97114-230-0	01	1	9505-	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97101-655-0	01	1	9304-9311	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) "R-134A"	8-97114-233-0	01	1	9312-9504	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97114-233-0	01	1	9505-	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97045-885-3	01	1	9112-9202	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97079-209-0	01	1	9203-9208	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97079-273-0	01	1	9209-9303	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97096-149-0	01	1	9304-9504	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97096-149-0	01	1	9505-9602	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97095-490-0	01	1	9603-	●	●
4	09.181 BOLT; MAGNET CLU 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9112-9208	●	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9209-9504	●	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	9505-	●	●
4	09.181 BOLT; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97021-324-0	01	1	9112-9607	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9112-9504	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	9505-	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9112-9504	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	9505-	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9112-9504	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	9505-	●	●
6	09.181 SHIM; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.188 T=0.8	8-94380-751-0	AR	1	9112-9504	●	●
6	09.181 SHIM; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 09.188 T=0.8	8-94380-751-0	AR	1	9505-	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	9112-9504	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	9505-	●	●
7	09.181 RING; SNAP,PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-752-0	01	1	9112-9504	●	●
7	09.181 RING; SNAP,PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94380-752-0	01	1	9505-	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97044-906-0	01	1	9112-9504	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97044-906-0	01	1	9505-	●	●
9	09.181 PULLEY; MAGNET CLU 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S)	8-97034-790-0	01	1	9112-9504	●	●
9	09.181 PULLEY; MAGNET CLU 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9505-	●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-874-0	01	1	9112-9208	●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97079-275-0	01	1	9209-9504	●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97079-275-0	01	1	9505-	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97044-907-0	01	1	9112-9504	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97044-907-0	01	1	9505-	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) GENERATOR 55A(S9S)	8-97045-883-0	01	1	9112-9504	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97045-883-0	01	1	9505-	●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97045-887-0	01	1	9112-9504	●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97045-887-0	01	1	9505-	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	9112-9504	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	9505-	●	●
13	09.186 SCREW; COIL FIELD 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94164-438-0	03	1	9112-9504	●	●
13	09.186 SCREW; COIL FIELD 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94164-438-0	03	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
