◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-70 - AIR CONDITIONING VENTILATION UNIT ▶
8-70 — AIR CONDITIONING VENTILATION UNIT (#40395) — 55 parça

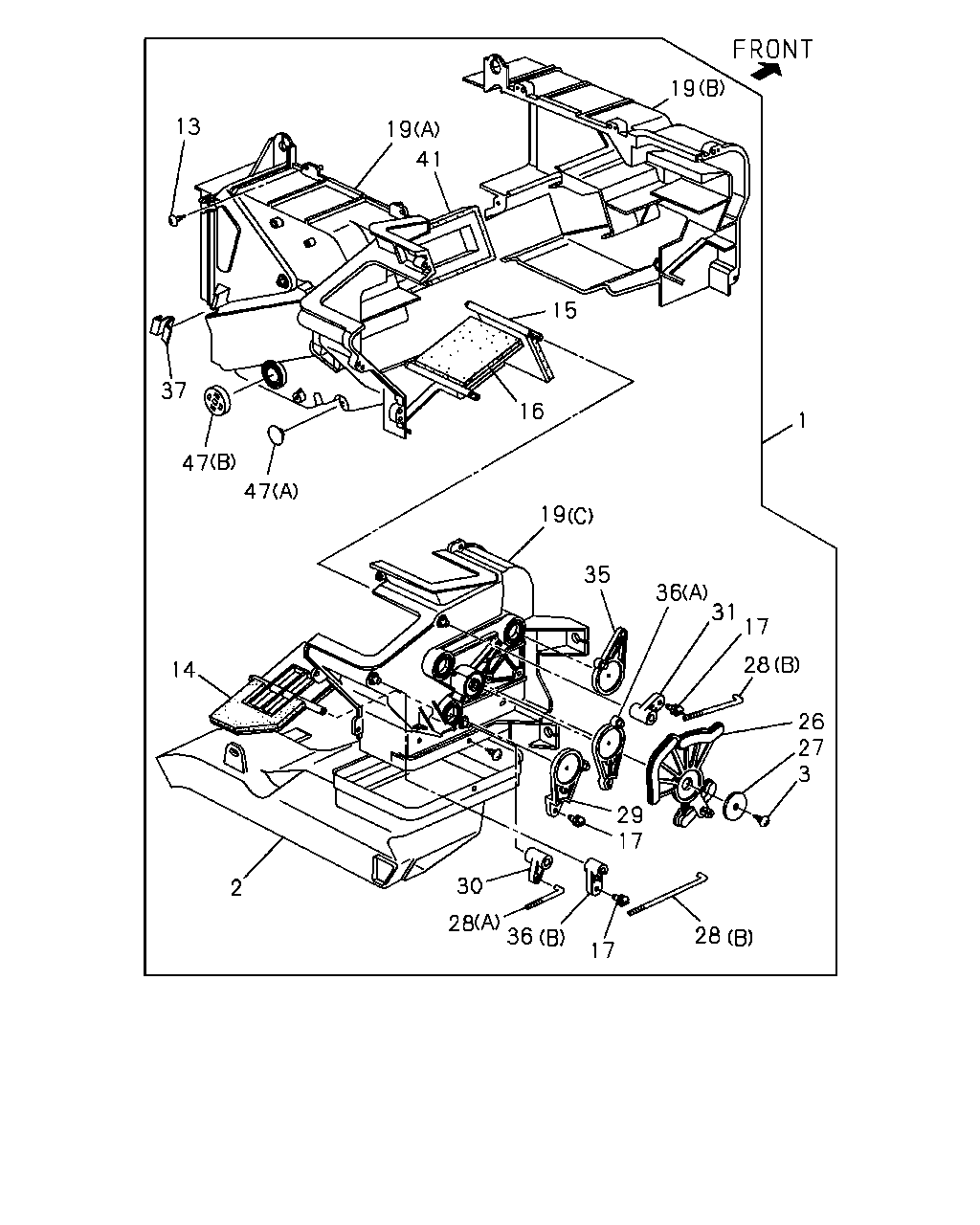

çizim 68438
1 26 27 3 28 17 31 36 35 19 29 17 28 17 36 28 30 2 14 16 15 19 41 19 13 37 47 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-97042-555-2 01 1 9112-9504 ● ●
1 08.845 VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97042-555-2 01 1 9505- ● ●
2 08.854 DUCT; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-639-1 01 1 9112-9504 ● ●
2 08.854 DUCT; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-94328-639-1 01 1 9505- ● ●
3 08.852 SCREW; LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.846 M5X16 		8-94248-820-0 01 1 9112-9504 ● ●
3 08.852 SCREW; LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 08.846 M5X16 		8-94248-820-0 01 1 9505- ● ●
13 08.852 SCREW; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) M4X16 		8-94324-850-0 14 1 9112-9308 ● ●
13 08.852 SCREW; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) M4X16 		8-94324-850-0 13 1 9309-9504 ● ●
13 08.852 SCREW; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> M4X16 		8-94324-850-0 13 1 9505- ● ●
14 08.854 DOOR; MODE,VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-630-0 01 1 9112-9504 ● ●
14 08.854 DOOR; MODE,VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-94328-630-0 01 1 9505- ● ●
15 08.854 DOOR; MIX,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-631-0 01 1 9112-9504 ● ●
15 08.854 DOOR; MIX,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-94328-631-0 01 1 9505- ● ●
16 08.854 DOOR; MODE,VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.845 		8-94328-629-0 01 1 9112-9504 ● ●
16 08.854 DOOR; MODE,VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 08.845 		8-94328-629-0 01 1 9505- ● ●
17 08.852 CLIP; SHUTTER LEVER,VENTILATION
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.786 		8-94248-794-0 03 1 9112-9504 ● ●
17 08.852 CLIP; SHUTTER LEVER,VENTILATION
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 09.786 		8-94248-794-0 03 1 9505- ● ●
19 08.854 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94328-636-3 01 1 9112-9504 ● ●
19 08.854 CASE; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) 		8-94328-636-3 01 1 9505- ● ●
19 08.854 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-94328-637-3 01 1 9112-9504 ● ●
19 08.854 CASE; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (B) 		8-94328-637-3 01 1 9505- ● ●
19 08.854 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (C) 		8-94328-638-2 01 1 9112-9504 ● ●
19 08.854 CASE; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (C) 		8-94328-638-2 01 1 9505- ● ●
26 08.852 LEVER; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.786 		8-94328-647-1 01 1 9112-9308 ● ●
26 08.852 LEVER; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.786 		8-97045-861-0 01 1 9309-9504 ● ●
26 08.852 LEVER; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 09.786 		8-97045-861-0 01 1 9505- ● ●
27 08.852 WASHER; LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94129-950-0 01 1 9112-9504 ● ●
27 08.852 WASHER; LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-94129-950-0 01 1 9505- ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94324-848-0 01 1 9112-9504 ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) 		8-94324-848-0 01 1 9505- ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-94328-635-0 02 1 9112-9504 ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (B) 		8-94328-635-0 02 1 9505- ● ●
29 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.786 		8-94328-646-1 01 1 9112-9504 ● ●
29 08.852 LEVER; SHUTTER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 09.786 		8-94328-646-1 01 1 9505- ● ●
30 08.852 LEVER; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-627-0 01 1 9112-9504 ● ●
30 08.852 LEVER; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-94328-627-0 01 1 9505- ● ●
31 08.852 LEVER; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-626-0 01 1 9112-9308 ● ●
31 08.852 LEVER; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-649-0 01 1 9309-9504 ● ●
31 08.852 LEVER; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-94328-649-0 01 1 9505- ● ●
35 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-645-1 01 1 9112-9504 ● ●
35 08.852 LEVER; SHUTTER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-94328-645-1 01 1 9505- ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-94328-649-0 01 1 9112-9308 ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.786 (B) 		8-97045-859-0 01 1 9309-9504 ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 09.786 (B) 		8-97045-859-0 01 1 9505- ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94328-644-1 01 1 9112-9308 ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-97045-860-0 01 1 9309-9504 ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) 		8-97045-860-0 01 1 9505- ● ●
37 08.852 CLIP; CABLE,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.787 		8-94337-654-0 01 1 9112-9504 ● ●
37 08.852 CLIP; CABLE,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 09.787 		8-94337-654-0 01 1 9505- ● ●
41 08.852 COVER; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-659-0 01 1 9112-9504 ● ●
41 08.852 COVER; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-94328-659-0 01 1 9505- ● ●
47 08.845 PLUG; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94328-657-0 04 1 9112-9504 ● ●
47 08.845 PLUG; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) 		8-94328-657-0 04 1 9505- ● ●
47 08.845 PLUG; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-94328-658-0 01 1 9112-9504 ● ●
47 08.845 PLUG; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (B) 		8-94328-658-0 01 1 9505- ● ●
