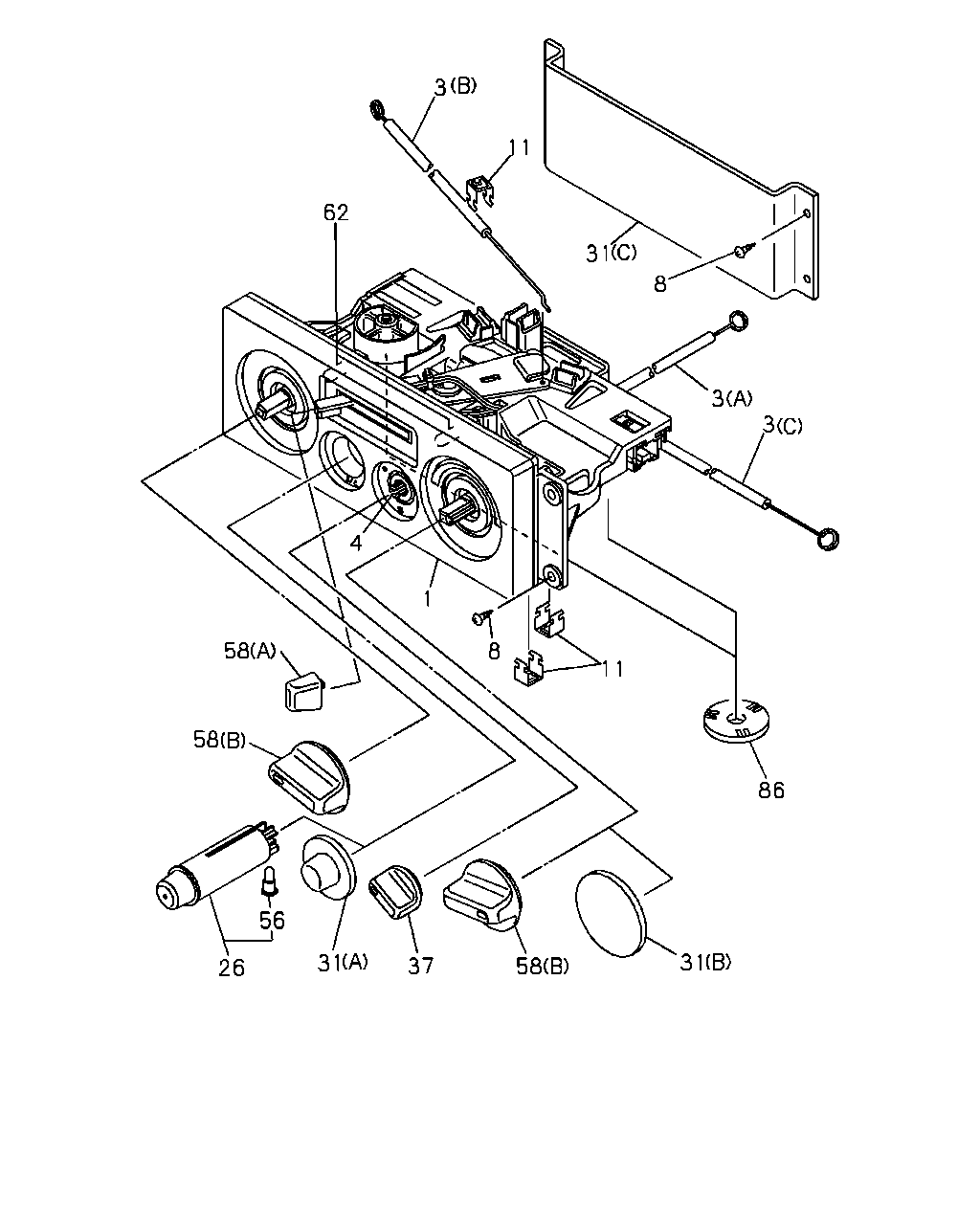

8-65 — CONTROL LEVER; HEATER AND AIR CON (#40394) — 40 parça

3 11 31 8 3 3 62 4 1 8 11 86 31 58 37 31 56 26 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.849 LEVER SUB ASM; HTR CONT FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1)	8-97062-827-3	01	1	9112-9504	●	●
1	08.849 LEVER SUB ASM; HTR CONT EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-97123-986-0	01	1	9505-	●	●
1	08.849 LEVER SUB ASM; HTR CONT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-97062-826-3	01	1	9112-9504	●	●
1	08.849 LEVER SUB ASM; HTR CONT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-97123-985-0	01	1	9505-	●	●
3	09.787 CABLE; HTR CONT LVR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A)TEMP	8-97062-824-0	01	1	9112-9504	●	●
3	09.787 CABLE; HTR CONT LVR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 08.991 (A)TEMP	8-97123-988-2	01	1	9505-	●	●
3	09.787 CABLE; HTR CONT LVR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (B)MODE	8-97062-825-0	01	1	9112-9504	●	●
3	09.787 CABLE; HTR CONT LVR (B)MODE	8-97123-987-0	01	1	9505-	●	●
3	09.787 CABLE; HTR CONT LVR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (C)F/C	8-97065-219-0	01	1	9112-9504	●	●
3	09.787 CABLE; HTR CONT LVR (C)F/C	8-97123-989-0	01	1	9505-	●	●
4	08.552 SWITCH; FAN,HTR CONT LVR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-97061-915-1	01	1	9112-9504	●	●
4	08.552 SWITCH; FAN,HTR CONT LVR	8-97061-915-1	01	1	9505-	●	●
8	08.852 SCREW; CONT LVR TO INST PNL 16.085 M5X16 TAPPING	9-09829-323-1	04	1	9112-	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.849	8-94325-471-0	02	1	9112-9504	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 08.849	8-94325-471-0	02	1	9505-	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 08.849	8-94325-471-0	03	1	9112-	●	●
26	09.172 SWITCH; A/C,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97042-015-0	01	1	9112-9504	●	●
26	09.172 SWITCH; A/C,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97042-015-1	01	1	9505-	●	●
31	08.850 COVER; HOLE,CONT LEVER FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B)	8-97062-821-0	01	1	9112-9504	●	●
31	08.850 COVER; HOLE,CONT LEVER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (A)	8-97061-922-0	01	1	9112-9504	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97061-922-0	01	1	9505-	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLE R WO/HEATER(YL1) (C)	8-97039-249-0	01	1	9112-9504	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (B)	8-97062-821-0	01	1	9505-	●	●
37	08.852 KNOB; SW,HTR CONT LVR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 09.787	8-97061-917-0	01	1	9112-9504	●	●
37	08.852 KNOB; SW,HTR CONT LVR 09.787	8-97061-917-0	01	1	9505-	●	●
56	08.991 BULB; SWITCH,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97115-090-0	01	1	9309-9504	●	●
56	08.991 BULB; SWITCH,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97115-090-0	01	1	9505-	●	●
58	09.787 KNOB; LVR,HTR CONT LVR FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) MODE & TEMP	8-97061-916-0	01	1	9112-9504	●	●
58	09.787 KNOB; LVR,HTR CONT LVR EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (B) MODE & TEMP	8-97061-916-0	01	1	9505-	●	●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (B) MODE & TEMP	8-97061-916-0	02	1	9112-	●	●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (A) F/C	8-97061-913-0	01	1	9112-9401	●	●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D> (A) F/C	8-97061-913-0	01	1	9402-9504	●	●
58	09.787 KNOB; LVR,HTR CONT LVR (A) F/C	8-97116-767-0	01	1	9505-	●	●
62	08.991 BULB; HTR CONT LVR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-97061-914-0	02	1	9112-9504	●	●
62	08.991 BULB; HTR CONT LVR	8-97061-914-0	02	1	9505-	●	●
86	08.552 WASHER; CONT LEVER FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.852	8-94129-950-0	01	1	9203-9308	●	●
86	08.552 WASHER; CONT LEVER FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.852	8-94129-950-0	01	1	9309-9504	●	●
86	08.552 WASHER; CONT LEVER EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 08.852	8-94129-950-0	01	1	9505-	●	●
86	08.552 WASHER; CONT LEVER HEATER&DEFROSTER(C41),AIR CON PREPARATORYPACK<S6D> 08.852	8-94129-950-0	02	1	9203-9308	●	●
86	08.552 WASHER; CONT LEVER HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 08.852	8-94129-950-0	02	1	9309-	●	●
