Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#40392) — 230 parça

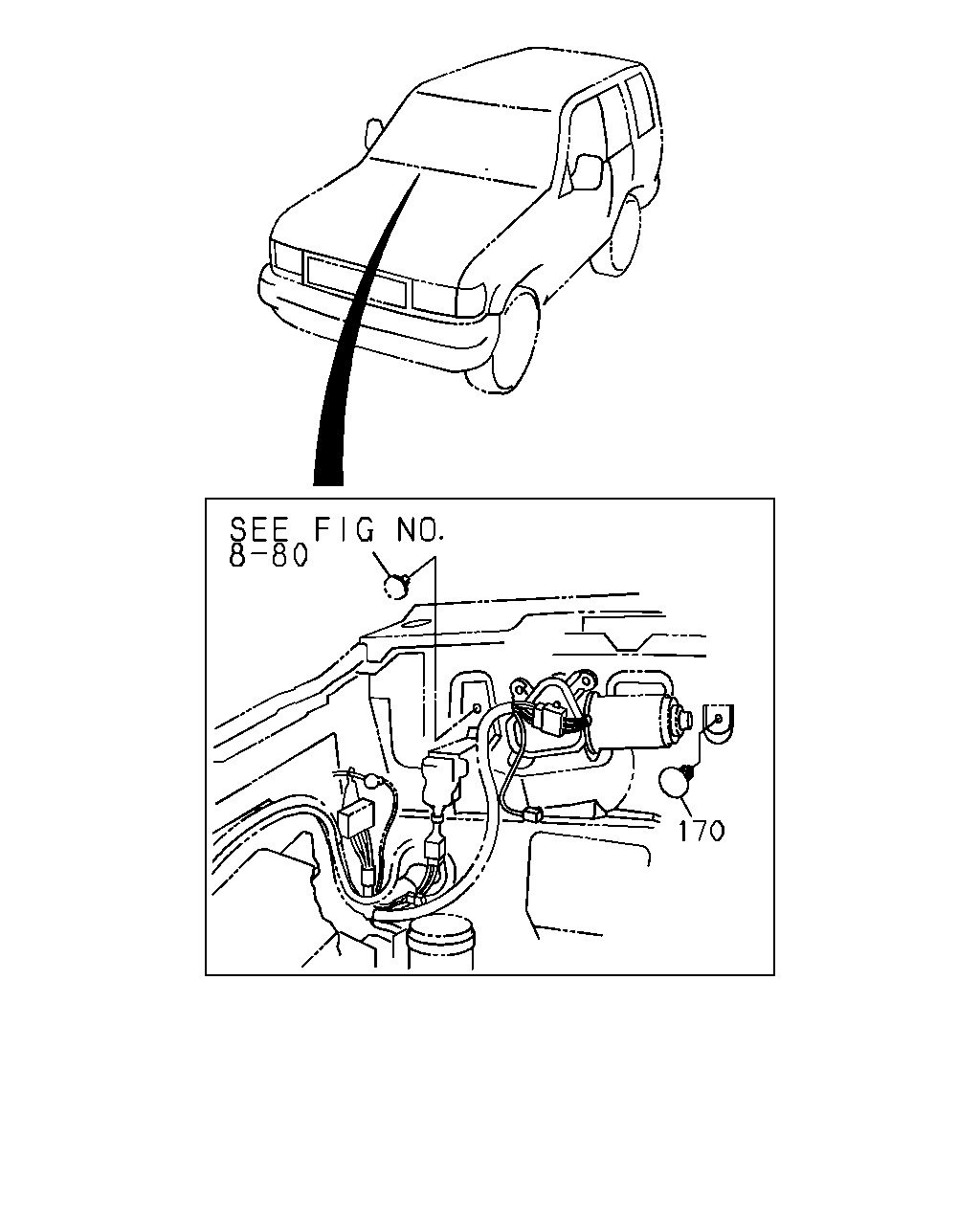

170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	09.220 PLUG; HOLE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9310-9504	●	●
170	09.220 PLUG; HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9310-9504	●	●
170	09.220 PLUG; HOLE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●
170	09.220 PLUG; HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●

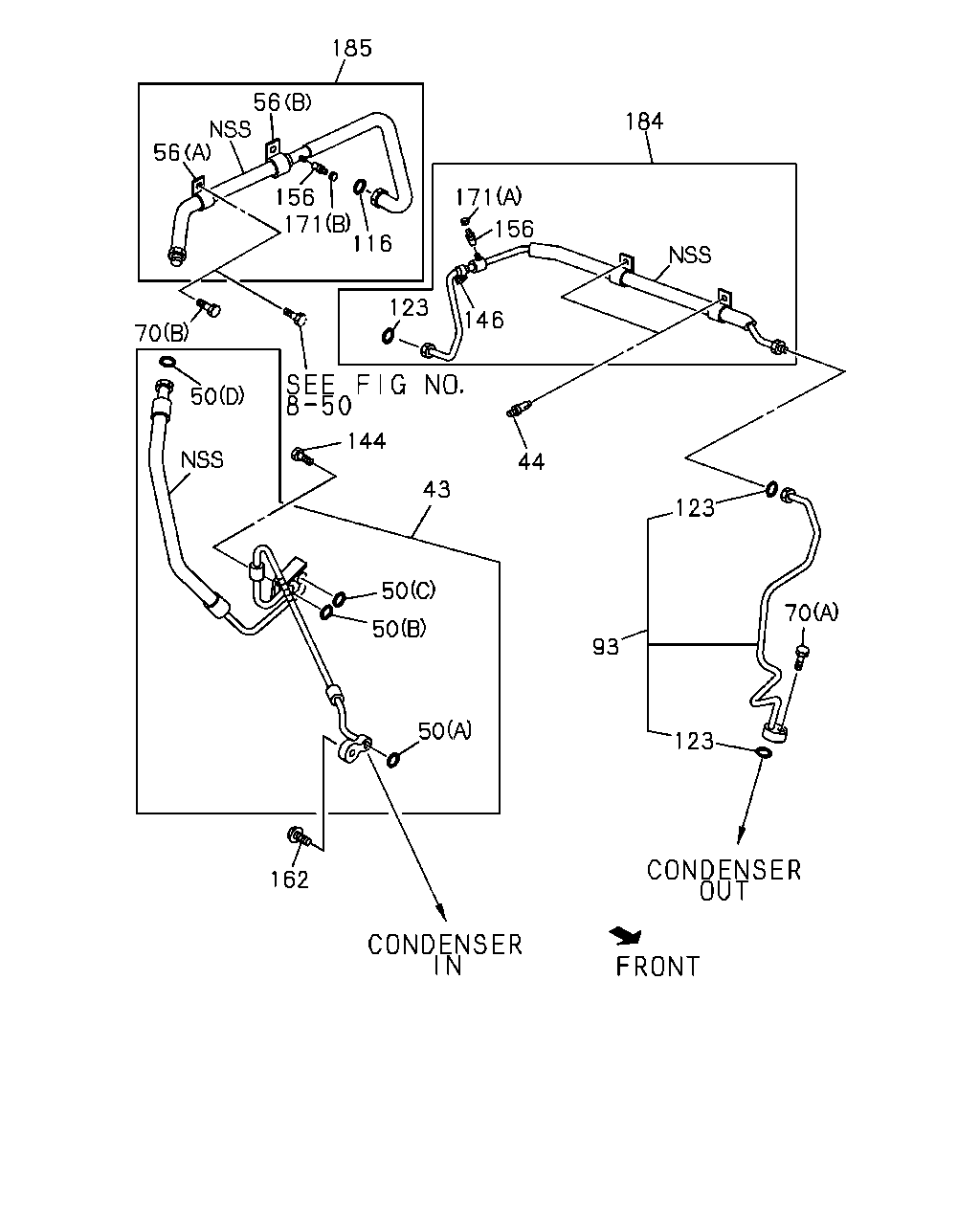

185 184 171 156 146 123 116 171 156 56 56 70 50 144 43 44 123 93 70 123 162 50 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-285-2	01	1	9112-9301	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97086-209-1	01	1	9302-9504	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97086-209-1	01	1	9505-	●	●
44	09.242 CLIP; FLEX HOSE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12.801 D6.8X12	8-94198-687-0	02	1	9112-9504	●	●
44	09.242 CLIP; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 12.801 D6.8X12	8-94198-687-0	02	1	9505-	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) ID=13.9	8-94113-330-0	01	1	9112-9504	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (D) ID=13.9	8-94113-330-0	01	1	9505-	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=10.8	8-94113-331-0	01	1	9112-9504	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) ID=10.8	8-94113-331-0	01	1	9505-	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.260 (B) ID=11.0	8-94461-900-0	01	1	9112-9504	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.260 (B) ID=11.0	8-94461-900-0	01	1	9505-	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.260 (C) ID=14.8	8-94461-901-0	01	1	9112-9504	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.260 (C) ID=14.8	8-94461-901-0	01	1	9505-	●	●
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97137-775-0	01	1	9511-	●	●
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97139-184-0	01	1	9511-	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.413 (A) M6X25	9-01960-625-0	01	1	9112-9204	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 01.540 (A) M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9205-9208	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9209-9504	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9505-9702	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	9703-	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 13.090 (B) M6X14	8-94153-946-0	01	1	9112-9308	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-9309	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9310-9504	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9310-9504	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-199-0	01	1	9112-9303	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-843-0	01	1	9304-9504	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-843-0	01	1	9505-	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 ID=13.9	8-94113-330-0	01	1	9112-9308	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 ID=13.9	8-94113-330-0	01	1	9309-9504	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9505-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	03	1	9112-9308	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	03	1	9309-9504	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	03	1	9505-9607	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9608-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	02	1	9608-	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	0-28011-045-0	01	1	9112-9204	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9205-9504	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9505-	●	●
144	09.242 BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	9-01961-045-0	01	1	9112-9204	●	●
144	09.242 BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9205-9504	●	●
144	09.242 BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9505-	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9608-	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9304-9504	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9505-	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9112-9308	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9309-9504	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94457-163-0	02	1	9505-	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.262	8-94121-731-0	01	1	9209-9303	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9304-9504	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.262	8-97083-100-0	01	1	9505-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9610-	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9304-9308	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9309-9504	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	9505-	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.578 (B)	8-94324-069-0	01	1	9209-9303	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9304-9308	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9309-9504	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9505-	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97038-934-1	01	1	9112-9303	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-847-1	01	1	9304-9504	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97124-652-0	01	1	9505-	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97017-583-0	01	1	9112-9303	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-845-1	01	1	9304-9504	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-845-1	01	1	9505-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94388-104-3	01	1	9112-9303	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-849-0	01	1	9304-9504	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-849-1	01	1	9505-	●	●

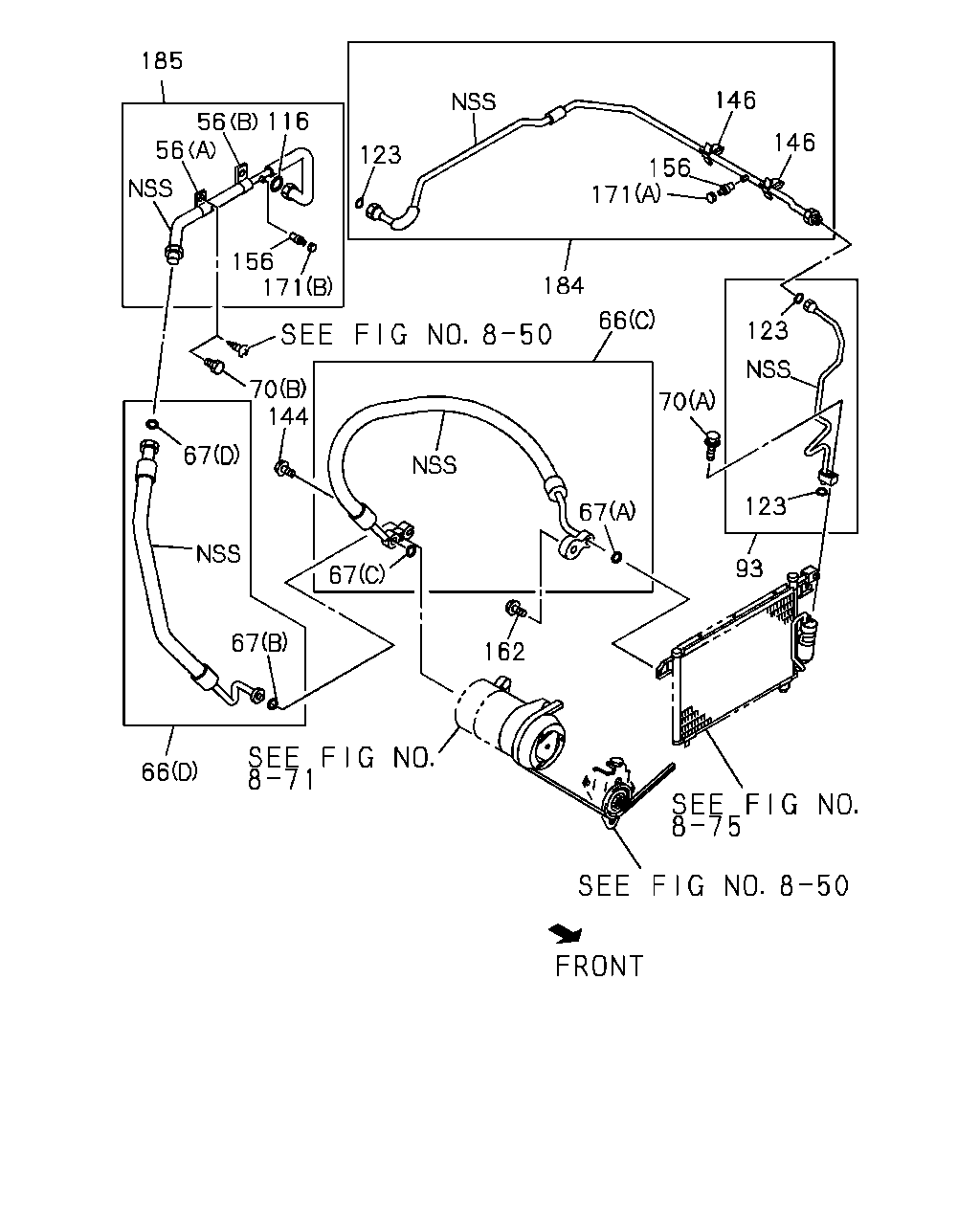

146 146 156 171 123 116 56 185 56 156 171 70 144 67 67 66 67 67 184 66 70 123 123 93 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97137-775-0	01	1	9511-	●	●
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97139-184-0	01	1	9511-	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97038-813-1	01	1	9112-9301	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97086-204-1	01	1	9302-9504	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97086-204-1	01	1	9505-	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D)	8-97038-814-0	01	1	9112-9301	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D)	8-97086-205-0	01	1	9302-9504	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97086-205-0	01	1	9505-	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94376-284-1	01	1	9112-9303	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97086-207-1	01	1	9304-9504	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97086-207-1	01	1	9505-	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94376-291-1	01	1	9112-9301	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97086-203-1	01	1	9302-9504	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97086-203-1	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 (D) ID=13.9	8-94113-330-0	01	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.222 (D) ID=13.9	8-94113-330-0	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 (A) ID=10.8	8-94113-331-0	01	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.222 (A) ID=10.8	8-94113-331-0	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) ID=11.0	8-94461-900-0	01	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (C) ID=11.0	8-94461-900-0	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=14.8	8-94461-901-0	01	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.8	8-94461-901-0	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 (B) ID=13.9	8-94113-330-0	02	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 09.222 (B) ID=13.9	8-94113-330-0	02	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 (A) ID=10.8	8-94113-331-0	02	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 09.222 (A) ID=10.8	8-94113-331-0	02	1	9505-	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.413 (A) M6X25	9-01960-625-0	01	1	9112-9204	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 01.540 (A) M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9205-9208	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9209-9504	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9505-9702	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	9703-	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 13.090 (B) M6X14	8-94153-946-0	01	1	9112-9308	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-9309	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9310-9504	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9310-9504	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-199-0	01	1	9112-9303	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-843-0	01	1	9304-9504	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-843-0	01	1	9505-	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 ID=13.9	8-94113-330-0	01	1	9112-9308	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 ID=13.9	8-94113-330-0	01	1	9309-9504	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9505-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	03	1	9112-9308	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	03	1	9309-9504	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	03	1	9505-9607	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9608-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	02	1	9608-	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	0-28011-045-0	01	1	9112-9204	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9205-9504	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9505-	●	●
144	09.242 BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	9-01961-045-0	01	1	9112-9204	●	●
144	09.242 BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9205-9504	●	●
144	09.242 BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9505-	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9608-	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9304-9504	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9505-	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9112-9308	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9309-9504	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94457-163-0	02	1	9505-	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.262	8-94121-731-0	01	1	9209-9303	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9304-9504	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.262	8-97083-100-0	01	1	9505-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9610-	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9304-9308	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9309-9504	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	9505-	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.578 (B)	8-94324-069-0	01	1	9209-9303	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9304-9308	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9309-9504	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9505-	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97038-934-1	01	1	9112-9303	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-847-1	01	1	9304-9504	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97124-652-0	01	1	9505-	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97017-583-0	01	1	9112-9303	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-845-1	01	1	9304-9504	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-845-1	01	1	9505-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94388-104-3	01	1	9112-9303	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-849-0	01	1	9304-9504	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-849-1	01	1	9505-	●	●

184 146 146 156 171 123 147 148 67 67 67 144 66 144 67 162 123 93 70 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97038-813-1	01	1	9112-9301	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97086-204-1	01	1	9302-9504	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97086-204-1	01	1	9505-	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D)	8-97038-814-0	01	1	9112-9301	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D)	8-97086-205-0	01	1	9302-9504	●	●
66	09.225 HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97086-205-0	01	1	9505-	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94376-284-1	01	1	9112-9303	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97086-207-1	01	1	9304-9504	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97086-207-1	01	1	9505-	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94376-291-1	01	1	9112-9301	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97086-203-1	01	1	9302-9504	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97086-203-1	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 (D) ID=13.9	8-94113-330-0	01	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.222 (D) ID=13.9	8-94113-330-0	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 (A) ID=10.8	8-94113-331-0	01	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.222 (A) ID=10.8	8-94113-331-0	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) ID=11.0	8-94461-900-0	01	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (C) ID=11.0	8-94461-900-0	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=14.8	8-94461-901-0	01	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.8	8-94461-901-0	01	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 (B) ID=13.9	8-94113-330-0	02	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 09.222 (B) ID=13.9	8-94113-330-0	02	1	9505-	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.222 (A) ID=10.8	8-94113-331-0	02	1	9112-9504	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 09.222 (A) ID=10.8	8-94113-331-0	02	1	9505-	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.413 (A) M6X25	9-01960-625-0	01	1	9112-9204	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 01.540 (A) M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9205-9208	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9209-9504	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9505-9702	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	9703-	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 13.090 (B) M6X14	8-94153-946-0	01	1	9112-9308	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-9309	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9310-9504	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9310-9504	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
70	00.206 BOLT; PIPE TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-199-0	01	1	9112-9303	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-843-0	01	1	9304-9504	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-843-0	01	1	9505-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	03	1	9112-9308	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	03	1	9309-9504	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	03	1	9505-9607	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9608-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	02	1	9608-	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	0-28011-045-0	01	1	9112-9204	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9205-9504	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9505-	●	●
144	09.242 BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	9-01961-045-0	01	1	9112-9204	●	●
144	09.242 BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9205-9504	●	●
144	09.242 BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9505-	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9608-	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9304-9504	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9505-	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9112-9308	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9309-9504	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94457-163-0	02	1	9505-	●	●
147	09.242 CAP; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.578 CAP MARK L	8-94324-069-0	01	1	9112-9303	●	●
147	09.242 CAP; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9304-9504	●	●
147	09.242 CAP; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9505-	●	●
148	09.262 VALVE; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-9504	●	●
148	09.262 VALVE; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9505-	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.262	8-94121-731-0	01	1	9209-9303	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9304-9504	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.262	8-97083-100-0	01	1	9505-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9610-	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9304-9308	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9309-9504	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	9505-	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.578 (B)	8-94324-069-0	01	1	9209-9303	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9304-9308	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9309-9504	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9505-	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97038-934-1	01	1	9112-9303	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-847-1	01	1	9304-9504	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97124-652-0	01	1	9505-	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97017-583-0	01	1	9112-9303	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-845-1	01	1	9304-9504	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-845-1	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
