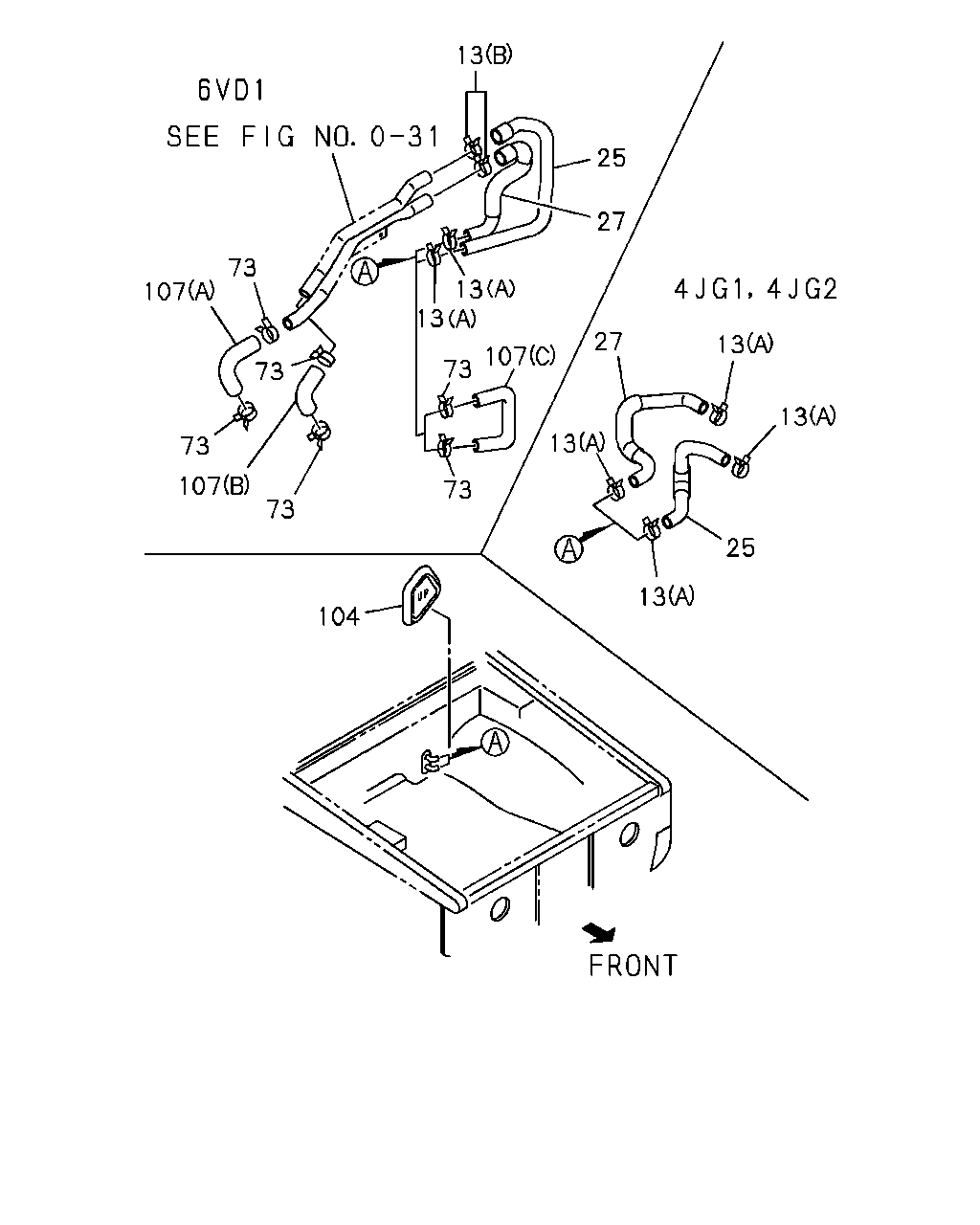

8-45 — HEATER PIPING (#40390) — 48 parça

56 74 56 56 14 56 9 25 13 27 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR 4ZE1 ENG(RLJ)	8-94474-073-2	01	1	9112-	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) ID=22	8-94382-401-0	04	1	9112-9504	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) ID=22	8-94382-401-0	04	1	9505-9607	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) ID=22	8-94382-401-0	04	1	9608-	●	●
13	08.846 CLIP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9608-	●	●
13	08.846 CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) ID=22	8-94382-401-0	02	1	9112-	●	●
13	08.846 CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (B) ID=23	8-94382-402-0	02	1	9112-	●	●
14	08.846 HOSE; WATER,CONN TO PIPE 4ZE1 ENG(RLJ) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94381-104-1	01	1	9112-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-292-0	01	1	9112-9504	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-97023-975-1	01	1	9112-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-205-2	01	1	9112-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-94376-338-0	01	1	9112-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-291-0	01	1	9112-9504	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-97023-974-1	01	1	9112-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-202-4	01	1	9112-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-94376-340-0	01	1	9112-	●	●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	9-09915-642-2	02	1	9112-9204	●	●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=25	8-94369-726-0	02	1	9205-9209	●	●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9210-	●	●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	9-09915-642-2	04	1	9112-9204	●	●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=25	8-94369-726-0	04	1	9205-9209	●	●
56	08.846 CLAMP; HTR HOSE 4ZE1 ENG(RLJ) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	9210-	●	●
74	08.866 HOSE; WATER,ENG TO PIPE 4ZE1 ENG(RLJ)	8-94474-076-2	01	1	9112-	●	●

13 25 27 13 13 25 13 13 27 73 73 107 13 13 73 107 73 73 107 73 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) ID=22	8-94382-401-0	04	1	9112-9504	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) ID=22	8-94382-401-0	04	1	9505-9607	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) ID=22	8-94382-401-0	04	1	9608-	●	●
13	08.846 CLIP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9608-	●	●
13	08.846 CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (A) ID=22	8-94382-401-0	02	1	9112-	●	●
13	08.846 CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> (B) ID=23	8-94382-402-0	02	1	9112-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-292-0	01	1	9112-9504	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-97023-975-1	01	1	9112-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-205-2	01	1	9112-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-94376-338-0	01	1	9112-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-291-0	01	1	9112-9504	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-97023-974-1	01	1	9112-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-202-4	01	1	9112-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-94376-340-0	01	1	9112-	●	●
73	08.846 CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) COOLER WO/HEATER(YL1) 01.150 ID=24	8-97010-605-0	02	1	9112-9608	●	●
73	08.846 CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) COOLER WO/HEATER(YL1) 01.150 ID=24	8-97010-605-0	02	1	9608-	●	●
73	08.846 CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) EXC. COOLER WO/HEATER(YL1) 01.150 ID=24	8-97010-605-0	04	1	9112-9608	●	●
73	08.846 CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.150 ID=24	8-97010-605-0	04	1	9608-	●	●
104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>	8-97038-490-0	01	1	9112-	●	●
107	08.864 HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) COOLER WO/HEATER(YL1) (C)	8-94384-325-1	01	1	9112-9608	●	●
107	08.864 HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) COOLER WO/HEATER(YL1) (C)	8-94384-325-1	01	1	9608-	●	●
107	08.864 HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) EXC. COOLER WO/HEATER(YL1) (A)RETURN	8-97018-915-2	01	1	9112-9608	●	●
107	08.864 HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)REATRN OUT	8-97018-915-2	01	1	9608-	●	●
107	08.864 HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) EXC. COOLER WO/HEATER(YL1) (B)FEED	8-97018-916-2	01	1	9112-9608	●	●
107	08.864 HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)FEED IN	8-97018-916-2	01	1	9608-	●	●
