◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#4039) — 36 parça

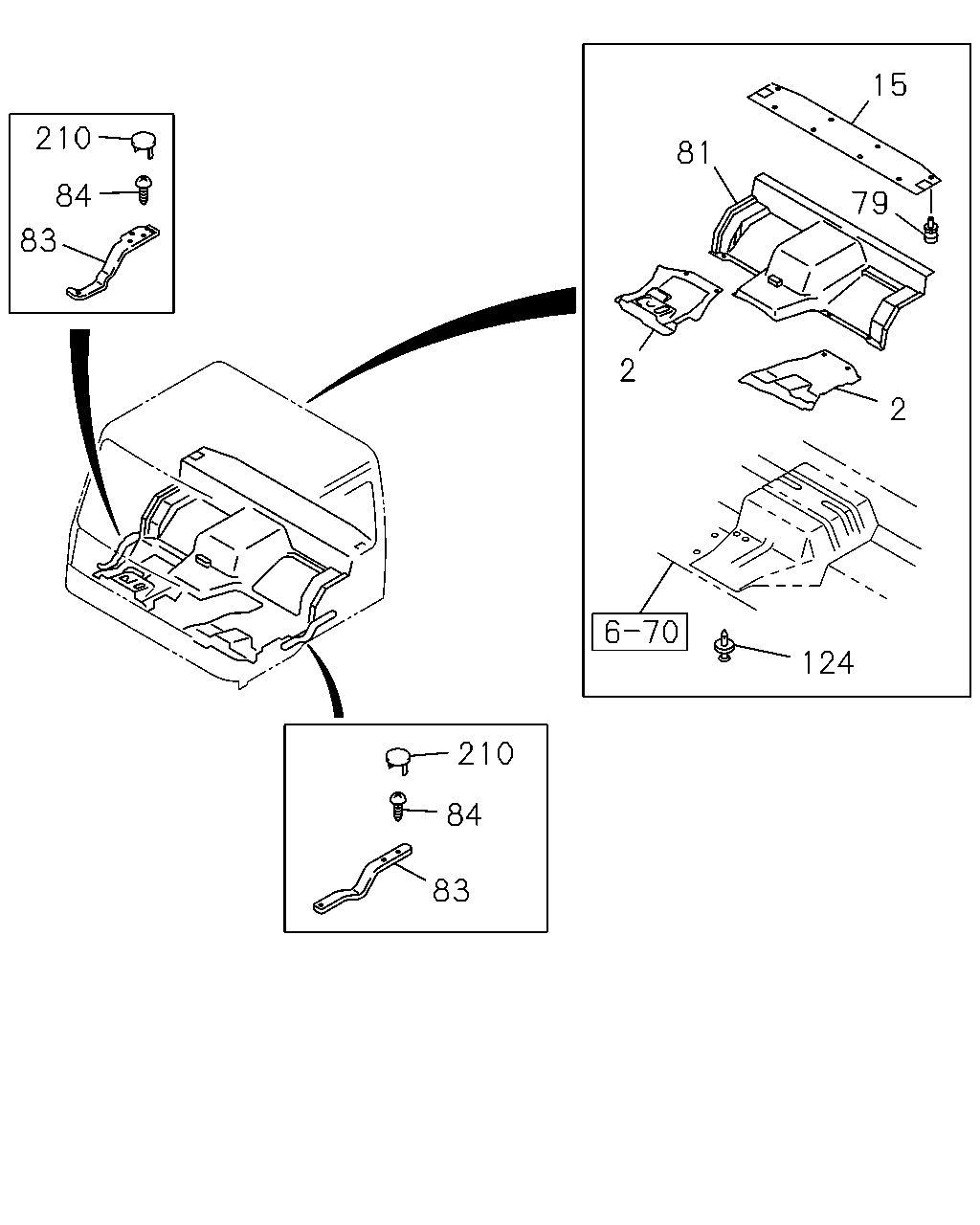

çizim 115767
15 210 81 79 84 83 2 2 124 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR 1-73236-010-0 01 1 9510-9805 ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-010-0 01 1 9806-0004 ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-228-0 01 1 0005-0202 ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-465-2 01 1 0203- ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-011-0 01 1 9510-0004 ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-230-0 01 1 0005-0202 ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-466-1 01 1 0203- ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-013-0 01 1 9510-0004 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-295-0 01 1 0005-0202 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-467-1 01 1 0203- ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-236-0 01 1 9806-0004 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-296-0 01 1 0005-0202 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-468-2 01 1 0203- ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73238-945-2 01 1 9510-9802 ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73238-945-2 01 1 9803-0004 ● ●
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73238-945-2 01 1 9803-0004 ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73236-245-0 01 1 0005-0202 ● ●
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73236-245-0 01 1 0005-0202 ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73236-522-1 01 1 0203- ● ●
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73236-522-1 01 1 0203- ● ●
79 HOOK; MALE
BLACK 		8-94279-089-0 08 1 9510- ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-049-4 01 1 9510-9812 ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-244-2 01 1 9901-0004 ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-232-3 01 1 0005-0202 ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-507-1 01 1 0203- ● ●
81 MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30> 		1-73236-051-4 01 1 9510-0004 ● ●
81 MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30> 		1-73236-298-2 01 1 0005-0202 ● ●
81 MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30> 		1-73236-511-3 01 1 0203- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9510-0004 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0005- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9510-0004 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0005- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9510- ● ●
124 FASTENER 1-09470-007-0 04 1 9510- ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9510-0004 ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
