Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#40388) — 139 parça

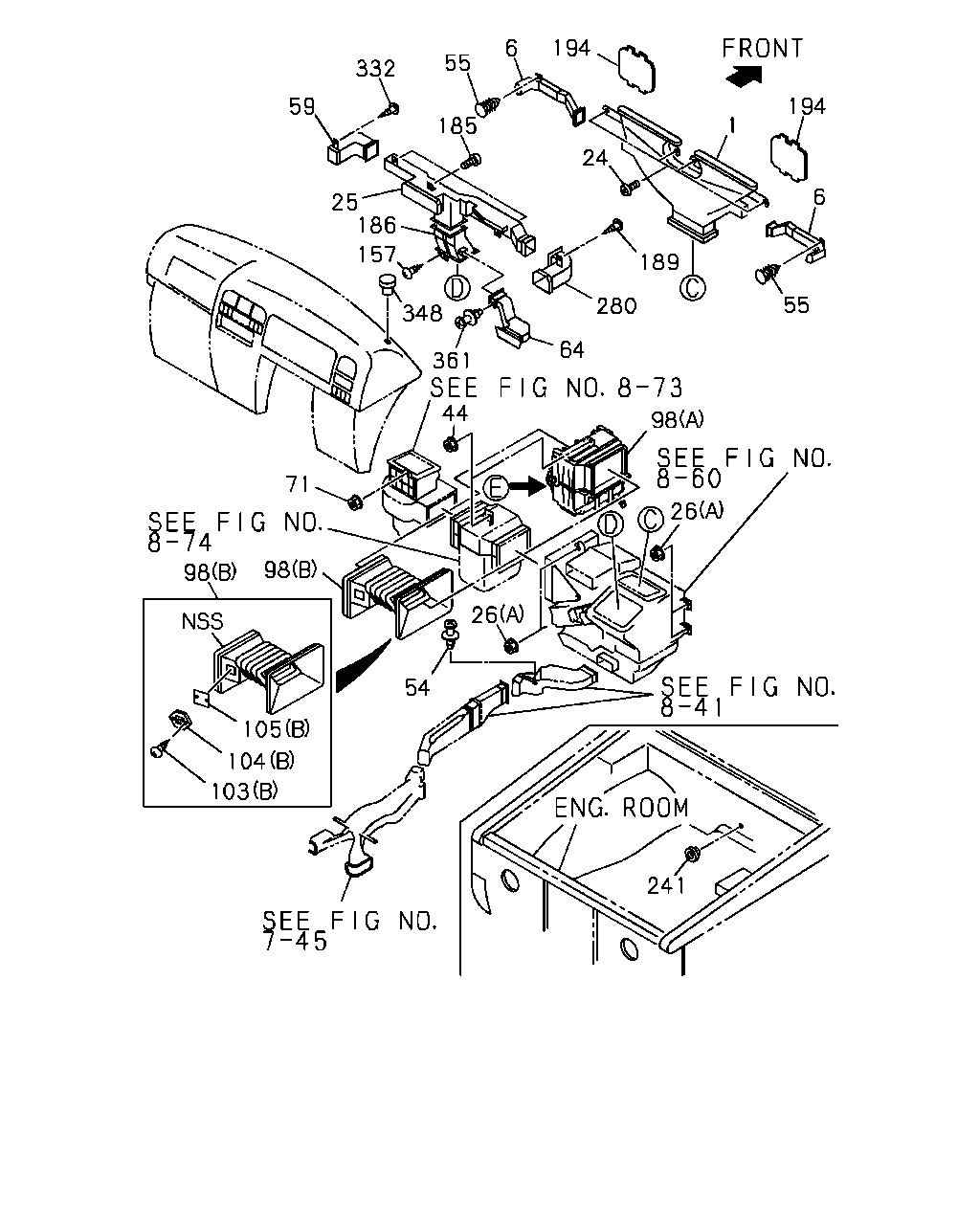

194 6 55 189 24 194 6 55 332 59 185 25 186 157 348 280 64 361 98 26 44 71 98 98 26 54 105 104 103 241 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.779 NOZZLE; DEFROSTER,INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-109-4	01	1	9112-9211	●	●
1	09.779 NOZZLE; DEFROSTER,INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-97089-625-0	01	1	9212-9504	●	●
1	09.779 NOZZLE; DEFROSTER,INST PNL	8-97109-574-1	01	1	9505-	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-111-1	01	1	9112-9504	●	●
6	09.779 DUCT; SIDE DEFROSTER	8-97102-689-1	01	1	9505-	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-110-1	01	1	9112-9504	●	●
6	09.779 DUCT; SIDE DEFROSTER	8-97102-688-1	01	1	9505-	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 02.820 M5X16 W/LK&PL WASHER	9-03920-516-0	04	1	9112-9504	●	●
24	03.890 SCREW; NOZZLE TO INST PNL 02.820 M5X16 W/LK&PL WASHER	9-03920-516-0	04	1	9505-	●	●
25	09.786 DUCT; CENTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-113-4	01	1	9112-9504	●	●
25	09.786 DUCT; CENTER	8-97109-575-1	01	1	9505-	●	●
26	08.845 NUT; HTR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 12.809 (A) M6 FLANGE	8-97022-131-0	04	1	9112-9307	●	●
26	08.845 NUT; HTR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 07.833 (A) M6 FLANGE	8-97063-399-0	04	1	9308-9504	●	●
26	08.845 NUT; HTR 07.833 (A) M6 FLANGE	8-97063-399-0	04	1	9505-	●	●
26	08.845 NUT; HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLE R WO/HEATER(YL1) 12.809 (B) M6 FLANGE	8-97022-131-0	01	1	9112-9307	●	●
26	08.845 NUT; HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLE R WO/HEATER(YL1) 07.833 (B) M6 FLANGE	8-97063-399-0	01	1	9308-9504	●	●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12.809 M6 FLANGE	8-97022-131-0	02	1	9112-9307	●	●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	02	1	9308-9504	●	●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
44	09.222 NUT; EVAP EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
54	09.262 CLIP; VENT DUCT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 12.801 D6.8X12	8-94198-687-0	01	1	9505-	●	●
55	09.262 CLIP; HOSE,SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 16.550 BROWN	8-94476-811-0	02	1	9112-9504	●	●
55	09.262 CLIP; HOSE,SIDE DEFROSTER 03.023 ID=6 OD=16 L=18	8-94178-705-0	02	1	9505-	●	●
59	09.786 DUCT; VENT,ASSIST SIDE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-117-1	01	1	9112-9504	●	●
59	09.786 DUCT; VENT,ASSIST SIDE	8-97109-577-1	01	1	9505-	●	●
64	09.264 DUCT; VENT,DRIVER SIDE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-115-0	01	1	9112-9504	●	●
64	09.264 DUCT; VENT,DRIVER SIDE	8-97109-580-2	01	1	9505-	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 12.809 M6 FLANGE	8-97022-131-0	03	1	9112-9307	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	03	1	9308-9504	●	●
71	08.845 NUT; BLOWER UNIT TO DASH 07.833 M6 FLANGE	8-97063-399-0	03	1	9505-	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A)	8-97109-569-2	01	1	9505-	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (B)	8-94376-107-0	01	1	9112-9504	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B)	8-94376-107-0	01	1	9505-	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 08.852 (A) M4X16	8-94324-850-0	08	1	9505-	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> 09.789 (B) M4X16 TAPPING	1-83579-114-0	02	1	9112-9504	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 09.789 (B) M4X16 TAPPING	1-83579-114-0	02	1	9505-	●	●
104	08.855 RESISTOR; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.277 (A)	8-97083-136-1	01	1	9505-	●	●
104	08.855 RESISTOR; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (B)	8-97045-850-0	01	1	9112-9504	●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B)	8-97045-850-0	01	1	9505-	●	●
105	08.856 PLATE; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A)	8-97125-382-0	01	1	9505-	●	●
105	08.856 PLATE; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (B)	8-97045-851-0	01	1	9112-9504	●	●
105	08.856 PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B)	8-97045-851-0	01	1	9505-	●	●
157	09.264 SCREW 16.085 M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
185	09.262 SCREW; VENT DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	02	1	9112-9504	●	●
185	09.262 SCREW; VENT DUCT 16.085 M5X16 TAPPING	9-09829-323-1	03	1	9505-	●	●
186	09.786 DUCT; VENTILATOR	8-97109-578-1	01	1	9505-	●	●
189	09.264 SCREW; AIR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	01	1	9112-9504	●	●
189	09.264 SCREW; AIR DUCT 16.085 M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
194	09.262 COVER; HOLE,RAM AIR	8-94435-191-0	02	1	9505-9505	●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.206	8-94222-309-1	01	1	9112-9504	●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 00.206	8-94222-309-1	01	1	9505-	●	●
280	09.264 DUCT; VENT,DRIVER SIDE	8-97109-576-1	01	1	9505-	●	●
332	08.845 SCREW; TAP,COVER 16.085 M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
348	08.850 COVER; SUN SENSOR 950529-	8-97038-702-0	01	1	9112-9505	●	●
348	08.850 COVER; SUN SENSOR	8-97121-843-1	01	1	9505-	●	●
361	09.780 CLIP; DUCT 12.801 D6.8X12	8-94198-687-0	01	1	9505-	●	●

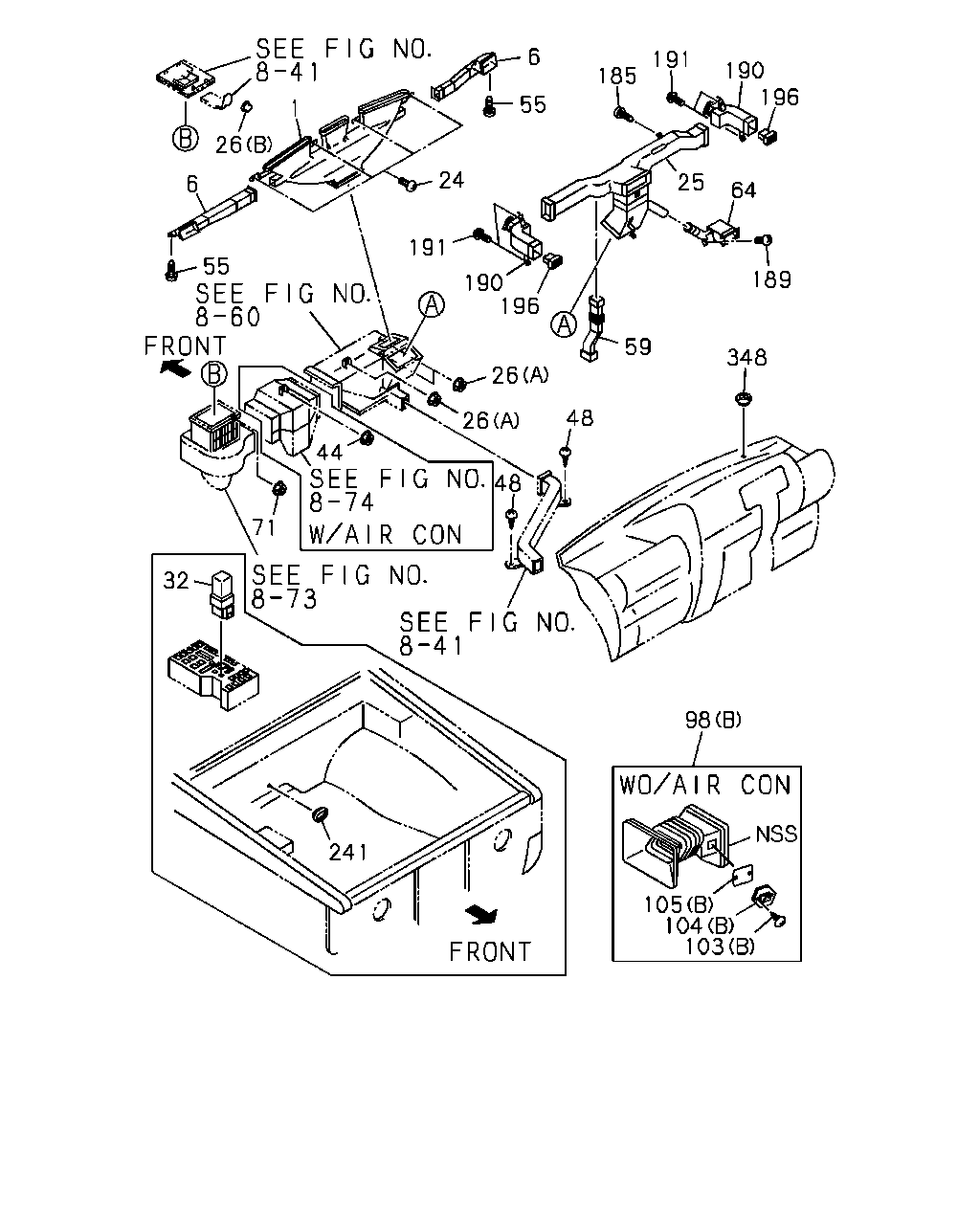

196 190 191 185 25 64 189 348 6 55 59 196 190 191 24 26 6 26 26 48 44 71 32 241 105 104 103 98 55 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	09.779 DUCT; SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-111-1	01	1	9112-9504	●	●
6	09.779 DUCT; SIDE DEFROSTER	8-97102-689-1	01	1	9505-	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-110-1	01	1	9112-9504	●	●
6	09.779 DUCT; SIDE DEFROSTER	8-97102-688-1	01	1	9505-	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 02.820 M5X16 W/LK&PL WASHER	9-03920-516-0	04	1	9112-9504	●	●
24	03.890 SCREW; NOZZLE TO INST PNL 02.820 M5X16 W/LK&PL WASHER	9-03920-516-0	04	1	9505-	●	●
25	09.786 DUCT; CENTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-113-4	01	1	9112-9504	●	●
25	09.786 DUCT; CENTER	8-97109-575-1	01	1	9505-	●	●
26	08.845 NUT; HTR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 12.809 (A) M6 FLANGE	8-97022-131-0	04	1	9112-9307	●	●
26	08.845 NUT; HTR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 07.833 (A) M6 FLANGE	8-97063-399-0	04	1	9308-9504	●	●
26	08.845 NUT; HTR 07.833 (A) M6 FLANGE	8-97063-399-0	04	1	9505-	●	●
26	08.845 NUT; HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLE R WO/HEATER(YL1) 12.809 (B) M6 FLANGE	8-97022-131-0	01	1	9112-9307	●	●
26	08.845 NUT; HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLE R WO/HEATER(YL1) 07.833 (B) M6 FLANGE	8-97063-399-0	01	1	9308-9504	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 01.055 12V 20A	8-97048-665-0	01	1	9112-9201	●	●
32	02.440 RELAY; A/C 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCON PREPARATORY PACK<S6D>,COOLER WO/HEAT ER(YL1) 01.055 12V 20A	8-97048-665-0	01	1	9202-9303	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 01.055 12V 20A	8-97048-665-0	01	1	9202-9303	●	●
32	02.440 RELAY; A/C 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCON PREPARATORY PACK<S6D>,COOLER WO/HEAT ER(YL1) 02.515 12V 20A	8-97093-910-0	01	1	9304-9308	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 02.515 12V 20A	8-97093-910-0	01	1	9304-9308	●	●
32	02.440 RELAY; A/C 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.515 12V 20A	8-97093-910-1	01	1	9309-9504	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 02.515 12V 20A	8-97093-910-1	01	1	9309-9504	●	●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12.809 M6 FLANGE	8-97022-131-0	02	1	9112-9307	●	●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	02	1	9308-9504	●	●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
44	09.222 NUT; EVAP EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
48	09.222 SCREW; HTR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 16.085 M5X16 TAPPING	9-09829-323-1	02	1	9112-9504	●	●
55	09.262 CLIP; HOSE,SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 16.550 BROWN	8-94476-811-0	02	1	9112-9504	●	●
55	09.262 CLIP; HOSE,SIDE DEFROSTER 03.023 ID=6 OD=16 L=18	8-94178-705-0	02	1	9505-	●	●
59	09.786 DUCT; VENT,ASSIST SIDE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-117-1	01	1	9112-9504	●	●
59	09.786 DUCT; VENT,ASSIST SIDE	8-97109-577-1	01	1	9505-	●	●
64	09.264 DUCT; VENT,DRIVER SIDE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1)	8-94376-115-0	01	1	9112-9504	●	●
64	09.264 DUCT; VENT,DRIVER SIDE	8-97109-580-2	01	1	9505-	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 12.809 M6 FLANGE	8-97022-131-0	03	1	9112-9307	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	03	1	9308-9504	●	●
71	08.845 NUT; BLOWER UNIT TO DASH 07.833 M6 FLANGE	8-97063-399-0	03	1	9505-	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A)	8-97109-569-2	01	1	9505-	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (B)	8-94376-107-0	01	1	9112-9504	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B)	8-94376-107-0	01	1	9505-	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 08.852 (A) M4X16	8-94324-850-0	08	1	9505-	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> 09.789 (B) M4X16 TAPPING	1-83579-114-0	02	1	9112-9504	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 09.789 (B) M4X16 TAPPING	1-83579-114-0	02	1	9505-	●	●
104	08.855 RESISTOR; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.277 (A)	8-97083-136-1	01	1	9505-	●	●
104	08.855 RESISTOR; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (B)	8-97045-850-0	01	1	9112-9504	●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B)	8-97045-850-0	01	1	9505-	●	●
105	08.856 PLATE; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A)	8-97125-382-0	01	1	9505-	●	●
105	08.856 PLATE; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (B)	8-97045-851-0	01	1	9112-9504	●	●
105	08.856 PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B)	8-97045-851-0	01	1	9505-	●	●
185	09.262 SCREW; VENT DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	02	1	9112-9504	●	●
185	09.262 SCREW; VENT DUCT 16.085 M5X16 TAPPING	9-09829-323-1	03	1	9505-	●	●
189	09.264 SCREW; AIR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	01	1	9112-9504	●	●
189	09.264 SCREW; AIR DUCT 16.085 M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
190	09.262 BOX; VENT,RAM AIR	8-94376-119-1	01	1	9112-9504	●	●
190	09.262 BOX; VENT,RAM AIR	8-94376-118-1	01	1	9112-9504	●	●
191	09.262 SCREW; VENT BOX 16.085 M5X16 TAPPING	9-09829-323-1	06	1	9112-9504	●	●
196	09.262 KNOB; VENT BOX INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-154-0	02	1	9112-9504	●	●
196	09.262 KNOB; VENT BOX INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-156-0	02	1	9112-9504	●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.206	8-94222-309-1	01	1	9112-9504	●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 00.206	8-94222-309-1	01	1	9505-	●	●
348	08.850 COVER; SUN SENSOR 950529-	8-97038-702-0	01	1	9112-9505	●	●
348	08.850 COVER; SUN SENSOR	8-97121-843-1	01	1	9505-	●	●

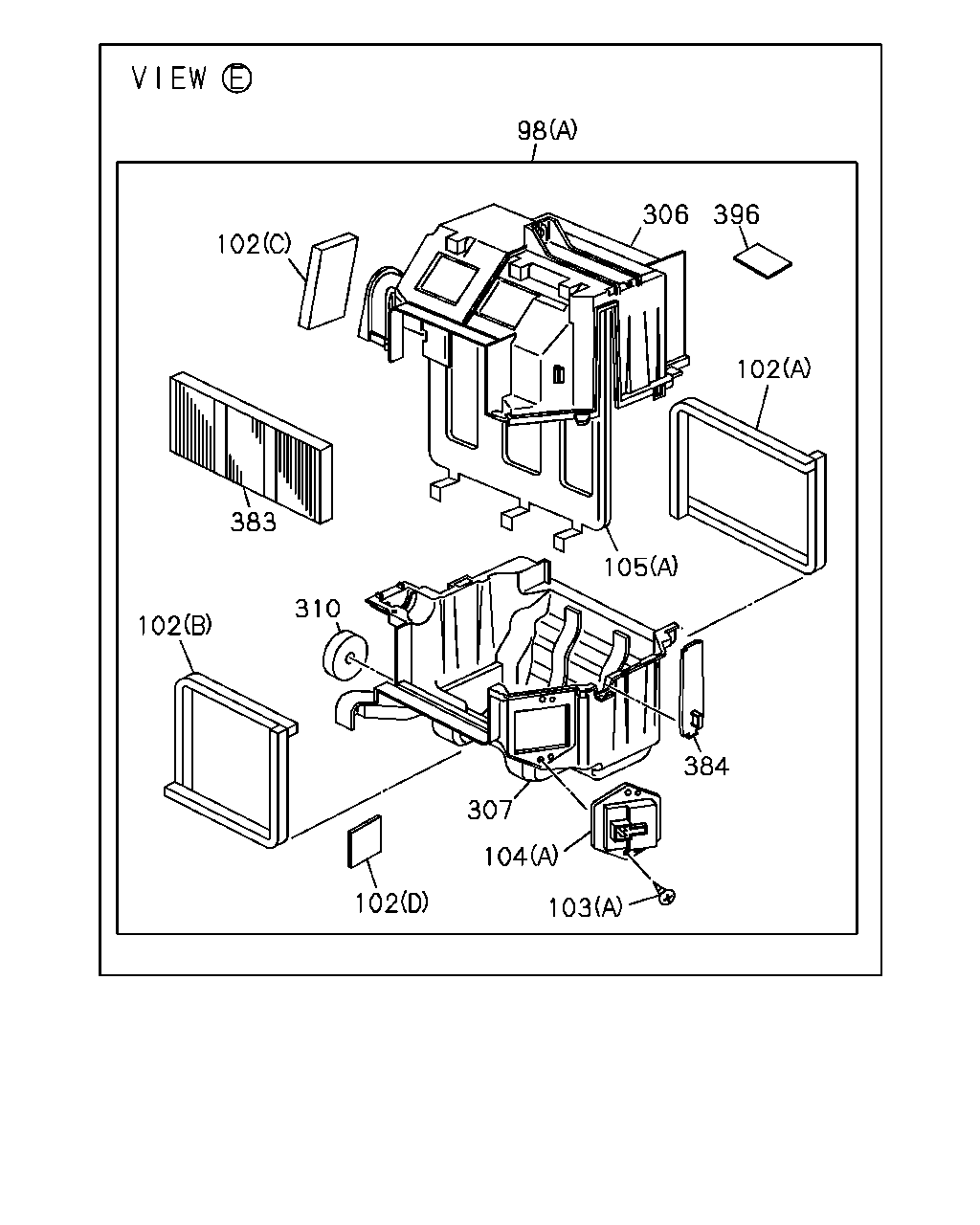

98 396 306 102 383 102 310 102 103 104 307 384 105 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A)	8-97109-569-2	01	1	9505-	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (B)	8-94376-107-0	01	1	9112-9504	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B)	8-94376-107-0	01	1	9505-	●	●
102	09.262 LINING; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.211 (A)	8-97103-723-0	01	1	9505-	●	●
102	09.262 LINING; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.211 (B)	8-97103-724-0	01	1	9505-	●	●
102	09.262 LINING; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (C)	8-97112-515-0	01	1	9505-	●	●
102	09.262 LINING; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (D)	8-97148-682-0	01	1	9603-	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 08.852 (A) M4X16	8-94324-850-0	08	1	9505-	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> 09.789 (B) M4X16 TAPPING	1-83579-114-0	02	1	9112-9504	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 09.789 (B) M4X16 TAPPING	1-83579-114-0	02	1	9505-	●	●
104	08.855 RESISTOR; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.277 (A)	8-97083-136-1	01	1	9505-	●	●
104	08.855 RESISTOR; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (B)	8-97045-850-0	01	1	9112-9504	●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B)	8-97045-850-0	01	1	9505-	●	●
105	08.856 PLATE; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A)	8-97125-382-0	01	1	9505-	●	●
105	08.856 PLATE; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> (B)	8-97045-851-0	01	1	9112-9504	●	●
105	08.856 PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B)	8-97045-851-0	01	1	9505-	●	●
306	08.845 CASE; UPR,HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4)	8-97112-513-0	01	1	9505-9602	●	●
306	08.845 CASE; UPR,HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.211	8-97111-811-2	01	1	9603-	●	●
307	08.845 CASE; LWR,HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4)	8-97112-514-0	01	1	9505-9602	●	●
307	08.845 CASE; LWR,HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4)	8-97148-681-0	01	1	9603-	●	●
310	08.845 GROMMET; HTR DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.211	8-97069-405-2	01	1	9505-	●	●
383	09.264 FILTER; DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4)	8-97111-788-0	02	1	9505-	●	●
384	08.845 COVER; DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4)	8-97111-790-0	01	1	9505-	●	●
396	09.262 TAPE; DUCT HEATER&DEFROSTER(C41) EUROPE EQUIPMENT(EK4)	1-83579-367-0	01	1	9603-	●	●
