◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#40387) — 99 parça

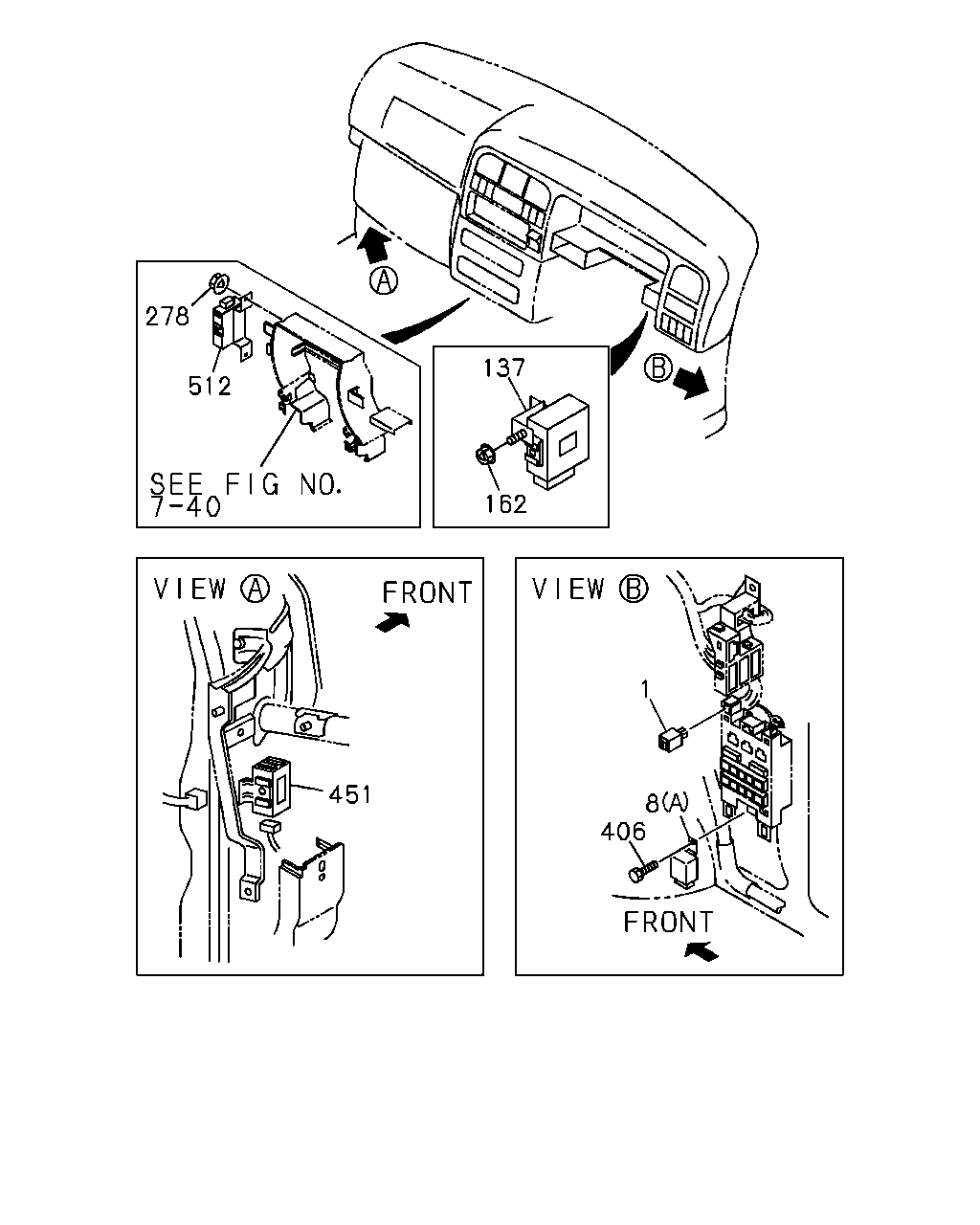

çizim 16528
278 512 137 162 451 8 406 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9112-9309 ● ●
1 02.575 UNIT; FLASHER
EXC. AUSTRALIA EQUIPMENT(RR3) DENSO 		8-97038-317-0 01 1 9310- ● ●
1 02.575 UNIT; FLASHER
NILES 		8-97039-288-0 01 1 9112-9309 ● ●
1 02.575 UNIT; FLASHER
AUSTRALIA EQUIPMENT(RR3) NILES 		8-97106-215-0 01 1 9310-9504 ● ●
1 02.575 UNIT; FLASHER
AUSTRALIA EQUIPMENT(RR3) NILES 		8-97126-059-0 01 1 9505- ● ●
1 02.575 UNIT; FLASHER
EXC. AUSTRALIA EQUIPMENT(RR3) NILES 		8-97105-453-0 01 1 9401- ● ●
8 16.067 RELAY; WIPER
FRT WIPER W/VARIABLE INTERMITTENT<6WH> (B) 		8-94377-631-0 01 1 9112- ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> (B) 		8-94377-632-0 01 1 9112- ● ●
8 16.067 RELAY; WIPER
RR WIPER W/INTERMITTENT<6WJ> (A) 		8-94376-088-0 01 1 9112- ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> 		8-97031-754-0 01 1 9112-9208 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> 		8-97078-459-0 01 1 9209-9504 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> 		8-97129-424-0 01 1 9505- ● ●
162 03.415 NUT; ECM BRKT
ANTI THEFT<UA6> 07.833 M6 FLANGE 		8-97063-399-0 02 1 9505- ● ●
278 03.415 NUT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 07.833 M6 FLANGE 		8-97063-399-0 02 1 9505-9607 ● ●
278 03.415 NUT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 07.833 M6 W/DISHED WASHER 		8-94170-192-0 02 1 9608- ● ●
406 16.067 BOLT; WIPER RELAY
RR WIPER W/INTERMITTENT<6WJ> 06.672 M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
406 16.067 BOLT; WIPER RELAY
ANTI THEFT<UA6> EXC. RR WIPER W/INTERMITTENT<6WJ> 06.672 M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
406 16.067 BOLT; WIPER RELAY
RR WIPER W/INTERMITTENT<6WJ> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
406 16.067 BOLT; WIPER RELAY
ANTI THEFT<UA6> EXC. RR WIPER W/INTERMITTENT<6WJ> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
451 02.485 TIMER; HEADLAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-299-0 01 1 9112- ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
4JG2 ENG(RJC) TURBOCHARGER<K51> IMMOBILIZER SYSTEM<7KC> 		8-97130-262-0 01 1 9505-9510 ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
4JG2 ENG(RJC) TURBOCHARGER<K51> IMMOBILIZER SYSTEM<7KC> 		8-97136-238-0 01 1 9511- ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
6VD1 SOHC ENG(RLU) IMMOBILIZER SYSTEM<7KC> 		8-97130-260-0 01 1 9505-9510 ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
6VD1 SOHC ENG(RLU) IMMOBILIZER SYSTEM<7KC> 		8-97136-234-0 01 1 9511- ● ●

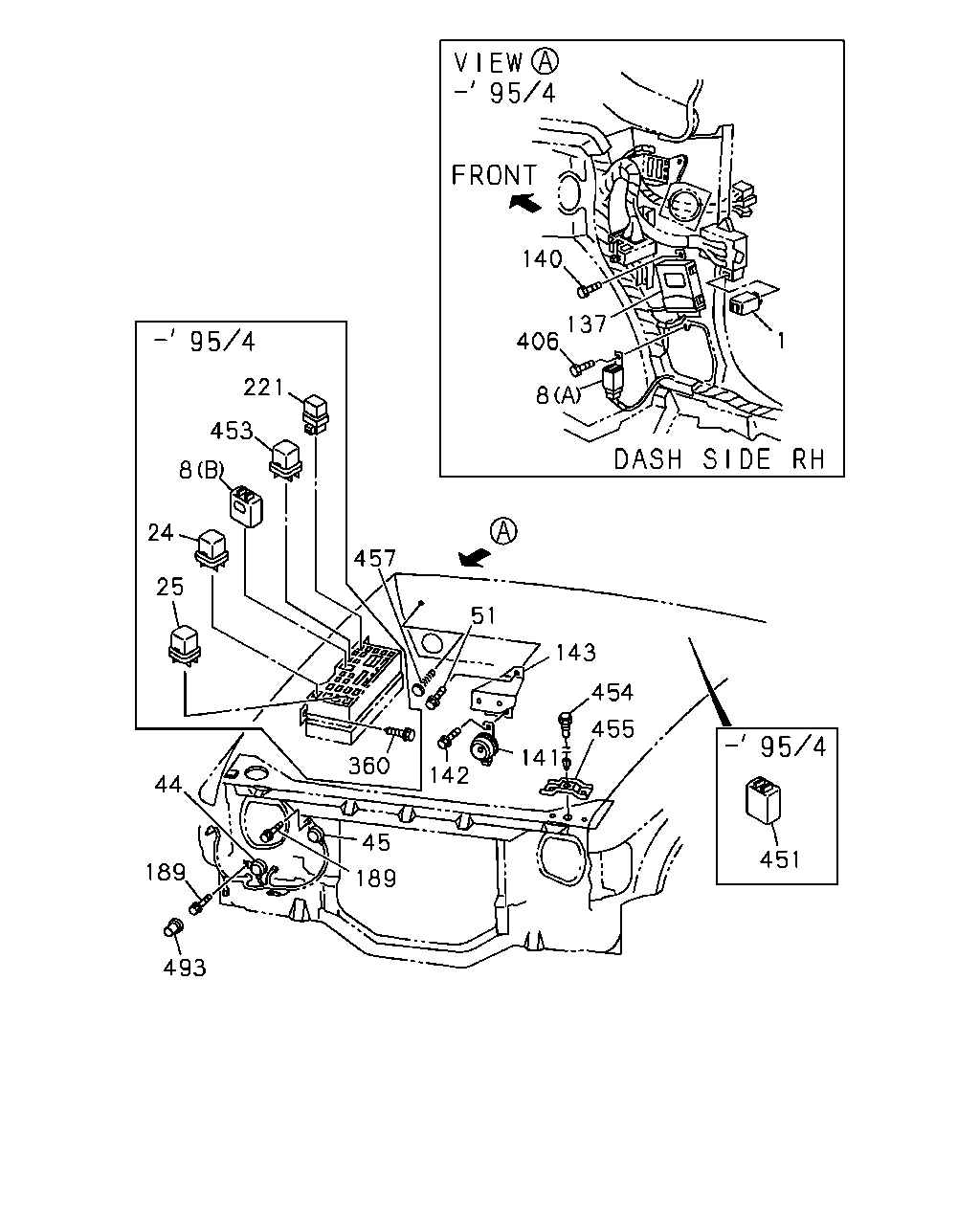

çizim 65671
140 137 406 8 1 221 453 8 24 25 457 51 143 454 455 451 141 142 360 44 189 493 189 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9112-9309 ● ●
1 02.575 UNIT; FLASHER
EXC. AUSTRALIA EQUIPMENT(RR3) DENSO 		8-97038-317-0 01 1 9310- ● ●
1 02.575 UNIT; FLASHER
NILES 		8-97039-288-0 01 1 9112-9309 ● ●
1 02.575 UNIT; FLASHER
AUSTRALIA EQUIPMENT(RR3) NILES 		8-97106-215-0 01 1 9310-9504 ● ●
1 02.575 UNIT; FLASHER
AUSTRALIA EQUIPMENT(RR3) NILES 		8-97126-059-0 01 1 9505- ● ●
1 02.575 UNIT; FLASHER
EXC. AUSTRALIA EQUIPMENT(RR3) NILES 		8-97105-453-0 01 1 9401- ● ●
8 16.067 RELAY; WIPER
FRT WIPER W/VARIABLE INTERMITTENT<6WH> (B) 		8-94377-631-0 01 1 9112- ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> (B) 		8-94377-632-0 01 1 9112- ● ●
8 16.067 RELAY; WIPER
RR WIPER W/INTERMITTENT<6WJ> (A) 		8-94376-088-0 01 1 9112- ● ●
24 02.100 RELAY; LIGHTING
EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 02.510 12V 15A 		8-94147-095-0 01 1 9112-9212 ● ●
24 02.100 RELAY; LIGHTING
EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 02.510 12V 15A 		8-94147-095-0 01 1 9301-9308 ● ●
24 02.100 RELAY; LIGHTING
IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9112-9212 ● ●
24 02.100 RELAY; LIGHTING
EXC. EUROPE EQUIPMENT(EK4) 03.910 12V 20A 		8-94218-497-0 01 1 9112-9212 ● ●
24 02.100 RELAY; LIGHTING
EXC. EUROPE EQUIPMENT(EK4) 03.910 12V 20A 		8-94218-497-0 01 1 9301-9308 ● ●
24 02.100 RELAY; LIGHTING
SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9301-9308 ● ●
24 02.100 RELAY; LIGHTING
03.910 12V 20A 		8-94218-497-0 01 1 9309- ● ●
25 02.100 RELAY; TAIL LAMP
EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9112-9212 ● ●
25 02.100 RELAY; TAIL LAMP
EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9301-9504 ● ●
25 02.100 RELAY; TAIL LAMP
02.515 12V 20A 		8-97093-910-1 01 1 9505- ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-94463-449-2 01 1 9112-9607 ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97138-271-1 01 1 9608- ● ●
45 02.810 HORN; LOW NOTE 8-94463-450-2 01 1 9112-9607 ● ●
45 02.810 HORN; LOW NOTE 8-97138-272-1 01 1 9608- ● ●
51 02.812 BOLT; HORN TO BRKT
ANTI THEFT<UA6> 00.206 M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9112-9204 ● ●
51 02.812 BOLT; HORN TO BRKT
ANTI THEFT<UA6> 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205-9504 ● ●
51 02.812 BOLT; HORN TO BRKT
ANTI THEFT<UA6> 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505-9607 ● ●
51 02.812 BOLT; HORN TO BRKT
A/T THM(RMQ) 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505-9607 ● ●
51 02.812 BOLT; HORN TO BRKT
ANTI THEFT<UA6> 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9608-9705 ● ●
51 02.812 BOLT; HORN TO BRKT
ANTI THEFT<UA6> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9706- ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> 		8-97031-754-0 01 1 9112-9208 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> 		8-97078-459-0 01 1 9209-9504 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> 		8-97129-424-0 01 1 9505- ● ●
140 16.263 BOLT; CONTROLLER
ANTI THEFT<UA6> 06.672 M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
140 16.263 BOLT; CONTROLLER
ANTI THEFT<UA6> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
141 02.810 HORN; ANTI THEFT
ANTI THEFT<UA6> 		8-94469-228-0 01 1 9112-9504 ● ●
141 02.810 HORN; ANTI THEFT
ANTI THEFT<UA6> 		8-94434-496-0 01 1 9505- ● ●
142 02.810 BOLT; HORN,ANTI THEFT
ANTI THEFT<UA6> 12.237 M8X16 W/LK&PL WASHER 		9-01960-816-0 01 1 9112-9204 ● ●
142 02.810 BOLT; HORN,ANTI THEFT
ANTI THEFT<UA6> 12.187 M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 9205-9407 ● ●
142 02.810 BOLT; HORN,ANTI THEFT
ANTI THEFT<UA6> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9408- ● ●
143 02.810 BRACKET; ANTI THEFT HORN
ANTI THEFT<UA6> 02.812 		8-97072-528-0 01 1 9112-9504 ● ●
143 02.810 BRACKET; ANTI THEFT HORN
ANTI THEFT<UA6> 02.812 		8-97072-528-0 01 1 9505-9607 ● ●
143 02.810 BRACKET; ANTI THEFT HORN
A/T THM(RMQ) 02.812 		8-97072-528-0 01 1 9505-9607 ● ●
143 02.810 BRACKET; ANTI THEFT HORN
ANTI THEFT<UA6> 02.812 		8-97072-528-0 01 1 9608- ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.343 M8X22 		8-94122-771-0 01 1 9112-9308 ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9309- ● ●
221 02.510 RELAY; AUTO CRUISE
AUTO CRUISE CONT<K30> 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
221 02.510 RELAY; AUTO CRUISE
AUTO CRUISE CONT<K30> 02.515 12V 20A 		8-97093-910-1 01 1 9304-9504 ● ●
360 02.483 BOLT; RELAY BOX
03.885 M6X20 		8-94412-422-0 03 1 9112-9504 ● ●
406 16.067 BOLT; WIPER RELAY
RR WIPER W/INTERMITTENT<6WJ> 06.672 M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
406 16.067 BOLT; WIPER RELAY
ANTI THEFT<UA6> EXC. RR WIPER W/INTERMITTENT<6WJ> 06.672 M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
406 16.067 BOLT; WIPER RELAY
RR WIPER W/INTERMITTENT<6WJ> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
406 16.067 BOLT; WIPER RELAY
ANTI THEFT<UA6> EXC. RR WIPER W/INTERMITTENT<6WJ> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
451 02.485 TIMER; HEADLAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-299-0 01 1 9112- ● ●
453 05.660 RELAY; LOCK UP
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 03.910 12V 20A 		8-94218-497-0 01 1 9112-9504 ● ●
454 08.083 SWITCH
ANTI THEFT<UA6> 		8-94371-878-2 01 1 9112- ● ●
455 08.083 BRACKET; ENG HOOD SW
ANTI THEFT<UA6> 		8-97034-040-1 01 1 9112-9308 ● ●
455 08.083 BRACKET; ENG HOOD SW
ANTI THEFT<UA6> 		8-97090-018-0 01 1 9309- ● ●
457 02.815 CLIP; HOLE COVER
EXC. ANTI THEFT<UA6> 16.067 		8-94279-922-0 02 1 9112-9504 ● ●
457 02.815 CLIP; HOLE COVER
EXC. ANTI THEFT<UA6> 16.067 		8-94279-922-0 02 1 9505-9607 ● ●
457 02.815 CLIP; HOLE COVER
4ZE1 ENG(RLJ) 16.067 		8-94279-922-0 02 1 9505-9607 ● ●
457 02.815 CLIP; HOLE COVER
EXC. ANTI THEFT<UA6> 16.067 		8-94279-922-0 02 1 9608- ● ●
493 02.810 CAP; RUBBER
DUAL TONE HORN<U05> 		8-97095-863-0 01 1 9309- ● ●

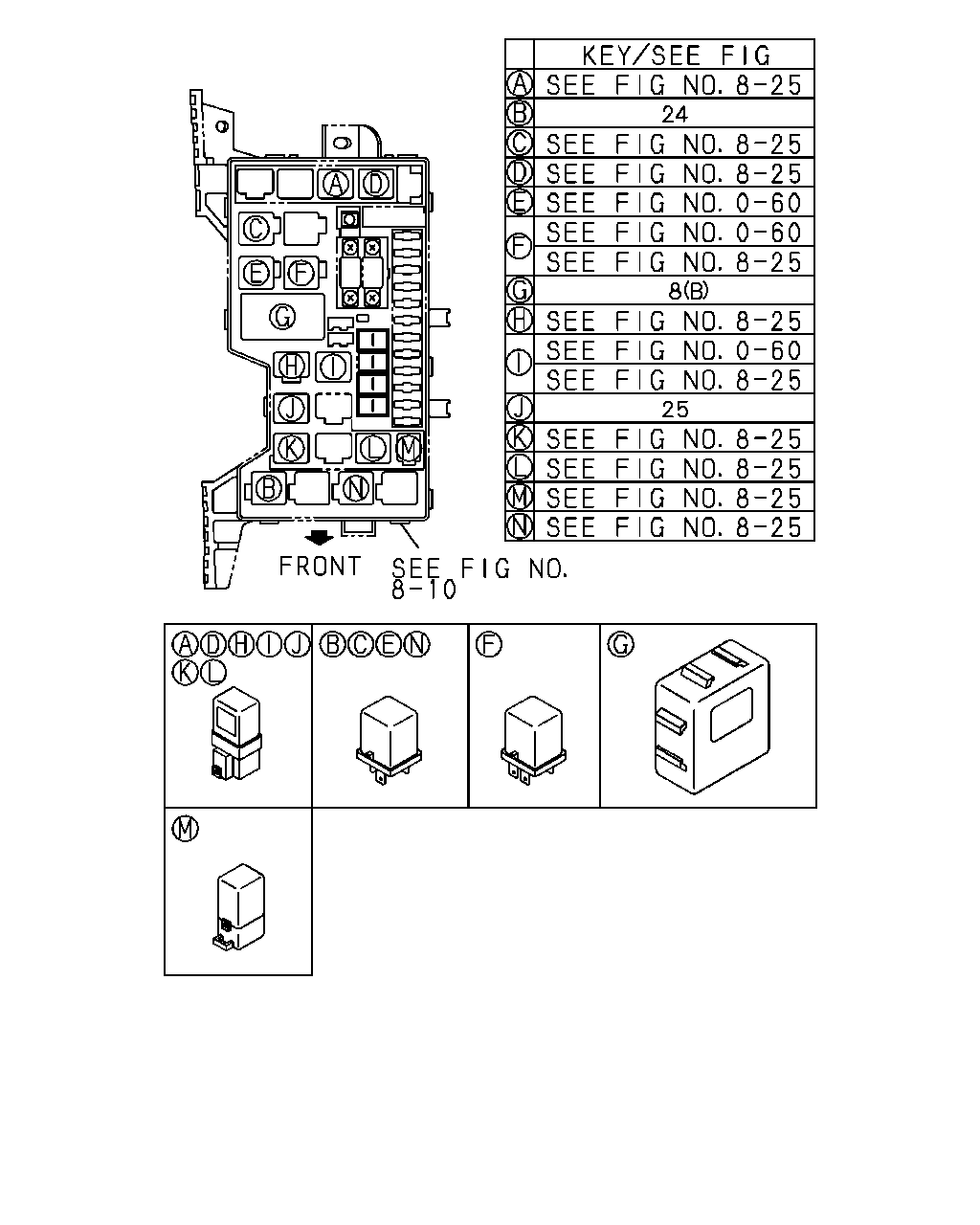

çizim 66114
24 8 25
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.067 RELAY; WIPER
FRT WIPER W/VARIABLE INTERMITTENT<6WH> (B) 		8-94377-631-0 01 1 9112- ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> (B) 		8-94377-632-0 01 1 9112- ● ●
8 16.067 RELAY; WIPER
RR WIPER W/INTERMITTENT<6WJ> (A) 		8-94376-088-0 01 1 9112- ● ●
24 02.100 RELAY; LIGHTING
EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 02.510 12V 15A 		8-94147-095-0 01 1 9112-9212 ● ●
24 02.100 RELAY; LIGHTING
EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 02.510 12V 15A 		8-94147-095-0 01 1 9301-9308 ● ●
24 02.100 RELAY; LIGHTING
IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9112-9212 ● ●
24 02.100 RELAY; LIGHTING
EXC. EUROPE EQUIPMENT(EK4) 03.910 12V 20A 		8-94218-497-0 01 1 9112-9212 ● ●
24 02.100 RELAY; LIGHTING
EXC. EUROPE EQUIPMENT(EK4) 03.910 12V 20A 		8-94218-497-0 01 1 9301-9308 ● ●
24 02.100 RELAY; LIGHTING
SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9301-9308 ● ●
24 02.100 RELAY; LIGHTING
03.910 12V 20A 		8-94218-497-0 01 1 9309- ● ●
25 02.100 RELAY; TAIL LAMP
EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9112-9212 ● ●
25 02.100 RELAY; TAIL LAMP
EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9301-9504 ● ●
25 02.100 RELAY; TAIL LAMP
02.515 12V 20A 		8-97093-910-1 01 1 9505- ● ●
