Isuzu WW
▶
SUV
▶
UBS
▶
50658 - UBS-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

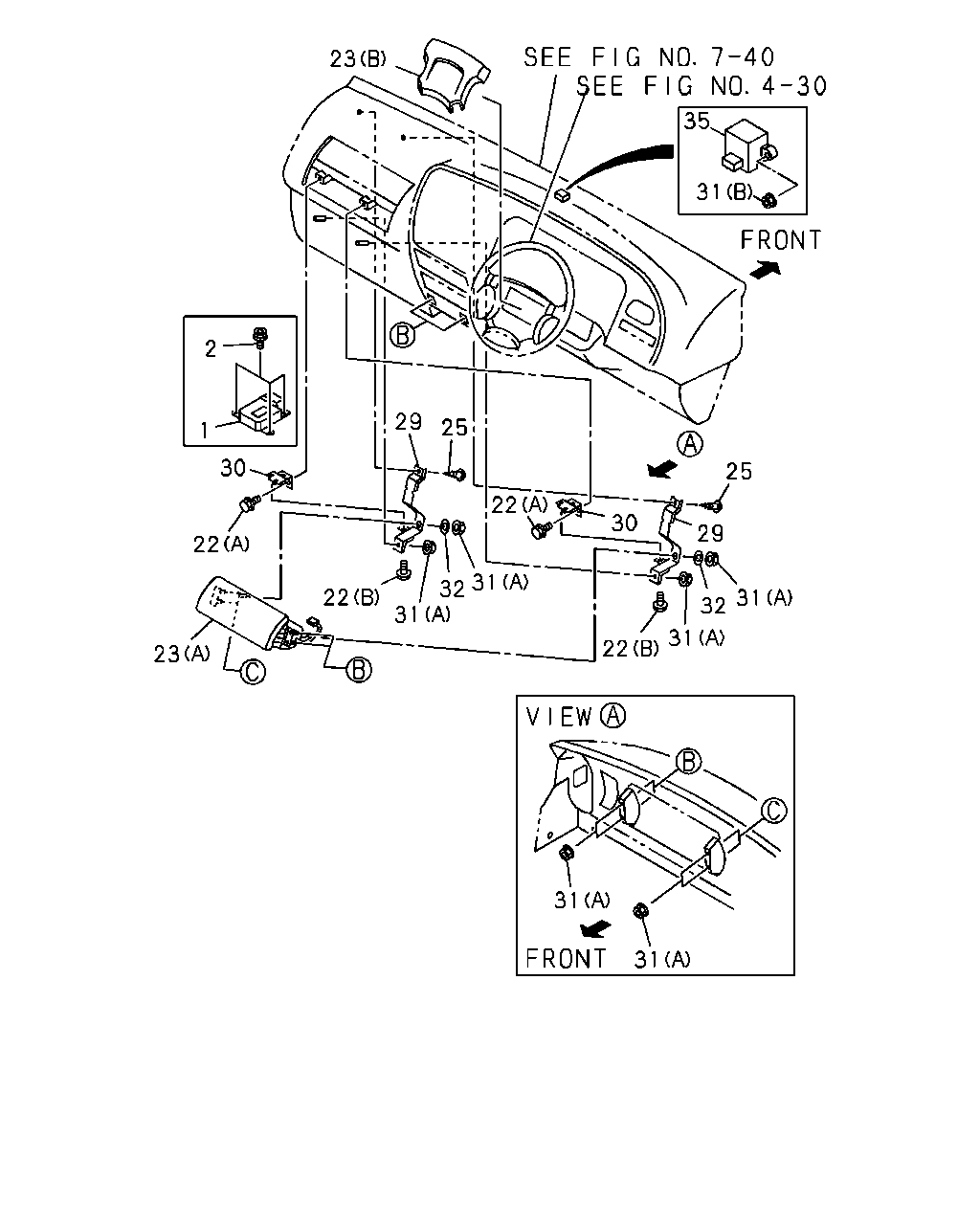

8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#40386) — 18 parça
Tümü
A - UBS5VC
B - UBS5VF
35
31
23
2
1
29
25
30
22
23
22
31
32
31
22
30
25
29
31
32
31
22
31
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER<AJ3>
8-16205-059-0
01
1
9608-
●
●
2
06.870 BOLT; CONT UNIT,SIR
AIR BAG DRIVER<AJ3> M6X18 W/PL WASHER
8-97105-796-0
03
1
9608-
●
●
22
02.559 BOLT; SIR MODULE
AIR BAG PASSENGER<7FA> 00.685 (A) M6X12 W/LK WASHER
0-50040-612-0
02
1
9608-
●
●
22
02.559 BOLT; SIR MODULE
AIR BAG PASSENGER<7FA> 08.143 (B) M6X12 W/PL WASHER
8-97806-950-0
02
1
9608-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3> VAUXHALL EQUIPMENT<EK3> EUROPE EQUIPMENT(EK4) (B)
8-97155-108-0
01
1
9608-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3> EXC. VAUXHALL EQUIPMENT<EK3>,AUSTRALIA EQUIPMENT(RR3),CHEVROLET BRAND<RWE>,GMC BRA ND<RWT> (B) BLACK
8-97154-803-0
01
1
9608-9610
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9) CONVENIENT PACKAGE<6QZ> EXC. VAUXHALL EQUIPMENT<EK3>,AUSTRALIA EQUIPMENT(RR3),CHEVROLET BRAND<RWE>,GMC BRA ND<RWT> (B) BLACK
8-97154-803-0
01
1
9611-
●
●
23
02.559 AIR BAG UNIT
AIR BAG PASSENGER<7FA> (A) DARK GRAY
8-97154-034-3
01
1
9608-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) (B)
8-97156-102-0
01
1
9608-
●
25
14.865 SCREW
AIR BAG PASSENGER<7FA> 09.744 M5X14 TAPPING
1-72548-072-0
02
1
9608-
●
●
29
06.870 BRACKET; SUPPORT
AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4)
8-97103-476-1
02
1
9608-
●
●
29
06.870 BRACKET; SUPPORT
EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA>
8-97161-107-0
02
1
9608-
●
●
30
06.870 BRACKET; SIR
AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4)
8-97083-249-1
02
1
9608-
●
●
30
06.870 BRACKET; SIR
EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA>
8-97161-111-0
02
1
9608-
●
●
31
14.865 NUT
AIR BAG PASSENGER<7FA> 07.833 (A) M6 W/DISHED WASHER
8-94170-192-0
08
1
9608-
●
●
31
14.865 NUT
EUROPE EQUIPMENT(EK4) SEAT BELT 3 POINT PRE TENSIONER<7MC> 04.594 (B) M6 FLANGE
0-91150-106-0
02
1
9608-
●
●
32
02.559 WASHER; PL
AIR BAG PASSENGER<7FA> 06.760
1-09503-075-0
02
1
9608-
●
●
35
16.714 SENSOR; PRETENSIONER
EUROPE EQUIPMENT(EK4) SEAT BELT 3 POINT PRE TENSIONER<7MC>
8-97120-507-1
01
1
9608-
●
●
