◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#40385) — 126 parça
çizim 15967
296
BalonParca AdiParca NoAdetTipApplied Date A B
296 09.709 COVER; CONT UNIT
ANTI LOCK BRAKE SYSTEM(JE5) EXC. RR FOOT REST<6WM> 		8-97147-733-1 01 1 9608- ●

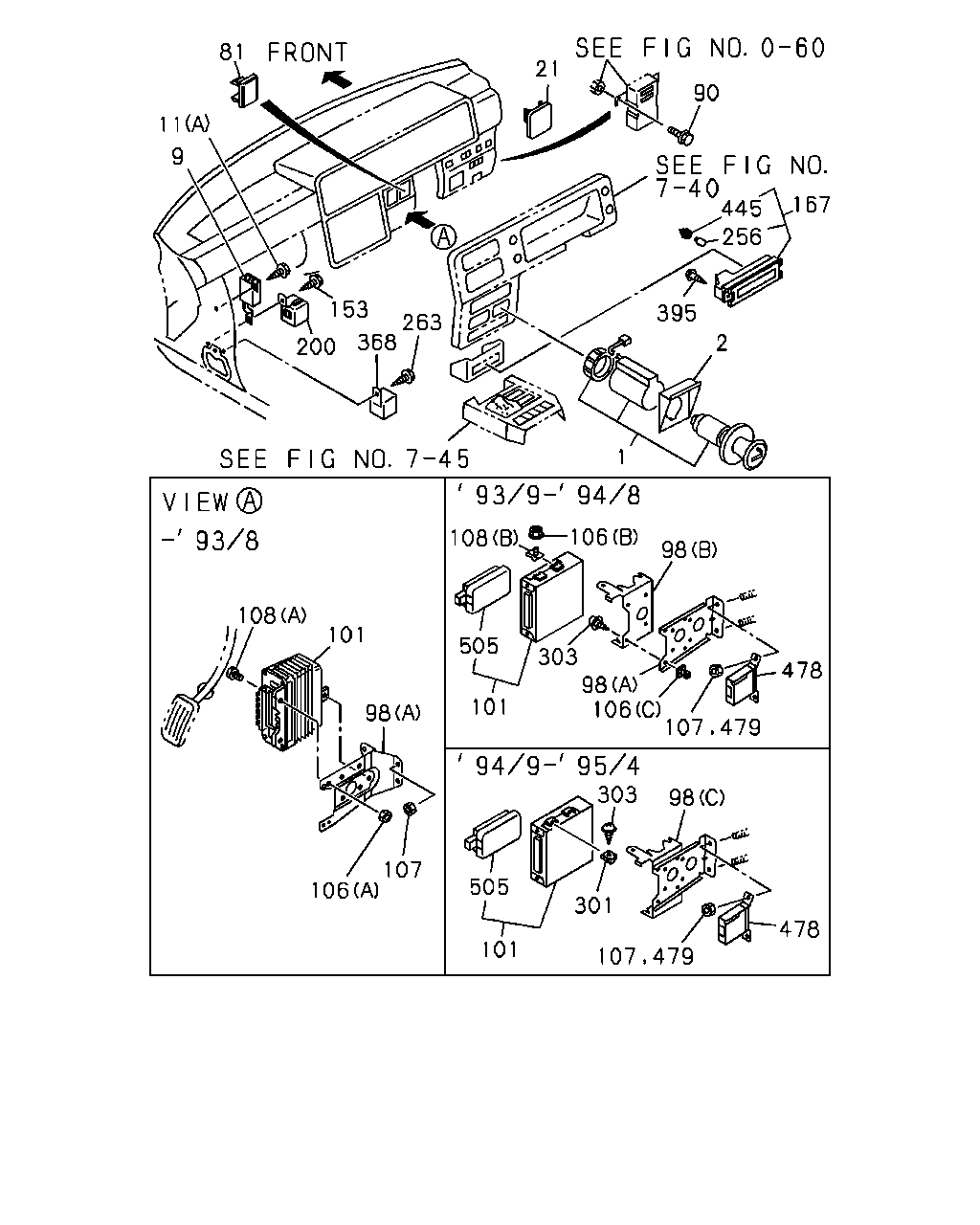

çizim 16301
90 167 445 256 395 2 1 81 11 9 21 263 153 200 368 108 101 98 107 106 108 106 98 478 479 107 106 98 303 505 101 98 303 505 101 301 107 479 478
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-94442-590-0 01 1 9112-9504 ● ●
1 09.709 LIGHTER; CIGAR 8-97094-468-1 01 1 9505- ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97003-110-0 01 1 9112-9504 ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97098-337-0 01 1 9505- ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> SPEEDOMETER MILE<UC1> 		8-97065-133-0 01 1 9112-9504 ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> EXC. SPEEDOMETER MILE<UC1> 		8-97070-117-0 01 1 9112-9504 ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> SPEEDOMETER MILE<UC1> 		8-97065-134-0 01 1 9112-9504 ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97116-910-1 01 1 9505- ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> EXC. SPEEDOMETER MILE<UC1> 		8-97070-118-0 01 1 9112-9504 ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97116-909-1 01 1 9505- ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 06.672 (A) M6X16 		0-28410-616-0 02 1 9112-9204 ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 06.635 (A) M6X16 FLANGE 		0-28480-616-0 02 1 9205-9504 ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 08.900 (C) M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9505- ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 13.090 (B) M6X14 		8-94153-946-0 01 1 9112-9308 ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 02.559 (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309- ● ●
21 09.744 COVER; HOLE
HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>, RR DEFOGGER W/AUTO CANCEL<S4Y> 16.081 BLACK 		8-94417-418-2 01 1 9112-9504 ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97065-377-1 01 1 9112-9504 ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC) DARK GRAY 		8-97153-189-1 01 1 9505- ● ●
81 03.451 BEZEL; IDLE CONT
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-94450-512-3 01 1 9112-9504 ● ●
90 02.510 BOLT; QOS CONTROLLER
4JG2 ENG(RJC),4JG1 ENG(RLT) 10.230 M6X16 FLANGE 		8-94380-676-1 02 1 9112-9409 ● ●
90 02.510 BOLT; QOS CONTROLLER
4JG2 ENG(RJC),4JG1 ENG(RLT) 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9410-9504 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (A) 		8-94375-128-0 01 1 9112-9308 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (A) 		8-97094-683-0 01 1 9309-9408 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (B) 		8-97088-846-1 01 1 9309-9408 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (C) 		8-97110-214-0 01 1 9409-9504 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97116-916-1 01 1 9505- ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) (D) 		8-97126-132-1 01 1 9505- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-96016-755-1 01 1 9112-9205 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-96017-065-0 01 1 9206-9308 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16196-609-0 01 1 9309-9309 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16202-549-0 01 1 9310-9504 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16218-429-1 01 1 9505- ● ●
106 04.115 NUT; ELEC CONT UNIT
A/T THM(RMQ) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9112-9308 ● ●
106 04.115 NUT; ELEC CONT UNIT
A/T THM(RMQ) 03.671 (B) M5 FLANGE 		8-94178-699-0 04 1 9309-9408 ● ●
106 04.115 NUT; ELEC CONT UNIT
A/T THM(RMQ) 09.190 (C) D=9X9 L=8 M6 		8-94222-314-0 04 1 9309-9408 ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9112-9308 ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9309- ● ●
108 04.115 BOLT; TRANS CONT MODULE
A/T THM(RMQ) 16.085 (A) M6X16 		8-94220-097-0 03 1 9112-9308 ● ●
108 04.115 BOLT; TRANS CONT MODULE
A/T THM(RMQ) 03.671 (B) M5X12 W/CLIP 		8-94443-197-0 04 1 9309-9408 ● ●
153 16.085 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> 06.672 M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
153 16.085 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
167 04.057 INDICATOR ASM; TRANS
A/T THM(RMQ) 		8-97071-707-0 01 1 9112-9504 ● ●
200 02.485 BUZZER; LIGHT REMIND
HEAD LAMP REMINDER<T63> 		8-94100-124-0 01 1 9112- ● ●
256 02.440 BULB; TRANS INDICATOR
A/T THM(RMQ) 08.991 12V 1.4W 		8-94152-313-0 02 1 9112-9504 ● ●
263 04.115 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> 06.672 M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
263 04.115 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
301 04.342 GROMMET; CONT UNIT BRKT
A/T THM(RMQ) 		8-97110-216-1 04 1 9409- ● ●
303 04.224 SCREW; CONT UNIT
A/T THM(RMQ) 02.183 M6X14 TAPPING W/PL WASHER 		0-74100-614-0 04 1 9309-9408 ● ●
303 04.224 SCREW; CONT UNIT
A/T THM(RMQ) 06.514 M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9409- ● ●
368 16.341 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94323-680-1 01 1 9112-9504 ● ●
395 02.440 SCREW; INDICATOR
A/T THM(RMQ) 16.190 M5X12 TAPPING 		9-09829-321-1 02 1 9112-9504 ● ●
445 02.440 SOCKET; BULB
A/T THM(RMQ) 02.892 12V 1.4W BLACK 		8-94114-138-0 02 1 9112-9504 ● ●
478 04.224 CONTROLLER; INDICATOR,A/T
A/T THM(RMQ) 		8-97086-258-0 01 1 9309- ● ●
479 08.915 NUT; CONTR0LLER
A/T THM(RMQ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9309- ● ●
505 04.115 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16196-591-0 01 1 9309-9309 ● ●
505 04.115 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16202-527-0 01 1 9310-9504 ● ●
505 04.115 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16218-428-0 01 1 9505- ● ●
çizim 19539
524 389
BalonParca AdiParca NoAdetTipApplied Date A B
389 09.709 GASKET; SWITCH
SHIFT ON THE FLY(7EX) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9505- ● ●
524 09.755 SWITCH; DIFF
SHIFT ON THE FLY(7EX) 		8-97101-956-2 01 1 9505- ● ●

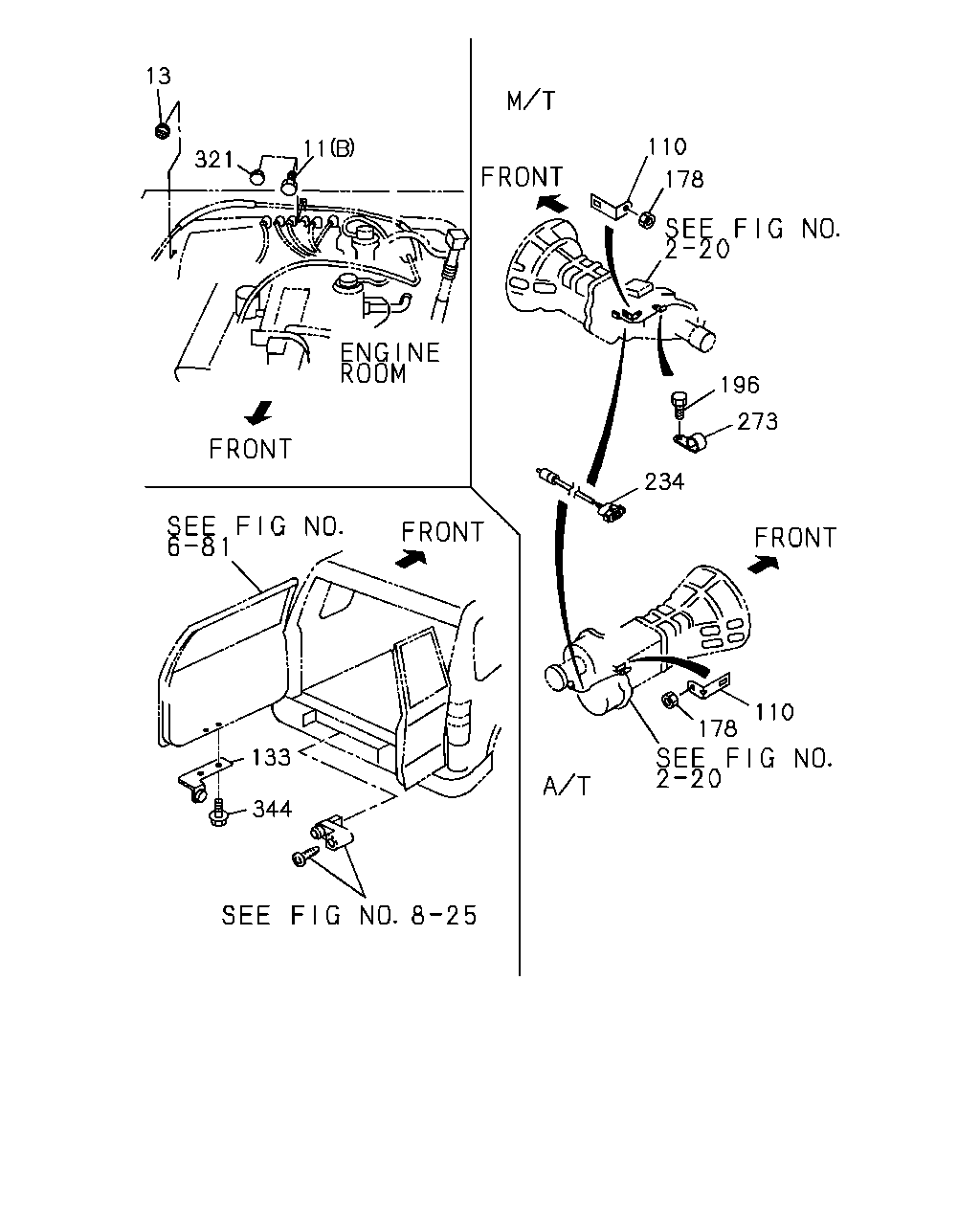

çizim 65507
13 321 11 110 178 196 273 234 110 178 133 344
BalonParca AdiParca NoAdetTipApplied Date A B
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 06.672 (A) M6X16 		0-28410-616-0 02 1 9112-9204 ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 06.635 (A) M6X16 FLANGE 		0-28480-616-0 02 1 9205-9504 ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 08.900 (C) M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9505- ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 13.090 (B) M6X14 		8-94153-946-0 01 1 9112-9308 ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 02.559 (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309- ● ●
13 03.880 PLUG; CONTROLLER,CRUISE
EXC. AUTO CRUISE CONT<K30> 12.804 		8-94147-164-1 01 1 9112- ● ●
110 03.682 BRACKET; VEHICLE SPD SENSOR 8-97035-531-0 01 1 9112-9208 ● ●
133 16.263 BRACKET; SWITCH 8-97048-462-3 01 1 9112-9302 ● ●
133 16.263 BRACKET; SWITCH 8-97090-017-0 01 1 9303- ● ●
178 03.682 NUT; VEHICLE SPD SENSOR
04.785 M10 FLANGE 		0-91150-110-0 01 1 9112-9208 ● ●
196 02.500 BOLT
M/T MUA 5 SPEED(RMN) 03.706 M8X14 		9-01960-814-0 01 1 9112-9204 ● ●
196 02.500 BOLT
M/T MUA 5 SPEED(RMN) 04.710 M8X14 		0-50140-814-0 01 1 9205-9208 ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T THM(RMQ) 		8-97035-533-3 01 1 9112-9208 ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN DARK GRAY 		8-97065-834-0 01 1 9209-9503 ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9504- ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED(RMN) 		8-97033-291-3 01 1 9112-9208 ● ●
273 02.559 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9112-9208 ● ●
321 09.735 CLIP; SW PANEL
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> 16.069 OD=12 L=14.8 		8-94279-921-0 01 1 9112- ● ●
344 02.487 BOLT; SW BRKT
08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9112-9206 ● ●
344 02.487 BOLT; SW BRKT
16.325 M6X16 FLANGE 		8-97808-792-1 02 1 9207- ● ●

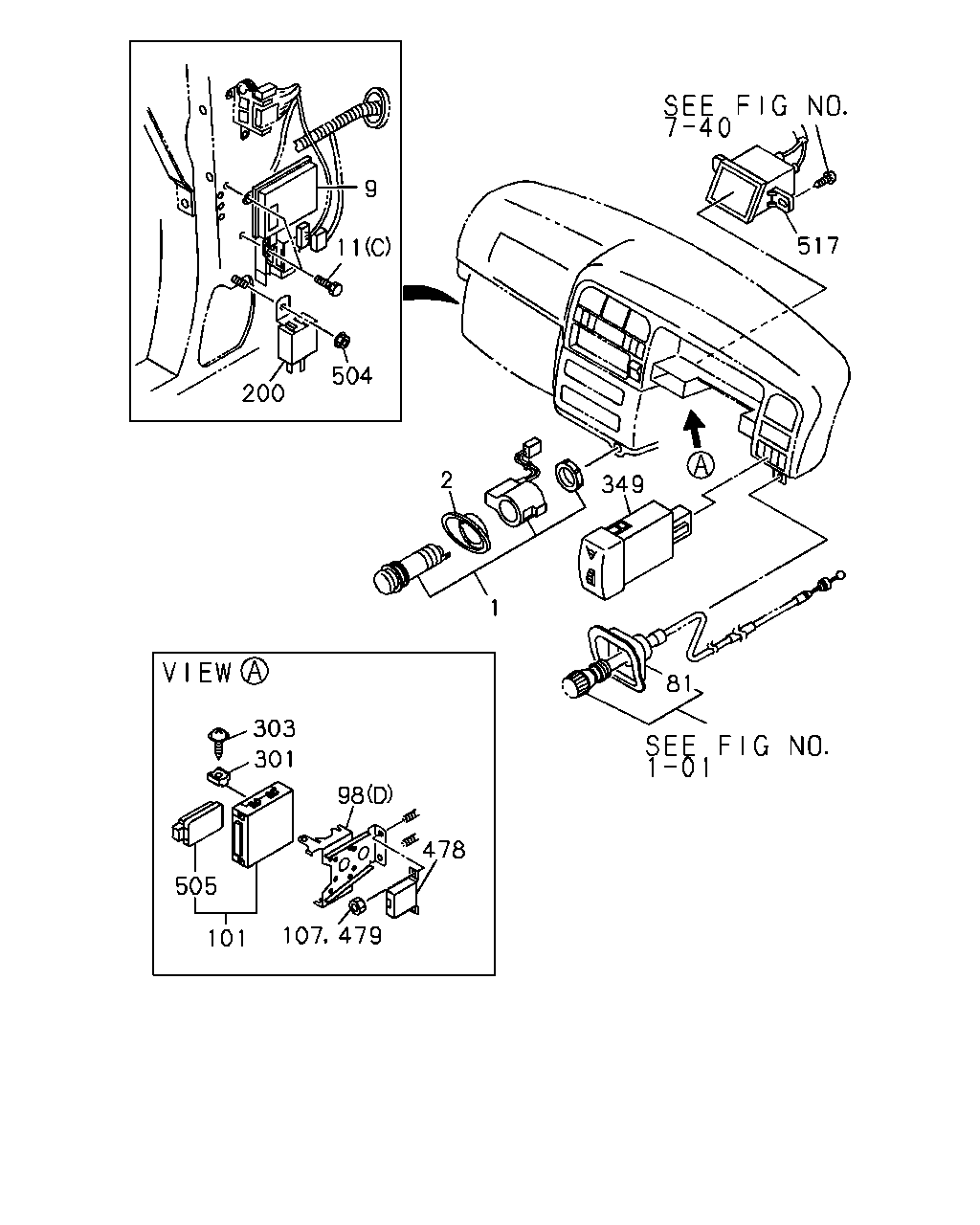

çizim 65523
9 11 200 504 517 349 2 1 81 303 301 98 478 479 107 101 505
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-94442-590-0 01 1 9112-9504 ● ●
1 09.709 LIGHTER; CIGAR 8-97094-468-1 01 1 9505- ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97003-110-0 01 1 9112-9504 ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97098-337-0 01 1 9505- ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> SPEEDOMETER MILE<UC1> 		8-97065-133-0 01 1 9112-9504 ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> EXC. SPEEDOMETER MILE<UC1> 		8-97070-117-0 01 1 9112-9504 ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> SPEEDOMETER MILE<UC1> 		8-97065-134-0 01 1 9112-9504 ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97116-910-1 01 1 9505- ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> EXC. SPEEDOMETER MILE<UC1> 		8-97070-118-0 01 1 9112-9504 ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97116-909-1 01 1 9505- ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 06.672 (A) M6X16 		0-28410-616-0 02 1 9112-9204 ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 06.635 (A) M6X16 FLANGE 		0-28480-616-0 02 1 9205-9504 ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 08.900 (C) M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9505- ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 13.090 (B) M6X14 		8-94153-946-0 01 1 9112-9308 ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 02.559 (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309- ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97065-377-1 01 1 9112-9504 ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC) DARK GRAY 		8-97153-189-1 01 1 9505- ● ●
81 03.451 BEZEL; IDLE CONT
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-94450-512-3 01 1 9112-9504 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (A) 		8-94375-128-0 01 1 9112-9308 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (A) 		8-97094-683-0 01 1 9309-9408 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (B) 		8-97088-846-1 01 1 9309-9408 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (C) 		8-97110-214-0 01 1 9409-9504 ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97116-916-1 01 1 9505- ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) (D) 		8-97126-132-1 01 1 9505- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-96016-755-1 01 1 9112-9205 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-96017-065-0 01 1 9206-9308 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16196-609-0 01 1 9309-9309 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16202-549-0 01 1 9310-9504 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16218-429-1 01 1 9505- ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9112-9308 ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9309- ● ●
200 02.485 BUZZER; LIGHT REMIND
HEAD LAMP REMINDER<T63> 		8-94100-124-0 01 1 9112- ● ●
301 04.342 GROMMET; CONT UNIT BRKT
A/T THM(RMQ) 		8-97110-216-1 04 1 9409- ● ●
303 04.224 SCREW; CONT UNIT
A/T THM(RMQ) 02.183 M6X14 TAPPING W/PL WASHER 		0-74100-614-0 04 1 9309-9408 ● ●
303 04.224 SCREW; CONT UNIT
A/T THM(RMQ) 06.514 M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9409- ● ●
349 02.490 CONTROL; ILLUMINATION
GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97085-355-2 01 1 9505-9607 ● ●
349 02.490 CONTROL; ILLUMINATION
GRADE LS(RBD),GRADE RS(RBF) 		8-97085-355-2 01 1 9505-9607 ● ●
349 02.490 CONTROL; ILLUMINATION
GRADE S(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97135-515-0 01 1 9608- ● ●
349 02.490 CONTROL; ILLUMINATION
GRADE LS(RBD),GRADE RS(RBF) 		8-97135-515-0 01 1 9608- ● ●
478 04.224 CONTROLLER; INDICATOR,A/T
A/T THM(RMQ) 		8-97086-258-0 01 1 9309- ● ●
479 08.915 NUT; CONTR0LLER
A/T THM(RMQ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9309- ● ●
504 02.102 NUT; BUZZER
HEAD LAMP REMINDER<T63> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9505- ● ●
505 04.115 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16196-591-0 01 1 9309-9309 ● ●
505 04.115 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16202-527-0 01 1 9310-9504 ● ●
505 04.115 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16218-428-0 01 1 9505- ● ●
517 10.485 INDICATOR; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97102-483-0 01 1 9505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
