◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#40384) — 366 parça

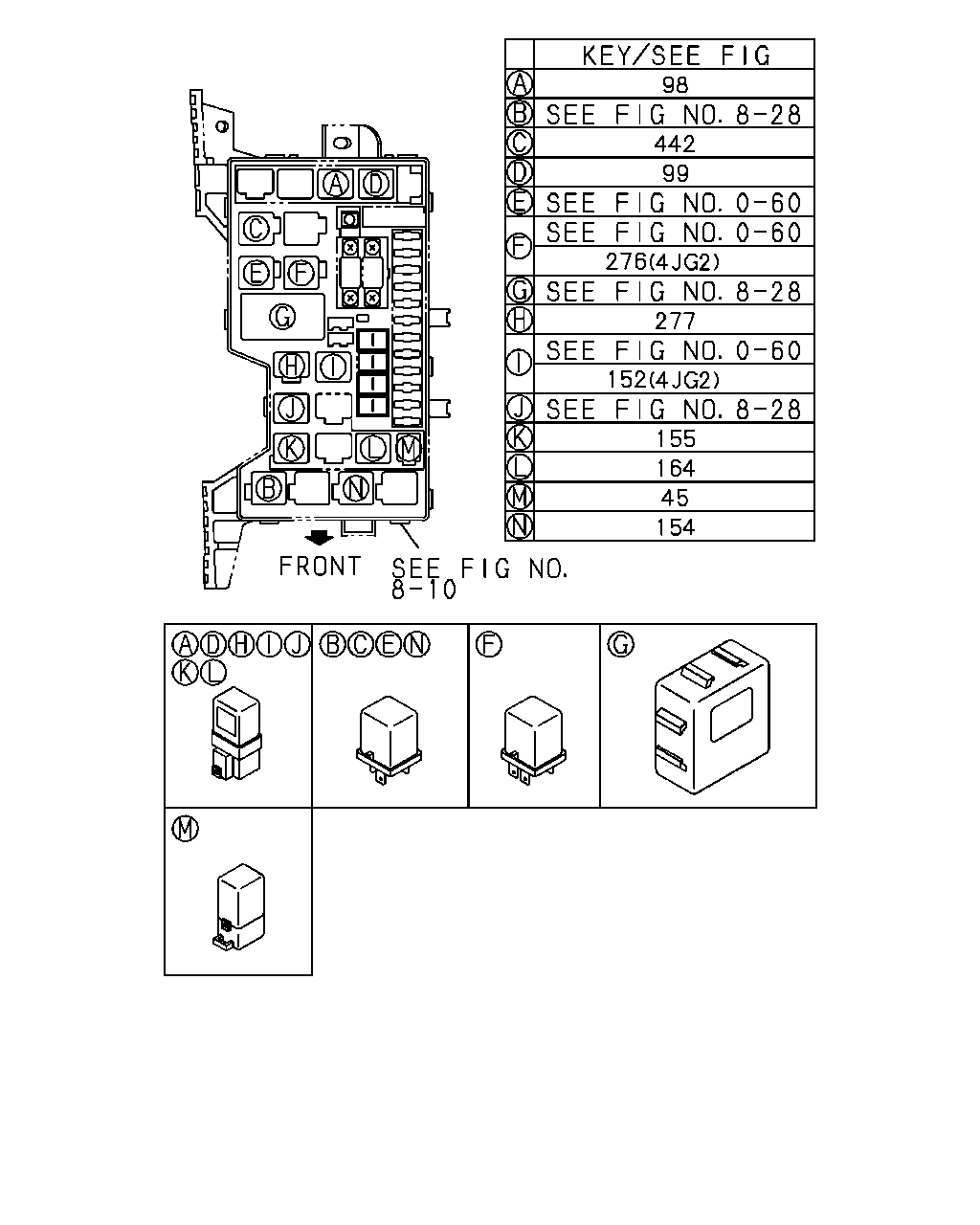

çizim 18543
98 442 99 276 277 152 155 164 45 154
BalonParca AdiParca NoAdetTipApplied Date A B
45 02.252 RELAY; HORN 8-97018-462-0 01 1 9112- ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP HALOGEN(T37) 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP HALOGEN(T37) 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●
152 02.510 RELAY; CERAMIC HTR
CERAMIC HEATER<6YX> 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
152 02.510 RELAY; CERAMIC HTR
CERAMIC HEATER<6YX> 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●
154 09.277 RELAY; CONDENSER FAN
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) 03.910 12V 20A 		8-94218-497-0 01 1 9701- ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 02.515 12V 20A 		8-97093-910-1 01 1 9304-9504 ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 02.515 12V 20A 		8-97093-910-1 01 1 9505- ● ●
164 02.510 RELAY; A/C
6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
164 02.510 RELAY; A/C
6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 02.515 12V 20A 		8-97093-910-1 01 1 9304-9504 ● ●
164 02.510 RELAY; A/C
6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 02.515 12V 20A 		8-97093-910-1 01 1 9505- ● ●
276 02.510 RELAY; CHARGE & AUTO CHOKE
4JG2 ENG(RJC),4JG1 ENG(RLT) 12V 20A BLUE 		8-94235-627-0 01 1 9112-9504 ● ●
276 02.510 RELAY; CHARGE & AUTO CHOKE
4JG2 ENG(RJC) 12V 20A BLUE 		8-94235-627-0 01 1 9505- ● ●
277 03.900 RELAY; FUEL PUMP
6VD1 SOHC ENG(RLU) 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
277 03.900 RELAY; FUEL PUMP
6VD1 SOHC ENG(RLU) 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●
442 02.510 RELAY
SHIFT ON THE FLY(7EX) 03.910 12V 20A 		8-94218-497-0 01 1 9505- ● ●

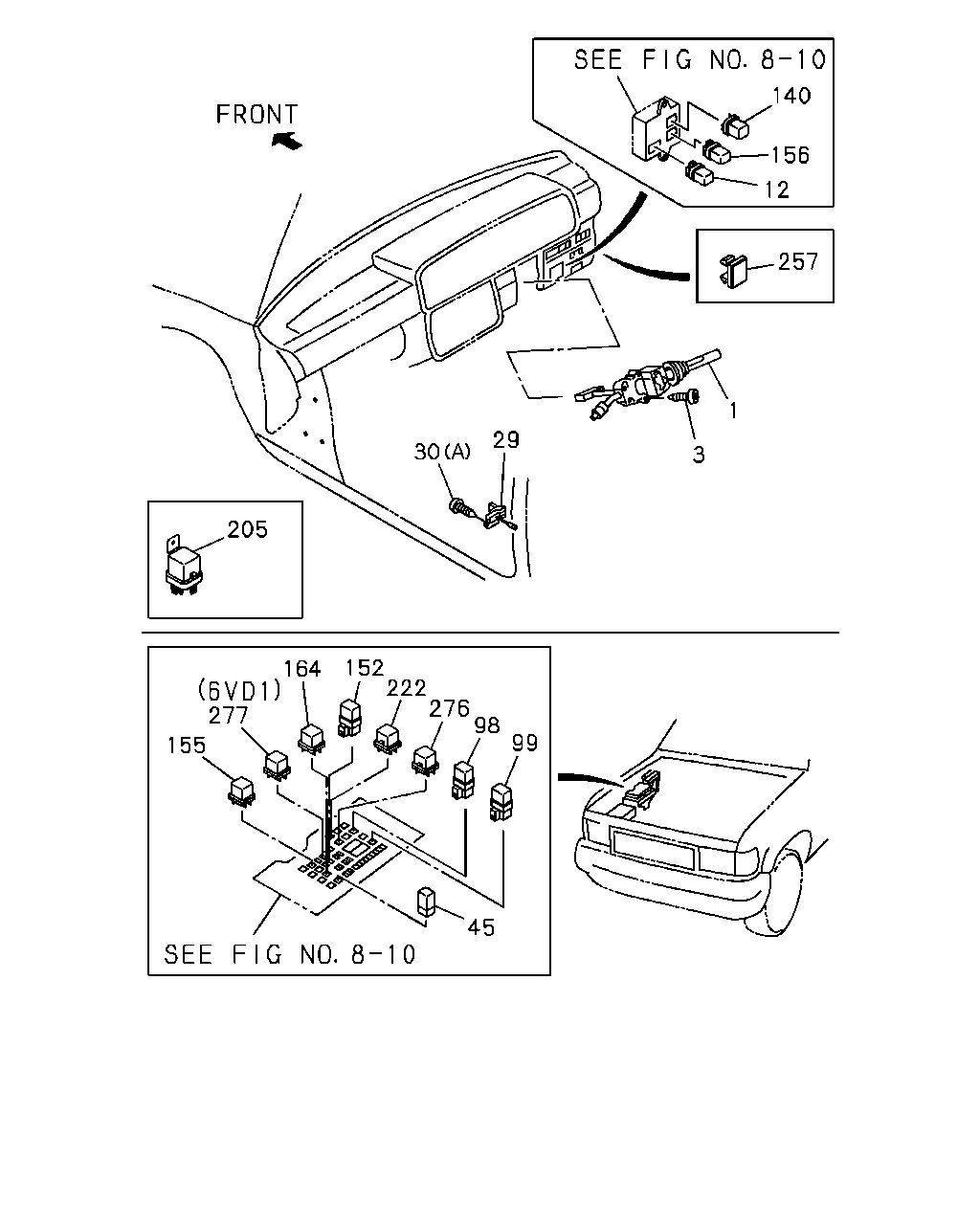

çizim 18987
140 156 12 257 1 3 29 30 205 99 98 276 222 152 164 277 155 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97160-943-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97160-941-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> 		8-97160-942-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30> 		8-97160-940-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> 		8-97066-218-3 01 1 9112-9504 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> 		8-97130-078-0 01 1 9505-9606 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> 		8-97160-934-0 01 1 9607-9607 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3> 		8-97160-934-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97130-079-0 01 1 9505-9606 ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97160-935-0 01 1 9607-9607 ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3> 		8-97160-935-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
EXC. AUTO CRUISE CONT<K30> 		8-97066-217-3 01 1 9112-9504 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30> 		8-97130-076-0 01 1 9505-9606 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30> 		8-97160-932-0 01 1 9607-9607 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97160-932-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97130-077-0 01 1 9505-9606 ● ●
1 02.895 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97160-933-0 01 1 9607-9607 ● ●
1 02.895 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97160-933-0 01 1 9608- ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 03 1 9112-9504 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●
29 16.263 SWITCH; DOOR 8-97033-276-1 02 1 9112-9208 ●
29 16.263 SWITCH; DOOR 8-97071-864-0 02 1 9209-9605 ●
29 16.263 SWITCH; DOOR 8-97146-195-0 02 1 9606- ●
29 16.263 SWITCH; DOOR 8-97033-276-1 04 1 9112-9208 ●
29 16.263 SWITCH; DOOR 8-97071-864-0 04 1 9209-9605 ●
29 16.263 SWITCH; DOOR 8-97146-195-0 04 1 9606- ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 02 1 9112- ●
30 16.263 SCREW; DOOR SW
02.664 (B) BACK DOOR M5X14 		8-94313-116-1 01 1 9112- ● ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 04 1 9112- ●
45 02.252 RELAY; HORN 8-97018-462-0 01 1 9112- ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP HALOGEN(T37) 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP HALOGEN(T37) 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 02.515 12V 20A 		8-97093-910-1 01 1 9304-9504 ● ●
140 09.778 RELAY; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 02.515 12V 20A 		8-97093-910-1 01 1 9505- ● ●
152 02.510 RELAY; CERAMIC HTR
CERAMIC HEATER<6YX> 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
152 02.510 RELAY; CERAMIC HTR
CERAMIC HEATER<6YX> 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 02.515 12V 20A 		8-97093-910-1 01 1 9304-9504 ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 02.515 12V 20A 		8-97093-910-1 01 1 9505- ● ●
156 02.515 RELAY; BLOWER
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
156 02.515 RELAY; BLOWER
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 12V 20A 		8-97093-910-1 01 1 9304-9504 ● ●
164 02.510 RELAY; A/C
6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
164 02.510 RELAY; A/C
6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 02.515 12V 20A 		8-97093-910-1 01 1 9304-9504 ● ●
164 02.510 RELAY; A/C
6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 02.515 12V 20A 		8-97093-910-1 01 1 9505- ● ●
205 02.510 RELAY; DIMMER DIP
EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 12V 15A 		8-94147-095-0 01 1 9112-9212 ● ●
205 02.510 RELAY; DIMMER DIP
EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 12V 15A 		8-94147-095-0 01 1 9301-9308 ● ●
222 02.510 RELAY; RESISTOR
EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9112-9212 ● ●
222 02.510 RELAY; RESISTOR
EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 03.910 12V 20A 		8-94218-497-0 01 1 9301-9308 ● ●
257 16.081 COVER; HOLE,SW
ADJUST HEADLAMP<6RC> BLACK 		8-94417-418-2 02 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) (A) 		8-97081-617-1 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
GRADE S(RBA) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97081-617-1 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WASHER<CE3>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97081-617-1 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) (A) 		8-97081-617-1 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
GRADE S(RBA) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97081-617-1 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WASHER<CE3>,RR FOG LAMP<T79> (A) 		8-97081-617-1 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> BLACK 		8-94417-418-2 01 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> BLACK 		8-94417-418-2 01 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) BLACK 		8-94417-418-2 01 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR FOG LAMP<T79> BLACK 		8-94417-418-2 01 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
4JG2 ENG(RJC) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94417-418-2 02 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> BLACK 		8-94417-418-2 01 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> BLACK 		8-94417-418-2 01 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) BLACK 		8-94417-418-2 01 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR FOG LAMP<T79> BLACK 		8-94417-418-2 01 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
4JG2 ENG(RJC) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94417-418-2 02 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> BLACK 		8-94417-418-2 01 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> BLACK 		8-94417-418-2 01 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) BLACK 		8-94417-418-2 01 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR FOG LAMP<T79> BLACK 		8-94417-418-2 01 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER W/INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97088-762-0 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EUROPE EQUIPMENT(EK4) EXC. HEADLAMP WASHER<CE3> (B) 		8-97088-762-0 01 1 9505-9607 ●
257 16.081 COVER; HOLE,SW
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97088-762-0 01 1 9505-9607 ●
257 16.081 COVER; HOLE,SW
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. HEADLAMP WASHER<CE3> (B) 		8-97088-762-0 01 1 9505-9607 ●
257 16.081 COVER; HOLE,SW
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97088-762-0 01 1 9505-9607 ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER W/INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
RR FOG LAMP<T79> EXC. HEADLAMP WASHER<CE3> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. RR FOG LAMP<T79> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97088-762-0 01 1 9608- ● ●
276 02.510 RELAY; CHARGE & AUTO CHOKE
4JG2 ENG(RJC),4JG1 ENG(RLT) 12V 20A BLUE 		8-94235-627-0 01 1 9112-9504 ● ●
276 02.510 RELAY; CHARGE & AUTO CHOKE
4JG2 ENG(RJC) 12V 20A BLUE 		8-94235-627-0 01 1 9505- ● ●
277 03.900 RELAY; FUEL PUMP
6VD1 SOHC ENG(RLU) 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
277 03.900 RELAY; FUEL PUMP
6VD1 SOHC ENG(RLU) 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●

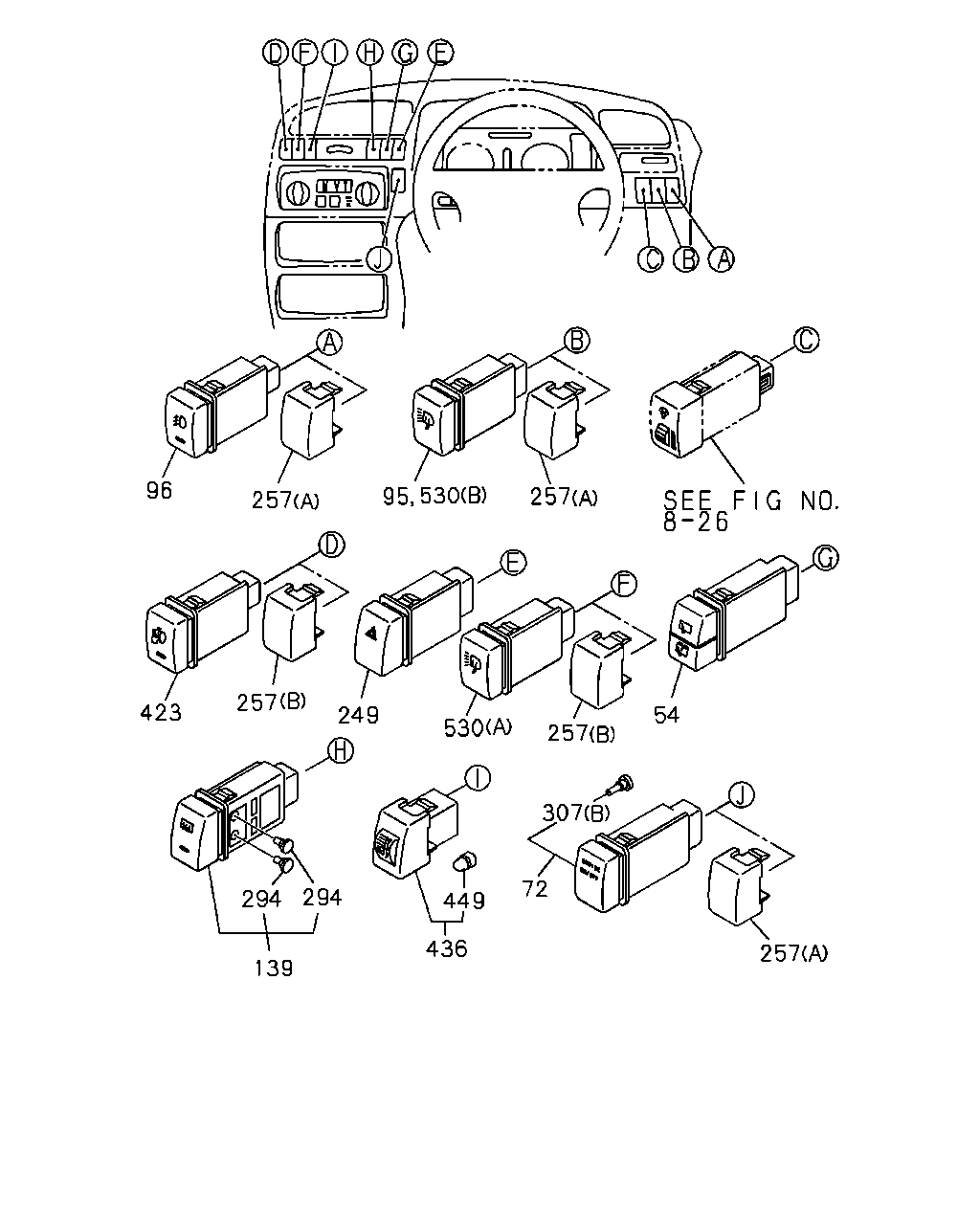

çizim 65448
96 257 95 530 257 54 257 530 249 257 423 139 294 294 436 449 72 307 257
BalonParca AdiParca NoAdetTipApplied Date A B
54 16.067 SWITCH; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-97043-261-3 01 1 9112-9504 ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-97103-581-2 01 1 9505-9607 ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-97135-516-0 01 1 9608- ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER<C25> 		8-97043-731-3 01 1 9112-9208 ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER<C25> 		8-97077-532-0 01 1 9209-9504 ● ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97018-582-2 01 1 9112-9504 ● ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97116-755-1 01 1 9505-9607 ● ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97135-520-0 01 1 9608- ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97038-419-1 01 1 9112-9504 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97081-612-2 01 1 9505-9607 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97135-514-1 01 1 9608- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP HALOGEN(T37) 02.755 		8-94450-648-0 01 1 9112-9504 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97085-353-2 01 1 9505-9607 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97135-512-0 01 1 9608- ● ●
139 09.778 SWITCH; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97085-382-2 01 1 9505-9607 ● ●
139 09.778 SWITCH; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97135-517-0 01 1 9608- ● ●
249 02.485 SWITCH; HAZARD 8-94375-394-1 01 1 9112-9504 ● ●
249 02.485 SWITCH; HAZARD 8-97085-381-3 01 1 9505- ● ●
257 16.081 COVER; HOLE,SW
ADJUST HEADLAMP<6RC> BLACK 		8-94417-418-2 02 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) (A) 		8-97081-617-1 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
GRADE S(RBA) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97081-617-1 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WASHER<CE3>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97081-617-1 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) (A) 		8-97081-617-1 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
GRADE S(RBA) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97081-617-1 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WASHER<CE3>,RR FOG LAMP<T79> (A) 		8-97081-617-1 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> BLACK 		8-94417-418-2 01 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> BLACK 		8-94417-418-2 01 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) BLACK 		8-94417-418-2 01 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR FOG LAMP<T79> BLACK 		8-94417-418-2 01 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
4JG2 ENG(RJC) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94417-418-2 02 1 9112-9208 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> BLACK 		8-94417-418-2 01 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> BLACK 		8-94417-418-2 01 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) BLACK 		8-94417-418-2 01 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR FOG LAMP<T79> BLACK 		8-94417-418-2 01 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
4JG2 ENG(RJC) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94417-418-2 02 1 9209-9308 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> BLACK 		8-94417-418-2 01 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> BLACK 		8-94417-418-2 01 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) BLACK 		8-94417-418-2 01 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR FOG LAMP<T79> BLACK 		8-94417-418-2 01 1 9309-9504 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER W/INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97088-762-0 01 1 9505-9607 ● ●
257 16.081 COVER; HOLE,SW
EUROPE EQUIPMENT(EK4) EXC. HEADLAMP WASHER<CE3> (B) 		8-97088-762-0 01 1 9505-9607 ●
257 16.081 COVER; HOLE,SW
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97088-762-0 01 1 9505-9607 ●
257 16.081 COVER; HOLE,SW
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. HEADLAMP WASHER<CE3> (B) 		8-97088-762-0 01 1 9505-9607 ●
257 16.081 COVER; HOLE,SW
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97088-762-0 01 1 9505-9607 ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER W/INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
RR FOG LAMP<T79> EXC. HEADLAMP WASHER<CE3> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. RR FOG LAMP<T79> (B) 		8-97088-762-0 01 1 9608- ● ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97088-762-0 01 1 9608- ● ●
294 08.991 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> 10.186 14V 0.84W 		8-97102-440-0 01 1 9505- ● ●
294 08.991 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> 14V 0.84W 		8-97117-108-0 01 1 9505- ● ●
307 08.991 BULB ASM; SW
(C) ????-??? 		8-97061-422-0 01 1 9112-9504 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) (D) GREEN 		8-97066-258-0 02 1 9112-9504 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 10.186 (A) 14V 0.7W 		8-97102-439-0 01 1 9505- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) (E) AMBER 		8-97066-259-0 01 1 9112-9504 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97117-108-0 01 1 9505-9607 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97117-108-0 01 1 9608- ● ●
307 08.991 BULB ASM; SW
HEADLAMP WASHER<CE3> (B) 14V 0.84W 		8-97117-108-0 01 1 9608- ● ●
423 03.883 SWITCH; ENG WARMING
4JG2 ENG(RJC) AUSTRALIA EQUIPMENT(RR3) 		8-94434-439-0 01 1 9112-9308 ● ●
423 03.883 SWITCH; ENG WARMING
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 		8-97066-761-0 01 1 9112-9308 ● ●
423 03.883 SWITCH; ENG WARMING
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97066-761-0 01 1 9309-9504 ● ●
423 03.883 SWITCH; ENG WARMING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97081-772-2 01 1 9505-9607 ● ●
423 03.883 SWITCH; ENG WARMING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97135-519-1 01 1 9608- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97018-463-0 01 1 9309-9504 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97110-381-0 01 1 9505- ● ●
449 08.991 BULB ASM; HEADLAMP LEVELING SW
ADJUST HEADLAMP<6RC> 		8-97039-411-0 01 1 9309-9504 ● ●
449 08.991 BULB ASM; HEADLAMP LEVELING SW
ADJUST HEADLAMP<6RC> 14V 0.84W 		8-97117-108-0 01 1 9505- ● ●
530 02.485 SWITCH; HEAD/L WIPER
HEADLAMP WASHER<CE3> RR FOG LAMP<T79> (A) 		8-97093-767-1 01 1 9505-9607 ● ●
530 02.485 SWITCH; HEAD/L WIPER
HEADLAMP WASHER<CE3> RR FOG LAMP<T79> (A) 		8-97135-518-1 01 1 9608- ● ●
530 02.485 SWITCH; HEAD/L WIPER
HEADLAMP WASHER<CE3> EXC. RR FOG LAMP<T79> (B) 		8-97081-611-1 01 1 9505-9607 ● ●
530 02.485 SWITCH; HEAD/L WIPER
HEADLAMP WASHER<CE3> EXC. RR FOG LAMP<T79> (B) 		8-97135-513-1 01 1 9608- ● ●

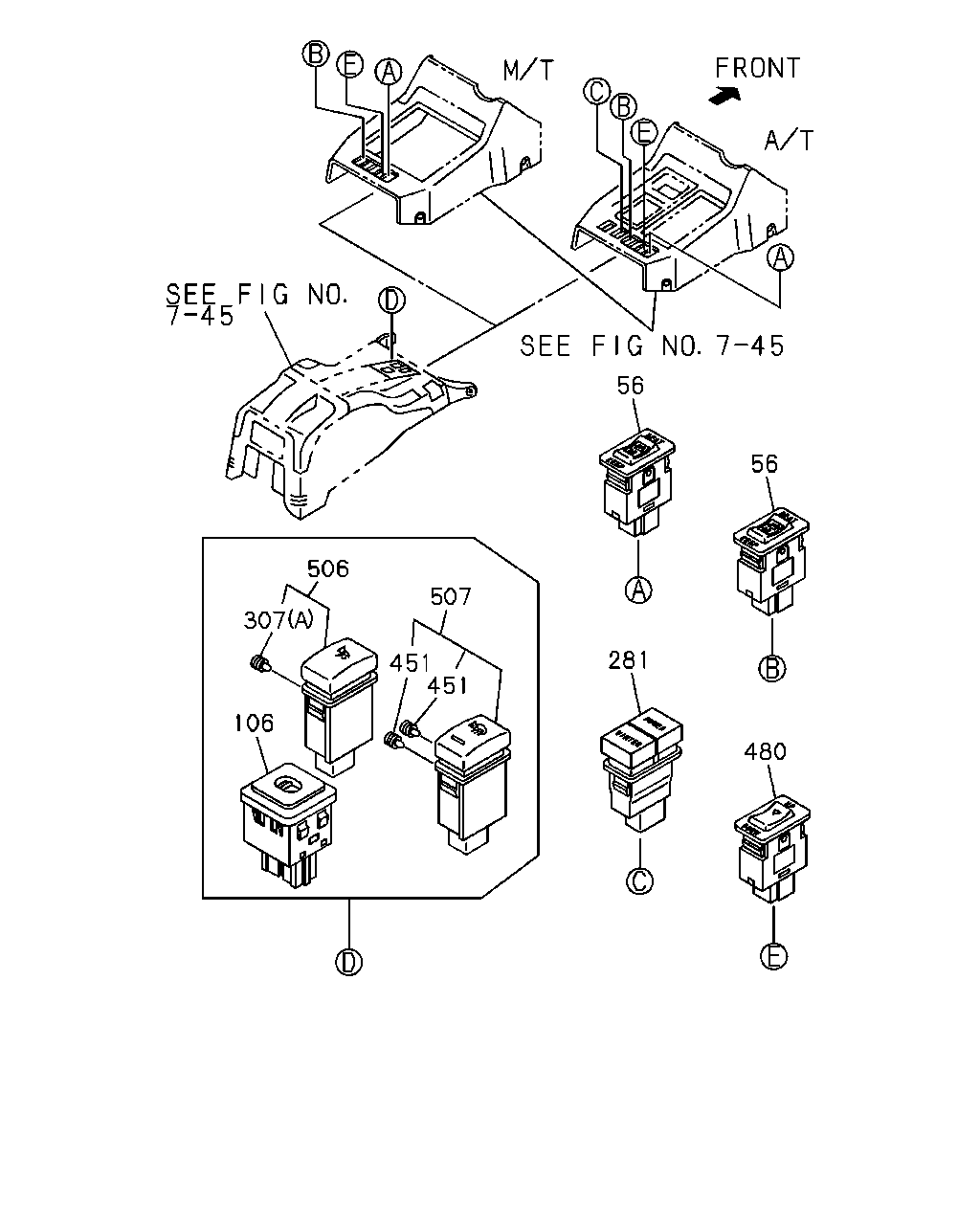

çizim 65460
56 56 281 480 507 506 307 106 451 451
BalonParca AdiParca NoAdetTipApplied Date A B
56 08.840 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> 		8-97021-228-1 01 1 9112-9504 ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> 		8-97104-988-1 01 1 9505- ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97021-229-1 01 1 9112-9504 ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97104-989-1 01 1 9505-9511 ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97140-023-0 01 1 9512- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 		8-97020-098-2 01 1 9112-9504 ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 		8-97060-167-1 01 1 9505- ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
A/T THM(RMQ) 		8-94375-503-0 01 1 9112-9504 ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 08.552 		8-97104-996-0 01 1 9505- ● ●
307 08.991 BULB ASM; SW
(C) ????-??? 		8-97061-422-0 01 1 9112-9504 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) (D) GREEN 		8-97066-258-0 02 1 9112-9504 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 10.186 (A) 14V 0.7W 		8-97102-439-0 01 1 9505- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) (E) AMBER 		8-97066-259-0 01 1 9112-9504 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97117-108-0 01 1 9505-9607 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97117-108-0 01 1 9608- ● ●
307 08.991 BULB ASM; SW
HEADLAMP WASHER<CE3> (B) 14V 0.84W 		8-97117-108-0 01 1 9608- ● ●
451 10.186 BULB; MIRROR HTR SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 14V 0.7W 		8-97102-439-0 01 1 9505- ● ●
451 10.186 BULB; MIRROR HTR SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 14V 0.84W 		8-97102-440-0 01 1 9505- ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4) 		8-97066-796-0 01 1 9112-9308 ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97066-796-0 01 1 9309-9504 ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97104-992-0 01 1 9505- ● ●
506 04.902 SWITCH; MIRROR FOLD
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 10.186 		8-97081-766-3 01 1 9505- ● ●
507 10.186 SWITCH; MIRROR HEATER
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 		8-97081-763-4 01 1 9505- ● ●

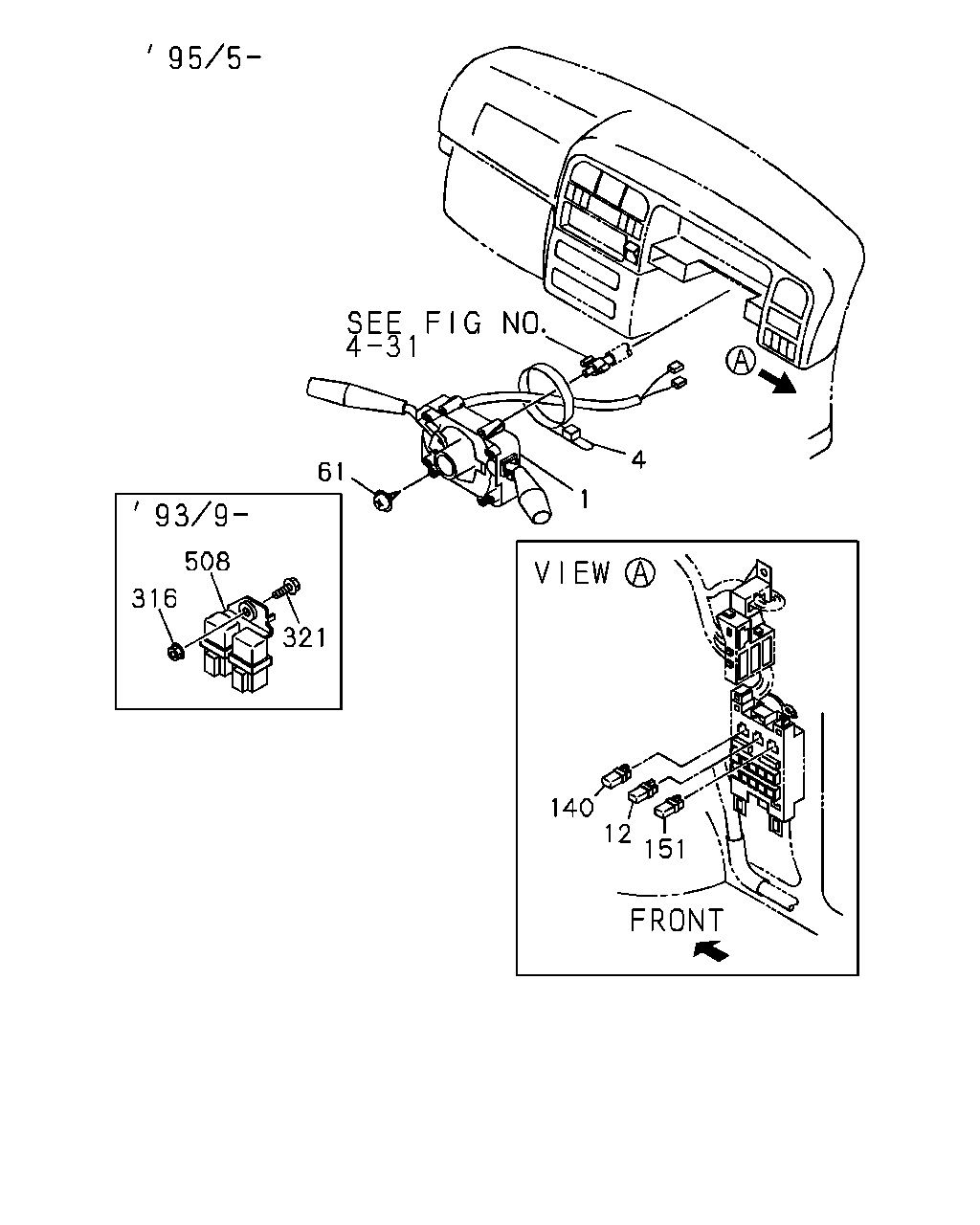

çizim 66187
61 1 4 508 316 321 140 12 151
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97160-943-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97160-941-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> 		8-97160-942-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30> 		8-97160-940-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> 		8-97066-218-3 01 1 9112-9504 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> 		8-97130-078-0 01 1 9505-9606 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> 		8-97160-934-0 01 1 9607-9607 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3> 		8-97160-934-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97130-079-0 01 1 9505-9606 ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97160-935-0 01 1 9607-9607 ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3> 		8-97160-935-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
EXC. AUTO CRUISE CONT<K30> 		8-97066-217-3 01 1 9112-9504 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30> 		8-97130-076-0 01 1 9505-9606 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30> 		8-97160-932-0 01 1 9607-9607 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97160-932-0 01 1 9608- ● ●
1 02.895 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97130-077-0 01 1 9505-9606 ● ●
1 02.895 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97160-933-0 01 1 9607-9607 ● ●
1 02.895 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97160-933-0 01 1 9608- ● ●
4 02.892 CLIP; COMB SW
02.559 L=250 		5-09707-030-0 01 1 9505- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 02.515 12V 20A 		8-97093-910-1 01 1 9304- ● ●
61 04.057 SCREW; SW
09.744 M4X14 TAPPING 		9-09829-313-1 06 1 9112-9302 ● ●
61 04.057 SCREW; SW
16.100 M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 06 1 9303-9504 ● ●
61 04.057 SCREW; SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 9505- ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 02.515 12V 20A 		8-97093-910-1 01 1 9304-9504 ● ●
140 09.778 RELAY; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 02.515 12V 20A 		8-97093-910-1 01 1 9505- ● ●
151 09.277 RELAY; HTR & A/C
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.515 12V 20A 		8-97093-910-1 01 1 9505-9506 ● ●
151 09.277 RELAY; HTR & A/C
02.515 12V 20A 		8-97093-910-1 01 1 9505-9506 ● ●
151 09.277 RELAY; HTR & A/C
02.515 12V 20A 		8-97093-910-1 01 1 9507- ● ●
316 02.500 NUT; RELAY
AUSTRALIA EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9309- ● ●
321 16.341 BOLT; RELAY
AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9309-9309 ● ●
321 16.341 BOLT; RELAY
AUSTRALIA EQUIPMENT(RR3) M6X16 FLANGE 		0-28090-616-0 01 1 9310- ● ●
508 02.485 RELAY; RR SUB LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97087-438-1 01 1 9309- ● ●

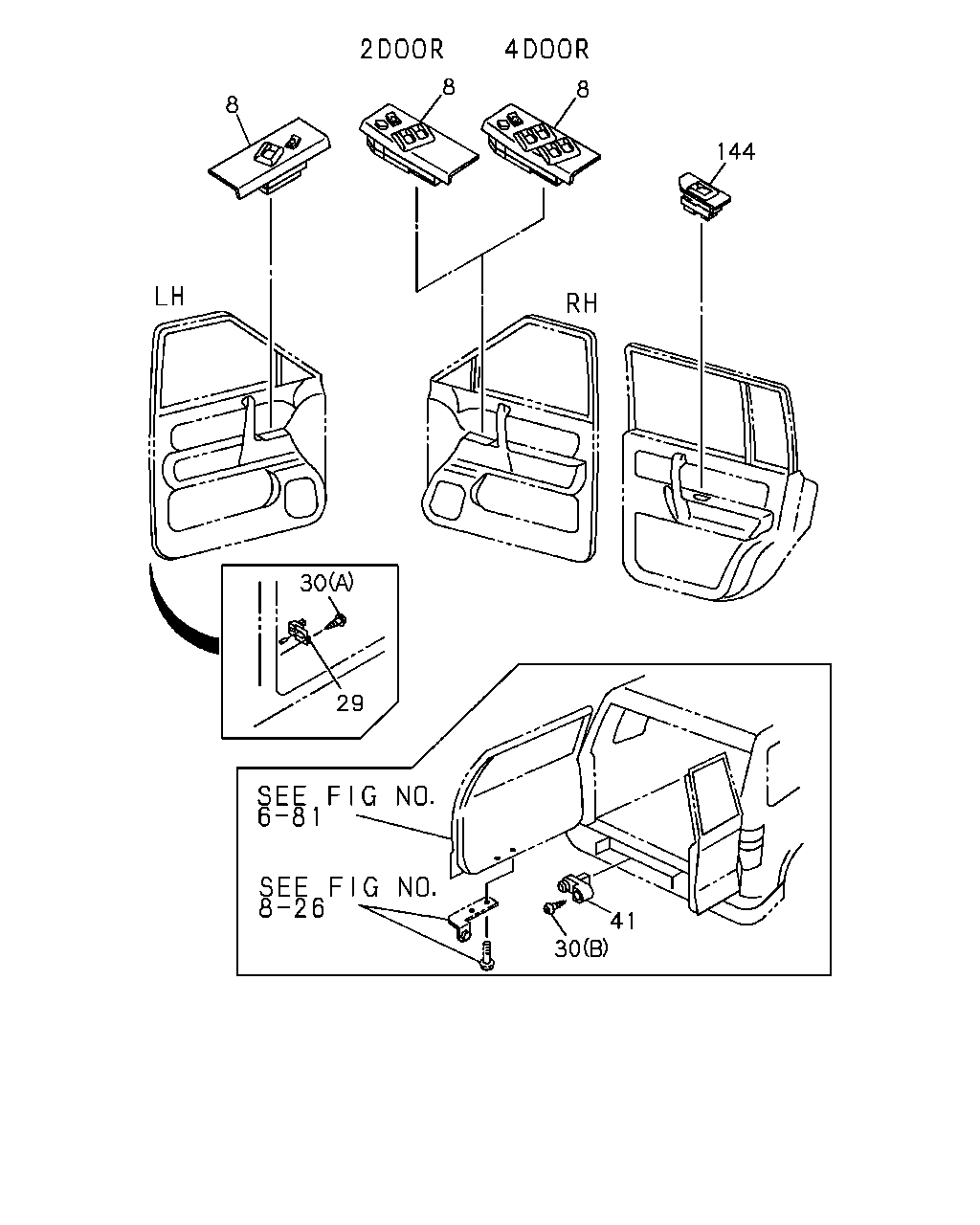

çizim 66188
8 8 8 144 30 29 30 41
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) POWER WINDOW<A30> BLACK 		8-97005-936-2 01 1 9309-9504 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97153-011-0 01 1 9505-9607 ● ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97154-915-1 01 1 9608- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK 		8-97005-936-1 01 1 9112-9308 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97153-009-0 01 1 9505- ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) POWER WINDOW<A30> BLACK 		8-97007-249-0 01 1 9309-9504 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK 		8-97007-249-0 01 1 9112-9308 ● ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) POWER WINDOW<A30> 		8-97005-934-2 01 1 9309-9504 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> 		8-97005-934-1 01 1 9112-9308 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97153-007-0 01 1 9505- ●
29 16.263 SWITCH; DOOR 8-97033-276-1 02 1 9112-9208 ●
29 16.263 SWITCH; DOOR 8-97071-864-0 02 1 9209-9605 ●
29 16.263 SWITCH; DOOR 8-97146-195-0 02 1 9606- ●
29 16.263 SWITCH; DOOR 8-97033-276-1 04 1 9112-9208 ●
29 16.263 SWITCH; DOOR 8-97071-864-0 04 1 9209-9605 ●
29 16.263 SWITCH; DOOR 8-97146-195-0 04 1 9606- ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 02 1 9112- ●
30 16.263 SCREW; DOOR SW
02.664 (B) BACK DOOR M5X14 		8-94313-116-1 01 1 9112- ● ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 04 1 9112- ●
41 16.263 SWITCH; BACK DOOR LOCK
11.950 		8-97015-743-1 01 1 9112-9208 ● ●
41 16.263 SWITCH; BACK DOOR LOCK 8-97081-773-0 01 1 9209- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97003-120-0 01 1 9112-9504 ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-342-2 01 1 9505- ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97003-119-0 01 1 9112-9504 ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-341-2 01 1 9505- ●

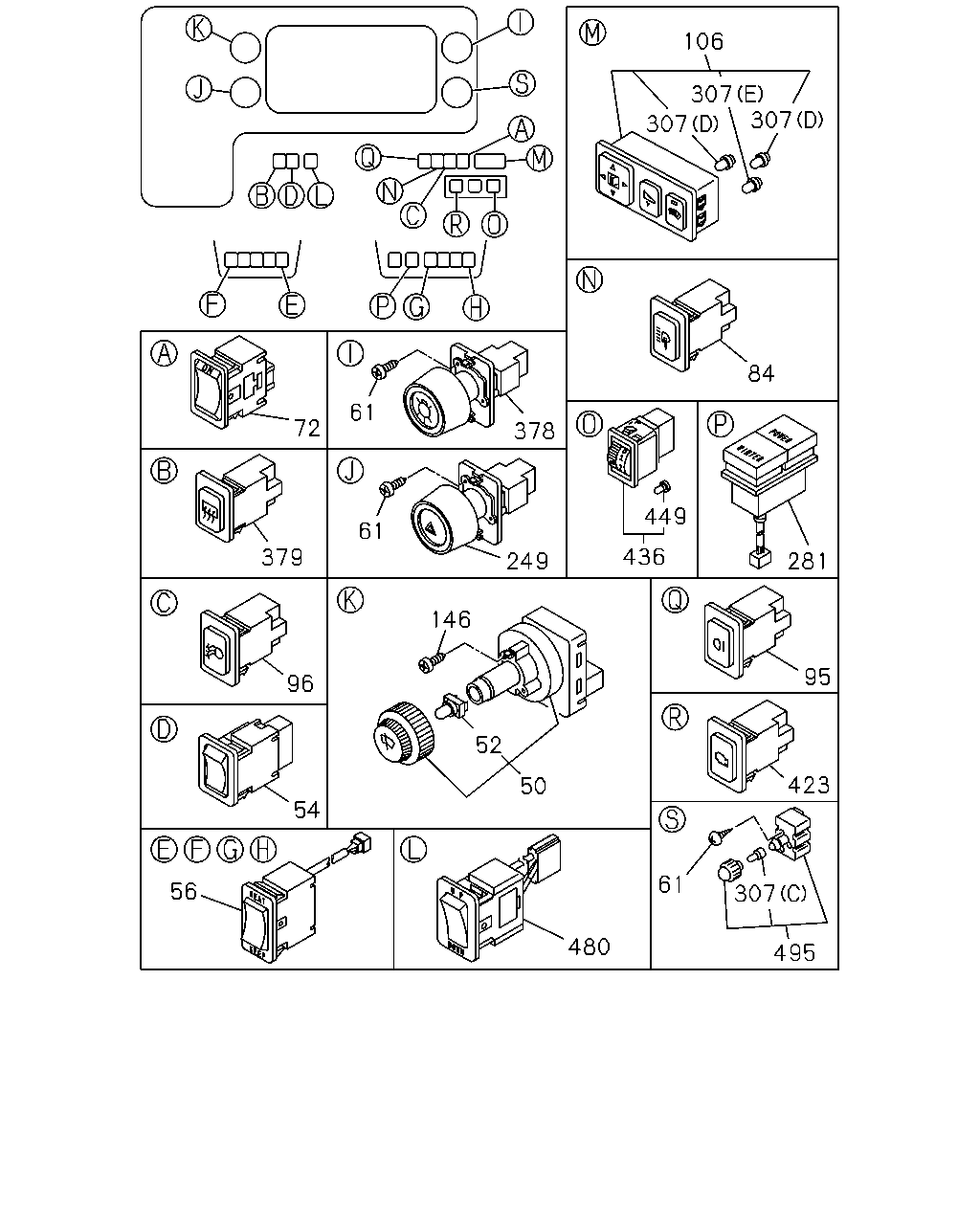

çizim 66223
106 307 307 307 84 61 72 378 449 61 436 379 249 281 146 95 96 52 423 50 54 307 61 56 480 495
BalonParca AdiParca NoAdetTipApplied Date A B
50 16.067 SWITCH; FRT WIPER
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97023-828-1 01 1 9112-9203 ● ●
50 16.067 SWITCH; FRT WIPER
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97077-607-1 01 1 9204-9502 ● ●
50 16.067 SWITCH; FRT WIPER
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97119-646-0 01 1 9503-9504 ● ●
50 16.067 SWITCH; FRT WIPER
INTERMITTENT WIPER<C13> 		8-97023-827-1 01 1 9112-9203 ● ●
50 16.067 SWITCH; FRT WIPER
INTERMITTENT WIPER<C13> 		8-97077-606-1 01 1 9204-9502 ● ●
50 16.067 SWITCH; FRT WIPER
INTERMITTENT WIPER<C13> 		8-97119-645-0 01 1 9503-9504 ● ●
52 08.991 BULB ASM; WIPER & WASHER SW
INTERMITTENT WIPER<C13>,FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97045-658-0 01 1 9112-9504 ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-97043-261-3 01 1 9112-9504 ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-97103-581-2 01 1 9505-9607 ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-97135-516-0 01 1 9608- ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER<C25> 		8-97043-731-3 01 1 9112-9208 ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER<C25> 		8-97077-532-0 01 1 9209-9504 ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> 		8-97021-228-1 01 1 9112-9504 ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> 		8-97104-988-1 01 1 9505- ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97021-229-1 01 1 9112-9504 ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97104-989-1 01 1 9505-9511 ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97140-023-0 01 1 9512- ● ●
61 04.057 SCREW; SW
09.744 M4X14 TAPPING 		9-09829-313-1 06 1 9112-9302 ● ●
61 04.057 SCREW; SW
16.100 M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 06 1 9303-9504 ● ●
61 04.057 SCREW; SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 9505- ● ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97018-582-2 01 1 9112-9504 ● ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97116-755-1 01 1 9505-9607 ● ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97135-520-0 01 1 9608- ● ●
84 02.780 SWITCH; WASHER,HEADLAMP
HEADLAMP WASHER<CE3> 		8-97045-927-2 01 1 9112-9504 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97038-419-1 01 1 9112-9504 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97081-612-2 01 1 9505-9607 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97135-514-1 01 1 9608- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP HALOGEN(T37) 02.755 		8-94450-648-0 01 1 9112-9504 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97085-353-2 01 1 9505-9607 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97135-512-0 01 1 9608- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 		8-97020-098-2 01 1 9112-9504 ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 		8-97060-167-1 01 1 9505- ● ●
146 16.067 SCREW; SW
09.744 M4X14 TAPPING 		9-09829-313-1 02 1 9112-9302 ● ●
146 16.067 SCREW; SW
16.100 M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 02 1 9303-9504 ● ●
249 02.485 SWITCH; HAZARD 8-94375-394-1 01 1 9112-9504 ● ●
249 02.485 SWITCH; HAZARD 8-97085-381-3 01 1 9505- ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
A/T THM(RMQ) 		8-94375-503-0 01 1 9112-9504 ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 08.552 		8-97104-996-0 01 1 9505- ● ●
307 08.991 BULB ASM; SW
(C) ????-??? 		8-97061-422-0 01 1 9112-9504 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) (D) GREEN 		8-97066-258-0 02 1 9112-9504 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 10.186 (A) 14V 0.7W 		8-97102-439-0 01 1 9505- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) (E) AMBER 		8-97066-259-0 01 1 9112-9504 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97117-108-0 01 1 9505-9607 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97117-108-0 01 1 9608- ● ●
307 08.991 BULB ASM; SW
HEADLAMP WASHER<CE3> (B) 14V 0.84W 		8-97117-108-0 01 1 9608- ● ●
378 02.485 SWITCH; LIGHTING 8-97023-830-1 01 1 9112-9203 ● ●
378 02.485 SWITCH; LIGHTING 8-97077-603-1 01 1 9204-9502 ● ●
378 02.485 SWITCH; LIGHTING 8-97119-647-0 01 1 9503-9504 ● ●
379 09.778 SWITCH; DEFOGGER
REAR DEFOGGER<C49> 		8-94450-651-1 01 1 9112-9504 ● ●
379 09.778 SWITCH; DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97018-464-2 01 1 9112-9504 ●
423 03.883 SWITCH; ENG WARMING
4JG2 ENG(RJC) AUSTRALIA EQUIPMENT(RR3) 		8-94434-439-0 01 1 9112-9308 ● ●
423 03.883 SWITCH; ENG WARMING
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 		8-97066-761-0 01 1 9112-9308 ● ●
423 03.883 SWITCH; ENG WARMING
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97066-761-0 01 1 9309-9504 ● ●
423 03.883 SWITCH; ENG WARMING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97081-772-2 01 1 9505-9607 ● ●
423 03.883 SWITCH; ENG WARMING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97135-519-1 01 1 9608- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97018-463-0 01 1 9309-9504 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97110-381-0 01 1 9505- ● ●
449 08.991 BULB ASM; HEADLAMP LEVELING SW
ADJUST HEADLAMP<6RC> 		8-97039-411-0 01 1 9309-9504 ● ●
449 08.991 BULB ASM; HEADLAMP LEVELING SW
ADJUST HEADLAMP<6RC> 14V 0.84W 		8-97117-108-0 01 1 9505- ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4) 		8-97066-796-0 01 1 9112-9308 ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97066-796-0 01 1 9309-9504 ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97104-992-0 01 1 9505- ● ●
495 02.485 SWITCH; METER,ILLUMINATION 8-94381-092-2 01 1 9112-9504 ● ●

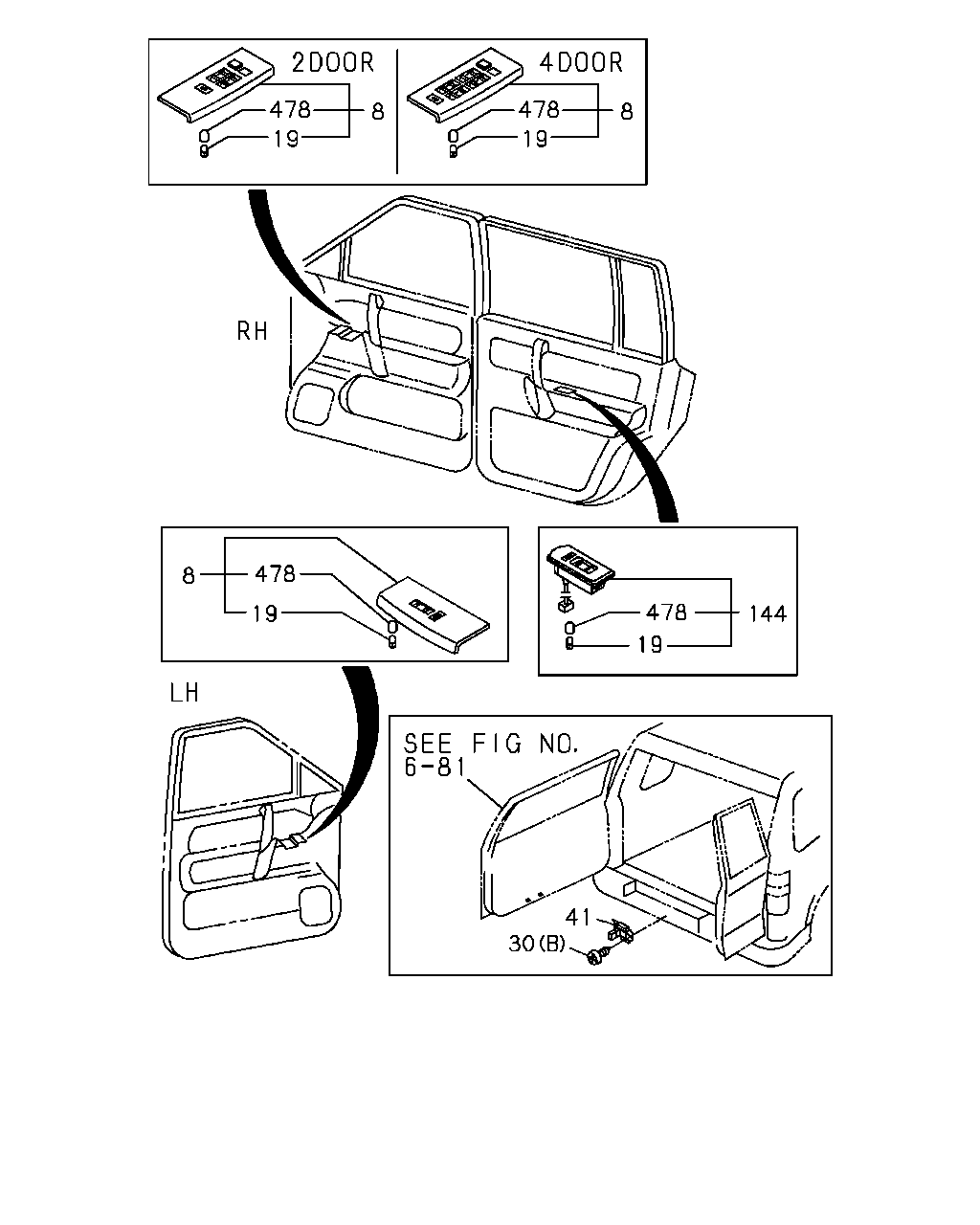

çizim 68739
8 478 19 478 19 8 478 144 19 8 478 19 41 30
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) POWER WINDOW<A30> BLACK 		8-97005-936-2 01 1 9309-9504 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97153-011-0 01 1 9505-9607 ● ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97154-915-1 01 1 9608- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK 		8-97005-936-1 01 1 9112-9308 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97153-009-0 01 1 9505- ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) POWER WINDOW<A30> BLACK 		8-97007-249-0 01 1 9309-9504 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK 		8-97007-249-0 01 1 9112-9308 ● ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) POWER WINDOW<A30> 		8-97005-934-2 01 1 9309-9504 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> 		8-97005-934-1 01 1 9112-9308 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97153-007-0 01 1 9505- ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A30> DRIVER SIDE 		8-97062-287-0 02 1 9112-9308 ●
19 08.991 BULB; POWER WINDOW SW
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) POWER WINDOW<A30> DRIVER SIDE 		8-97062-287-0 02 1 9309-9504 ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A30> ASSIST SIDE 		8-97062-565-0 02 1 9112-9308 ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A30> REAR DOOR 		8-97062-565-0 02 1 9112-9504 ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A30> ASSIST SIDE 		8-97062-565-0 02 1 9309-9504 ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A30> ASSIST SIDE 		8-97062-565-0 02 1 9309-9504 ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A30> DRIVER SIDE 		8-97062-287-0 03 1 9112-9208 ●
19 08.991 BULB; POWER WINDOW SW
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) POWER WINDOW<A30> DRIVER SIDE 		8-97062-287-0 03 1 9309-9504 ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A30> DRIVER SIDE 		8-97062-287-0 03 1 9209-9308 ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 02 1 9112- ●
30 16.263 SCREW; DOOR SW
02.664 (B) BACK DOOR M5X14 		8-94313-116-1 01 1 9112- ● ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 04 1 9112- ●
41 16.263 SWITCH; BACK DOOR LOCK
11.950 		8-97015-743-1 01 1 9112-9208 ● ●
41 16.263 SWITCH; BACK DOOR LOCK 8-97081-773-0 01 1 9209- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97003-120-0 01 1 9112-9504 ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-342-2 01 1 9505- ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97003-119-0 01 1 9112-9504 ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-341-2 01 1 9505- ●
478 09.761 CAP; COLLAR
POWER WINDOW<A30> DRIVER SIDE 		8-97062-563-0 02 1 9112-9504 ●
478 09.761 CAP; COLLAR
POWER WINDOW<A30> ASSIST SIDE AND REAR DOOR 		8-97069-657-0 02 1 9112-9504 ● ●
478 09.761 CAP; COLLAR
POWER WINDOW<A30> ASSIST SIDE AND REAR DOOR 		8-97069-657-0 02 1 9112-9504 ●
478 09.761 CAP; COLLAR
POWER WINDOW<A30> DRIVER SIDE 		8-97062-563-0 03 1 9112-9504 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
