Sayfa 8-15 - Isuzu EPC

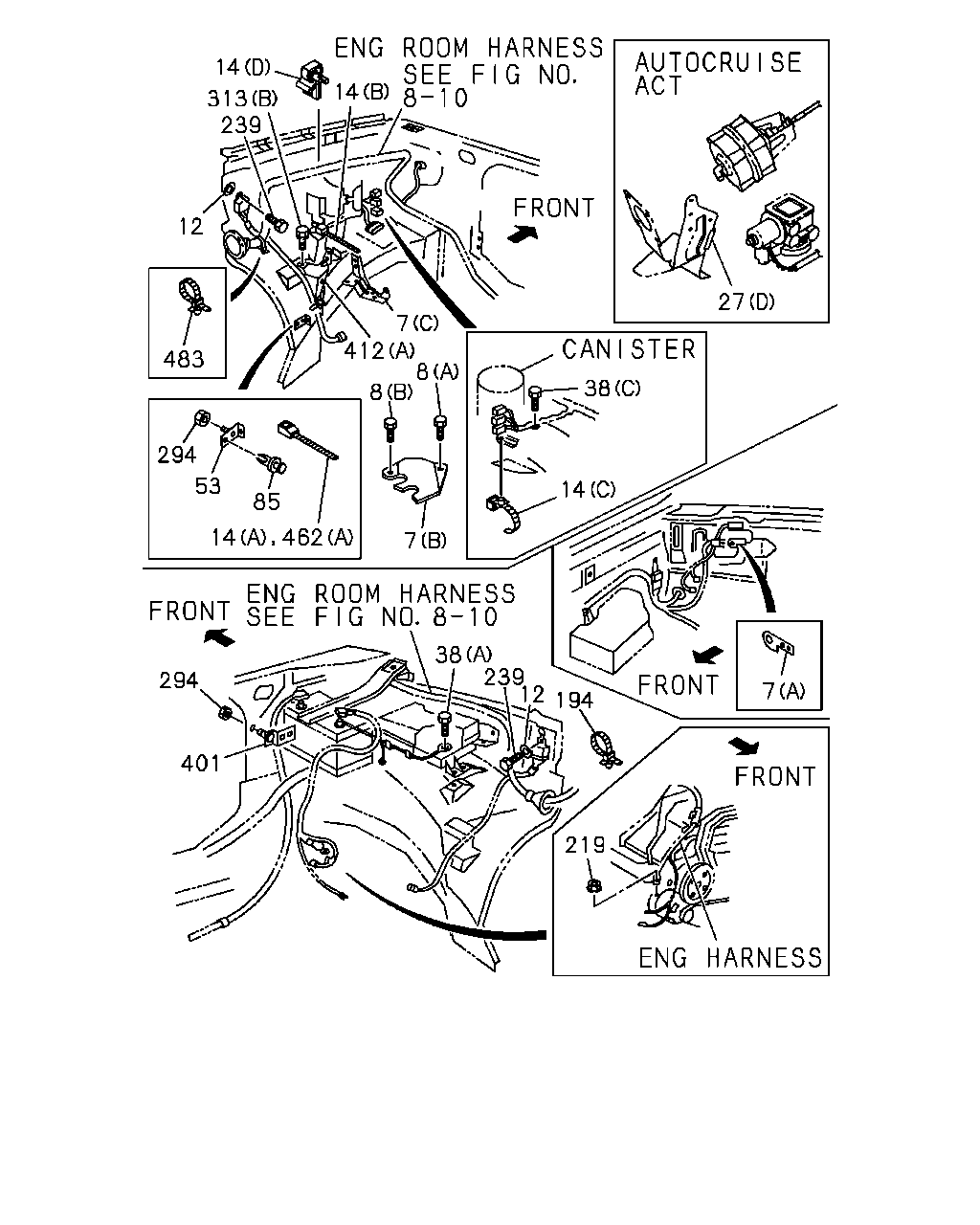

8-15 — FIXING PARTS; WIRING HARNESS (#40382) — 411 parça

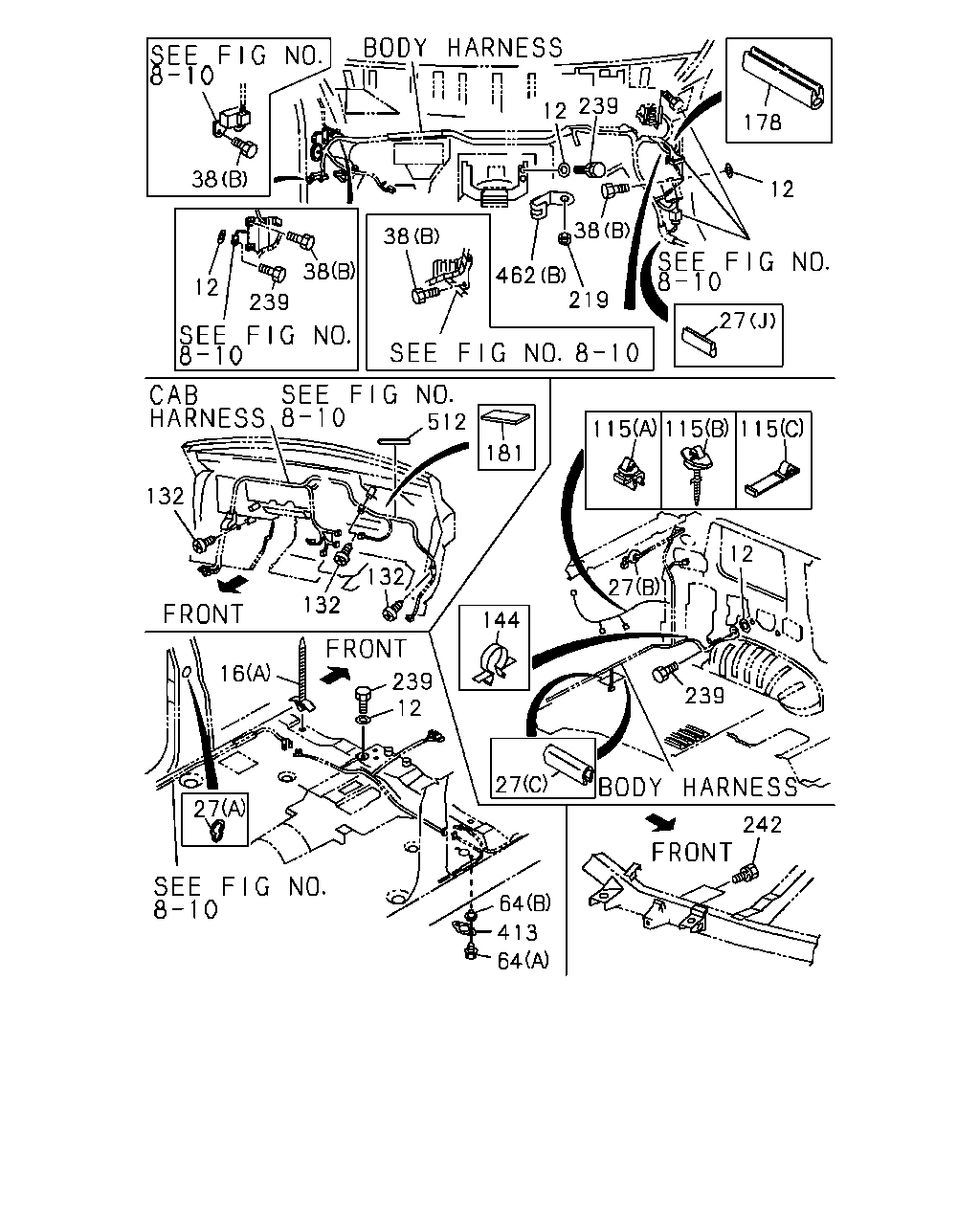

38 12 239 178 12 38 38 12 239 38 462 219 27 132 132 132 512 181 115 115 115 12 27 239 144 239 12 16 27 64 413 64 242 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	02.559 WASHER; LK ANTI LOCK BRAKE SYSTEM(JE5) 00.002 ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	01	1	9112-9209	●	●
12	02.559 WASHER; LK 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 00.002 ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	06	1	9112-9209	●	●
12	02.559 WASHER; LK 4ZE1 ENG(RLJ),4JG1 ENG(RLT) 00.002 ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	05	1	9112-9209	●	●
16	02.559 CLIP; HARNESS (F) L=250	5-09707-030-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	02.559 CLIP; HARNESS SEAT HEATER DRIVER<C37> 02.587 (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS SEAT HEATER PASSENGER<C38> 02.587 (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (E) L=104	8-94433-185-0	02	1	9505-	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 01.152 (G) L=63	1-09700-418-1	01	1	9511-9607	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 01.152 (G) L=63	1-09700-418-1	01	1	9608-9608	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST M ALAYSIA EQUIPMENT(S3D) 01.152 (G) L=63	1-09700-418-1	01	1	9608-	●	●
16	02.559 CLIP; HARNESS 6VD1 SOHC ENG(RLU) (B)	8-97032-822-1	01	1	9112-9608	●	●
16	02.559 CLIP; HARNESS 6VD1 SOHC ENG(RLU) (B)	8-97032-822-1	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (C) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) FRIGID ZONE<YL3> 16.570 (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (E) ID=30	8-94142-264-0	04	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (H)	8-97803-554-0	01	1	9112-	●	●
27	02.559 PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 13.090 (A)	8-94340-075-0	02	1	9112-9112	●	●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	02	1	9201-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (F) L=65	8-94235-856-0	02	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (J) L=80	5-22439-006-0	01	1	9506-9607	●	●
27	02.559 PROTECTOR; EDGE AIR BAG DRIVER<AJ3> 03.008 (J) L=80	5-22439-006-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (J) L=80	5-22439-006-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE ANTI LOCK BRAKE SYSTEM(JE5) AUTO CRUISE CONT<K30> 02.530 (D) L=30	8-94366-689-0	01	1	9201-9308	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9309-9607	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE ANTI LOCK BRAKE SYSTEM(JE5) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9112-9311	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9312-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (F) L=65	8-94235-856-0	01	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	02	1	9112-9504		●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	01	1	9505-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (A) ID=36	8-94178-685-0	03	1	9505-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (E) ID=30	8-94142-264-0	02	1	9505-		●
38	02.559 BOLT; CLIP,HARNESS 09.211 (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 04.686 (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 03.164 (B) M6X18	9-01960-618-0	08	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 08.900 (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 04.710 (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 00.662 (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	02.559 BOLT; CLIP,HARNESS 4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 04.686 (C) M6X25	0-28010-625-0	01	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 04.686 (C) M6X25 FLANGE	0-28080-625-0	01	1	9205-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 01.428 (H) M6X12 FLANGE	0-28080-612-0	01	1	9112-9301	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9112-9408	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (G) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9208	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9209-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
64	02.559 SCREW; CLIP 10.240 (A)SCREW M5X14	8-94120-095-0	02	1	9112-	●	●
64	02.559 SCREW; CLIP 02.679 (B)GROMMET D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	9112-	●	●
115	02.559 CLIP; DOOR HARNESS (B)	8-94338-044-0	03	1	9209-9401	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> (B)	8-94338-044-0	03	1	9402-9504	●	●
115	02.559 CLIP; DOOR HARNESS RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,RR WIPER W/INTERMITTENT<6WJ> (B)	8-94338-044-0	03	1	9402-9504	●	●
115	02.559 CLIP; DOOR HARNESS REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-94338-044-0	03	1	9402-9504	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (B)	8-94338-044-0	03	1	9505-	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-94338-044-0	03	1	9505-	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	04	1	9209-9308	●	●
115	02.559 CLIP; DOOR HARNESS EXC. AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	02	1	9209-9308	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	04	1	9309-9401	●	●
115	02.559 CLIP; DOOR HARNESS AUSTRALIA EQUIPMENT(RR3) EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25>, REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCE L<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9402-9504	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	04	1	9505-9506	●	●
115	02.559 CLIP; DOOR HARNESS AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y> (C) L=36.5	8-97019-892-0	04	1	9505-9506	●	●
115	02.559 CLIP; DOOR HARNESS AUSTRALIA EQUIPMENT(RR3) EXC. RR WIPER W/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9507-9607	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. AUSTRALIA EQUIPMENT(RR3),RR DEFOGGERW/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTE NT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9608-9608	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (C) L=36.5	8-97019-892-0	04	1	9608-9608	●	●
115	02.559 CLIP; DOOR HARNESS AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9608-9608	●	●
115	02.559 CLIP; DOOR HARNESS THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) CONVENIENT PACKAGE<6QZ> EXC. RR WIPER W/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9609-	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(RR3) EXC. RR WIPER<C25>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	03	1	9402-9504	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	03	1	9505-9506	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	03	1	9507-9608	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) CONVENIENT PACKAGE<6QZ> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	03	1	9609-	●	●
115	02.559 CLIP; DOOR HARNESS EXC. AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	02	1	9309-9504	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	02	1	9505-	●	●
115	02.559 CLIP; DOOR HARNESS RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	05	1	9209-9504	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (A)	8-97804-785-0	05	1	9505-	●	●
115	02.559 CLIP; DOOR HARNESS EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	02	1	9209-9504	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D),RR DEFOGGER W/AUTO CANC EL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	02	1	9505-9506	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. AUSTRALIA EQUIPMENT(RR3),RR DEFOGGERW/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTE NT<6WJ> (A)	8-97804-785-0	02	1	9507-9608	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. AUSTRALIA EQUIPMENT(RR3),RR DEFOGGERW/AUTO CANCEL<S4Y>,CONVENIENT PACKAGE<6QZ>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	02	1	9609-	●	●
132	02.559 SCREW; HARNESS 15.222 M5X16 TAPPING W/PL WASHER	0-74315-516-0	05	1	9112-9504	●	●
132	02.559 SCREW; HARNESS 16.085 M5X16 TAPPING	9-09829-323-1	04	1	9505-	●	●
144	02.694 CLIP; TAIL LAMP HARNESS 02.343 ID=20	8-94410-200-0	01	1	9112-9202	●	●
144	02.694 CLIP; TAIL LAMP HARNESS ID=6 & 10-13	8-97069-515-0	01	1	9203-	●	●
178	02.559 GROMMET; HARNESS 02.530 L=65	8-94235-856-0	02	1	9112-9504	●	●
181	02.559 TAPE; SOFT,SIDE PNL HARNESS EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94137-544-0	02	1	9206-9504	●	●
181	02.559 TAPE; SOFT,SIDE PNL HARNESS M/T MUA 5 SPEED(RMN)	8-94137-544-0	01	1	9309-9504	●	●
219	02.559 NUT 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 07.633 M8 FLANGE	0-91150-108-0	01	1	9209-9308	●	●
219	02.559 NUT 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
219	02.559 NUT 6VD1 SOHC ENG(RLU) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
239	02.559 BOLT; GRAND 13.090 M6X14	8-94153-946-0	05	1	9112-9209	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9210-9504	●	●
239	02.559 BOLT; GRAND 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 13.090 M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	02.559 BOLT; GRAND ANTI LOCK BRAKE SYSTEM(JE5) 13.090 M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	02.559 BOLT; GRAND 6VD1 SOHC ENG(RLU) A/T THM(RMQ) 13.090 M6X14	8-94153-946-0	01	1	9210-9308	●	●
239	02.559 BOLT; GRAND 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9504	●	●
239	02.559 BOLT; GRAND ANTI LOCK BRAKE SYSTEM(JE5) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9504	●	●
239	02.559 BOLT; GRAND 6VD1 SOHC ENG(RLU) A/T THM(RMQ) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
242	02.483 BOLT; BRKT,HARNESS 4ZE1 ENG(RLJ) 04.785 M6X14 W/LK&PL WASHER	9-01960-614-0	01	1	9112-9204	●	●
242	02.483 BOLT; BRKT,HARNESS 4ZE1 ENG(RLJ) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9205-9504	●	●
413	02.559 PLUG; CAVITY,HARNESS	8-97803-276-0	01	1	9112-	●	●
462	02.559 CLIP; HARNESS,HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (A) L=140	5-09707-031-0	01	1	9206-9504	●	●
462	02.559 CLIP; HARNESS,HTR AIR CON PREPARATORY PACK<S6D> 03.162 (A) L=140	5-09707-031-0	01	1	9505-9509	●	●
462	02.559 CLIP; HARNESS,HTR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 01.152 (B) ID=8.5	5-09700-275-0	01	1	9112-9208	●	●
462	02.559 CLIP; HARNESS,HTR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9308	●	●
512	02.559 PROTECTOR; HARNESS 16.570 L=73 SERVICED BY L=190	1-71998-300-0	01	1	9512-	●	●

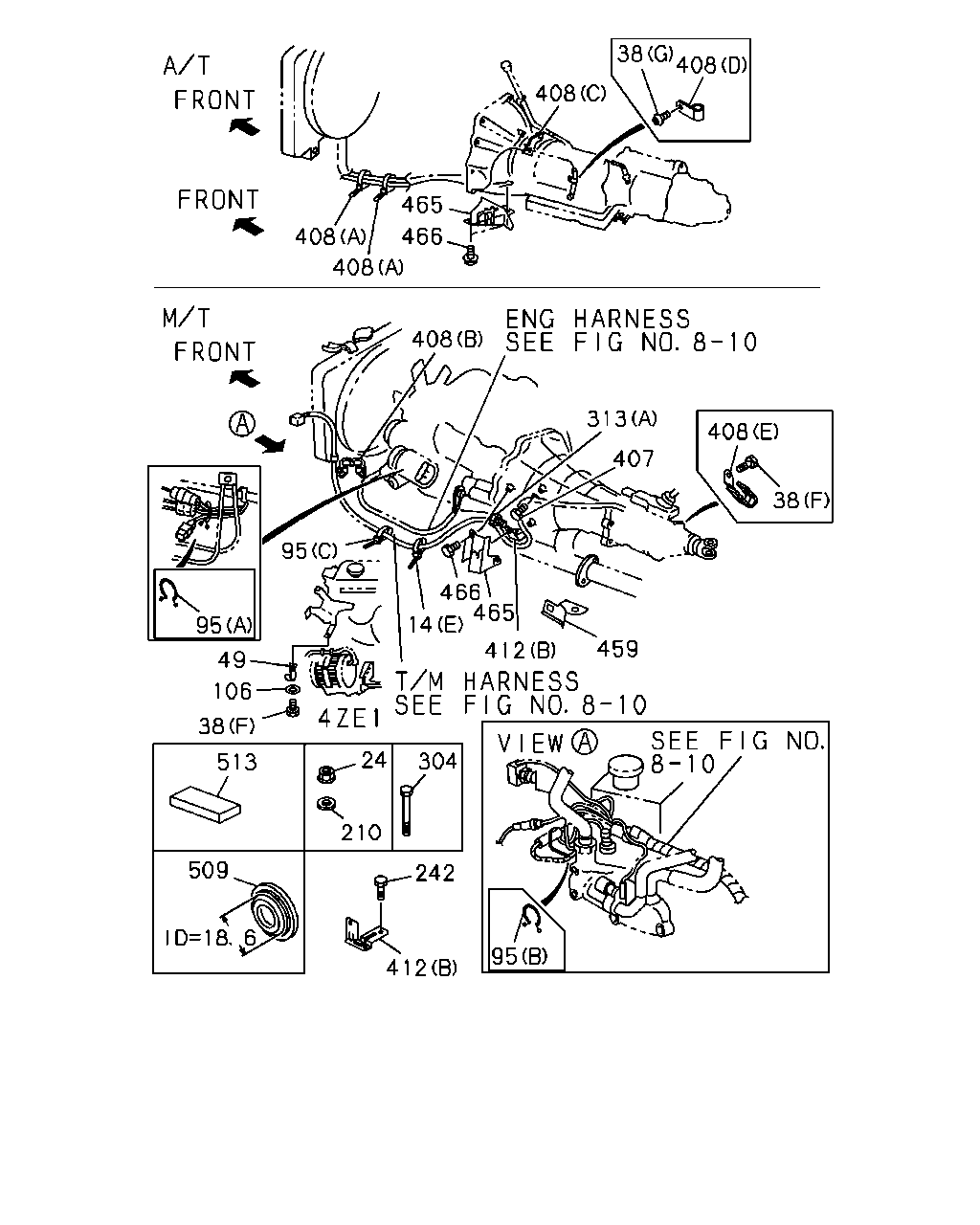

408 38 408 465 466 408 408 408 408 38 313 407 466 465 412 459 14 95 95 49 106 38 95 412 242 304 24 210 513 509

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) L=250	5-09707-030-0	01	1	9112-9208	●	●
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) L=250	5-09707-030-0	02	1	9209-9209	●	●
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4) (A) 920928- L=250	5-09707-030-0	02	1	9209-9308	●	●
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) L=250	5-09707-030-0	01	1	9309-	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) (A) 920928- L=250	5-09707-030-0	01	1	9209-9308	●	●
14	02.559 CLIP; BAND,HARNESS EUROPE EQUIPMENT(EK4) (A) 920928- L=250	5-09707-030-0	01	1	9209-9308	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.162 (A) L=140	5-09707-031-0	01	1	9603-9607	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (B) ID=12	5-09700-331-0	01	1	9209-	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) (B) ID=12	5-09700-331-0	01	1	9112-9208	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) 09.656 (C) L=175	8-94155-593-1	01	1	9112-9308	●	●
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC) 08.077 (D)	8-94225-098-0	01	1	9201-9504	●	●
14	02.559 CLIP; BAND,HARNESS 4ZE1 ENG(RLJ) 03.430 (E) L=200	8-94464-835-0	01	1	9610-	●	●
24	02.559 NUT; HARNESS 4ZE1 ENG(RLJ) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
24	02.559 NUT; HARNESS 6VD1 SOHC ENG(RLU) 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 09.211 (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 04.686 (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 03.164 (B) M6X18	9-01960-618-0	08	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 08.900 (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 04.710 (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 00.662 (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	02.559 BOLT; CLIP,HARNESS 4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 04.686 (C) M6X25	0-28010-625-0	01	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 04.686 (C) M6X25 FLANGE	0-28080-625-0	01	1	9205-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 01.428 (H) M6X12 FLANGE	0-28080-612-0	01	1	9112-9301	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9112-9408	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (G) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9208	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9209-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
49	02.559 CLIP; GEN HARNESS 4ZE1 ENG(RLJ)	8-94319-607-0	01	1	9112-	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 02.480 (A) ID=25	8-94120-831-0	01	1	9112-9505	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) TURBOCHARGER<K51> 02.480 (A) ID=25	8-94120-831-0	01	1	9506-9608	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) TURBOCHARGER<K51> 02.480 (A) ID=25	8-94120-831-0	01	1	9608-	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC),4JG1 ENG(RLT) 16.065 (B) ID=20	1-09709-068-0	01	1	9112-9504	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC),4JG1 ENG(RLT) 03.162 (C) L=140	5-09707-031-0	01	1	9112-9504	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) 03.162 (C) L=140	5-09707-031-0	01	1	9505-9608	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) 03.162 (C) L=140	5-09707-031-0	01	1	9608-	●	●
106	02.559 WASHER; HARNESS CLIP 4ZE1 ENG(RLJ) 00.206 ID=8.4	9-09164-508-0	01	1	9112-	●	●
210	02.559 WASHER; PL,GEN 4ZE1 ENG(RLJ) 00.206 ID=6.4	9-09160-506-0	01	1	9112-	●	●
242	02.483 BOLT; BRKT,HARNESS 4ZE1 ENG(RLJ) 04.785 M6X14 W/LK&PL WASHER	9-01960-614-0	01	1	9112-9204	●	●
242	02.483 BOLT; BRKT,HARNESS 4ZE1 ENG(RLJ) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9205-9504	●	●
304	02.483 BOLT; ENG HARNESS CLIP 4ZE1 ENG(RLJ) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9112-9607	●	●
313	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 04.128 (A) M8X40	0-28010-840-0	01	1	9112-9204	●	●
313	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 01.271 (A) M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
313	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 01.271 (B) M8X40 FLANGE	0-28080-840-0	01	1	9112-	●	●
407	02.483 BOLT; HARNESS TO TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 03.671 M6X12	0-28010-612-0	01	1	9112-9204	●	●
407	02.483 BOLT; HARNESS TO TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9205-9607	●	●
407	02.483 BOLT; HARNESS TO TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9608-	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED(RMN) 00.446 (E) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9209-9505	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED(RMN) 00.446 (E) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9505-	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED(RMN) 00.446 (E) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9504	●	●
408	02.559 CLIP; TRANS HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (A) L=250	5-09707-030-0	02	1	9112-9305	●	●
408	02.559 CLIP; TRANS HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) 03.430 (A) L=200	8-94464-835-0	02	1	9306-	●	●
408	02.559 CLIP; TRANS HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (C)	8-97022-809-0	01	1	9112-	●	●
408	02.559 CLIP; TRANS HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) 00.785 (D) ID=16	9-09525-522-0	01	1	9112-	●	●
408	02.559 CLIP; TRANS HARNESS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 04.105 (B) ID=24	8-97022-568-3	01	1	9112-	●	●
412	02.559 BRACKET; HARNESS,TRANS 4ZE1 ENG(RLJ) (A)	8-94472-197-0	01	1	9112-	●	●
412	02.559 BRACKET; HARNESS,TRANS 4ZE1 ENG(RLJ) (B)	8-97806-180-1	01	1	9112-	●	●
412	02.559 BRACKET; HARNESS,TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) (B)	8-94359-008-1	01	1	9112-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-94315-284-0	01	1	9112-9504	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JG2 ENG(RJC)	8-94315-284-0	01	1	9505-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ)	8-97029-511-1	01	1	9112-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97807-963-0	01	1	9112-9210	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97809-116-1	01	1	9211-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) A/T THM(RMQ) 03.671 M6X12	0-28010-612-0	02	1	9112-9204	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) A/T THM(RMQ) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9205-9607	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) A/T THM(RMQ) 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9608-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 03.671 M6X12	0-28010-612-0	03	1	9112-9204	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9205-9607	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 04.439 M6X16 FLANGE	0-28680-616-0	03	1	9608-	●	●
509	02.559 PLUG; HOLE,TERMINAL 4ZE1 ENG(RLJ) 16.550	8-97800-739-0	02	1	9505-	●	●
513	02.559 TAPE; SOFT,HARNESS M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6>	8-94137-544-0	01	1	9505-9506	●	●

16 16 16 27 27 399 399 399 166 524 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (F) L=250	5-09707-030-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	02.559 CLIP; HARNESS SEAT HEATER DRIVER<C37> 02.587 (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS SEAT HEATER PASSENGER<C38> 02.587 (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (E) L=104	8-94433-185-0	02	1	9505-	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 01.152 (G) L=63	1-09700-418-1	01	1	9511-9607	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 01.152 (G) L=63	1-09700-418-1	01	1	9608-9608	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST M ALAYSIA EQUIPMENT(S3D) 01.152 (G) L=63	1-09700-418-1	01	1	9608-	●	●
16	02.559 CLIP; HARNESS 6VD1 SOHC ENG(RLU) (B)	8-97032-822-1	01	1	9112-9608	●	●
16	02.559 CLIP; HARNESS 6VD1 SOHC ENG(RLU) (B)	8-97032-822-1	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (C) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) FRIGID ZONE<YL3> 16.570 (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (E) ID=30	8-94142-264-0	04	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (H)	8-97803-554-0	01	1	9112-	●	●
27	02.559 PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 13.090 (A)	8-94340-075-0	02	1	9112-9112	●	●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	02	1	9201-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (F) L=65	8-94235-856-0	02	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (J) L=80	5-22439-006-0	01	1	9506-9607	●	●
27	02.559 PROTECTOR; EDGE AIR BAG DRIVER<AJ3> 03.008 (J) L=80	5-22439-006-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (J) L=80	5-22439-006-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE ANTI LOCK BRAKE SYSTEM(JE5) AUTO CRUISE CONT<K30> 02.530 (D) L=30	8-94366-689-0	01	1	9201-9308	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9309-9607	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE ANTI LOCK BRAKE SYSTEM(JE5) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9112-9311	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9312-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (F) L=65	8-94235-856-0	01	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	02	1	9112-9504		●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	01	1	9505-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (A) ID=36	8-94178-685-0	03	1	9505-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (E) ID=30	8-94142-264-0	02	1	9505-		●
166	02.559 CLIP; HARNESS CLU SW M/T MUA 5 SPEED(RMN)	8-94238-565-1	01	1	9505-	●	●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> 16.165 (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9505-9509		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> 16.592 (C) OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9510-		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-97115-143-0	02	1	9505-		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (B)	8-97115-144-0	02	1	9505-		●
524	02.559 NUT; HARNESS 4ZE1 ENG(RLJ) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9505-	●	●

14 313 239 14 12 7 412 483 27 8 8 38 14 7 462 14 85 53 294 7 194 12 239 38 294 401 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) (B)	8-97805-902-1	01	1	9112-	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC),4JG1 ENG(RLT) (A)	8-97805-895-0	01	1	9112-9504	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) (A)	8-97805-895-0	01	1	9505-	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) (C)	8-97802-171-0	01	1	9112-9504	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4) (C)	8-97802-171-0	01	1	9505-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 03.671 (A) M8X18 W/LK WASHER	9-01900-818-0	01	1	9112-9204	●	●
8	02.559 BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9205-9407	●	●
8	02.559 BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9408-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 04.785 (B) M6X14 W/LK&PL WASHER	9-01960-614-0	01	1	9112-9204	●	●
8	02.559 BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 08.900 (B) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9205-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 04.785 (B) M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●	●
8	02.559 BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE EQUIPMENT(EK4) 08.900 (B) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-9504	●	●
12	02.559 WASHER; LK ANTI LOCK BRAKE SYSTEM(JE5) 00.002 ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	01	1	9112-9209	●	●
12	02.559 WASHER; LK 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 00.002 ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	06	1	9112-9209	●	●
12	02.559 WASHER; LK 4ZE1 ENG(RLJ),4JG1 ENG(RLT) 00.002 ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	05	1	9112-9209	●	●
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) L=250	5-09707-030-0	01	1	9112-9208	●	●
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) L=250	5-09707-030-0	02	1	9209-9209	●	●
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4) (A) 920928- L=250	5-09707-030-0	02	1	9209-9308	●	●
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) L=250	5-09707-030-0	01	1	9309-	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) (A) 920928- L=250	5-09707-030-0	01	1	9209-9308	●	●
14	02.559 CLIP; BAND,HARNESS EUROPE EQUIPMENT(EK4) (A) 920928- L=250	5-09707-030-0	01	1	9209-9308	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.162 (A) L=140	5-09707-031-0	01	1	9603-9607	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (B) ID=12	5-09700-331-0	01	1	9209-	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE EQUIPMENT(EK4) (B) ID=12	5-09700-331-0	01	1	9112-9208	●	●
14	02.559 CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) 09.656 (C) L=175	8-94155-593-1	01	1	9112-9308	●	●
14	02.559 CLIP; BAND,HARNESS 4JG2 ENG(RJC) 08.077 (D)	8-94225-098-0	01	1	9201-9504	●	●
14	02.559 CLIP; BAND,HARNESS 4ZE1 ENG(RLJ) 03.430 (E) L=200	8-94464-835-0	01	1	9610-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (C) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) FRIGID ZONE<YL3> 16.570 (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (E) ID=30	8-94142-264-0	04	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (H)	8-97803-554-0	01	1	9112-	●	●
27	02.559 PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 13.090 (A)	8-94340-075-0	02	1	9112-9112	●	●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	02	1	9201-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (F) L=65	8-94235-856-0	02	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (J) L=80	5-22439-006-0	01	1	9506-9607	●	●
27	02.559 PROTECTOR; EDGE AIR BAG DRIVER<AJ3> 03.008 (J) L=80	5-22439-006-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (J) L=80	5-22439-006-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE ANTI LOCK BRAKE SYSTEM(JE5) AUTO CRUISE CONT<K30> 02.530 (D) L=30	8-94366-689-0	01	1	9201-9308	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9309-9607	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE ANTI LOCK BRAKE SYSTEM(JE5) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9112-9311	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9312-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (F) L=65	8-94235-856-0	01	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	02	1	9112-9504		●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	01	1	9505-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (A) ID=36	8-94178-685-0	03	1	9505-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (E) ID=30	8-94142-264-0	02	1	9505-		●
38	02.559 BOLT; CLIP,HARNESS 09.211 (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 04.686 (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 03.164 (B) M6X18	9-01960-618-0	08	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 08.900 (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 04.710 (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 00.662 (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	02.559 BOLT; CLIP,HARNESS 4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 04.686 (C) M6X25	0-28010-625-0	01	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 04.686 (C) M6X25 FLANGE	0-28080-625-0	01	1	9205-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 01.428 (H) M6X12 FLANGE	0-28080-612-0	01	1	9112-9301	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9112-9408	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (G) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9208	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9209-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
53	02.483 BRACKET; HARNESS A/T THM(RMQ) ANTI LOCK BRAKE SYSTEM(JE5) 02.698	8-97807-647-2	01	1	9112-	●	●
53	02.483 BRACKET; HARNESS M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE SYSTEM(JE5) 02.698	8-97805-901-3	01	1	9112-	●	●
85	02.483 CLIP; BRKT ASM,HARNESS A/T THM(RMQ) ANTI LOCK BRAKE SYSTEM(JE5) 12.801 D6.8X12	8-94198-687-0	01	1	9112-	●	●
194	02.559 CLIP; BAND SEAT BELT 3 POINT PRE TENSIONER<7MC> L=250	5-09707-030-0	01	1	9608-	●	●
219	02.559 NUT 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 07.633 M8 FLANGE	0-91150-108-0	01	1	9209-9308	●	●
219	02.559 NUT 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
219	02.559 NUT 6VD1 SOHC ENG(RLU) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
239	02.559 BOLT; GRAND 13.090 M6X14	8-94153-946-0	05	1	9112-9209	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9210-9504	●	●
239	02.559 BOLT; GRAND 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 13.090 M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	02.559 BOLT; GRAND ANTI LOCK BRAKE SYSTEM(JE5) 13.090 M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	02.559 BOLT; GRAND 6VD1 SOHC ENG(RLU) A/T THM(RMQ) 13.090 M6X14	8-94153-946-0	01	1	9210-9308	●	●
239	02.559 BOLT; GRAND 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9504	●	●
239	02.559 BOLT; GRAND ANTI LOCK BRAKE SYSTEM(JE5) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9504	●	●
239	02.559 BOLT; GRAND 6VD1 SOHC ENG(RLU) A/T THM(RMQ) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
294	02.559 NUT A/T THM(RMQ) ANTI LOCK BRAKE SYSTEM(JE5) 04.594 M6 FLANGE	0-91150-106-0	01	1	9112-9208	●	●
294	02.559 NUT 4JG2 ENG(RJC),4JG1 ENG(RLT) 04.594 M6 FLANGE	0-91150-106-0	01	1	9112-9208	●	●
294	02.559 NUT A/T THM(RMQ) ANTI LOCK BRAKE SYSTEM(JE5) 04.594 M6 FLANGE	0-91150-106-0	01	1	9209-	●	●
313	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 04.128 (A) M8X40	0-28010-840-0	01	1	9112-9204	●	●
313	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 01.271 (A) M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
313	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) 01.271 (B) M8X40 FLANGE	0-28080-840-0	01	1	9112-	●	●
401	02.559 BRACKET; HARNESS,GEN 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97805-899-0	01	1	9112-9208	●	●
412	02.559 BRACKET; HARNESS,TRANS 4ZE1 ENG(RLJ) (A)	8-94472-197-0	01	1	9112-	●	●
412	02.559 BRACKET; HARNESS,TRANS 4ZE1 ENG(RLJ) (B)	8-97806-180-1	01	1	9112-	●	●
412	02.559 BRACKET; HARNESS,TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) (B)	8-94359-008-1	01	1	9112-	●	●
462	02.559 CLIP; HARNESS,HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (A) L=140	5-09707-031-0	01	1	9206-9504	●	●
462	02.559 CLIP; HARNESS,HTR AIR CON PREPARATORY PACK<S6D> 03.162 (A) L=140	5-09707-031-0	01	1	9505-9509	●	●
462	02.559 CLIP; HARNESS,HTR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 01.152 (B) ID=8.5	5-09700-275-0	01	1	9112-9208	●	●
462	02.559 CLIP; HARNESS,HTR 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9308	●	●
483	02.559 CLIP; ENG HARNESS 02.587 L=172	8-94232-620-0	01	1	9112-9309	●	●
483	02.559 CLIP; ENG HARNESS 930920- L=212	8-94107-652-0	01	1	9309-9504	●	●
483	02.559 CLIP; ENG HARNESS L=212	8-94107-652-0	01	1	9505-	●	●

16 390 27 27 27 27 27 27 27 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (F) L=250	5-09707-030-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	02.559 CLIP; HARNESS SEAT HEATER DRIVER<C37> 02.587 (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS SEAT HEATER PASSENGER<C38> 02.587 (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (E) L=104	8-94433-185-0	02	1	9505-	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 01.152 (G) L=63	1-09700-418-1	01	1	9511-9607	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 01.152 (G) L=63	1-09700-418-1	01	1	9608-9608	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST M ALAYSIA EQUIPMENT(S3D) 01.152 (G) L=63	1-09700-418-1	01	1	9608-	●	●
16	02.559 CLIP; HARNESS 6VD1 SOHC ENG(RLU) (B)	8-97032-822-1	01	1	9112-9608	●	●
16	02.559 CLIP; HARNESS 6VD1 SOHC ENG(RLU) (B)	8-97032-822-1	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (C) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) FRIGID ZONE<YL3> 16.570 (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (E) ID=30	8-94142-264-0	04	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (H)	8-97803-554-0	01	1	9112-	●	●
27	02.559 PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	02.559 PROTECTOR; EDGE 13.090 (A)	8-94340-075-0	02	1	9112-9112	●	●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	02	1	9201-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (F) L=65	8-94235-856-0	02	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (J) L=80	5-22439-006-0	01	1	9506-9607	●	●
27	02.559 PROTECTOR; EDGE AIR BAG DRIVER<AJ3> 03.008 (J) L=80	5-22439-006-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (J) L=80	5-22439-006-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE ANTI LOCK BRAKE SYSTEM(JE5) AUTO CRUISE CONT<K30> 02.530 (D) L=30	8-94366-689-0	01	1	9201-9308	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9309-9607	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●	●
27	02.559 PROTECTOR; EDGE ANTI LOCK BRAKE SYSTEM(JE5) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9112-9311	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9312-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (F) L=65	8-94235-856-0	01	1	9505-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	02	1	9112-9504		●
27	02.559 PROTECTOR; EDGE 02.480 (A) ID=36	8-94178-685-0	01	1	9505-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (A) ID=36	8-94178-685-0	03	1	9505-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (E) ID=30	8-94142-264-0	02	1	9505-		●
390	02.480 CONNECTOR; SHORT CIRCUIT 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX)	8-97110-718-0	01	1	9505-	●	●

38 485 494 16 494 38 139 428 38 485 484 524 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (F) L=250	5-09707-030-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	02.559 CLIP; HARNESS SEAT HEATER DRIVER<C37> 02.587 (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS SEAT HEATER PASSENGER<C38> 02.587 (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (E) L=104	8-94433-185-0	02	1	9505-	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 01.152 (G) L=63	1-09700-418-1	01	1	9511-9607	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 01.152 (G) L=63	1-09700-418-1	01	1	9608-9608	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST M ALAYSIA EQUIPMENT(S3D) 01.152 (G) L=63	1-09700-418-1	01	1	9608-	●	●
16	02.559 CLIP; HARNESS 6VD1 SOHC ENG(RLU) (B)	8-97032-822-1	01	1	9112-9608	●	●
16	02.559 CLIP; HARNESS 6VD1 SOHC ENG(RLU) (B)	8-97032-822-1	01	1	9608-	●	●
24	02.559 NUT; HARNESS 4ZE1 ENG(RLJ) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
24	02.559 NUT; HARNESS 6VD1 SOHC ENG(RLU) 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 09.211 (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 04.686 (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 03.164 (B) M6X18	9-01960-618-0	08	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 08.900 (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 04.710 (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 00.662 (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	02.559 BOLT; CLIP,HARNESS 4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 04.686 (C) M6X25	0-28010-625-0	01	1	9112-9204	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 04.686 (C) M6X25 FLANGE	0-28080-625-0	01	1	9205-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 01.428 (H) M6X12 FLANGE	0-28080-612-0	01	1	9112-9301	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9112-9408	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (G) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9208	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9209-9504	●	●
38	02.559 BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
139	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9112-9208	●	●
139	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9209-9311	●	●
139	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9312-9608	●	●
139	02.559 BOLT; BRKT 6VD1 SOHC ENG(RLU) EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST M ALAYSIA EQUIPMENT(S3D) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9608-	●	●
428	02.483 BRACKET 6VD1 SOHC ENG(RLU)	8-97032-701-0	01	1	9112-9608	●	●
428	02.483 BRACKET 6VD1 SOHC ENG(RLU)	8-97032-701-0	01	1	9608-	●	●
484	02.559 CLIP; ECGI HARNESS TO C/MBR 6VD1 SOHC ENG(RLU) 04.594 L=100	5-09707-036-0	03	1	9112-	●	●
485	02.559 CLIP; HARNESS,ECGI 6VD1 SOHC ENG(RLU) 01.152 (B) ID=8	5-09700-338-0	01	1	9112-9301	●	●
485	02.559 CLIP; HARNESS,ECGI 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) 04.342 (A) ID=8 L=31	1-09700-112-0	01	1	9112-9201	●	●
485	02.559 CLIP; HARNESS,ECGI 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-94327-574-0	01	1	9202-9208	●	●
485	02.559 CLIP; HARNESS,ECGI 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94327-574-0	01	1	9209-9504	●	●
485	02.559 CLIP; HARNESS,ECGI 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-94327-574-0	01	1	9505-	●	●
494	02.559 CLIP; BONDING CABLE 4ZE1 ENG(RLJ) 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9112-9210	●	●
494	02.559 CLIP; BONDING CABLE 4ZE1 ENG(RLJ) 09.242 (A) ID=12.5 & 24	5-09709-034-0	01	1	9211-	●	●
494	02.559 CLIP; BONDING CABLE 6VD1 SOHC ENG(RLU) 02.480 (B) ID=25	8-94120-831-0	01	1	9112-9112	●	●
524	02.559 NUT; HARNESS 4ZE1 ENG(RLJ) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
