Sayfa 8-08 - Isuzu EPC

8-08 — HEAD LAMP WASHER (#40380) — 56 parça

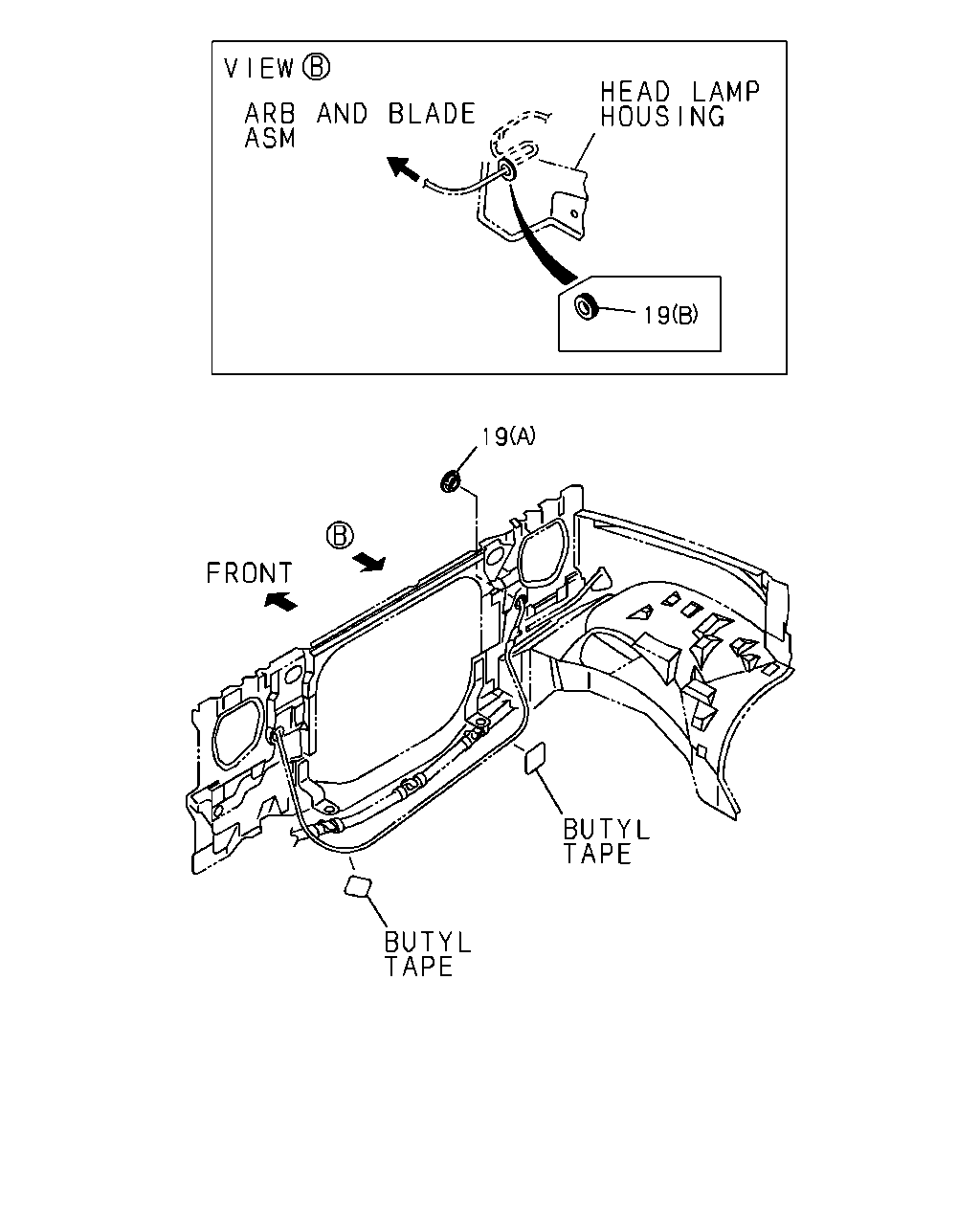

19 19

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	19	02.780 GROMMET; HEADLAMP CLEANER HOSE HEADLAMP WASHER<CE3> 02.483 (A) ID=30	8-94142-264-0	01	1	9112-	●	●
	19	02.780 GROMMET; HEADLAMP CLEANER HOSE HEADLAMP WASHER<CE3> (B) ID=8 OD=18 T=5	9-09575-208-0	02	1	9112-	●	●

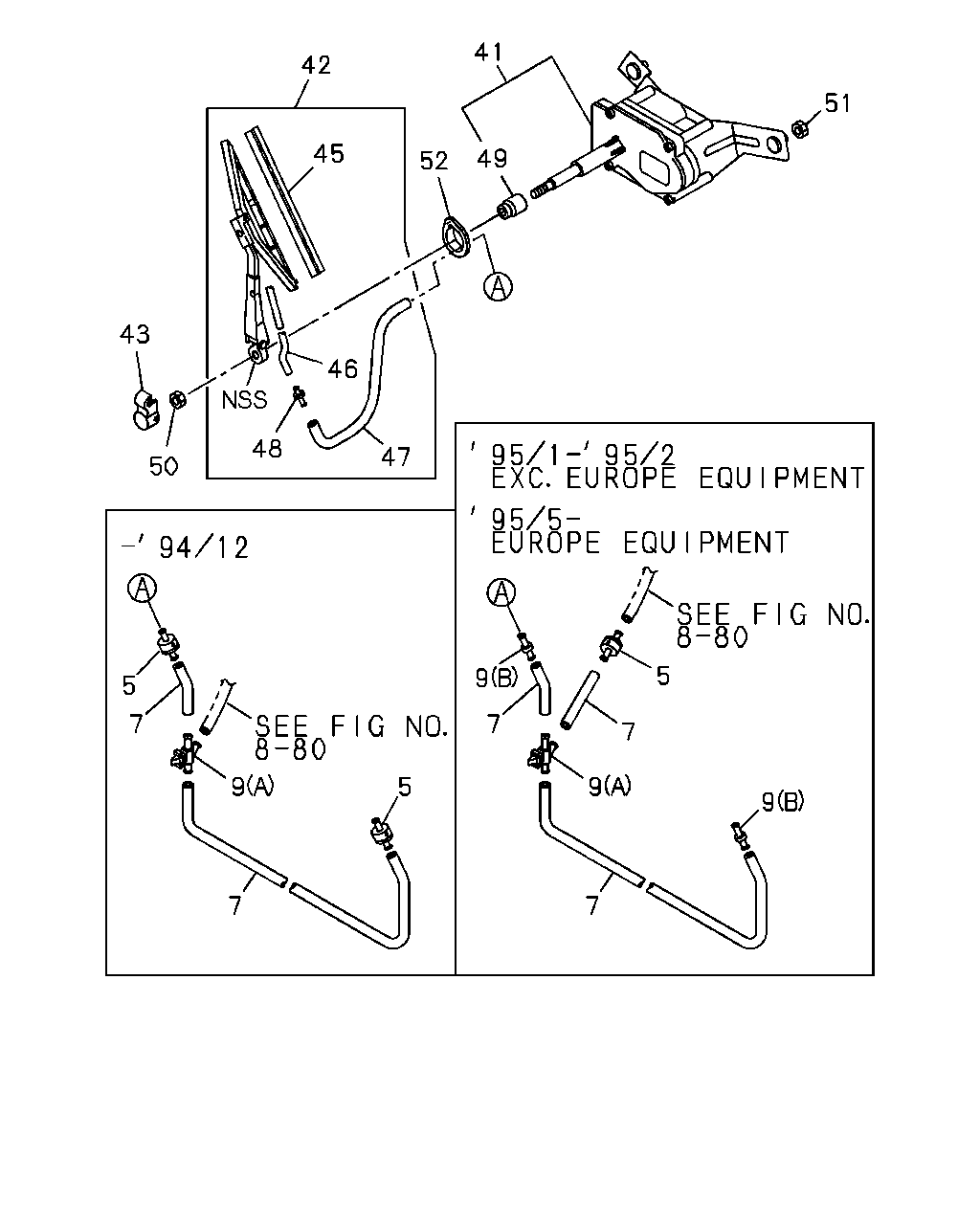

51 41 49 52 42 45 43 46 47 48 50 5 7 7 5 9 9 7 9 9 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3>	8-97807-641-0	02	1	9112-9412	●	●
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3> EUROPE EQUIPMENT(EK4)	8-97807-641-0	02	1	9501-9504	●	●
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3> EUROPE EQUIPMENT(EK4)	8-97127-449-0	01	1	9505-	●	●
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3> EXC. EUROPE EQUIPMENT(EK4)	8-97807-641-0	01	1	9501-9502	●	●
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3> EXC. EUROPE EQUIPMENT(EK4)	8-97127-449-0	02	1	9503-	●	●
7	02.780 HOSE; HLC HEADLAMP WASHER<CE3> 16.065 SERVICED BY L=10000	9-09914-906-0	01	1	9112-	●	●
9	02.780 JOINT; HLC HOSE HEADLAMP WASHER<CE3> (A)	8-97807-642-0	01	1	9112-	●	●
9	02.780 JOINT; HLC HOSE HEADLAMP WASHER<CE3> EXC. EUROPE EQUIPMENT(EK4) 10.155 (B) 2WAY	8-94239-402-0	02	1	9501-9504	●	●
9	02.780 JOINT; HLC HOSE HEADLAMP WASHER<CE3> 10.155 (B) 2WAY	8-94239-402-0	02	1	9505-	●	●
41	02.780 MOTOR & BRACKET ASM; HEAD LAMP W HEADLAMP WASHER<CE3>	8-94358-857-4	01	1	9112-9504	●	●
41	02.780 MOTOR & BRACKET ASM; HEAD LAMP W HEADLAMP WASHER<CE3>	8-94358-859-4	01	1	9505-	●	●
41	02.780 MOTOR & BRACKET ASM; HEAD LAMP W HEADLAMP WASHER<CE3>	8-94358-856-4	01	1	9112-9504	●	●
41	02.780 MOTOR & BRACKET ASM; HEAD LAMP W HEADLAMP WASHER<CE3>	8-94358-858-4	01	1	9505-	●	●
42	02.780 ARM & BLADE ASM; HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-94358-861-1	01	1	9112-9504	●	●
42	02.780 ARM & BLADE ASM; HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97808-806-0	01	1	9505-	●	●
42	02.780 ARM & BLADE ASM; HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-94358-860-1	01	1	9112-9504	●	●
42	02.780 ARM & BLADE ASM; HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97808-805-0	01	1	9505-	●	●
43	02.780 COVER; WIPER ARM,HEAD LAMP HEADLAMP WASHER<CE3>	8-94358-864-1	02	1	9112-	●	●
45	02.780 RUBBER; BLADE,HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97807-484-0	02	1	9112-	●	●
46	02.780 TUBE; NOZZLE,HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97807-485-0	02	1	9112-	●	●
47	02.780 TUBE; JOINT TO TANK,HEAD LAMP WI HEADLAMP WASHER<CE3> 10.155 L=155 SERVICED BY L=10000	8-94389-303-0	02	1	9112-	●	●
48	02.780 JOINT; TUBE,HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97807-487-0	02	1	9112-	●	●
49	02.780 SEAL; PIVOT,HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97807-339-0	02	1	9112-	●	●
50	02.780 NUT; WIPER ARM,HEAD LAMP HEADLAMP WASHER<CE3> 02.664 M5	9-99111-405-0	02	1	9112-9212	●	●
50	02.780 NUT; WIPER ARM,HEAD LAMP HEADLAMP WASHER<CE3>	1-09400-075-0	02	1	9301-	●	●
51	02.780 NUT; MOTOR,HEAD LAMP WIPER HEADLAMP WASHER<CE3> 04.594 M6 FLANGE	0-91150-106-0	04	1	9112-	●	●
52	02.780 PROTECTOR; WIPER,HEAD LAMP HEADLAMP WASHER<CE3>	8-97802-918-0	02	1	9112-	●	●

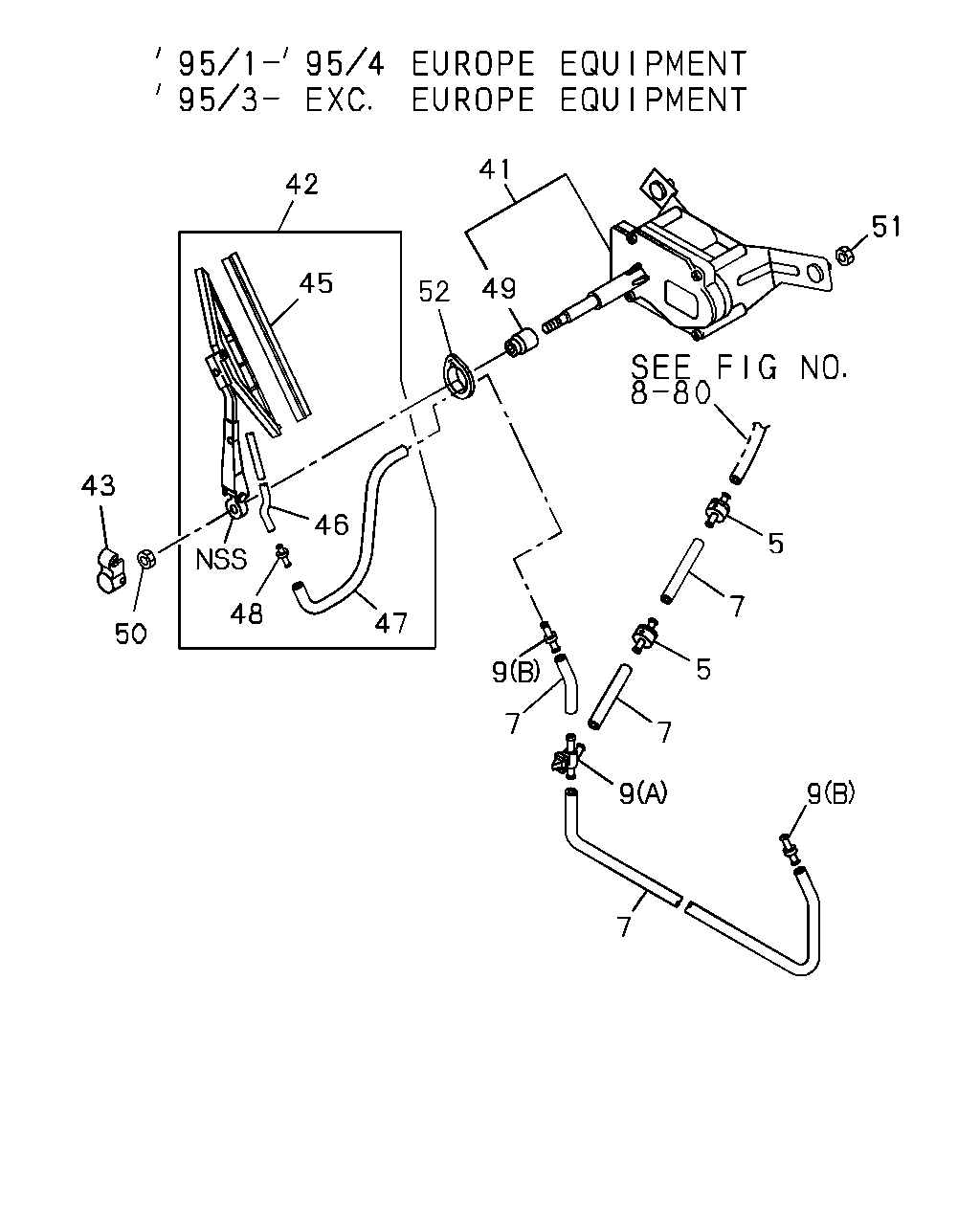

51 41 42 45 43 50 48 46 47 52 49 5 7 5 7 9 9 7 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3>	8-97807-641-0	02	1	9112-9412	●	●
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3> EUROPE EQUIPMENT(EK4)	8-97807-641-0	02	1	9501-9504	●	●
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3> EUROPE EQUIPMENT(EK4)	8-97127-449-0	01	1	9505-	●	●
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3> EXC. EUROPE EQUIPMENT(EK4)	8-97807-641-0	01	1	9501-9502	●	●
5	02.780 VALVE; CHECK,HLC HOSE HEADLAMP WASHER<CE3> EXC. EUROPE EQUIPMENT(EK4)	8-97127-449-0	02	1	9503-	●	●
7	02.780 HOSE; HLC HEADLAMP WASHER<CE3> 16.065 SERVICED BY L=10000	9-09914-906-0	01	1	9112-	●	●
9	02.780 JOINT; HLC HOSE HEADLAMP WASHER<CE3> (A)	8-97807-642-0	01	1	9112-	●	●
9	02.780 JOINT; HLC HOSE HEADLAMP WASHER<CE3> EXC. EUROPE EQUIPMENT(EK4) 10.155 (B) 2WAY	8-94239-402-0	02	1	9501-9504	●	●
9	02.780 JOINT; HLC HOSE HEADLAMP WASHER<CE3> 10.155 (B) 2WAY	8-94239-402-0	02	1	9505-	●	●
41	02.780 MOTOR & BRACKET ASM; HEAD LAMP W HEADLAMP WASHER<CE3>	8-94358-857-4	01	1	9112-9504	●	●
41	02.780 MOTOR & BRACKET ASM; HEAD LAMP W HEADLAMP WASHER<CE3>	8-94358-859-4	01	1	9505-	●	●
41	02.780 MOTOR & BRACKET ASM; HEAD LAMP W HEADLAMP WASHER<CE3>	8-94358-856-4	01	1	9112-9504	●	●
41	02.780 MOTOR & BRACKET ASM; HEAD LAMP W HEADLAMP WASHER<CE3>	8-94358-858-4	01	1	9505-	●	●
42	02.780 ARM & BLADE ASM; HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-94358-861-1	01	1	9112-9504	●	●
42	02.780 ARM & BLADE ASM; HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97808-806-0	01	1	9505-	●	●
42	02.780 ARM & BLADE ASM; HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-94358-860-1	01	1	9112-9504	●	●
42	02.780 ARM & BLADE ASM; HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97808-805-0	01	1	9505-	●	●
43	02.780 COVER; WIPER ARM,HEAD LAMP HEADLAMP WASHER<CE3>	8-94358-864-1	02	1	9112-	●	●
45	02.780 RUBBER; BLADE,HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97807-484-0	02	1	9112-	●	●
46	02.780 TUBE; NOZZLE,HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97807-485-0	02	1	9112-	●	●
47	02.780 TUBE; JOINT TO TANK,HEAD LAMP WI HEADLAMP WASHER<CE3> 10.155 L=155 SERVICED BY L=10000	8-94389-303-0	02	1	9112-	●	●
48	02.780 JOINT; TUBE,HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97807-487-0	02	1	9112-	●	●
49	02.780 SEAL; PIVOT,HEAD LAMP WIPER HEADLAMP WASHER<CE3>	8-97807-339-0	02	1	9112-	●	●
50	02.780 NUT; WIPER ARM,HEAD LAMP HEADLAMP WASHER<CE3> 02.664 M5	9-99111-405-0	02	1	9112-9212	●	●
50	02.780 NUT; WIPER ARM,HEAD LAMP HEADLAMP WASHER<CE3>	1-09400-075-0	02	1	9301-	●	●
51	02.780 NUT; MOTOR,HEAD LAMP WIPER HEADLAMP WASHER<CE3> 04.594 M6 FLANGE	0-91150-106-0	04	1	9112-	●	●
52	02.780 PROTECTOR; WIPER,HEAD LAMP HEADLAMP WASHER<CE3>	8-97802-918-0	02	1	9112-	●	●
