8-01 — LAMP; FRONT AND FRONT SIDE (#40377) — 132 parça

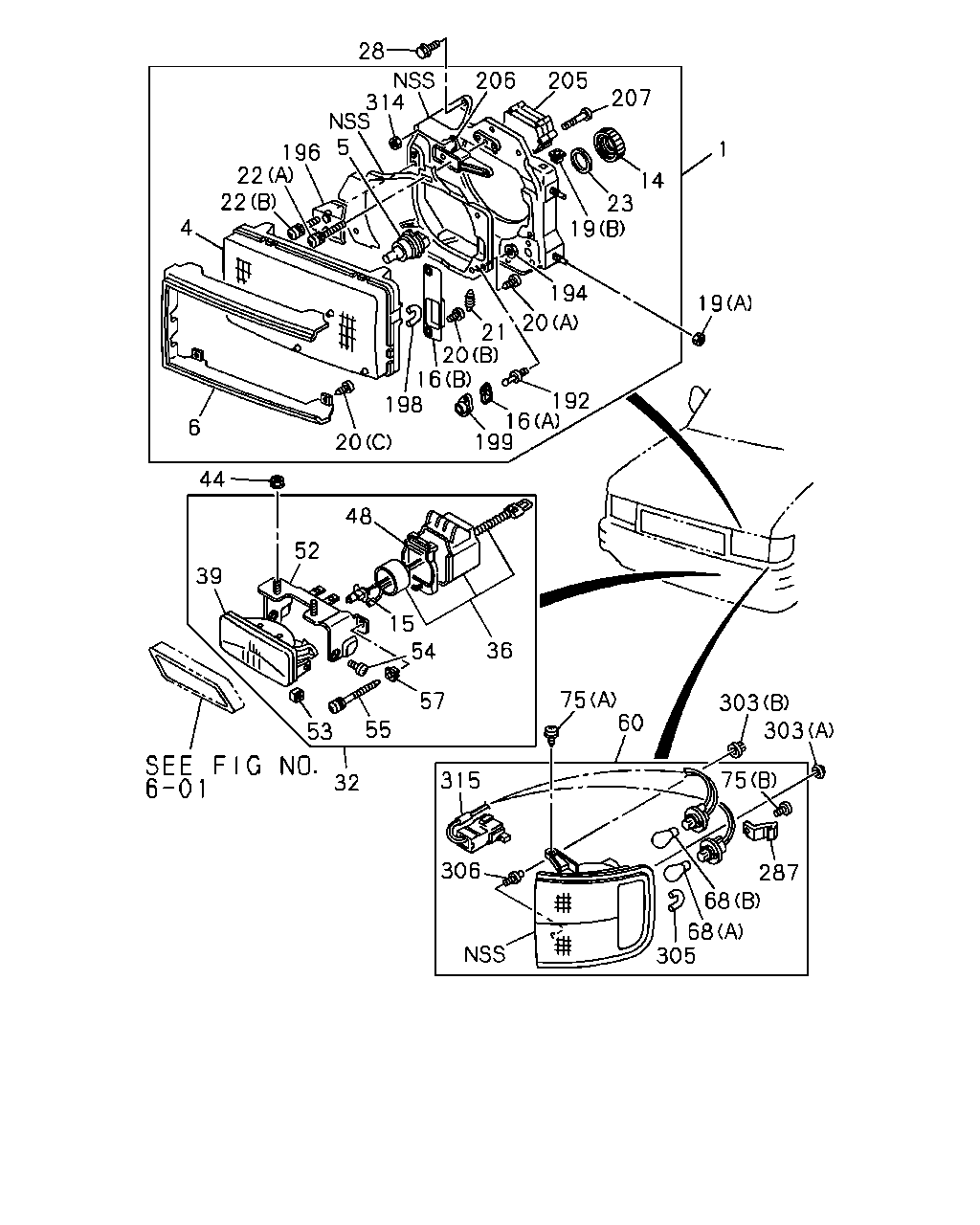

çizim 16110
28 1 19 14 207 205 206 314 5 196 22 22 4 6 20 198 16 20 21 20 194 19 23 192 16 199 48 44 39 52 15 36 54 57 55 53 32 75 60 303 303 75 287 68 68 305 306 315
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD
EUROPE EQUIPMENT(EK4) 		8-97806-844-3 01 1 9112-9308 ● ●
1 02.725 LAMP ASM; HEAD
EUROPE EQUIPMENT(EK4) 		8-97809-669-0 01 1 9309- ●
1 02.725 LAMP ASM; HEAD
EUROPE EQUIPMENT(EK4) 		8-97806-843-3 01 1 9112-9308 ● ●
1 02.725 LAMP ASM; HEAD
EUROPE EQUIPMENT(EK4) 		8-97809-664-0 01 1 9309- ●
1 02.725 LAMP ASM; HEAD
EXC. EUROPE EQUIPMENT(EK4) 		8-94358-883-4 01 1 9112-9311 ● ●
1 02.725 LAMP ASM; HEAD
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-94358-883-4 01 1 9312- ● ●
1 02.725 LAMP ASM; HEAD
EXC. EUROPE EQUIPMENT(EK4) 		8-94358-882-4 01 1 9112-9311 ● ●
1 02.725 LAMP ASM; HEAD
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-94358-882-4 01 1 9312- ● ●
1 02.725 LAMP ASM; HEAD
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97809-663-0 01 1 9309- ●
1 02.725 LAMP ASM; HEAD
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97809-624-0 01 1 9309- ●
4 02.727 HEADLAMP UNIT 8-97807-119-0 01 1 9112- ● ●
4 02.727 HEADLAMP UNIT 8-97807-118-0 01 1 9112- ● ●
5 02.727 BULB; HEADLAMP
12V 60/55W 		8-94217-817-0 02 1 9112- ● ●
6 02.728 RIM; HEADLAMP 8-97807-121-0 01 1 9112- ● ●
6 02.728 RIM; HEADLAMP 8-97807-120-0 01 1 9112- ● ●
14 02.727 CAP; BULB,LAMP 8-97807-091-0 02 1 9112- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP HALOGEN(T37) 12V 55W 		8-94458-282-0 02 1 9112- ● ●
16 02.726 BRACKET; HEADLAMP
ADJUST HEADLAMP<6RC> (A) 		8-97807-097-0 04 1 9309- ● ●
16 02.726 BRACKET; HEADLAMP
ADJUST HEADLAMP<6RC> (B) 		8-97807-101-0 01 1 9309- ● ●
16 02.726 BRACKET; HEADLAMP
ADJUST HEADLAMP<6RC> (B) 		8-97807-100-0 01 1 9309- ● ●
19 02.726 NUT; HEADLAMP
04.594 (A) M6 FLANGE 		0-91150-106-0 04 1 9112- ● ●
19 02.726 NUT; HEADLAMP
02.708 (B) M4 		5-09470-002-0 02 1 9112-9301 ● ●
19 02.726 NUT; HEADLAMP
12.940 (B) 		8-94252-864-2 02 1 9302- ● ●
20 02.736 SCREW; HEADLAMP
02.737 (B) 		8-97807-127-0 08 1 9112-9308 ● ●
20 02.736 SCREW; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 02.737 (B) 		8-97807-127-0 08 1 9309-9311 ● ●
20 02.736 SCREW; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.737 (B) 		8-97807-127-0 08 1 9312- ● ●
20 02.736 SCREW; HEADLAMP
02.737 (C) 		8-97807-131-0 16 1 9112-9308 ● ●
20 02.736 SCREW; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 02.737 (C) 		8-97807-131-0 16 1 9309-9311 ● ●
20 02.736 SCREW; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.737 (C) 		8-97807-131-0 16 1 9312- ● ●
20 02.736 SCREW; HEADLAMP
ADJUST HEADLAMP<6RC> 02.737 (A) 		8-97807-125-0 08 1 9309- ● ●
20 02.736 SCREW; HEADLAMP
ADJUST HEADLAMP<6RC> 02.737 (B) 		8-97807-127-0 04 1 9309- ● ●
20 02.736 SCREW; HEADLAMP
ADJUST HEADLAMP<6RC> 02.737 (C) 		8-97807-131-0 20 1 9309- ● ●
21 02.737 SPRING; ADJ HEADLAMP 8-97807-107-0 02 1 9112-9308 ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 		8-97807-107-0 02 1 9309-9311 ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97807-107-0 02 1 9312- ● ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 (A) 		8-97807-132-0 02 1 9112- ● ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 (B) 		8-97807-134-0 02 1 9112-9308 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 02.737 (B) 		8-97807-134-0 02 1 9309-9311 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.737 (B) 		8-97807-134-0 02 1 9312- ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97807-092-0 02 1 9112- ● ●
28 02.762 BOLT; HEADLAMP
11.629 M6X16 FLANGE 		0-28210-616-0 04 1 9112-9204 ● ●
28 02.762 BOLT; HEADLAMP
12.809 M6X16 FLANGE 		0-28280-616-0 04 1 9205- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN(T37) 		8-94358-893-3 01 1 9112-9504 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN(T37) 		8-97131-425-0 01 1 9505- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN(T37) 		8-94358-892-3 01 1 9112-9504 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN(T37) 		8-97131-424-0 01 1 9505- ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97805-964-0 02 1 9112- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97805-963-0 01 1 9112- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97805-962-0 01 1 9112- ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP HALOGEN(T37) 04.594 M6 FLANGE 		0-91150-106-0 04 1 9112- ● ●
48 02.725 COVER; FOG LAMP
FOG LAMP HALOGEN(T37) 02.722 		8-97807-726-0 02 1 9112- ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97805-965-0 02 1 9112- ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP HALOGEN(T37) 		8-94379-802-0 04 1 9112- ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP HALOGEN(T37) M5X12 		8-94379-803-0 04 1 9112- ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP HALOGEN(T37) 02.726 		8-97016-275-0 02 1 9112- ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN(T37) 		8-94379-806-0 02 1 9112- ● ●
60 02.585 LAMP ASM; FRT COMB 8-94358-901-4 01 1 9112- ● ●
60 02.585 LAMP ASM; FRT COMB 8-94358-900-4 01 1 9112- ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 9112- ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 12V 5W 		8-94124-075-0 02 1 9112- ● ●
75 02.587 SCREW; FRT COMB LAMP
(A) 		8-97803-220-0 02 1 9112-9301 ● ●
75 02.587 SCREW; FRT COMB LAMP
(A) M4X16 W/WASHER 		8-97809-122-0 02 1 9302- ● ●
75 02.587 SCREW; FRT COMB LAMP
02.594 (B) 		8-97807-124-0 02 1 9112- ● ●
192 02.765 PIVOT; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-094-0 04 1 9309- ● ●
194 02.726 NUT; PIVOT,HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-128-0 08 1 9309- ● ●
196 02.726 PLATE; ADJ SCREW
ADJUST HEADLAMP<6RC> 		8-97807-099-0 01 1 9309- ● ●
196 02.726 PLATE; ADJ SCREW
ADJUST HEADLAMP<6RC> 		8-97807-098-0 01 1 9309- ● ●
198 02.722 TUBE; COVER,HEADLAMP 8-94325-772-0 04 1 9112- ● ●
199 02.737 BUSHING
ADJUST HEADLAMP<6RC> 		8-97807-095-0 08 1 9309- ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-090-0 02 1 9309- ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-089-0 02 1 9309- ●
206 02.727 HOLDER; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-096-0 02 1 9309- ● ●
207 02.726 SCREW; ACTUATOR TO HOLDER
ADJUST HEADLAMP<6RC> 		8-97807-130-0 06 1 9309- ● ●
287 02.587 CLIP; FRT TURN SIGNAL 8-97807-111-0 02 1 9112- ● ●
303 02.799 CLIP; COMB LAMP
02.729 (A) 		8-97800-741-0 02 1 9112- ● ●
303 02.799 CLIP; COMB LAMP
02.729 (B) 		8-97801-572-0 02 1 9112- ● ●
305 02.596 COVER; FRT COMB LAMP
02.722 		8-94325-772-0 02 1 9112- ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97807-110-0 02 1 9112- ● ●
314 02.727 NUT; ACTUATOR
ADJUST HEADLAMP<6RC> 		8-97807-129-0 06 1 9309- ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-97806-777-0 02 1 9112- ● ●

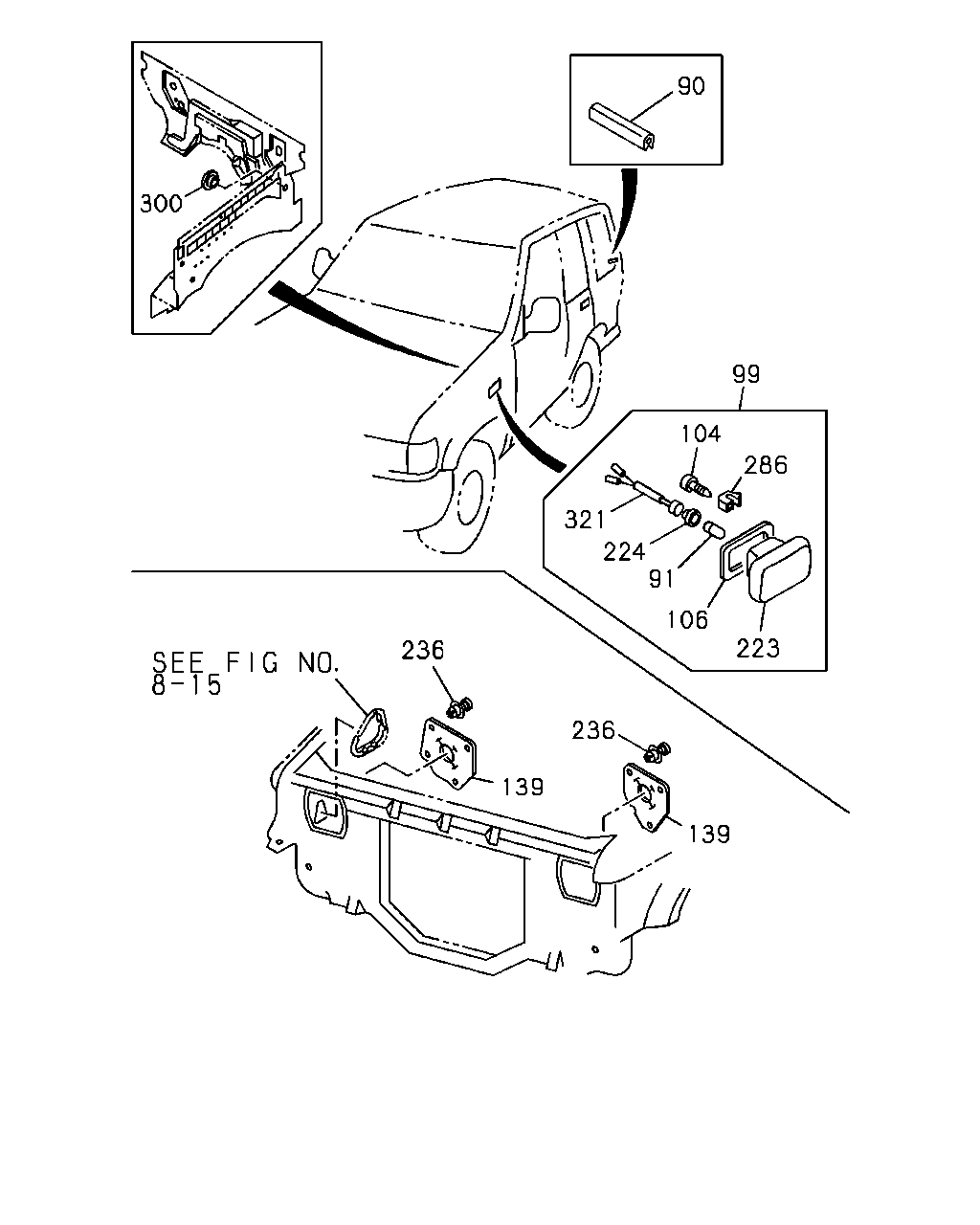

çizim 68353
90 300 99 104 286 321 224 91 106 223 139 236 139 236
BalonParca AdiParca NoAdetTipApplied Date A B
90 02.483 PROTECTOR; EDGE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9112-9302 ● ●
90 02.483 PROTECTOR; EDGE
REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9112-9302 ● ●
90 02.483 PROTECTOR; EDGE
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. AUSTRALIA EQUIPMENT(RR3) 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9303-9504 ● ●
90 02.483 PROTECTOR; EDGE
AUSTRALIA EQUIPMENT(RR3) 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9303-9504 ● ●
90 02.483 PROTECTOR; EDGE
4JG2 ENG(RJC) EUROPE EQUIPMENT(EK4) 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9303-9504 ● ●
90 02.483 PROTECTOR; EDGE
REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. RR WIPER<C25>,AUSTRALIA EQUIPMENT(RR3),RR WIPER W/INTERMITTENT<6WJ> 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9303-9504 ● ●
90 02.483 PROTECTOR; EDGE
RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9505-9506 ● ●
90 02.483 PROTECTOR; EDGE
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9505-9506 ● ●
90 02.483 PROTECTOR; EDGE
AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9507- ● ●
90 02.483 PROTECTOR; EDGE
RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9507- ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 12V 5W 		8-94124-595-0 02 1 9112-9311 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 12V 5W 		8-94124-595-0 02 1 9312- ● ●
99 02.585 LAMP; SIDE FLASHER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97805-968-0 02 1 9112-9311 ● ●
99 02.585 LAMP; SIDE FLASHER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97805-968-0 02 1 9312- ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 06.514 M3X10 TAPPING 		9-07076-310-0 02 1 9112-9311 ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 06.514 M3X10 TAPPING 		9-07076-310-0 02 1 9312- ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97032-884-0 02 1 9112-9311 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97032-884-0 02 1 9312- ● ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97804-049-2 01 1 9112-9504 ● ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97804-049-2 01 1 9505-9505 ● ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97129-573-0 02 1 9505-9603 ● ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97129-573-0 02 1 9604-9608 ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> EXC. WEST MALAYSIA EQUIPMENT(S3D) 		8-97129-573-0 02 1 9604-9608 ●
139 02.726 COVER; HEADLAMP
WEST MALAYSIA EQUIPMENT(S3D) 		8-97129-573-0 02 1 9604-9608 ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97129-573-0 02 1 9608- ● ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCON PREPARATORY PACK<S6D>,COOLER WO/HEAT ER(YL1) 		8-97806-171-1 01 1 9112-9504 ● ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97806-171-1 01 1 9112-9504 ● ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCON PREPARATORY PACK<S6D> 		8-97806-171-1 01 1 9505-9505 ● ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97806-171-1 01 1 9505-9505 ● ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCON PREPARATORY PACK<S6D> 		8-97129-573-0 01 1 9505-9603 ● ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCON PREPARATORY PACK<S6D> 		8-97129-573-0 01 1 9604-9608 ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60), WEST MALAYSIA EQUIPMENT(S3D),AIR CON PREPARA TORY PACK<S6D> 		8-97129-573-0 01 1 9604-9608 ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA E QUIPMENT(S3D),AIR CON PREPARATORY PACK<S6D> 		8-97129-573-0 01 1 9608- ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97032-882-0 02 1 9112-9311 ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97032-882-0 02 1 9312- ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-94372-885-0 02 1 9112-9311 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-94372-885-0 02 1 9312- ● ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 12.934 D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 07 1 9112-9504 ● ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 07.831 GRAY 		8-94429-372-0 07 1 9505-9603 ● ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 07.831 GRAY 		8-94429-372-0 07 1 9604-9608 ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> EXC. WEST MALAYSIA EQUIPMENT(S3D) 07.831 GRAY 		8-94429-372-0 07 1 9604-9608 ●
236 02.726 CLIP; COVER
WEST MALAYSIA EQUIPMENT(S3D) 07.831 GRAY 		8-94429-372-0 07 1 9604-9608 ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 07.831 GRAY 		8-94429-372-0 07 1 9608- ● ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCON PREPARATORY PACK<S6D>,COOLER WO/HEAT ER(YL1) 12.934 D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 03 1 9112-9504 ● ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCON PREPARATORY PACK<S6D> 07.831 GRAY 		8-94429-372-0 03 1 9505-9603 ● ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCON PREPARATORY PACK<S6D> 07.831 GRAY 		8-94429-372-0 03 1 9604-9608 ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60), WEST MALAYSIA EQUIPMENT(S3D),AIR CON PREPARA TORY PACK<S6D> 07.831 GRAY 		8-94429-372-0 03 1 9604-9608 ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA E QUIPMENT(S3D),AIR CON PREPARATORY PACK<S6D> 07.831 GRAY 		8-94429-372-0 03 1 9608- ● ●
286 02.587 CLIP; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97032-883-0 02 1 9112-9311 ● ●
286 02.587 CLIP; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97032-883-0 02 1 9312- ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97806-388-0 02 1 9112-9311 ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97806-388-0 02 1 9312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
