0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#40366) — 110 parça

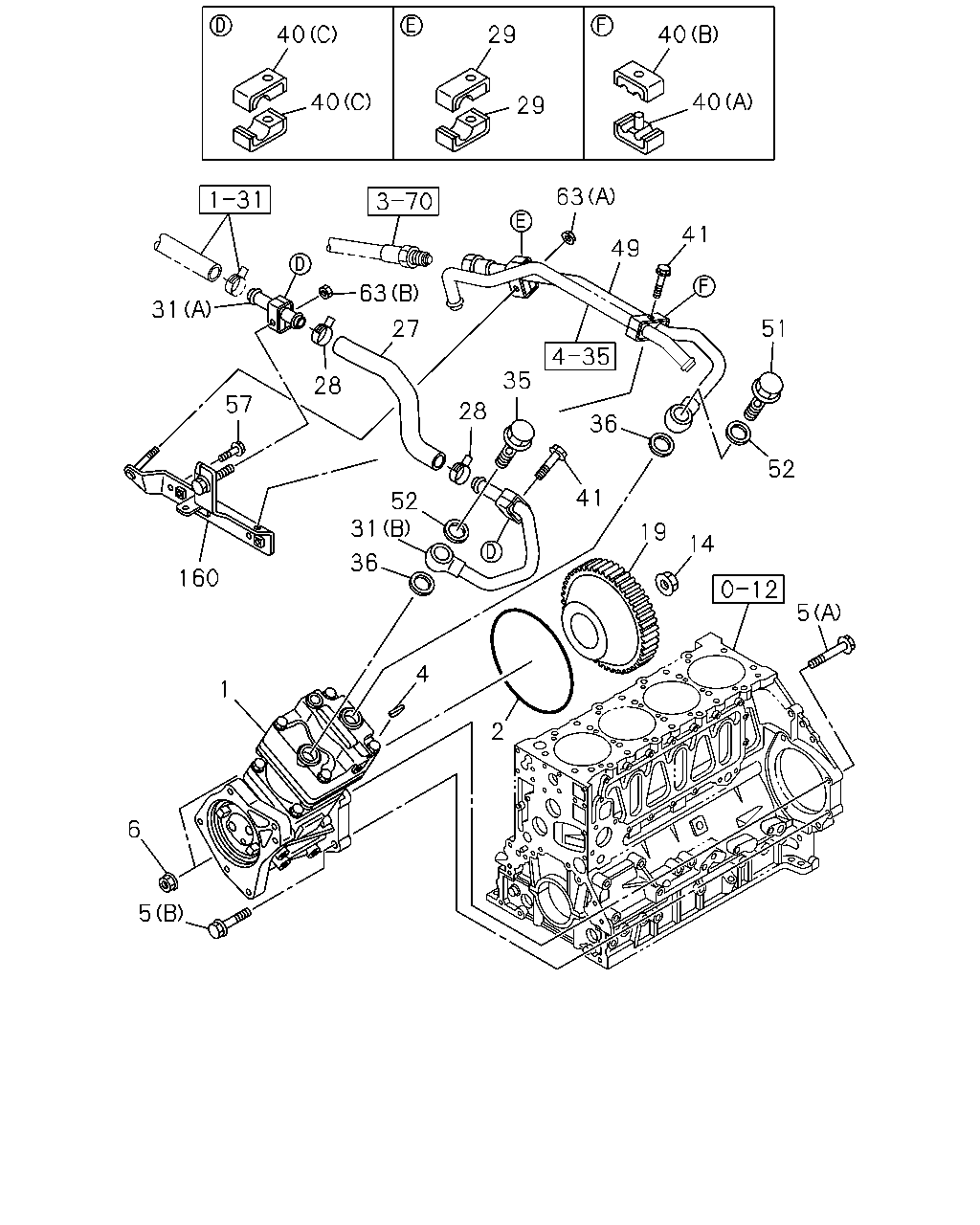

40 29 40 40 40 29 63 41 49 63 31 51 27 35 28 57 28 36 52 41 52 31 19 14 36 160 5 4 1 2 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-4	01	1	1001-1011	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1012-1109	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1001-1011	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-	●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1001-1011	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1001-1011	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1001-1011	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-	●	●
6	NUT; AIR CMPR M10 FLANGE SOU	0-91180-110-0	02	1	1001-1011	●
6	NUT; AIR CMPR M10 FLANGE SOU	0-91180-110-0	02	1	1012-	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1001-1011	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-	●	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1001-1011	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1012-	●	●
27	HOSE; AIR CMPR,SUCTION EURO3 SPECIFICATION<NT3>	8-98057-031-1	01	1	1201-	●
28	CLIP; HOSE,AIR CMPR EURO3 SPECIFICATION<NT3> ID=24	8-98025-921-0	02	1	1201-	●
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	02	1	1001-1011	●
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	02	1	1012-	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3> (B)	8-98023-170-0	01	1	1201-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3> (A)	8-98076-324-0	01	1	1201-	●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-98067-830-1	01	1	1001-1011	●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-98067-830-1	01	1	1012-1112	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (C)	8-98067-830-1	01	1	1201-	●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-98067-830-1	01	1	1201-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1001-1011	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1012-1404	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1001-1011	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1001-1011	●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1012-	●	●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1001-1011	●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1012-	●	●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1001-1011	●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1012-	●	●
41	BOLT; CLIP M8X45 FLANGE SOU	0-28050-845-0	02	1	1001-1011	●
41	BOLT; CLIP M8X45 FLANGE SOU	0-28050-845-0	02	1	1012-	●	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1001-1011	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1012-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1001-1011	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1001-1011	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1011	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●	●
63	NUT; CLIP (A) M6 FLANGE SOU	0-91180-106-0	03	1	1001-1011	●
63	NUT; CLIP (A) M6 FLANGE SOU	0-91180-106-0	03	1	1012-	●	●
63	NUT; CLIP (B) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●
63	NUT; CLIP (B) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●	●
160	BRACKET; AIR PIPE	8-98076-098-0	01	1	1001-1011	●
160	BRACKET; AIR PIPE	8-98076-098-0	01	1	1012-	●	●

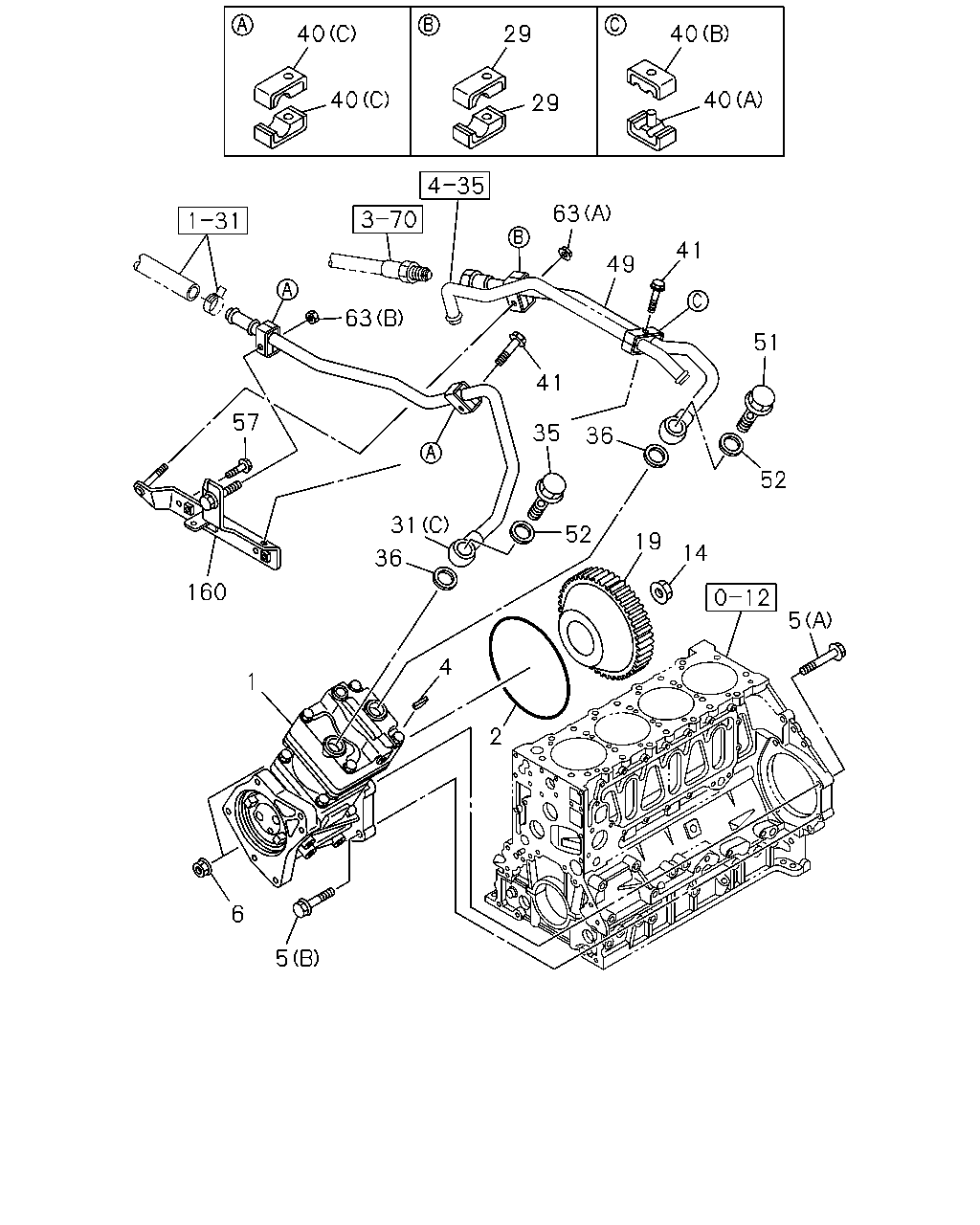

40 29 40 40 40 29 63 41 49 63 51 41 57 35 36 52 31 52 19 14 36 160 5 4 1 2 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-4	01	1	1001-1011	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1012-1109	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1001-1011	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-	●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1001-1011	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1001-1011	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1001-1011	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-	●	●
6	NUT; AIR CMPR M10 FLANGE SOU	0-91180-110-0	02	1	1001-1011	●
6	NUT; AIR CMPR M10 FLANGE SOU	0-91180-110-0	02	1	1012-	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1001-1011	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-	●	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1001-1011	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1012-	●	●
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	02	1	1001-1011	●
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	02	1	1012-	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3> (B)	8-98023-170-0	01	1	1201-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NT3> (A)	8-98076-324-0	01	1	1201-	●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-98067-830-1	01	1	1001-1011	●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-98067-830-1	01	1	1012-1112	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (C)	8-98067-830-1	01	1	1201-	●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-98067-830-1	01	1	1201-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1001-1011	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1012-1404	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1001-1011	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1001-1011	●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1012-	●	●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1001-1011	●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1012-	●	●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1001-1011	●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1012-	●	●
41	BOLT; CLIP M8X45 FLANGE SOU	0-28050-845-0	02	1	1001-1011	●
41	BOLT; CLIP M8X45 FLANGE SOU	0-28050-845-0	02	1	1012-	●	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1001-1011	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1012-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1001-1011	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1001-1011	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1011	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●	●
63	NUT; CLIP (A) M6 FLANGE SOU	0-91180-106-0	03	1	1001-1011	●
63	NUT; CLIP (A) M6 FLANGE SOU	0-91180-106-0	03	1	1012-	●	●
63	NUT; CLIP (B) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●
63	NUT; CLIP (B) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●	●
160	BRACKET; AIR PIPE	8-98076-098-0	01	1	1001-1011	●
160	BRACKET; AIR PIPE	8-98076-098-0	01	1	1012-	●	●
