0-28 — VENTILATION SYSTEM (#40358) — 90 parça

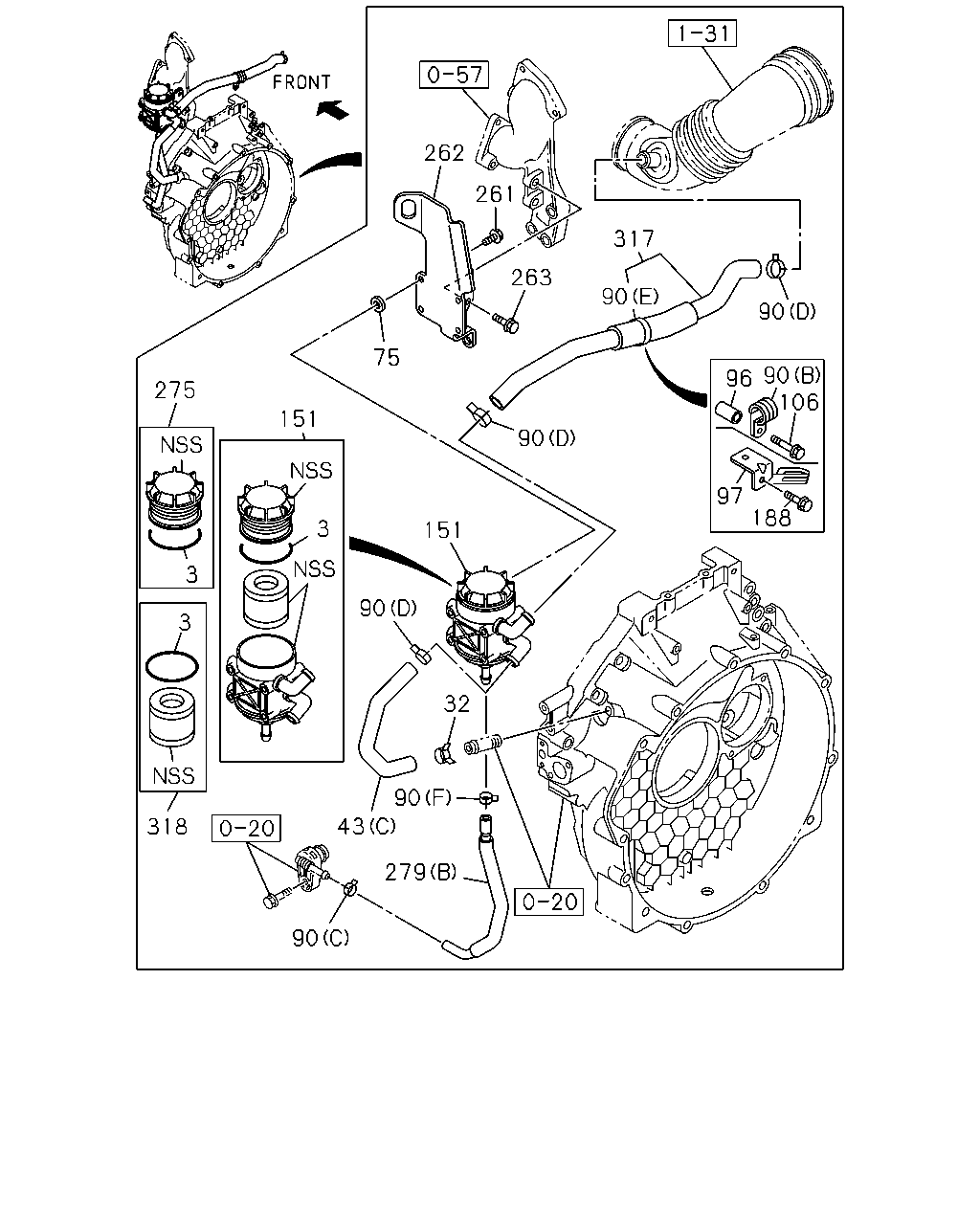

262 261 263 317 90 90 96 90 106 188 97 90 75 151 275 3 3 318 43 279 90 32 151 90 3 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; BODY TO CAP EURO3 SPECIFICATION<NT3>	8-97385-921-0	01	1	1201-	●
32	CLIP; VENT HOSE EURO3 SPECIFICATION<NT3> ID=21	8-94242-034-0	01	1	1201-	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (C)	8-98057-033-0	01	1	1201-	●
43	HOSE; PCV (A)	8-97149-012-3	01	1	1001-1011	●
43	HOSE; PCV (A)	8-97149-012-3	01	1	1012-1112	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1201-	●
43	HOSE; PCV (A)	8-97149-012-3	01	1	1201-		●
43	HOSE; PCV (B)	8-98012-831-0	01	1	1001-1011	●
43	HOSE; PCV (B)	8-98012-831-0	01	1	1012-1112	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98012-831-0	01	1	1201-1308	●
43	HOSE; PCV (B)	8-98012-831-0	01	1	1201-1308		●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●
43	HOSE; PCV (B)	8-98249-509-0	01	1	1309-		●
75	WASHER EURO3 SPECIFICATION<NT3> ID=9 OD=18 T=5 SOU	9-14149-173-0	04	1	1201-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (D) ID=28	1-09707-124-0	03	1	1201-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (E) L=212 SOU	8-94107-652-0	01	1	1201-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (F) ID=13	8-94238-571-0	01	1	1201-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (B) ID=31 L=35	1-09700-329-1	01	1	1201-	●
90	CLIP; RUBBER HOSE (B) ID=31 L=35	1-09700-329-1	01	1	1001-1004	●
90	CLIP; RUBBER HOSE (A) ID=11 SOU	8-94238-570-0	01	1	1001-1011	●
90	CLIP; RUBBER HOSE (A) ID=11 SOU	8-94238-570-0	01	1	1012-1112	●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11 SOU	8-94238-570-0	01	1	1201-	●
90	CLIP; RUBBER HOSE (A) ID=11 SOU	8-94238-570-0	01	1	1201-		●
90	CLIP; RUBBER HOSE (C) ID=11	8-94238-925-0	01	1	1001-1007	●
90	CLIP; RUBBER HOSE (C) ID=11.5	8-97138-011-0	01	1	1008-1011	●
90	CLIP; RUBBER HOSE (C) ID=11.5	8-97138-011-0	01	1	1012-	●	●
96	COLLAR; DIST,CLIP EURO3 SPECIFICATION<NT3>	8-98056-147-0	01	1	1201-	●
96	COLLAR; DIST,CLIP	8-98056-147-0	01	1	1001-1004	●
97	BRACKET; HOSE EURO3 SPECIFICATION<NT3>	8-98093-946-3	01	1	1201-	●
106	BOLT; DRAIN PIPE EURO3 SPECIFICATION<NT3> M8X50 FLANGE	0-28050-850-0	01	1	1201-	●
106	BOLT; DRAIN PIPE M8X50 FLANGE	0-28050-850-0	01	1	1001-1004	●
151	SEPARATOR; OIL,PCV EURO3 SPECIFICATION<NT3>	8-97324-682-1	01	1	1201-	●
188	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	1110-1110	●	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X12 FLANGE	0-28050-812-0	01	1	1201-	●
261	BOLT; SEPARETOR EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28650-830-0	04	1	1201-	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-98036-498-0	01	1	1201-1501	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-98296-130-0	01	1	1502-	●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3> M12X30 FLANGE	0-28151-230-0	03	1	1201-	●
275	CAP; PCV EURO3 SPECIFICATION<NT3>	8-97389-360-0	01	1	1201-	●
279	HOSE; RUBBER,OIL DRAIN EURO3 SPECIFICATION<NT3> (B)	8-97386-653-1	01	1	1201-	●
279	HOSE; RUBBER,OIL DRAIN (A)	8-98075-714-0	01	1	1001-1011	●
279	HOSE; RUBBER,OIL DRAIN (A)	8-98075-714-0	01	1	1012-1112	●	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1201-	●
279	HOSE; RUBBER,OIL DRAIN (A)	8-98075-714-0	01	1	1201-		●
317	HOSE; RUBBER,OIL SEPARATOR EURO3 SPECIFICATION<NT3>	8-98168-942-0	01	1	1201-	●
318	ELEMENT KIT; PCV EURO3 SPECIFICATION<NT3>	8-98002-346-0	01	1	1201-	●

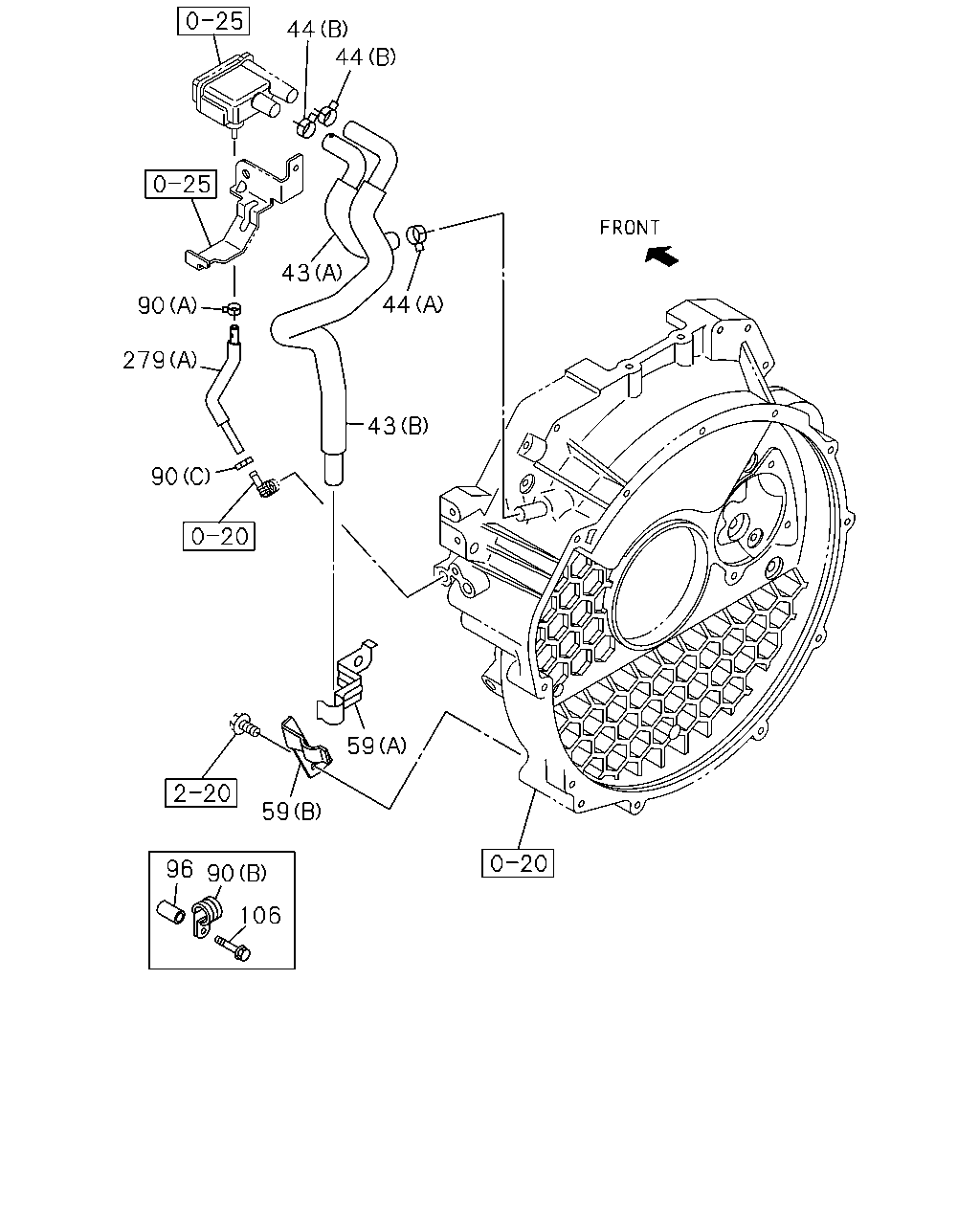

59 59 90 96 106 90 279 90 43 43 44 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (C)	8-98057-033-0	01	1	1201-	●
43	HOSE; PCV (A)	8-97149-012-3	01	1	1001-1011	●
43	HOSE; PCV (A)	8-97149-012-3	01	1	1012-1112	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1201-	●
43	HOSE; PCV (A)	8-97149-012-3	01	1	1201-		●
43	HOSE; PCV (B)	8-98012-831-0	01	1	1001-1011	●
43	HOSE; PCV (B)	8-98012-831-0	01	1	1012-1112	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98012-831-0	01	1	1201-1308	●
43	HOSE; PCV (B)	8-98012-831-0	01	1	1201-1308		●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●
43	HOSE; PCV (B)	8-98249-509-0	01	1	1309-		●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1001-1011	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1012-1112	●	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1201-	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1201-		●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1001-1011	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1012-1112	●	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (B) ID=22.7	8-94466-382-0	02	1	1201-	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1201-		●
59	CLIP; HOSE (A)	8-97369-959-0	01	1	1001-1011	●
59	CLIP; HOSE (A)	8-97369-959-0	01	1	1012-1112	●	●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A)	8-97369-959-0	01	1	1201-1308	●	●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B)	8-98249-517-0	01	1	1309-	●	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (D) ID=28	1-09707-124-0	03	1	1201-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (E) L=212 SOU	8-94107-652-0	01	1	1201-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (F) ID=13	8-94238-571-0	01	1	1201-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (B) ID=31 L=35	1-09700-329-1	01	1	1201-	●
90	CLIP; RUBBER HOSE (B) ID=31 L=35	1-09700-329-1	01	1	1001-1004	●
90	CLIP; RUBBER HOSE (A) ID=11 SOU	8-94238-570-0	01	1	1001-1011	●
90	CLIP; RUBBER HOSE (A) ID=11 SOU	8-94238-570-0	01	1	1012-1112	●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11 SOU	8-94238-570-0	01	1	1201-	●
90	CLIP; RUBBER HOSE (A) ID=11 SOU	8-94238-570-0	01	1	1201-		●
90	CLIP; RUBBER HOSE (C) ID=11	8-94238-925-0	01	1	1001-1007	●
90	CLIP; RUBBER HOSE (C) ID=11.5	8-97138-011-0	01	1	1008-1011	●
90	CLIP; RUBBER HOSE (C) ID=11.5	8-97138-011-0	01	1	1012-	●	●
96	COLLAR; DIST,CLIP EURO3 SPECIFICATION<NT3>	8-98056-147-0	01	1	1201-	●
96	COLLAR; DIST,CLIP	8-98056-147-0	01	1	1001-1004	●
106	BOLT; DRAIN PIPE EURO3 SPECIFICATION<NT3> M8X50 FLANGE	0-28050-850-0	01	1	1201-	●
106	BOLT; DRAIN PIPE M8X50 FLANGE	0-28050-850-0	01	1	1001-1004	●
279	HOSE; RUBBER,OIL DRAIN EURO3 SPECIFICATION<NT3> (B)	8-97386-653-1	01	1	1201-	●
279	HOSE; RUBBER,OIL DRAIN (A)	8-98075-714-0	01	1	1001-1011	●
279	HOSE; RUBBER,OIL DRAIN (A)	8-98075-714-0	01	1	1012-1112	●	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1201-	●
279	HOSE; RUBBER,OIL DRAIN (A)	8-98075-714-0	01	1	1201-		●
