◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#40356) — 62 parça
çizim 162234
203 208
BalonParca AdiParca NoAdetTipApplied Date A B
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 1001-1011 ●
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 1012-1112 ● ●
203 TANK; CATCH,PRESSURE CONT VLV
EURO2 SPECIFICATION<NT2> 		8-97088-685-1 01 1 1201- ●
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 1201- ●
208 BRACKET; CATCH TANK,OIL 8-98075-767-0 01 1 1001-1011 ●
208 BRACKET; CATCH TANK,OIL 8-98075-767-0 01 1 1012-1112 ● ●
208 BRACKET; CATCH TANK,OIL
EURO2 SPECIFICATION<NT2> 		8-98075-767-0 01 1 1201- ●
208 BRACKET; CATCH TANK,OIL 8-98075-767-0 01 1 1201- ●

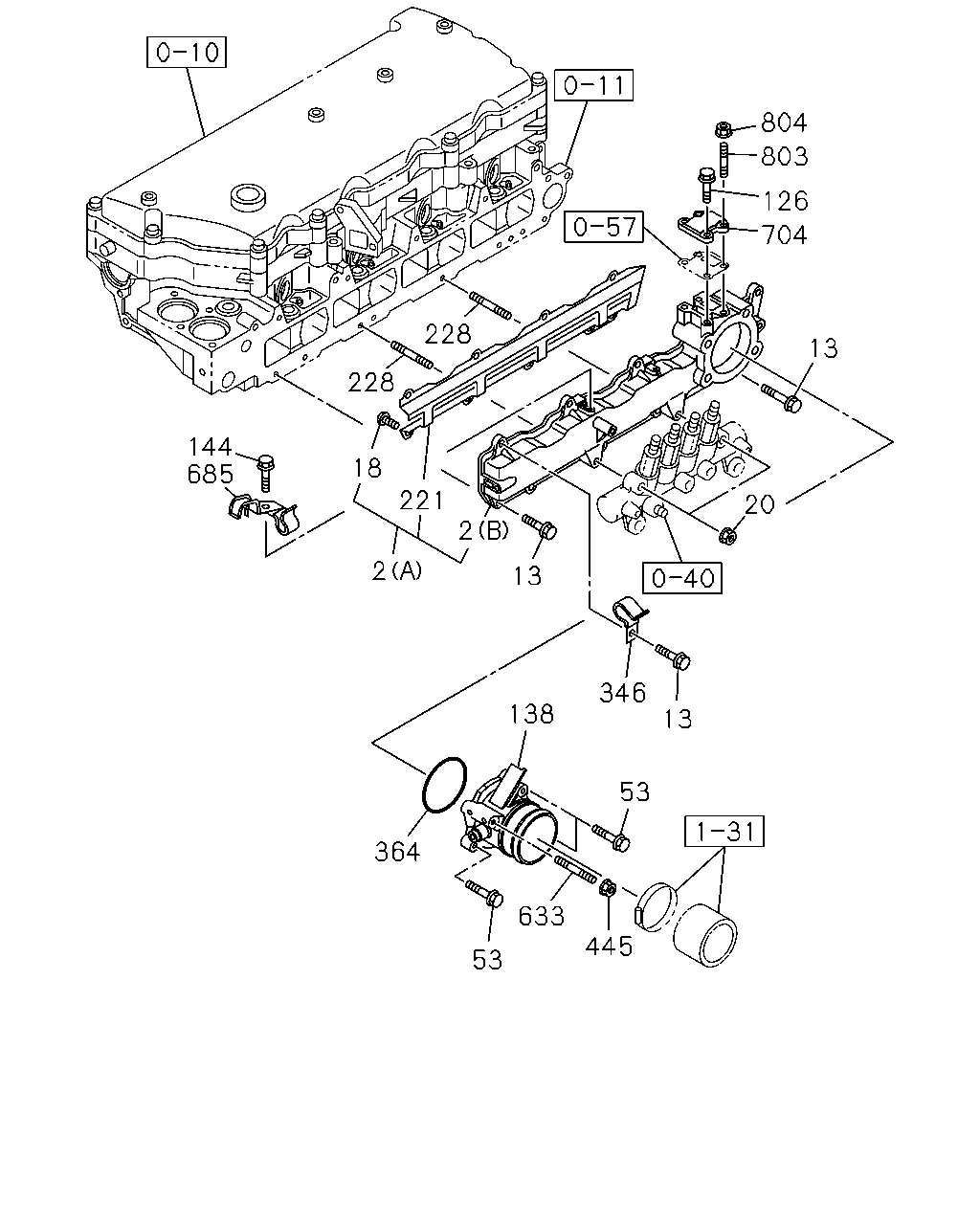

çizim 162278
804 803 126 704 13 20 13 346 53 445 633 53 364 138 13 2 221 2 18 228 228 144 685
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL
(B) 		8-97387-039-0 01 1 1001-1011 ●
2 COVER; INL
(B) 		8-97387-039-0 01 1 1012- ● ●
2 COVER; INL
(A) 		8-97387-038-0 01 1 1001-1011 ●
2 COVER; INL
(A) 		8-97387-038-0 01 1 1012-1409 ● ●
2 COVER; INL
EURO3 SPECIFICATION<NT3> (A) 		8-97387-038-0 01 1 1410- ●
13 BOLT; INL MANIF
M8X30 FLANGE 		0-28050-830-0 09 1 1001-1011 ●
13 BOLT; INL MANIF
M8X30 FLANGE 		0-28050-830-0 09 1 1012- ● ●
13 BOLT; INL MANIF
M8X80 FLANGE SOU 		0-28050-880-0 01 1 1001-1011 ●
13 BOLT; INL MANIF
M8X80 FLANGE SOU 		0-28050-880-0 01 1 1012- ● ●
18 SCREW; PLATE,INL CVR
M6X10 		9-03490-610-0 09 1 1001-1011 ●
18 SCREW; PLATE,INL CVR
M6X10 		9-03490-610-0 09 1 1012-1409 ● ●
18 SCREW; PLATE,INL CVR
EURO3 SPECIFICATION<NT3> M6X10 		9-03490-610-0 09 1 1410- ●
20 NUT; INL MANIF
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-1011 ●
20 NUT; INL MANIF
M8 FLANGE SOU 		0-91180-108-0 02 1 1012- ● ●
53 BOLT; INL PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 1001-1011 ●
53 BOLT; INL PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 1012- ● ●
126 BOLT; COVER
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1001-1011 ●
126 BOLT; COVER
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1012-1112 ● ●
126 BOLT; COVER
EURO2 SPECIFICATION<NT2> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1201- ●
126 BOLT; COVER
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1201- ●
138 PIPE; INL 8-98101-477-0 01 1 1001-1011 ●
138 PIPE; INL 8-98101-477-0 01 1 1012-1212 ● ●
138 PIPE; INL 8-98217-016-0 01 1 1301- ● ●
144 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 01 1 1001-1011 ●
144 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 01 1 1012- ● ●
221 PLATE; INL COVER 8-97379-202-0 01 1 1001-1011 ●
221 PLATE; INL COVER 8-97379-202-0 01 1 1012-1409 ● ●
221 PLATE; INL COVER
EURO3 SPECIFICATION<NT3> 		8-97379-202-0 01 1 1410- ●
228 STUD; INL COVER
M8X117 L=128 		8-97111-477-0 02 1 1001-1011 ●
228 STUD; INL COVER
M8X117 L=128 		8-97111-477-0 02 1 1012- ● ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1001-1011 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1012- ● ●
364 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97363-723-0 01 1 1001-1011 ●
364 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97363-723-0 01 1 1012-1212 ● ●
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-1011 ●
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE SOU 		0-91180-108-0 01 1 1012- ● ●
633 STUD; THROTTLE BODY
M8X71 L=83 		9-09830-212-0 01 1 1001-1011 ●
633 STUD; THROTTLE BODY
M8X71 L=83 		9-09830-212-0 01 1 1012- ● ●
685 BRACKET; HARNESS 8-97331-921-1 01 1 1001-1011 ●
685 BRACKET; HARNESS 8-97331-921-1 01 1 1012- ● ●
704 COVER 8-98062-651-1 01 1 1001-1011 ●
704 COVER 8-98062-651-1 01 1 1012-1112 ● ●
704 COVER
EURO2 SPECIFICATION<NT2> 		8-98062-651-1 01 1 1201-1408 ●
704 COVER 8-98062-651-1 01 1 1201-1408 ●
704 COVER
EURO2 SPECIFICATION<NT2> 		8-98260-138-0 01 1 1409- ●
704 COVER 8-98260-138-0 01 1 1409- ●
803 STUD; COVER
M8X20 L=32 		0-41010-820-0 02 1 1001-1011 ●
803 STUD; COVER
M8X20 L=32 		0-41010-820-0 02 1 1012-1112 ● ●
803 STUD; COVER
EURO2 SPECIFICATION<NT2> M8X20 L=32 		0-41010-820-0 02 1 1201- ●
803 STUD; COVER
M8X20 L=32 		0-41010-820-0 02 1 1201- ●
804 NUT; COVER
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-1011 ●
804 NUT; COVER
M8 FLANGE SOU 		0-91180-108-0 02 1 1012-1112 ● ●
804 NUT; COVER
EURO2 SPECIFICATION<NT2> M8 FLANGE SOU 		0-91180-108-0 02 1 1201- ●
804 NUT; COVER
M8 FLANGE SOU 		0-91180-108-0 02 1 1201- ●
