◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#40355) — 67 parça

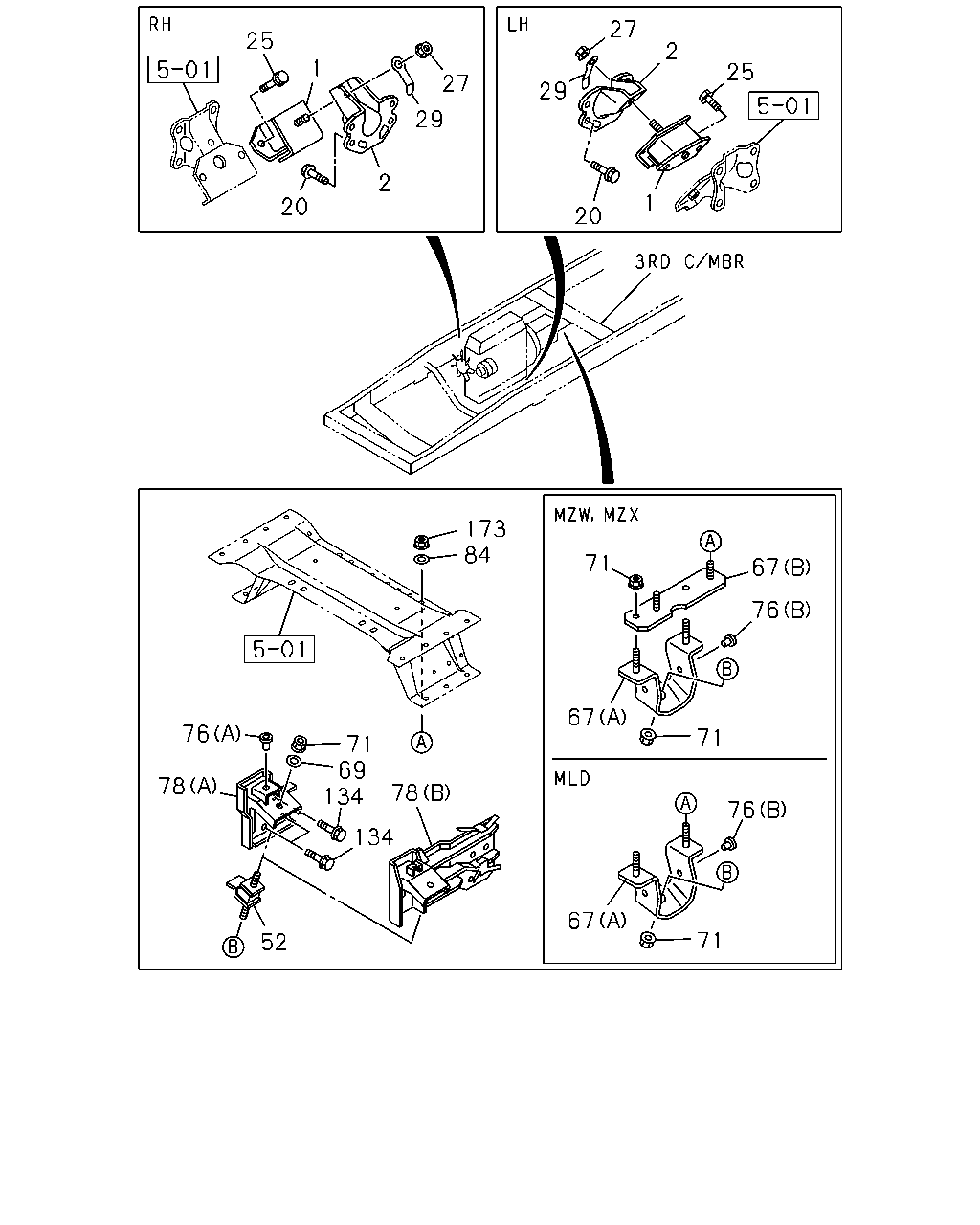

çizim 162198
27 25 2 1 25 27 29 29 2 1 20 20 173 84 71 67 76 67 76 71 71 69 134 78 78 76 134 67 71 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1001-1011 ●
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1012- ● ●
2 FOOT; ENG 8-97376-076-1 02 1 1001-1011 ●
2 FOOT; ENG 8-97376-076-1 02 1 1012- ● ●
20 BOLT; ENG FOOT
M10X30 FLANGE 		0-28161-030-0 08 1 1001-1011 ●
20 BOLT; ENG FOOT
M10X30 FLANGE 		0-28161-030-0 08 1 1012- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE SOU 		0-28651-235-0 04 1 1001-1011 ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE SOU 		0-28651-235-0 04 1 1012- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE SOU 		0-91180-212-0 02 1 1001-1011 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE SOU 		0-91180-212-0 02 1 1012- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1001-1011 ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1012- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 1001-1011 ●
52 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 1012- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98055-142-0 02 1 1201- ●
67 BRACKET; SUPPORT,ENG MTG,RR
MLD6S M/T(X7W) (A) 		8-98118-881-0 02 1 1001- ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98013-942-0 02 1 1001-1011 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98013-942-0 02 1 1012-1112 ●
67 BRACKET; SUPPORT,ENG MTG,RR
(A) 		8-98013-942-0 02 1 1012-1112 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98013-942-0 02 1 1201- ●
67 BRACKET; SUPPORT,ENG MTG,RR
(A) 		8-98013-942-0 02 1 1201- ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98051-918-0 01 1 1001-1112 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98051-918-0 01 1 1201- ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98051-917-0 01 1 1001-1112 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98051-917-0 01 1 1201- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MZW6P M/T(RSZ),MLD6S M/T(X7W) ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 1001-1112 ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MZW6P M/T(RSZ),MLD6S M/T(X7W) ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 1201- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW) ID=10.5 OD=22 T=4 		1-09503-045-0 03 1 1001-1011 ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW) ID=10.5 OD=22 T=4 		1-09503-045-0 03 1 1012- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 03 1 1012- ●
71 NUT; SUPPORT RUBBER TO BRKT
MLD6S M/T(X7W) M10 FLANGE SOU 		0-91180-110-0 04 1 1001-1011 ●
71 NUT; SUPPORT RUBBER TO BRKT
MLD6S M/T(X7W) M10 FLANGE SOU 		0-91180-110-0 04 1 1012-1112 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE SOU 		0-91180-110-0 04 1 1012-1112 ●
71 NUT; SUPPORT RUBBER TO BRKT
MLD6S M/T(X7W) M10 FLANGE SOU 		0-91180-110-0 04 1 1201- ●
71 NUT; SUPPORT RUBBER TO BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU 		0-91180-110-0 04 1 1201- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE SOU 		0-91180-110-0 04 1 1201- ●
71 NUT; SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE SOU 		0-91180-110-0 08 1 1001-1112 ●
71 NUT; SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU 		0-91180-110-0 08 1 1201- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 1001-1011 ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 1012- ● ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1001-1011 ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1012- ● ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-948-0 01 1 1201- ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-949-1 01 1 1201- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98127-070-0 01 1 1201- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98127-071-1 01 1 1201- ●
78 BRACKET; ENG MTG,RR
(A) 		8-98013-944-0 01 1 1012- ●
78 BRACKET; ENG MTG,RR
(A) 		8-98013-945-2 01 1 1012- ●
78 BRACKET; ENG MTG,RR
MLD6S M/T(X7W) (B) 		8-98113-957-2 01 1 1001- ●
78 BRACKET; ENG MTG,RR
MLD6S M/T(X7W) (B) 		8-98113-956-1 01 1 1001- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) (A) 		8-98127-068-1 01 1 1001-1112 ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98127-068-1 01 1 1201-1302 ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98229-175-0 01 1 1303- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) (A) 		8-98127-067-0 01 1 1001-1112 ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98127-067-0 01 1 1201-1302 ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98229-167-0 01 1 1303- ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) (A) 		8-98013-947-1 01 1 1001-1112 ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98013-947-1 01 1 1201- ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) (A) 		8-98013-946-0 01 1 1001-1112 ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98013-946-0 01 1 1201- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1001-1011 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1012- ● ●
134 BOLT; SUPPORT BRKT
M12X25 FLANGE 		0-28751-225-0 06 1 1012- ●
134 BOLT; SUPPORT BRKT
MLD6S M/T(X7W) M14X40 FLANGE 		8-98124-492-0 08 1 1001- ●
134 BOLT; SUPPORT BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M14X35 FLANGE 		0-28751-435-0 08 1 1001- ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-1011 ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE SOU 		0-91180-210-0 04 1 1012- ● ●
