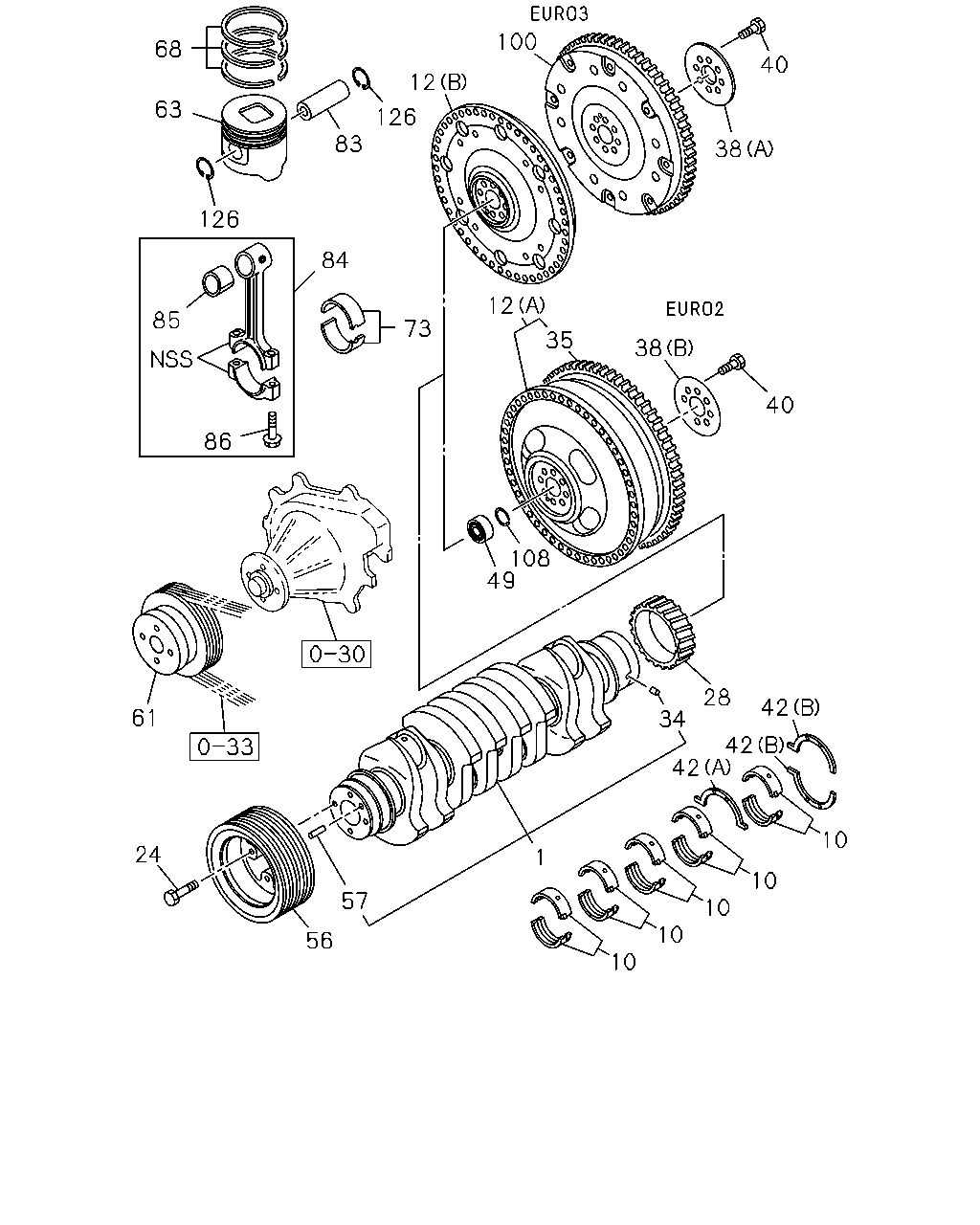

1 |
CRANKSHAFT
|
8-98029-270-0 |
01 |
1 |
1001-1011 |
● |
|
| |
1 |
CRANKSHAFT
|
8-98029-270-0 |
01 |
1 |
1012- |
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-1 |
05 |
1 |
1001-1011 |
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-1 |
05 |
1 |
1012- |
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-1 |
05 |
1 |
1001-1011 |
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-1 |
05 |
1 |
1012- |
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-1 |
05 |
1 |
1001-1011 |
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-1 |
05 |
1 |
1012- |
● |
● |
| |
12 |
FLYWHEEL
EURO3 SPECIFICATION<NT3>
(B)
|
8-98020-543-1 |
01 |
1 |
1201- |
● |
|
| |
12 |
FLYWHEEL
(A)
|
8-98056-355-2 |
01 |
1 |
1001-1011 |
● |
|
| |
12 |
FLYWHEEL
(A)
|
8-98056-355-2 |
01 |
1 |
1012-1112 |
● |
● |
| |
12 |
FLYWHEEL
EURO2 SPECIFICATION<NT2>
(A)
|
8-98056-355-2 |
01 |
1 |
1201- |
● |
|
| |
12 |
FLYWHEEL
(A)
|
8-98056-355-2 |
01 |
1 |
1201- |
|
● |
| |
24 |
BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
1001-1011 |
● |
|
| |
24 |
BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
1012- |
● |
● |
| |
28 |
GEAR; CR/SHF
Z=42
|
8-94394-342-4 |
01 |
1 |
1001-1011 |
● |
|
| |
28 |
GEAR; CR/SHF
Z=42
|
8-94394-342-4 |
01 |
1 |
1012- |
● |
● |
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
1001-1011 |
● |
|
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
1012- |
● |
● |
| |
35 |
GEAR; RING
Z=143
|
8-97375-675-1 |
01 |
1 |
1001-1011 |
● |
|
| |
35 |
GEAR; RING
Z=143
|
8-97375-675-1 |
01 |
1 |
1012-1112 |
● |
● |
| |
35 |
GEAR; RING
EURO2 SPECIFICATION<NT2>
Z=143
|
8-97375-675-1 |
01 |
1 |
1201- |
● |
|
| |
35 |
GEAR; RING
Z=143
|
8-97375-675-1 |
01 |
1 |
1201- |
|
● |
| |
38 |
WASHER; FLYWHEEL
EURO3 SPECIFICATION<NT3>
(A)
ID=50 OD=120
|
8-98176-500-0 |
01 |
1 |
1201- |
● |
|
| |
38 |
WASHER; FLYWHEEL
(B)
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
1001-1011 |
● |
|
| |
38 |
WASHER; FLYWHEEL
(B)
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
1012-1112 |
● |
● |
| |
38 |
WASHER; FLYWHEEL
EURO2 SPECIFICATION<NT2>
(B)
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
1201- |
● |
|
| |
38 |
WASHER; FLYWHEEL
(B)
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
1201- |
|
● |
| |
40 |
BOLT; FLYWHEEL
M16X51
|
8-94334-870-1 |
08 |
1 |
1001-1011 |
● |
|
| |
40 |
BOLT; FLYWHEEL
M16X51
|
8-94334-870-1 |
08 |
1 |
1012- |
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-97386-548-0 |
01 |
1 |
1001-1011 |
● |
|
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-97386-548-0 |
01 |
1 |
1012- |
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-97386-549-0 |
02 |
1 |
1001-1011 |
● |
|
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-97386-549-0 |
02 |
1 |
1012- |
● |
● |
| |
49 |
BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
1001-1011 |
● |
|
| |
49 |
BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
1012-1112 |
● |
● |
| |
49 |
BEARING; PILOT
EURO2 SPECIFICATION<NT2>
|
8-97258-239-0 |
01 |
1 |
1201- |
● |
|
| |
49 |
BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
1201- |
|
● |
| |
49 |
BEARING; PILOT
BEST VALUE PARTS
|
5-87610-164-0 |
01 |
1 |
1001-1011 |
● |
|
| |
49 |
BEARING; PILOT
BEST VALUE PARTS
|
5-87610-164-0 |
01 |
1 |
1012-1112 |
● |
● |
| |
49 |
BEARING; PILOT
EURO2 SPECIFICATION<NT2>
BEST VALUE PARTS
|
5-87610-164-0 |
01 |
1 |
1201- |
● |
|
| |
49 |
BEARING; PILOT
BEST VALUE PARTS
|
5-87610-164-0 |
01 |
1 |
1201- |
|
● |
| |
56 |
PULLEY; CR/SHF DAMPER
3-GROOVE
|
8-98004-024-3 |
01 |
1 |
1001-1011 |
● |
|
| |
56 |
PULLEY; CR/SHF DAMPER
3-GROOVE
|
8-98004-024-3 |
01 |
1 |
1012- |
● |
● |
| |
57 |
PIN; PULLEY
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
1001-1011 |
● |
|
| |
57 |
PIN; PULLEY
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
1012- |
● |
● |
| |
61 |
PULLEY; FAN DRIVE
1-GROOVE
|
8-98003-384-1 |
01 |
1 |
1001-1011 |
● |
|
| |
61 |
PULLEY; FAN DRIVE
1-GROOVE
|
8-98003-384-1 |
01 |
1 |
1012- |
● |
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-98041-141-0 |
04 |
1 |
1001-1011 |
● |
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-98041-141-2 |
04 |
1 |
1012- |
● |
● |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-98040-125-0 |
04 |
1 |
1001-1011 |
● |
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-98040-125-0 |
04 |
1 |
1012- |
● |
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-98055-479-0 |
04 |
1 |
1001-1011 |
● |
|
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-98055-479-0 |
04 |
1 |
1012- |
● |
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-98055-480-0 |
04 |
1 |
1001-1011 |
● |
|
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-98055-480-0 |
04 |
1 |
1012- |
● |
● |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-98018-863-1 |
04 |
1 |
1001-1011 |
● |
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-98018-863-1 |
04 |
1 |
1012- |
● |
● |
| |
84 |
ROD ASM; CONN
|
8-98018-425-2 |
04 |
1 |
1001-1011 |
● |
|
| |
84 |
ROD ASM; CONN
|
8-98018-425-3 |
04 |
1 |
1012- |
● |
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94391-794-1 |
04 |
1 |
1001-1011 |
● |
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94391-794-1 |
04 |
1 |
1012- |
● |
● |
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
1001-1004 |
● |
|
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
8-98091-141-0 |
08 |
1 |
1005-1011 |
● |
|
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
8-98091-141-0 |
08 |
1 |
1012- |
● |
● |
| |
100 |
PLATE; FLEX
EURO3 SPECIFICATION<NT3>
|
8-98020-542-2 |
01 |
1 |
1201- |
● |
|
| |
108 |
RING; SNAP,BRG SET
OD=59.2
|
9-09180-155-0 |
01 |
1 |
1001-1006 |
● |
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
OD=43.7
|
8-98006-828-0 |
08 |
1 |
1001-1011 |
● |
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
OD=43.7
|
8-98006-828-0 |
08 |
1 |
1012- |
● |
● |
