0-14 — CAMSHAFT AND VALVE (#40352) — 105 parça

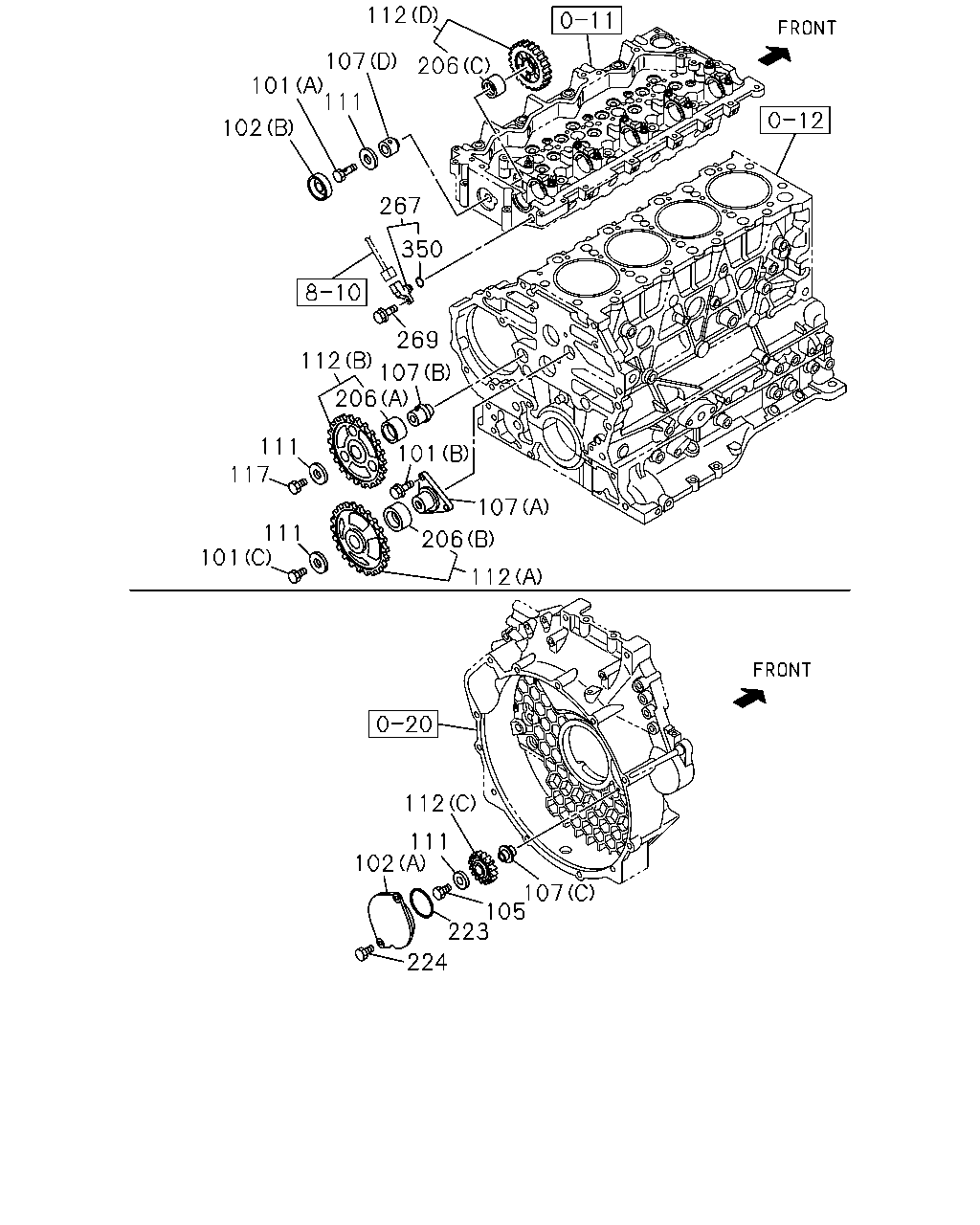

112 107 111 206 101 102 267 350 269 112 107 206 111 117 101 107 111 101 206 112 112 111 102 107 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1001-1011	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1012-	●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1001-1011	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1012-	●	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1001-1011	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1012-1310	●	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1001-1011	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1012-	●	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1001-1011	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1012-	●	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1001-1011	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1012-	●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-0	01	1	1001-1011	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1012-	●	●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1001-1011	●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1012-	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1001-1011	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1012-	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1001-1011	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1012-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1001-1011	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1012-	●	●
112	GEAR; IDLE (C) Z=34	8-97120-005-1	01	1	1001-1011	●
112	GEAR; IDLE (C) Z=34	8-97120-005-1	01	1	1012-	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1001-1011	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1012-1402	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1001-1011	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1012-	●	●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1001-1011	●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1012-	●	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1001-1011	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1012-	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	1001-1011	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	1012-1402	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1001-1011	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1012-	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1001-1011	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1012-	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1001-1011	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1012-	●	●
224	BOLT; COVER M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1011	●
224	BOLT; COVER M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	1001-1011	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	1012-	●	●
269	BOLT; SENSOR M6X12 FLANGE SOU	0-28050-612-0	01	1	1001-1011	●
269	BOLT; SENSOR M6X12 FLANGE SOU	0-28050-612-0	01	1	1012-	●	●
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8	8-97369-404-0	01	1	1001-1011	●
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8	8-97369-404-0	01	1	1012-	●	●

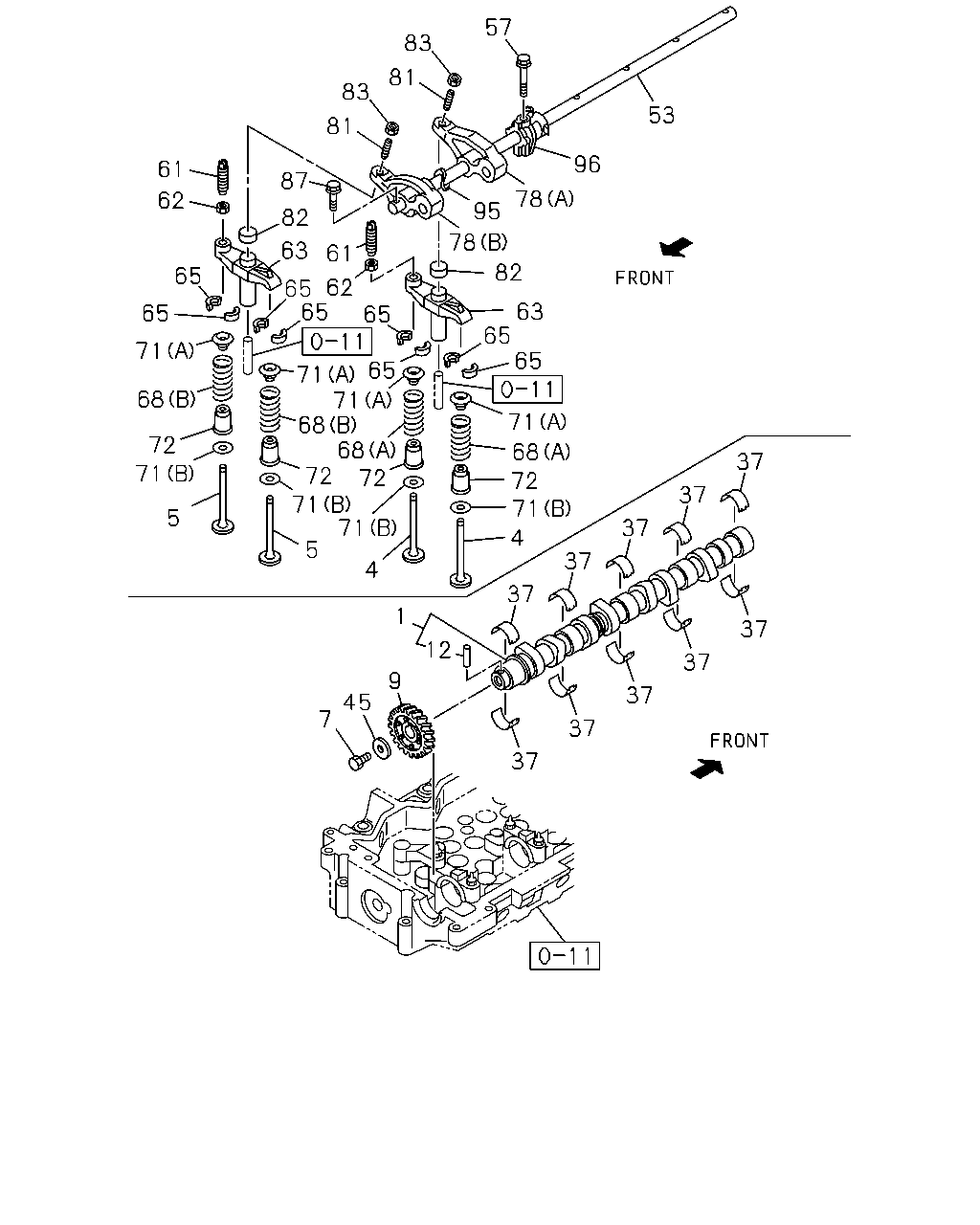

37 37 37 37 37 37 37 37 37 37 12 1 45 7 9 4 4 71 72 68 71 65 65 63 82 78 95 78 96 53 57 83 81 83 81 87 82 63 65 65 62 61 65 65 71 68 72 71 5 71 72 68 71 5 71 72 68 71 65 65 62 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97262-166-0	01	1	1001-1011	●
1	CAMSHAFT	8-97262-166-0	01	1	1012-	●	●
4	VALVE; INL	8-94395-882-2	08	1	1001-1011	●
4	VALVE; INL	8-94395-882-2	08	1	1012-	●	●
5	VALVE; EXH	8-97209-876-3	08	1	1001-1011	●
5	VALVE; EXH	8-97209-876-4	08	1	1012-	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1001-1011	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1012-	●	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1001-1011	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1012-	●	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1001-1011	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1012-	●	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1001-1011	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1012-	●	●
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	1001-1011	●
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	1012-	●	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1001-1011	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1012-	●	●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1001-1011	●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1012-	●	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1001-1011	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1012-	●	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE SOU	9-09844-574-0	08	1	1001-1011	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE SOU	9-09844-574-0	08	1	1012-	●	●
63	BRIDGE	8-94392-002-3	08	1	1001-1011	●
63	BRIDGE	8-94392-002-3	08	1	1012-	●	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1001-1011	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1012-	●	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1001-1011	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1012-	●	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1001-1011	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1012-	●	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1001-1011	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1012-	●	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1001-1011	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1012-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1001-1011	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1012-	●	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1001-1011	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1012-	●	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1001-1011	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1012-	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1001-1011	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1012-	●	●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	1001-1011	●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	1012-	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1001-1011	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1012-	●	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	1001-1011	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	1012-	●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1001-1011	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1012-	●	●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1001-1011	●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1012-	●	●
