◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#40351) — 53 parça

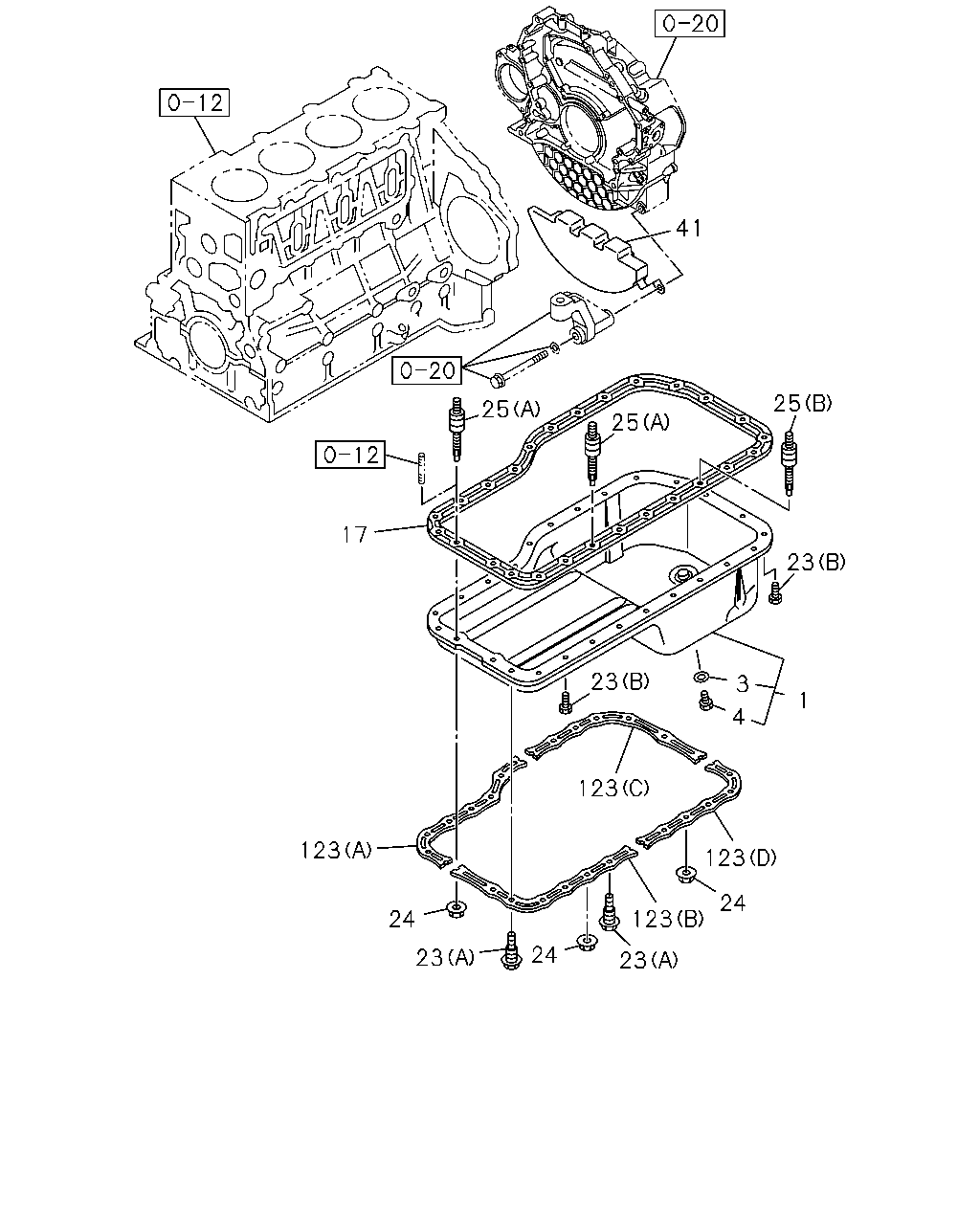

çizim 162067
41 25 25 25 17 23 23 3 1 4 123 123 123 24 123 24 24 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98124-513-0 01 1 1001-1011 ●
1 PAN ASM; OIL 8-98124-513-0 01 1 1012-1107 ● ●
1 PAN ASM; OIL 8-97149-314-0 01 1 1108-1109 ● ●
1 PAN ASM; OIL 8-98191-050-0 01 1 1110- ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1001-1011 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1012- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1001-1011 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1012- ● ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 1001-1011 ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 1012-1107 ● ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 01 1 1108-1109 ● ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 1110- ● ●
23 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 1001-1011 ●
23 BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 1012-1107 ● ●
23 BOLT; OIL PAN
(B) M8X14 W/SCOTCH GRIP 		8-97047-004-1 18 1 1108-1109 ● ●
23 BOLT; OIL PAN
(B) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1110- ● ●
24 NUT; OIL PAN
M8 FLANGE SOU 		0-91180-108-0 13 1 1001-1011 ●
24 NUT; OIL PAN
M8 FLANGE SOU 		0-91180-108-0 13 1 1012-1107 ● ●
24 NUT; OIL PAN
M8 FLANGE SOU 		0-91180-108-0 07 1 1108-1109 ● ●
24 NUT; OIL PAN
M8 W/LK WASHER 		8-97581-234-0 07 1 1110- ● ●
25 STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 1001-1011 ●
25 STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 1012-1107 ● ●
25 STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 1001-1011 ●
25 STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 1012-1107 ● ●
41 RUBBER; SPACE 8-97380-615-0 01 1 1001-1010 ●
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 1001-1011 ●
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 1012-1107 ● ●
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 1001-1011 ●
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 1012-1107 ● ●
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 1001-1011 ●
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 1012-1107 ● ●
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 1001-1011 ●
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 1012-1107 ● ●

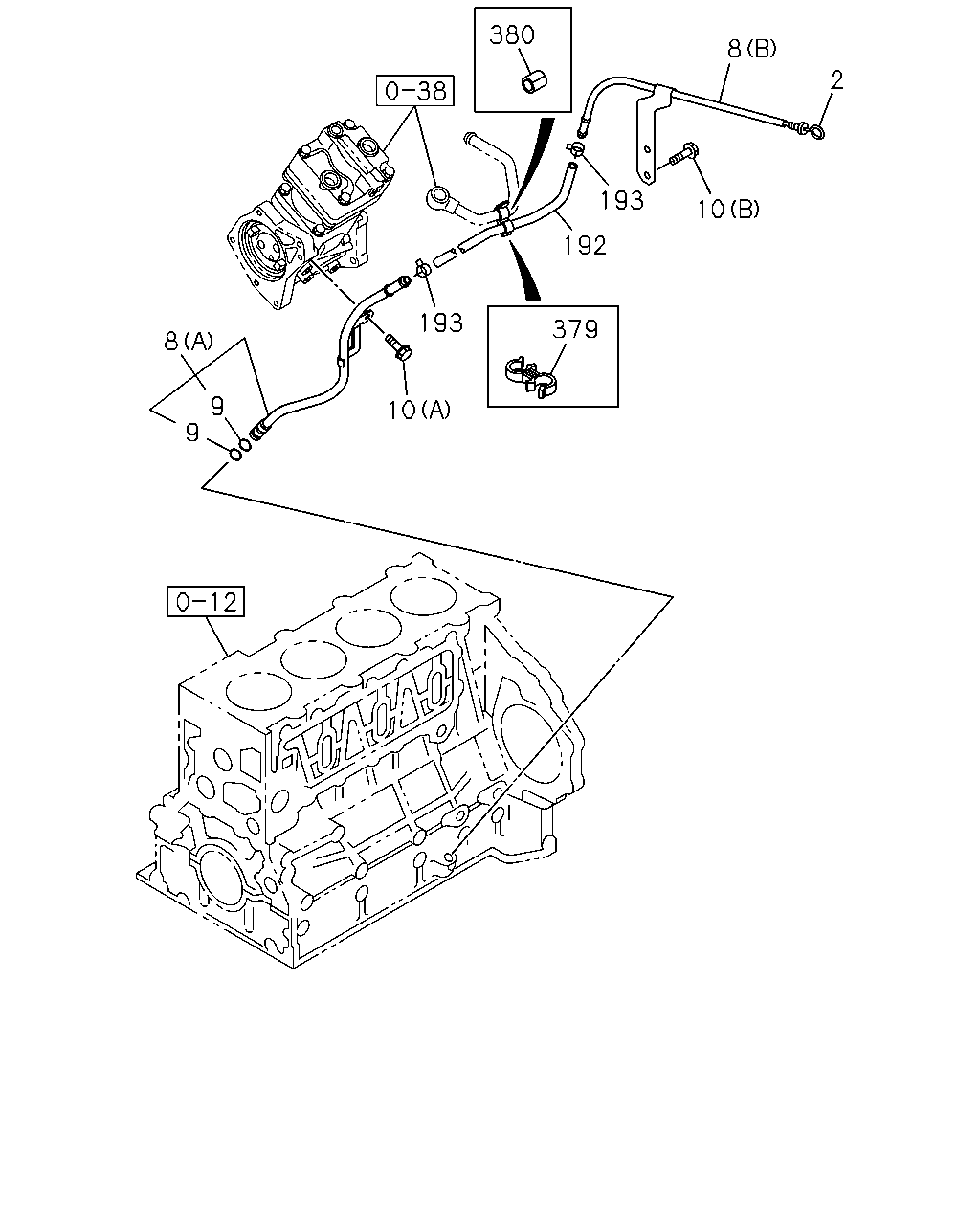

çizim 162210
380 8 2 193 10 192 193 379 8 9 10 9
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL 8-98085-153-0 01 1 1001-1011 ●
2 GAUGE; OIL LEVEL 8-98085-153-0 01 1 1012-1406 ● ●
2 GAUGE; OIL LEVEL 8-98245-514-0 01 1 1407- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98009-115-1 01 1 1001-1011 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98009-115-1 01 1 1012- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98010-328-1 01 1 1001-1011 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98010-328-1 01 1 1012- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0902- ●
10 BOLT; GUIDE TUBE
(A) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1001-1011 ●
10 BOLT; GUIDE TUBE
(A) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1012- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1001-1011 ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-978-0 01 1 1001-1011 ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-978-0 01 1 1012- ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1001-1011 ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1012- ● ●
379 CLIP; PIPE TO HOSE
ID=18 & 18 		8-94323-068-0 01 1 1001-1011 ●
379 CLIP; PIPE TO HOSE
ID=18 & 18 		8-94323-068-0 01 1 1012- ● ●
380 PROTECTOR; PIPE
ID=18 L=40 		8-98070-445-0 01 1 1001-1011 ●
380 PROTECTOR; PIPE
ID=18 L=40 		8-98070-445-0 01 1 1012- ● ●
