◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#40350) — 79 parça

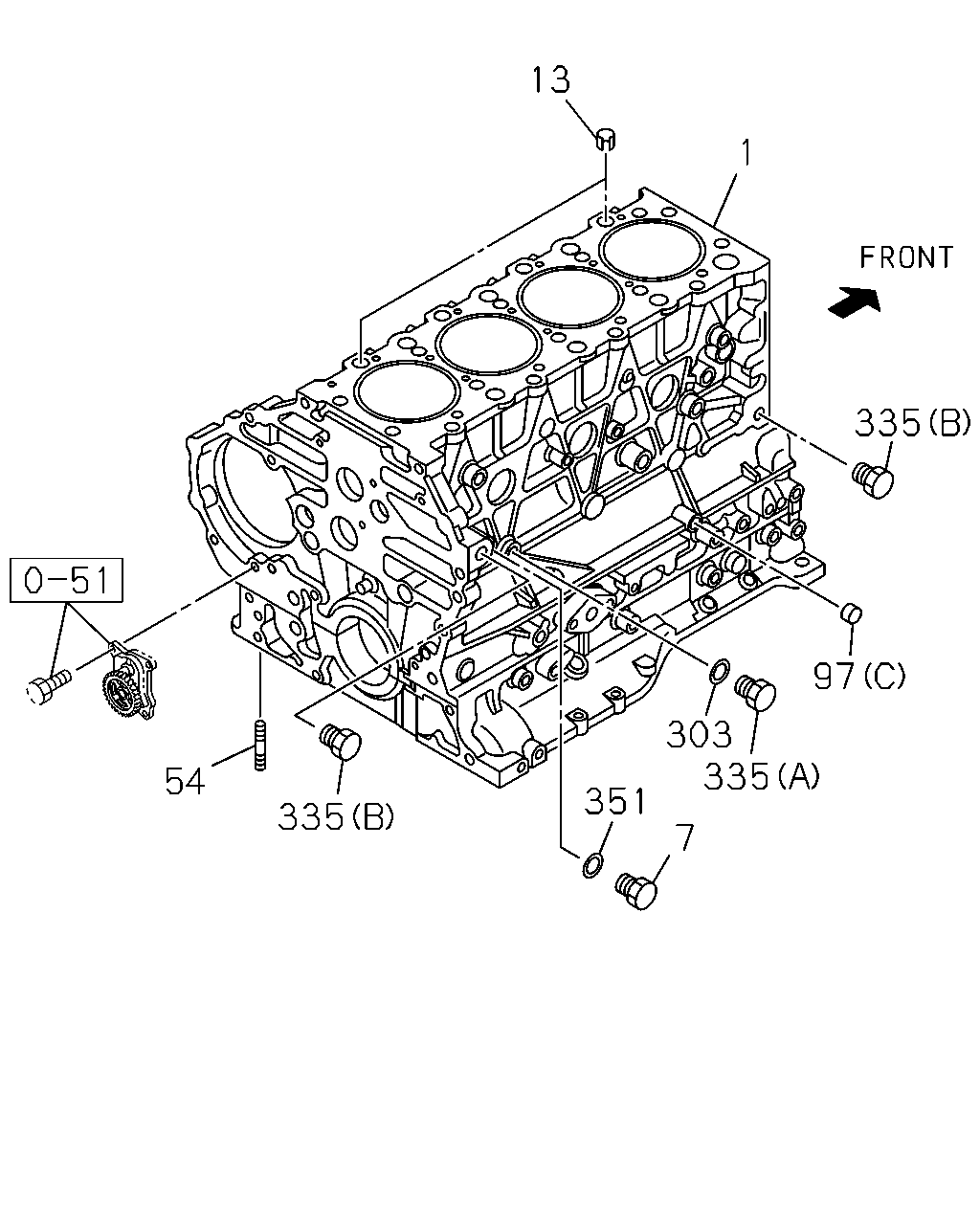

çizim 162304
13 1 335 97 303 335 54 351 335 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-98046-721-2 01 1 1001-1011 ●
1 BLOCK ASM; CYL 8-98046-721-3 01 1 1012-1209 ● ●
1 BLOCK ASM; CYL 8-98204-529-0 01 1 1210-1405 ● ●
1 BLOCK ASM; CYL 8-98204-528-0 01 1 1406- ● ●
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1001-1011 ●
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1012- ● ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1001-1011 ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1012- ● ●
54 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 1108- ● ●
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 1001-1011 ●
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 1012- ● ●
97 CUP; SEALING
(C) OD=12 		8-97036-335-1 01 1 1001-1011 ●
97 CUP; SEALING
(C) OD=12 		8-97036-335-1 01 1 1012- ● ●
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 1001-1011 ●
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 1012- ● ●
303 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU 		1-09630-085-0 01 1 1001-1011 ●
303 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU 		1-09630-085-0 01 1 1012-1312 ● ●
303 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ● ●
335 PLUG; C/BL,SIDE
(B) M14X16.5 		8-97329-617-0 02 1 1001-1011 ●
335 PLUG; C/BL,SIDE
(B) M14X16.5 		8-97329-617-0 02 1 1012- ● ●
335 PLUG; C/BL,SIDE
(A) M14X18 		8-98038-403-0 01 1 1001-1011 ●
335 PLUG; C/BL,SIDE
(A) M14X18 		8-98038-403-0 01 1 1012- ● ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1001-1011 ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1012- ● ●

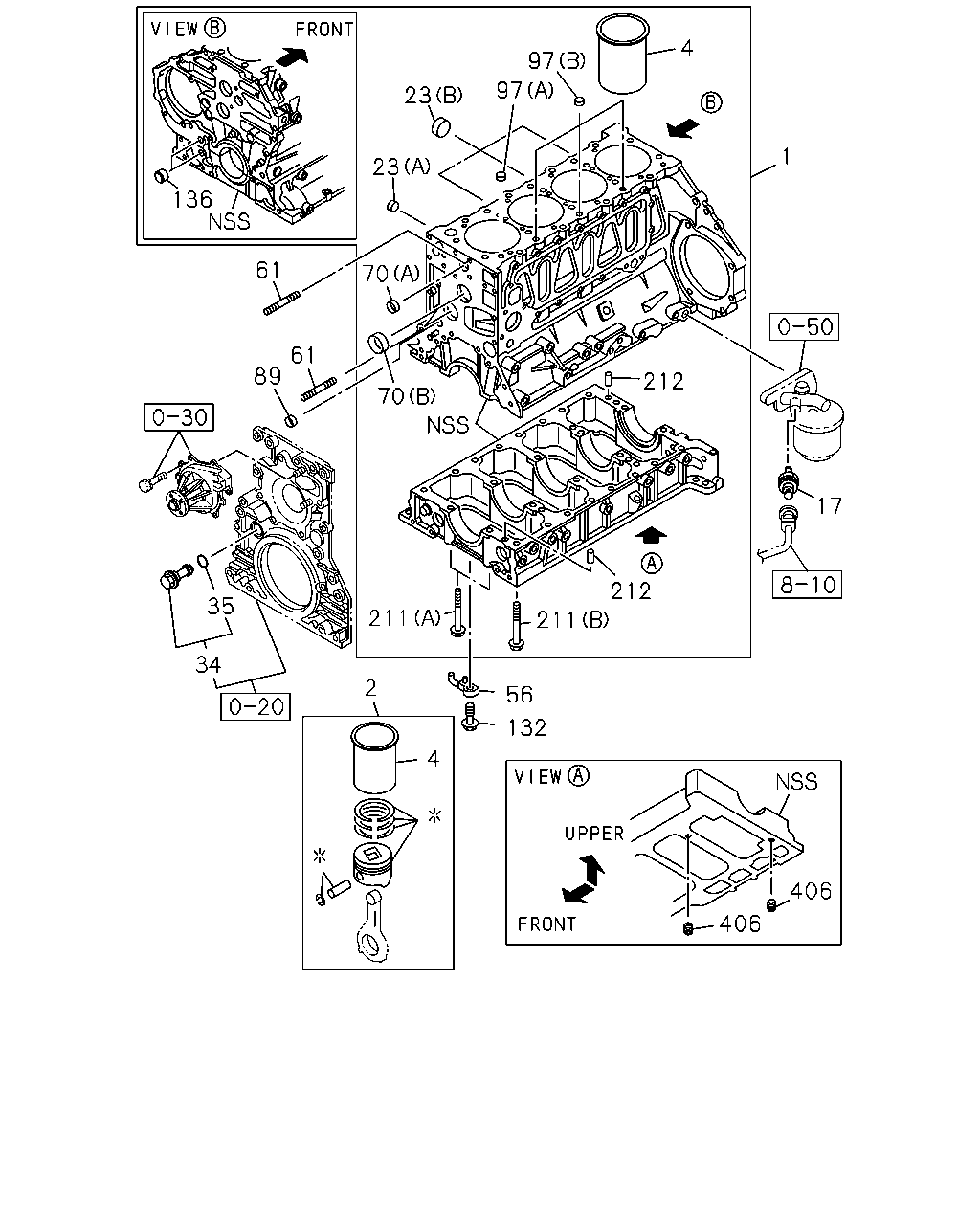

çizim 162351
4 97 97 23 1 23 136 61 70 61 89 212 70 17 212 35 211 211 34 2 56 132 4 406 406
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-98046-721-2 01 1 1001-1011 ●
1 BLOCK ASM; CYL 8-98046-721-3 01 1 1012-1209 ● ●
1 BLOCK ASM; CYL 8-98204-529-0 01 1 1210-1405 ● ●
1 BLOCK ASM; CYL 8-98204-528-0 01 1 1406- ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-4 04 1 1001-1011 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 04 1 1012-1405 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87814-726-0 04 1 1406- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-4 04 1 1001-1011 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 04 1 1012-1405 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87814-727-0 04 1 1406- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 04 1 1001-1011 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 04 1 1012-1405 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 04 1 1406- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 04 1 1001-1011 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 04 1 1012-1405 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 04 1 1406- ● ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1001-1011 ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1012- ● ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 1001-1011 ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 1012- ● ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 1001-1011 ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 1012- ● ●
34 VALVE; OIL RELIEF 8-97328-859-0 01 1 1001-1011 ●
34 VALVE; OIL RELIEF 8-97328-859-0 01 1 1012- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3 		8-94173-412-0 01 1 1001-1011 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3 		8-94173-412-0 01 1 1012- ● ●
56 JET; OIL,PISTON COOLING 8-98020-649-0 04 1 1001-1007 ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 04 1 1008-1011 ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 04 1 1012- ● ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1001-1011 ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1012- ● ●
70 CUP; SEALING,FRT & RR
(A) OD=25 		1-09600-016-0 01 1 1001-1011 ●
70 CUP; SEALING,FRT & RR
(A) OD=25 		1-09600-016-0 01 1 1012- ● ●
70 CUP; SEALING,FRT & RR
(B) OD=40 		8-97096-824-0 04 1 1001-1011 ●
70 CUP; SEALING,FRT & RR
(B) OD=40 		8-97096-824-0 04 1 1012- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 1001-1011 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 1012- ● ●
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 1001-1011 ●
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 1012- ● ●
97 CUP; SEALING
(C) OD=12 		8-97036-335-1 01 1 1001-1011 ●
97 CUP; SEALING
(C) OD=12 		8-97036-335-1 01 1 1012- ● ●
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 1001-1011 ●
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 1012- ● ●
132 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 1001-1011 ●
132 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 1012- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1001-1011 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1012- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 1001-1011 ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 1012- ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 1001-1011 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 1012- ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 1001-1011 ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 1012- ● ●
406 PLUG; CRANK CASE
PT3/8 		5-09605-005-0 02 1 1001-1011 ●
406 PLUG; CRANK CASE
PT3/8 		5-09605-005-0 02 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
