Sayfa 6-47 - Isuzu EPC

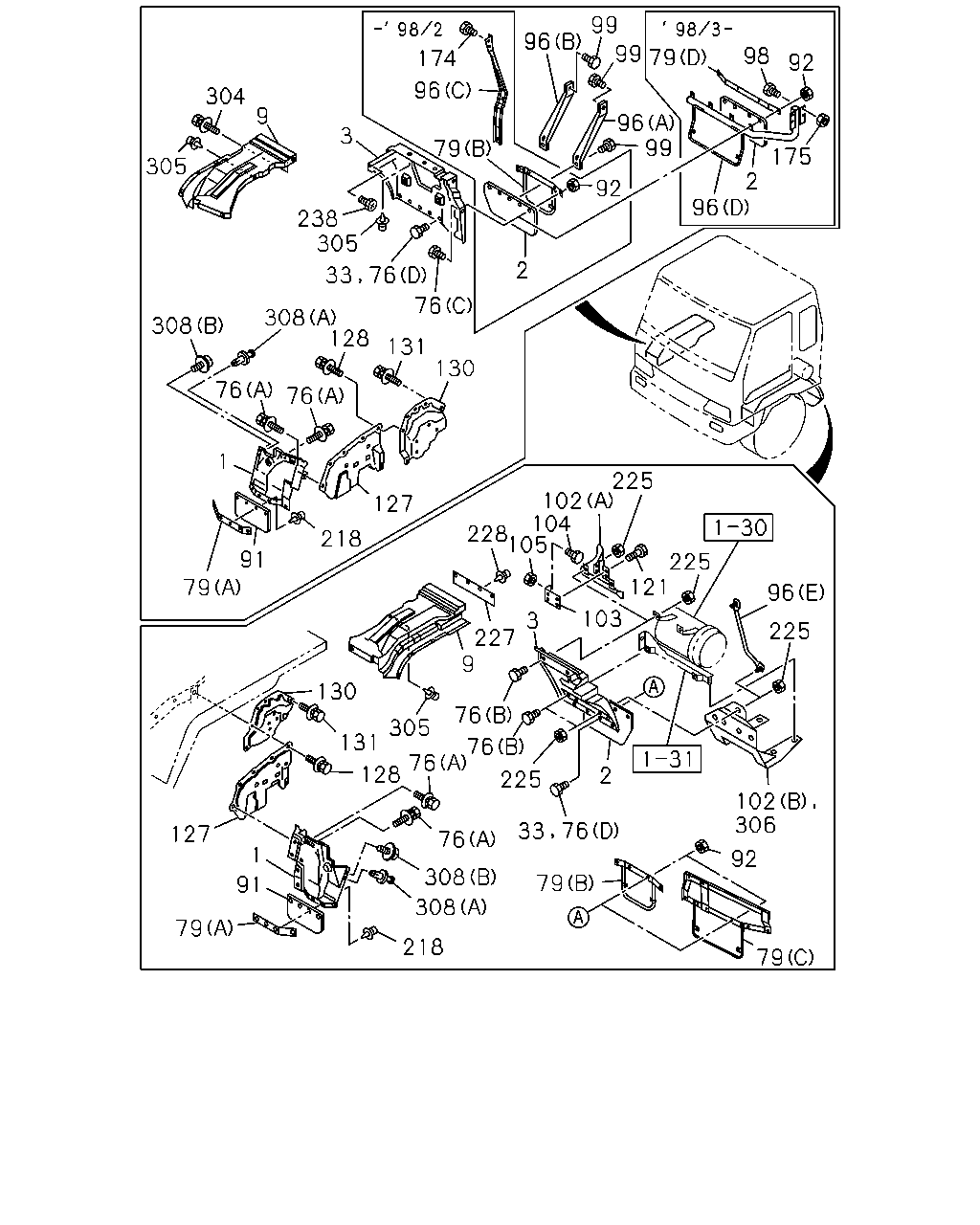

6-47 — MUD GUARD AND INSULATOR (#4035) — 279 parça

99 96 99 79 98 174 92 96 304 9 96 99 3 79 175 305 2 96 92 238 305 2 76 308 128 308 131 130 76 76 1 225 102 104 228 105 127 218 3 91 225 121 79 96 103 225 227 9 130 76 305 131 76 76 128 2 225 102 306 127 76 1 92 308 79 91 308 79 218 79 33 76 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9510-	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9510-	●	●
2	COVER; MUD,TIRE RR	1-79931-117-0	01	1	9510-9511	●	●
2	COVER; MUD,TIRE RR	1-79931-228-0	01	1	9512-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	9602-	●	●
2	COVER; MUD,TIRE RR	1-79931-175-0	01	1	9510-9511	●	●
2	COVER; MUD,TIRE RR	1-79931-222-0	01	1	9512-9606	●	●
2	COVER; MUD,TIRE RR	1-79938-973-0	01	1	9607-9802	●	●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	9803-	●	●
3	GUARD; MUD,RR 6HK1 TCC ENG(81L)	1-79936-012-0	01	1	0608-		●
3	GUARD; MUD,RR	1-79938-998-0	01	1	9712-9802	●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-998-0	01	1	9712-9802		●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-998-0	01	1	9803-0004	●	●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-998-0	01	1	0005-	●
3	GUARD; MUD,RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79938-998-0	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-826-9	01	1	9510-9605	●	●
3	GUARD; MUD,RR	1-79938-959-1	01	1	9606-9711	●	●
3	GUARD; MUD,RR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-79938-959-2	01	1	9712-9802		●
3	GUARD; MUD,RR 6HE1 TC ENG(57L)	1-79938-959-2	01	1	9803-0607	●
3	GUARD; MUD,RR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-79938-959-2	01	1	9803-0607		●
3	GUARD; MUD,RR 6HE1 TC ENG(57L)	1-79938-959-2	01	1	0608-	●
3	GUARD; MUD,RR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L)	1-79938-959-2	01	1	0608-		●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9510-9607	●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-0601	●	●
3	GUARD; MUD,RR 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-79938-971-1	01	1	0602-	●
3	GUARD; MUD,RR 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L)	1-79938-971-1	01	1	0602-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9510-9802	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9803-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-830-9	01	1	9510-9601	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9602-	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9510-9609	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9510-9605	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-0805	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9510-	●	●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712	●	●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-0004	●	●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0005-	●
76	BOLT; MUD GUARD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0005-		●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9510-	●	●
79	RETAINER; MUD COVER (B)	1-79931-176-1	01	1	9510-9511	●	●
79	RETAINER; MUD COVER (B)	1-79938-957-0	01	1	9512-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9602-9611	●	●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B)	1-79931-253-0	01	1	9612-9703		●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (C)	1-79931-288-0	01	1	9704-9802		●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L) (C)	1-79931-288-0	01	1	9803-0607	●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (C)	1-79931-288-0	01	1	9803-0607		●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L) (C)	1-79931-288-0	01	1	0608-	●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (C)	1-79931-288-0	01	1	0608-		●
79	RETAINER; MUD COVER (B)	1-79931-174-1	01	1	9510-9511	●	●
79	RETAINER; MUD COVER (B)	1-79938-956-0	01	1	9512-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-174-1	01	1	9602-9606	●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9607-9802	●	●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	9803-	●	●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-278-1	01	1	9612-9711	●	●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	9712-0004	●	●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0005-	●
79	RETAINER; MUD COVER 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0005-		●
91	COVER; MUD,FRT	1-79931-043-0	02	1	9510-9511	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9512-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9510-9607	●	●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9802	●	●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	05	1	9803-0004	●	●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	05	1	0005-0602	●
92	NUT; MUD COVER 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	05	1	0005-0602		●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91180-106-0	05	1	0603-	●
92	NUT; MUD COVER 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M6 FLANGE	0-91180-106-0	05	1	0603-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9704-9802	●	●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91150-106-0	03	1	9803-0602	●
92	NUT; MUD COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M6 FLANGE	0-91150-106-0	03	1	9803-0602		●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91180-106-0	03	1	0603-0607	●
92	NUT; MUD COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M6 FLANGE	0-91180-106-0	03	1	0603-0607		●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91180-106-0	03	1	0608-	●
92	NUT; MUD COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M6 FLANGE	0-91180-106-0	03	1	0608-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	9803-0602	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
96	STAY; MUD GUARD 6HK1 TCC ENG(81L) (E)	1-53497-592-1	01	1	0608-		●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9510-9607	●	●
96	STAY; MUD GUARD (A)	1-79938-968-2	01	1	9608-9802	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9803-	●	●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9510-9607	●	●
96	STAY; MUD GUARD (B)	1-79938-969-1	01	1	9608-9802	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9803-	●	●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-9802	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	9803-	●	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	9803-0512	●	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9510-	●	●
102	STAY; LWR,MUD GUARD 6HK1 TCC ENG(81L) (A)	1-53497-535-0	01	1	0608-		●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A)	1-53497-528-0	01	1	9511-9802		●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L) (A)	1-53497-528-0	01	1	9803-	●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (A)	1-53497-528-0	01	1	9803-		●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B)	1-53497-593-2	01	1	9704-9802		●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L) (B)	1-53497-593-2	01	1	9803-9803	●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B)	1-53497-593-2	01	1	9803-9803		●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L) (B)	1-53497-618-0	01	1	9804-0303	●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B)	1-53497-618-0	01	1	9804-0303		●
103	BRACKET ASM; RR MUD FLAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-53497-486-1	01	1	9511-9802		●
103	BRACKET ASM; RR MUD FLAP 6HE1 TC ENG(57L)	1-53497-486-2	01	1	9803-0607	●
103	BRACKET ASM; RR MUD FLAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-53497-486-2	01	1	9803-0607		●
103	BRACKET ASM; RR MUD FLAP 6HE1 TC ENG(57L)	1-53497-486-2	01	1	0608-	●
103	BRACKET ASM; RR MUD FLAP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L)	1-53497-486-2	01	1	0608-		●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X25 FLANGE	0-28080-825-0	02	1	9511-9711		●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE	0-28680-820-0	02	1	9712-9802		●
104	BOLT; BRKT 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	02	1	9803-0512	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE	0-28680-820-0	02	1	9803-0512		●
104	BOLT; BRKT 6HE1 TC ENG(57L) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607		●
104	BOLT; BRKT 6HE1 TC ENG(57L) M8X20 FLANGE	0-28650-820-0	02	1	0608-	●
104	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	02	1	0608-		●
105	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8	9-09110-408-0	02	1	9511-9802		●
105	NUT; BRKT 6HE1 TC ENG(57L) M8	9-09110-408-0	02	1	9803-0512	●
105	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8	9-09110-408-0	02	1	9803-0512		●
105	NUT; BRKT 6HE1 TC ENG(57L) M8	0-91110-508-0	02	1	0601-0607	●
105	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8	0-91110-508-0	02	1	0601-0607		●
105	NUT; BRKT 6HE1 TC ENG(57L) M8	0-91110-508-0	02	1	0608-	●
105	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M8	0-91110-508-0	02	1	0608-		●
121	BOLT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M10X25 FLANGE	0-28081-025-0	04	1	9511-9802		●
121	BOLT 6HE1 TC ENG(57L) M10X25 FLANGE	0-28081-025-0	04	1	9803-0512	●
121	BOLT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M10X25 FLANGE	0-28081-025-0	04	1	9803-0512		●
121	BOLT 6HE1 TC ENG(57L) M10X25 FLANGE	0-28051-025-0	04	1	0601-0607	●
121	BOLT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M10X25 FLANGE	0-28051-025-0	04	1	0601-0607		●
121	BOLT 6HE1 TC ENG(57L) M10X25 FLANGE	0-28051-025-0	04	1	0608-	●
121	BOLT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M10X25 FLANGE	0-28051-025-0	04	1	0608-		●
127	APRON; FRT	1-53193-223-1	01	1	9612-	●
127	APRON; FRT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53193-223-1	01	1	9612-		●
127	APRON; FRT	1-53193-222-0	01	1	9510-9611	●	●
127	APRON; FRT	1-53193-222-1	01	1	9612-0004	●
127	APRON; FRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53193-222-1	01	1	9612-0004		●
127	APRON; FRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-222-1	01	1	0005-0510		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53193-222-1	01	1	0511-		●
127	APRON; FRT	1-53192-301-3	01	1	9510-	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9510-	●	●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L)	1-53193-704-1	01	1	0608-		●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-955-2	01	1	0608-		●
130	PANEL; SHUTTER NOISE	1-53192-308-3	01	1	9612-0602	●
130	PANEL; SHUTTER NOISE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53192-308-3	01	1	9612-0602		●
130	PANEL; SHUTTER NOISE 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-53192-308-3	01	1	0603-	●
130	PANEL; SHUTTER NOISE 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53192-308-3	01	1	0603-		●
130	PANEL; SHUTTER NOISE	1-53192-307-3	01	1	9510-9611	●	●
130	PANEL; SHUTTER NOISE	1-53192-307-4	01	1	9612-0004	●
130	PANEL; SHUTTER NOISE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53192-307-4	01	1	9612-0004		●
130	PANEL; SHUTTER NOISE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-307-4	01	1	0005-0510		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53192-307-4	01	1	0511-		●
130	PANEL; SHUTTER NOISE	1-53192-305-2	01	1	9510-0602	●	●
130	PANEL; SHUTTER NOISE 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-53192-305-2	01	1	0603-	●
130	PANEL; SHUTTER NOISE 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L)	1-53192-305-2	01	1	0603-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9510-	●	●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9712-9802	●	●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	9803-0602	●	●
175	NUT; STAY FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9510-	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9510-9510	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9511-9612	●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) M8	9-09110-408-0	02	1	9511-9612		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9701-9802	●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9701-9802		●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9803-0004	●	●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
225	NUT; MUD GUARD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
225	NUT; MUD GUARD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-		●
225	NUT; MUD GUARD 6HE1 TC ENG(57L) M8	9-09110-408-0	03	1	9511-9612		●
225	NUT; MUD GUARD 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9701-9709		●
225	NUT; MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91150-108-0	03	1	9710-9802		●
225	NUT; MUD GUARD 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9803-0602	●
225	NUT; MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91150-108-0	03	1	9803-0602		●
225	NUT; MUD GUARD 6HE1 TC ENG(57L) M8 FLANGE	0-91180-108-0	03	1	0603-0607	●
225	NUT; MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91180-108-0	03	1	0603-0607		●
225	NUT; MUD GUARD 6HE1 TC ENG(57L) M8 FLANGE	0-91180-108-0	03	1	0608-	●
225	NUT; MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	0608-		●
227	SEAL; MUD GUARD	1-79938-820-1	01	1	9510-9601	●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9602-	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9510-	●	●
238	SCREW; MUD GUARD M6X30	1-65481-387-0	01	1	9510-9705	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-0404	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0405-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0405-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9510-9710	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9510-0404	●	●
306	BRACKET; MUD GUARD 6HE1 TC ENG(57L)	1-53497-618-0	01	1	0304-0607	●
306	BRACKET; MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-53497-618-0	01	1	0304-0607		●
306	BRACKET; MUD GUARD 6HE1 TC ENG(57L)	1-53497-618-0	01	1	0608-	●
306	BRACKET; MUD GUARD 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L)	1-53497-618-0	01	1	0608-		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	9510-9602	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9603-9605	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-0404	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-0404	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-	●	●

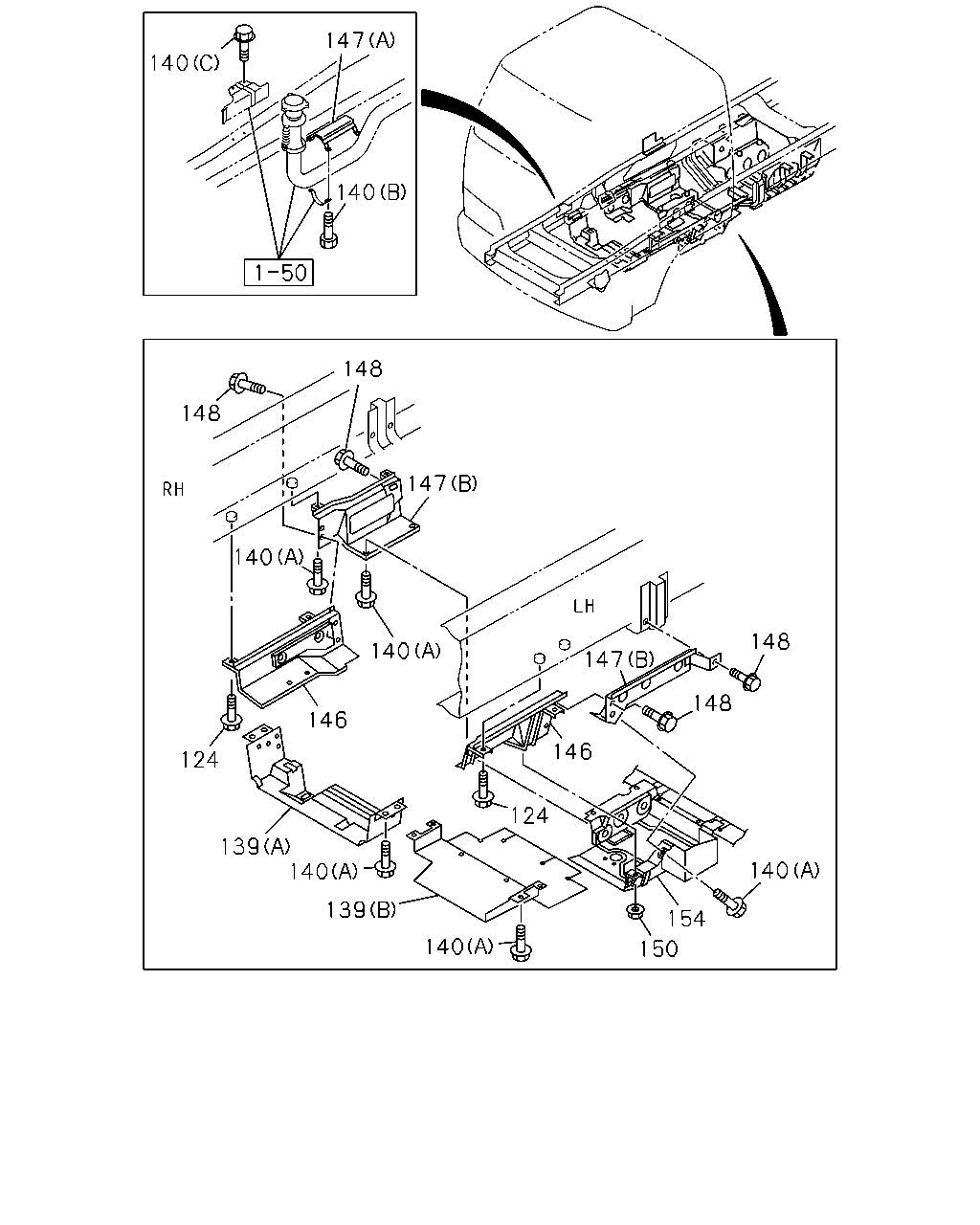

147 140 140 148 148 147 140 148 140 147 148 146 146 124 124 139 140 140 139 154 140 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
124	BOLT; BRKT SAUDI ARABIA EQUIPMENT(WH1) M8X25 FLANGE	0-28680-825-0	04	1	0211-0512		●
124	BOLT; BRKT SAUDI ARABIA EQUIPMENT(WH1) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
139	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (B)	1-53192-917-2	01	1	0301-		●
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-593-0	01	1	9510-		●
140	BOLT; SIDE PANEL EXC. FLYWHEEL HOUSING FC<E1R> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	9511-9601	●	●
140	BOLT; SIDE PANEL EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	9602-9802	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	9803-0004	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	0005-0301	●
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	0005-0301		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	0302-0512	●
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,SAUDI ARABIA EQUIPMENT(WH1) (B) M8X16 FLANGE	0-28080-816-0	04	1	0302-0512		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,SAUDI ARABIA EQUIPMENT(WH1) (B) M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-0607	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0608-	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) EXC. EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> (C) M8X25 FLANGE	0-28650-825-0	02	1	0608-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A) M8X25 FLANGE	0-28080-825-0	01	1	9511-9601	●	●
140	BOLT; SIDE PANEL IVORY COAST EQUIPMENT(SW3),VENEZUELA EQUIPMENT(S2L),SAUDI ARABIA EQUIPMENT(WH1) (B) M8X16 FLANGE	0-28080-816-0	04	1	9510-9610	●
140	BOLT; SIDE PANEL IVORY COAST EQUIPMENT(SW3),VENEZUELA EQUIPMENT(S2L),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X16 FLANGE	0-28080-816-0	04	1	9510-9610		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28080-825-0	04	1	9510-9510		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	04	1	9803-0512		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X25 FLANGE	0-28680-825-0	05	1	0211-0512		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X40 FLANGE	0-28680-840-0	04	1	0211-0512		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X40 FLANGE	0-28650-840-0	04	1	0601-		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0211-		●
146	PANEL; SIDE,UNDER,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-53192-939-0	01	1	0211-		●
146	PANEL; SIDE,UNDER,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-53192-937-1	01	1	0211-		●
147	PANEL; SIDE,UNDER,RR EXC. FLYWHEEL HOUSING FC<E1R> (B)	1-53193-050-1	01	1	9511-9601	●	●
147	PANEL; SIDE,UNDER,RR IVORY COAST EQUIPMENT(SW3),VENEZUELA EQUIPMENT(S2L),SAUDI ARABIA EQUIPMENT(WH1) (A)	1-22119-346-0	01	1	9510-9601	●
147	PANEL; SIDE,UNDER,RR IVORY COAST EQUIPMENT(SW3),VENEZUELA EQUIPMENT(S2L),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A)	1-22119-346-0	01	1	9510-9601		●
147	PANEL; SIDE,UNDER,RR EXC. FLYWHEEL HOUSING FC<E1R> (A)	1-22119-346-0	01	1	9602-9802	●	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A)	1-22119-346-0	01	1	9803-0004	●	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A)	1-22119-346-0	01	1	0005-0301	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A)	1-22119-346-0	01	1	0005-0301		●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A)	1-22119-346-0	01	1	0302-	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,SAUDI ARABIA EQUIPMENT(WH1) (A)	1-22119-346-0	01	1	0302-		●
147	PANEL; SIDE,UNDER,RR SAUDI ARABIA EQUIPMENT(WH1) (B)	1-53193-051-1	01	1	0211-		●
147	PANEL; SIDE,UNDER,RR SAUDI ARABIA EQUIPMENT(WH1) (B)	1-53192-923-1	01	1	0211-		●
148	BOLT; PANEL TO PANEL SAUDI ARABIA EQUIPMENT(WH1) M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0211-		●
150	NUT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91150-108-0	01	1	0211-0602		●
150	NUT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91180-108-0	01	1	0603-		●
154	PANEL; SIDE,UNDER ENG CTR SAUDI ARABIA EQUIPMENT(WH1)	1-53192-920-1	01	1	0211-		●

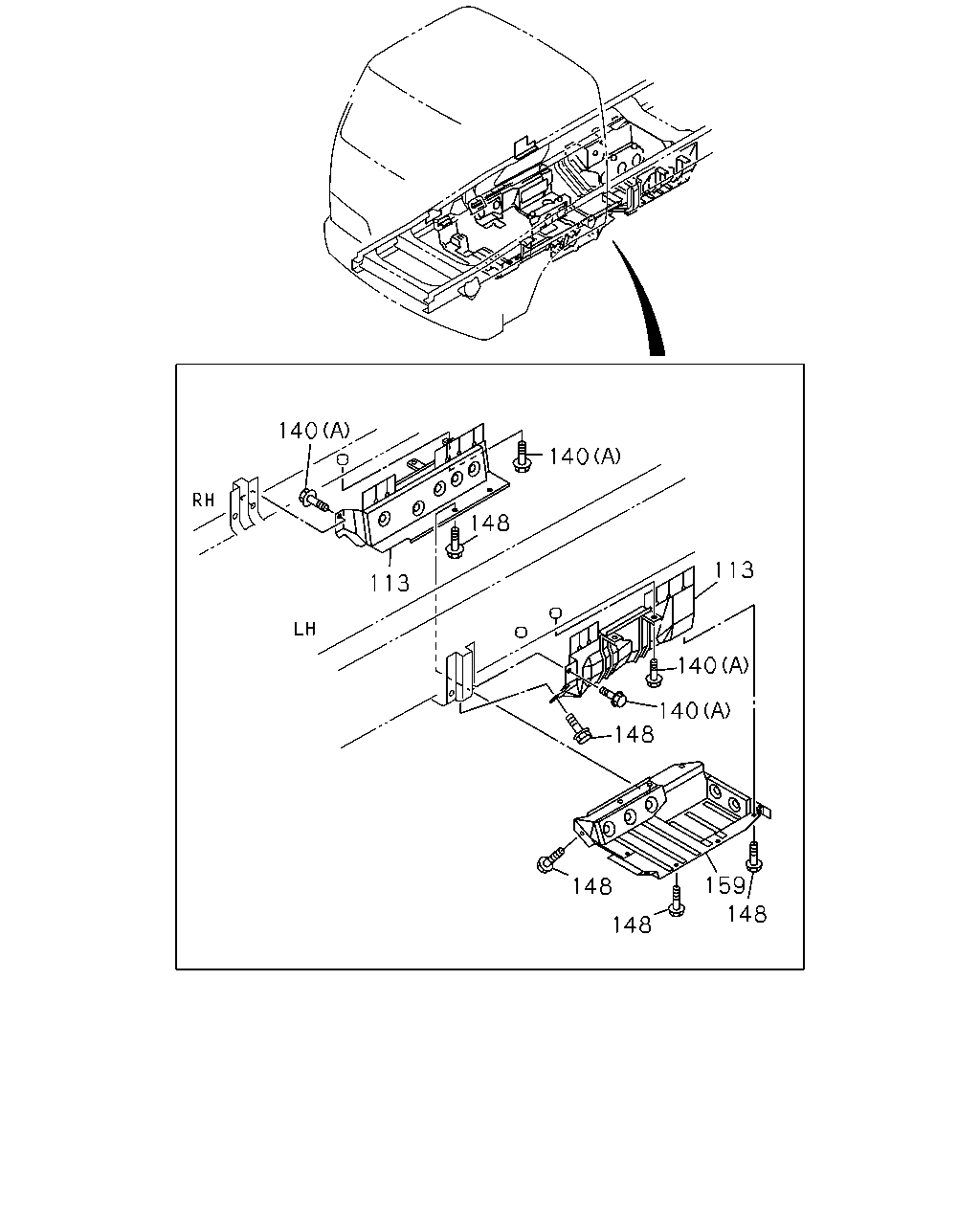

140 140 148 113 113 140 140 148 159 148 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1)	1-53192-910-1	01	1	0211-0212		●
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1)	1-53194-389-0	01	1	0301-		●
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1)	1-53192-912-2	01	1	0211-0302		●
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1)	1-53194-391-0	01	1	0303-		●
140	BOLT; SIDE PANEL EXC. FLYWHEEL HOUSING FC<E1R> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	9511-9601	●	●
140	BOLT; SIDE PANEL EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	9602-9802	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	9803-0004	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	0005-0301	●
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	0005-0301		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28080-816-0	04	1	0302-0512	●
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,SAUDI ARABIA EQUIPMENT(WH1) (B) M8X16 FLANGE	0-28080-816-0	04	1	0302-0512		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,SAUDI ARABIA EQUIPMENT(WH1) (B) M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-0607	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0608-	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) EXC. EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> (C) M8X25 FLANGE	0-28650-825-0	02	1	0608-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A) M8X25 FLANGE	0-28080-825-0	01	1	9511-9601	●	●
140	BOLT; SIDE PANEL IVORY COAST EQUIPMENT(SW3),VENEZUELA EQUIPMENT(S2L),SAUDI ARABIA EQUIPMENT(WH1) (B) M8X16 FLANGE	0-28080-816-0	04	1	9510-9610	●
140	BOLT; SIDE PANEL IVORY COAST EQUIPMENT(SW3),VENEZUELA EQUIPMENT(S2L),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X16 FLANGE	0-28080-816-0	04	1	9510-9610		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28080-825-0	04	1	9510-9510		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	04	1	9803-0512		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X25 FLANGE	0-28680-825-0	05	1	0211-0512		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X40 FLANGE	0-28680-840-0	04	1	0211-0512		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X40 FLANGE	0-28650-840-0	04	1	0601-		●
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (A) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0211-		●
148	BOLT; PANEL TO PANEL SAUDI ARABIA EQUIPMENT(WH1) M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0211-		●
159	PANEL; SIDE,TRANS,CTR SAUDI ARABIA EQUIPMENT(WH1)	1-53192-913-1	01	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
