Sayfa 8-60 - Isuzu EPC

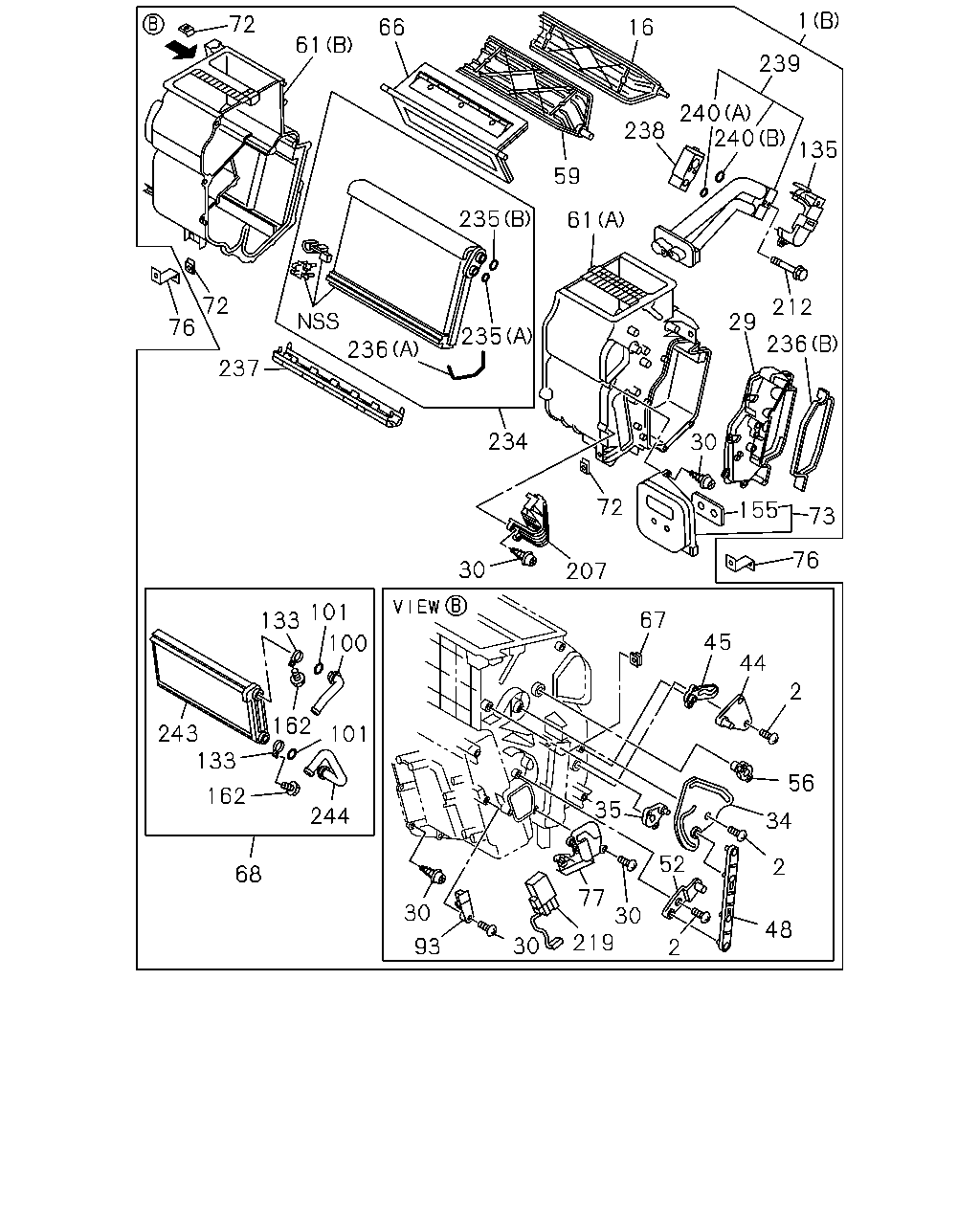

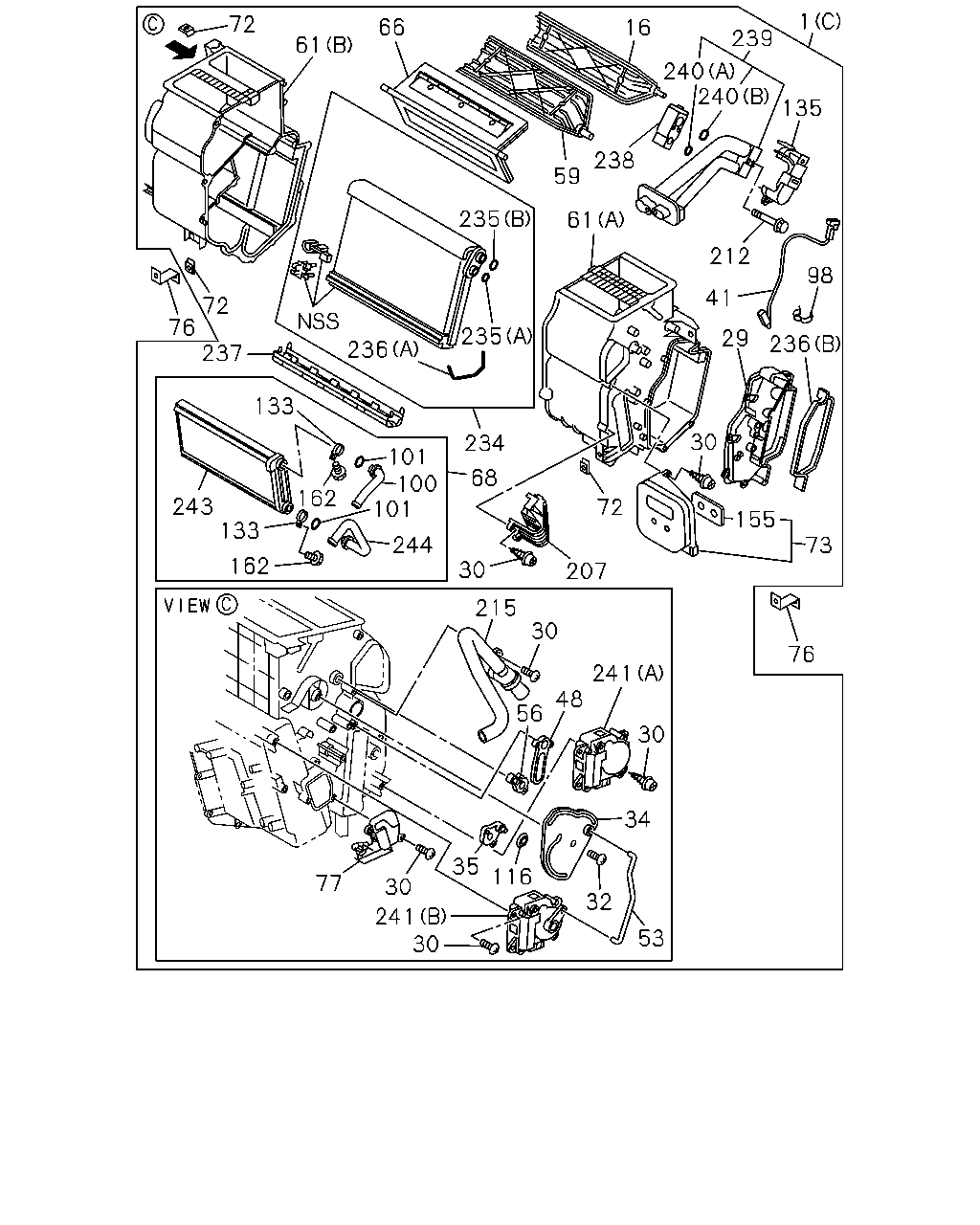

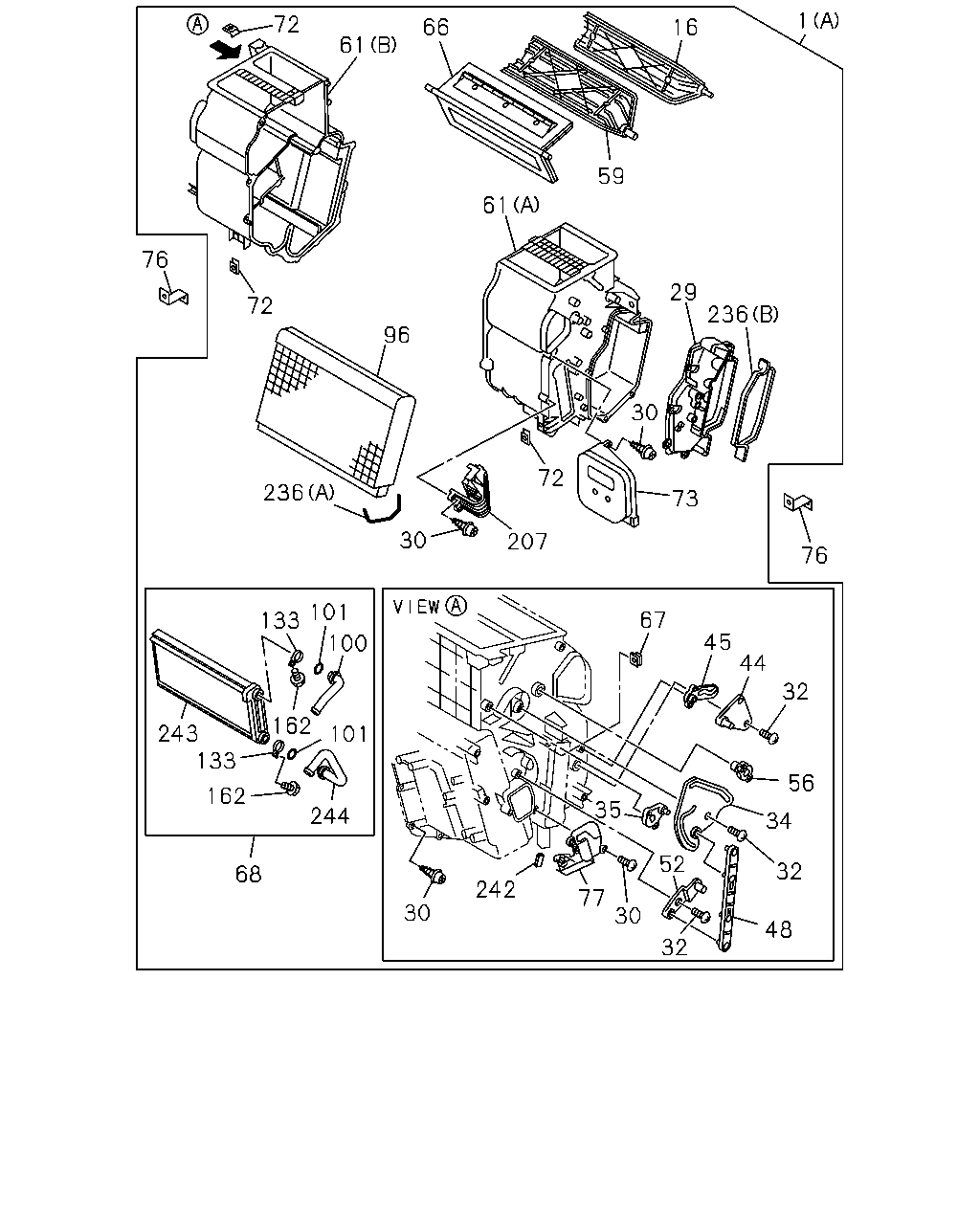

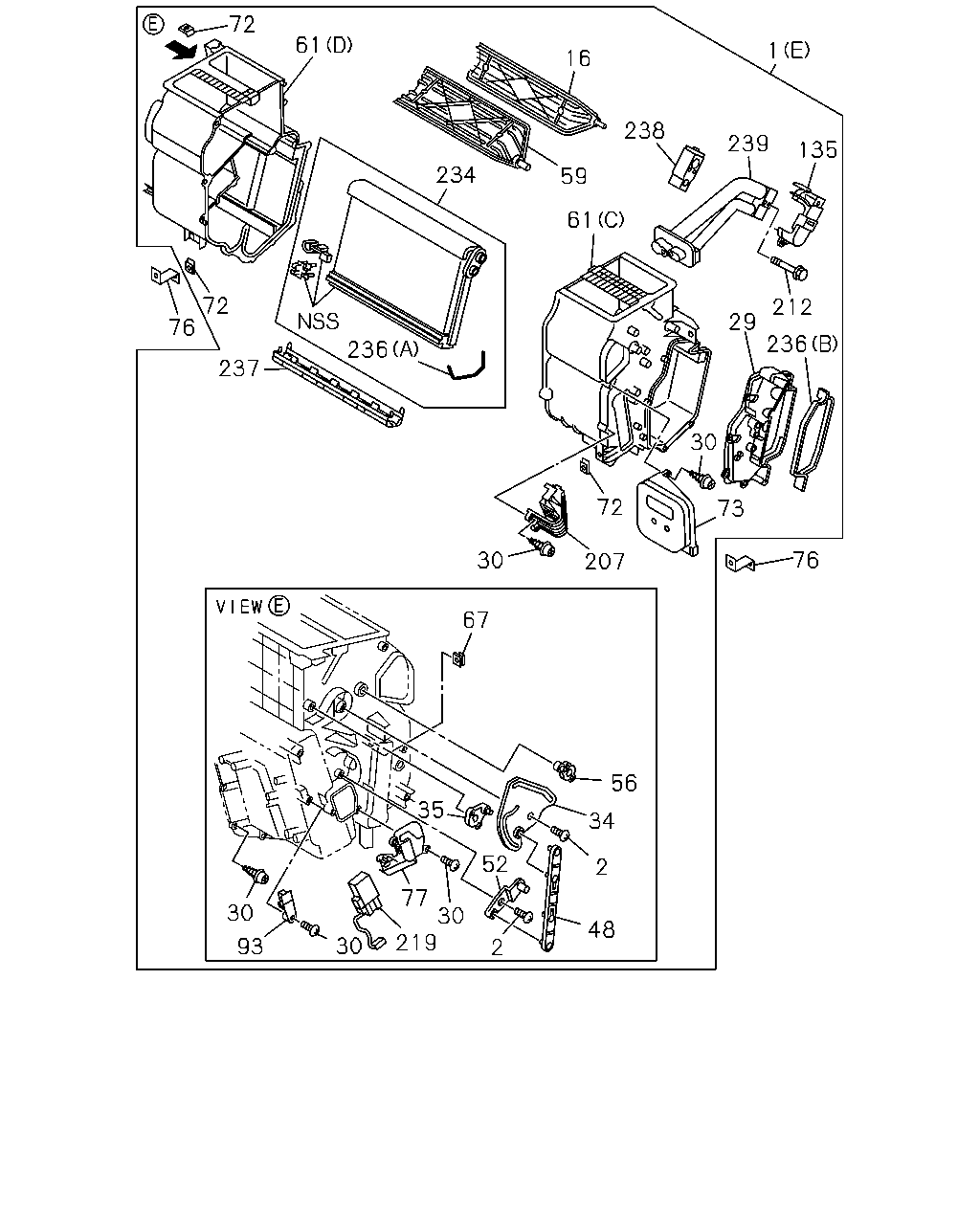

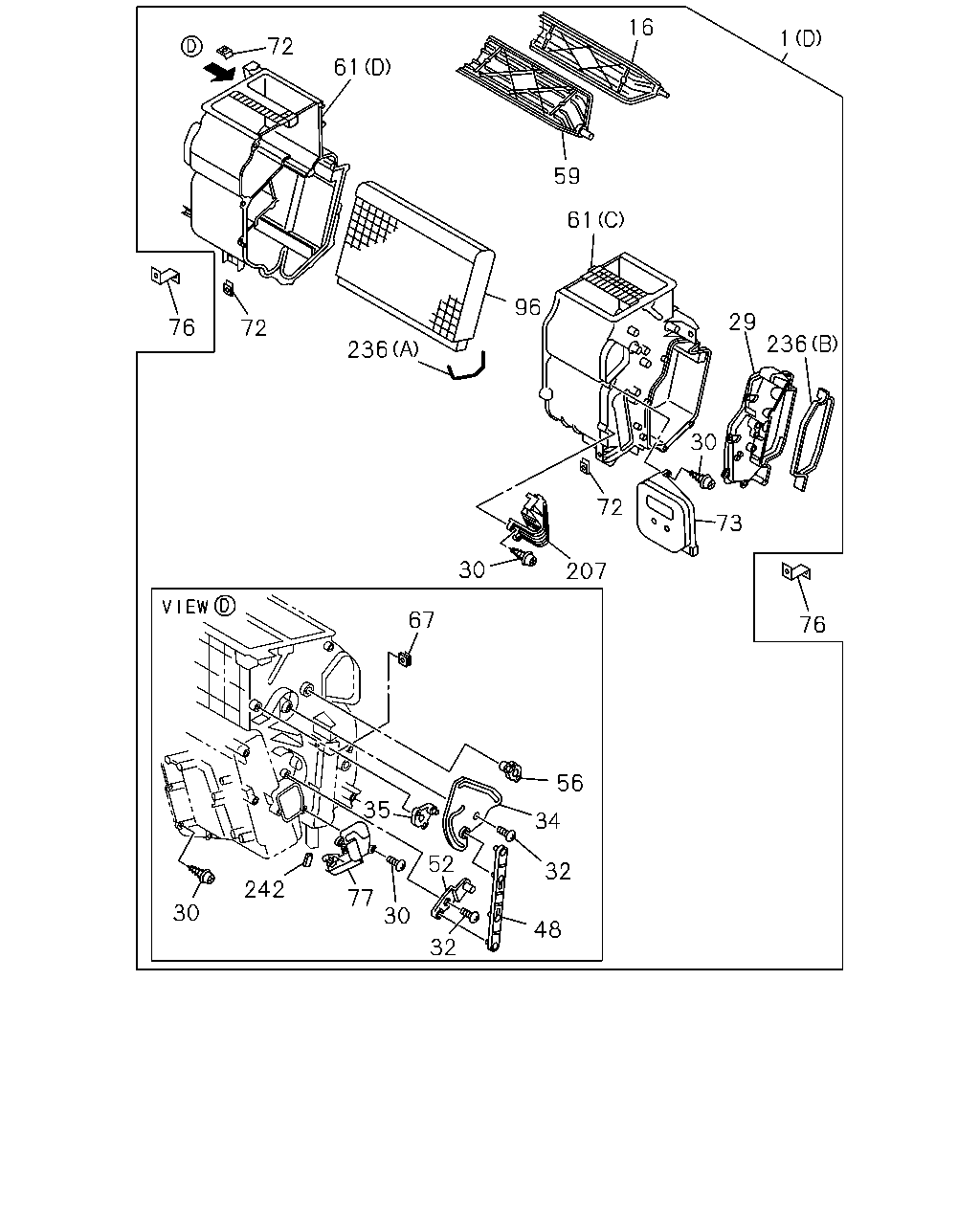

8-60 — HEATER UNIT; FRONT (#40338) — 507 parça

1 72 66 16 239 61 240 240 135 238 59 235 61 212 98 41 72 76 237 235 29 236 236 133 30 234 100 101 68 162 243 133 72 155 244 73 162 30 207 215 30 76 241 48 56 30 34 35 116 77 30 32 241 30 53 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E)	8-98057-980-2	01	1	0901-	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	0801-1302	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	0801-	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	0801-	●	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98062-757-1	01	1	0801-1301	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98214-400-1	01	1	1302-	●
16	SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	0801-	●	●
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-367-0	01	1	1302-	●
29	COVER; HTR UNIT	8-98074-119-0	01	1	0801-1301	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302		●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302	●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-		●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-	●
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1302-	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0801-0812	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0901-		●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING	8-97957-708-0	27	1	0901-	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	0801-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1302-1302	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	0801-1302	●	●
32	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	0801-	●	●
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	0801-	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0801-0812		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0801-0812	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0901-1302		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0901-1302	●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	1303-		●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	1303-	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0801-	●	●
35	LEVER; SHUTTER,HTR UNIT	8-98047-392-0	01	1	0801-	●	●
41	THERMOSTAT; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-475-0	01	1	0801-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0801-0812		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0801-0812	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0901-1302		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0901-1302	●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	1303-		●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	1303-	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0801-	●	●
53	ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68)	8-98047-469-0	01	1	0801-	●	●
56	LEVER; SHUTTER,HTR UNIT	8-98047-393-0	01	1	0801-	●	●
59	SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	0801-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1303-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1303-	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0801-	●	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0901-	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0901-	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	0801-1302	●	●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1303-	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	0801-1302	●	●
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1303-	●	●
72	NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	0801-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98077-420-0	01	1	0901-	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0801-1302	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0801-	●	●
73	PLATE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98077-419-0	01	1	0801-1301	●
76	BRACKET; HTR UNIT	8-98009-742-1	02	1	0801-	●	●
77	COVER; HTR CASE	8-98047-414-0	01	1	0801-	●	●
98	CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-477-0	01	1	0801-	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	0801-1302	●	●
100	PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1303-	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	0801-1302	●	●
101	GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1303-	●	●
116	BUSHING; LEVER FULLAUTO AIR CONDITIONER(C68)	8-98045-897-0	01	1	0801-	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	0801-1302	●	●
133	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1303-	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0801-0812	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0901-		●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0901-	●
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	0801-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	0801-1302	●	●
162	SCREW; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1303-	●	●
207	CLAMP; HTR UNIT	8-98047-379-0	01	1	0801-1301	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302		●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302	●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-		●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0801-0812	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0901-		●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0901-	●
215	DUCT ASM; SUB FULLAUTO AIR CONDITIONER(C68)	8-98047-476-0	01	1	0801-	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0801-0812	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0901-		●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0901-	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	01	1	0801-	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	0801-	●	●
236	GASKET; HEATER (A)	8-98047-420-0	01	1	0801-	●	●
236	GASKET; HEATER (B)	8-98047-421-0	01	1	0801-	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0801-0812	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0901-		●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0901-	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0801-0812	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0901-		●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0901-	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0801-0812	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0901-		●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0901-	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	01	1	0801-	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	0801-	●	●
241	MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-473-0	01	1	0801-	●	●
241	MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-474-0	01	1	0801-	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	0801-1302	●	●
243	CORE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1303-	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	0801-1302	●	●
244	PIPE; INLET AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1303-	●	●

16 1 72 61 59 61 96 29 76 72 236 236 30 72 73 30 207 67 76 56 35 34 52 32 242 77 30 30 48 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E)	8-98057-980-2	01	1	0901-	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	0801-1302	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	0801-	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	0801-	●	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98062-757-1	01	1	0801-1301	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98214-400-1	01	1	1302-	●
16	SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	0801-	●	●
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-367-0	01	1	1302-	●
29	COVER; HTR UNIT	8-98074-119-0	01	1	0801-1301	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302		●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302	●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-		●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-	●
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1302-	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0801-0812	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0901-		●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING	8-97957-708-0	27	1	0901-	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	0801-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1302-1302	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	0801-1302	●	●
32	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	0801-	●	●
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	0801-	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0801-0812		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0801-0812	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0901-1302		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0901-1302	●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	1303-		●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	1303-	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0801-	●	●
35	LEVER; SHUTTER,HTR UNIT	8-98047-392-0	01	1	0801-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0801-0812		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0801-0812	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0901-1302		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0901-1302	●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	1303-		●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	1303-	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0801-	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	0801-0812		●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	0801-0812	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	0901-1302		●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	0901-1302	●
52	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1303-		●
52	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	1303-	●
56	LEVER; SHUTTER,HTR UNIT	8-98047-393-0	01	1	0801-	●	●
59	SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	0801-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1303-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1303-	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0801-	●	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0901-	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0901-	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	0801-1302	●	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1303-	●	●
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	0801-0812	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	0901-	●
72	NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	0801-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98077-420-0	01	1	0901-	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0801-1302	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0801-	●	●
73	PLATE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98077-419-0	01	1	0801-1301	●
76	BRACKET; HTR UNIT	8-98009-742-1	02	1	0801-	●	●
77	COVER; HTR CASE	8-98047-414-0	01	1	0801-	●	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	0801-1301		●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-815-0	01	1	0801-1301	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1302-1302	●	●
207	CLAMP; HTR UNIT	8-98047-379-0	01	1	0801-1301	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302		●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302	●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-		●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-	●
236	GASKET; HEATER (A)	8-98047-420-0	01	1	0801-	●	●
236	GASKET; HEATER (B)	8-98047-421-0	01	1	0801-	●	●
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	0801-1302		●
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	0801-1302	●
242	GASKET; CASE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	1303-1411	●

1 72 66 16 61 239 240 240 238 135 59 235 61 72 76 212 29 235 236 236 237 30 234 72 155 73 76 30 207 101 67 133 45 44 100 2 162 243 133 101 56 162 35 244 34 52 2 68 77 30 30 219 48 30 93 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E)	8-98057-980-2	01	1	0901-	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	0801-1302	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	0801-	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	0801-	●	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98062-757-1	01	1	0801-1301	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98214-400-1	01	1	1302-	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16	8-98047-416-0	02	1	0901-	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	0801-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	0801-	●	●
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-367-0	01	1	1302-	●
29	COVER; HTR UNIT	8-98074-119-0	01	1	0801-1301	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302		●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302	●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-		●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-	●
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1302-	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0801-0812	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0901-		●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING	8-97957-708-0	27	1	0901-	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	0801-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1302-1302	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0801-0812		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0801-0812	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0901-1302		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0901-1302	●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	1303-		●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	1303-	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0801-	●	●
35	LEVER; SHUTTER,HTR UNIT	8-98047-392-0	01	1	0801-	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	0801-1302	●	●
44	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1303-	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	0801-1302	●	●
45	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1303-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0801-0812		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0801-0812	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0901-1302		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0901-1302	●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	1303-		●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	1303-	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0801-	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	0801-0812		●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	0801-0812	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	0901-1302		●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	0901-1302	●
52	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1303-		●
52	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	1303-	●
56	LEVER; SHUTTER,HTR UNIT	8-98047-393-0	01	1	0801-	●	●
59	SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	0801-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1303-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1303-	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0801-	●	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0901-	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0901-	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	0801-1302	●	●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1303-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	0801-1302	●	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1303-	●	●
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	0801-0812	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	0901-	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	0801-1302	●	●
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1303-	●	●
72	NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	0801-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98077-420-0	01	1	0901-	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0801-1302	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0801-	●	●
73	PLATE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98077-419-0	01	1	0801-1301	●
76	BRACKET; HTR UNIT	8-98009-742-1	02	1	0801-	●	●
77	COVER; HTR CASE	8-98047-414-0	01	1	0801-	●	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	0801-0812	●	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	0901-		●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98047-427-0	01	1	0901-	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	0801-1302	●	●
100	PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1303-	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	0801-1302	●	●
101	GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1303-	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	0801-1302	●	●
133	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1303-	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0801-0812	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0901-		●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0901-	●
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	0801-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	0801-1302	●	●
162	SCREW; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1303-	●	●
207	CLAMP; HTR UNIT	8-98047-379-0	01	1	0801-1301	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302		●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302	●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-		●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0801-0812	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0901-		●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0901-	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98064-733-0	01	1	0901-	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-429-0	01	1	0801-	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0801-0812	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0901-		●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0901-	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	01	1	0801-	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	0801-	●	●
236	GASKET; HEATER (A)	8-98047-420-0	01	1	0801-	●	●
236	GASKET; HEATER (B)	8-98047-421-0	01	1	0801-	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0801-0812	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0901-		●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0901-	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0801-0812	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0901-		●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0901-	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0801-0812	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0901-		●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0901-	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	01	1	0801-	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	0801-	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	0801-1302	●	●
243	CORE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1303-	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	0801-1302	●	●
244	PIPE; INLET AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1303-	●	●

72 61 1 16 238 239 135 234 59 61 72 76 212 29 236 236 237 30 72 73 76 30 207 67 56 35 34 52 2 77 30 30 219 48 30 93 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E)	8-98057-980-2	01	1	0901-	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	0801-1302	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	0801-	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	0801-	●	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98062-757-1	01	1	0801-1301	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98214-400-1	01	1	1302-	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16	8-98047-416-0	02	1	0901-	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	0801-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	0801-	●	●
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-367-0	01	1	1302-	●
29	COVER; HTR UNIT	8-98074-119-0	01	1	0801-1301	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302		●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302	●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-		●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-	●
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1302-	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0801-0812	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0901-		●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING	8-97957-708-0	27	1	0901-	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	0801-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1302-1302	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0801-0812		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0801-0812	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0901-1302		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0901-1302	●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	1303-		●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	1303-	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0801-	●	●
35	LEVER; SHUTTER,HTR UNIT	8-98047-392-0	01	1	0801-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0801-0812		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0801-0812	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0901-1302		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0901-1302	●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	1303-		●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	1303-	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0801-	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	0801-0812		●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	0801-0812	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	0901-1302		●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	0901-1302	●
52	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1303-		●
52	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	1303-	●
56	LEVER; SHUTTER,HTR UNIT	8-98047-393-0	01	1	0801-	●	●
59	SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	0801-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1303-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1303-	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0801-	●	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0901-	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0901-	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	0801-1302	●	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1303-	●	●
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	0801-0812	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	0901-	●
72	NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	0801-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98077-420-0	01	1	0901-	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0801-1302	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0801-	●	●
73	PLATE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98077-419-0	01	1	0801-1301	●
76	BRACKET; HTR UNIT	8-98009-742-1	02	1	0801-	●	●
77	COVER; HTR CASE	8-98047-414-0	01	1	0801-	●	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	0801-0812	●	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	0901-		●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98047-427-0	01	1	0901-	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0801-0812	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0901-		●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0901-	●
207	CLAMP; HTR UNIT	8-98047-379-0	01	1	0801-1301	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302		●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302	●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-		●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0801-0812	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0901-		●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0901-	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98064-733-0	01	1	0901-	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-429-0	01	1	0801-	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0801-0812	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0901-		●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0901-	●
236	GASKET; HEATER (A)	8-98047-420-0	01	1	0801-	●	●
236	GASKET; HEATER (B)	8-98047-421-0	01	1	0801-	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0801-0812	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0901-		●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0901-	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0801-0812	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0901-		●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0901-	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0801-0812	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0901-		●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0901-	●

1 72 66 16 61 59 61 76 29 72 236 96 30 72 236 73 30 207 76 101 67 133 45 44 100 32 162 243 133 101 56 162 35 244 34 52 32 68 242 77 30 30 48 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E)	8-98057-980-2	01	1	0901-	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	0801-1302	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	0801-	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	0801-	●	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98062-757-1	01	1	0801-1301	●
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98214-400-1	01	1	1302-	●
16	SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	0801-	●	●
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-367-0	01	1	1302-	●
29	COVER; HTR UNIT	8-98074-119-0	01	1	0801-1301	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302		●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1302-1302	●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-		●
29	COVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1303-	●
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1302-	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0801-0812	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	0901-		●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING	8-97957-708-0	27	1	0901-	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	0801-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	25	1	0801-1301	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1302-1302	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	0801-1302	●	●
32	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	0801-	●	●
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	0801-	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0801-0812		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0801-0812	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	0901-1302		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	0901-1302	●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-389-0	01	1	1303-		●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-389-0	01	1	1303-	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0801-	●	●
35	LEVER; SHUTTER,HTR UNIT	8-98047-392-0	01	1	0801-	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	0801-1302	●	●
44	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1303-	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	0801-1302	●	●
45	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1303-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0801-0812		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0801-0812	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	0901-1302		●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	0901-1302	●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-391-0	01	1	1303-		●
48	LEVER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-391-0	01	1	1303-	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0801-	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	0801-0812		●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	0801-0812	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	0901-1302		●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	0901-1302	●
52	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1303-		●
52	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-390-0	01	1	1303-	●
56	LEVER; SHUTTER,HTR UNIT	8-98047-393-0	01	1	0801-	●	●
59	SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	0801-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1303-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0801-1302	●	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1303-	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0801-	●	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-422-0	01	1	0901-	●
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0801-0812	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-423-0	01	1	0901-	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	0801-1302	●	●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1303-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	0801-1302	●	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1303-	●	●
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	0801-0812	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	0901-	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	0801-1302	●	●
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1303-	●	●
72	NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	0801-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98077-420-0	01	1	0901-	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0801-1302	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0801-	●	●
73	PLATE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98077-419-0	01	1	0801-1301	●
76	BRACKET; HTR UNIT	8-98009-742-1	02	1	0801-	●	●
77	COVER; HTR CASE	8-98047-414-0	01	1	0801-	●	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	0801-1301		●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-815-0	01	1	0801-1301	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1302-1302	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	0801-1302	●	●
100	PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1303-	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	0801-1302	●	●
101	GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1303-	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	0801-1302	●	●
133	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1303-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	0801-1302	●	●
162	SCREW; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1303-	●	●
207	CLAMP; HTR UNIT	8-98047-379-0	01	1	0801-1301	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302		●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1302-1302	●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-		●
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1303-	●
236	GASKET; HEATER (A)	8-98047-420-0	01	1	0801-	●	●
236	GASKET; HEATER (B)	8-98047-421-0	01	1	0801-	●	●
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	0801-1302		●
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	0801-1302	●
242	GASKET; CASE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	1303-1411	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	0801-1302	●	●
243	CORE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1303-	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	0801-1302	●	●
244	PIPE; INLET AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1303-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
