Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#40337) — 122 parça

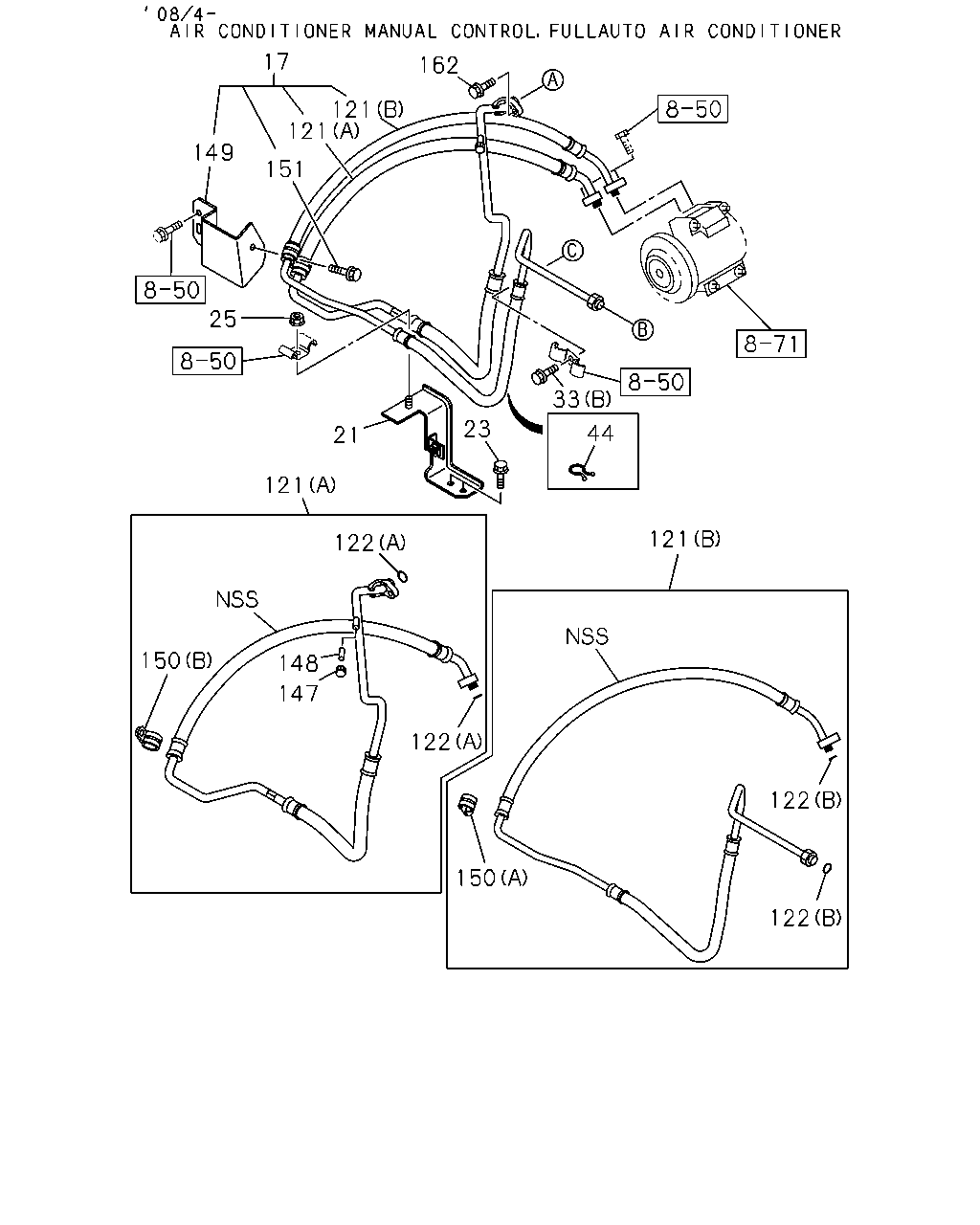

17 162 121 121 149 151 25 33 23 44 21 121 121 122 150 148 147 122 122 150 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98111-523-0	01	1	0804-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98032-504-0	01	1	0801-0802	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98114-846-0	01	1	0803-0812	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98114-846-0	01	1	0901-	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98114-846-0	01	1	0901-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0801-0812	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0901-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0901-		●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0801-0812	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0901-	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0901-		●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0801-0812	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-		●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0801-0812	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-		●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=30	8-94315-423-0	01	1	0801-0812	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=30	8-94315-423-0	01	1	0901-	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) ID=30	8-94315-423-0	01	1	0901-		●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98052-619-1	01	1	0804-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98052-620-1	01	1	0804-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7	8-97095-907-0	02	1	0804-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=14.5	8-97095-908-0	02	1	0804-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0801-0812	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0901-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0901-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0801-0812	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0901-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0901-		●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98055-465-0	01	1	0804-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-249-0	01	1	0801-0812	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-249-0	01	1	0901-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-249-0	01	1	0901-		●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-264-0	01	1	0801-0812	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-264-0	01	1	0901-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-264-0	01	1	0901-		●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	1-83539-326-0	01	1	0804-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0801-0812	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0901-	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0901-		●

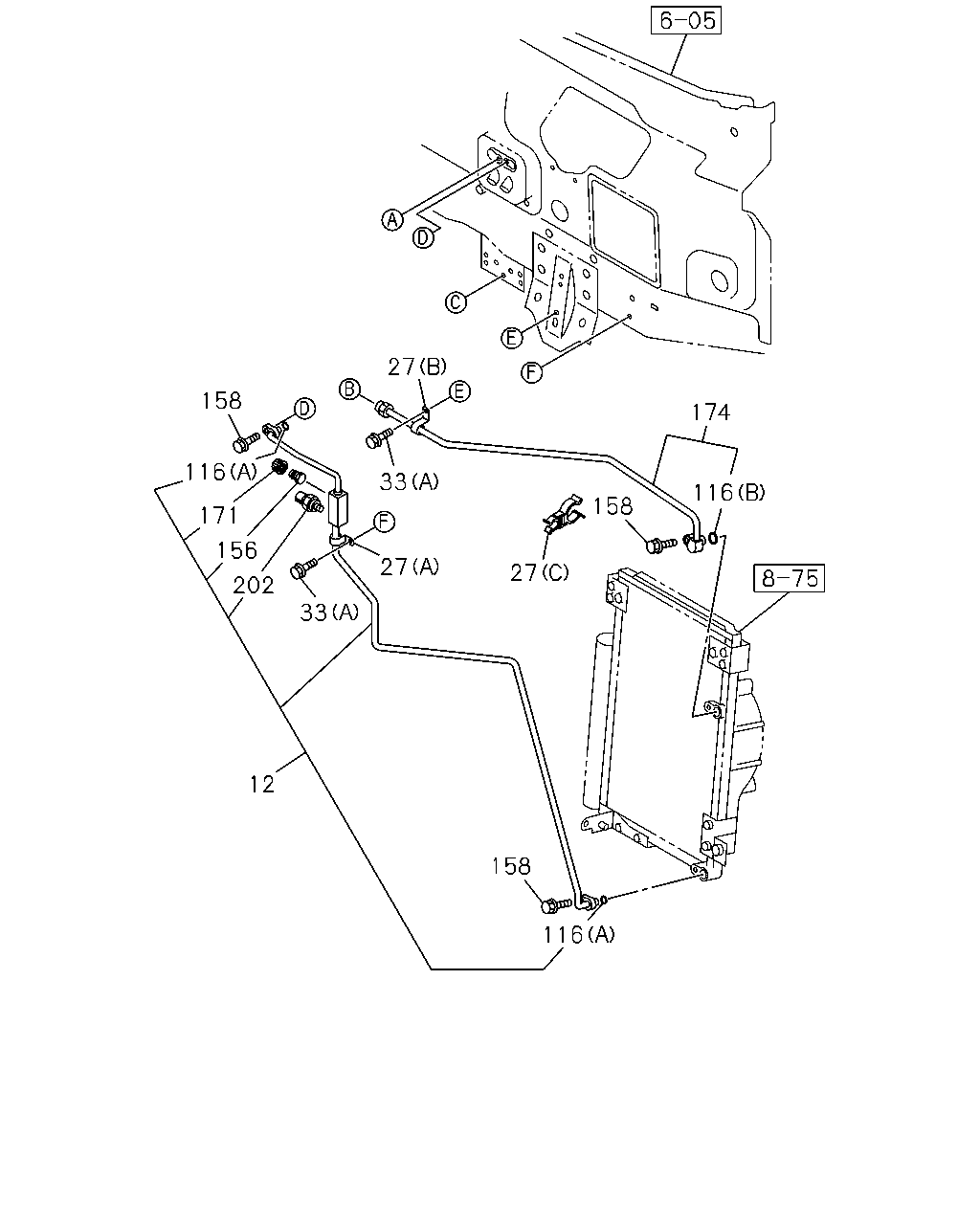

27 158 174 116 33 116 158 171 156 27 27 202 33 12 158 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98052-610-0	01	1	0801-0812	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98052-610-0	01	1	0901-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98052-610-0	01	1	0901-		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0801-0812	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0901-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0901-		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0801-0812	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0901-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0901-		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0801-0812	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0901-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0901-		●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0801-0812	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-		●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0801-0812	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	02	1	0801-0812	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	02	1	0901-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	02	1	0901-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7	8-97095-907-0	01	1	0801-0812	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7	8-97095-907-0	01	1	0901-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7	8-97095-907-0	01	1	0901-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98151-702-0	01	1	0801-0812	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98151-702-0	01	1	0901-	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98151-702-0	01	1	0901-		●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0801-0812	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0901-	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0901-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK H	8-97095-911-0	01	1	0801-0812	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK H	8-97095-911-0	01	1	0901-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) CAP MARK H	8-97095-911-0	01	1	0901-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-330-0	01	1	0801-0812	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-330-0	01	1	0901-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98041-330-0	01	1	0901-		●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83564-391-0	01	1	0801-0812	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83564-391-0	01	1	0901-	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	1-83564-391-0	01	1	0901-		●

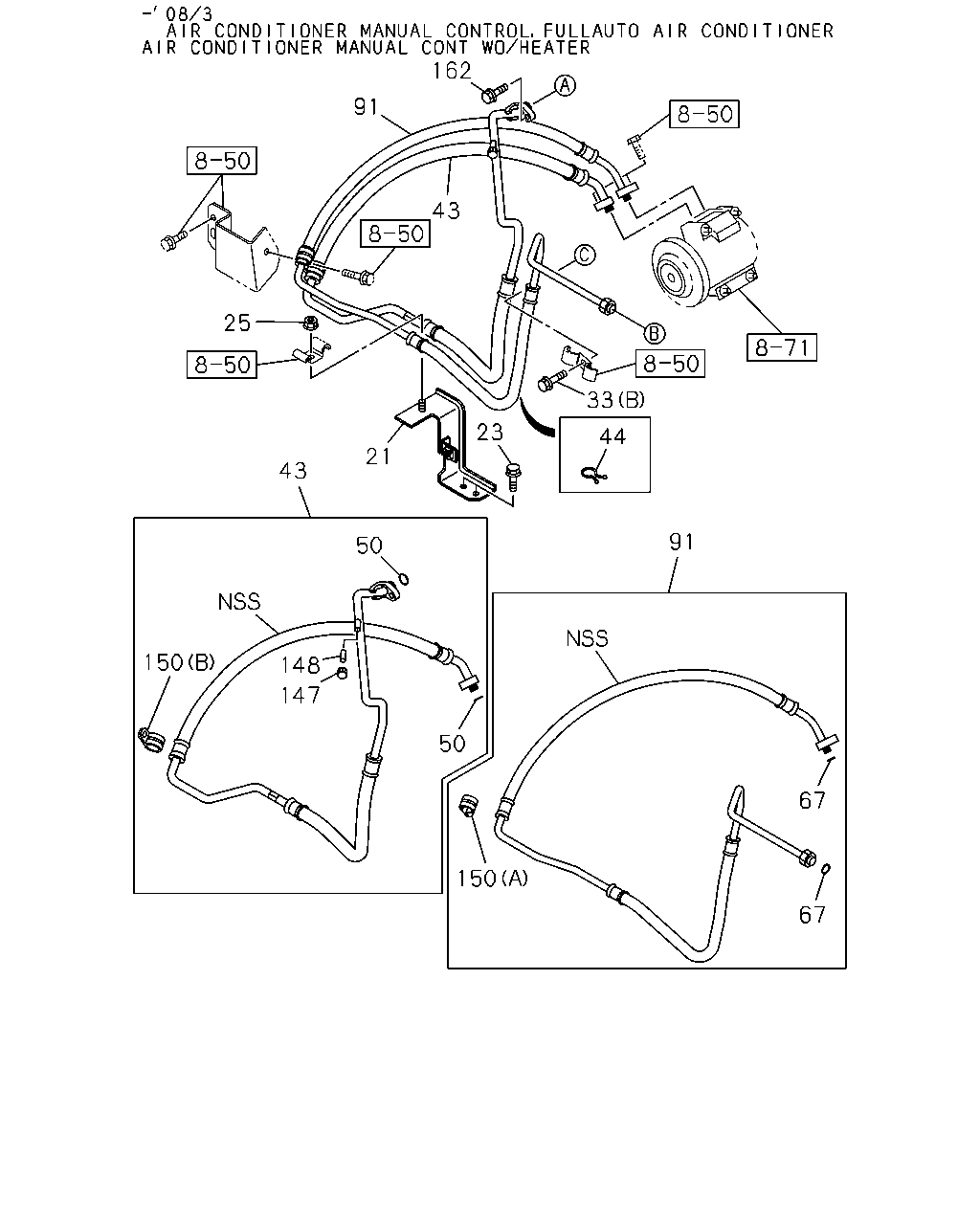

162 91 43 25 33 23 44 21 43 91 50 150 148 147 50 67 150 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98032-504-0	01	1	0801-0802	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98114-846-0	01	1	0803-0812	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98114-846-0	01	1	0901-	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98114-846-0	01	1	0901-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0801-0812	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0901-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0901-		●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0801-0812	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0901-	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0901-		●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0801-0812	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-		●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0801-0812	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT WO/HEATER(C65) SUCTION	8-98052-619-1	01	1	0901-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) SUCTION	8-98052-619-1	01	1	0801-0803	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=30	8-94315-423-0	01	1	0801-0812	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=30	8-94315-423-0	01	1	0901-	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) ID=30	8-94315-423-0	01	1	0901-		●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT WO/HEATER(C65) ID=14.5	8-97095-908-0	02	1	0901-		●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=14.5	8-97095-908-0	02	1	0801-0803	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) ID=11.7	8-97095-907-0	02	1	0901-		●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=11.7	8-97095-907-0	02	1	0801-0803	●	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONT WO/HEATER(C65) DISCHARGE	8-98052-620-1	01	1	0901-		●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DISCHARGE	8-98052-620-1	01	1	0801-0803	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0801-0812	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0901-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0901-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0801-0812	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0901-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0901-		●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-249-0	01	1	0801-0812	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-249-0	01	1	0901-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-249-0	01	1	0901-		●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-264-0	01	1	0801-0812	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-264-0	01	1	0901-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-264-0	01	1	0901-		●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0801-0812	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0901-	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0901-		●
