8-50 — AIR CONDITIONING SYSTEM; FRONT (#40336) — 69 parça
çizim 161929
71 378 378
BalonParca AdiParca NoAdetTipApplied Date A B
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0801-0812 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-234-1 01 1 0801-0812 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0901-1301 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) 		8-98017-234-1 01 1 0901-1301 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 1302-1302 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 1302-1302 ●
71 COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 1303- ●
71 COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 1303- ●
378 HOSE; DRAIN,EVAPORATOR
(A) 		8-98041-428-0 01 1 0801- ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98053-746-1 01 1 0801-0812 ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98053-746-1 01 1 0901-1110 ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98053-746-1 01 1 0901-1110 ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98204-844-0 01 1 1111- ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98204-844-0 01 1 1111- ●

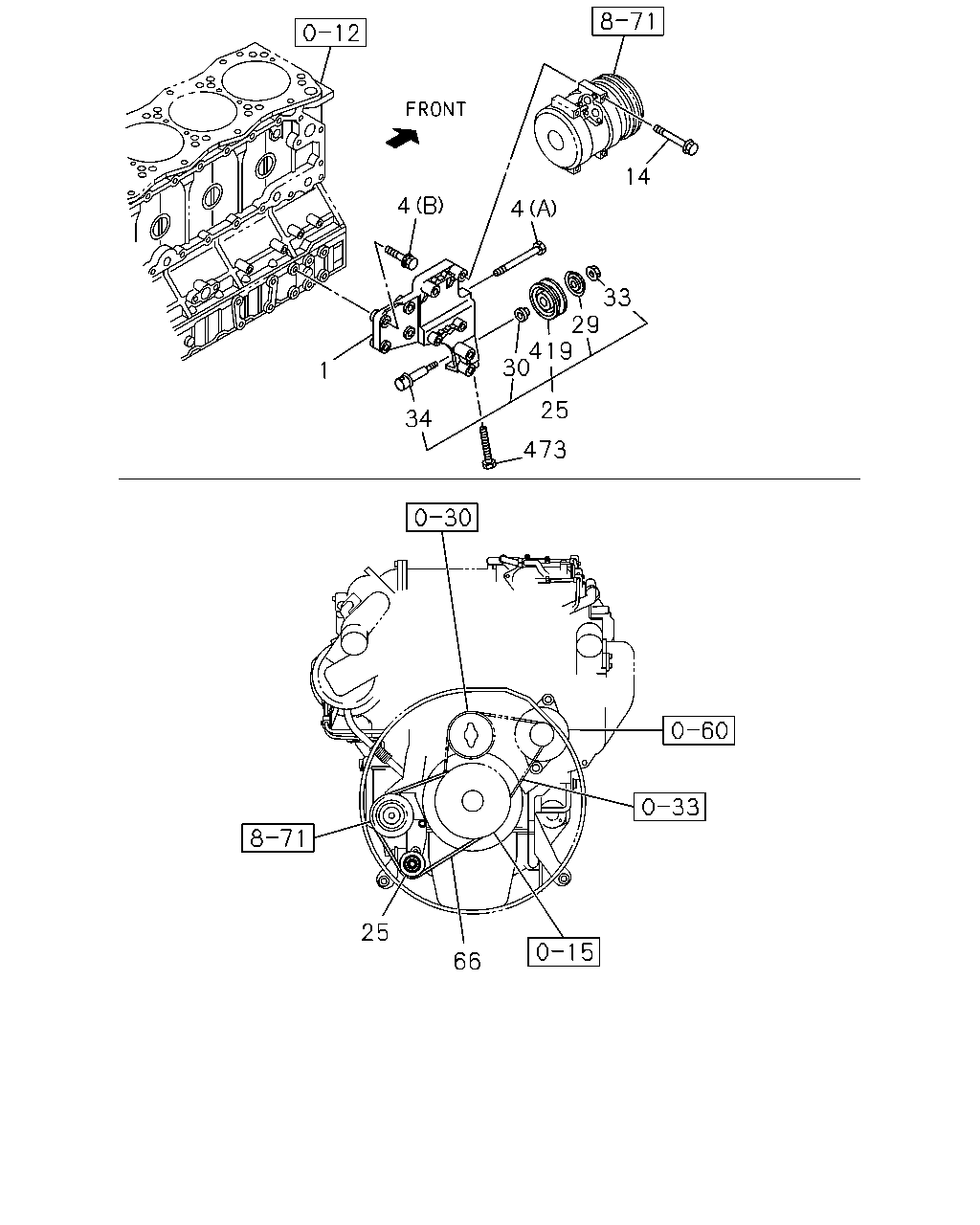

çizim 161954
14 4 4 33 29 419 30 1 25 34 473 25 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97606-311-1 01 1 0801-1101 ● ●
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97606-311-1 01 1 1102- ●
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		8-97606-311-1 01 1 1102- ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X45 FLANGE 		0-28151-045-0 04 1 0801-1101 ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X45 FLANGE 		0-28151-045-0 04 1 1102- ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) M10X45 FLANGE 		0-28151-045-0 04 1 1102- ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M10X150 FLANGE 		0-28156-015-0 01 1 0801-1101 ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M10X150 FLANGE 		0-28156-015-0 01 1 1102- ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A) M10X150 FLANGE 		0-28156-015-0 01 1 1102- ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE 		0-28050-880-0 04 1 0801-1101 ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE 		0-28050-880-0 04 1 1102- ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE 		0-28050-880-0 04 1 1102- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97603-949-0 01 1 0801-1101 ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97603-949-0 01 1 1102- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		8-97603-949-0 01 1 1102- ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83578-100-0 01 1 0801-1101 ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83578-100-0 01 1 1102- ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		1-83578-100-0 01 1 1102- ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-87540-319-0 01 1 0801-1101 ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-87540-319-0 01 1 1102- ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		1-87540-319-0 01 1 1102- ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-985-0 01 1 0801-1101 ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-985-0 01 1 1102- ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		1-83579-985-0 01 1 1102- ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-982-0 01 1 0801-1101 ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-982-0 01 1 1102- ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		1-83579-982-0 01 1 1102- ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS 		1-87610-102-0 01 1 0801-1101 ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS 		1-87610-102-0 01 1 1102- ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS 		1-87610-102-0 01 1 1102- ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1219 		8-97604-086-0 01 1 0801-1101 ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1219 		8-97604-086-0 01 1 1102- ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) L=1219 		8-97604-086-0 01 1 1102- ●
419 PULLEY; IDLE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-87540-322-0 01 1 0801-1101 ● ●
419 PULLEY; IDLE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-87540-322-0 01 1 1102- ●
419 PULLEY; IDLE
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		1-87540-322-0 01 1 1102- ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE 		1-09044-091-0 01 1 0801-1101 ● ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE 		1-09044-091-0 01 1 1102- ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE 		1-09044-091-0 01 1 1102- ●

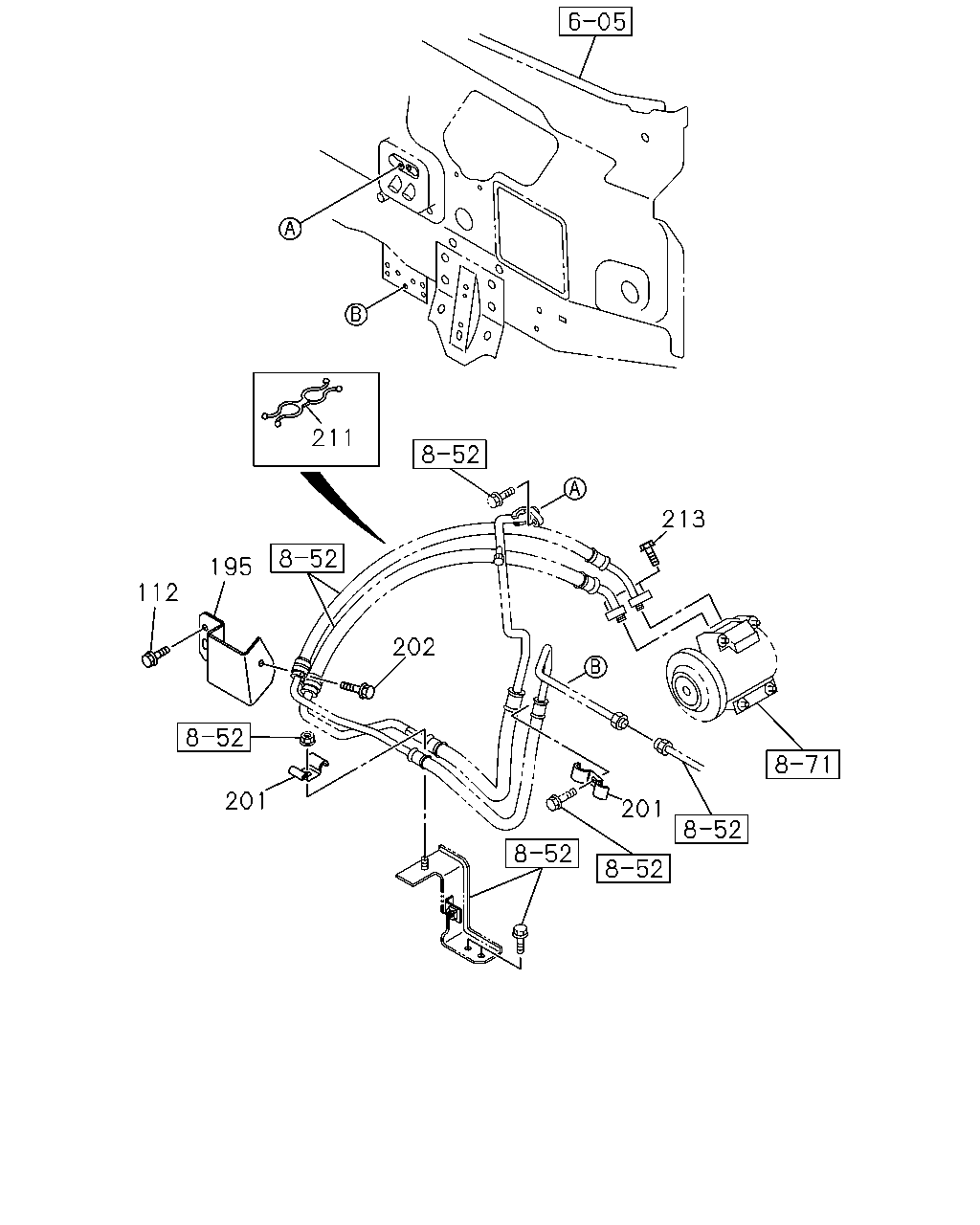

çizim 161994
211 213 195 112 202 201 201
BalonParca AdiParca NoAdetTipApplied Date A B
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE 		0-28650-820-0 02 1 0801-0812 ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE 		0-28650-820-0 02 1 0901- ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE 		0-28650-820-0 02 1 0901- ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98055-465-0 01 1 0901- ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98055-465-0 01 1 0801-0803 ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98043-673-0 02 1 0801-0812 ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98043-673-0 02 1 0901- ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		8-98043-673-0 02 1 0901- ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M8X20 FLANGE 		0-28650-820-0 01 1 0901- ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0803 ● ●
211 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-94423-042-0 02 1 0801-0812 ● ●
211 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-94423-042-0 02 1 0901- ●
211 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		8-94423-042-0 02 1 0901- ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE 		0-28050-625-0 02 1 0801-0812 ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE 		0-28050-625-0 02 1 0901- ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE 		0-28050-625-0 02 1 0901- ●
