Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#40334) — 155 parça

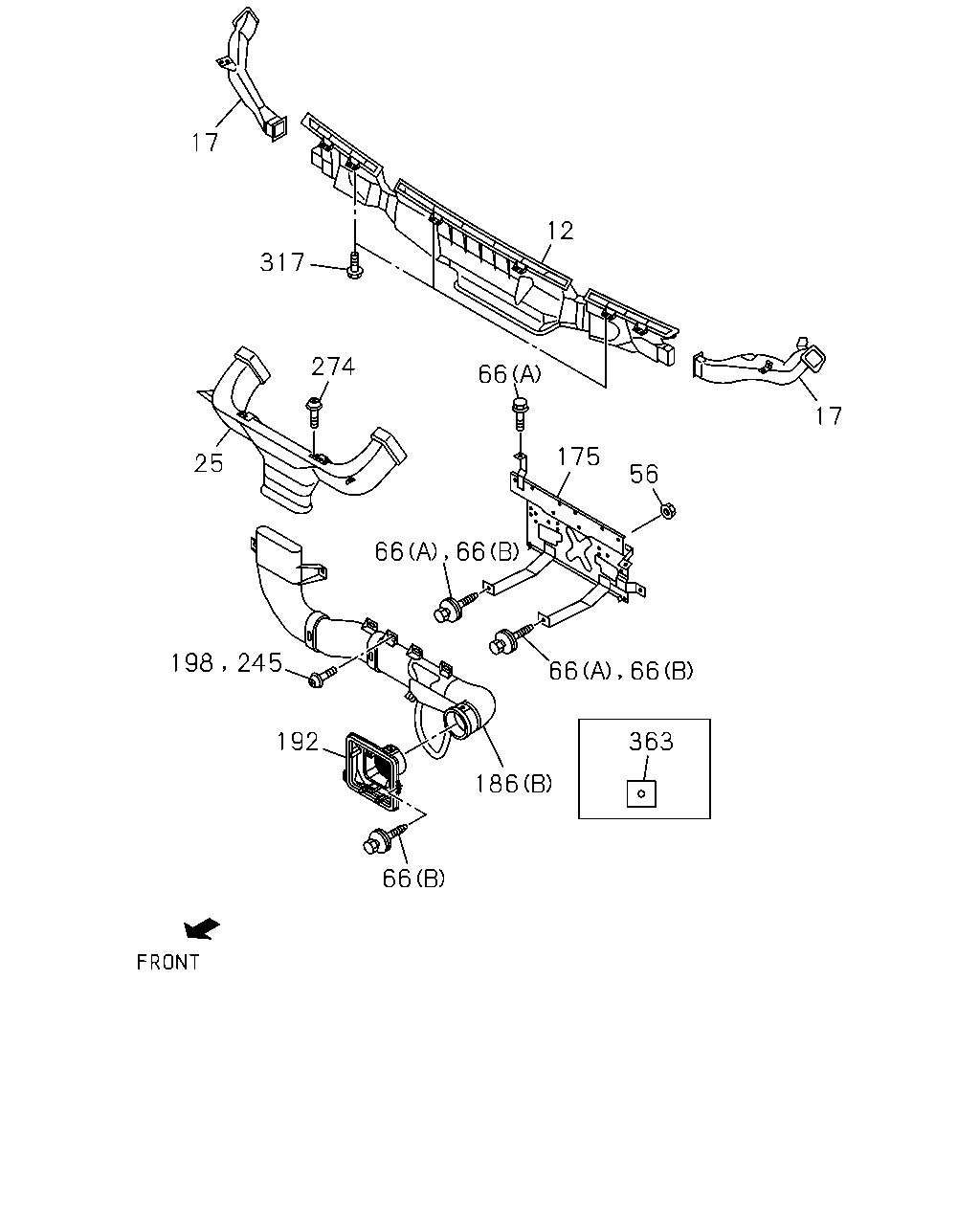

17 12 317 274 66 17 175 25 56 66 66 66 66 192 363 186 66 198 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0801-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-013-1	01	1	0801-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-018-1	01	1	0801-	●	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-365-0	01	1	0801-0801	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98054-365-0	01	1	0801-0801		●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98102-121-0	01	1	0802-0901	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98102-121-0	01	1	0802-0901		●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98102-121-0	01	1	0902-1302	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ)	8-98102-121-0	01	1	0902-1302		●
25	DUCT; CENTER EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98102-121-0	01	1	1303-	●
25	DUCT; CENTER EXC. AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98102-121-0	01	1	1303-		●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0802-0901	●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0802-0901		●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0902-1211	●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0902-1211		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0801-0801	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16 FLANGE	0-28650-616-0	02	1	0801-0801		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	01	1	0802-0901	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16 FLANGE	0-28650-616-0	01	1	0802-0901		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	01	1	0902-1211	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (A) M6X16 FLANGE	0-28650-616-0	01	1	0902-1211		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X25 W/LK&PL WASHER	8-98018-440-0	02	1	0801-0801	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X25 W/LK&PL WASHER	8-98018-440-0	02	1	0801-0801		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0802-0901	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0802-0901		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0902-1211	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0902-1211		●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-357-0	01	1	0801-0801	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98054-357-0	01	1	0801-0801		●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98095-350-4	01	1	0802-0901	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98095-350-4	01	1	0802-0901		●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98095-350-4	01	1	0902-0908	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ)	8-98095-350-4	01	1	0902-0908		●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98140-759-0	01	1	0909-1211	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ)	8-98140-759-0	01	1	0909-1211		●
186	DUCT; VENTILATOR (A)	8-97585-489-4	01	1	0801-1410	●	●
186	DUCT; VENTILATOR (A)	8-98285-574-0	01	1	1411-	●	●
186	DUCT; VENTILATOR (A)	8-98035-579-2	01	1	0801-1007	●	●
186	DUCT; VENTILATOR (A)	8-98174-737-0	01	1	1008-1410	●	●
186	DUCT; VENTILATOR (A)	8-98285-571-0	01	1	1411-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98054-384-0	01	1	0801-0801	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98054-384-0	01	1	0801-0801		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98102-128-1	01	1	0802-0901	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-128-1	01	1	0802-0901		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98102-128-2	01	1	0902-1211	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (B)	8-98102-128-2	01	1	0902-1211		●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-386-0	01	1	0801-0801	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98054-386-0	01	1	0801-0801		●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98090-393-2	01	1	0802-0901	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98090-393-2	01	1	0802-0901		●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98090-393-2	01	1	0902-1211	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ)	8-98090-393-2	01	1	0902-1211		●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	05	1	0802-0901	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	05	1	0802-0901		●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	05	1	0902-1211	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	05	1	0902-1211		●
245	CLIP; FOOT DUCT	8-98056-059-0	03	1	0801-0910	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	0911-1301	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	0911-1301		●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	1302-1410	●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	1302-1410		●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	1411-	●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	1411-		●
245	CLIP; FOOT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	0801-0801	●
245	CLIP; FOOT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	04	1	0801-0801		●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0802-0901	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0802-0901		●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0902-1211	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0902-1211		●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0802-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	0801-0801	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0802-	●	●
363	SEAL; DUCT,COOL BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0801-0801	●
363	SEAL; DUCT,COOL BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97856-616-0	02	1	0801-0801		●

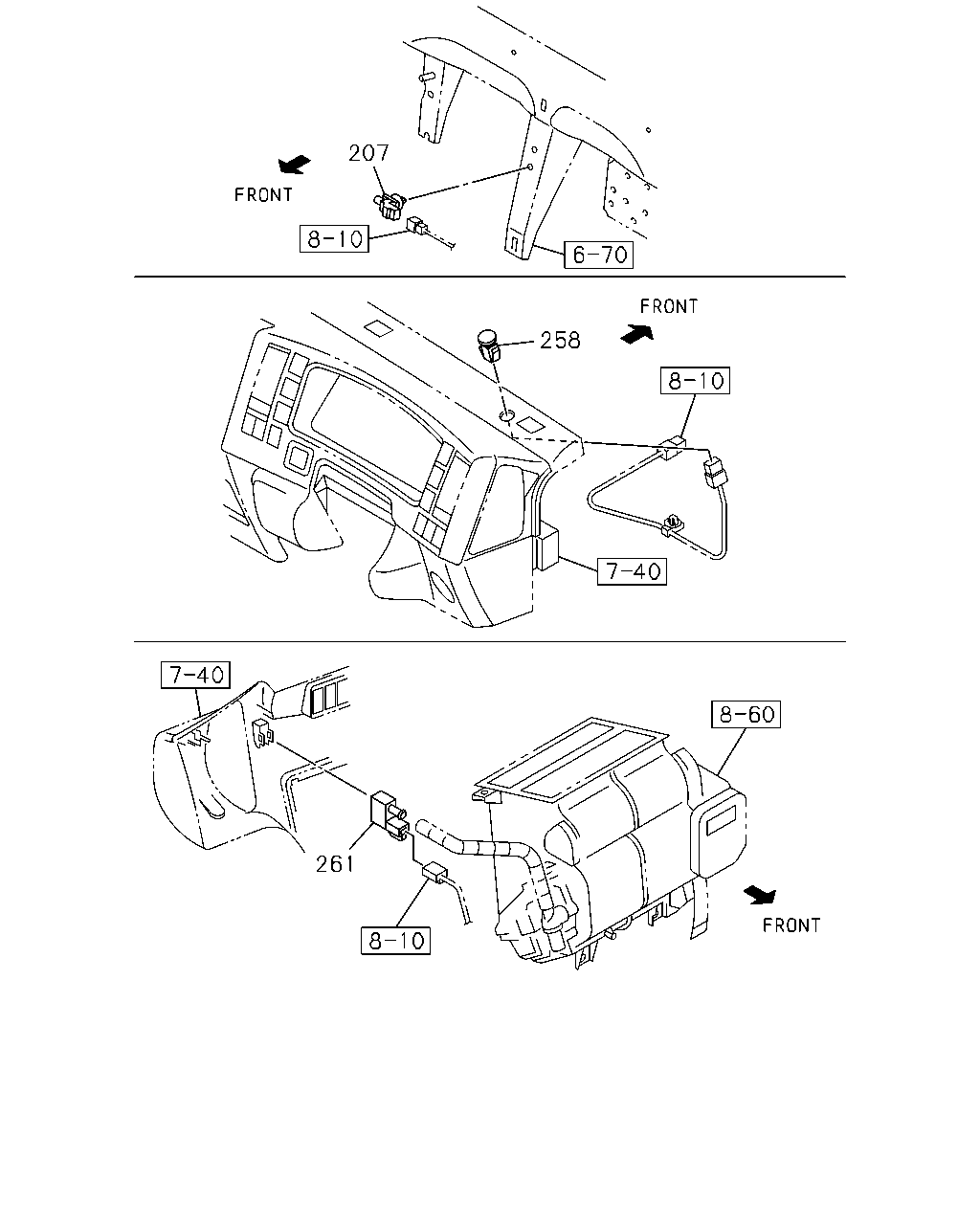

207 258 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
207	SENSOR; AMBIENT FULLAUTO AIR CONDITIONER(C68)	8-98008-687-0	01	1	0801-	●	●
258	SENSOR; SUN FULLAUTO AIR CONDITIONER(C68)	8-97386-826-0	01	1	0801-	●	●
261	SENSOR; IN CAR FULLAUTO AIR CONDITIONER(C68)	8-97386-701-0	01	1	0801-	●	●

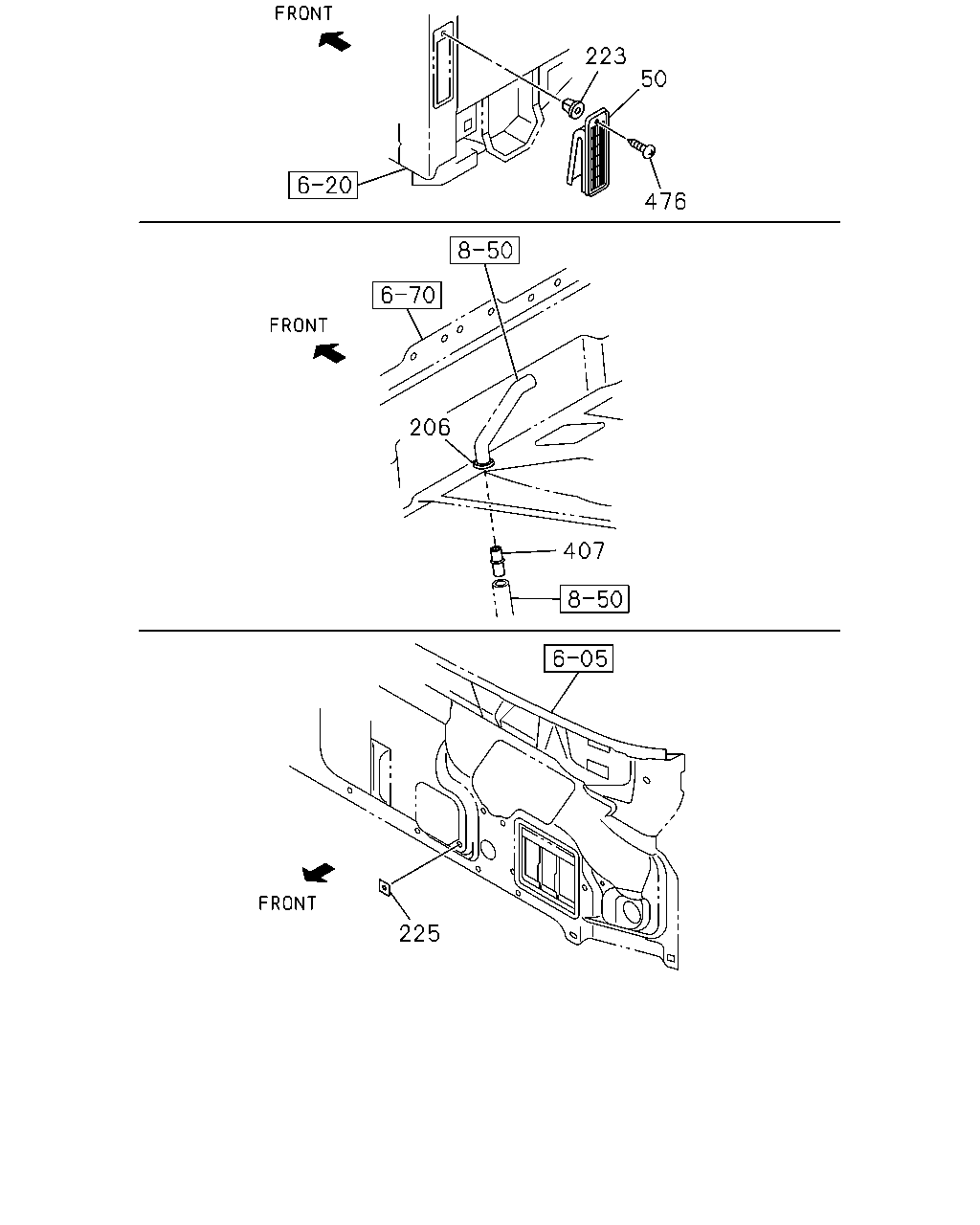

223 50 476 206 407 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR	8-98080-998-1	01	1	0801-	●	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0801-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0801-	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK	1-76798-019-0	01	1	0801-0812	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	01	1	0801-0812		●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK	1-76798-019-0	01	1	0901-1301	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	01	1	0901-1301		●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK	1-76798-019-0	01	1	1302-1302	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK	1-76798-019-0	01	1	1302-1302		●
225	SEAL; WATER EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK	1-76798-019-0	01	1	1303-	●
225	SEAL; WATER EXC. AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK	1-76798-019-0	01	1	1303-		●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-758-0	01	1	0801-0812	●	●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-758-0	01	1	0901-	●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98041-758-0	01	1	0901-		●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0801-	●	●

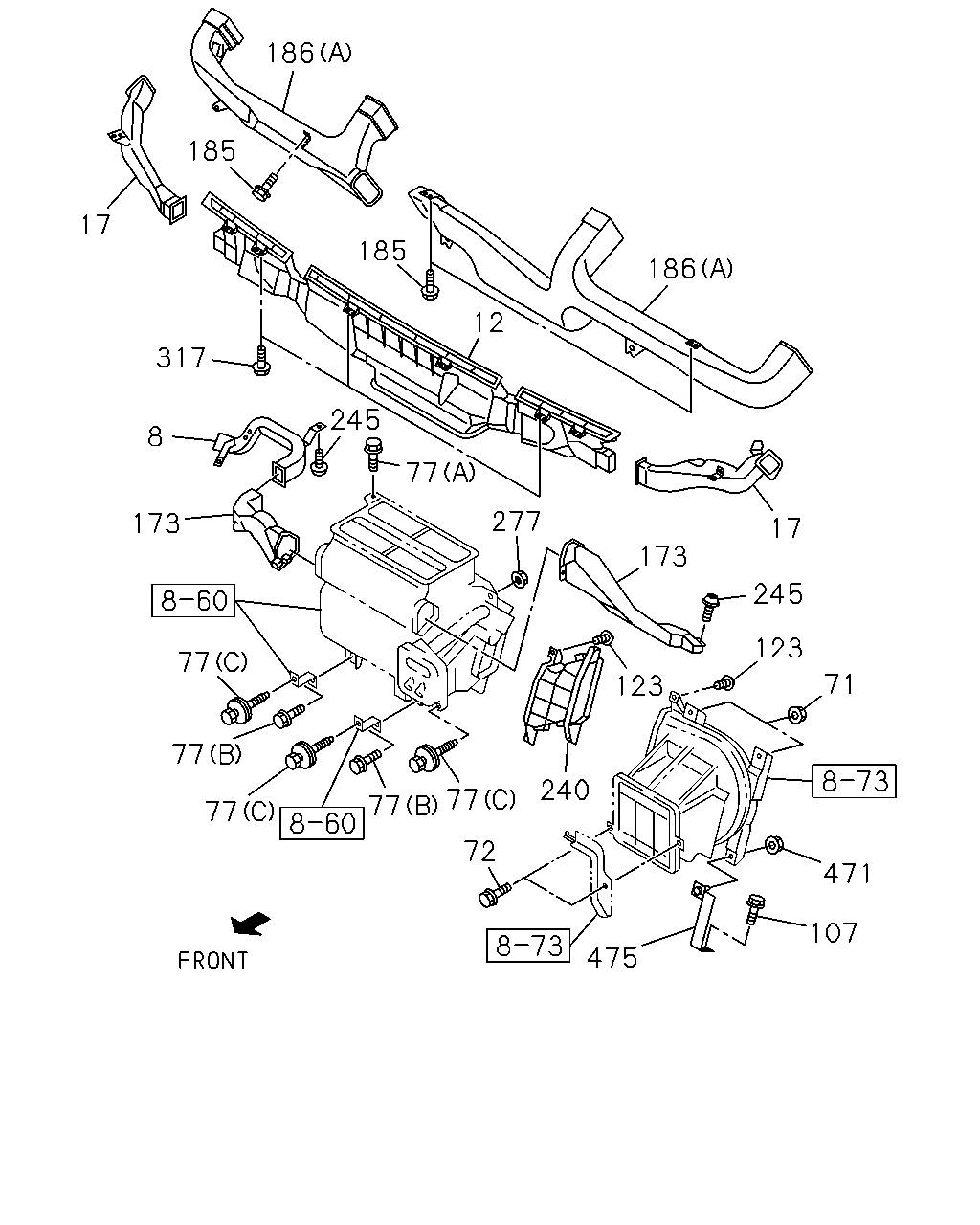

186 185 17 185 186 12 317 245 8 77 277 173 17 173 245 123 77 71 123 77 240 77 77 77 72 471 107 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT	8-97585-499-1	01	1	0801-0910	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-499-1	01	1	0911-1302	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97585-499-1	01	1	0911-1302		●
8	DUCT; HTR AIR,DRIVER FOOT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-499-1	01	1	1303-1410	●
8	DUCT; HTR AIR,DRIVER FOOT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97585-499-1	01	1	1303-1410		●
8	DUCT; HTR AIR,DRIVER FOOT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98290-098-0	01	1	1411-	●
8	DUCT; HTR AIR,DRIVER FOOT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98290-098-0	01	1	1411-		●
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0801-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-013-1	01	1	0801-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-018-1	01	1	0801-	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE	0-91180-106-0	02	1	0801-	●	●
72	BOLT; BLOWER UNIT M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0801-	●	●
77	BOLT; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1302-		●
77	BOLT; HTR UNIT (A) M6X16 FLANGE	0-28650-616-0	01	1	0801-	●	●
77	BOLT; HTR UNIT (B) M6X20 FLANGE	0-28650-620-0	02	1	0801-	●	●
77	BOLT; HTR UNIT (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0801-1301	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	1302-1302	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	1302-1302		●
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	1303-	●
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	1303-		●
107	BOLT; STAY,HTR UNIT M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0801-	●	●
123	SCREW; DUCT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0801-	●	●
173	DUCT; FOOT,HTR	8-97585-506-2	01	1	0801-0910	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-506-2	01	1	0911-1301	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97585-506-2	01	1	0911-1301		●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-506-2	01	1	1302-	●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97585-506-2	01	1	1302-		●
173	DUCT; FOOT,HTR	8-98036-922-2	01	1	0801-0910	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98036-922-2	01	1	0911-1302	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98036-922-2	01	1	0911-1302		●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98036-922-2	01	1	1303-1410	●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98036-922-2	01	1	1303-1410		●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98290-097-0	01	1	1411-	●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98290-097-0	01	1	1411-		●
185	SCREW; VENT DUCT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0801-1008	●	●
185	SCREW; VENT DUCT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1009-	●	●
186	DUCT; VENTILATOR (A)	8-97585-489-4	01	1	0801-1410	●	●
186	DUCT; VENTILATOR (A)	8-98285-574-0	01	1	1411-	●	●
186	DUCT; VENTILATOR (A)	8-98035-579-2	01	1	0801-1007	●	●
186	DUCT; VENTILATOR (A)	8-98174-737-0	01	1	1008-1410	●	●
186	DUCT; VENTILATOR (A)	8-98285-571-0	01	1	1411-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98054-384-0	01	1	0801-0801	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98054-384-0	01	1	0801-0801		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98102-128-1	01	1	0802-0901	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-128-1	01	1	0802-0901		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98102-128-2	01	1	0902-1211	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (B)	8-98102-128-2	01	1	0902-1211		●
240	DUCT; AIR,HTR	8-98041-402-1	01	1	0801-	●	●
245	CLIP; FOOT DUCT	8-98056-059-0	03	1	0801-0910	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	0911-1301	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	0911-1301		●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	1302-1410	●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	1302-1410		●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	1411-	●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	1411-		●
245	CLIP; FOOT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	0801-0801	●
245	CLIP; FOOT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	04	1	0801-0801		●
277	NUT; HTR M6 FLANGE	0-91180-106-0	01	1	0801-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0802-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	0801-0801	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0802-	●	●
471	NUT; BLOWER M6 FLANGE	0-91180-106-0	01	1	0801-	●	●
475	BRACKET; BLOWER	8-98043-500-1	01	1	0801-	●	●
