Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#40333) — 216 parça

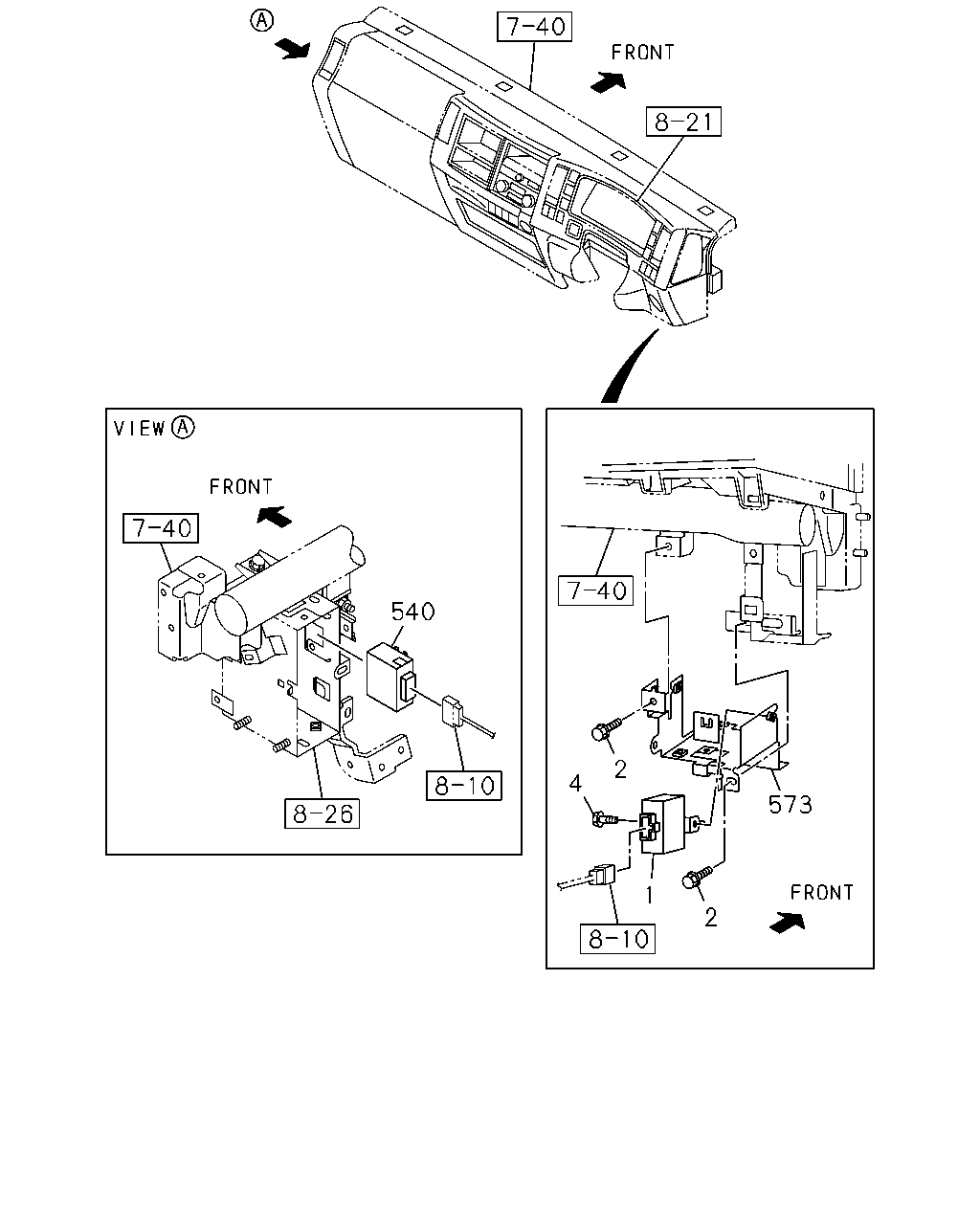

540 2 4 573 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	0801-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0801-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0801-	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0801-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0801-	●	●

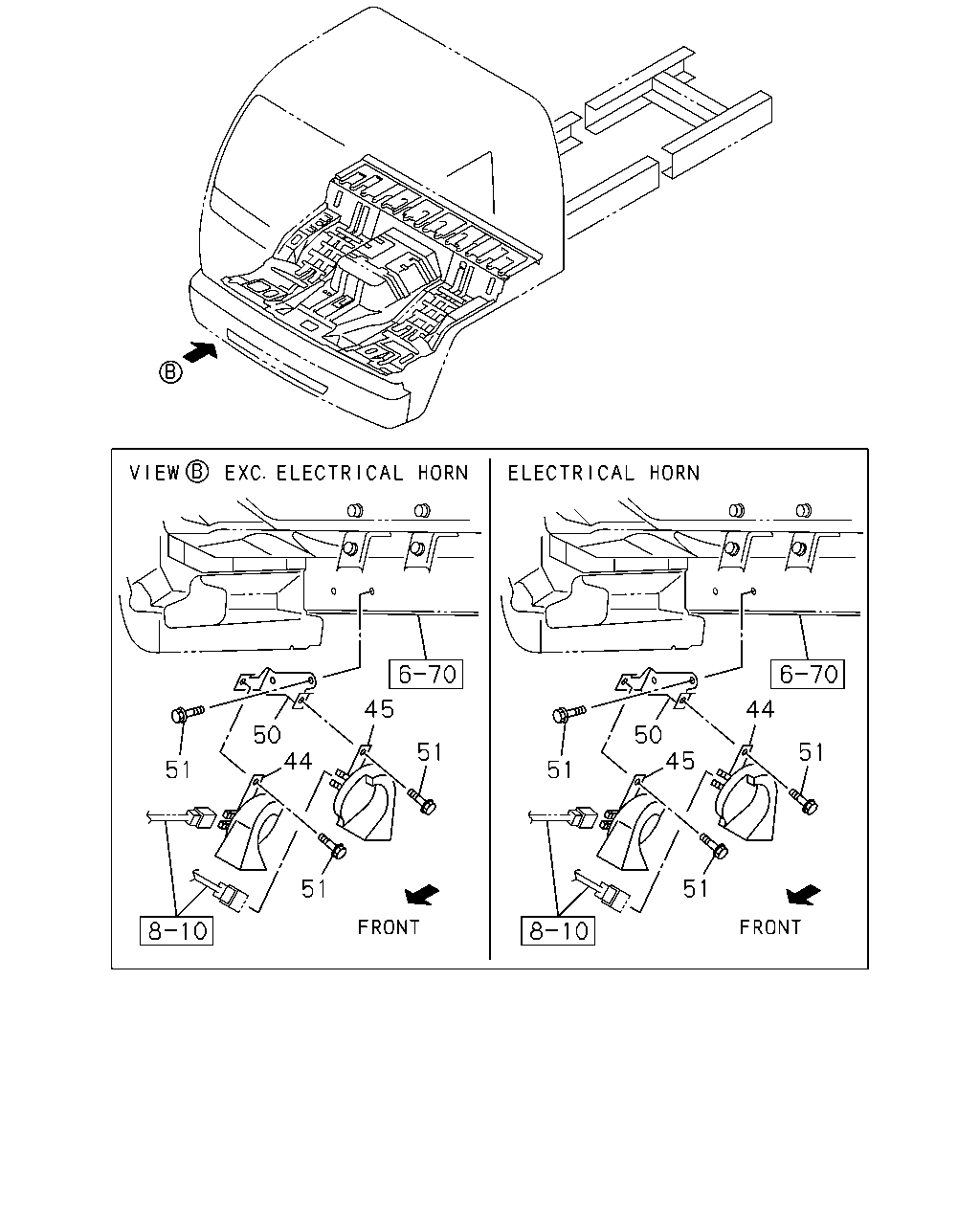

45 44 50 44 50 45 51 51 51 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-97611-677-2	01	1	0801-	●
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7>	8-97611-677-2	01	1	0801-		●
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-022-0	01	1	0801-		●
45	HORN; LOW NOTE	8-97611-676-2	01	1	0801-	●
45	HORN; LOW NOTE ELECTRICAL HORN<WB7>	8-97611-676-2	01	1	0801-		●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-023-0	01	1	0801-		●
50	BRACKET; HORN	8-97613-300-2	01	1	0801-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0801-	●	●

531 115 769

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0801-	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0801-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●

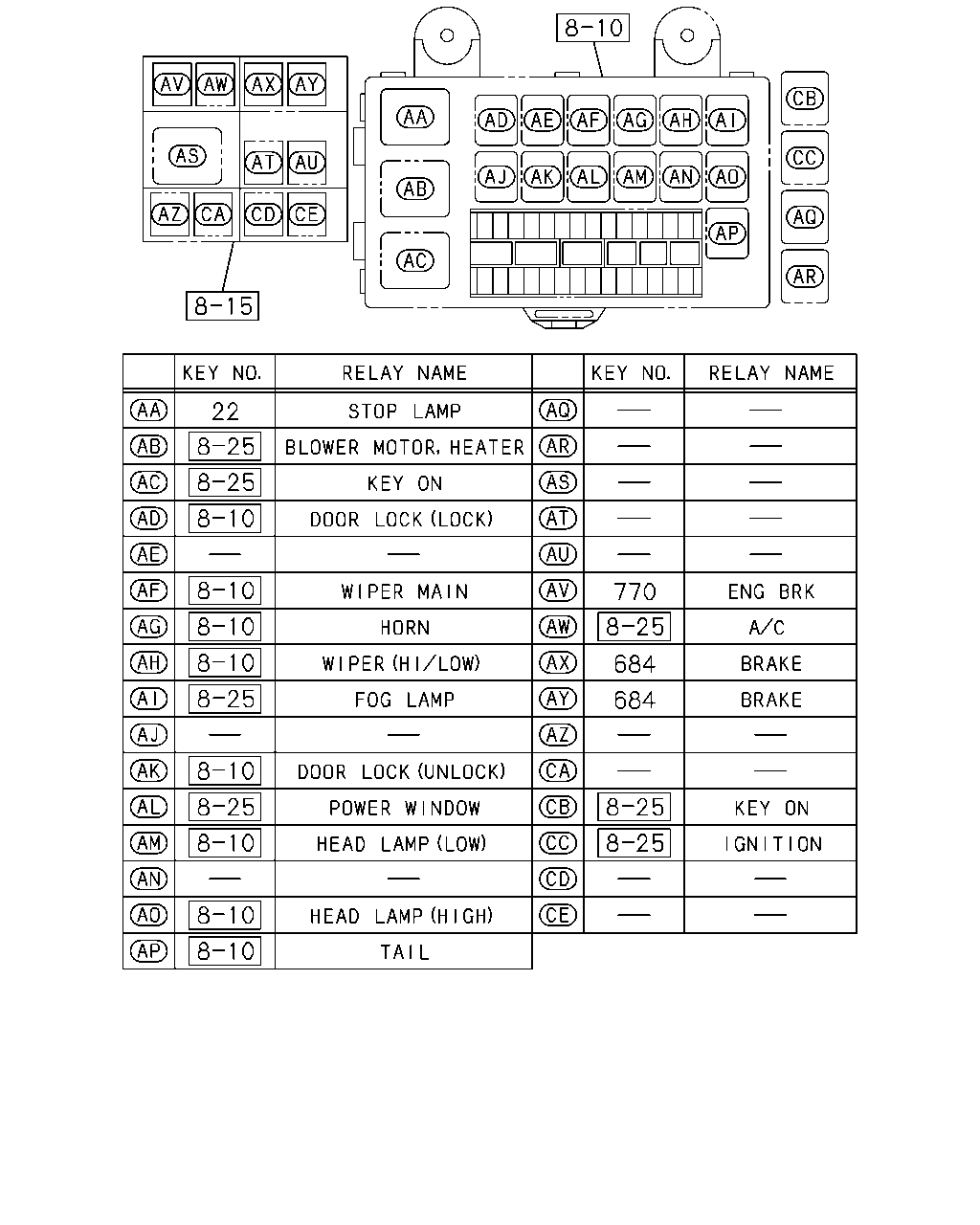

22 770 684 684

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0801-	●	●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	0801-	●	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●

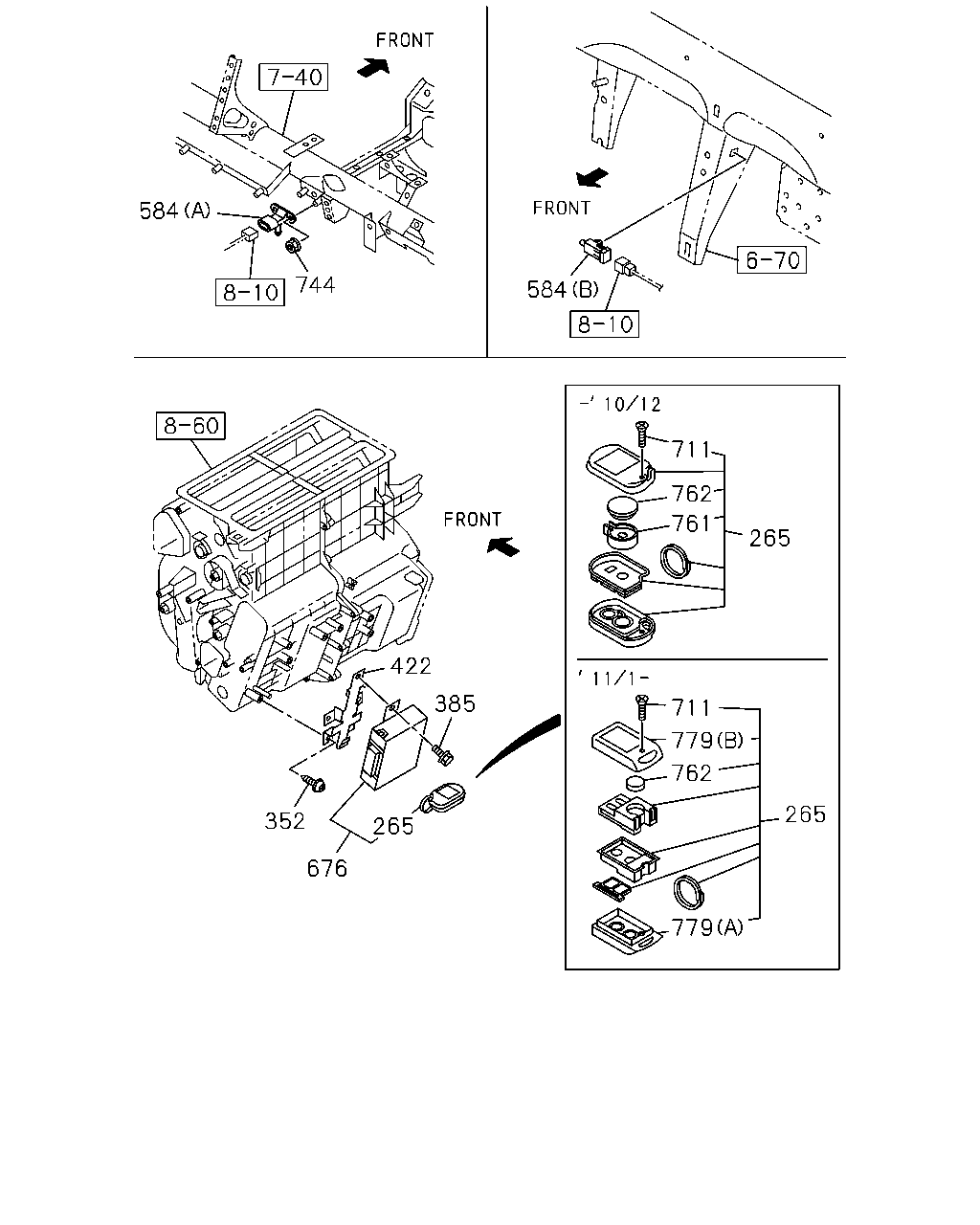

744 422 385 352 265 676 711 762 761 265 711 779 762 265 779 584 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0801-1012	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	0801-1012		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98180-751-0	02	1	1101-1205		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-1212	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1206-1212		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1301-	●
265	TRANSMITTER ASM; AUTO DOOR LOCK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1301-		●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0801-1212	●
352	SCREW; BRKT REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0801-1212		●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●
352	SCREW; BRKT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0801-1212	●
385	BOLT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0801-1212		●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1301-	●
385	BOLT; CONT UNIT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1301-		●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0801-1212	●
422	BRACKET; CONT UNIT REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	0801-1212		●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	1301-	●
422	BRACKET; CONT UNIT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	1301-		●
584	SENSOR; PRESSURE (A)	8-98020-514-0	01	1	0801-	●	●
584	SENSOR; PRESSURE EURO3 SPECIFICATION<NJX> (B)	8-97177-549-0	01	1	0801-1204		●
584	SENSOR; PRESSURE EURO3 SPECIFICATION<NJX> (B)	8-98214-375-0	01	1	1205-		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0801-1012	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98017-258-1	01	1	0801-1012		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98181-809-0	01	1	1101-1205		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-1212	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98218-231-0	01	1	1206-1212		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1301-	●
676	CONTROL UNIT; KEYLESS ENTRY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-98218-231-0	01	1	1301-		●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0801-1205	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0801-1205		●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-1212	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-1212		●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1301-	●
711	SCREW; TRANSMITTER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1301-		●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0801-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0801-1012	●
761	HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0801-1012		●
762	BATTERY	8-98078-061-0	02	1	0801-1212	●
762	BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0801-1212		●
762	BATTERY	8-98078-061-0	02	1	1301-	●
762	BATTERY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	1301-		●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-1212	●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (A)	8-98218-240-0	02	1	1206-1212		●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1301-	●
779	COVER; TRANSMITTER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (A)	8-98218-240-0	02	1	1301-		●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-1212	●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (B)	8-98218-243-0	02	1	1206-1212		●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1301-	●
779	COVER; TRANSMITTER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (B)	8-98218-243-0	02	1	1301-		●

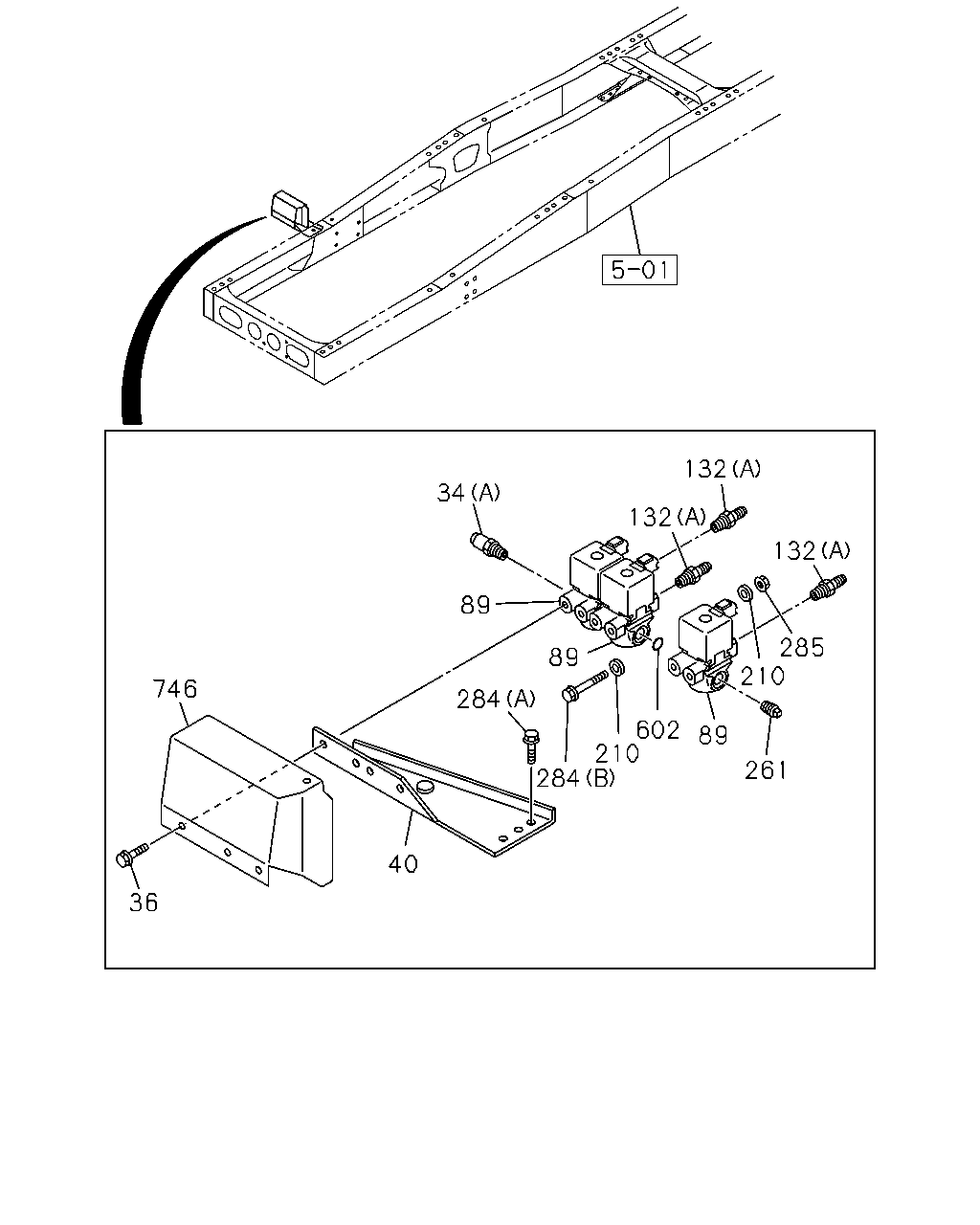

132 34 132 132 89 285 210 89 746 284 602 210 284 89 261 40 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0801-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0801-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0801-0803	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0801-0803		●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-0808	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-0808		●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-0901	●
34	CONNECTOR; MAG VLV,INL PORT WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-0901		●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-0901		●
34	CONNECTOR; MAG VLV,INL PORT EXC. DIFF LOCK<C3N> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0902-	●
34	CONNECTOR; MAG VLV,INL PORT WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0902-		●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0902-		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0801-0803	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0801-0803		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0804-	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0804-		●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	0801-	●	●
40	BRACKET; MAG VLV	8-98100-335-0	01	1	0801-	●	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	1-82563-871-2	02	1	0809-0901		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-871-2	02	1	0902-1205	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	1-82563-871-2	02	1	0902-1205		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	02	1	1206-	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	8-97641-594-0	02	1	1206-		●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	03	1	0801-	●	●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0801-0803	●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-82563-871-2	01	1	0801-0803		●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0804-0808	●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	1-82563-871-2	01	1	0804-0808		●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0809-0901	●
89	VALVE; MAG,DIFF LOCK AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	0809-0901		●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),WEST MALAYSIA EQUIPMENT(SEQ)	1-82563-871-2	01	1	0809-0901		●
89	VALVE; MAG,DIFF LOCK EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	0902-1205	●
89	VALVE; MAG,DIFF LOCK AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	0902-1205		●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),WEST MALAYSIA EQUIPMENT(SEQ)	1-82563-871-2	01	1	0902-1205		●
89	VALVE; MAG,DIFF LOCK EXC. DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-	●
89	VALVE; MAG,DIFF LOCK AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-		●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),WEST MALAYSIA EQUIPMENT(SEQ)	8-97641-594-0	01	1	1206-		●
132	CONNECTOR; OUTLET,MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0809-0901		●
132	CONNECTOR; OUTLET,MAG VLV DIFF LOCK<C3N> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0902-	●
132	CONNECTOR; OUTLET,MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0902-		●
132	CONNECTOR; OUTLET,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0801-	●	●
210	WASHER; PL,BRKT DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	1-82569-266-0	02	1	0809-0901		●
210	WASHER; PL,BRKT DIFF LOCK<C3N>	1-82569-266-0	02	1	0902-	●
210	WASHER; PL,BRKT DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	1-82569-266-0	02	1	0902-		●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0801-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0801-0803	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0801-0803	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PT1/4	9-99204-513-0	01	1	0801-0803		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0804-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0804-	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) PT1/4	9-99204-513-0	01	1	0804-		●
284	BOLT; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0901		●
284	BOLT; MAG VLV DIFF LOCK<C3N> (B) M6X50 FLANGE	0-28050-650-0	01	1	0902-	●
284	BOLT; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) M6X50 FLANGE	0-28050-650-0	01	1	0902-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0801-	●	●
284	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●
285	NUT; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) M6 FLANGE	0-91180-106-0	01	1	0809-0901		●
285	NUT; MAG VLV DIFF LOCK<C3N> M6 FLANGE	0-91180-106-0	01	1	0902-	●
285	NUT; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) M6 FLANGE	0-91180-106-0	01	1	0902-		●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	0801-	●	●
602	GASKET; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) ID=16.8	9-09565-117-0	01	1	0809-0901		●
602	GASKET; MAG VLV DIFF LOCK<C3N> ID=16.8	9-09565-117-0	01	1	0902-	●
602	GASKET; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) ID=16.8	9-09565-117-0	01	1	0902-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0801-	●	●
746	COVER; NOISE,MAG VLV	8-98096-340-0	01	1	0801-	●	●

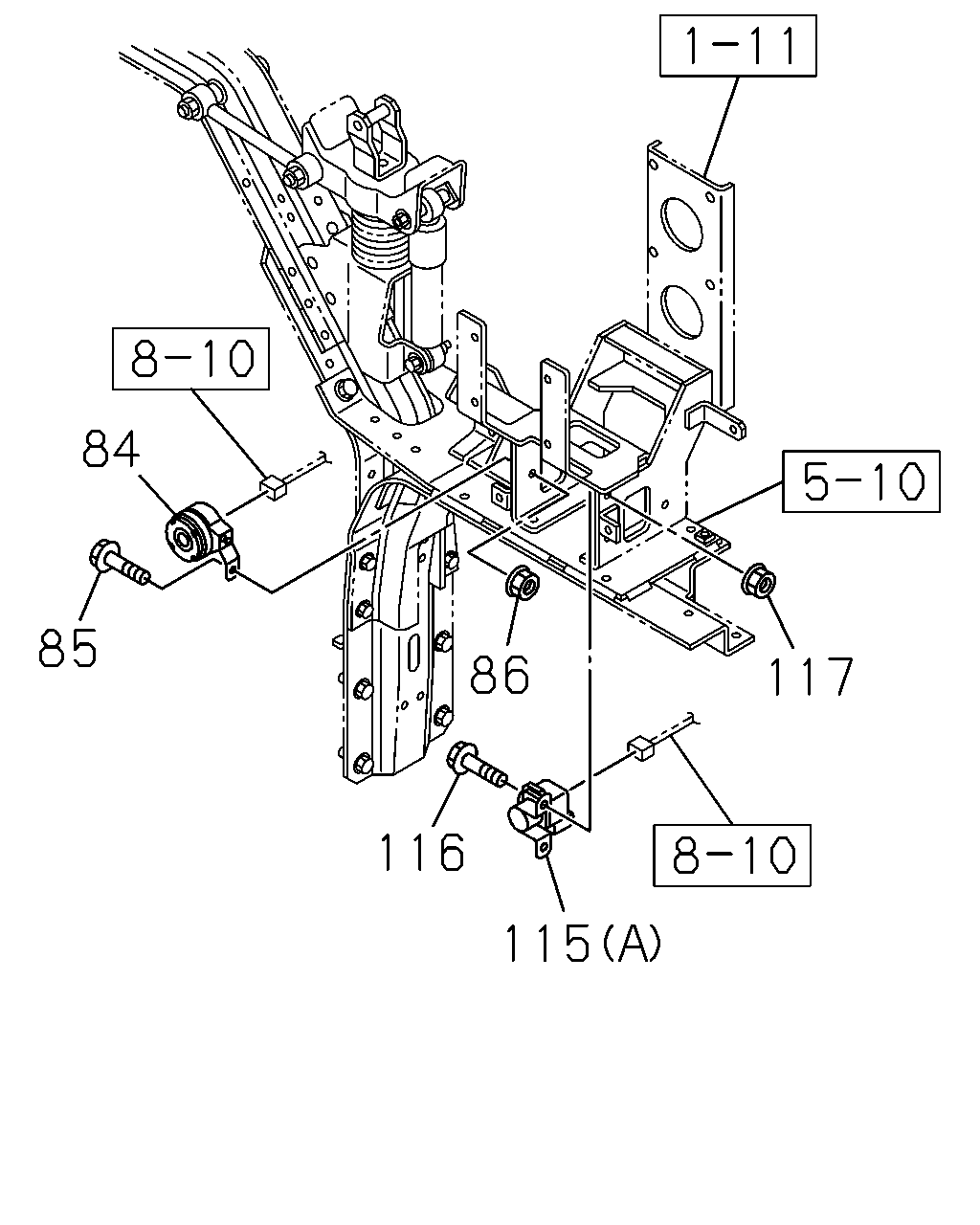

84 85 86 117 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0801-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0801-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0801-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0801-	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0801-1308	●	●
116	BOLT; RELAY FIX M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0801-	●	●

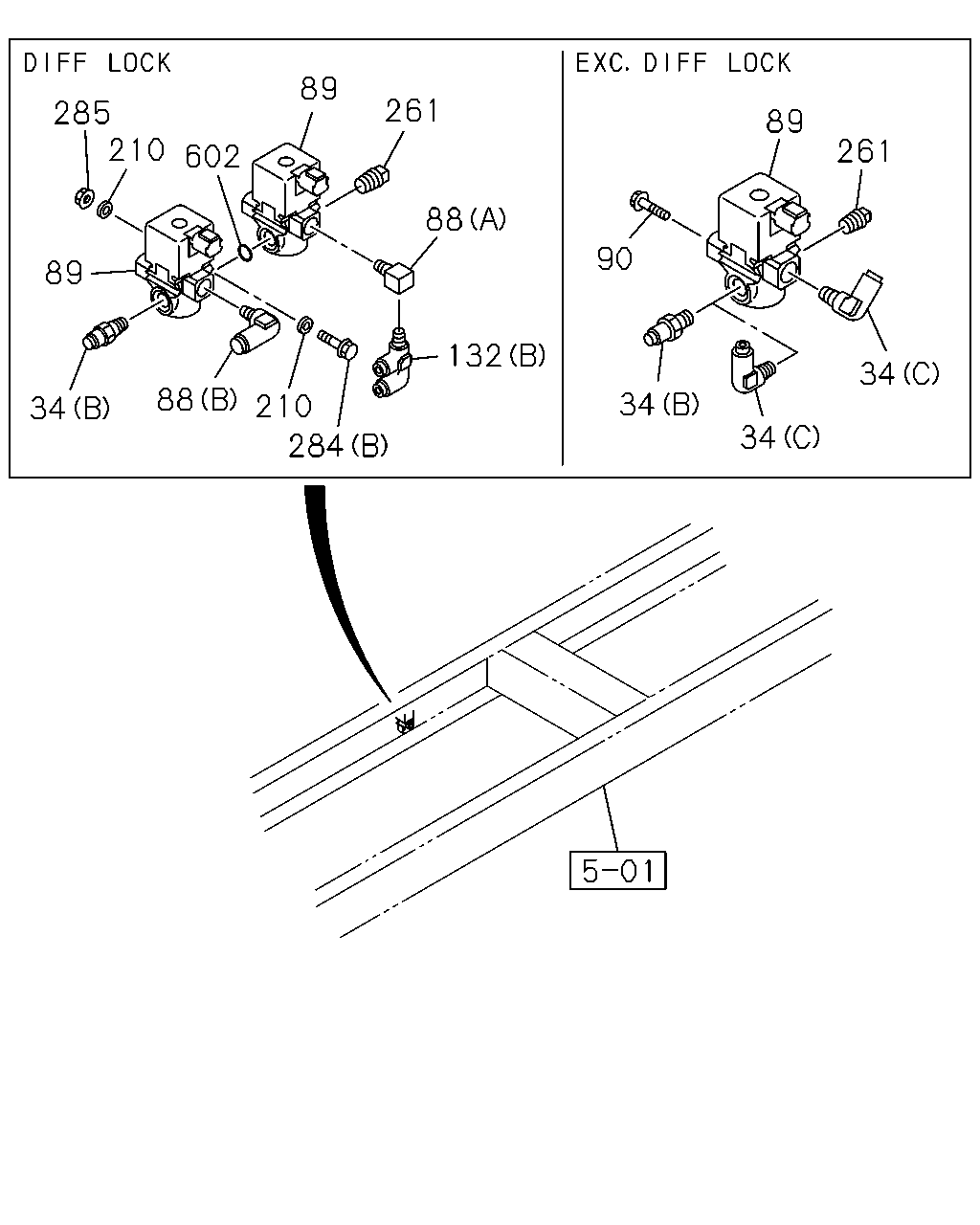

89 261 285 210 89 261 602 88 90 89 132 34 88 34 210 34 34 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0801-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0801-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0801-0803	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0801-0803		●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-0808	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-0808		●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-0901	●
34	CONNECTOR; MAG VLV,INL PORT WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-0901		●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-0901		●
34	CONNECTOR; MAG VLV,INL PORT EXC. DIFF LOCK<C3N> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0902-	●
34	CONNECTOR; MAG VLV,INL PORT WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0902-		●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0902-		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0801-0803	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0801-0803		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0804-	●
34	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0804-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (A) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	0809-0901		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	0902-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (A) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	0902-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-0901		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0902-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0902-		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	1-82563-871-2	02	1	0809-0901		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-871-2	02	1	0902-1205	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	1-82563-871-2	02	1	0902-1205		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	02	1	1206-	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	8-97641-594-0	02	1	1206-		●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	03	1	0801-	●	●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0801-0803	●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-82563-871-2	01	1	0801-0803		●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0804-0808	●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	1-82563-871-2	01	1	0804-0808		●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0809-0901	●
89	VALVE; MAG,DIFF LOCK AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	0809-0901		●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),WEST MALAYSIA EQUIPMENT(SEQ)	1-82563-871-2	01	1	0809-0901		●
89	VALVE; MAG,DIFF LOCK EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	0902-1205	●
89	VALVE; MAG,DIFF LOCK AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	0902-1205		●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),WEST MALAYSIA EQUIPMENT(SEQ)	1-82563-871-2	01	1	0902-1205		●
89	VALVE; MAG,DIFF LOCK EXC. DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-	●
89	VALVE; MAG,DIFF LOCK AUSTRALIA EQUIPMENT(RR3) EXC. DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-		●
89	VALVE; MAG,DIFF LOCK NEW ZEALAND EQUIPMENT(PK5),WEST MALAYSIA EQUIPMENT(SEQ)	8-97641-594-0	01	1	1206-		●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
132	CONNECTOR; OUTLET,MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0809-0901		●
132	CONNECTOR; OUTLET,MAG VLV DIFF LOCK<C3N> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0902-	●
132	CONNECTOR; OUTLET,MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0902-		●
132	CONNECTOR; OUTLET,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0801-	●	●
210	WASHER; PL,BRKT DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	1-82569-266-0	02	1	0809-0901		●
210	WASHER; PL,BRKT DIFF LOCK<C3N>	1-82569-266-0	02	1	0902-	●
210	WASHER; PL,BRKT DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3)	1-82569-266-0	02	1	0902-		●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0801-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0801-0803	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0801-0803	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PT1/4	9-99204-513-0	01	1	0801-0803		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0804-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0804-	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) PT1/4	9-99204-513-0	01	1	0804-		●
284	BOLT; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-0901		●
284	BOLT; MAG VLV DIFF LOCK<C3N> (B) M6X50 FLANGE	0-28050-650-0	01	1	0902-	●
284	BOLT; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) (B) M6X50 FLANGE	0-28050-650-0	01	1	0902-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0801-	●	●
284	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●
285	NUT; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) M6 FLANGE	0-91180-106-0	01	1	0809-0901		●
285	NUT; MAG VLV DIFF LOCK<C3N> M6 FLANGE	0-91180-106-0	01	1	0902-	●
285	NUT; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) M6 FLANGE	0-91180-106-0	01	1	0902-		●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	0801-	●	●
602	GASKET; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) ID=16.8	9-09565-117-0	01	1	0809-0901		●
602	GASKET; MAG VLV DIFF LOCK<C3N> ID=16.8	9-09565-117-0	01	1	0902-	●
602	GASKET; MAG VLV DIFF LOCK<C3N> AUSTRALIA EQUIPMENT(RR3) ID=16.8	9-09565-117-0	01	1	0902-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
