Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11145 - FXZ EXC.EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

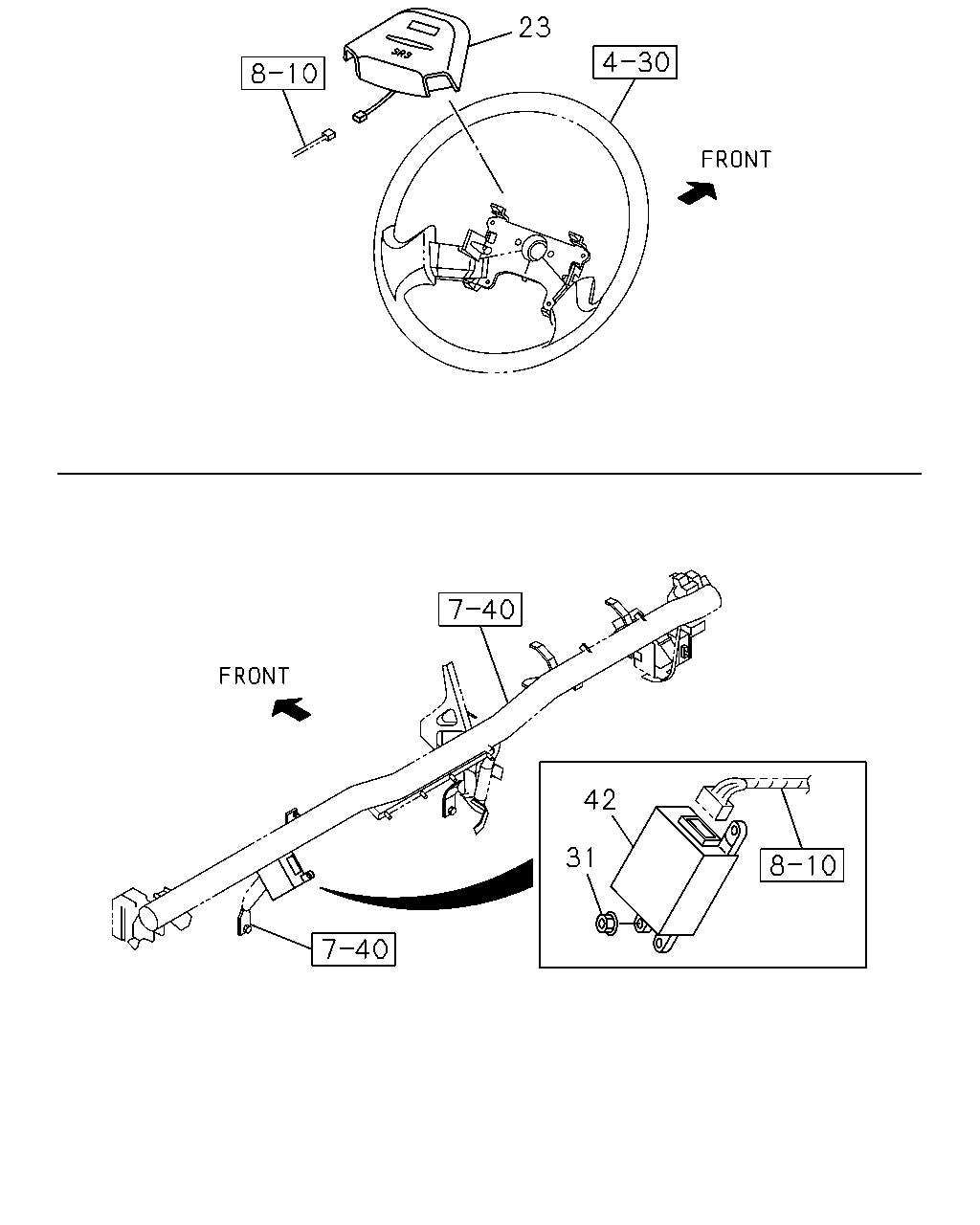

8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#40332) — 12 parça
Tümü
A - FGY5MX
B - FGZ5MX
23
42
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
AIR BAG UNIT
DARK GRAY
8-97407-721-1
01
1
0801-1004
●
23
AIR BAG UNIT
AIR BAG DRIVER(AJ3) DARK GRAY
8-97407-721-1
01
1
0801-1004
●
23
AIR BAG UNIT
DARK GRAY
8-97418-100-0
01
1
1005-1210
●
23
AIR BAG UNIT
AIR BAG DRIVER(AJ3) DARK GRAY
8-97418-100-0
01
1
1005-1210
●
23
AIR BAG UNIT
DARK GRAY
8-97423-999-1
01
1
1211-
●
23
AIR BAG UNIT
AIR BAG DRIVER(AJ3) DARK GRAY
8-97423-999-1
01
1
1211-
●
31
NUT
M6 FLANGE
0-91180-106-0
03
1
0801-
●
31
NUT
AIR BAG DRIVER(AJ3) M6 FLANGE
0-91180-106-0
03
1
0801-
●
42
CONTROL UNIT; SRS
8-98094-569-0
01
1
0801-0903
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3)
8-98094-569-0
01
1
0801-0903
●
42
CONTROL UNIT; SRS
8-98120-070-2
01
1
0904-
●
42
CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3)
8-98120-070-2
01
1
0904-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
