◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#40331) — 98 parça

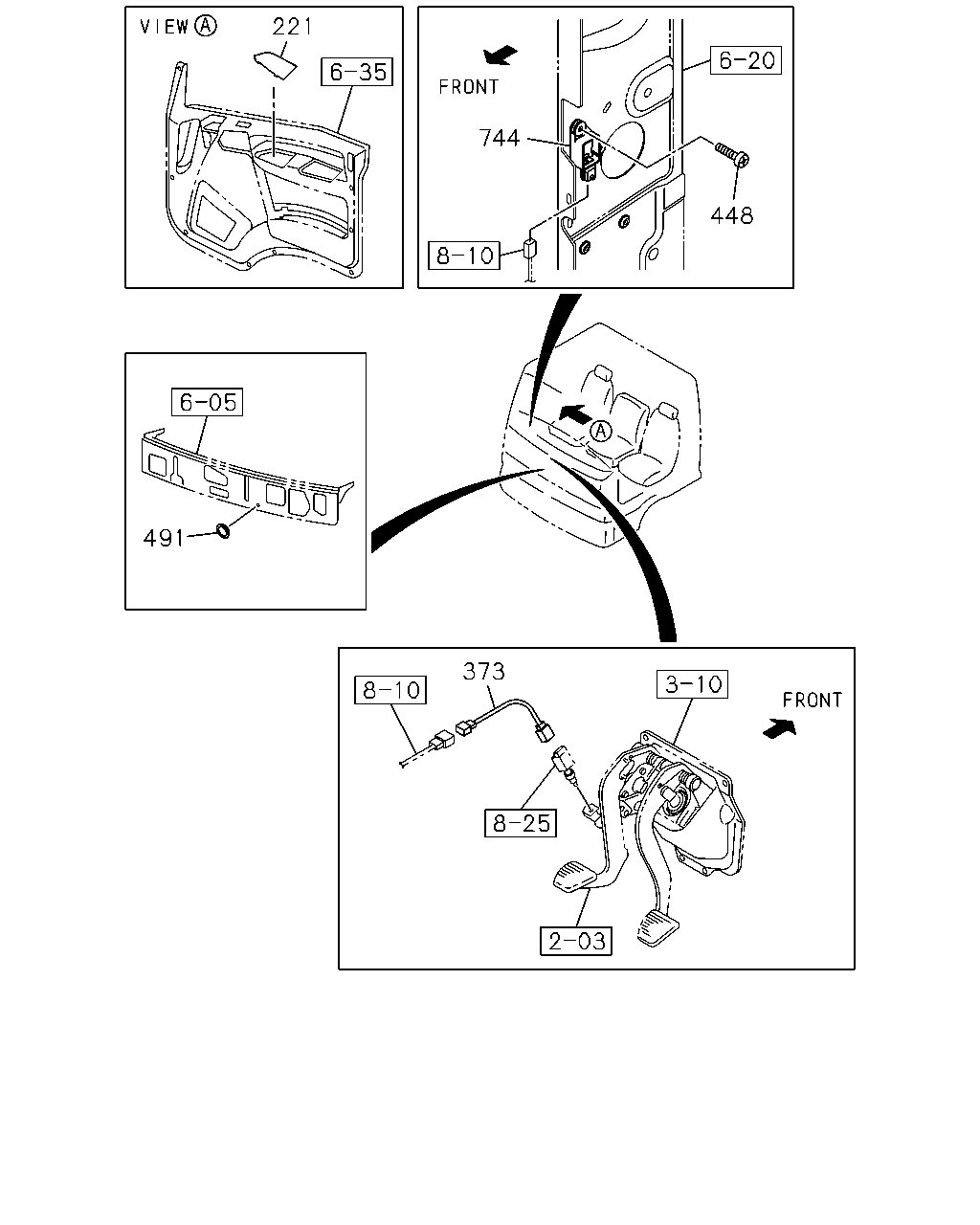

çizim 161734
221 744 448 491 373
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0801- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0801- ●
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 0801- ● ●
448 BOLT; SENSOR
M6X18 W/PL WASHER 		8-97105-796-1 02 1 0801- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0801- ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0801- ● ●
744 SENSOR; AIR BAG 8-97386-841-2 01 1 0801- ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 0801- ●

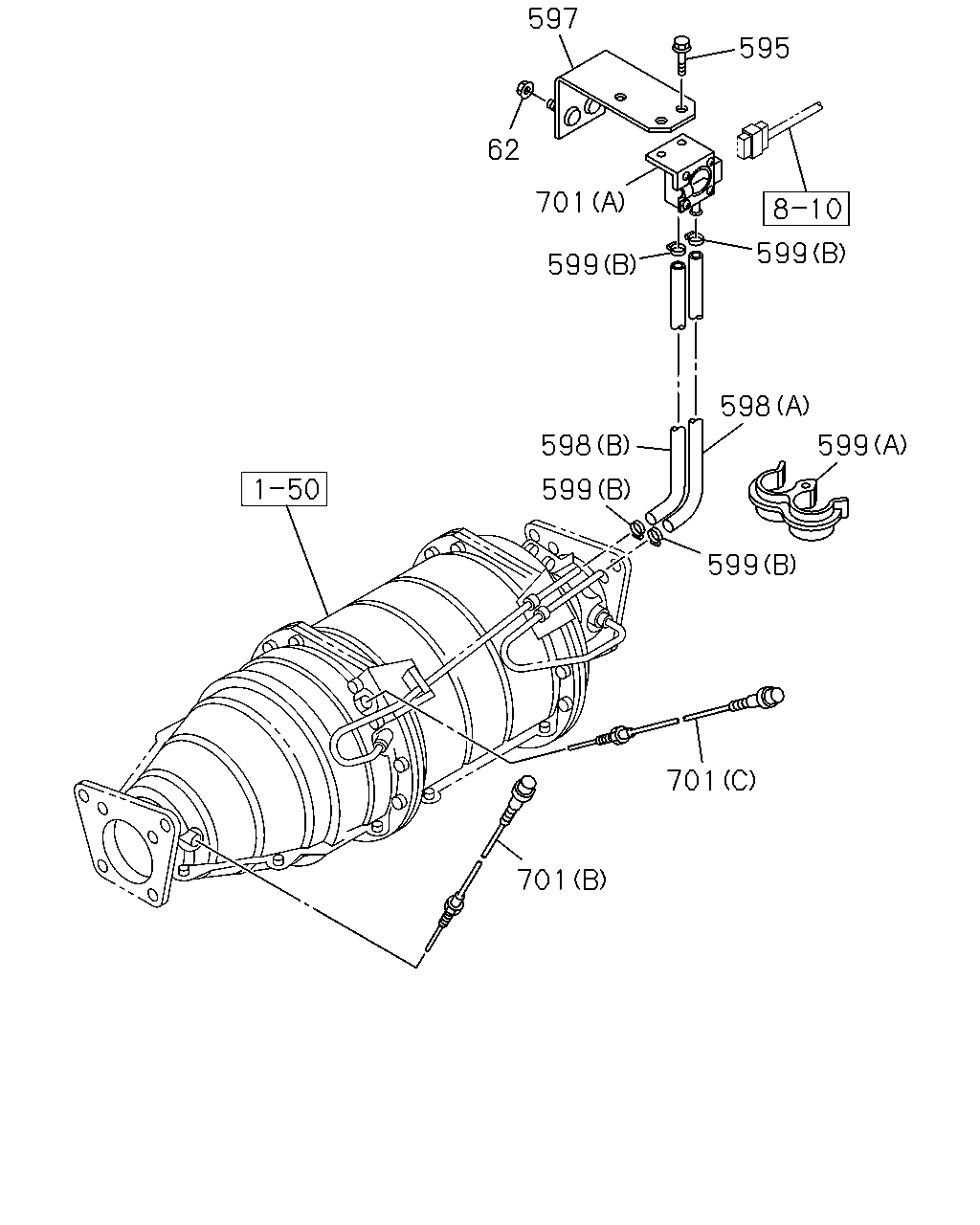

çizim 161741
597 595 62 701 599 599 598 598 599 599 599 701 701
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801- ●
62 NUT; BRKT
EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE 		0-91180-108-0 02 1 0801- ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0801- ●
595 BOLT; SENSOR
EMISSION REGULATION NEW LONG TERM<JBG> M8X20 FLANGE 		0-28650-820-0 02 1 0801- ●
597 BRACKET; SENSOR 8-97621-279-0 01 1 0801- ●
597 BRACKET; SENSOR
EMISSION REGULATION NEW LONG TERM<JBG> 		8-97621-279-0 01 1 0801- ●
598 HOSE; RUBBER,SENSOR
(A) L=340 SERVICED BY L=3000 		0-01558-300-0 01 1 0801- ●
598 HOSE; RUBBER,SENSOR
EMISSION REGULATION NEW LONG TERM<JBG> (A) L=340 SERVICED BY L=3000 		0-01558-300-0 01 1 0801- ●
598 HOSE; RUBBER,SENSOR
(B) L=410 SERVICED BY L=3000 		0-01558-300-0 01 1 0801- ●
598 HOSE; RUBBER,SENSOR
EMISSION REGULATION NEW LONG TERM<JBG> (B) L=410 SERVICED BY L=3000 		0-01558-300-0 01 1 0801- ●
599 CLIP; HOSE
(A) 		8-97173-119-0 02 1 0801- ●
599 CLIP; HOSE
EMISSION REGULATION NEW LONG TERM<JBG> (A) 		8-97173-119-0 02 1 0801- ●
599 CLIP; HOSE
(B) ID=13 		8-97329-627-0 04 1 0801- ●
599 CLIP; HOSE
EMISSION REGULATION NEW LONG TERM<JBG> (B) ID=13 		8-97329-627-0 04 1 0801- ●
701 SENSOR; DPD
(A) 		8-97359-985-2 01 1 0801- ●
701 SENSOR; DPD
EMISSION REGULATION NEW LONG TERM<JBG> (A) 		8-97359-985-2 01 1 0801- ●
701 SENSOR; DPD
(B) 		8-98004-329-0 01 1 0801- ●
701 SENSOR; DPD
EMISSION REGULATION NEW LONG TERM<JBG> (B) 		8-98004-329-0 01 1 0801- ●
701 SENSOR; DPD
(C) 		8-98004-330-0 01 1 0801- ●
701 SENSOR; DPD
EMISSION REGULATION NEW LONG TERM<JBG> (C) 		8-98004-330-0 01 1 0801- ●

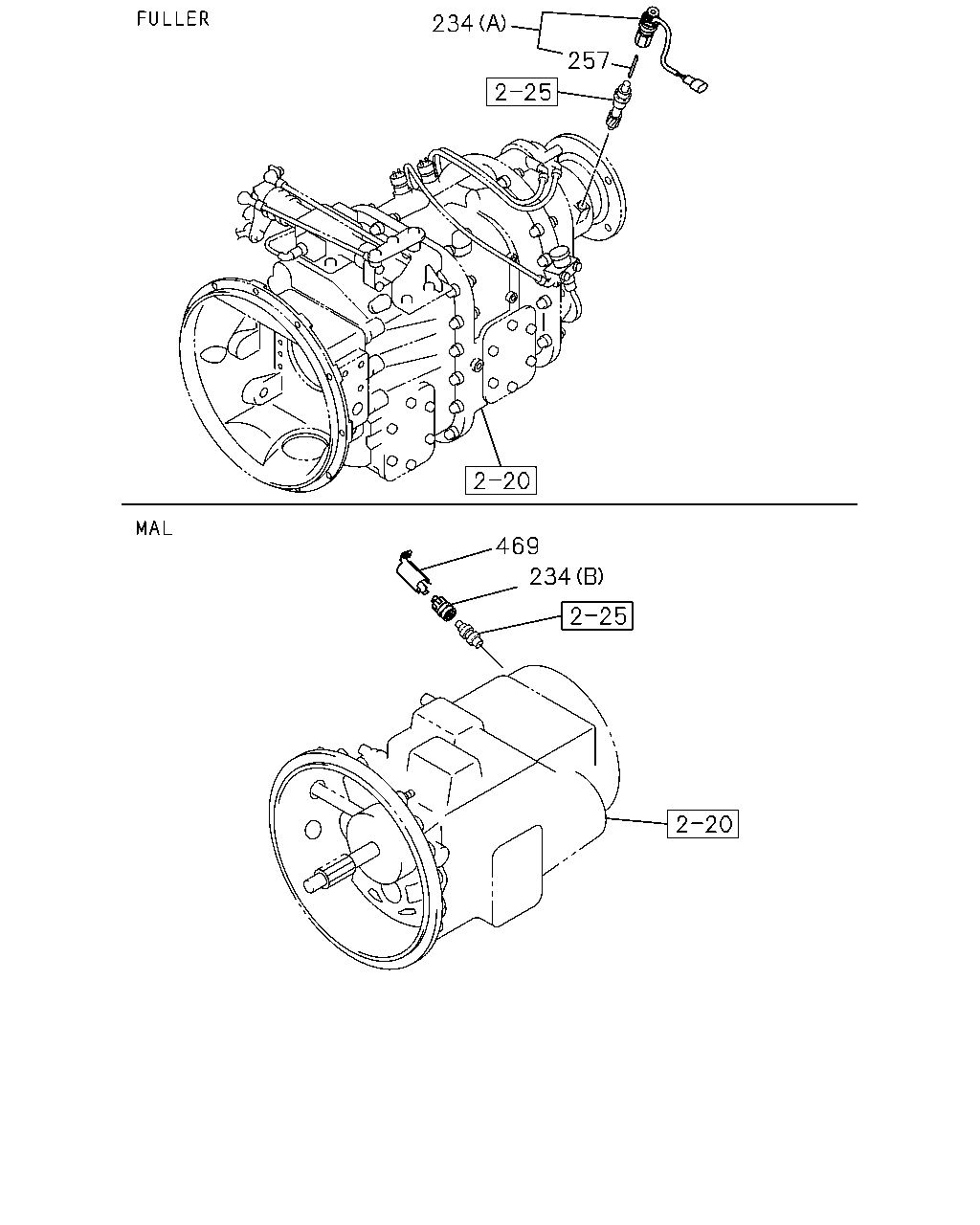

çizim 161749
234 257 469 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTO11908(Y5L) (A) 25 PULSE 		1-83127-414-1 01 1 0801- ● ●
234 SENSOR; VEHICLE SPD
MAL6R M/T(Y2J) (B) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0801- ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-83129-073-0 01 1 0801- ● ●
469 PROTECTOR; SPEED SENSOR
MAL6R M/T(Y2J) 		8-97168-308-0 01 1 0801-0808 ●
469 PROTECTOR; SPEED SENSOR
MAL6R M/T(Y2J) 		8-98119-901-0 01 1 0809- ●

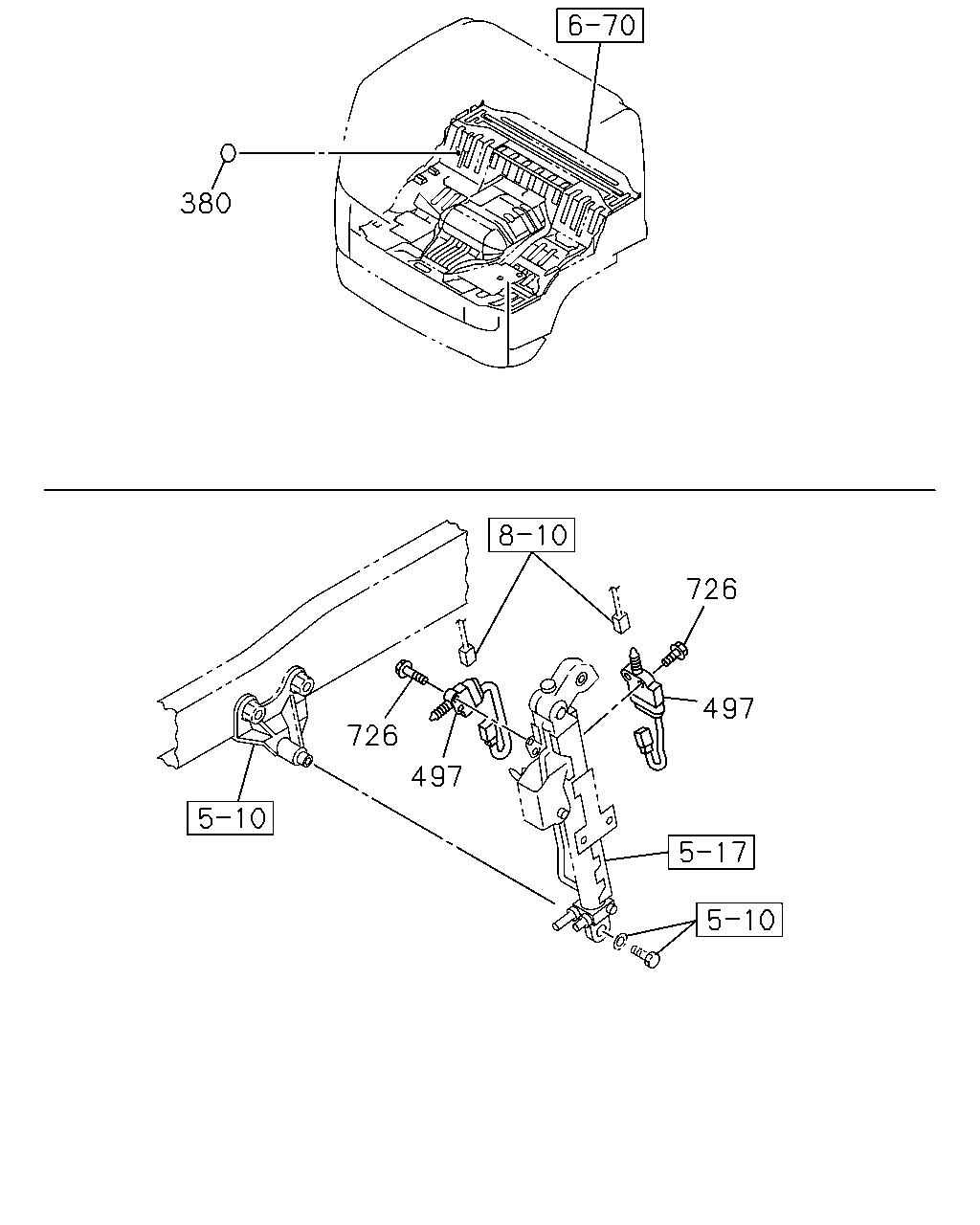

çizim 161751
380 726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0801- ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0801- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0801- ● ●

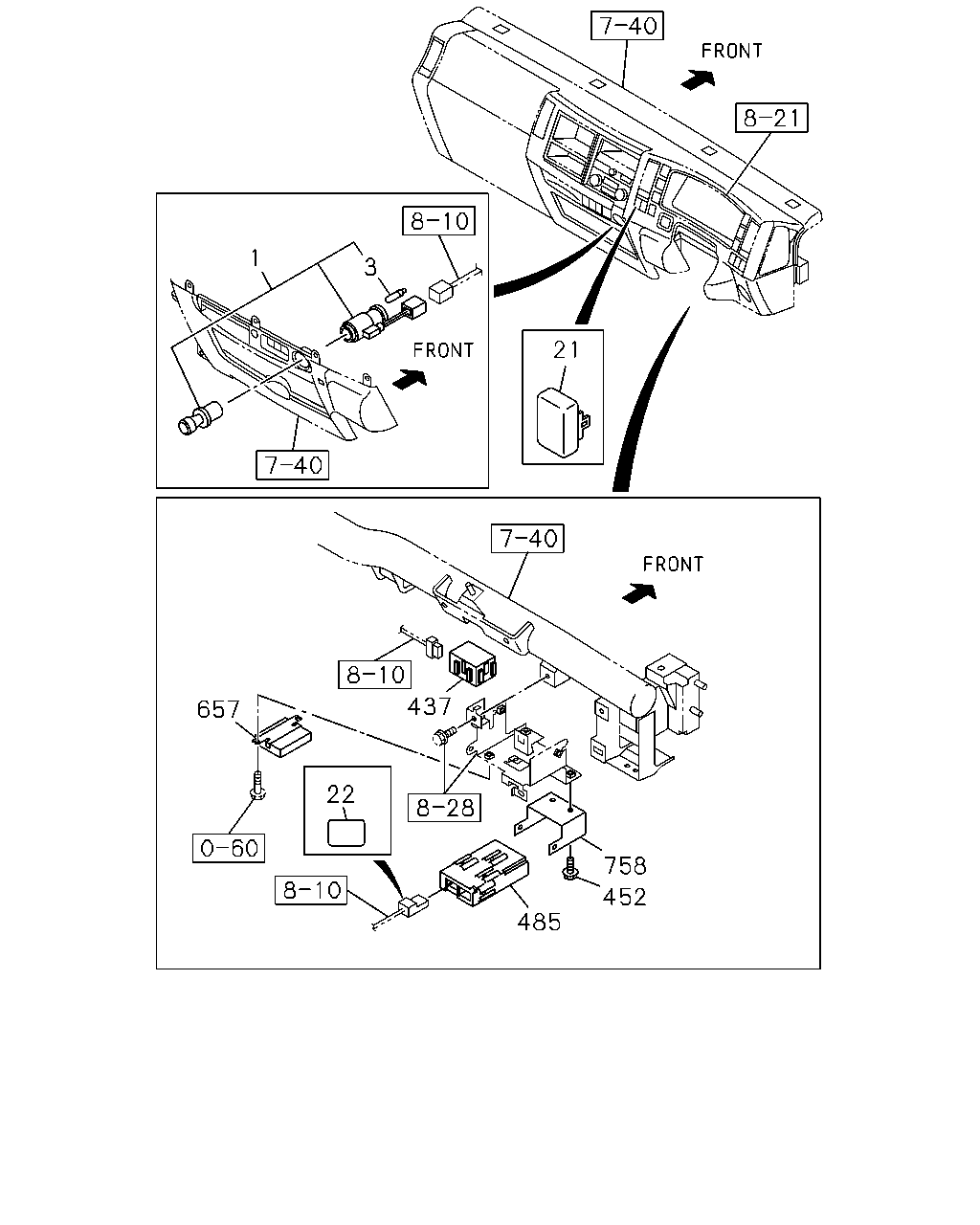

çizim 161925
1 3 21 437 758 452 485 22 657
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0801- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0801- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0801- ● ●
22 SEAL; TAPE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-80199-006-0 01 1 0801-1212 ●
22 SEAL; TAPE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) SPEED LIMITER 100KM(NMU) 		1-80199-006-0 01 1 0801-1212 ●
22 SEAL; TAPE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98166-639-0 01 1 1301- ●
22 SEAL; TAPE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) SPEED LIMITER 100KM(NMU) 		8-98166-639-0 01 1 1301- ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0801- ● ●
452 BOLT; BRKT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M6X16 FLANGE 		0-28650-616-0 02 1 0801- ●
452 BOLT; BRKT
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 02 1 0801- ●
452 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) SPEED LIMITER 100KM(NMU) M6X16 FLANGE 		0-28650-616-0 02 1 0801- ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1310 M/T(Y5K) 		1-80190-063-0 01 1 0801- ● ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-80190-059-1 01 1 0801-1008 ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) SPEED LIMITER 100KM(NMU) 		1-80190-059-1 01 1 0801-1008 ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98140-862-0 01 1 1009-1109 ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) SPEED LIMITER 100KM(NMU) 		8-98140-862-0 01 1 1009-1109 ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-80190-059-1 01 1 1110- ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) SPEED LIMITER 100KM(NMU) 		1-80190-059-1 01 1 1110- ●
657 CONTROL UNIT; MIMAMORI
EURO3 SPECIFICATION<NJX> 		8-98013-144-8 01 1 0801-1401 ●
657 CONTROL UNIT; MIMAMORI
EURO3 SPECIFICATION<NJX> 		8-98260-912-0 01 1 1402- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98048-743-1 01 1 0801- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1310 M/T(Y5K) 		8-98048-743-1 01 1 0801- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) SPEED LIMITER 100KM(NMU) 		8-98048-743-1 01 1 0801- ●

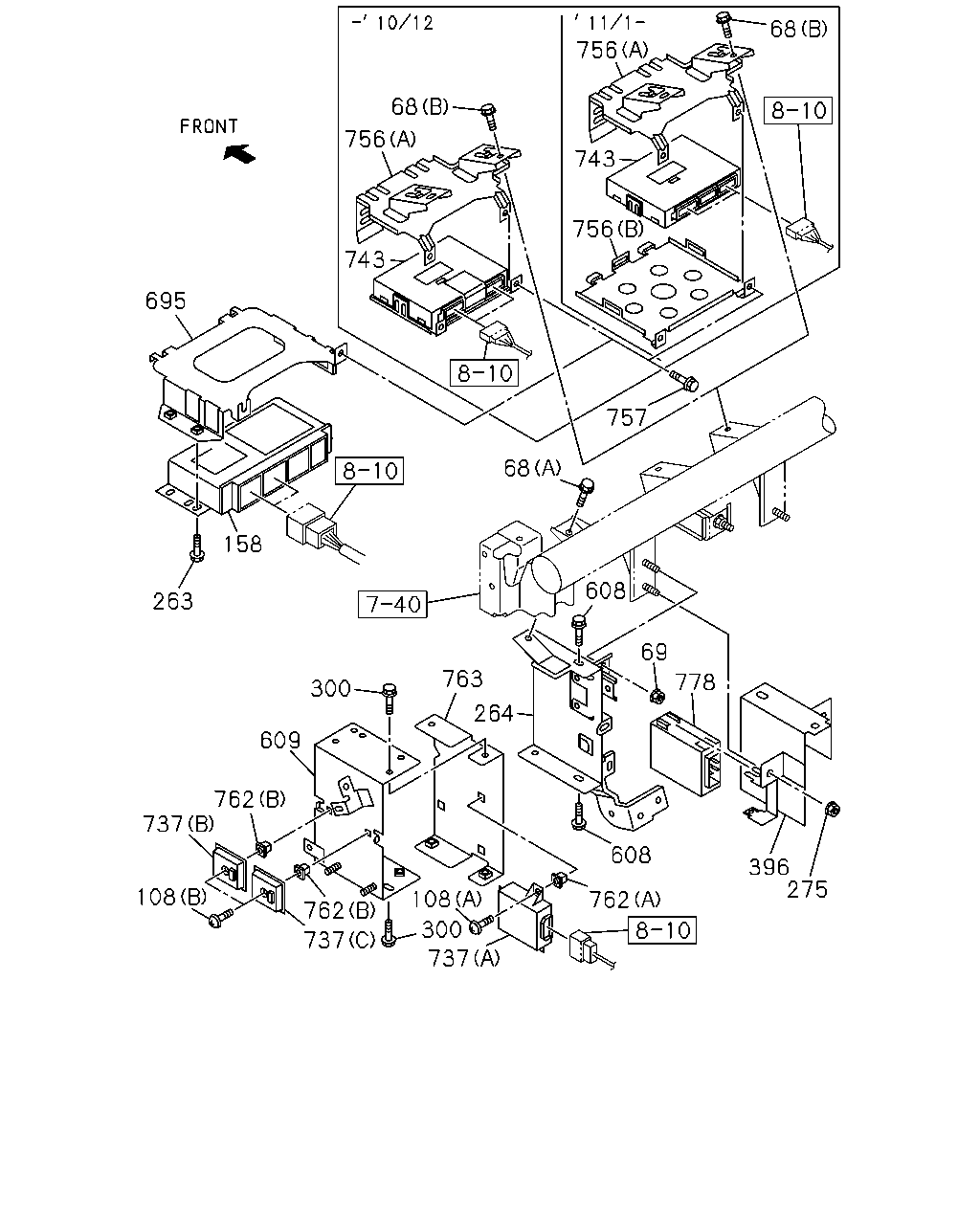

çizim 161934
68 756 68 756 743 756 743 695 757 68 158 608 263 69 763 778 300 264 609 762 737 608 396 275 108 108 762 762 300 737 737
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0801- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0801- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0801- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0801- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) M4X25 TAPPING 		0-74160-425-0 02 1 0801- ● ●
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 0801-1201 ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 0801-1201 ●
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202- ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202- ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-229-2 01 1 0801-1201 ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-647-0 01 1 1202- ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 0801- ● ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 0801- ● ●
275 NUT; BRKT
AUTO CRUISE<K30> M6 FLANGE 		0-91180-106-0 02 1 0801- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 04 1 0801- ● ●
396 BRACKET
AUTO CRUISE<K30> 		8-98084-467-4 01 1 0801- ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 0801- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98095-337-0 01 1 0801-1308 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-1 01 1 1309- ● ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 0801- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) 		1-80111-271-0 01 1 0801- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) 		8-98095-040-0 01 1 0801- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) 		8-98095-041-0 01 1 0801- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0801-0802 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98102-484-0 01 1 0803-0901 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0902-1005 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1006-1007 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 0801- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 0801- ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 0801- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 0801- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0801- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0801- ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98085-587-0 01 1 0801- ● ●
778 MODULE; CRUISE CONT
AUTO CRUISE<K30> 		8-97620-055-0 01 1 0801- ● ●
