8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#40330) — 163 parça

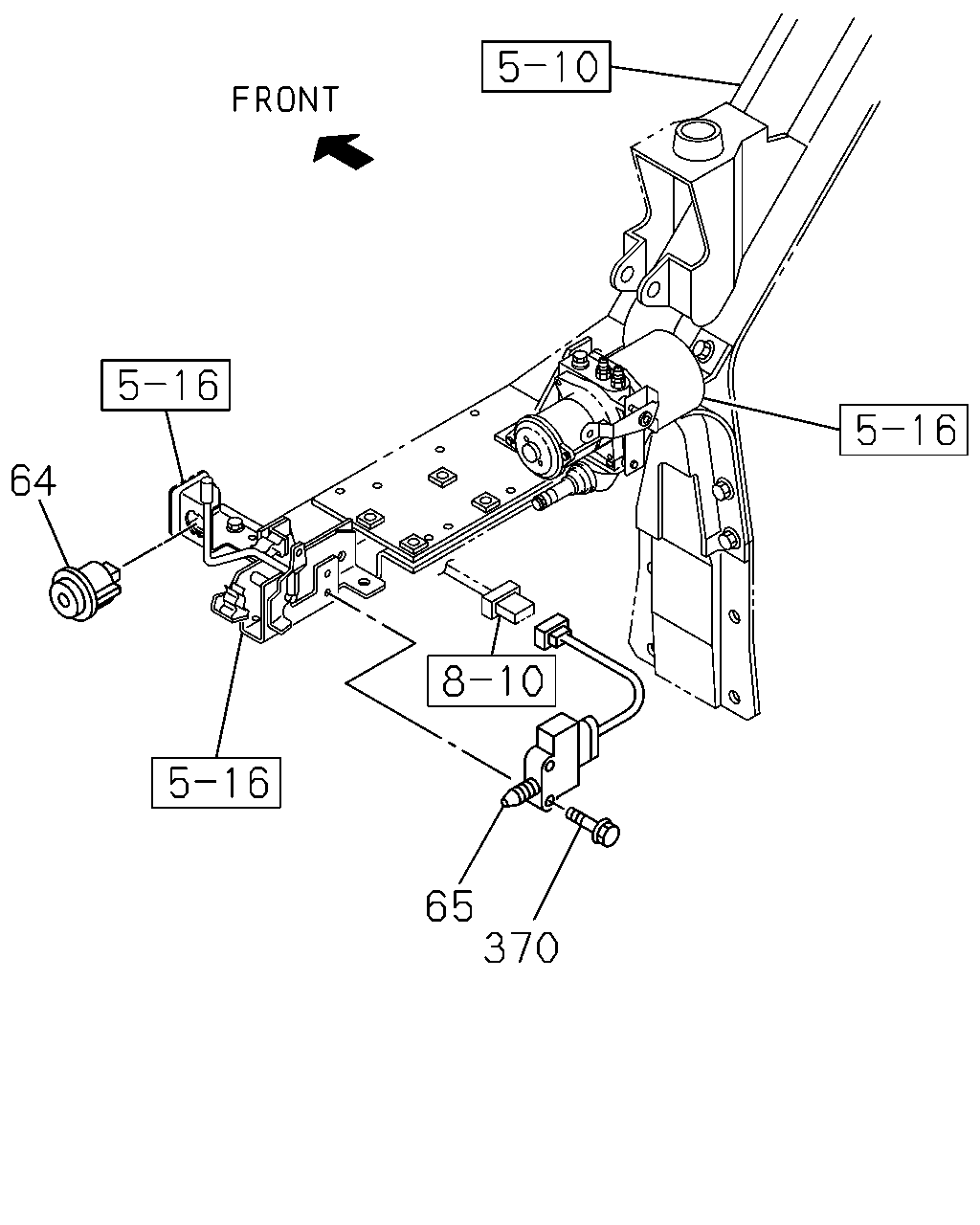

çizim 161748
64 65 370
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 0801- ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 0801- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 0801- ● ●
çizim 161754
237 236 482 666 667 397
BalonParca AdiParca NoAdetTipApplied Date A B
236 BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47476-200-0 02 1 0801- ●
236 BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47476-200-0 01 1 0801- ●
237 NUT
ANTILOCK BRAKE SYSTEM(BFA) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91180-108-0 02 1 0806- ●
237 NUT
M8 FLANGE 		0-91180-108-0 04 1 0801- ● ●
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ●
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 0801- ●
482 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 02 1 0801- ●
482 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 01 1 0801- ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 04 1 0801- ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 01 1 0801- ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28650-820-0 04 1 0806- ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 04 1 0801-0805 ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28650-820-0 02 1 0806- ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 0801- ●

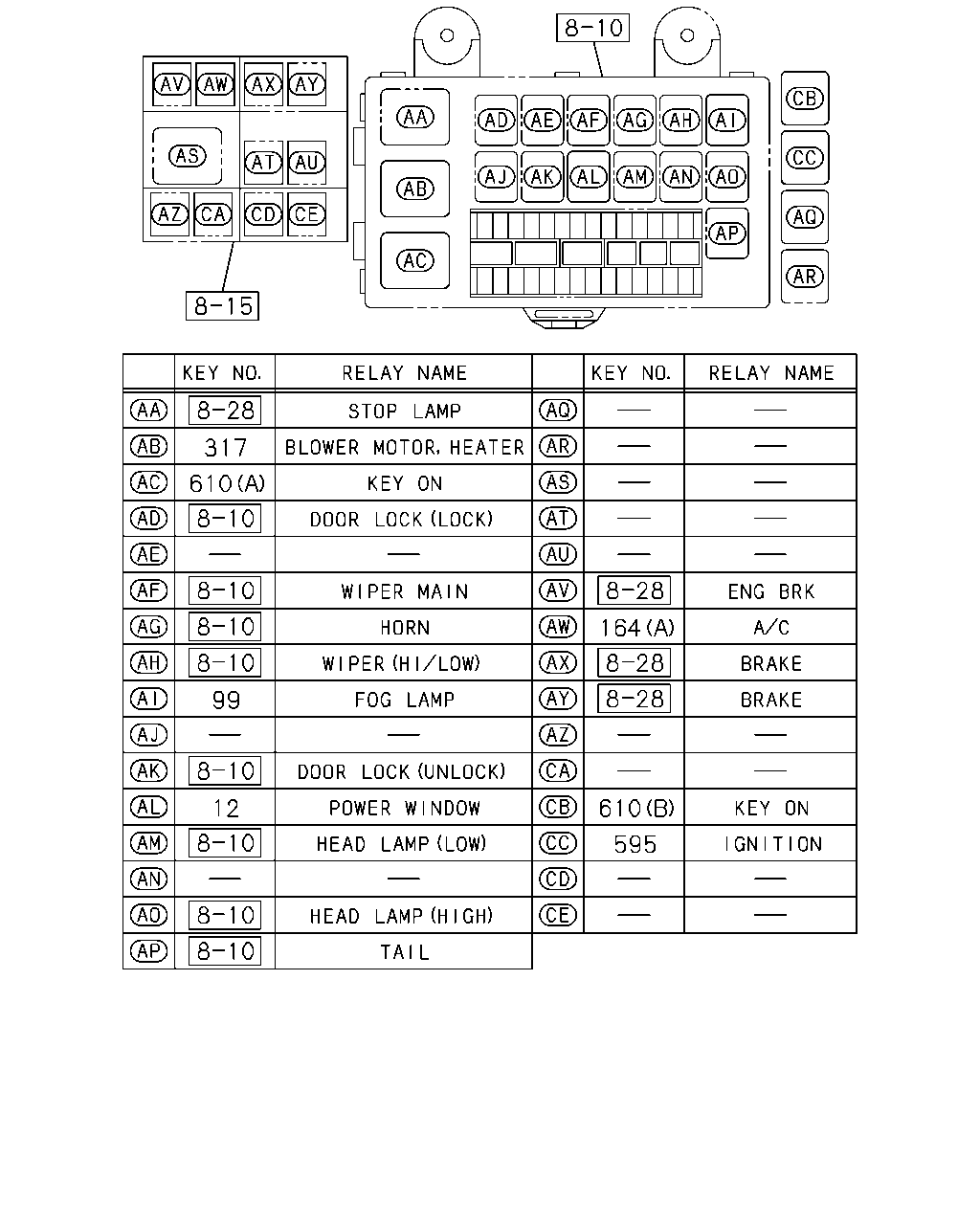

çizim 161916
317 610 99 12 164 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0801- ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0801- ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 0801- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0801-0901 ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0902- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0902- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801-0901 ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0902- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0902- ●
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801- ● ●
595 RELAY; IGNITION
WEST MALAYSIA EQUIPMENT(SEQ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1208- ●
610 RELAY; KEY ON
WEST MALAYSIA EQUIPMENT(SEQ) (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1208- ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801- ● ●
çizim 161926
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0801-0901 ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0902- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0902- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801-0901 ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0902- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0902- ●

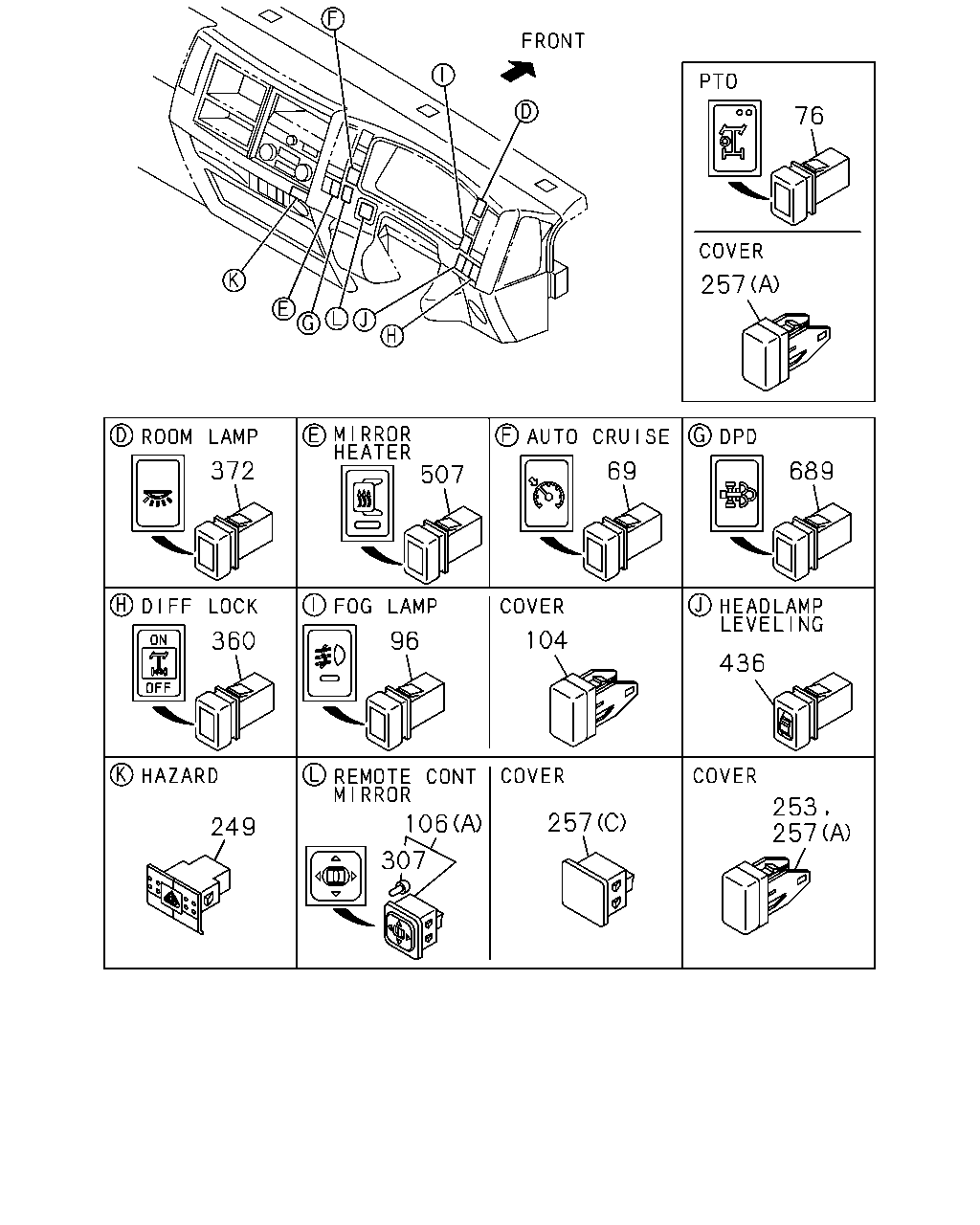

çizim 161955
76 257 689 436 253 257 257 106 307 249 360 372 507 69 104 96
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 0801- ● ●
76 SWITCH ASM; PTO 8-97386-993-4 01 1 1005- ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0801- ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 0801- ● ●
106 SWITCH; REMOTE CONT MIRROR
(B) 		1-82350-223-0 02 1 0801- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B) 		1-82350-223-0 02 1 0801- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97173-294-1 01 1 0801- ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 0801- ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 0801- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 0801- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 0801-1101 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 03 1 1102- ● ●
257 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98025-954-1 01 1 0801-0808 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0801-0808 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 0801-0808 ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 0801-0808 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 0801-0808 ●
257 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98025-954-1 01 1 0809-0901 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 0809-0901 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0809-0901 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 0809-0901 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 0809-0901 ●
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A) 		8-98025-954-1 01 1 0809-0901 ●
257 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98025-954-1 01 1 0902-1101 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 0902-1101 ● ●
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A) 		8-98025-954-1 01 1 0902-1101 ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 0902-1101 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 0902-1101 ●
257 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98025-954-1 01 1 1102- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1102- ● ●
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A) 		8-98025-954-1 01 1 1102- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1102- ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 1102- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 1102- ●
257 COVER; HOLE,SW
(B) 		8-97619-254-1 02 1 0801- ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97619-254-1 02 1 0801- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98029-914-1 01 1 0801-0801 ●
257 COVER; HOLE,SW
(C) 		8-98029-914-1 01 1 0802- ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (C) 		8-98029-914-1 01 1 0802- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98029-914-1 01 1 0802- ●
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<6NF> (D) 		8-98029-917-0 01 1 0801- ●
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 		8-98226-896-0 01 1 0801- ●
360 SWITCH ASM; DIFF LK
DIFF LOCK<C3N> 		8-97613-963-1 01 1 0809-0901 ●
360 SWITCH ASM; DIFF LK
DIFF LOCK<C3N> 		8-97613-963-2 01 1 0902- ● ●
360 SWITCH ASM; DIFF LK 8-97613-964-1 01 1 0801- ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 0801- ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 0801- ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 0801- ● ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 0801- ●
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 0801- ●
689 SWITCH; DPD
CATALYSIS CONTROL WITH DPD<8JM> 		8-97386-921-2 01 1 0801- ● ●

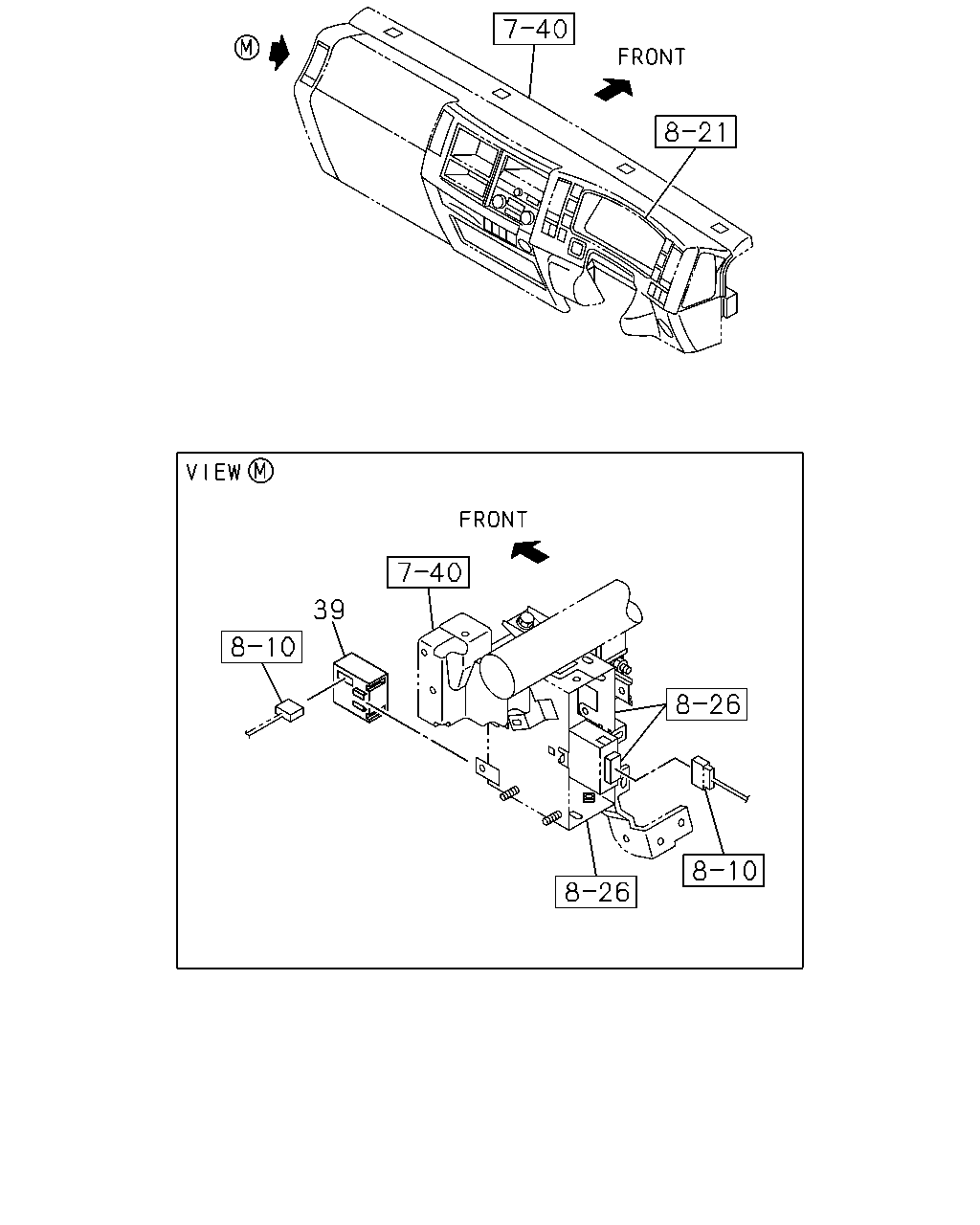

çizim 161965
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0801- ●

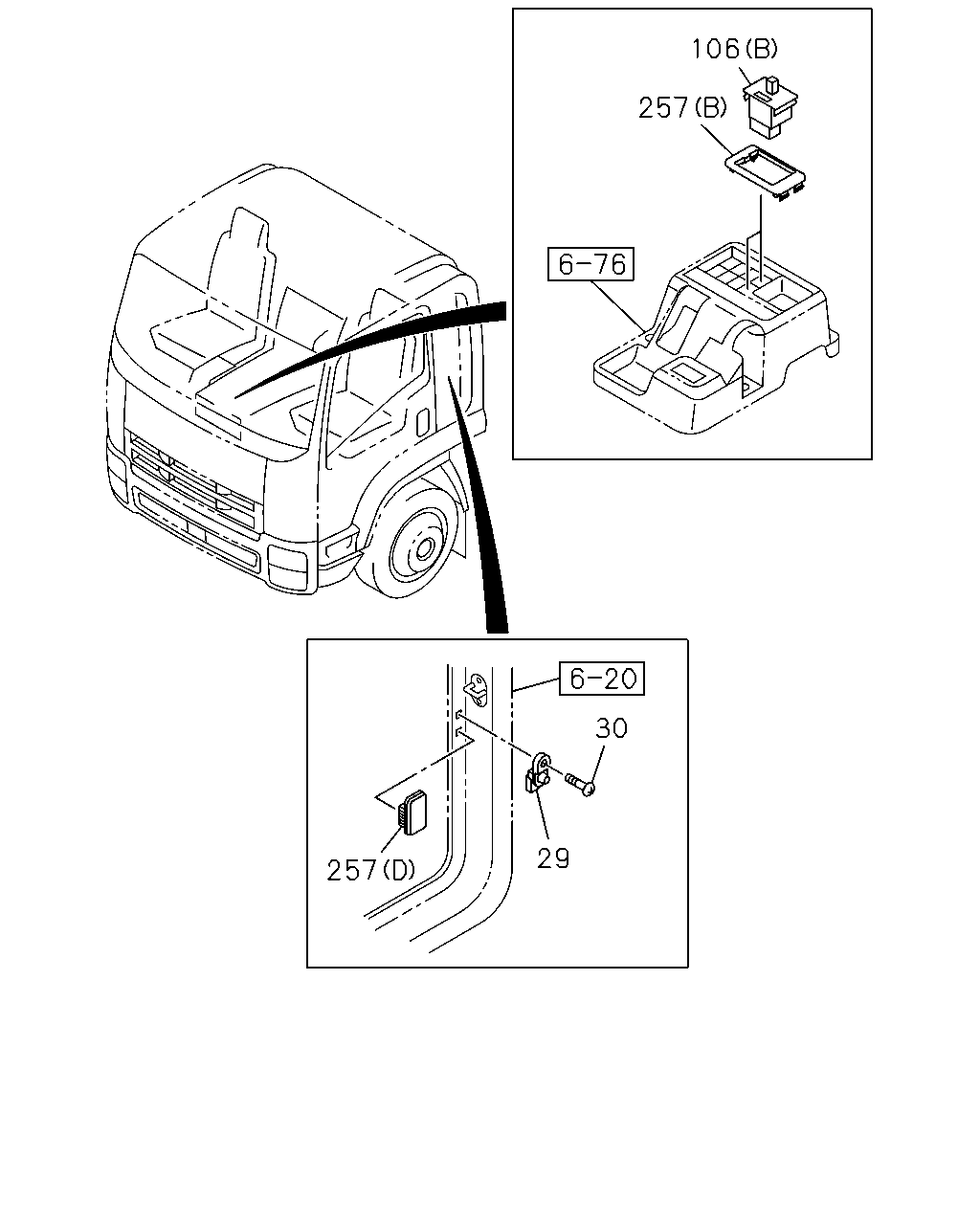

çizim 161992
106 257 30 29 257
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0801- ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0801- ●
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> BLACK 		8-98022-211-0 01 1 0801- ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0801- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0801- ●
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 0801- ●
106 SWITCH; REMOTE CONT MIRROR
(B) 		1-82350-223-0 02 1 0801- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B) 		1-82350-223-0 02 1 0801- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97173-294-1 01 1 0801- ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 0801-1101 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 03 1 1102- ● ●
257 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98025-954-1 01 1 0801-0808 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0801-0808 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 0801-0808 ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 0801-0808 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 0801-0808 ●
257 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98025-954-1 01 1 0809-0901 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 0809-0901 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0809-0901 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 0809-0901 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 0809-0901 ●
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A) 		8-98025-954-1 01 1 0809-0901 ●
257 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98025-954-1 01 1 0902-1101 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 0902-1101 ● ●
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A) 		8-98025-954-1 01 1 0902-1101 ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 0902-1101 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 0902-1101 ●
257 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98025-954-1 01 1 1102- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1102- ● ●
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A) 		8-98025-954-1 01 1 1102- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1102- ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A) 		8-98025-954-1 01 1 1102- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 1102- ●
257 COVER; HOLE,SW
(B) 		8-97619-254-1 02 1 0801- ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97619-254-1 02 1 0801- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98029-914-1 01 1 0801-0801 ●
257 COVER; HOLE,SW
(C) 		8-98029-914-1 01 1 0802- ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (C) 		8-98029-914-1 01 1 0802- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98029-914-1 01 1 0802- ●
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<6NF> (D) 		8-98029-917-0 01 1 0801- ●

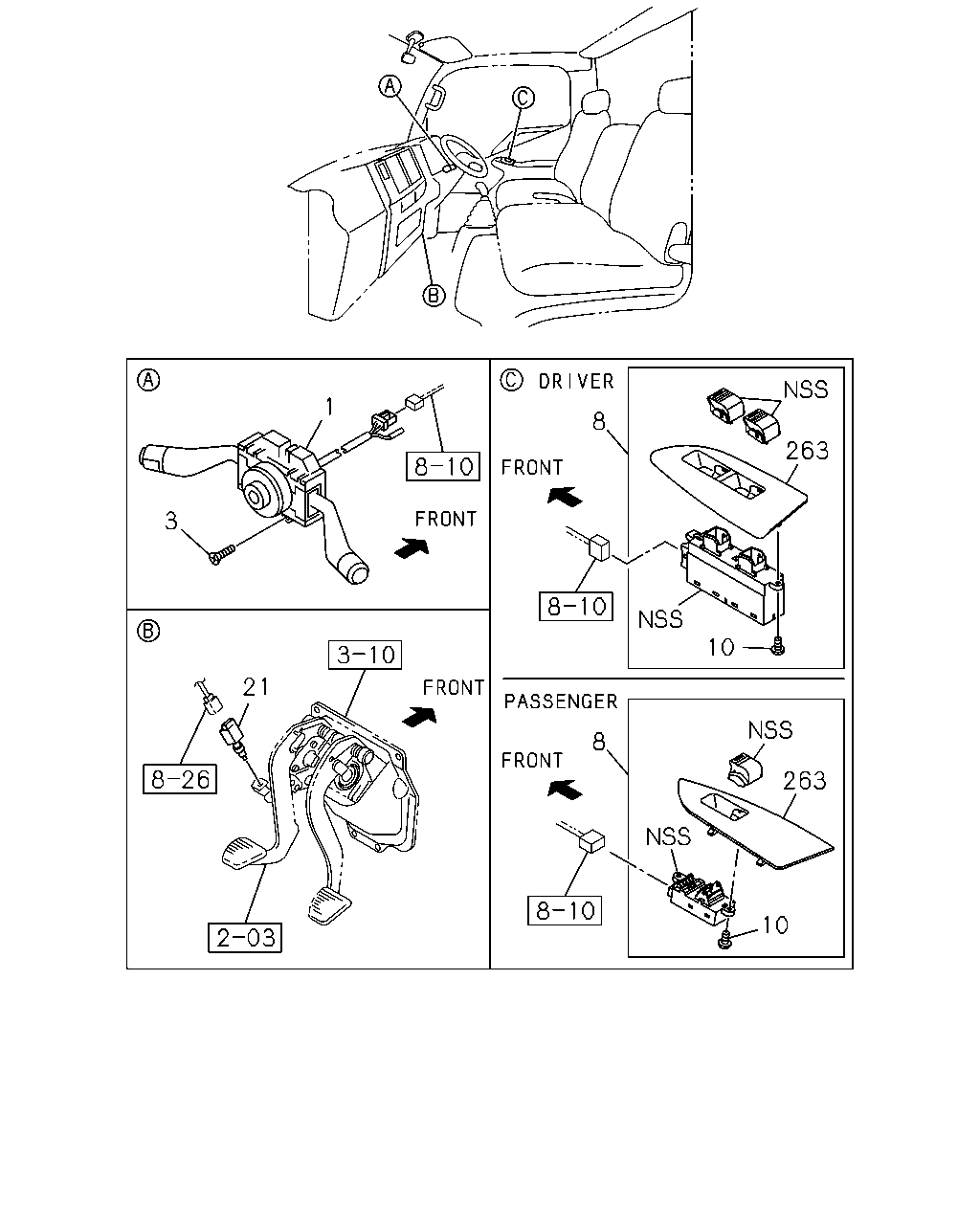

çizim 161998
1 8 263 3 10 21 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
EXC. AUTO CRUISE<K30> 		8-98064-764-1 01 1 0801-0905 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30> 		8-98064-764-1 01 1 0801-0905 ●
1 SWITCH; COMB
EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 0906-1210 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 0906-1210 ●
1 SWITCH; COMB
EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1211-1310 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1211-1310 ●
1 SWITCH; COMB
EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1311- ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1311- ●
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98064-763-1 01 1 0801-0905 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) AUTO CRUISE<K30> 		8-98064-763-1 01 1 0801-0905 ●
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98146-619-0 01 1 0906-1210 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) AUTO CRUISE<K30> 		8-98146-619-0 01 1 0906-1210 ●
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1310 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1310 ●
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311- ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311- ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3) 		8-98060-302-1 01 1 0801-1101 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AUTO CRUISE<K30> 		8-98060-302-1 01 1 1102-1310 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AUTO CRUISE<K30> 		8-98243-704-0 01 1 1311- ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0801- ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 0801- ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-97387-034-2 01 1 0801- ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98003-785-1 01 1 0801-0809 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98003-785-1 01 1 0801-0809 ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98129-844-0 01 1 0810-1001 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98129-844-0 01 1 0810-1001 ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1002- ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98159-543-0 01 1 1002- ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0801- ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 0801- ●
21 SWITCH; CLU 8-97358-248-0 01 1 0801- ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 0801- ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-836-0 01 1 0801- ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 0801- ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-841-0 01 1 0801- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
