8-21 — METER ASM (#40329) — 69 parça

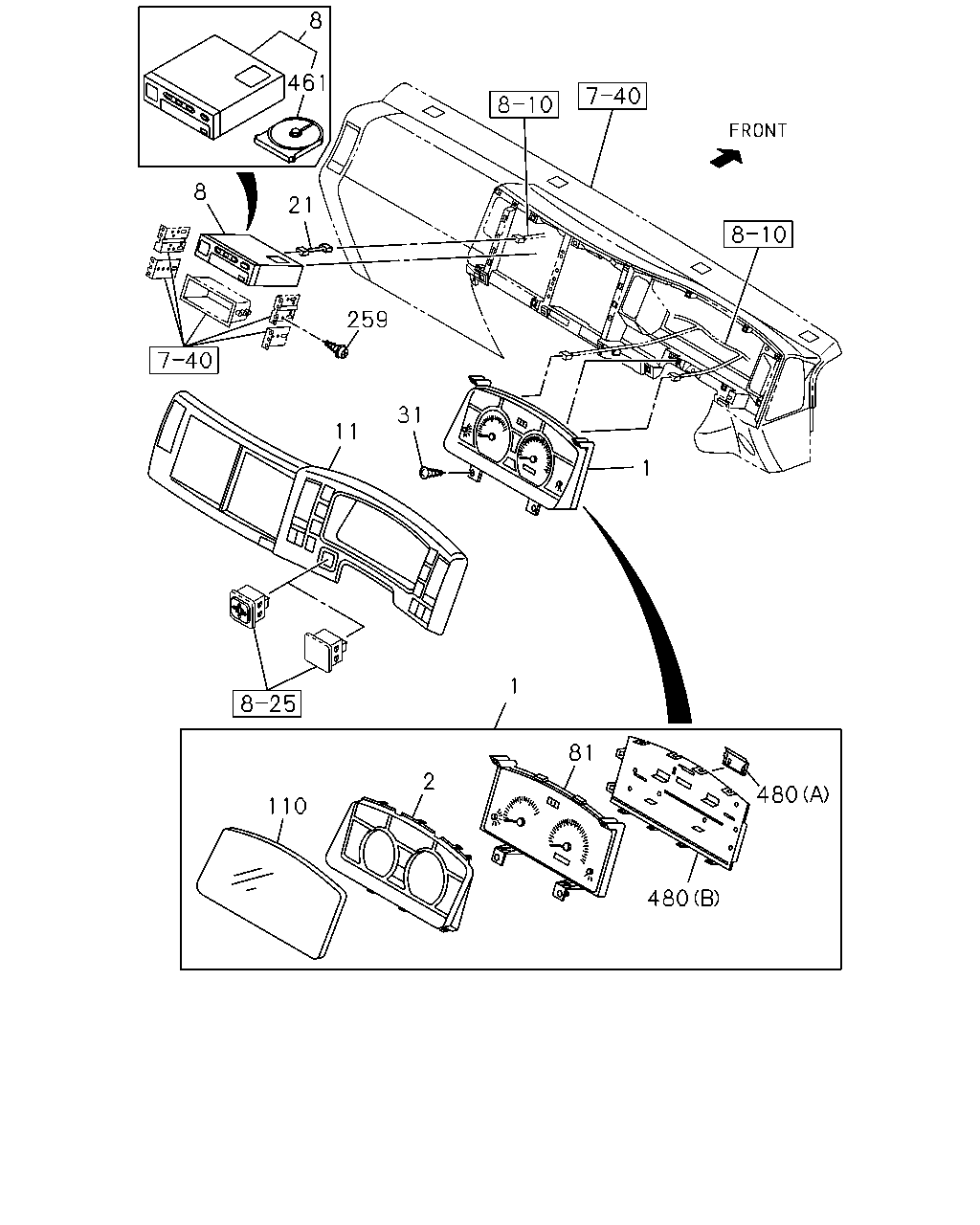

8 461 8 21 259 31 11 1 1 81 2 480 110 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER 6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY>	8-98075-594-5	01	1	0801-1101	●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4>	8-98075-594-5	01	1	0801-1101		●
1	METER COMPL; CLUSTER 6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY>	8-98179-474-1	01	1	1102-	●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4>	8-98179-474-1	01	1	1102-		●
1	METER COMPL; CLUSTER 6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY>	8-98075-591-4	01	1	0801-1101	●
1	METER COMPL; CLUSTER EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY>	8-98075-591-4	01	1	0801-1101		●
1	METER COMPL; CLUSTER 6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-472-2	01	1	1102-	●
1	METER COMPL; CLUSTER EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY>	8-98179-472-2	01	1	1102-		●
1	METER COMPL; CLUSTER ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY>	8-98075-596-5	01	1	0801-1101		●
1	METER COMPL; CLUSTER ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY>	8-98179-475-1	01	1	1102-		●
1	METER COMPL; CLUSTER ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98075-593-5	01	1	0801-1101		●
1	METER COMPL; CLUSTER ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-473-2	01	1	1102-		●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0801-	●	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	0808-		●
11	CLUSTER ASM; METER TACHOGRAPH DIGITAL<EBB> DARK GRAY	8-97414-681-1	01	1	0801-0905	●	●
11	CLUSTER ASM; METER EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY	8-97405-350-6	01	1	0801-0905	●	●
11	CLUSTER ASM; METER DARK GRAY	8-97405-350-6	01	1	0906-	●	●
21	HARNESS; TACHOGRAPH TACHOGRAPH DIGITAL<EBB>	8-98074-078-0	01	1	0801-0905	●	●
21	HARNESS; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	8-98074-077-0	01	1	0801-		●
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0801-	●	●
81	METER SUB ASM 6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY>	8-98079-698-0	01	1	0801-1101	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4>	8-98079-698-0	01	1	0801-1101		●
81	METER SUB ASM 6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY>	8-98179-482-0	01	1	1102-	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4>	8-98179-482-0	01	1	1102-		●
81	METER SUB ASM 6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY>	8-98079-684-0	01	1	0801-1101	●
81	METER SUB ASM EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY>	8-98079-684-0	01	1	0801-1101		●
81	METER SUB ASM 6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-480-0	01	1	1102-	●
81	METER SUB ASM EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY>	8-98179-480-0	01	1	1102-		●
81	METER SUB ASM ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY>	8-98079-700-0	01	1	0801-1101		●
81	METER SUB ASM ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY>	8-98179-483-0	01	1	1102-		●
81	METER SUB ASM ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98079-685-0	01	1	0801-1101		●
81	METER SUB ASM ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-481-0	01	1	1102-		●
110	GLASS; CLUSTER METER MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0801-	●	●
110	GLASS; CLUSTER METER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98054-431-0	01	1	0801-	●	●
259	SCREW; TACHOGRAPH TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0808-		●
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	0808-		●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	0801-	●	●
480	COVER; METER MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0801-	●	●

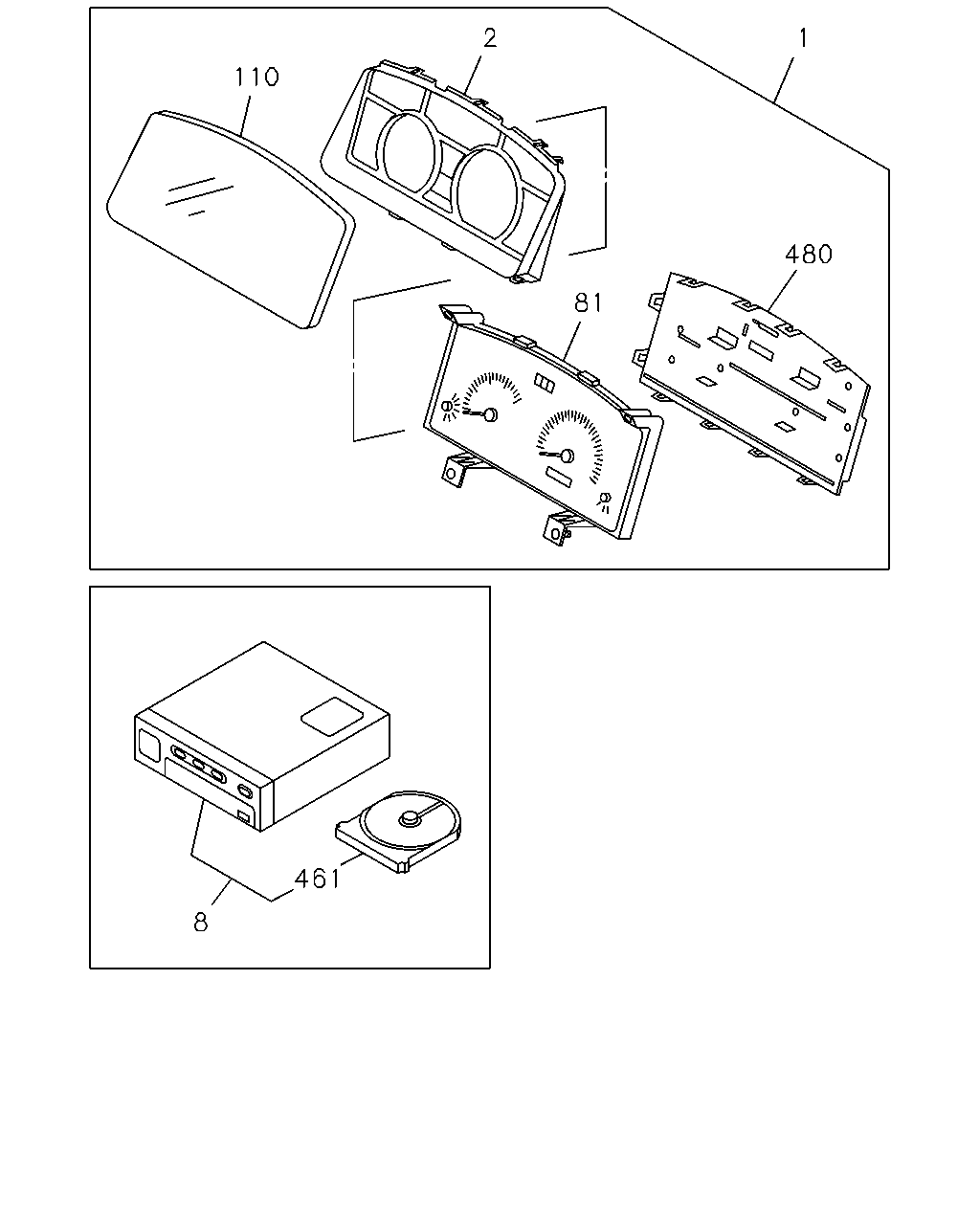

2 1 110 480 81 461 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER 6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY>	8-98075-594-5	01	1	0801-1101	●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4>	8-98075-594-5	01	1	0801-1101		●
1	METER COMPL; CLUSTER 6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY>	8-98179-474-1	01	1	1102-	●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4>	8-98179-474-1	01	1	1102-		●
1	METER COMPL; CLUSTER 6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY>	8-98075-591-4	01	1	0801-1101	●
1	METER COMPL; CLUSTER EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY>	8-98075-591-4	01	1	0801-1101		●
1	METER COMPL; CLUSTER 6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-472-2	01	1	1102-	●
1	METER COMPL; CLUSTER EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY>	8-98179-472-2	01	1	1102-		●
1	METER COMPL; CLUSTER ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY>	8-98075-596-5	01	1	0801-1101		●
1	METER COMPL; CLUSTER ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY>	8-98179-475-1	01	1	1102-		●
1	METER COMPL; CLUSTER ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98075-593-5	01	1	0801-1101		●
1	METER COMPL; CLUSTER ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-473-2	01	1	1102-		●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0801-	●	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	0808-		●
81	METER SUB ASM 6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY>	8-98079-698-0	01	1	0801-1101	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4>	8-98079-698-0	01	1	0801-1101		●
81	METER SUB ASM 6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY>	8-98179-482-0	01	1	1102-	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4>	8-98179-482-0	01	1	1102-		●
81	METER SUB ASM 6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY>	8-98079-684-0	01	1	0801-1101	●
81	METER SUB ASM EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY>	8-98079-684-0	01	1	0801-1101		●
81	METER SUB ASM 6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-480-0	01	1	1102-	●
81	METER SUB ASM EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY>	8-98179-480-0	01	1	1102-		●
81	METER SUB ASM ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY>	8-98079-700-0	01	1	0801-1101		●
81	METER SUB ASM ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY>	8-98179-483-0	01	1	1102-		●
81	METER SUB ASM ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98079-685-0	01	1	0801-1101		●
81	METER SUB ASM ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-481-0	01	1	1102-		●
110	GLASS; CLUSTER METER MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0801-	●	●
110	GLASS; CLUSTER METER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98054-431-0	01	1	0801-	●	●
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	0808-		●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	0801-	●	●
480	COVER; METER MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0801-	●	●
