◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶

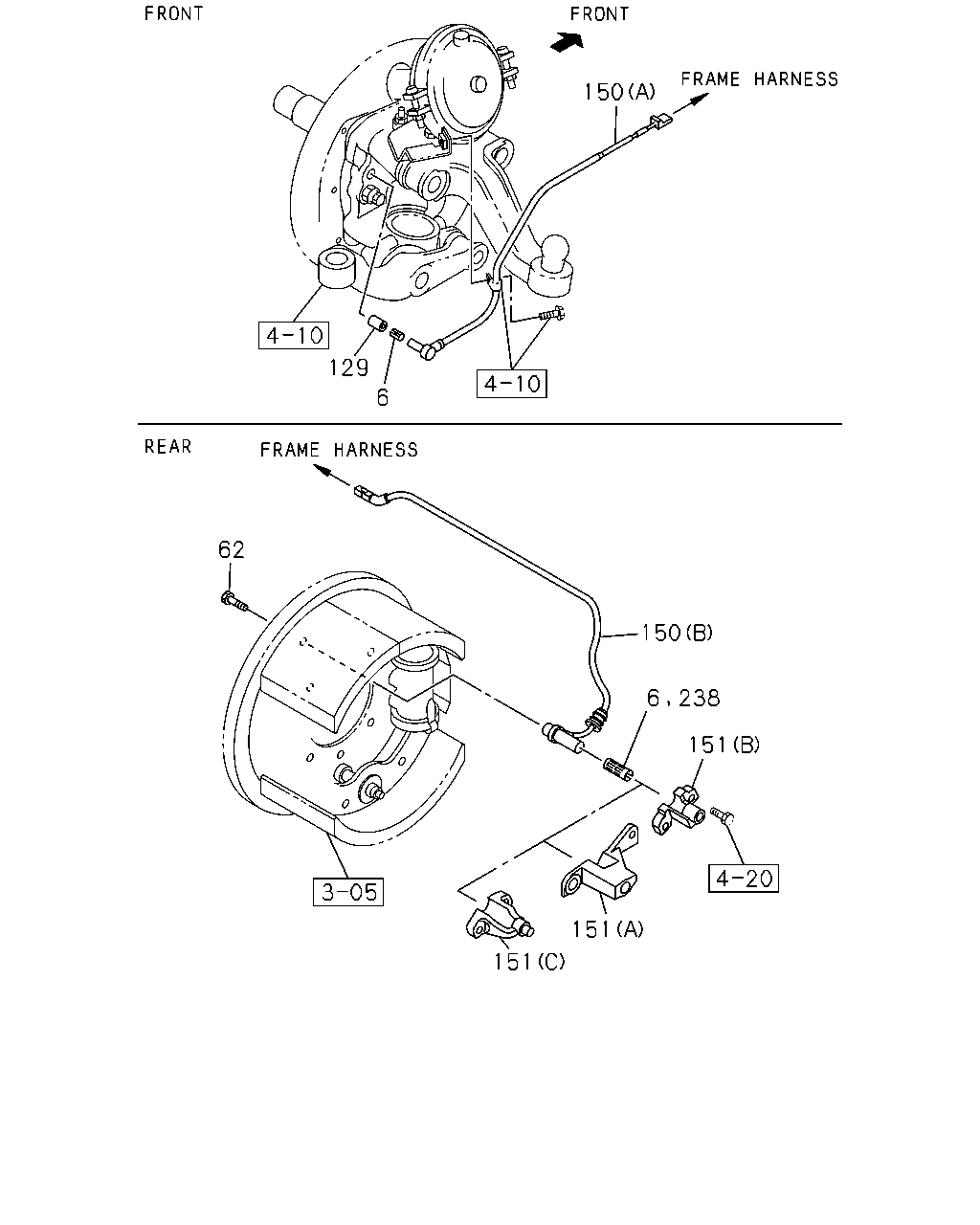

8-20 — METER CABLE (#40328) — 28 parça

150 129 6 62 150 6 238 151 151 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-83129-260-1	02	1	0801-	●
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA)	1-83129-260-1	02	1	0801-	●
62	BOLT; SENSOR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M8X16	9-05820-816-0	02	1	0801-1506	●
62	BOLT; SENSOR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M8X16 HEX SOCKET	0-58330-816-0	02	1	1507-	●
129	COLLAR ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-83129-471-0	02	1	0801-	●
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98076-288-1	01	1	0801-		●
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98076-289-1	01	1	0801-		●
150	SENSOR; SPEED,ABS (A)	1-83227-037-1	02	1	0801-		●
150	SENSOR; SPEED,ABS FRONT AXLE MERITOR FG941(BFL) (A)	1-83227-037-1	02	1	0801-	●
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A)	1-83127-853-3	02	1	0801-	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-83127-979-0	01	1	0801-0808	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	8-98130-586-0	01	1	0809-	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-83127-980-0	01	1	0801-0808	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	8-98130-587-0	01	1	0809-	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 37/8 15" ROCKWELL(W7F) (B)	8-98089-381-0	01	1	0801-0802	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 37/8 15" ROCKWELL(W7F) (B)	8-98049-814-0	01	1	0803-	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 37/8 15" ROCKWELL(W7F) (B)	8-98089-382-0	01	1	0801-0802	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 37/8 15" ROCKWELL(W7F) (B)	8-98049-815-0	01	1	0803-	●
151	BRACKET; SPD SENSOR (A)	1-42319-210-0	01	1	0801-1306		●
151	BRACKET; SPD SENSOR FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 37/8 15" ROCKWELL(W7F) (A)	1-42319-210-0	01	1	0801-1306	●
151	BRACKET; SPD SENSOR (A)	1-42319-211-0	01	1	0801-1306		●
151	BRACKET; SPD SENSOR FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 37/8 15" ROCKWELL(W7F) (A)	1-42319-211-0	01	1	0801-1306	●
151	BRACKET; SPD SENSOR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-83129-405-0	01	1	0801-1504	●
151	BRACKET; SPD SENSOR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98299-398-0	01	1	1505-	●
151	BRACKET; SPD SENSOR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-83129-406-0	01	1	0801-1504	●
151	BRACKET; SPD SENSOR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98299-399-0	01	1	1505-	●
238	BUSHING; BRKT	1-42319-213-0	02	1	0801-		●
238	BUSHING; BRKT FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 37/8 15" ROCKWELL(W7F)	1-42319-213-0	02	1	0801-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
