Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#40320) — 369 parça

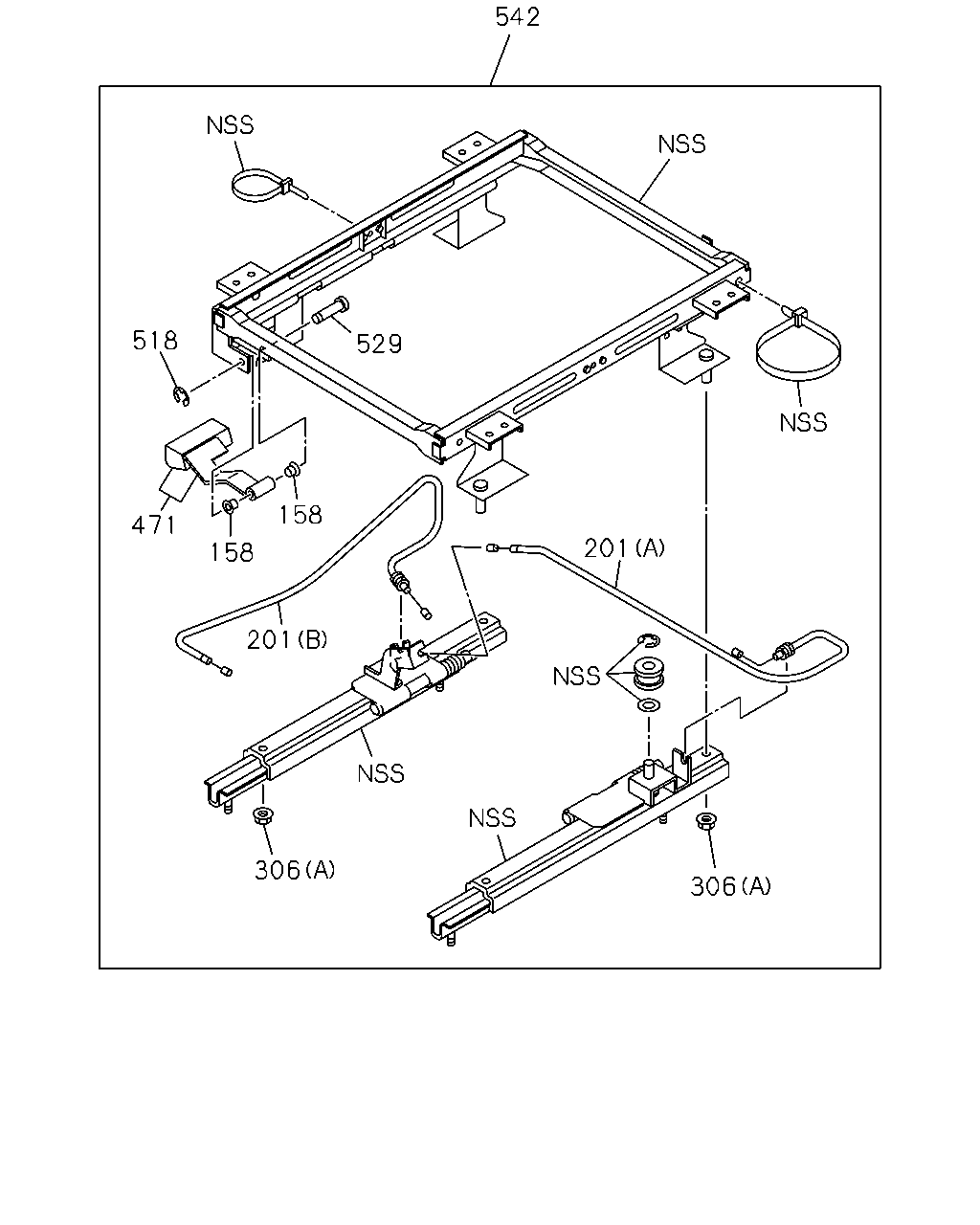

542 529 518 471 158 158 201 201 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST(TAZ)	1-75518-209-0	02	1	0801-	●
201	CABLE; ADJ RIGID SEAT WO/ARM REST(TAZ) (A) L=667	1-75518-288-0	01	1	0801-	●
201	CABLE; ADJ RIGID SEAT WO/ARM REST(TAZ) (B) L=605	1-75518-289-1	01	1	0801-	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	0801-	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0801-	●	●
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ)	8-98107-869-0	01	1	0801-	●
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ)	1-75518-263-0	01	1	0801-	●
529	PIN; LINK RIGID SEAT WO/ARM REST(TAZ)	1-75518-262-0	01	1	0801-	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98093-310-0	01	1	0801-1502	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98291-653-0	01	1	1503-	●

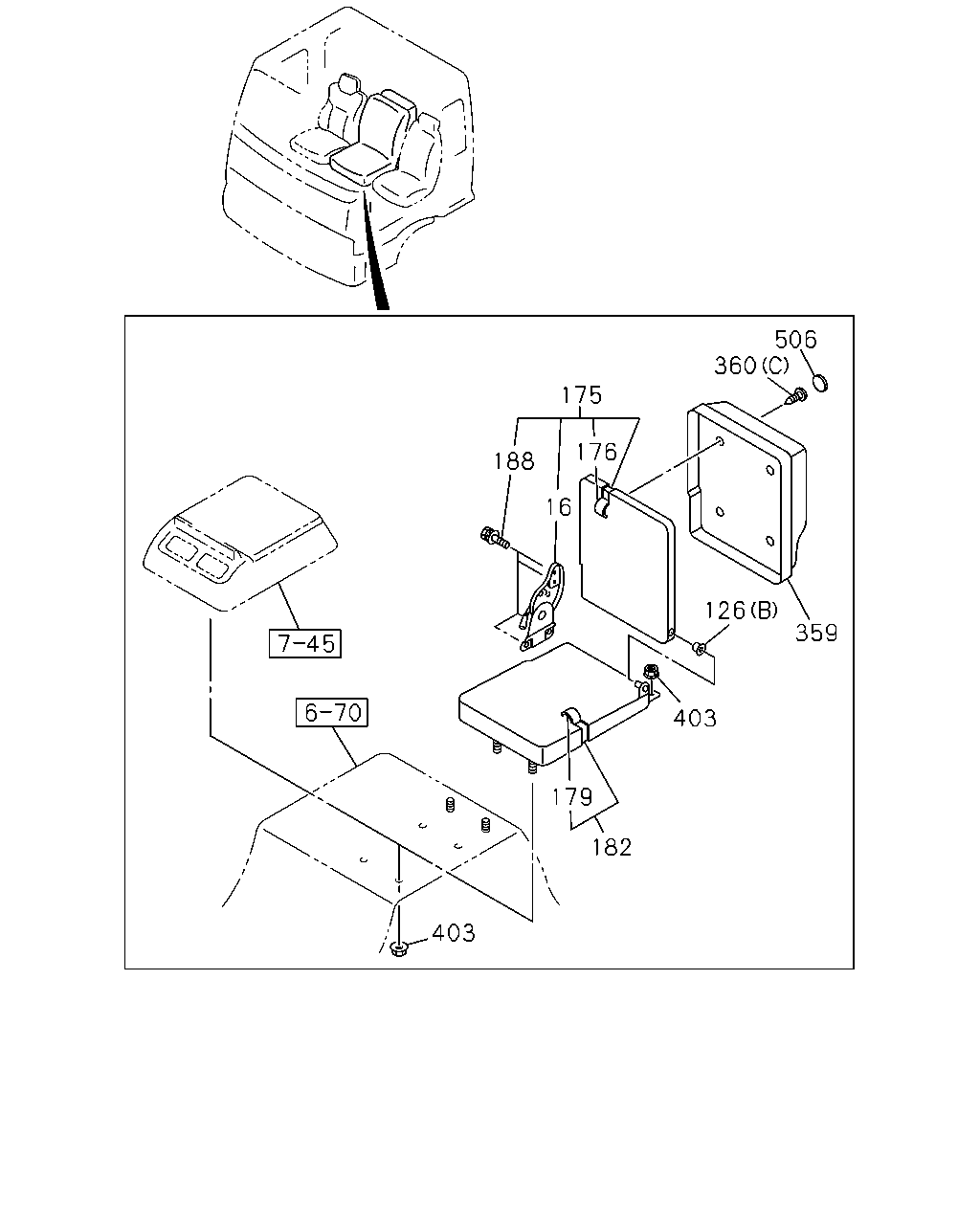

188 176 175 16 126 359 403 182 179 403 360 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING VINYL SEAT(A83) CENTER SEAT(SA1)	1-75418-062-1	01	1	1105-1109	●
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	0801-1104	●	●
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1105-1109		●
16	ADJUSTER ASM; RECLINING DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-75418-062-1	01	1	1105-1109	●
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1110-	●	●
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	0801-1104	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109		●
126	BUSHING; HINGE,RECLINING DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1110-	●	●
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST(TAZ) (A)	8-98063-218-0	01	1	0801-	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) DARK GRAY	8-97409-984-0	01	1	0801-0902		●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97409-984-0	01	1	0801-0902	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) DARK GRAY	8-97416-233-0	01	1	0903-1009		●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97416-233-0	01	1	0903-1009	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) DARK GRAY	8-97421-434-1	01	1	1010-		●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-434-1	01	1	1010-	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-975-1	01	1	0801-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) DARK GRAY	8-97409-985-0	01	1	0801-0902		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97409-985-0	01	1	0801-0902	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) DARK GRAY	8-97416-234-0	01	1	0903-1009		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97416-234-0	01	1	0903-1009	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) DARK GRAY	8-97421-435-1	01	1	1010-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-435-1	01	1	1010-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-976-1	01	1	0801-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-974-1	01	1	1007-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) DARK GRAY	8-97409-983-0	01	1	0801-0902		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97409-983-0	01	1	0801-0902	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) DARK GRAY	8-97416-237-0	01	1	0903-1009		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97416-237-0	01	1	0903-1009	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) DARK GRAY	8-97421-432-1	01	1	1010-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-432-1	01	1	1010-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-974-0	01	1	0801-0909	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) DARK GRAY	8-97409-982-0	01	1	0801-0902		●
182	CUSHION ASM; CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97409-982-0	01	1	0801-0902	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) DARK GRAY	8-97416-235-0	01	1	0903-1009		●
182	CUSHION ASM; CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97416-235-0	01	1	0903-1009	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) DARK GRAY	8-97421-430-3	01	1	1010-		●
182	CUSHION ASM; CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-430-3	01	1	1010-	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-973-3	01	1	0801-	●
188	BOLT; BACK TO CUSHION VINYL SEAT(A83) CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1105-1109	●
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	0801-1104	●	●
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1105-1109		●
188	BOLT; BACK TO CUSHION DELUXE SEAT(PQ8) CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1105-1109	●
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1110-	●	●
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97409-977-2	01	1	0801-1006	●	●
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1007-	●	●
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109	●
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0801-1009	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109		●
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109	●
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	0801-1104	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109		●
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1110-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0801-1110	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1111-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (D) M5X20	9-09829-324-1	02	1	0801-1009	●	●
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	0801-	●	●
506	CAP; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97409-980-1	04	1	0801-1006	●	●
506	CAP; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97409-980-1	02	1	1007-	●	●

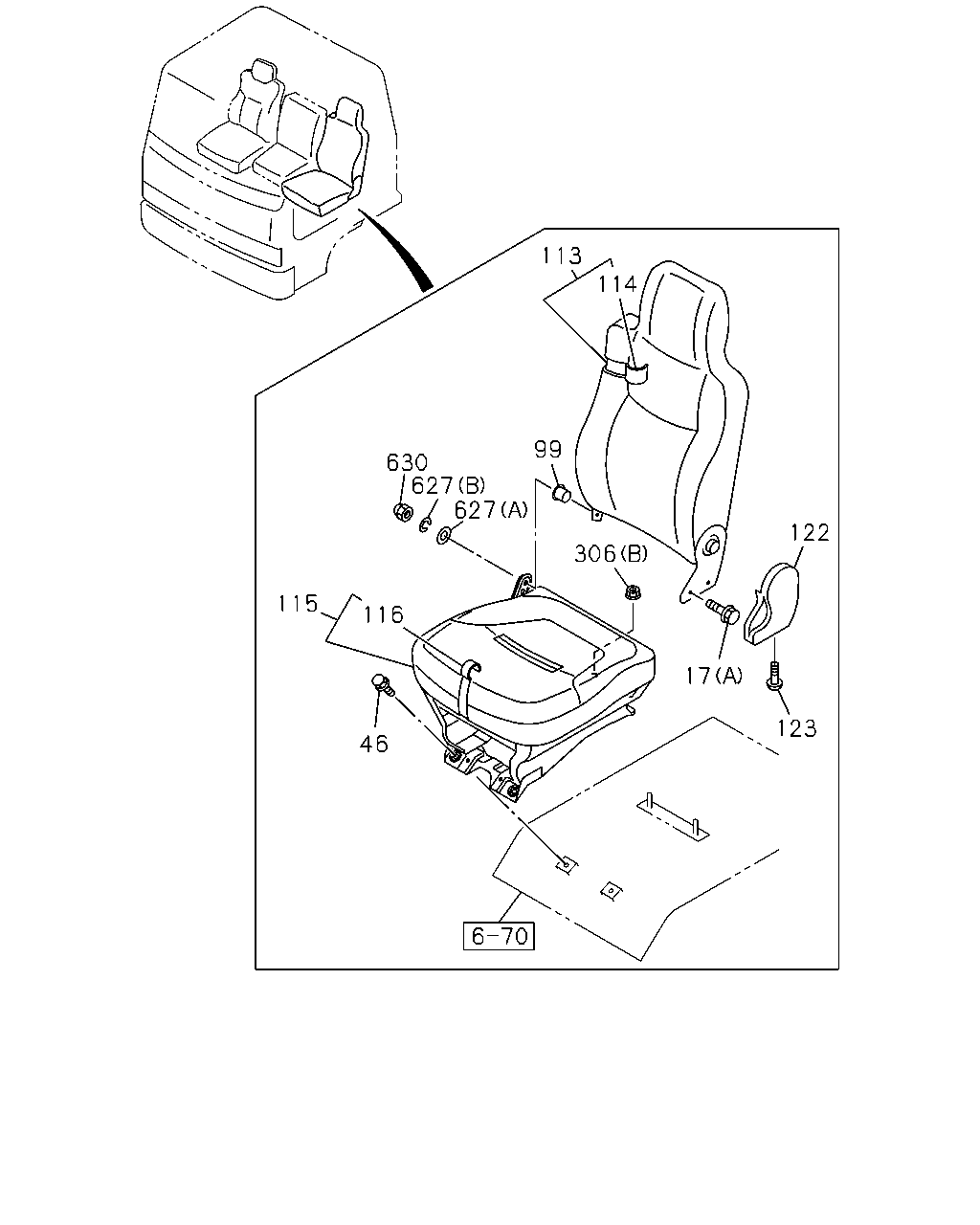

113 114 122 17 123 306 99 630 627 627 116 115 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING (B)	8-98097-974-0	02	1	0801-		●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98097-974-0	02	1	0801-	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0801-	●	●
17	BOLT; RECLINING RIGID SEAT WO/ARM REST(TAZ) (C) M10X20	8-98062-661-0	02	1	0801-	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0801-	●	●
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0801-1009	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-	●	●
113	BACK ASM; SEAT DARK GRAY	8-97409-969-0	01	1	0801-0902		●
113	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97409-969-0	01	1	0801-0902	●
113	BACK ASM; SEAT DARK GRAY	8-97416-221-0	01	1	0903-1009		●
113	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97416-221-0	01	1	0903-1009	●
113	BACK ASM; SEAT DARK GRAY	8-97421-422-0	01	1	1010-		●
113	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-422-0	01	1	1010-	●
113	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-966-1	01	1	0801-	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97411-914-0	01	1	0801-0902		●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97411-914-0	01	1	0801-0902	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97416-223-0	01	1	0903-1009		●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97416-223-0	01	1	0903-1009	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-424-0	01	1	1010-		●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-424-0	01	1	1010-	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-916-0	01	1	0801-	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97409-968-0	01	1	0801-0902		●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97409-968-0	01	1	0801-0902	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-225-0	01	1	0903-1009		●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97416-225-0	01	1	0903-1009	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-418-1	01	1	1010-		●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-418-1	01	1	1010-	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83) DARK GRAY	8-97409-965-1	01	1	0801-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97411-913-0	01	1	0801-0902		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97411-913-0	01	1	0801-0902	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97416-227-0	01	1	0903-1009		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97416-227-0	01	1	0903-1009	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-420-0	01	1	1010-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-420-0	01	1	1010-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-915-0	01	1	0801-	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	0801-0902		●
122	COVER; ADJ,RECLINING DELUXE SEAT(PQ8) GRAY	8-97409-967-0	01	1	0801-0902	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	0903-	●	●
122	COVER; ADJ,RECLINING VINYL SEAT(A83) GRAY	8-97409-967-0	01	1	0801-0902	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	0801-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	0801-	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0801-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0801-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0801-	●	●
627	WASHER; FRT SEAT (C)	8-98099-007-0	02	1	0801-1003		●
627	WASHER; FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	8-98099-007-0	02	1	0801-1003	●
630	NUT; CAP M8	8-98063-225-0	01	1	0801-	●	●

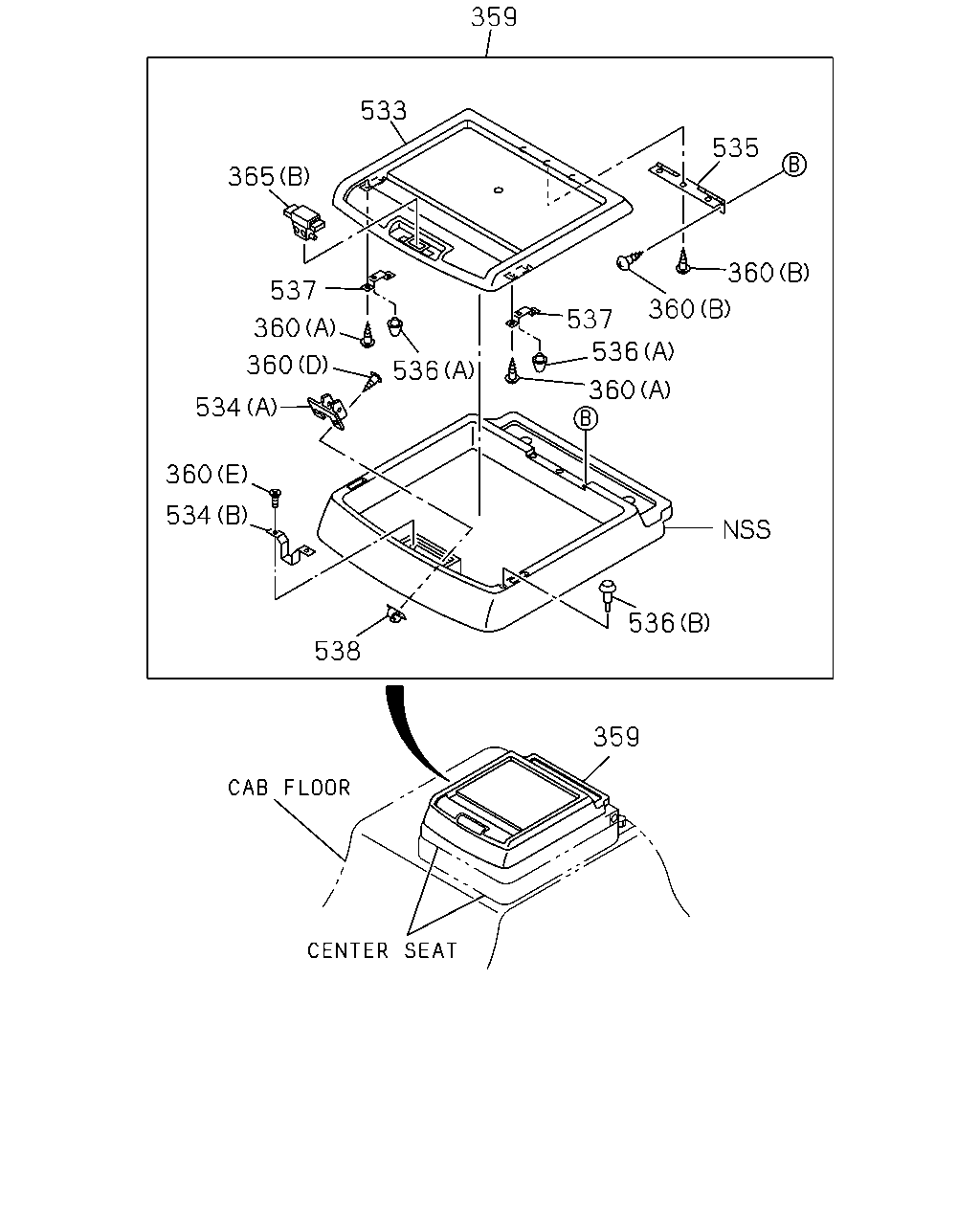

359 533 365 537 360 360 534 360 534 538 359 536 536 360 536 537 360 360 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97409-977-2	01	1	0801-1006	●	●
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1007-	●	●
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109	●
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0801-1009	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109		●
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109	●
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	0801-1104	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109		●
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1110-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0801-1110	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1111-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (D) M5X20	9-09829-324-1	02	1	0801-1009	●	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	0801-		●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98097-972-0	01	1	0801-	●
365	LOCK ASM; SEAT VINYL SEAT(A83) CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	0801-1104	●	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	1105-1109		●
365	LOCK ASM; SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	1110-	●	●
533	LID; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97409-979-1	01	1	0801-1006	●	●
533	LID; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97417-263-0	01	1	1007-	●	●
534	STRIKER; PARCEL BOX VINYL SEAT(A83) CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1105-1109	●
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (A)	1-72538-181-0	01	1	0801-1009	●	●
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1010-1104	●	●
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1105-1109		●
534	STRIKER; PARCEL BOX DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1105-1109	●
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1110-	●	●
535	HINGE; PARCEL BOX VINYL SEAT(A83) CENTER SEAT(SA1)	1-72447-391-1	01	1	1105-1109	●
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	0801-1104	●	●
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1105-1109		●
535	HINGE; PARCEL BOX DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-72447-391-1	01	1	1105-1109	●
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1110-	●	●
536	RUBBER; CUSHION VINYL SEAT(A83) CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1105-1109	●
536	RUBBER; CUSHION CENTER SEAT(SA1) (A)	5-09983-002-1	02	1	0801-1009	●	●
536	RUBBER; CUSHION CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1010-1104	●	●
536	RUBBER; CUSHION CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1105-1109		●
536	RUBBER; CUSHION DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1105-1109	●
536	RUBBER; CUSHION CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1110-	●	●
537	BRACKET; RUBBER CENTER SEAT(SA1)	1-72548-057-1	02	1	0801-1009	●	●
538	GROMMET; SCREW CENTER SEAT(SA1)	1-09983-165-0	02	1	0801-1009	●	●

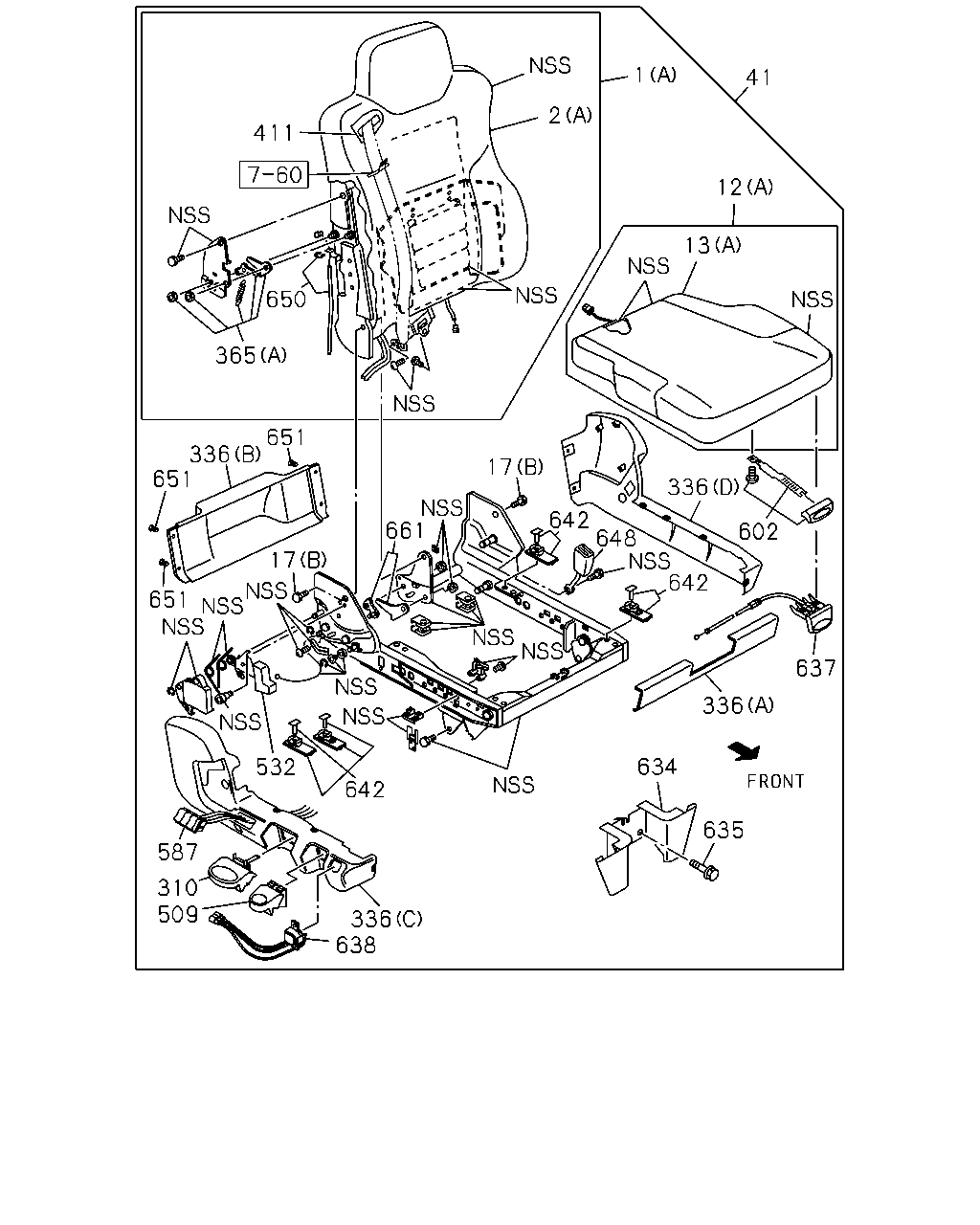

41 12 1 2 13 602 336 648 642 642 17 661 642 634 635 336 637 651 365 650 411 336 651 17 651 532 587 310 336 638 509

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT (A)	8-98097-964-0	01	1	0801-		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98097-964-0	01	1	0801-	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY	8-97409-955-5	01	1	0801-	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0801-1212		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98097-966-0	01	1	0801-1212	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1301-		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98232-353-0	01	1	1301-	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY	8-97411-910-2	01	1	0801-	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0801-		●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98098-006-0	01	1	0801-	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY	8-97409-954-2	01	1	0801-	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0801-		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98098-007-0	01	1	0801-	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY	8-97411-909-1	01	1	0801-	●
17	BOLT; RECLINING (B)	8-98097-974-0	02	1	0801-		●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98097-974-0	02	1	0801-	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0801-	●	●
17	BOLT; RECLINING RIGID SEAT WO/ARM REST(TAZ) (C) M10X20	8-98062-661-0	02	1	0801-	●
41	SEAT ASM; DRIVER	8-98046-984-2	01	1	0801-1212		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98046-984-2	01	1	0801-1212	●
41	SEAT ASM; DRIVER	8-98195-063-0	01	1	1301-		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98195-063-0	01	1	1301-	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	0801-		●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-992-0	01	1	0801-	●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	0801-		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (D)	8-98097-978-0	01	1	0801-	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	0801-		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	8-98097-984-0	01	1	0801-	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	0801-		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98097-995-0	01	1	0801-	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	0801-		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98097-996-0	01	1	0801-	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	0801-		●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98097-972-0	01	1	0801-	●
365	LOCK ASM; SEAT VINYL SEAT(A83) CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	0801-1104	●	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	1105-1109		●
365	LOCK ASM; SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-312-0	01	1	1110-	●	●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	0801-		●
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-967-0	01	1	0801-	●
509	LEVER; DAMPER	8-98097-988-0	01	1	0801-		●
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-988-0	01	1	0801-	●
532	LEVER ASM; TILT	8-98097-982-0	01	1	0801-		●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-982-0	01	1	0801-	●
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	0801-		●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-986-0	01	1	0801-	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	0801-		●
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98098-008-0	01	1	0801-	●
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	0801-		●
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98088-279-0	01	1	0801-	●
635	BOLT; COVER M6X16	0-52000-616-0	02	1	0801-		●
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT(SJA) M6X16	0-52000-616-0	02	1	0801-	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	0801-		●
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-989-0	01	1	0801-	●
638	VALVE; LOWERING	8-98097-994-0	01	1	0801-		●
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-994-0	01	1	0801-	●
642	SLIDER; CUSHION	8-98192-932-0	04	1	0801-		●
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	8-98192-932-0	04	1	0801-	●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	0801-		●
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-976-0	01	1	0801-	●
650	CABLE	8-98097-973-0	01	1	0801-1212		●
650	CABLE DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-973-0	01	1	0801-1212	●
650	CABLE	8-98232-354-0	01	1	1301-		●
650	CABLE DRIVER ISRINGHAUSEN SEAT(SJA)	8-98232-354-0	01	1	1301-	●
651	RIVET	8-98194-075-0	04	1	0801-		●
651	RIVET DRIVER ISRINGHAUSEN SEAT(SJA)	8-98194-075-0	04	1	0801-	●
661	LOCK ASM; RECLINING	8-98097-980-0	01	1	0801-		●
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-980-0	01	1	0801-	●

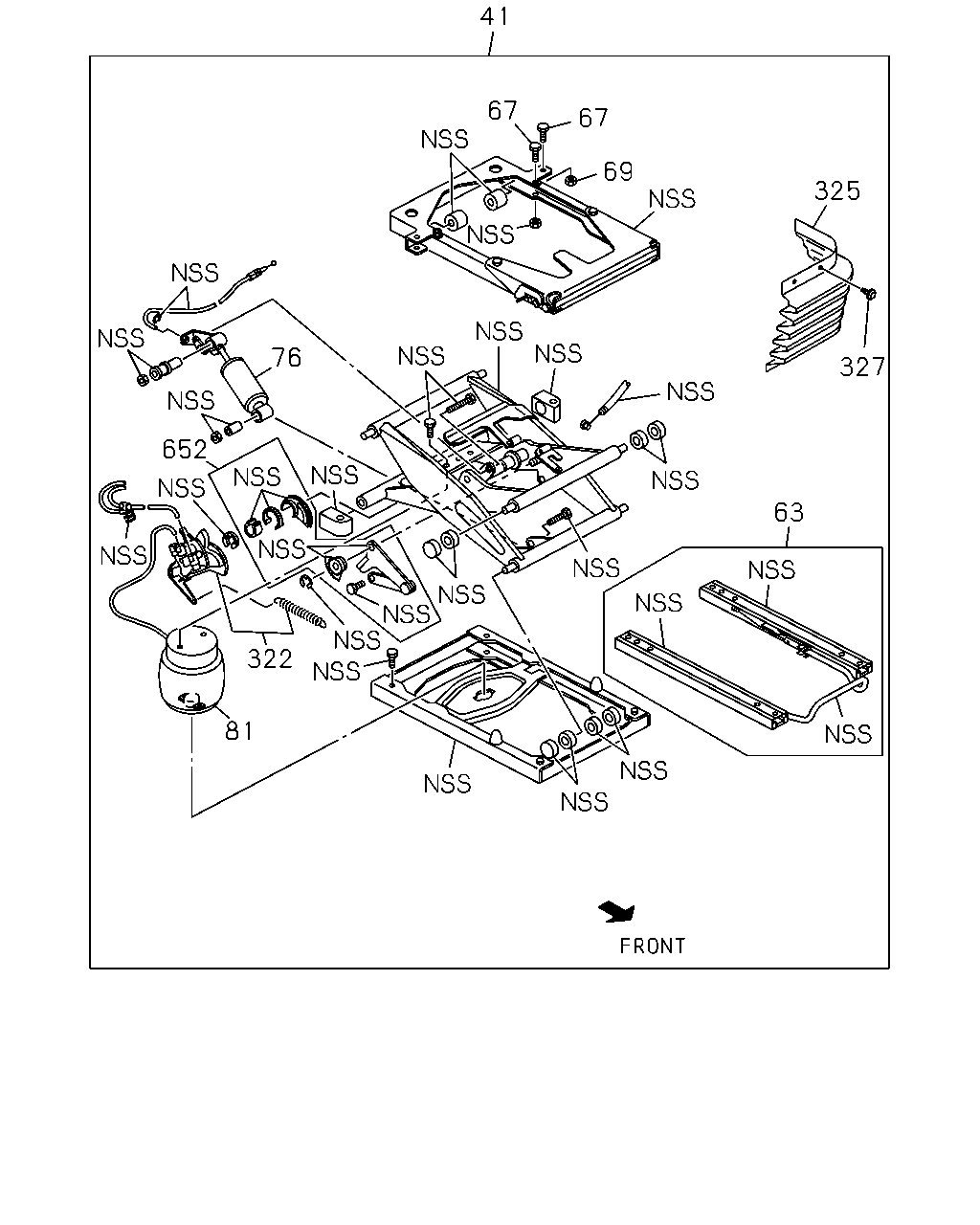

41 76 67 67 69 325 327 63 81 652 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER	8-98046-984-2	01	1	0801-1212		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98046-984-2	01	1	0801-1212	●
41	SEAT ASM; DRIVER	8-98195-063-0	01	1	1301-		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98195-063-0	01	1	1301-	●
63	ADJUSTER; SEAT SLIDE	8-98098-005-0	01	1	0801-		●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA)	8-98098-005-0	01	1	0801-	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0801-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0801-	●	●
76	DAMPER; AIR SUSP	8-98097-999-0	01	1	0801-		●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA)	8-98097-999-0	01	1	0801-	●
81	SPRING; AIR	8-98098-000-0	01	1	0801-		●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA)	8-98098-000-0	01	1	0801-	●
322	VALVE; AIR SPRING	8-98098-001-0	01	1	0801-		●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT(SJA)	8-98098-001-0	01	1	0801-	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	0801-		●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT(SJA)	8-98098-003-0	01	1	0801-	●
327	CLIP; COVER	8-98098-004-0	01	1	0801-		●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98098-004-0	01	1	0801-	●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	0801-		●
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98098-002-0	01	1	0801-	●

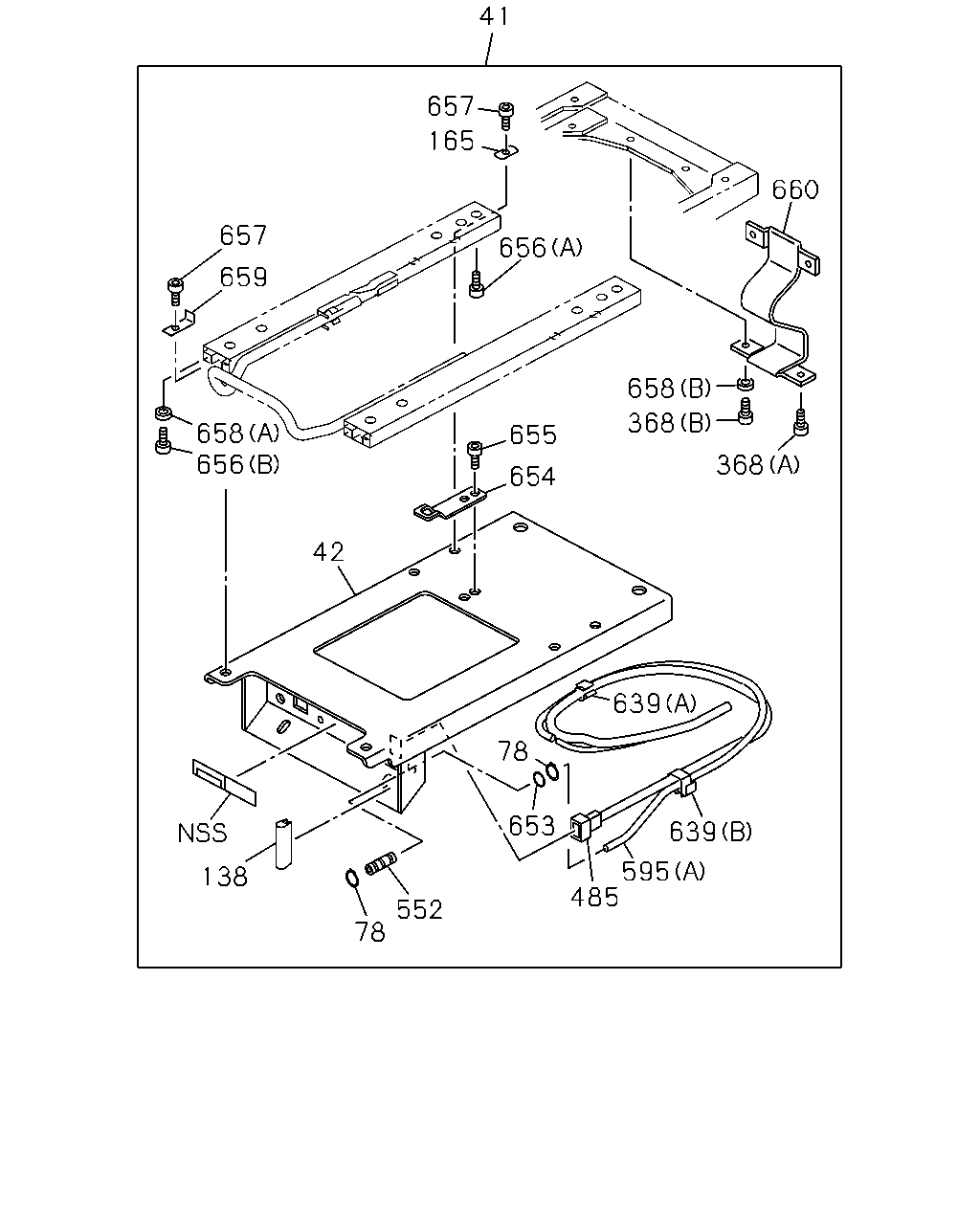

639 595 485 653 78 639 552 78 138 42 656 658 659 657 654 655 368 368 658 656 165 657 660 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER	8-98046-984-2	01	1	0801-1212		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98046-984-2	01	1	0801-1212	●
41	SEAT ASM; DRIVER	8-98195-063-0	01	1	1301-		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98195-063-0	01	1	1301-	●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	0801-		●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98106-346-0	01	1	0801-	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST(TAZ)	1-75558-604-2	01	1	0801-	●
78	RING; SNAP	8-98101-900-0	02	1	0801-		●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT(SJA)	8-98101-900-0	02	1	0801-	●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	0801-		●
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT(SJA)	8-98106-351-0	01	1	0801-	●
165	WASHER; PL	1-75590-086-0	04	1	0801-		●
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT(SJA)	1-75590-086-0	04	1	0801-	●
368	BOLT; SEAT (A)	8-98106-353-0	03	1	0801-		●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98106-353-0	03	1	0801-	●
368	BOLT; SEAT (B)	8-98106-358-0	01	1	0801-		●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98106-358-0	01	1	0801-	●
485	HARNESS; FRT SEAT	8-98106-360-0	01	1	0801-		●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98106-360-0	01	1	0801-	●
552	CONNECTOR	8-98101-902-0	01	1	0801-		●
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT(SJA)	8-98101-902-0	01	1	0801-	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	0801-		●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98106-348-0	01	1	0801-	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	0801-		●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98067-762-0	01	1	0801-	●
639	CLIP; SEAT (A)	8-98106-349-0	01	1	0801-		●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98106-349-0	01	1	0801-	●
639	CLIP; SEAT (B)	8-98106-350-0	01	1	0801-		●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98106-350-0	01	1	0801-	●
653	GASKET	8-98101-901-0	01	1	0801-		●
653	GASKET DRIVER ISRINGHAUSEN SEAT(SJA)	8-98101-901-0	01	1	0801-	●
654	HOOK; STOPPER	8-98106-352-0	01	1	0801-		●
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98106-352-0	01	1	0801-	●
655	BOLT; HOOK	8-98106-353-0	02	1	0801-		●
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT(SJA)	8-98106-353-0	02	1	0801-	●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	0801-		●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75590-085-0	04	1	0801-	●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	0801-		●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98106-354-0	02	1	0801-	●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	0801-		●
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT(SJA)	1-75590-085-0	06	1	0801-	●
658	SPACER; BOLT (A)	8-98106-355-0	02	1	0801-		●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98106-355-0	02	1	0801-	●
658	SPACER; BOLT (B)	8-98106-359-0	01	1	0801-		●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98106-359-0	01	1	0801-	●
659	STOPPER	8-98106-356-0	02	1	0801-		●
659	STOPPER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98106-356-0	02	1	0801-	●
660	BELT; TETHER	8-98106-357-0	01	1	0801-		●
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT(SJA)	8-98106-357-0	01	1	0801-	●

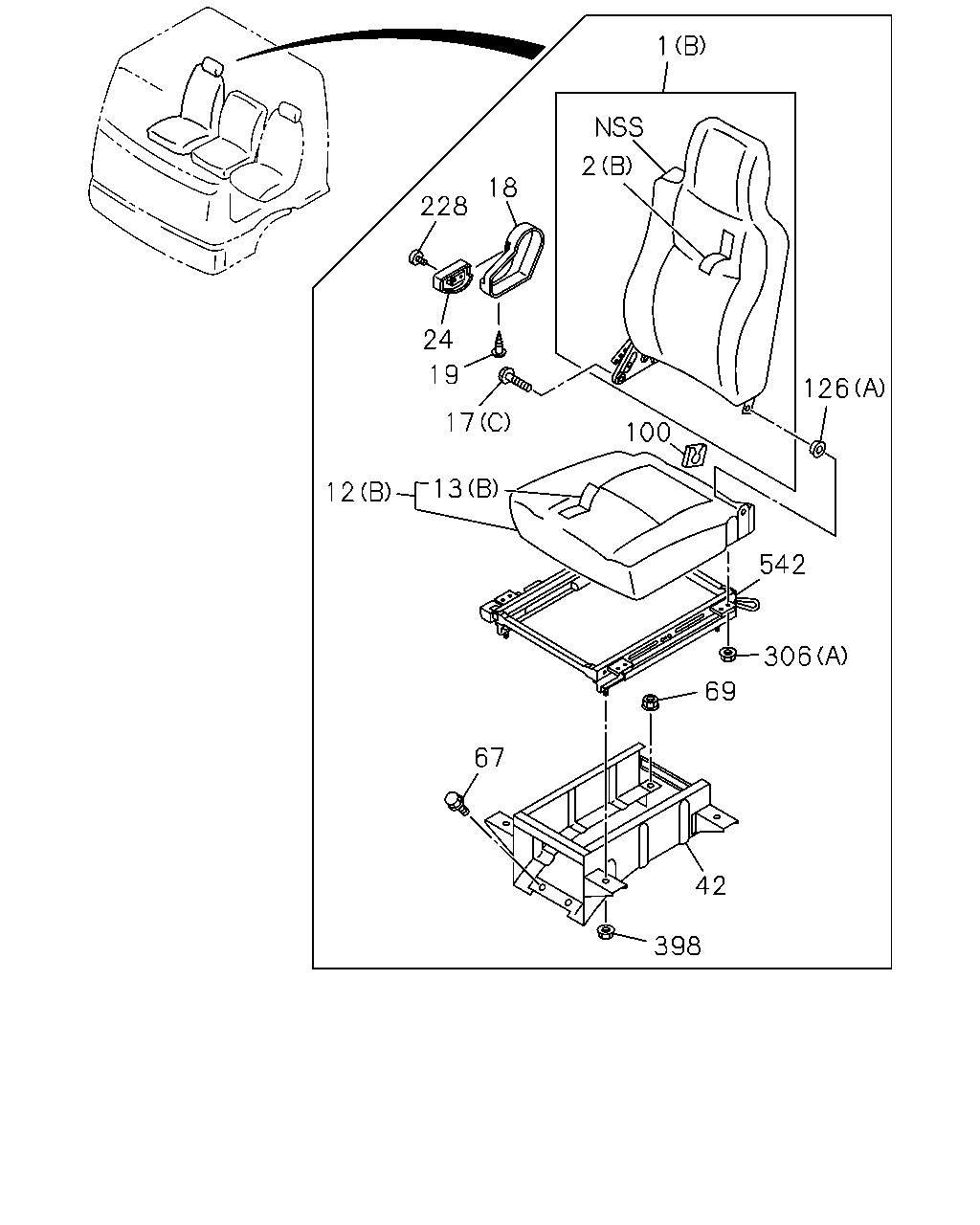

1 2 18 228 24 17 12 13 100 126 542 306 69 67 398 42 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT (A)	8-98097-964-0	01	1	0801-		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98097-964-0	01	1	0801-	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY	8-97409-955-5	01	1	0801-	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0801-1212		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98097-966-0	01	1	0801-1212	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1301-		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98232-353-0	01	1	1301-	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY	8-97411-910-2	01	1	0801-	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0801-		●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98098-006-0	01	1	0801-	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY	8-97409-954-2	01	1	0801-	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0801-		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98098-007-0	01	1	0801-	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST(TAZ) (B) DARK GRAY	8-97411-909-1	01	1	0801-	●
17	BOLT; RECLINING (B)	8-98097-974-0	02	1	0801-		●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98097-974-0	02	1	0801-	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0801-	●	●
17	BOLT; RECLINING RIGID SEAT WO/ARM REST(TAZ) (C) M10X20	8-98062-661-0	02	1	0801-	●
18	COVER; RECLINING RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-332-0	01	1	0801-	●
19	SCREW; COVER RIGID SEAT WO/ARM REST(TAZ) M5	8-98062-663-0	01	1	0801-	●
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-333-0	01	1	0801-	●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	0801-		●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98106-346-0	01	1	0801-	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST(TAZ)	1-75558-604-2	01	1	0801-	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0801-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0801-	●	●
100	COVER; HINGE RIGID SEAT WO/ARM REST(TAZ)	8-98203-070-0	01	1	1110-	●
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	0801-1104	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109		●
126	BUSHING; HINGE,RECLINING DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1110-	●	●
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST(TAZ) (A)	8-98063-218-0	01	1	0801-	●
228	SCREW; KNOB RIGID SEAT WO/ARM REST(TAZ) M4	8-98062-662-0	01	1	0801-	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	0801-	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0801-	●	●
398	NUT; STAND RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	04	1	0801-	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98093-310-0	01	1	0801-1502	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98291-653-0	01	1	1503-	●

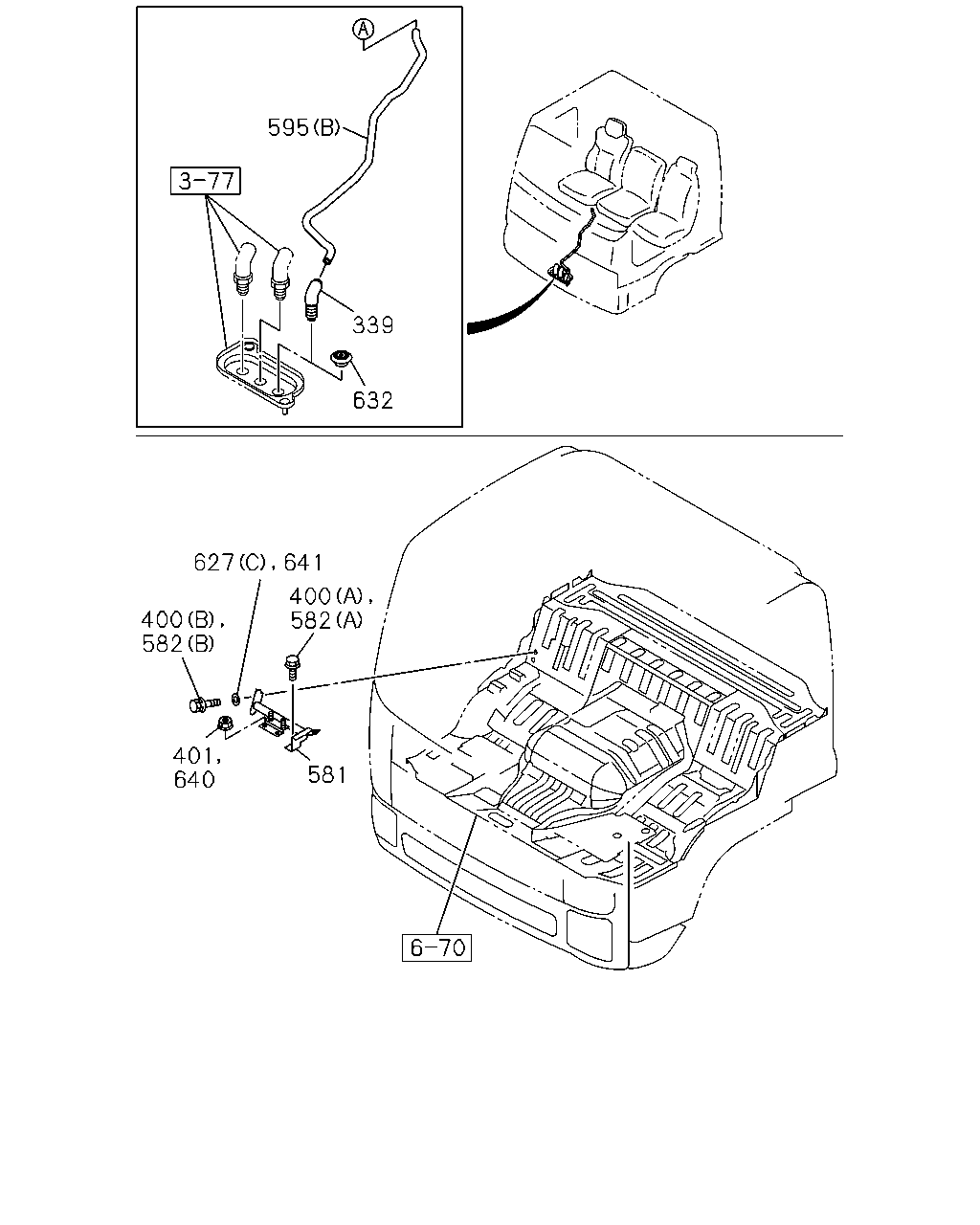

595 339 632 627 641 400 582 400 582 401 640 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
339	UNION; DRIVER SEAT	8-98014-971-0	01	1	0801-		●
339	UNION; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98014-971-0	01	1	0801-	●
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	1004-		●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	1004-		●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98098-996-0	02	1	1004-	●
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	1004-		●
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA) M10 FLANGE	0-91180-110-0	02	1	1004-	●
581	PIPE; SEAT	8-97589-692-3	01	1	0801-		●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	8-97589-692-3	01	1	0801-	●
582	BOLT; PIPE,SEAT (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-1003		●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-1003	●
582	BOLT; PIPE,SEAT (B)	8-98098-996-0	02	1	0801-1003		●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98098-996-0	02	1	0801-1003	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	0801-		●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) (A)	8-98106-348-0	01	1	0801-	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	0801-		●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) (B)	8-98067-762-0	01	1	0801-	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0801-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0801-	●	●
627	WASHER; FRT SEAT (C)	8-98099-007-0	02	1	0801-1003		●
627	WASHER; FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	8-98099-007-0	02	1	0801-1003	●
632	GROMMET RIGID SEAT WO/ARM REST(TAZ) OD=24	8-94119-796-0	01	1	0801-	●
640	NUT M10 FLANGE	0-91180-110-0	02	1	0801-1003		●
640	NUT DRIVER ISRINGHAUSEN SEAT(SJA) M10 FLANGE	0-91180-110-0	02	1	0801-1003	●
641	WASHER; SUPPORT	8-98099-007-0	02	1	1004-		●
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98099-007-0	02	1	1004-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
