◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#4032) — 134 parça

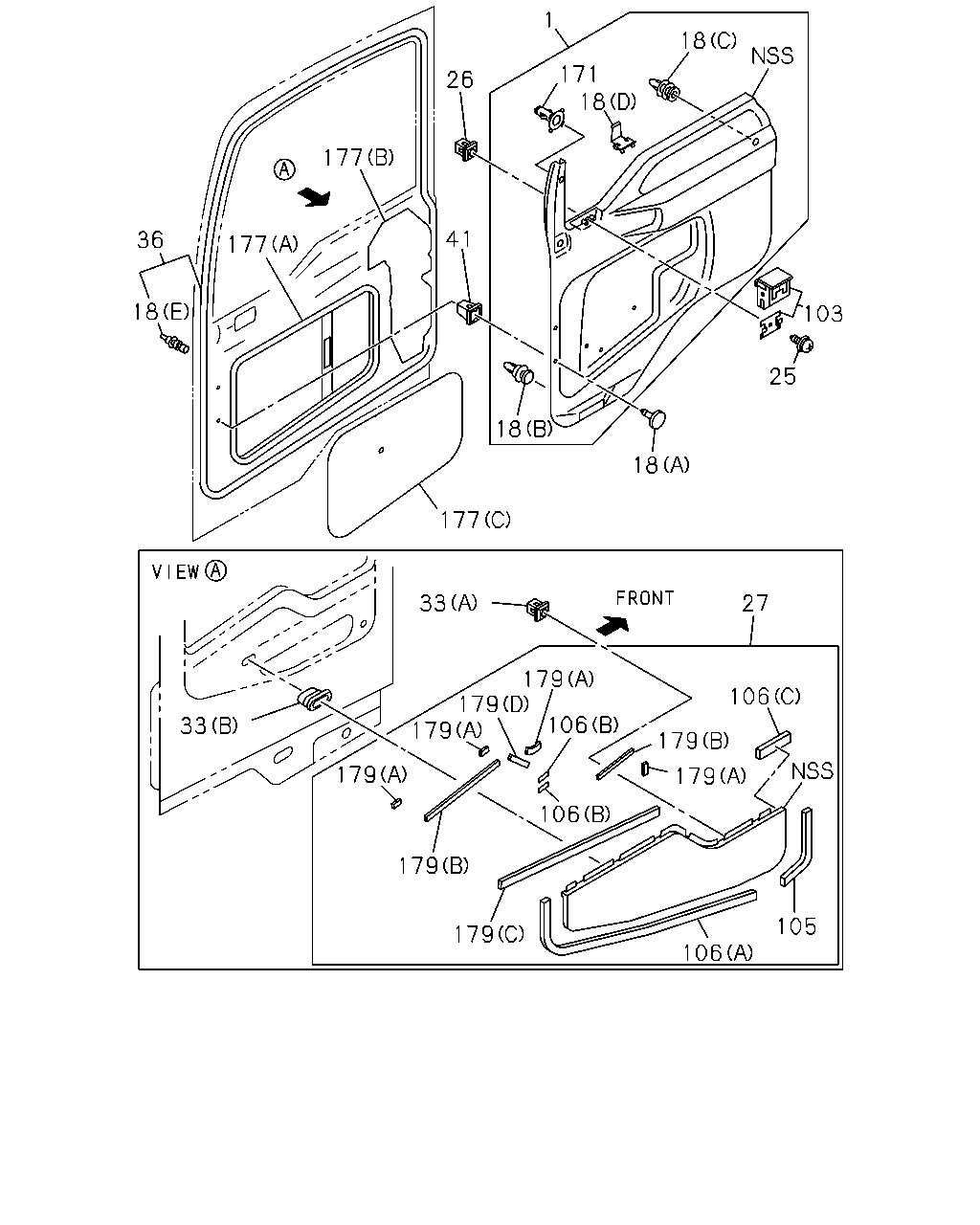

çizim 115768
177 26 1 171 18 18 41 177 36 18 177 18 18 25 103 27 33 33 179 179 179 179 106 106 179 179 106 179 179 106 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9510-0004 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-506-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-538-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-515-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9510-0004 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-485-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-510-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-514-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9510-0004 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-509-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-539-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-516-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-465-4 01 1 9510-0004 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-484-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-513-1 01 1 0703- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9510-0004 ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 46 1 9510- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9510-0005 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-0010 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011- ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9510-0010 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101- ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9510-0010 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011- ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011- ● ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (D) 		1-09987-262-0 10 1 0011- ● ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-94126-768-0 10 1 0011-0012 ● ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101- ● ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0011- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9510- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510- ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-5 01 1 0005-0303 ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-5 01 1 0304-0307 ●
27 PANEL; ORNAMENT,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> 		1-76218-125-5 01 1 0304-0307 ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-76218-125-5 01 1 0304-0307 ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-7 01 1 0308-1210 ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		8-98229-329-0 01 1 1211- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 9510- ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-5 01 1 9510-0004 ● ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-095-5 01 1 9510-0303 ● ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-095-5 01 1 0304-0307 ● ●
27 PANEL; ORNAMENT,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> 		1-76218-095-5 01 1 0304-0307 ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-095-7 01 1 0308-1210 ●
27 PANEL; ORNAMENT,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> 		1-76218-095-7 01 1 0308-1210 ●
27 PANEL; ORNAMENT,DOOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) 		1-76218-095-7 01 1 0308-1210 ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		8-98229-328-0 01 1 1211- ●
27 PANEL; ORNAMENT,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> 		8-98229-328-0 01 1 1211- ●
27 PANEL; ORNAMENT,DOOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) 		8-98229-328-0 01 1 1211- ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9510-0802 ● ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9510- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9510-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9510-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9510- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-070-6 01 1 9510-9612 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9701-0004 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-069-6 01 1 9510-9612 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9701-0004 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9510-0303 ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0304-0307 ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0304-0307 ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0308- ● ●
105 SEAL; DOOR ORNAMENT,FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> 		1-76218-082-2 01 1 0308- ●
105 SEAL; DOOR ORNAMENT,FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) 		1-76218-082-2 01 1 0308- ●
105 SEAL; DOOR ORNAMENT,FRT
MIR O/S RR VIEW WIDE<WU4> 		1-76218-082-2 01 1 0308- ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ●
106 SEAL; DOOR ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (C) 		8-98226-642-0 01 1 1211- ●
106 SEAL; DOOR ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (C) 		8-98226-642-0 01 1 1211- ●
106 SEAL; DOOR ORNAMENT
MIR O/S RR VIEW WIDE<WU4> (C) 		8-98226-642-0 01 1 1211- ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 9510-0303 ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0304-0307 ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0304-0307 ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0308- ● ●
106 SEAL; DOOR ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (A) 		1-76218-083-2 01 1 0308- ●
106 SEAL; DOOR ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (A) 		1-76218-083-2 01 1 0308- ●
106 SEAL; DOOR ORNAMENT
MIR O/S RR VIEW WIDE<WU4> (A) 		1-76218-083-2 01 1 0308- ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-0303 ● ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 9510-0303 ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0304-0307 ● ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 0304-0307 ● ●
106 SEAL; DOOR ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (B) 		1-76218-104-0 02 1 0304-0307 ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0308- ● ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 0308- ●
106 SEAL; DOOR ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (B) 		1-76218-104-0 02 1 0308- ●
106 SEAL; DOOR ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (B) 		1-76218-104-0 02 1 0308- ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9510-0010 ● ●
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011- ● ●
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011- ● ●
171 RETAINER; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> 		1-09987-264-0 02 1 0011- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-036-1 02 1 9510-9511 ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9512- ● ●
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9510- ● ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-2 01 1 9510- ● ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 9510- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 08 1 9510-0303 ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 04 1 0304-0307 ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 04 1 0304-0307 ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0308- ● ●
179 TAPE; ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (A) L=45 		1-76218-063-2 04 1 0308- ●
179 TAPE; ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (A) L=45 		1-76218-063-2 04 1 0308- ●
179 TAPE; ORNAMENT
MIR O/S RR VIEW WIDE<WU4> (A) L=45 		1-76218-063-2 04 1 0308- ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 02 1 9510-0303 ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 01 1 0304-0307 ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 01 1 0304-0307 ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 0308- ● ●
179 TAPE; ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (C) L=770 		1-76218-091-2 01 1 0308- ●
179 TAPE; ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (C) L=770 		1-76218-091-2 01 1 0308- ●
179 TAPE; ORNAMENT
MIR O/S RR VIEW WIDE<WU4> (C) L=770 		1-76218-091-2 01 1 0308- ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 02 1 9510-0303 ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 01 1 0304-0307 ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 01 1 0304-0307 ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 0308- ● ●
179 TAPE; ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (D) L=160 		1-76218-094-1 01 1 0308- ●
179 TAPE; ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (D) L=160 		1-76218-094-1 01 1 0308- ●
179 TAPE; ORNAMENT
MIR O/S RR VIEW WIDE<WU4> (D) L=160 		1-76218-094-1 01 1 0308- ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 04 1 9510-0303 ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 02 1 0304-0307 ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 02 1 0304-0307 ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 0308- ● ●
179 TAPE; ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (B) L=235 		1-76218-127-1 02 1 0308- ●
179 TAPE; ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (B) L=235 		1-76218-127-1 02 1 0308- ●
179 TAPE; ORNAMENT
MIR O/S RR VIEW WIDE<WU4> (B) L=235 		1-76218-127-1 02 1 0308- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
