7-40 — INSTRUMENT PANEL AND BOX (#40316) — 149 parça

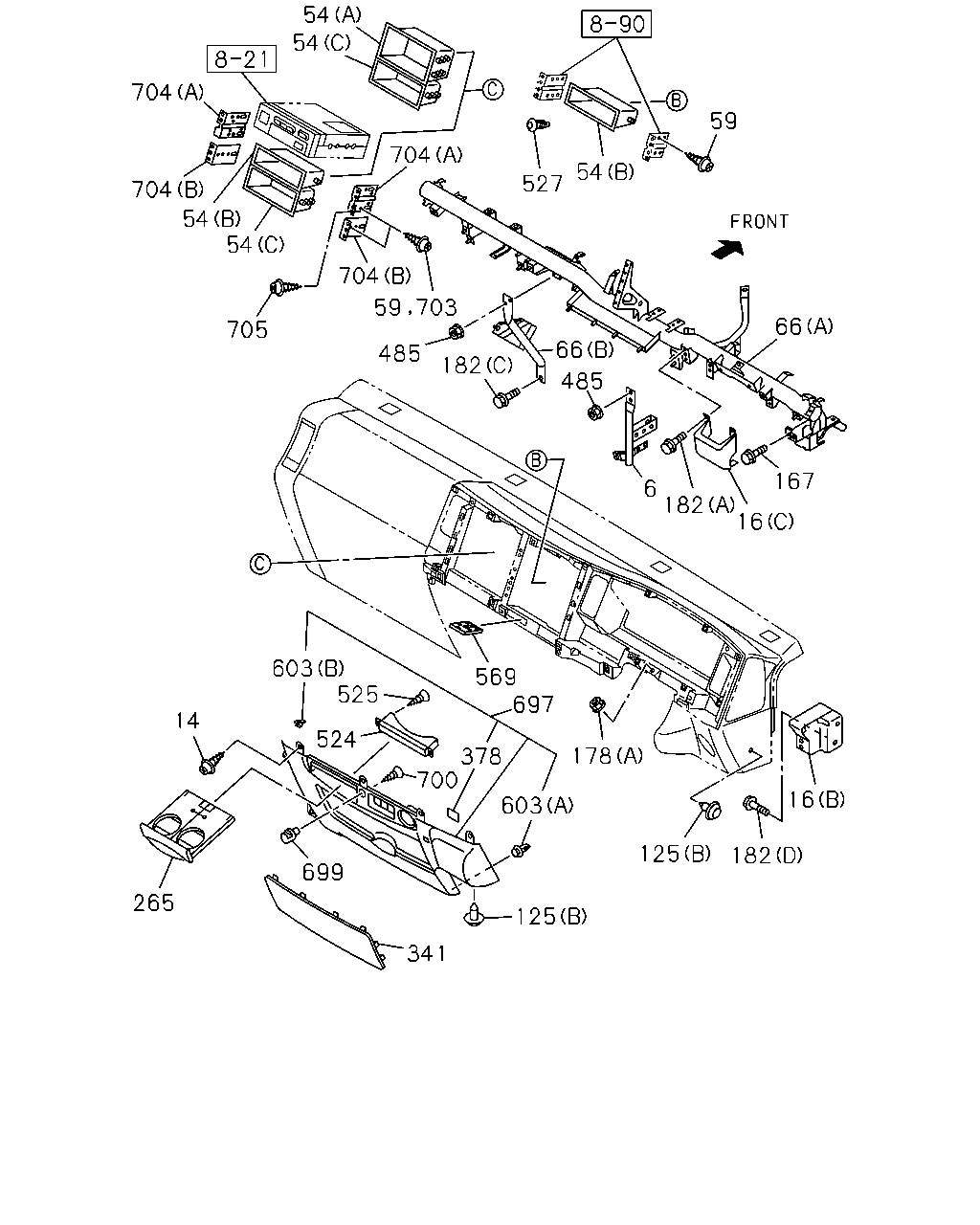

çizim 161685
54 54 704 59 704 54 527 704 54 54 704 66 705 66 485 182 485 167 6 182 16 603 525 569 697 14 524 178 378 700 16 603 125 182 699 265 125 341 59 703
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0801-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0801- ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0801- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0801- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0801- ● ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0801-1105 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0801- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0801- ●
54 POCKET; CENTER CLUSTER
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) H=58.4 BLACK 		8-97408-864-3 01 1 0801- ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) H=58.4 BLACK 		8-97408-864-3 01 1 0801- ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 02 1 0801- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0801- ● ●
54 POCKET; CENTER CLUSTER
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0801- ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0911- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (B) 		8-97585-580-2 01 1 0911- ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0801-0909 ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 0910-0910 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3) (B) 		8-98151-167-0 01 1 0911- ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98081-322-5 01 1 0801-1111 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0801-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0801- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0801- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0801- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0801-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0801- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0801-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0801-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0801- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0801- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0902-1211 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0902-1211 ●
569 HOLDER; CARD 8-97410-276-1 01 1 0801- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0801- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 0801- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0801-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0801- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0801- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0801- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0801- ● ●

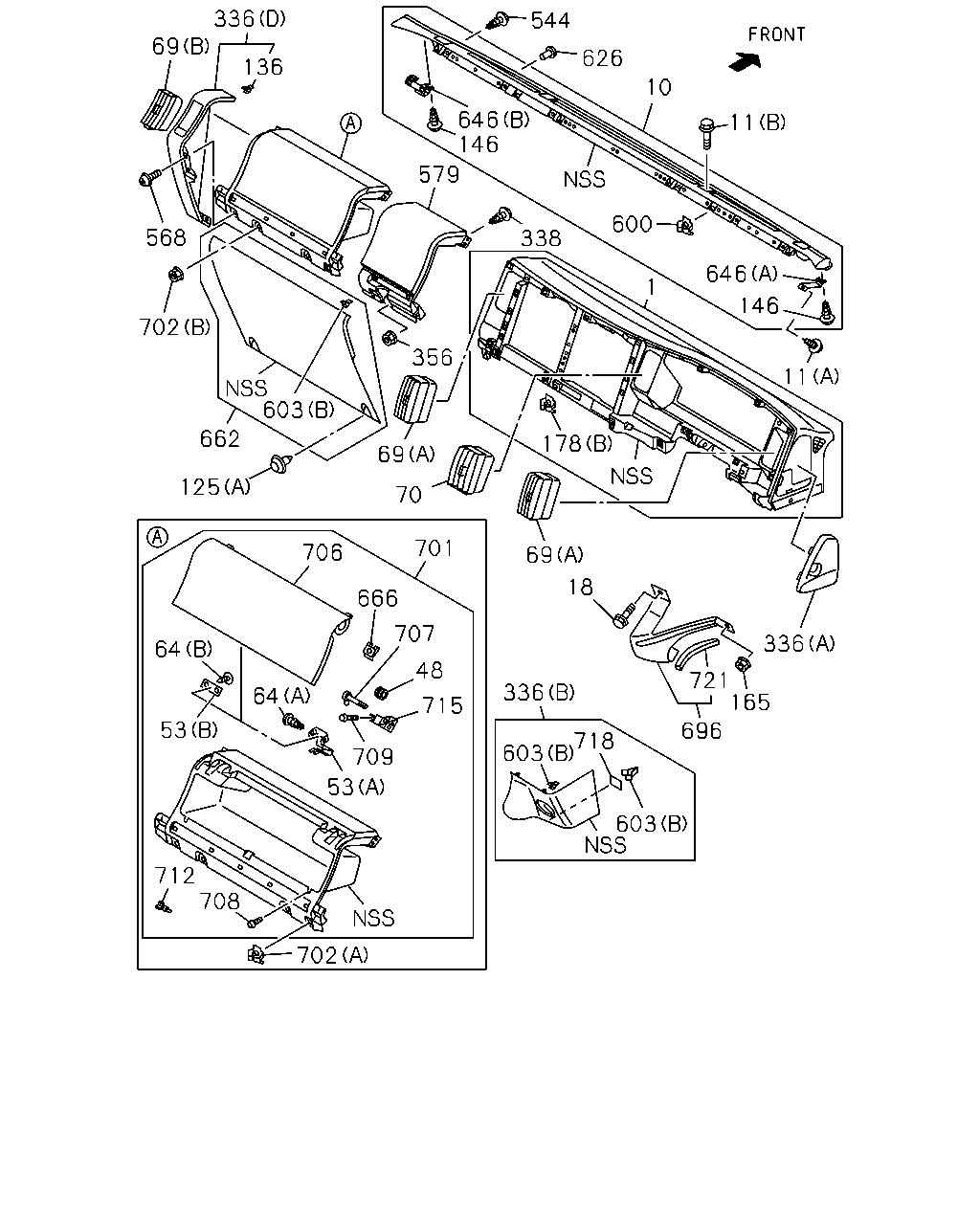

çizim 161708
336 136 69 568 702 662 603 125 69 356 70 579 146 646 544 10 626 11 600 1 338 646 11 336 165 721 696 336 18 69 178 706 701 666 707 48 715 64 53 709 53 712 708 702 603 603 718 64 146
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0801- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0801-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0801- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0801- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0801- ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0801-1311 ● ●
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0801-1311 ● ●
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0805-1405 ● ●
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0805-1405 ● ●
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0801- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0801- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0801- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0801-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0801- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0801- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0801- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0801- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0801- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0801- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0801-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0801- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0801- ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0801- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0801- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 0801- ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0801-1008 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0801- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 0801- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0801- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0801- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0801- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0801- ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 0801-1311 ● ●
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0801- ● ●
701 TRAY; INST
GRAY 		8-97412-913-0 01 1 0801-0804 ● ●
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 0805-1405 ● ●
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0801- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0801- ● ●
706 LID; TRAY INST
GRAY 		8-97405-372-2 01 1 0801-0804 ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0805-1405 ● ●
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0801-1311 ● ●
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0801- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0801- ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0801- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0801-1311 ● ●
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0801-1311 ● ●
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0801- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0801- ● ●

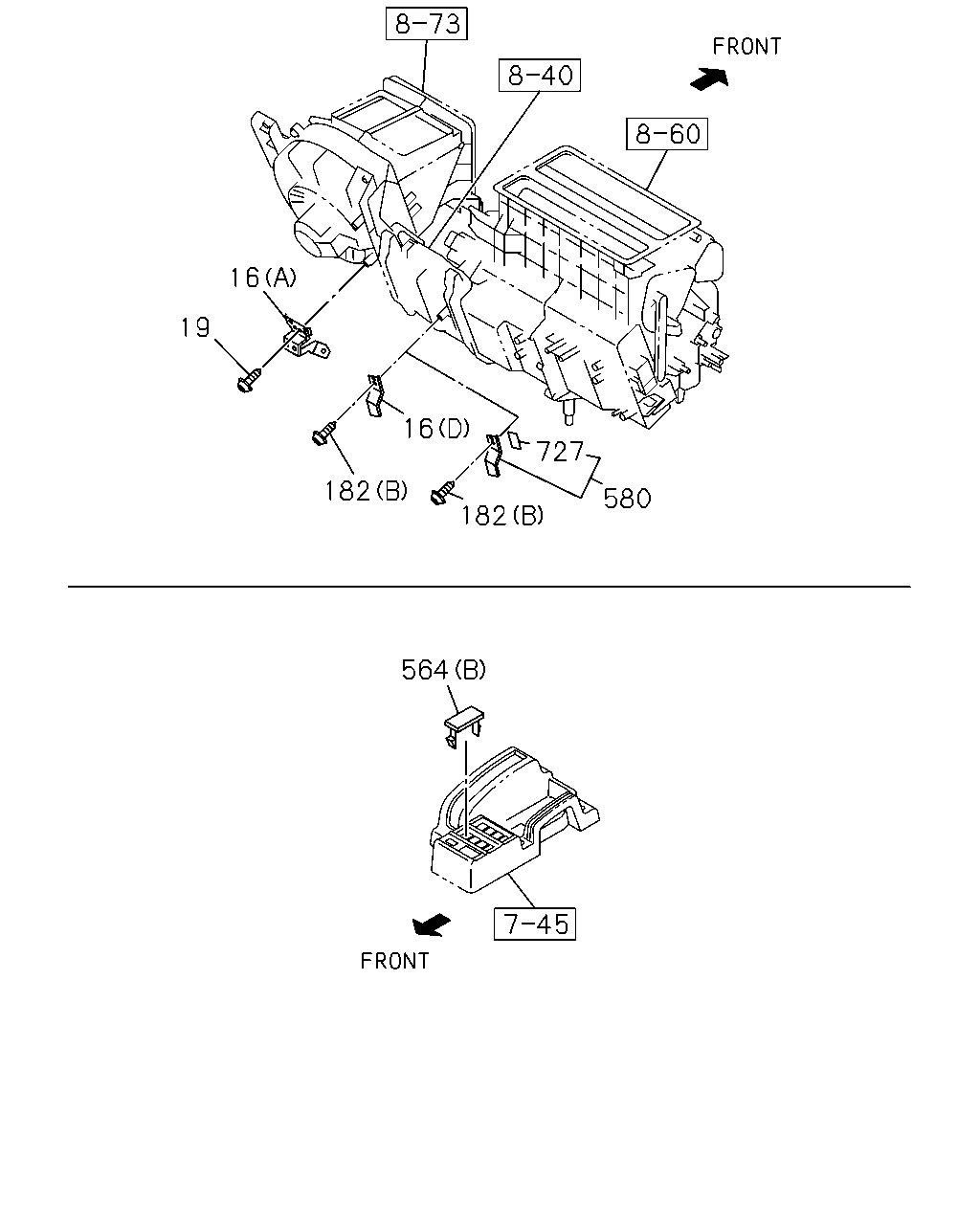

çizim 161919
16 19 16 727 182 580 182 564
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0801- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0801- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0801- ● ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0801-1105 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0801- ● ●
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0801-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0801- ● ●
564 COVER; SW
(B) 		8-97043-732-1 02 1 0801- ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97043-732-1 02 1 0801- ●
564 COVER; SW
AUSTRALIA EQUIPMENT(RR3) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0801- ●
564 COVER; SW
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97043-732-1 06 1 0801- ●
580 BRACKET; COVER 8-98017-528-1 01 1 1106- ● ●
727 SEAL; BRACKET 8-98186-934-0 01 1 1106- ● ●

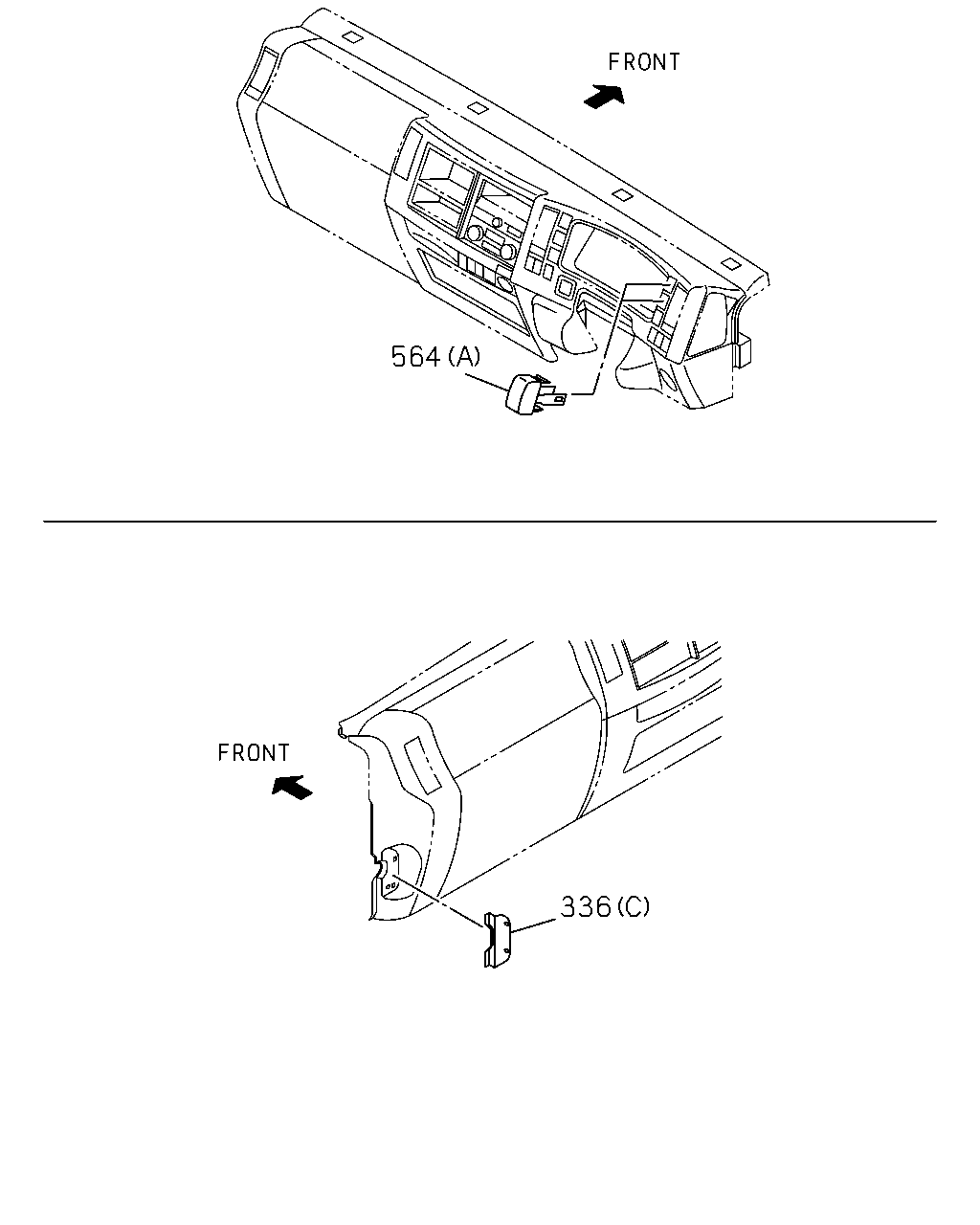

çizim 161940
564 336
BalonParca AdiParca NoAdetTipApplied Date A B
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0801- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0801-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0801- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0801- ● ●
564 COVER; SW
(B) 		8-97043-732-1 02 1 0801- ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97043-732-1 02 1 0801- ●
564 COVER; SW
AUSTRALIA EQUIPMENT(RR3) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0801- ●
564 COVER; SW
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97043-732-1 06 1 0801- ●
