6-84 — BACK TRIM (#40310) — 10 parça

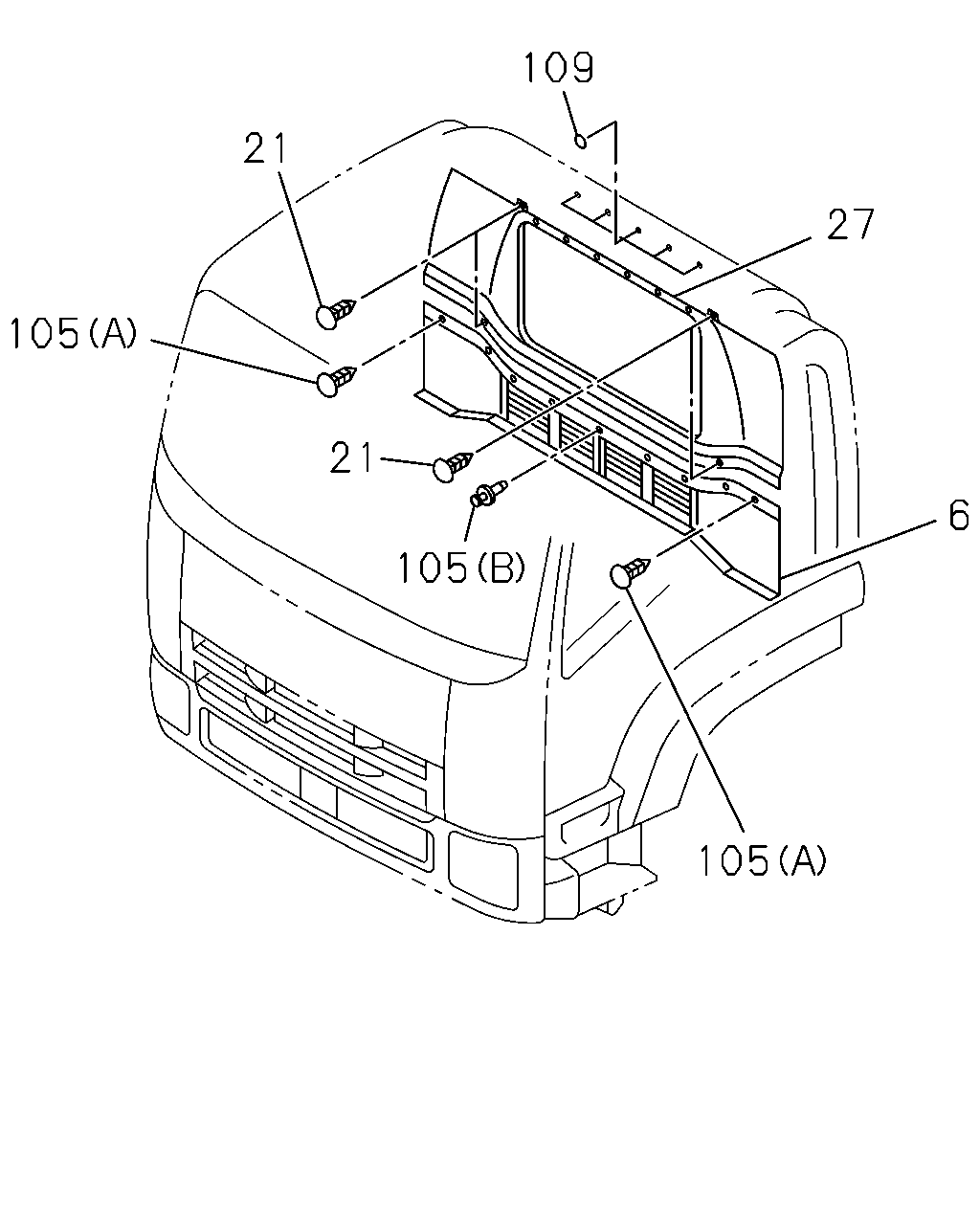

çizim 161667
109 21 27 105 21 6 105 105
BalonParca AdiParca NoAdetTipApplied Date A B
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-458-1 01 1 0801- ● ●
21 RETAINER; TRIM,BED ROOM
GRAY 		8-97407-467-0 04 1 0801- ●
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 0801- ●
27 COVER; TRIM,BACK
DARK GRAY 		8-97407-464-2 01 1 0801- ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97407-464-2 01 1 0801- ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97408-022-0 07 1 0801- ● ●
105 CLIP; BACK TRIM
(A) GRAY 		8-97407-467-0 02 1 0801- ● ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1003- ●
109 SEAL; HOLE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR OMAHA ORANGE(906),BODY COLOR FIRE RED(915) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1003-1011 ●
109 SEAL; HOLE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1012- ●
