◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#40305) — 32 parça

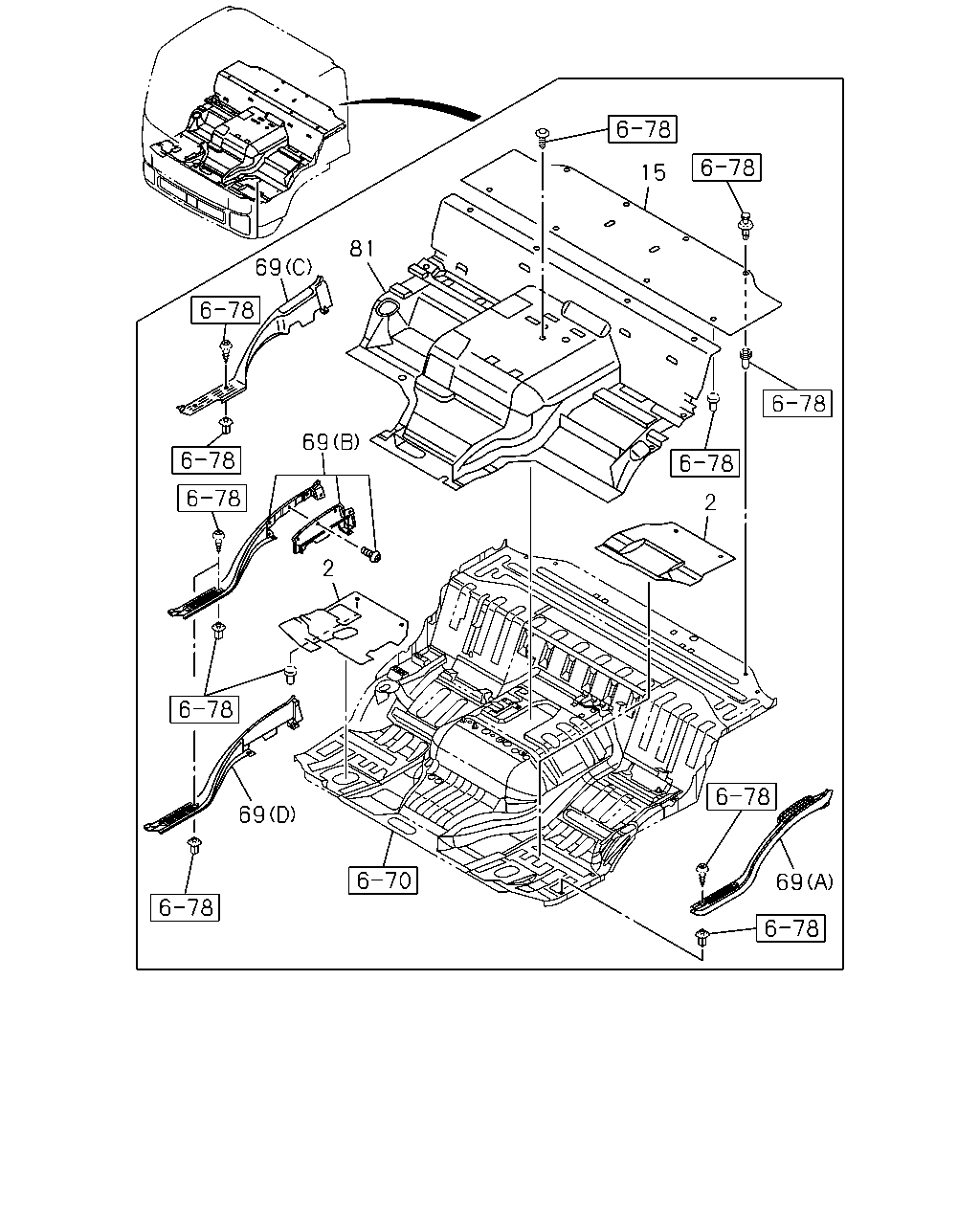

çizim 161690
69 81 69 2 2 69 69 15
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
GRAY 		8-97413-108-1 01 1 0801-0801 ●
2 MAT; FLOOR
DELUXE CARPET<BF2> GRAY 		8-97413-108-1 01 1 0801-0801 ●
2 MAT; FLOOR
DELUXE CARPET<BF2> GRAY 		8-97413-108-1 01 1 0802-1006 ● ●
2 MAT; FLOOR
DELUXE CARPET<BF2> DARK GRAY 		8-97421-808-0 01 1 1007- ● ●
2 MAT; FLOOR
GRAY 		8-97413-109-1 01 1 0801-0801 ●
2 MAT; FLOOR
DELUXE CARPET<BF2> GRAY 		8-97413-109-1 01 1 0801-0801 ●
2 MAT; FLOOR
DELUXE CARPET<BF2> GRAY 		8-97413-109-1 01 1 0802-1006 ● ●
2 MAT; FLOOR
DELUXE CARPET<BF2> DARK GRAY 		8-97421-810-0 01 1 1007- ● ●
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97413-132-2 01 1 0801-0801 ●
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97413-132-2 01 1 0802- ● ●
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97413-133-1 01 1 0801-0801 ●
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97413-133-1 01 1 0802- ● ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-397-0 01 1 0801-0801 ●
15 MAT; FLOOR REAR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-397-0 01 1 0801-0801 ●
15 MAT; FLOOR REAR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-397-0 01 1 0802-1006 ● ●
15 MAT; FLOOR REAR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1007- ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0801-0801 ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0802- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 1201-1503 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (D) GRAY 		8-97465-138-0 01 1 1504- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(C) GRAY 		8-97407-412-1 01 1 0801-1112 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(C) GRAY 		8-97407-412-1 01 1 1201- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97407-412-1 01 1 1201- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 0801- ● ●
81 MAT; FLOOR,CENTER
GRAY 		8-97413-079-4 01 1 0801-0801 ●
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> GRAY 		8-97413-079-4 01 1 0801-0801 ●
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> GRAY 		8-97413-079-4 01 1 0802-1006 ● ●
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> DARK GRAY 		8-97421-806-0 01 1 1007- ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> DRIVER ISRINGHAUSEN SEAT(SJA) GRAY 		8-97413-083-5 01 1 0801-0801 ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> GRAY 		8-97413-083-6 01 1 0802- ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> DRIVER ISRINGHAUSEN SEAT(SJA) GRAY 		8-97413-083-6 01 1 0802- ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) GRAY 		8-97413-081-6 01 1 0801- ●
