◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#40304) — 73 parça

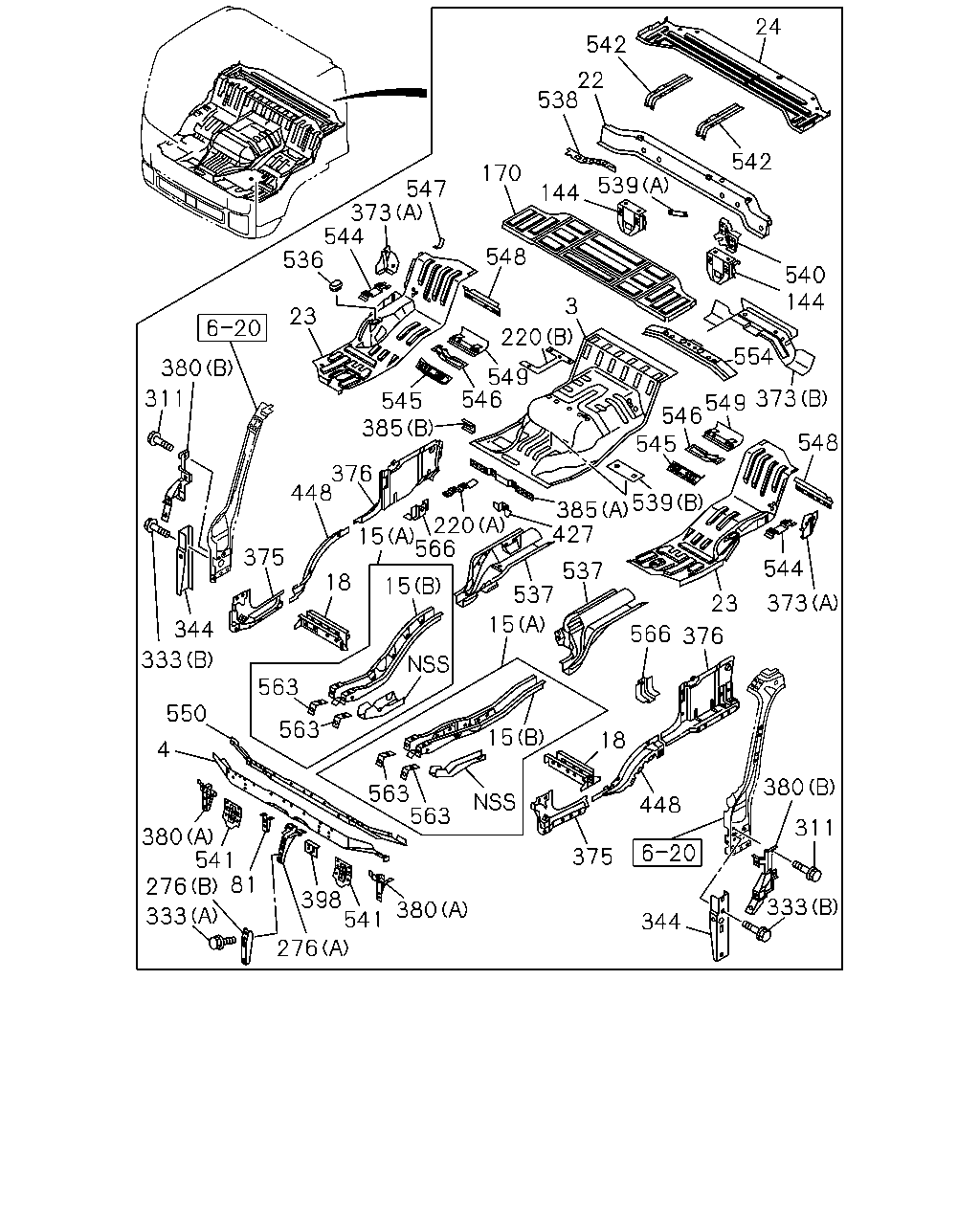

çizim 161696
24 542 542 22 538 170 539 540 144 3 548 547 373 544 536 23 545 456 549 220 385 554 549 546 373 548 545 539 385 427 537 544 373 23 376 566 537 15 18 15 448 375 344 333 311 380 563 563 563 563 15 18 15 220 566 550 4 380 276 81 541 333 398 541 276 380 375 448 376 344 333 380 311 144
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98053-070-7 01 1 0801- ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98053-070-7 01 1 0801- ●
3 HOOD ASM; ENG
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98046-585-7 01 1 0801- ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 0801- ● ●
15 FRAME; UNDER
(B) 		8-98055-440-3 01 1 0801- ● ●
15 FRAME; UNDER
(B) 		8-98055-441-3 01 1 0801- ● ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 0801- ● ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 0801- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 0801- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 0801- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 0801- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 0801- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 0801- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 0801- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0801- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0801- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0801- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0801- ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 0801- ● ●
220 PATCH
(A) 		8-98053-088-0 01 1 0801- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 0801- ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 0801- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0801- ● ●
333 BOLT; BRKT
(A) M6X16 FLANGE 		8-97808-792-1 02 1 0801-0804 ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0805- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0801- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 0801- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 0801- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98046-586-2 01 1 0801- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0801- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0801- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0801- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0801- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0801-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0801- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0801- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0801- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 0801- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 0801- ● ●
385 BRACKET
(A) 		8-97588-840-4 01 1 0801- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 0801- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0801- ● ●
427 BRACKET; CABLE 8-98053-090-2 01 1 0801- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 0801- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 0801- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0801- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 0801- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 0801- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 0801- ● ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98108-382-0 01 1 1201- ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0801- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0801- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 0801- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0801- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0801- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0801- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0801- ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98050-186-0 01 1 0801- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0801- ● ●
545 BRACKET; SEAT FRT
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97584-361-1 01 1 0801- ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0801- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0801- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0801- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0801- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 0801- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0801- ●
549 BRACKET; SEAT RR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98050-187-1 01 1 0801- ●
549 BRACKET; SEAT RR
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97589-557-4 01 1 0801- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0801- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 0801- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0801- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 0801- ● ●
