◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#40302) — 19 parça

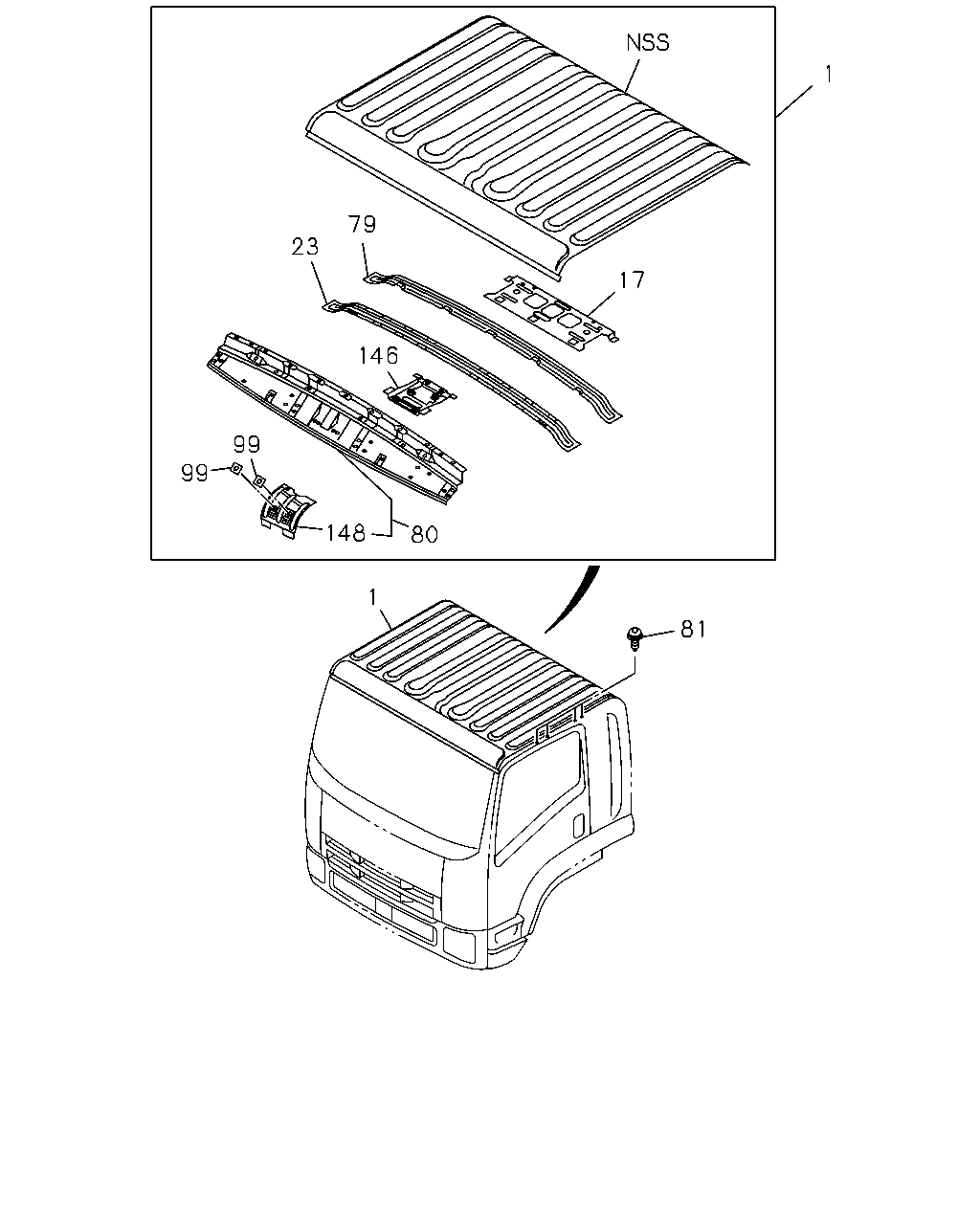

çizim 161649
1 79 23 17 146 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98152-805-0 01 1 1002-1308 ●
1 PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98246-477-0 01 1 1309- ●
1 PANEL; ROOF 8-97584-177-6 01 1 0801-1001 ● ●
1 PANEL; ROOF 8-97584-177-6 01 1 1002-1308 ●
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> 		8-97584-177-6 01 1 1002-1308 ●
1 PANEL; ROOF 8-98196-922-0 01 1 1309- ●
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> 		8-98196-922-0 01 1 1309- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0801-1001 ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1002- ●
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1002- ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 0801- ● ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 0801- ● ●
80 PANEL; HEADER,ROOF 8-97584-192-3 01 1 0801-1308 ● ●
80 PANEL; HEADER,ROOF 8-98196-921-0 01 1 1309- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0801-0910 ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0801- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0801- ● ●
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 0801- ● ●
