6-31 — FRONT DOOR GLASS AND REGULATOR (#4030) — 178 parça

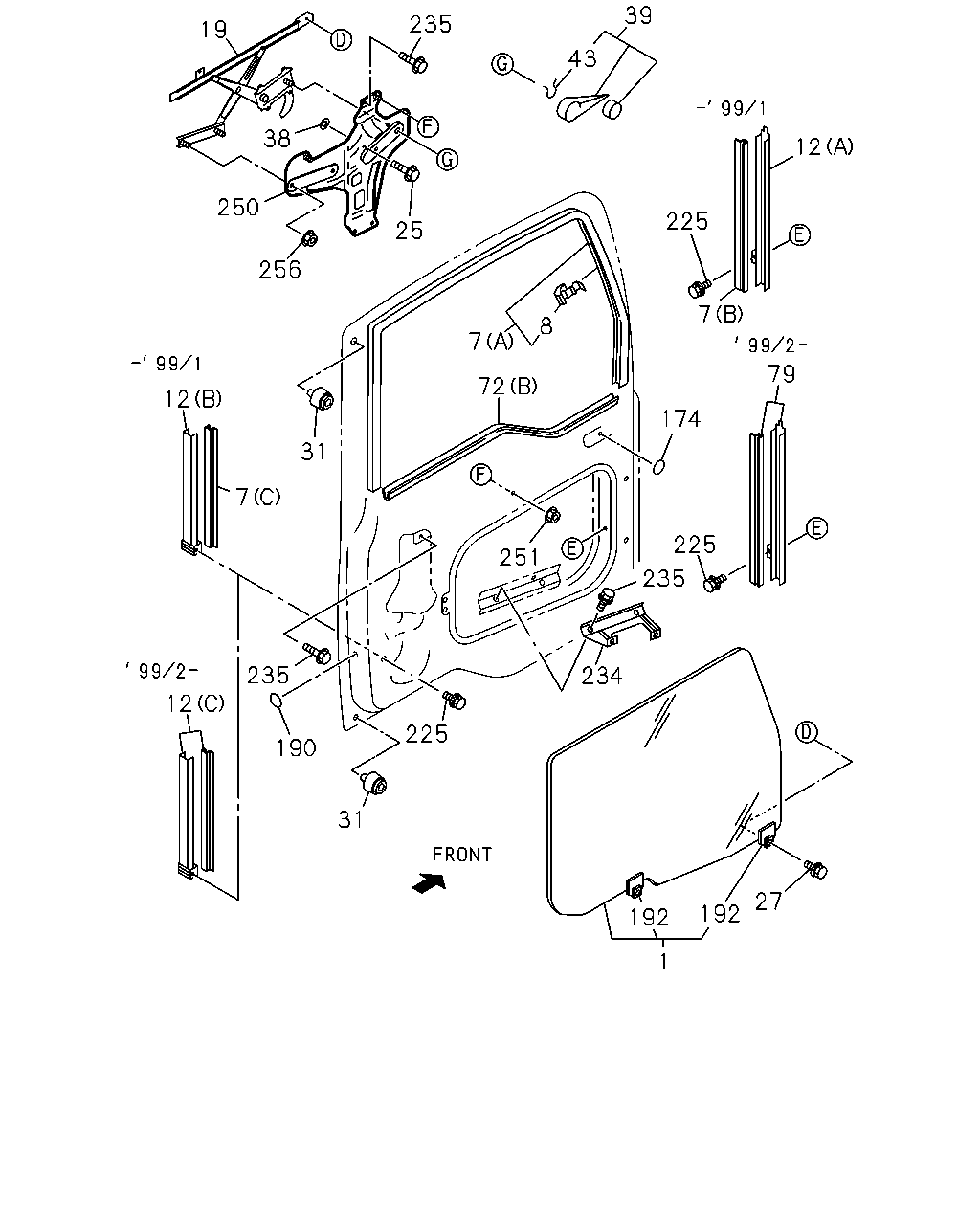

39 235 19 43 38 12 250 225 25 256 7 8 7 79 72 12 174 31 7 225 251 235 235 234 12 225 190 31 27 192 192 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-069-1	01	1	9510-9611	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-079-0	01	1	9612-9712	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-094-2	01	1	9801-	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-068-1	01	1	9510-9611	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76167-159-0	01	1	9612-9712	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76167-174-2	01	1	9801-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-071-0	01	1	9510-9611	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-083-0	01	1	9612-9712	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-2	01	1	9801-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-060-1	01	1	9510-9611	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-153-0	01	1	9612-9712	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-172-0	01	1	9801-9905	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	9906-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	9510-	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-031-0	01	1	9510-9512	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-043-0	01	1	9601-9705	●	●
7	GLASS RUN; FRT DOOR (C)	1-74318-037-0	01	1	9510-9512	●	●
7	GLASS RUN; FRT DOOR (C)	1-74318-041-0	01	1	9601-9901	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	9510-	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-034-0	01	1	9510-9512	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-038-0	01	1	9601-9705	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-038-0	02	1	9706-9901	●	●
7	GLASS RUN; FRT DOOR (C)	1-74318-036-0	01	1	9510-9512	●	●
7	GLASS RUN; FRT DOOR (C)	1-74318-040-0	01	1	9601-9901	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	9510-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-037-1	01	1	9510-9901	●	●
12	CHANNEL; GLASS RUN,FRT (B)	1-74338-049-1	01	1	9510-9901	●	●
12	CHANNEL; GLASS RUN,FRT (C)	1-74338-071-3	01	1	9902-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-046-1	01	1	9510-9901	●	●
12	CHANNEL; GLASS RUN,FRT (B)	1-74338-048-1	01	1	9510-9901	●	●
12	CHANNEL; GLASS RUN,FRT (C)	1-74338-070-3	01	1	9902-	●	●
19	REGULATOR; WINDOW,FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-134-5	01	1	9510-	●	●
19	REGULATOR; WINDOW,FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-144-5	01	1	9510-	●	●
25	BOLT; WINDOW REG DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	9510-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9510-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	10	1	0601-0710	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X10 FLANGE	0-28050-610-0	10	1	0711-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9510-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	9510-	●	●
38	WASHER; PL,WINDOW REG DOOR WINDOW MANUAL CONT<SKF> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	9510-	●	●
39	HANDLE; WINDOW REG,FRT DOOR DOOR WINDOW MANUAL CONT<SKF> BLACK	8-94371-427-0	02	1	9510-	●	●
43	CLIP; REG HANDLE,FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	8-94220-591-0	02	1	9510-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	9510-1207	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	9510-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	9510-1207	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	9510-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	9902-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	9902-	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	20	1	9510-0212	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK	1-76798-041-0	06	1	9510-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	14	1	9510-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
190	REFLECTOR; FRT DOOR INNER	5-76777-060-1	01	1	9510-	●	●
192	HOLDER; DOOR GLASS	1-74428-013-0	04	1	9510-9712	●	●
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	9801-0010	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0011-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0011-	●	●
192	HOLDER; DOOR GLASS DOOR WINDOW MANUAL CONT<SKF>	1-74427-170-0	04	1	0011-	●	●
225	BOLT; FRT CHANNEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9510-0003	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0004-0512	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	9510-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	9510-	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X16 FLANGE	0-28050-616-0	08	1	0601-0710	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X10 FLANGE	0-28050-610-0	08	1	0711-	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-	●	●
250	BRACKET; REGULATOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-149-0	01	1	9510-0004	●	●
250	BRACKET; REGULATOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-149-0	01	1	0005-	●	●
250	BRACKET; REGULATOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-148-0	01	1	9510-0004	●	●
250	BRACKET; REGULATOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-148-0	01	1	0005-	●	●
251	NUT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE	1-09984-141-0	04	1	9510-	●	●
256	NUT DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-	●	●

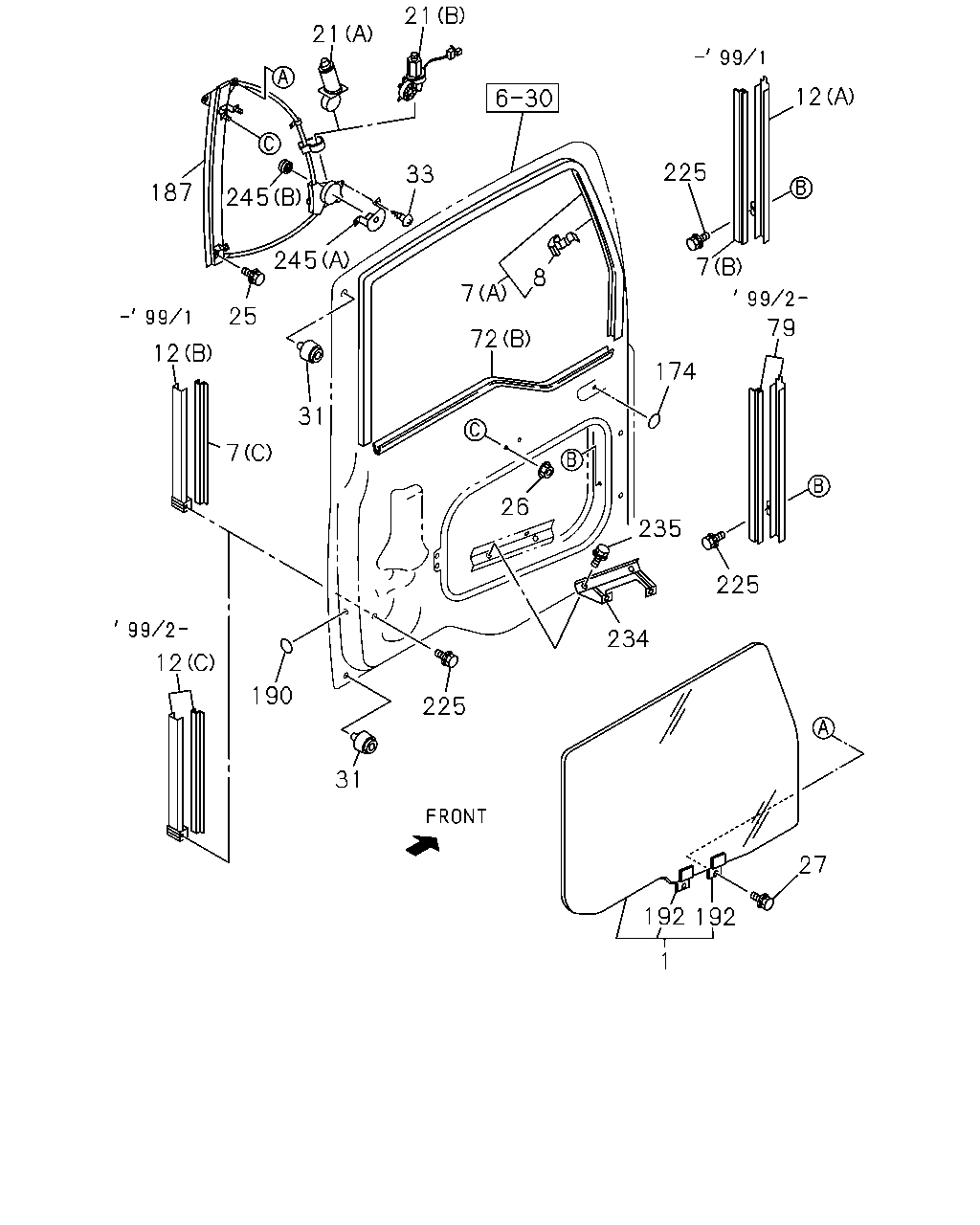

1 192 192 27 225 31 190 12 234 225 235 26 174 79 72 7 8 31 7 12 25 245 33 245 21 21 187 225 7 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-069-1	01	1	9510-9611	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-079-0	01	1	9612-9712	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-094-2	01	1	9801-	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-068-1	01	1	9510-9611	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76167-159-0	01	1	9612-9712	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76167-174-2	01	1	9801-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-071-0	01	1	9510-9611	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-083-0	01	1	9612-9712	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-2	01	1	9801-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-060-1	01	1	9510-9611	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-153-0	01	1	9612-9712	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-172-0	01	1	9801-9905	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	9906-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	9510-	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-031-0	01	1	9510-9512	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-043-0	01	1	9601-9705	●	●
7	GLASS RUN; FRT DOOR (C)	1-74318-037-0	01	1	9510-9512	●	●
7	GLASS RUN; FRT DOOR (C)	1-74318-041-0	01	1	9601-9901	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	9510-	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-034-0	01	1	9510-9512	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-038-0	01	1	9601-9705	●	●
7	GLASS RUN; FRT DOOR (B)	1-74318-038-0	02	1	9706-9901	●	●
7	GLASS RUN; FRT DOOR (C)	1-74318-036-0	01	1	9510-9512	●	●
7	GLASS RUN; FRT DOOR (C)	1-74318-040-0	01	1	9601-9901	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	9510-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-037-1	01	1	9510-9901	●	●
12	CHANNEL; GLASS RUN,FRT (B)	1-74338-049-1	01	1	9510-9901	●	●
12	CHANNEL; GLASS RUN,FRT (C)	1-74338-071-3	01	1	9902-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-046-1	01	1	9510-9901	●	●
12	CHANNEL; GLASS RUN,FRT (B)	1-74338-048-1	01	1	9510-9901	●	●
12	CHANNEL; GLASS RUN,FRT (C)	1-74338-070-3	01	1	9902-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> (A)	1-74418-139-2	01	1	9510-9608	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> (B)	1-74418-164-0	01	1	9609-0003	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> (B)	1-74418-177-0	01	1	0004-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> (A)	1-74418-153-1	01	1	9510-9608	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> (B)	1-74418-161-0	01	1	9609-0003	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> (B)	1-74418-176-0	01	1	0004-	●	●
25	BOLT; WINDOW REG DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	9510-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9510-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	10	1	0601-0710	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X10 FLANGE	0-28050-610-0	10	1	0711-	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	06	1	9510-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9510-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	9510-	●	●
33	SCREW; REG MOTOR POWER WINDOW<A30>	8-98099-646-0	03	1	1204-	●	●
33	SCREW; REG MOTOR POWER WINDOW<A30>	8-98099-646-0	03	1	1204-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	9510-1207	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	9510-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	9510-1207	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	9510-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	9902-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	9902-	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	20	1	9510-0212	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK	1-76798-041-0	06	1	9510-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	14	1	9510-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-138-2	01	1	9510-9608	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-167-1	01	1	9609-0003	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-179-3	01	1	0004-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-152-0	01	1	9510-9608	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-165-1	01	1	9609-0003	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0004-	●	●
190	REFLECTOR; FRT DOOR INNER	5-76777-060-1	01	1	9510-	●	●
192	HOLDER; DOOR GLASS	1-74428-013-0	04	1	9510-9712	●	●
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	9801-0010	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0011-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0011-	●	●
192	HOLDER; DOOR GLASS DOOR WINDOW MANUAL CONT<SKF>	1-74427-170-0	04	1	0011-	●	●
225	BOLT; FRT CHANNEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9510-0003	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0004-0512	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	9510-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	9510-	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X16 FLANGE	0-28050-616-0	08	1	0601-0710	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X10 FLANGE	0-28050-610-0	08	1	0711-	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0106-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0106-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	02	1	9510-0105	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-146-0	02	1	9510-0003	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-181-0	01	1	0004-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0004-	●	●

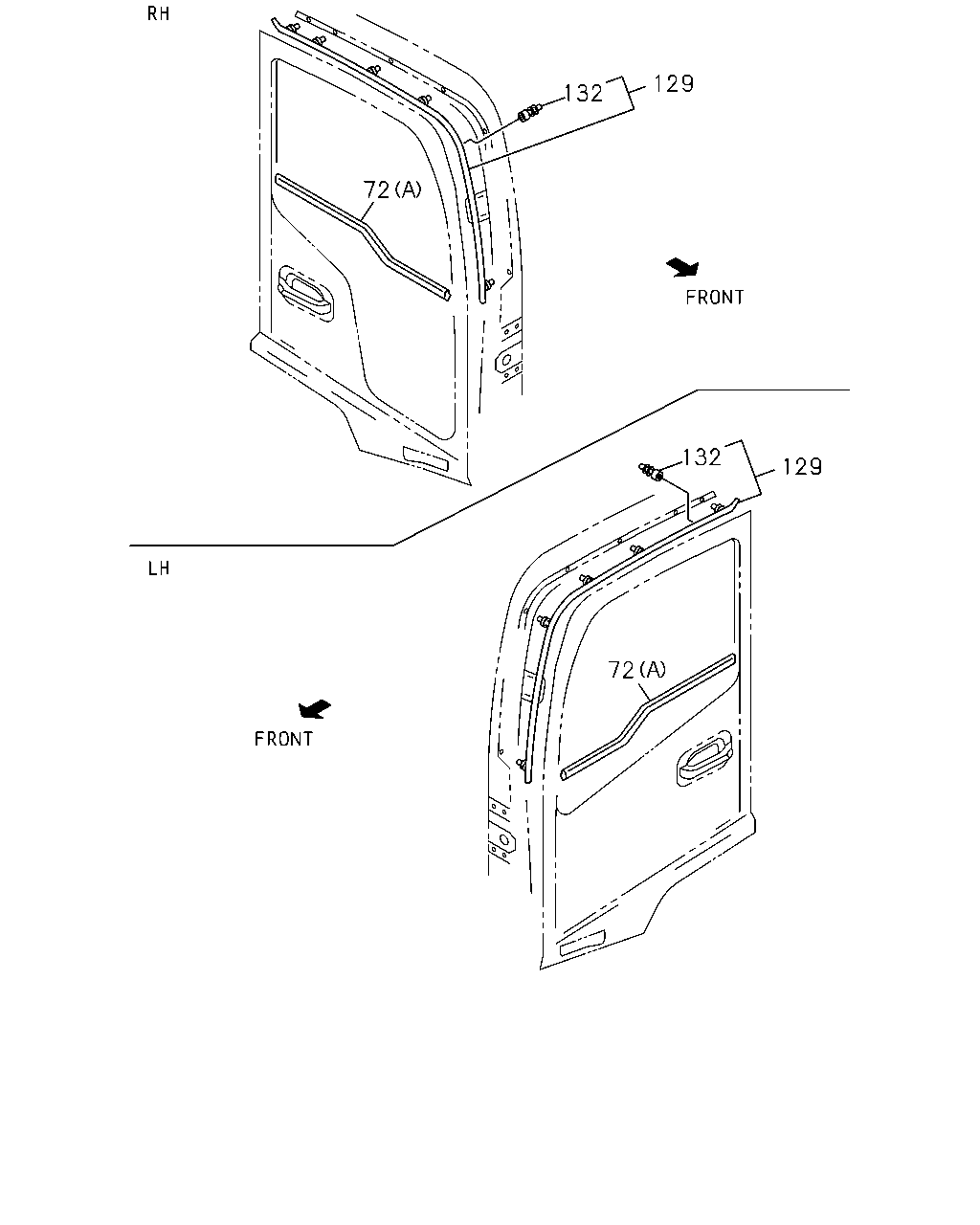

129 132 72 132 129 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	9510-1207	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	9510-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	9510-1207	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	9510-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	9510-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	9510-	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	9510-	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	9510-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
