6-03 — RADIATOR GRILLE (#40291) — 74 parça

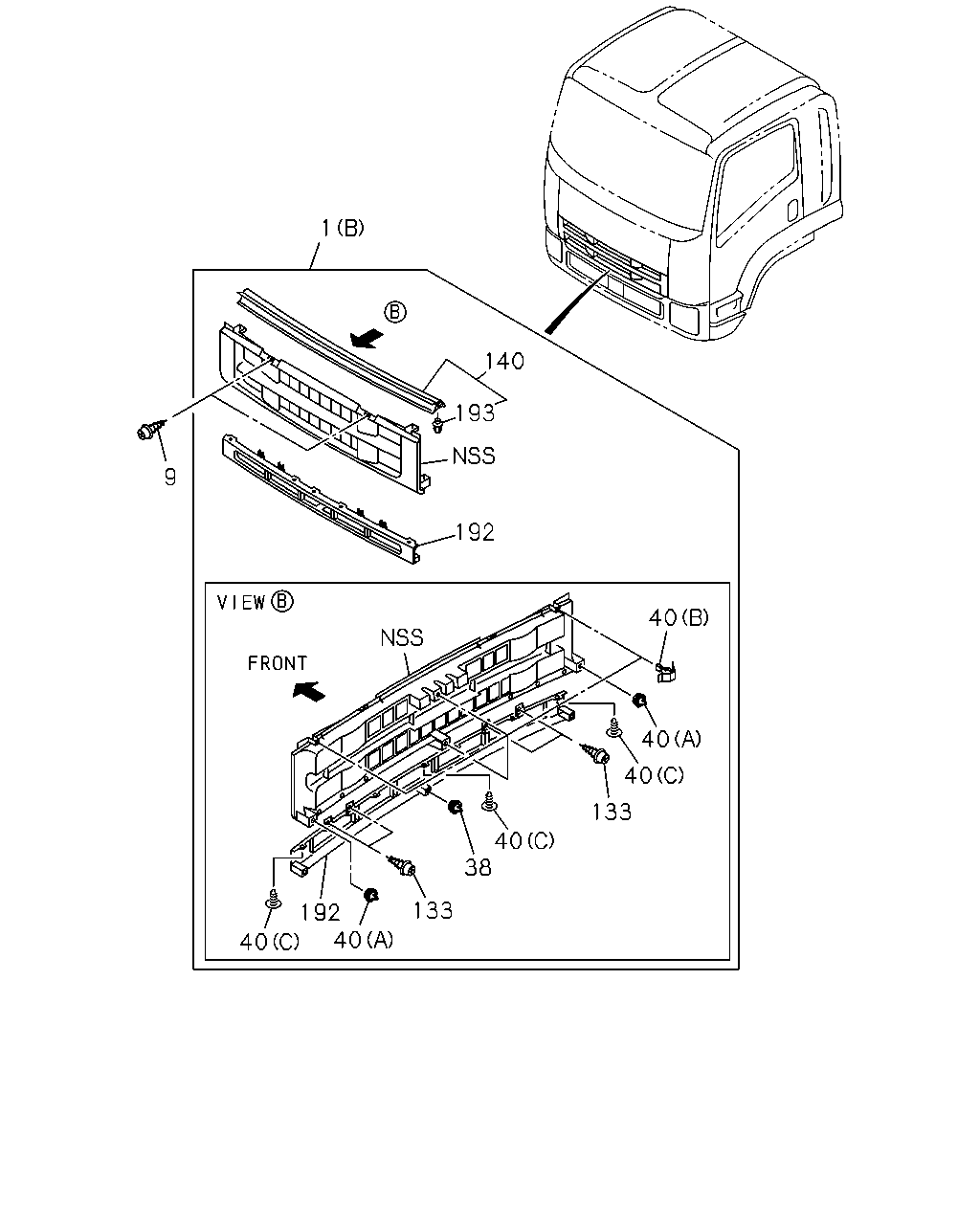

140 193 1 9 40 1 40 40 133 40 38 133 192 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD BODY COLOR ARC WHITE(729) (B) WHITE	8-97416-184-0	01	1	0806-	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) (B) WHITE	8-97416-184-0	01	1	0806-		●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) (B) RED	8-97418-347-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) AUSTRALIA EQUIPMENT(RR3) (B) RED	8-97418-347-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) (B) BEIGE	8-97418-348-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) AUSTRALIA EQUIPMENT(RR3) (B) BEIGE	8-97418-348-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) (B) BLUE	8-97418-349-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) AUSTRALIA EQUIPMENT(RR3) (B) BLUE	8-97418-349-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) (B) YELLOW	8-97418-350-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) AUSTRALIA EQUIPMENT(RR3) (B) YELLOW	8-97418-350-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR OMAHA ORANGE(906) (B)	8-97418-351-0	01	1	0908-1011	●
1	GRILLE; RAD BODY COLOR OMAHA ORANGE(906) AUSTRALIA EQUIPMENT(RR3) (B)	8-97418-351-0	01	1	0908-1011		●
1	GRILLE; RAD BODY COLOR FIRE RED(915) (B) RED	8-97418-352-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) AUSTRALIA EQUIPMENT(RR3) (B) RED	8-97418-352-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) EXC. AUSTRALIA EQUIPMENT(RR3) (A) RED	8-97411-746-6	01	1	0908-		●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) EXC. AUSTRALIA EQUIPMENT(RR3) (A) BEIGE	8-97411-747-6	01	1	0908-		●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. AUSTRALIA EQUIPMENT(RR3) (A) BLUE	8-97413-914-6	01	1	0908-		●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) EXC. AUSTRALIA EQUIPMENT(RR3) (A) YELLOW	8-97411-748-6	01	1	0908-		●
1	GRILLE; RAD BODY COLOR OMAHA ORANGE(906) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97418-372-6	01	1	0908-1011		●
1	GRILLE; RAD BODY COLOR FIRE RED(915) EXC. AUSTRALIA EQUIPMENT(RR3) (A) RED	8-97411-749-6	01	1	0908-		●
1	GRILLE; RAD (A) WHITE	8-97407-868-6	01	1	0801-0805	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. AUSTRALIA EQUIPMENT(RR3) (A) WHITE	8-97407-868-6	01	1	0806-		●
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0801-	●	●
38	CLIP; GRILLE H=15.3	8-97804-778-0	01	1	0801-	●	●
40	CLIP; RAD GRILLE (C) D8X13.5	1-09987-248-1	07	1	0801-	●	●
40	CLIP; RAD GRILLE (A)	8-97581-651-2	04	1	0801-	●	●
40	CLIP; RAD GRILLE (B)	8-98025-698-0	04	1	0801-	●	●
133	SCREW; COVER T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0801-	●	●
140	SEAL; RAD GRILLE	8-98060-340-0	01	1	0801-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR CARDINAL RED(736) RED	8-97418-373-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR SAHARA BEIGE(829) BEIGE	8-97418-374-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR MARINE BLUE(890) BLUE	8-97418-375-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97418-376-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR OMAHA ORANGE(906)	8-97418-377-0	01	1	0908-1011	●	●
192	EXTENSION; RAD GRILLE BODY COLOR FIRE RED(915) RED	8-97418-378-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR ARC WHITE(729) WHITE	8-97413-103-0	01	1	0801-	●	●
193	CLIP; SEAL NATURAL	8-98027-457-0	13	1	0801-	●	●

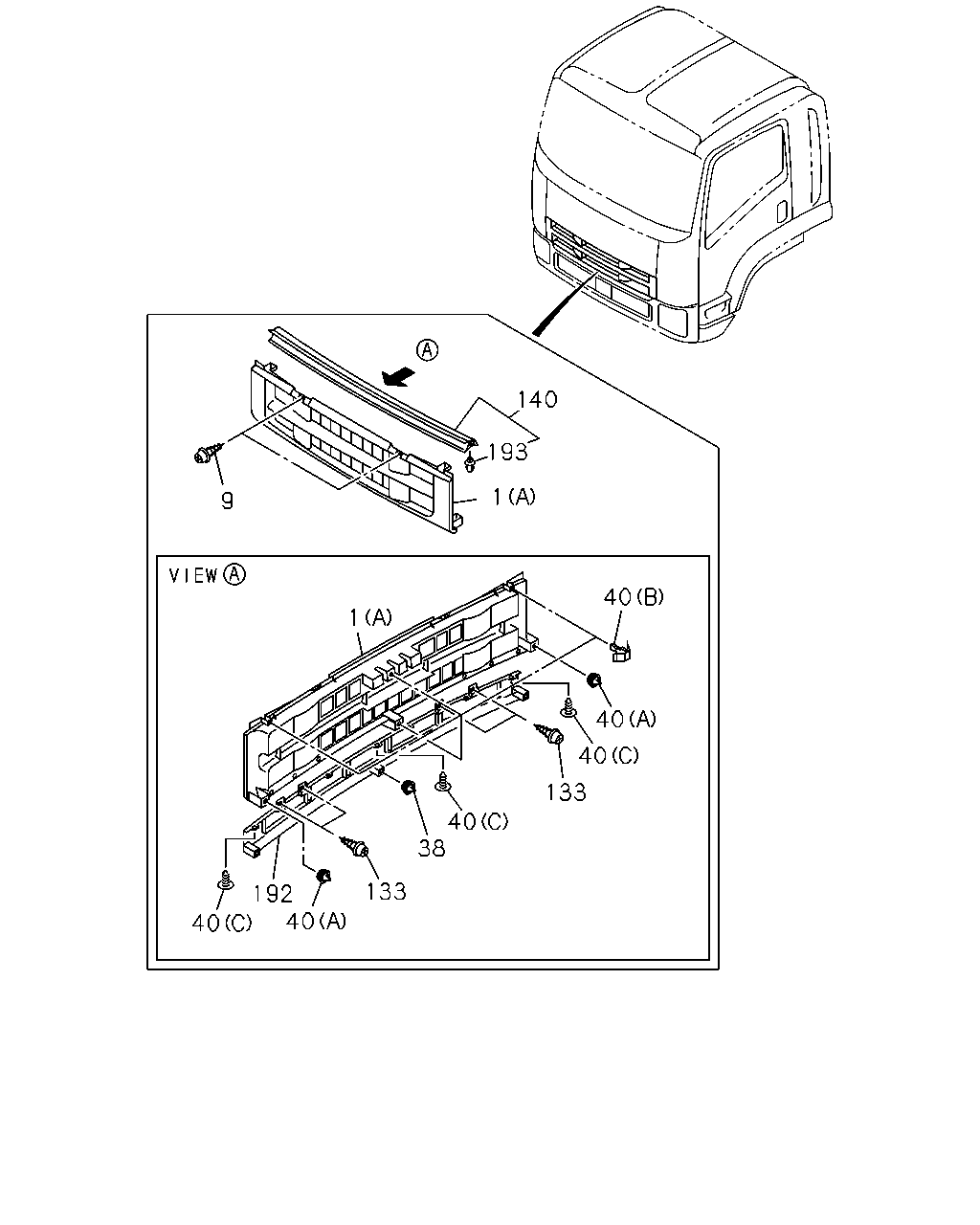

1 140 193 9 192 40 40 40 133 40 38 133 192 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD BODY COLOR ARC WHITE(729) (B) WHITE	8-97416-184-0	01	1	0806-	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) (B) WHITE	8-97416-184-0	01	1	0806-		●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) (B) RED	8-97418-347-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) AUSTRALIA EQUIPMENT(RR3) (B) RED	8-97418-347-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) (B) BEIGE	8-97418-348-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) AUSTRALIA EQUIPMENT(RR3) (B) BEIGE	8-97418-348-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) (B) BLUE	8-97418-349-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) AUSTRALIA EQUIPMENT(RR3) (B) BLUE	8-97418-349-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) (B) YELLOW	8-97418-350-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) AUSTRALIA EQUIPMENT(RR3) (B) YELLOW	8-97418-350-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR OMAHA ORANGE(906) (B)	8-97418-351-0	01	1	0908-1011	●
1	GRILLE; RAD BODY COLOR OMAHA ORANGE(906) AUSTRALIA EQUIPMENT(RR3) (B)	8-97418-351-0	01	1	0908-1011		●
1	GRILLE; RAD BODY COLOR FIRE RED(915) (B) RED	8-97418-352-0	01	1	0908-	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) AUSTRALIA EQUIPMENT(RR3) (B) RED	8-97418-352-0	01	1	0908-		●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) EXC. AUSTRALIA EQUIPMENT(RR3) (A) RED	8-97411-746-6	01	1	0908-		●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) EXC. AUSTRALIA EQUIPMENT(RR3) (A) BEIGE	8-97411-747-6	01	1	0908-		●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. AUSTRALIA EQUIPMENT(RR3) (A) BLUE	8-97413-914-6	01	1	0908-		●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) EXC. AUSTRALIA EQUIPMENT(RR3) (A) YELLOW	8-97411-748-6	01	1	0908-		●
1	GRILLE; RAD BODY COLOR OMAHA ORANGE(906) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97418-372-6	01	1	0908-1011		●
1	GRILLE; RAD BODY COLOR FIRE RED(915) EXC. AUSTRALIA EQUIPMENT(RR3) (A) RED	8-97411-749-6	01	1	0908-		●
1	GRILLE; RAD (A) WHITE	8-97407-868-6	01	1	0801-0805	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. AUSTRALIA EQUIPMENT(RR3) (A) WHITE	8-97407-868-6	01	1	0806-		●
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0801-	●	●
38	CLIP; GRILLE H=15.3	8-97804-778-0	01	1	0801-	●	●
40	CLIP; RAD GRILLE (C) D8X13.5	1-09987-248-1	07	1	0801-	●	●
40	CLIP; RAD GRILLE (A)	8-97581-651-2	04	1	0801-	●	●
40	CLIP; RAD GRILLE (B)	8-98025-698-0	04	1	0801-	●	●
133	SCREW; COVER T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0801-	●	●
140	SEAL; RAD GRILLE	8-98060-340-0	01	1	0801-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR CARDINAL RED(736) RED	8-97418-373-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR SAHARA BEIGE(829) BEIGE	8-97418-374-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR MARINE BLUE(890) BLUE	8-97418-375-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97418-376-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR OMAHA ORANGE(906)	8-97418-377-0	01	1	0908-1011	●	●
192	EXTENSION; RAD GRILLE BODY COLOR FIRE RED(915) RED	8-97418-378-0	01	1	0908-	●	●
192	EXTENSION; RAD GRILLE BODY COLOR ARC WHITE(729) WHITE	8-97413-103-0	01	1	0801-	●	●
193	CLIP; SEAL NATURAL	8-98027-457-0	13	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
