◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#4029) — 58 parça

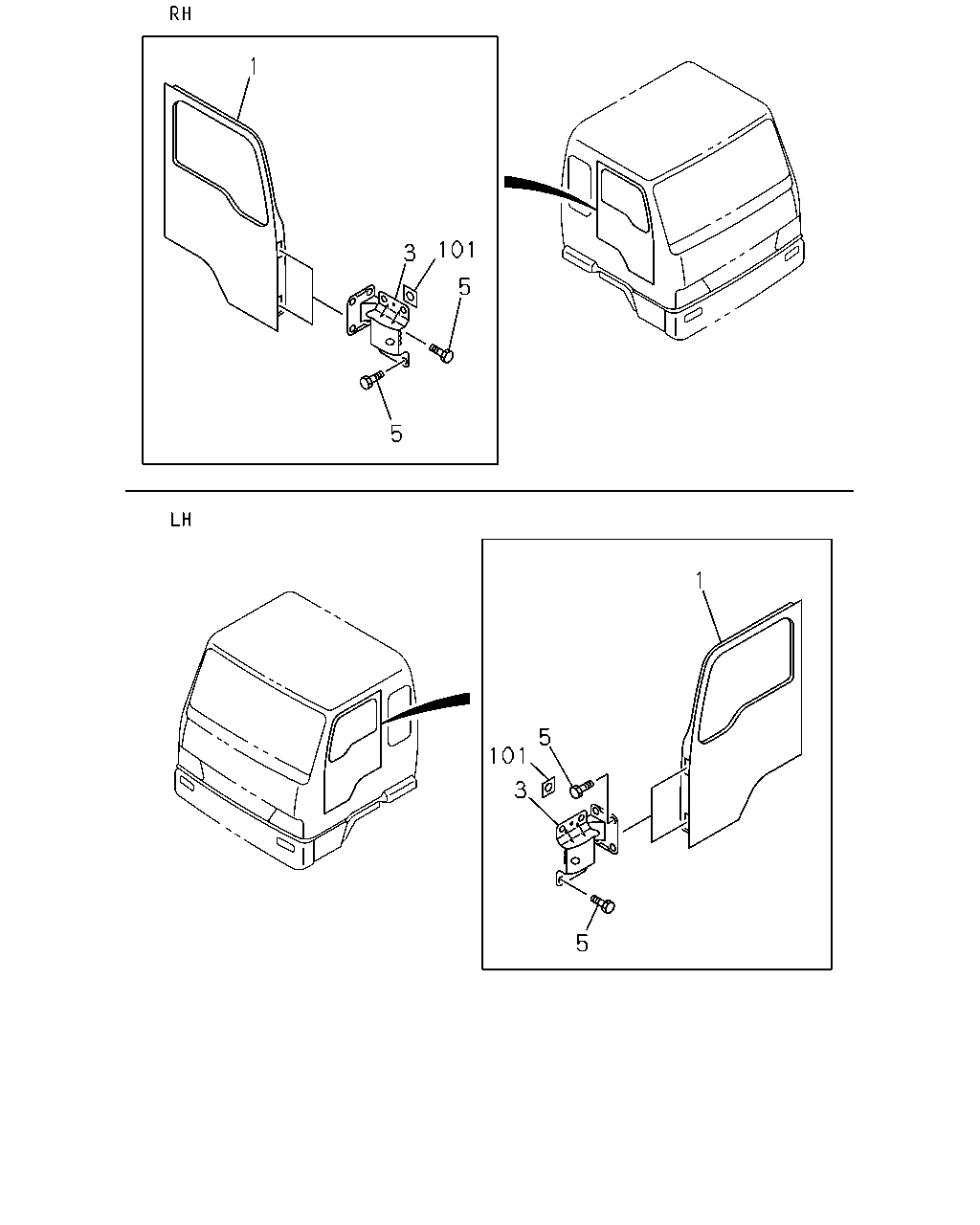

çizim 115763
1 101 3 5 5 1 5 101 3 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM 1-64080-326-0 01 1 9510-9901 ● ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-391-2 01 1 9902- ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4> PRIMER 		1-64080-333-0 01 1 9510-9901 ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4> 		1-64080-388-1 01 1 9902-0303 ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4> 		1-64080-388-1 01 1 0304-0307 ●
1 DOOR ASM; FRT,WO/TRIM
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> 		1-64080-388-1 01 1 0304-0307 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-64080-388-1 01 1 0304-0307 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4> 		1-64080-388-2 01 1 0308- ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-64080-325-0 01 1 9510-9901 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-64080-390-1 01 1 9902-0303 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-64080-390-1 01 1 0304-0307 ● ●
1 DOOR ASM; FRT,WO/TRIM
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> 		1-64080-390-1 01 1 0304-0307 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-64080-390-2 01 1 0308- ●
1 DOOR ASM; FRT,WO/TRIM
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> 		1-64080-390-2 01 1 0308- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) 		1-64080-390-2 01 1 0308- ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> UPPER 		1-64780-097-1 02 1 0304- ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> LOWER 		1-64780-098-2 02 1 0304- ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-2 02 1 9510-0303 ● ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> UPPER 		1-64780-088-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW WIDE<WU4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) UPPER 		1-64780-088-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> UPPER 		1-64780-088-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) UPPER 		1-64780-088-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW WIDE<WU4> UPPER 		1-64780-088-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-3 01 1 0308- ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> UPPER 		1-64780-088-3 01 1 0308- ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) UPPER 		1-64780-088-3 01 1 0308- ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) UPPER 		1-64780-088-3 01 1 0308- ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW WIDE<WU4> UPPER 		1-64780-088-3 01 1 0308- ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-2 02 1 9510-0303 ● ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> LOWER 		1-64780-089-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW WIDE<WU4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) LOWER 		1-64780-089-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> LOWER 		1-64780-089-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) LOWER 		1-64780-089-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW WIDE<WU4> LOWER 		1-64780-089-2 01 1 0304-0307 ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-4 01 1 0308- ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> LOWER 		1-64780-089-4 01 1 0308- ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) LOWER 		1-64780-089-4 01 1 0308- ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) LOWER 		1-64780-089-4 01 1 0308- ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW WIDE<WU4> LOWER 		1-64780-089-4 01 1 0308- ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 9510-0303 ● ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0304-0307 ●
5 BOLT; HINGE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0304-0307 ●
5 BOLT; HINGE
MIR O/S RR VIEW WIDE<WU4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0304-0307 ●
5 BOLT; HINGE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0304-0307 ●
5 BOLT; HINGE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0304-0307 ●
5 BOLT; HINGE
EXC. MIR O/S RR VIEW WIDE<WU4> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0304-0307 ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ●
5 BOLT; HINGE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ●
5 BOLT; HINGE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ●
5 BOLT; HINGE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ●
5 BOLT; HINGE
MIR O/S RR VIEW WIDE<WU4> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 9510-0303 ● ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0304- ● ●
5 BOLT; HINGE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0304- ●
101 SEAL; BODY METAL
MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9802-9806 ● ●
101 SEAL; BODY METAL
EXC. MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9510-9806 ● ●
