Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11145 - FXZ EXC.EURO5
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#40284) — 102 parça
Tümü
A - FGY5MX
B - FGZ5MX
◀

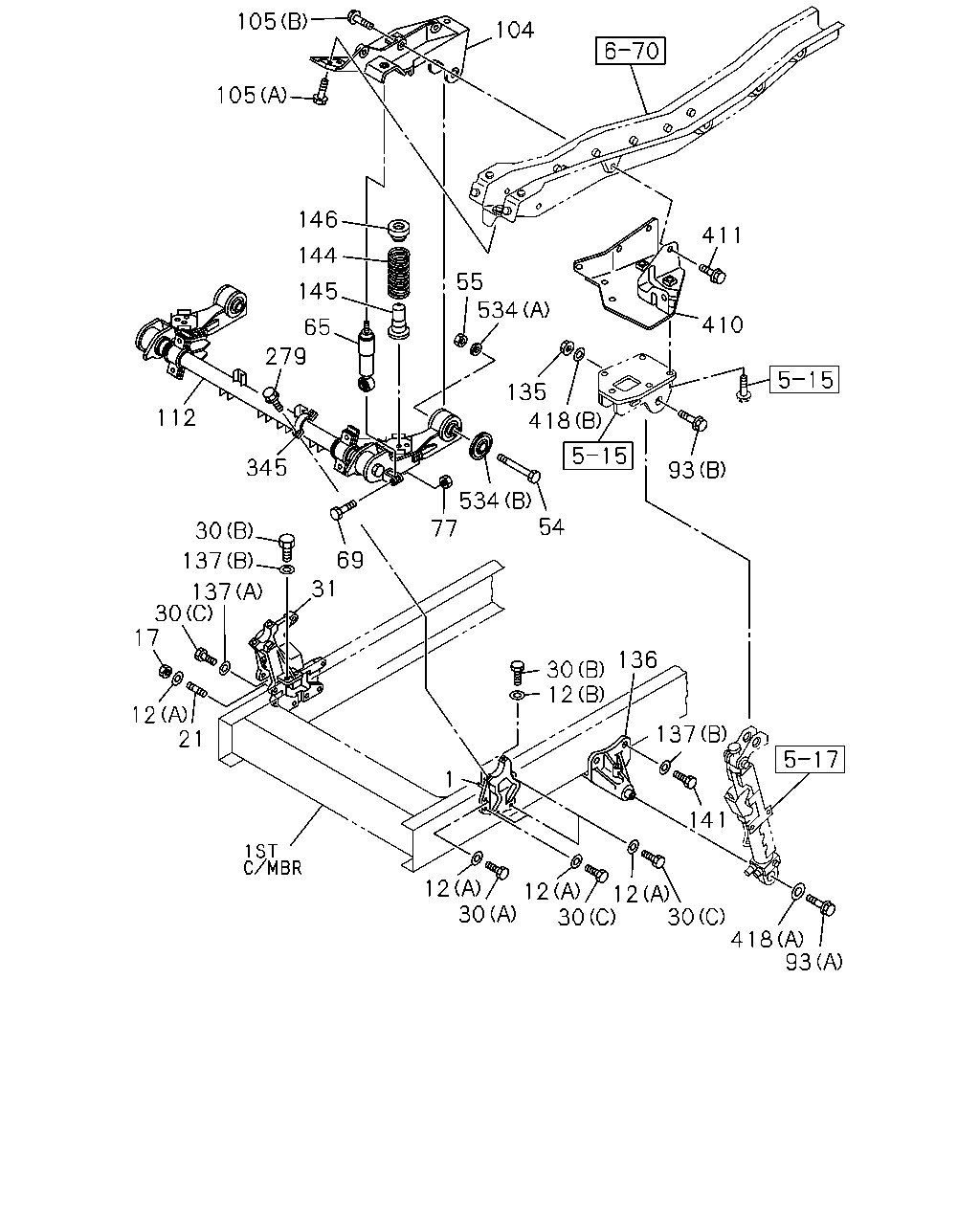

[510A] CAB MOUNTING;FRONT NO.1 (39 parça)
[510A] CAB MOUNTING;FRONT NO.2 (18 parça)

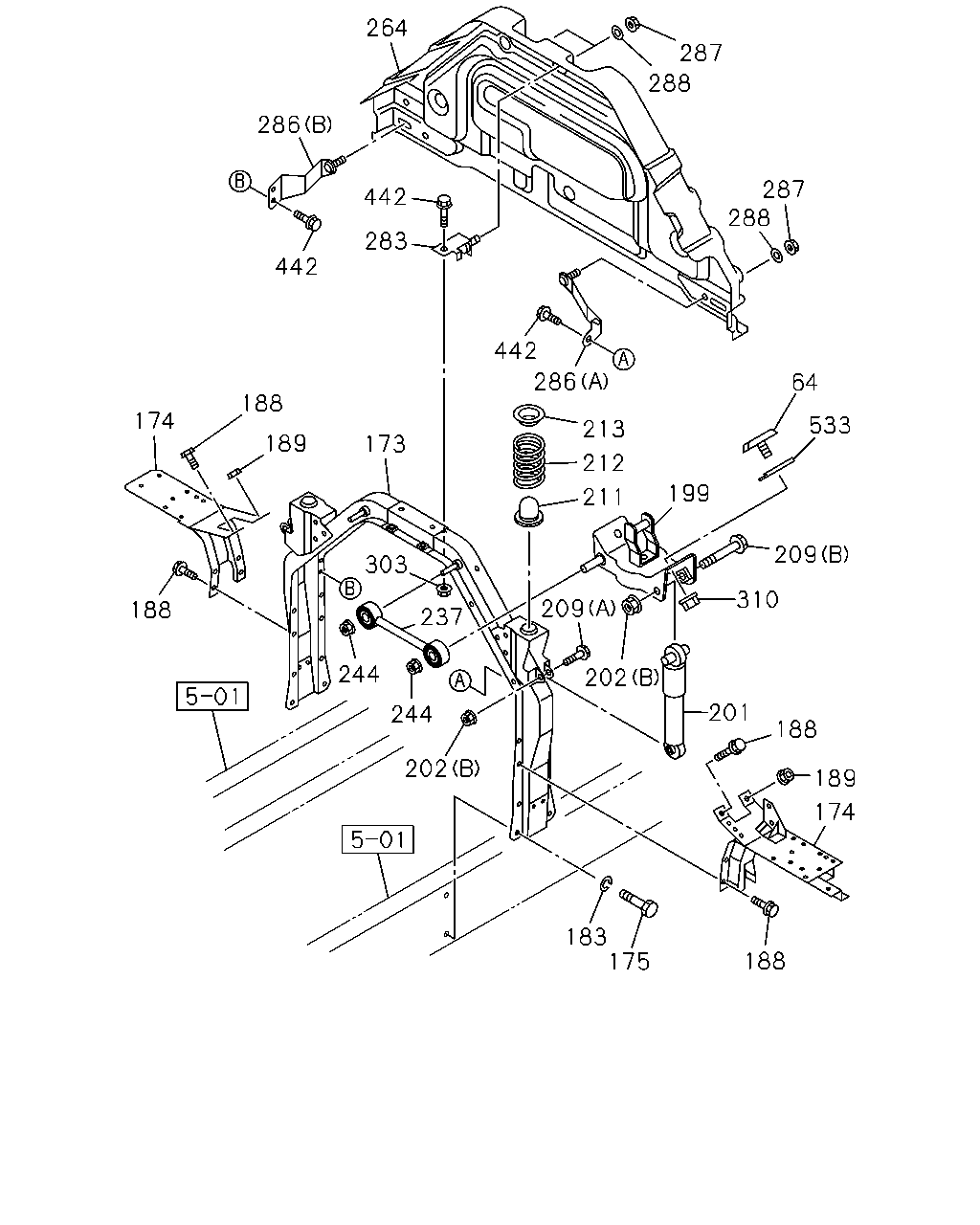

[510A] CAB MOUNTING;REAR (45 parça)
▶
105
104
105
146
411
144
55
534
145
410
65
279
135
112
418
345
93
534
77
54
30
69
137
31
137
30
17
136
30
12
12
21
137
1
141
12
30
12
12
30
30
418
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; CAB MTG
8-98054-826-0
01
1
0801-
●
●
12
WASHER; LK,BRKT
(A) ID=16.2
1-09503-316-0
06
1
0801-
●
●
12
WASHER; LK,BRKT
(B) ID=15
8-98010-627-1
02
1
0801-
●
●
17
NUT; BRKT,CAB TILT
M16
0-91110-516-0
01
1
0801-
●
●
21
STUD; BRKT,CAB TILT
M16X50 L=74
1-09300-117-0
01
1
0801-
●
●
30
BOLT; CAB FRT FOOT
(B) M14X60
0-20951-460-0
04
1
0801-
●
●
30
BOLT; CAB FRT FOOT
(C) M16X50
0-20951-650-0
09
1
0801-
●
●
30
BOLT; CAB FRT FOOT
(A) M16X60
0-20951-660-0
01
1
0801-
●
●
31
BRACKET; CAB
1-44226-181-0
01
1
0801-
●
●
54
BOLT; RUBBER
M18X90
0-10856-890-0
02
1
0801-
●
●
55
NUT; RUBBER
M18
0-91110-518-0
02
1
0801-
●
●
65
ABSORBER; SHOCK,CAB FRT SUSPENSION
1-51630-604-1
02
1
0801-
●
●
69
BOLT; S/ABS,CAB FRT SUSPENSION
M12X60
0-20801-260-0
02
1
0801-
●
●
77
NUT
M12 FLANGE
0-91180-212-0
02
1
0801-
●
●
93
BOLT; PIN
(A) M10X30
1-09000-283-0
01
1
0801-
●
●
93
BOLT; PIN
(B) M14X70
1-53458-633-0
01
1
0801-
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98054-821-2
01
1
0801-
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98054-822-2
01
1
0801-
●
●
105
BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE
0-28651-235-0
06
1
0801-
●
●
105
BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE
0-28661-030-0
08
1
0801-
●
●
112
ARM ASM; LINK,CAB FRT SUSP
8-98100-381-0
01
1
0801-
●
●
135
NUT; PIN
M14 SLOTTED
0-91116-514-0
01
1
0801-
●
●
136
BRACKET; OIL CYL
8-98054-835-0
01
1
0801-
●
●
137
WASHER; PL,BRKT
(A) ID=16.2
1-09503-316-0
05
1
0801-
●
●
137
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
02
1
0801-
●
●
137
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
04
1
0801-
●
●
141
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0801-
●
●
144
SPRING; COIL,CAB FRT SUSPENSION
1-09580-537-0
02
1
0801-
●
●
145
RUBBER; CUSHION,CAB FRT SUSPENSION
1-53366-139-0
02
1
0801-
●
●
146
SEAT; SPRING,CAB FRT SUSPENSION
1-53366-138-0
02
1
0801-
●
●
279
BOLT
M12X40 FLANGE
0-28061-240-0
04
1
0801-
●
●
345
CAP; CAB
1-53458-336-3
02
1
0801-
●
●
410
REINFORCEMENT; CAB TILT
8-98054-960-3
01
1
0801-
●
●
411
BOLT; REINFORCEMENT
M10X30 FLANGE
0-28661-030-0
02
1
0801-
●
●
411
BOLT; REINFORCEMENT
M8X20 FLANGE
0-28650-820-0
03
1
0801-
●
●
418
WASHER; PL,PIN
(B) ID=14.2
0-91510-814-0
01
1
0801-
●
●
418
WASHER; PL,PIN
(A) ID=10.5 OD=32
0-91614-810-0
01
1
0801-
●
●
534
WASHER; RUBBER
(A) ID=19 OD=30
1-09503-279-0
02
1
0801-
●
●
534
WASHER; RUBBER
(B) ID=34.5
1-53458-281-1
02
1
0801-
●
●
65
202
202
203
204
205
204
203
112
27
51
48
535
191
191
536
51
535
535
51
535
535
191
535
48
535
535
191
27
51
536
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
BOLT; BUSHING
M18X120
1-09000-442-1
02
1
0801-
●
●
48
WASHER; PL
ID=19 OD=30
1-09503-279-0
02
1
0801-
●
●
51
BUSHING; RUBBER
1-53458-714-0
04
1
0801-
●
●
65
ABSORBER; SHOCK,CAB FRT SUSPENSION
1-51630-604-1
02
1
0801-
●
●
112
ARM ASM; LINK,CAB FRT SUSP
8-98100-381-0
01
1
0801-
●
●
191
BOLT; BRKT FIX
M12X35 FLANGE
0-28051-235-0
08
1
0801-
●
●
202
NUT; S/ABS
(A) M10 FLANGE
0-91150-110-0
02
1
0801-1007
●
●
202
NUT; S/ABS
(A) M10 FLANGE
0-91180-110-0
02
1
1008-
●
●
202
NUT; S/ABS
(B) M12 FLANGE
0-91180-212-0
04
1
0801-
●
●
202
NUT; S/ABS
(C) M10
9-09111-410-0
02
1
0801-
●
●
203
WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6
1-51631-005-0
02
1
0801-
●
●
203
WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5
1-51631-104-0
02
1
0801-
●
●
204
RUBBER; CUSHION,SHOCK
1-51631-004-0
04
1
0801-
●
●
205
WASHER; RUBBER,SHOCK
1-51631-079-0
02
1
0801-
●
●
535
BRACKET; LINK ARM
(C)
8-98099-704-0
04
1
0801-
●
●
535
BRACKET; LINK ARM
(A)
8-98094-831-0
02
1
0801-
●
●
535
BRACKET; LINK ARM
(B)
8-98094-832-0
02
1
0801-
●
●
536
WASHER; SIDE
ID=34.5
1-53458-281-1
02
1
0801-
●
●
264
287
288
286
287
288
442
283
442
442
286
64
188
174
533
213
189
173
212
199
211
209
303
310
209
188
237
244
202
201
244
188
202
189
174
183
175
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
64
RUBBER; CUSHION
8-97113-340-0
04
1
0801-
●
●
173
MEMBER; CAB MTG RR
8-98054-836-3
01
1
0801-
●
●
174
OUTRIGGER
8-98054-838-1
01
1
0801-
●
●
174
OUTRIGGER
8-98054-839-2
01
1
0801-
●
●
175
BOLT; MEMBER TO FRAME
M14X40
0-20951-440-0
08
1
0801-
●
●
183
WASHER; PL,MEMBER
ID=15
8-98010-627-1
08
1
0801-
●
●
188
BOLT; OUTRIGGER
M12X25 FLANGE
0-28661-225-0
10
1
0801-0802
●
●
188
BOLT; OUTRIGGER
M12X30 FLANGE
0-28661-230-0
10
1
0803-
●
●
189
NUT; OUTRIGGER
M12 FLANGE
0-91180-212-0
02
1
0801-
●
●
199
BRACKET; CAB RR MTG
8-98025-488-4
01
1
0801-
●
●
199
BRACKET; CAB RR MTG
8-98025-489-4
01
1
0801-1403
●
●
199
BRACKET; CAB RR MTG
8-98270-495-0
01
1
1404-
●
●
201
ABSORBER ASM; SHOCK,RR MTG
8-98022-450-0
02
1
0801-1401
●
●
201
ABSORBER ASM; SHOCK,RR MTG
8-98269-510-0
02
1
1402-
●
●
202
NUT; S/ABS
(A) M10 FLANGE
0-91150-110-0
02
1
0801-1007
●
●
202
NUT; S/ABS
(A) M10 FLANGE
0-91180-110-0
02
1
1008-
●
●
202
NUT; S/ABS
(B) M12 FLANGE
0-91180-212-0
04
1
0801-
●
●
202
NUT; S/ABS
(C) M10
9-09111-410-0
02
1
0801-
●
●
209
BOLT; S/ABS
(A) M12X60 FLANGE
0-28051-260-0
02
1
0801-
●
●
209
BOLT; S/ABS
(B) M12X100 FLANGE
0-28061-200-0
02
1
0801-
●
●
211
RUBBER; CUSHION,S/ABS
1-53366-144-0
02
1
0801-
●
●
212
SPRING; COIL
1-09580-398-1
02
1
0801-
●
●
213
SEAT; SPR,S/ABS
1-53366-062-2
02
1
0801-
●
●
237
ROD ASM; LATERAL
1-53459-585-2
02
1
0801-
●
●
244
NUT; LATERAL ROD
M16 FLANGE
0-91180-216-0
04
1
0801-
●
●
264
PANEL; BACK
8-98055-597-1
01
1
0801-
●
264
PANEL; BACK
ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
8-98055-597-1
01
1
0801-
●
283
BRACKET; UPR
1-53457-187-0
01
1
0801-
●
283
BRACKET; UPR
ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
1-53457-187-0
01
1
0801-
●
286
BRACKET; LOW
(A)
8-98057-240-0
01
1
0801-
●
286
BRACKET; LOW
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)
8-98057-240-0
01
1
0801-
●
286
BRACKET; LOW
(B)
8-98057-241-0
01
1
0801-
●
286
BRACKET; LOW
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)
8-98057-241-0
01
1
0801-
●
287
NUT
M8 FLANGE
8-97046-127-0
03
1
0801-0802
●
287
NUT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE
8-97046-127-0
03
1
0801-0802
●
287
NUT
M8 FLANGE
0-91180-108-0
03
1
0803-
●
287
NUT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE
0-91180-108-0
03
1
0803-
●
288
WASHER; PL
ID=8.4 OD=26
0-91614-808-0
03
1
0803-
●
288
WASHER; PL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26
0-91614-808-0
03
1
0803-
●
303
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0801-
●
303
NUT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE
0-91180-108-0
01
1
0801-
●
310
NUT; CUSHION
M8 FLANGE
0-91180-108-0
04
1
0801-
●
●
442
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
0801-
●
442
BOLT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE
0-28650-820-0
04
1
0801-
●
533
SPACER; MTG RUBBER
8-98100-388-0
04
1
0801-
●
●
