6-20 — SIDE PANEL AND STEP (#4028) — 107 parça

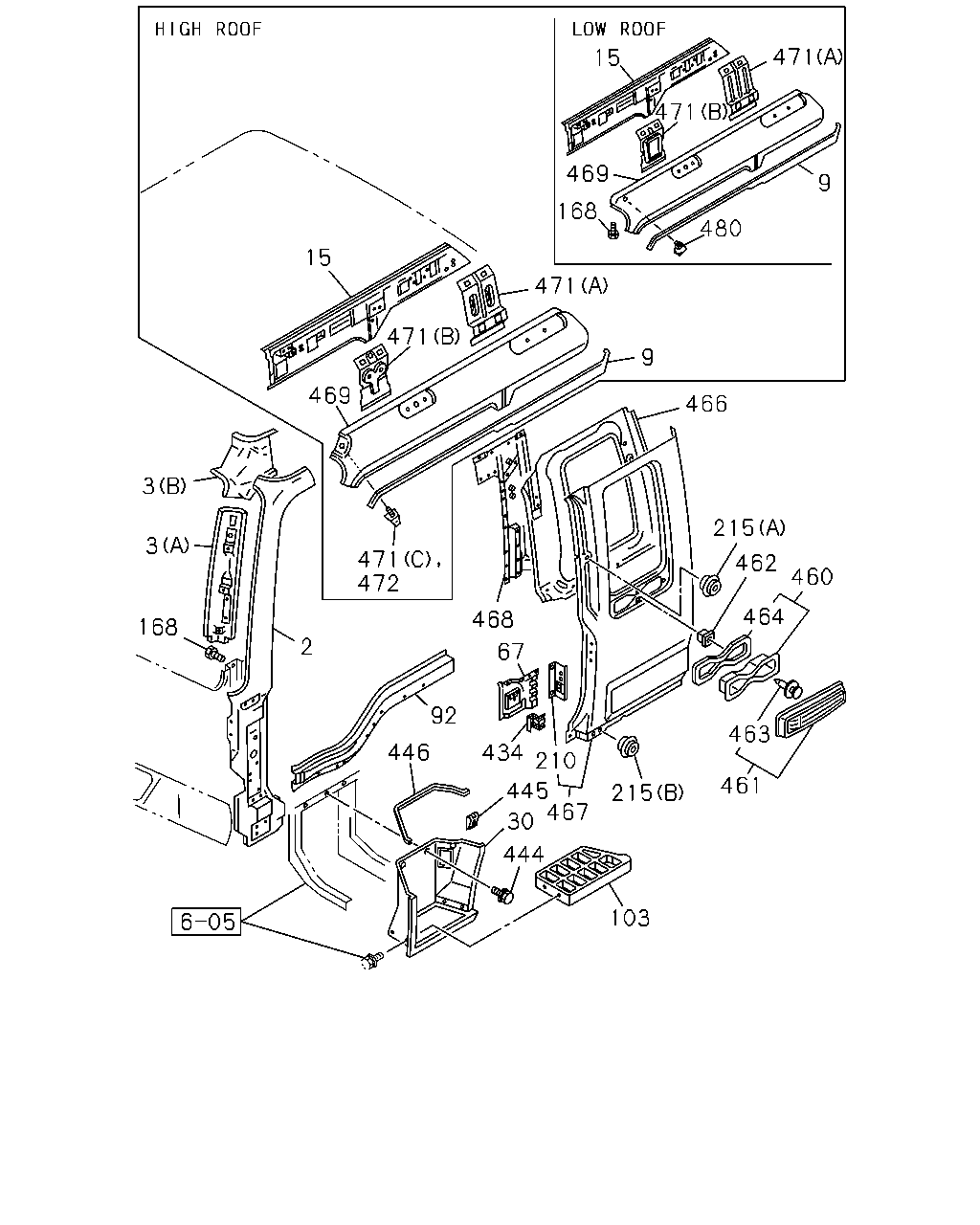

çizim 115773
471 15 471 469 9 168 480 15 471 471 9 469 466 3 215 3 471 472 462 460 464 468 168 2 67 92 463 446 434 210 461 445 467 215 30 444 103
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-410-2 01 1 9510- ● ●
2 PILLAR; FRT 1-61281-409-2 01 1 9510- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9510- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9510- ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 9510- ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 9510- ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9510- ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9510- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 9510- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 9510- ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9510- ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9510- ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9510- ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9510- ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 9510- ● ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 9510- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9510- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9510- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 9510- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 9510- ● ●
103 PLATE; STEP 1-71998-868-1 01 1 9510-9605 ● ●
103 PLATE; STEP 1-71996-174-0 01 1 9606- ● ●
103 PLATE; STEP 1-71998-867-1 01 1 9510-9605 ● ●
103 PLATE; STEP 1-71996-173-0 01 1 9606- ● ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9702 ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9702 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0512 ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9703-0512 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 9510- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9510-9709 ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9510- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 9510-0607 ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0608- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9510-0904 ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 9510- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9510- ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 9510- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9510- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9510- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9510- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9510- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9510- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9510- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9510- ● ●
467 PANEL; OUTER,BACK CORNER
COUNTRY ALGERIA<D2G> LOW ROOF<6XQ> 		1-61281-477-3 01 1 1205- ● ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> 		1-61281-478-5 01 1 0005- ● ●
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. ENGINE NO PLATE<E6D> 		1-61281-478-5 01 1 0005- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 9510-1204 ● ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> 		1-61281-203-4 01 1 1205- ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. COUNTRY ALGERIA<D2G> 		1-61281-203-4 01 1 1205- ● ●
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61281-476-0 01 1 9510-9510 ● ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> 		1-61281-476-1 01 1 9511-0004 ● ●
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. ENGINE NO PLATE<E6D> 		1-61281-476-1 01 1 9511-0004 ● ●
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61281-204-1 01 1 9510-9510 ● ●
467 PANEL; OUTER,BACK CORNER
EXC. ENGINE NO PLATE<E6D>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1), CHINA EQUIPMENT(YT2) 		1-61281-204-4 01 1 9511- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-418-2 01 1 9510- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-417-2 01 1 9510- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-435-2 01 1 9510- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-434-2 01 1 9510- ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-8 01 1 9510- ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-8 01 1 9510- ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 9510- ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 9510- ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 9510- ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9510- ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (C) 		1-61281-233-4 01 1 9510-0812 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (C) 		8-98132-463-0 01 1 0901- ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 9510- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (A) 		1-61281-273-3 02 1 9510- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (B) 		1-61281-270-3 01 1 9510- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (B) 		1-61281-269-3 01 1 9510- ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61281-232-3 01 1 9510-9910 ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-1 01 1 9911- ● ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-997-3 01 1 9510- ● ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-996-3 01 1 9510- ● ●

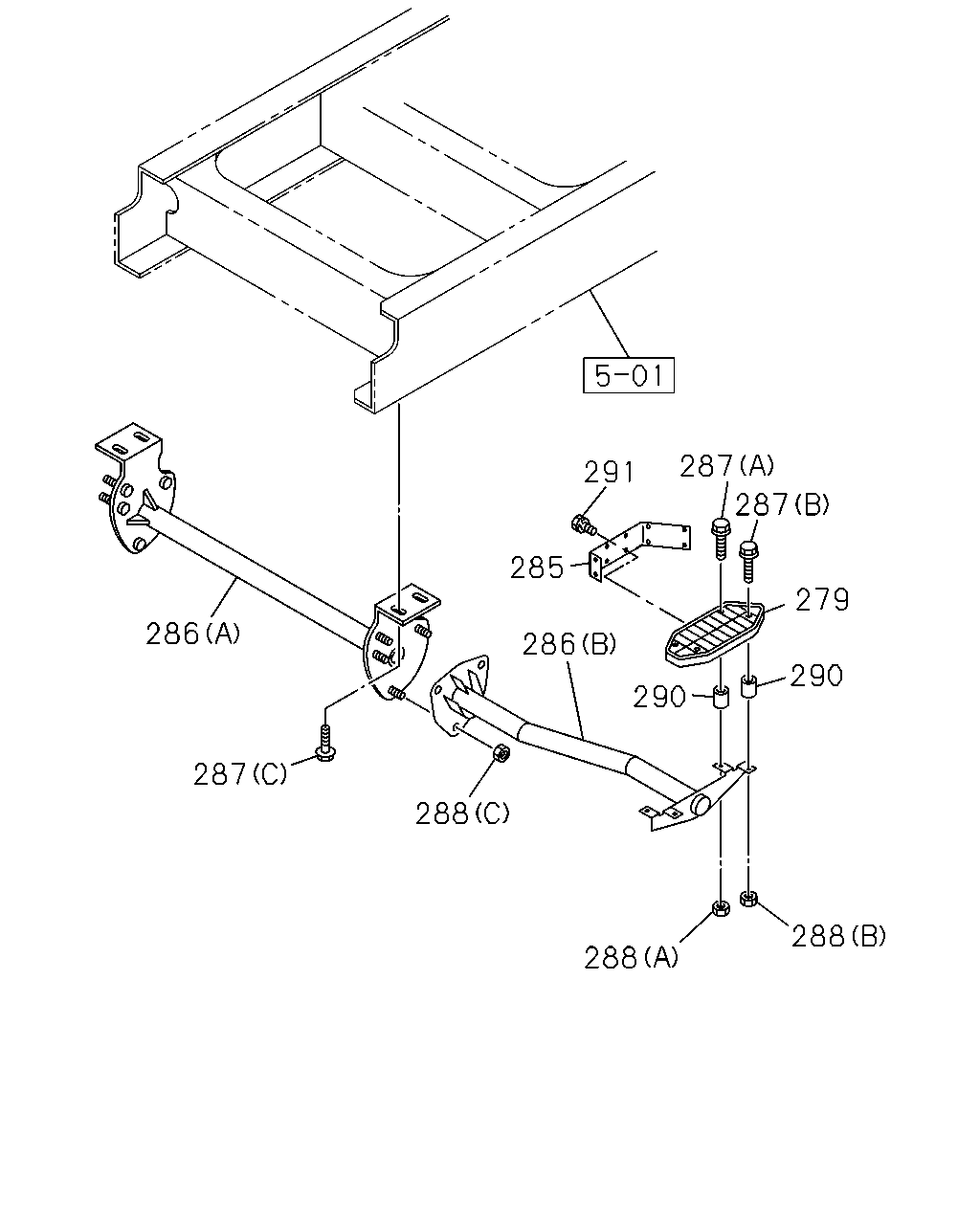

çizim 116194
287 291 287 285 279 286 286 290 290 287 288 288 288
BalonParca AdiParca NoAdetTipApplied Date A B
279 BOARD; STEP 1ST
AUXILIARY STEPS<E29> 		1-53414-035-0 02 1 9510- ● ●
285 PLATE; STEP,1ST STEP
AUXILIARY STEPS<E29> 		1-53414-066-0 02 1 0010- ● ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (A) 		1-53414-104-1 01 1 9510-9603 ● ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (A) 		1-53414-126-1 01 1 9604-0112 ● ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (A) 		1-53414-254-0 01 1 0201- ● ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (B) 		1-53414-107-0 01 1 9510-0003 ● ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (B) 		1-53414-130-2 01 1 0004- ● ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (B) 		1-53414-108-0 01 1 9510-0003 ● ●
286 STEP ASM; 1ST
AUXILIARY STEPS<E29> (B) 		1-53414-129-2 01 1 0004- ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (A) M6X35 FLANGE 		0-28080-635-0 04 1 9510-0009 ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (A) M6X35 FLANGE 		0-28680-635-0 04 1 0010-0512 ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (A) M6X35 FLANGE 		0-28650-635-0 04 1 0601- ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (B) M8X35 FLANGE 		0-28080-835-0 04 1 9510-0009 ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (B) M8X35 FLANGE 		0-28680-835-0 04 1 0010-0512 ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (B) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (C) M12X30 FLANGE 		0-28081-230-0 04 1 9510-9606 ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (C) M12X35 FLANGE 		0-28681-235-0 04 1 9607-0512 ● ●
287 BOLT; BOARD STEP
AUXILIARY STEPS<E29> (C) M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (A) M6 FLANGE 		0-91150-106-0 04 1 9510-0602 ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (A) M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (B) M8 FLANGE 		0-91150-108-0 04 1 9510-0602 ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (C) M12 		9-99110-512-0 06 1 9510-9606 ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (C) M12 FLANGE 		0-91150-212-0 06 1 9607-0602 ● ●
288 NUT; STEP
AUXILIARY STEPS<E29> (C) M12 FLANGE 		0-91180-212-0 06 1 0603- ● ●
290 SPACER
AUXILIARY STEPS<E29> 		1-53414-016-0 08 1 9510- ● ●
291 BOLT; STEP PLATE
AUXILIARY STEPS<E29> M6X16 FLANGE 		0-28080-616-0 10 1 0010-0512 ● ●
291 BOLT; STEP PLATE
AUXILIARY STEPS<E29> M6X16 FLANGE 		0-28050-616-0 10 1 0601- ● ●
