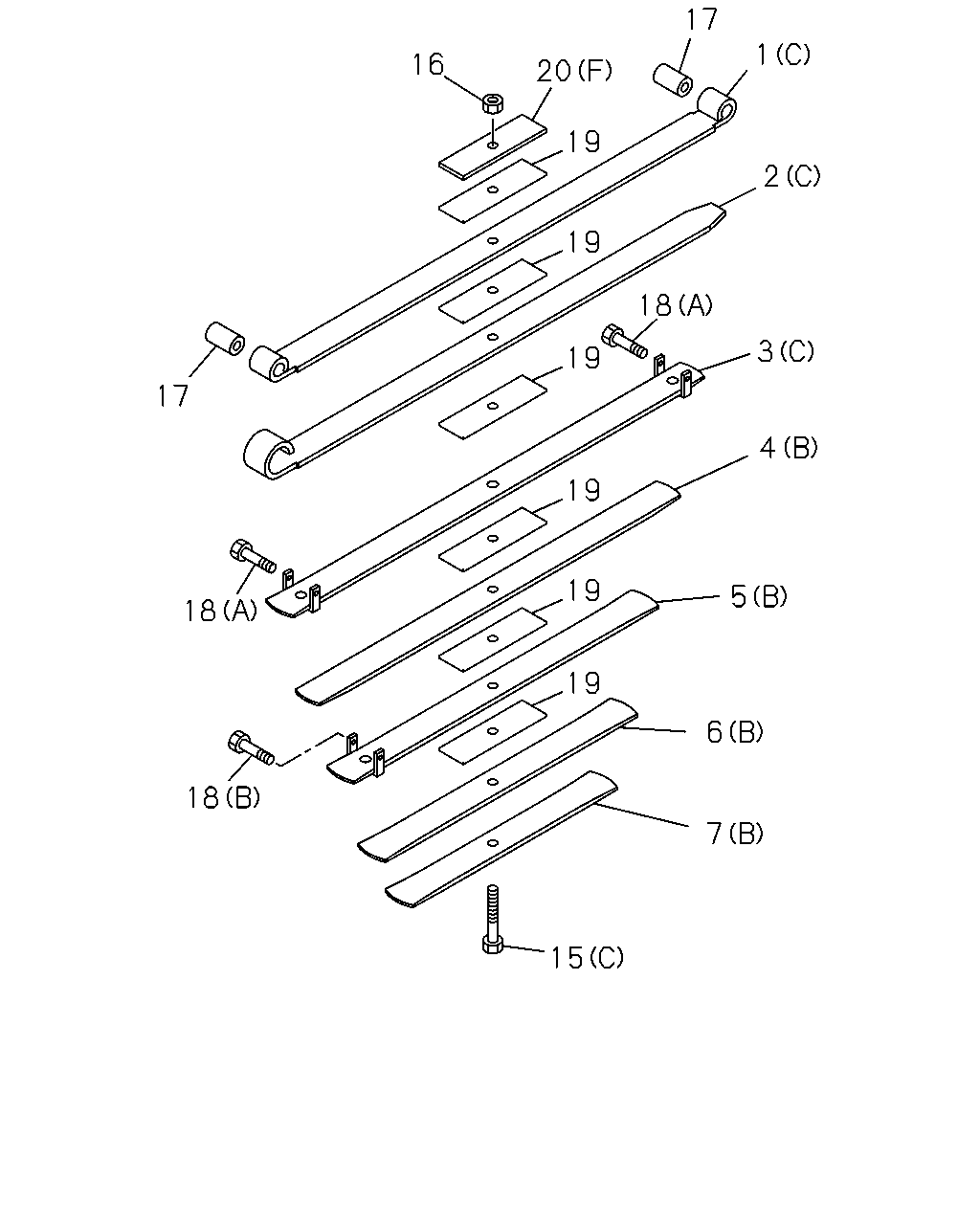

4-55 — FRONT LEAF SPRING (#40274) — 122 parça

17 1 16 20 19 2 19 18 3 19 17 4 19 19 5 18 19 6 18 7 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	8-98063-143-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: B = 8-98098-672-0	8-98111-853-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: E = 8-98107-912-0	8-98131-824-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98098-675-0	8-98140-024-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	8-98063-144-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: B = 8-98098-672-0	8-98111-854-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: E = 8-98107-912-0	8-98131-825-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98098-675-0	8-98140-025-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98098-675-0	8-97615-390-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	8-98063-145-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: B = 8-98098-672-0	8-98111-855-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: E = 8-98107-912-0	8-98131-826-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: C = 8-98098-675-0	8-97615-391-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98098-672-0	8-98111-856-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: E = 8-98107-912-0	8-98131-827-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: C = 8-98098-675-0	8-97615-392-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: B = 8-98098-672-0	8-98111-857-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: E = 8-98107-912-0	8-98131-828-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: C = 8-98098-675-0	8-97615-393-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 8-98098-672-0	8-98111-858-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: E = 8-98107-912-0	8-98131-829-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: C = 8-98098-675-0	8-97615-394-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 8-98098-672-0	8-98111-859-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: E = 8-98107-912-0	8-98131-830-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=140 ASM PART: A = 8-98053-122-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (C), L=150 ASM PART: B = 8-98098-672-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=155 ASM PART: D = 8-98107-909-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=175 ASM PART: E = 8-98107-912-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=185 ASM PART: C = 8-98098-675-0	1-51156-420-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98053-122-0, B = 8-98098-672-0, C = 8-98098-675-0, D = 8-98107-909-0, E = 8-98107-912-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98053-122-0, B = 8-98098-672-0, C = 8-98098-675-0, D = 8-98107-909-0, E = 8-98107-912-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 8-98053-122-0, B = 8-98098-672-0, C = 8-98098-675-0, D = 8-98107-909-0, E = 8-98107-912-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98098-672-0, C = 8-98098-675-0, E = 8-98107-912-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 8-98098-672-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98098-675-0, E = 8-98107-912-0	1-51177-071-0	07	1	-
20	SEAT; LEAF SPR,FRT (D), T=12 ASM PART: C = 8-98098-675-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=7 ASM PART: D = 8-98107-909-0	1-51177-074-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=7 ASM PART: A = 8-98053-122-0	1-51177-074-0	05	1	-
20	SEAT; LEAF SPR,FRT (E), T=10 ASM PART: C = 8-98098-675-0, E = 8-98107-912-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: E = 8-98107-912-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (F), T=14 ASM PART: B = 8-98098-672-0	1-51177-127-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: A = 8-98053-122-0	1-51177-352-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: D = 8-98107-909-0	1-51177-352-0	03	1	-

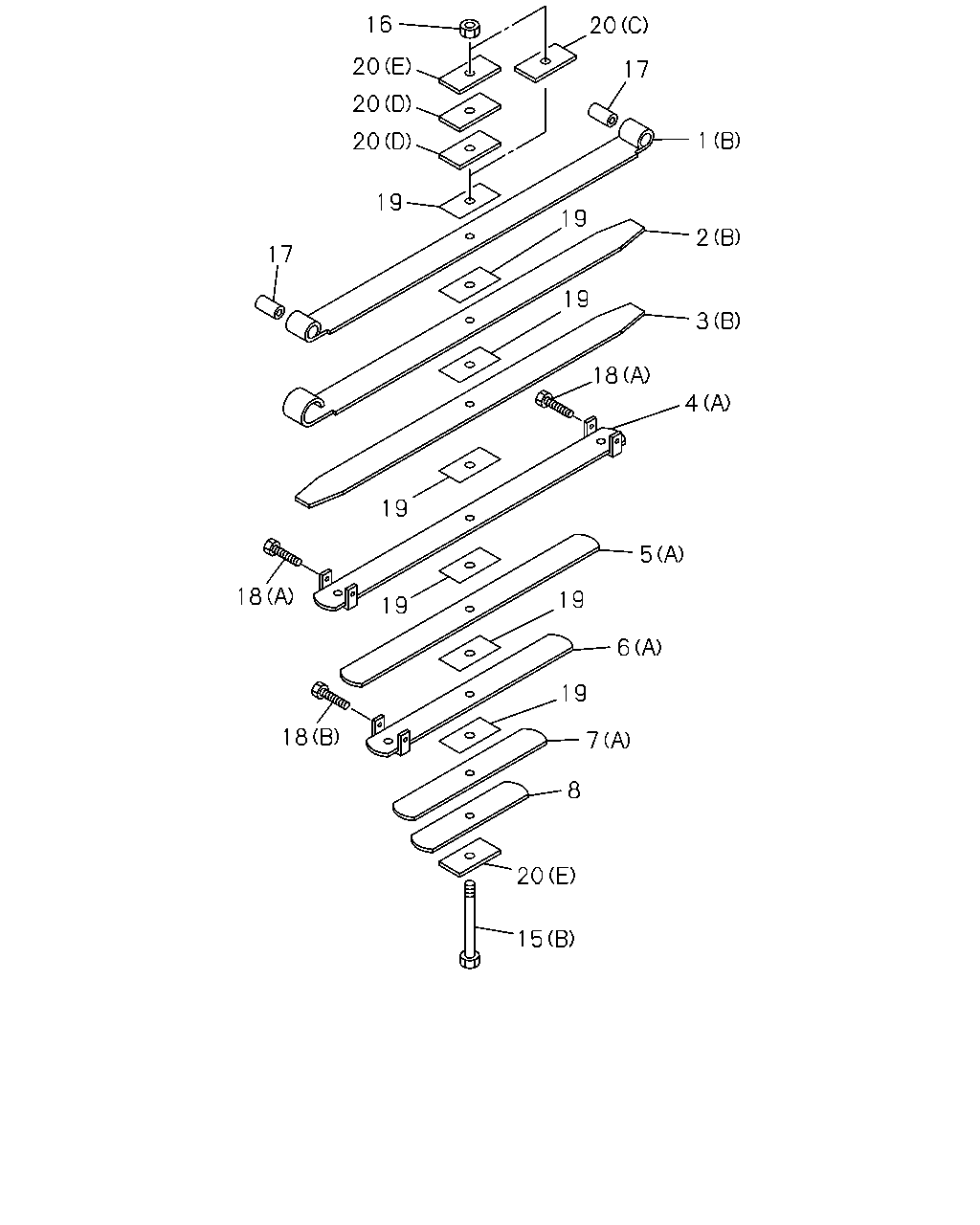

16 20 20 17 20 1 20 19 19 2 17 19 3 18 4 19 5 18 19 19 6 19 18 7 8 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	8-98063-143-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: B = 8-98098-672-0	8-98111-853-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: E = 8-98107-912-0	8-98131-824-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98098-675-0	8-98140-024-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	8-98063-144-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: B = 8-98098-672-0	8-98111-854-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: E = 8-98107-912-0	8-98131-825-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98098-675-0	8-98140-025-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98098-675-0	8-97615-390-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	8-98063-145-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: B = 8-98098-672-0	8-98111-855-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: E = 8-98107-912-0	8-98131-826-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: C = 8-98098-675-0	8-97615-391-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98098-672-0	8-98111-856-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: E = 8-98107-912-0	8-98131-827-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: C = 8-98098-675-0	8-97615-392-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: B = 8-98098-672-0	8-98111-857-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: E = 8-98107-912-0	8-98131-828-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: C = 8-98098-675-0	8-97615-393-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 8-98098-672-0	8-98111-858-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: E = 8-98107-912-0	8-98131-829-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: C = 8-98098-675-0	8-97615-394-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 8-98098-672-0	8-98111-859-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: E = 8-98107-912-0	8-98131-830-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 8-98098-675-0	8-97615-395-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: E = 8-98107-912-0	8-98131-831-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=140 ASM PART: A = 8-98053-122-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (C), L=150 ASM PART: B = 8-98098-672-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=155 ASM PART: D = 8-98107-909-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=175 ASM PART: E = 8-98107-912-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=185 ASM PART: C = 8-98098-675-0	1-51156-420-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98053-122-0, B = 8-98098-672-0, C = 8-98098-675-0, D = 8-98107-909-0, E = 8-98107-912-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98053-122-0, B = 8-98098-672-0, C = 8-98098-675-0, D = 8-98107-909-0, E = 8-98107-912-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 8-98053-122-0, B = 8-98098-672-0, C = 8-98098-675-0, D = 8-98107-909-0, E = 8-98107-912-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98098-672-0, C = 8-98098-675-0, E = 8-98107-912-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 8-98098-672-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98098-675-0, E = 8-98107-912-0	1-51177-071-0	07	1	-
20	SEAT; LEAF SPR,FRT (D), T=12 ASM PART: C = 8-98098-675-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=7 ASM PART: D = 8-98107-909-0	1-51177-074-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=7 ASM PART: A = 8-98053-122-0	1-51177-074-0	05	1	-
20	SEAT; LEAF SPR,FRT (E), T=10 ASM PART: C = 8-98098-675-0, E = 8-98107-912-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: E = 8-98107-912-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (F), T=14 ASM PART: B = 8-98098-672-0	1-51177-127-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: A = 8-98053-122-0	1-51177-352-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: D = 8-98107-909-0	1-51177-352-0	03	1	-

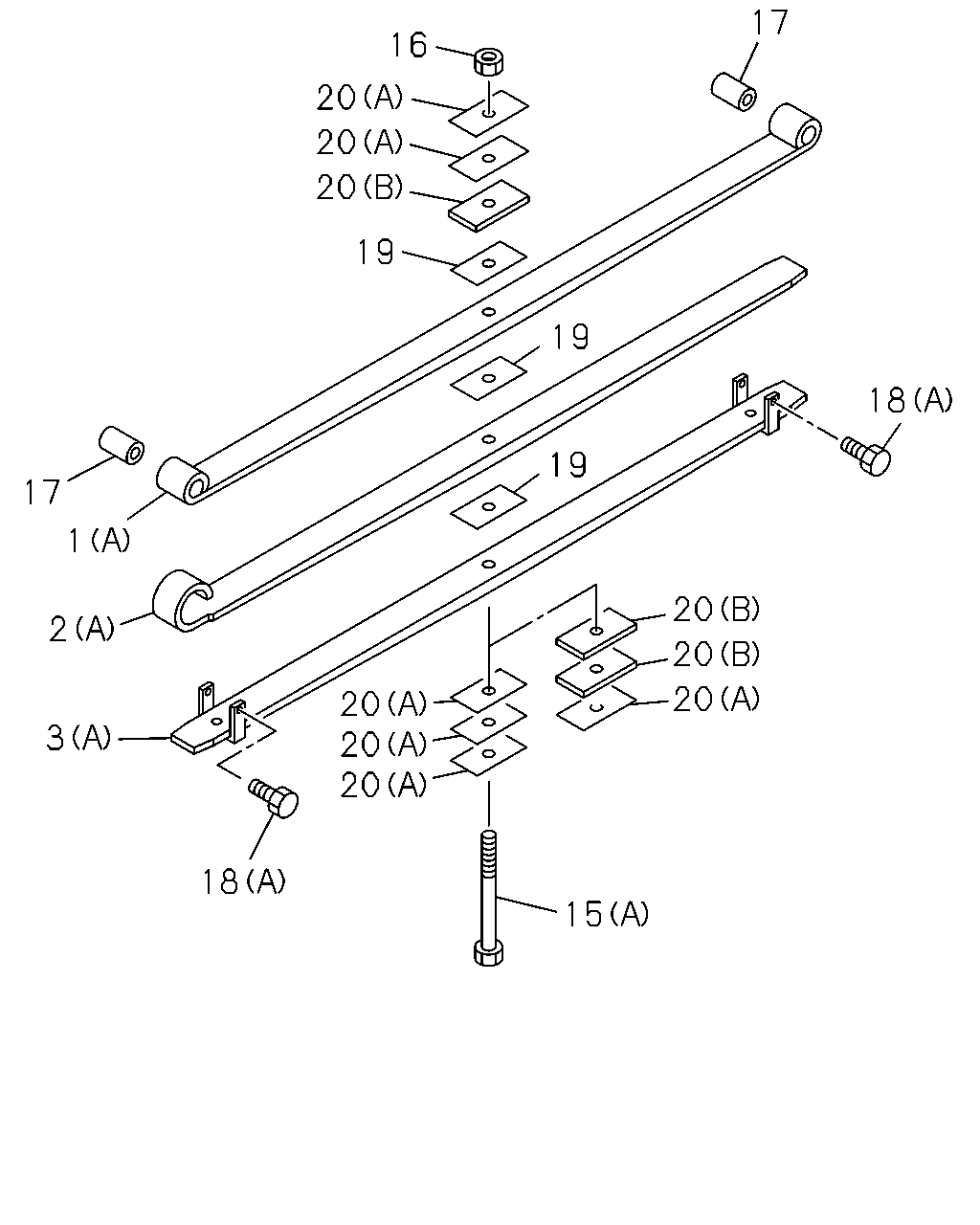

17 16 20 20 20 19 19 18 19 17 1 20 2 20 20 20 20 20 3 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	8-98063-143-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: B = 8-98098-672-0	8-98111-853-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: E = 8-98107-912-0	8-98131-824-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98098-675-0	8-98140-024-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	8-98063-144-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: B = 8-98098-672-0	8-98111-854-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: E = 8-98107-912-0	8-98131-825-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98098-675-0	8-98140-025-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98098-675-0	8-97615-390-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	8-98063-145-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: B = 8-98098-672-0	8-98111-855-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: E = 8-98107-912-0	8-98131-826-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=140 ASM PART: A = 8-98053-122-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (C), L=150 ASM PART: B = 8-98098-672-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=155 ASM PART: D = 8-98107-909-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=175 ASM PART: E = 8-98107-912-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=185 ASM PART: C = 8-98098-675-0	1-51156-420-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98053-122-0, B = 8-98098-672-0, C = 8-98098-675-0, D = 8-98107-909-0, E = 8-98107-912-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98053-122-0, B = 8-98098-672-0, C = 8-98098-675-0, D = 8-98107-909-0, E = 8-98107-912-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 8-98053-122-0, B = 8-98098-672-0, C = 8-98098-675-0, D = 8-98107-909-0, E = 8-98107-912-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98098-672-0, C = 8-98098-675-0, E = 8-98107-912-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98053-122-0, D = 8-98107-909-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 8-98098-672-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98098-675-0, E = 8-98107-912-0	1-51177-071-0	07	1	-
20	SEAT; LEAF SPR,FRT (D), T=12 ASM PART: C = 8-98098-675-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=7 ASM PART: D = 8-98107-909-0	1-51177-074-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=7 ASM PART: A = 8-98053-122-0	1-51177-074-0	05	1	-
20	SEAT; LEAF SPR,FRT (E), T=10 ASM PART: C = 8-98098-675-0, E = 8-98107-912-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: E = 8-98107-912-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (F), T=14 ASM PART: B = 8-98098-672-0	1-51177-127-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: A = 8-98053-122-0	1-51177-352-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: D = 8-98107-909-0	1-51177-352-0	03	1	-
