◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#40270) — 18 parça

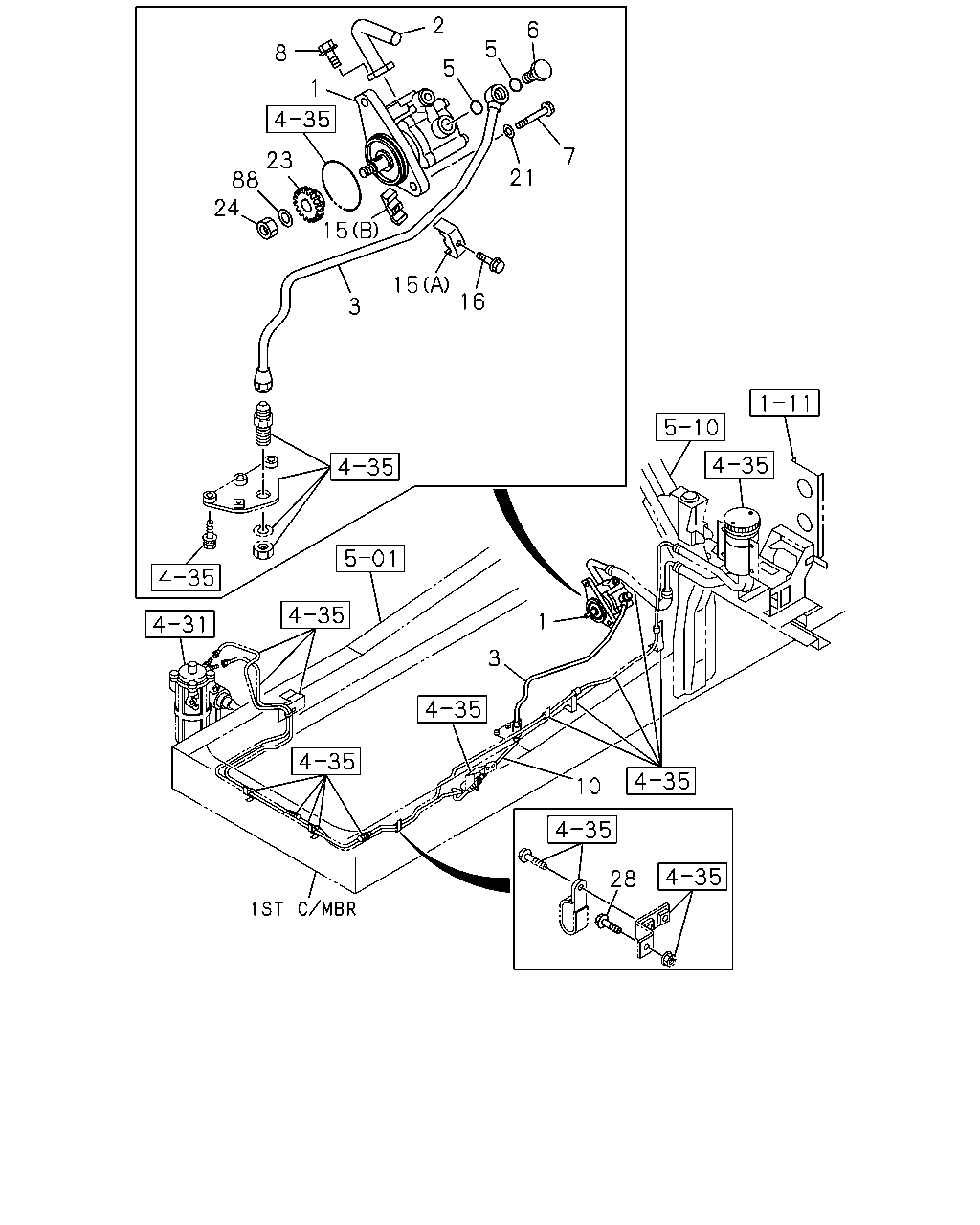

çizim 161658
2 6 5 8 5 1 7 23 88 24 21 15 15 16 3 1 3 10 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-623-2 01 1 0801- ● ●
2 PIPE ASM; OIL,SUCTION 8-97603-768-0 01 1 0801- ● ●
3 PIPE; OIL,CHARGE,P/S 8-97603-936-0 01 1 0801- ● ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 0801- ● ●
6 BOLT; EYE,P/S PIPE
M18X33 		1-09675-058-0 01 1 0801- ● ●
7 BOLT; OIL PUMP,P/S
M12X75 		8-98212-624-0 02 1 0801- ● ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0801- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=380 		1-09365-226-0 01 1 0801- ● ●
15 CLIP; OIL PIPE SUCTION
(A) 		1-09701-174-0 01 1 0801- ● ●
15 CLIP; OIL PIPE SUCTION
(B) 		1-09701-175-0 01 1 0801- ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28050-635-0 01 1 0801- ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 0801- ● ●
23 GEAR; OIL PUMP
Z=14 		8-98018-202-0 01 1 0801-1508 ● ●
23 GEAR; OIL PUMP
Z=14 		8-98322-560-0 01 1 1509- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0801- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ●
88 WASHER; GEAR,P/S PUMP
ID=17 		1-19519-294-0 01 1 0801-1405 ● ●
88 WASHER; GEAR,P/S PUMP
ID=16.2 		9-09851-672-2 01 1 1406- ● ●
