◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#40262) — 197 parça

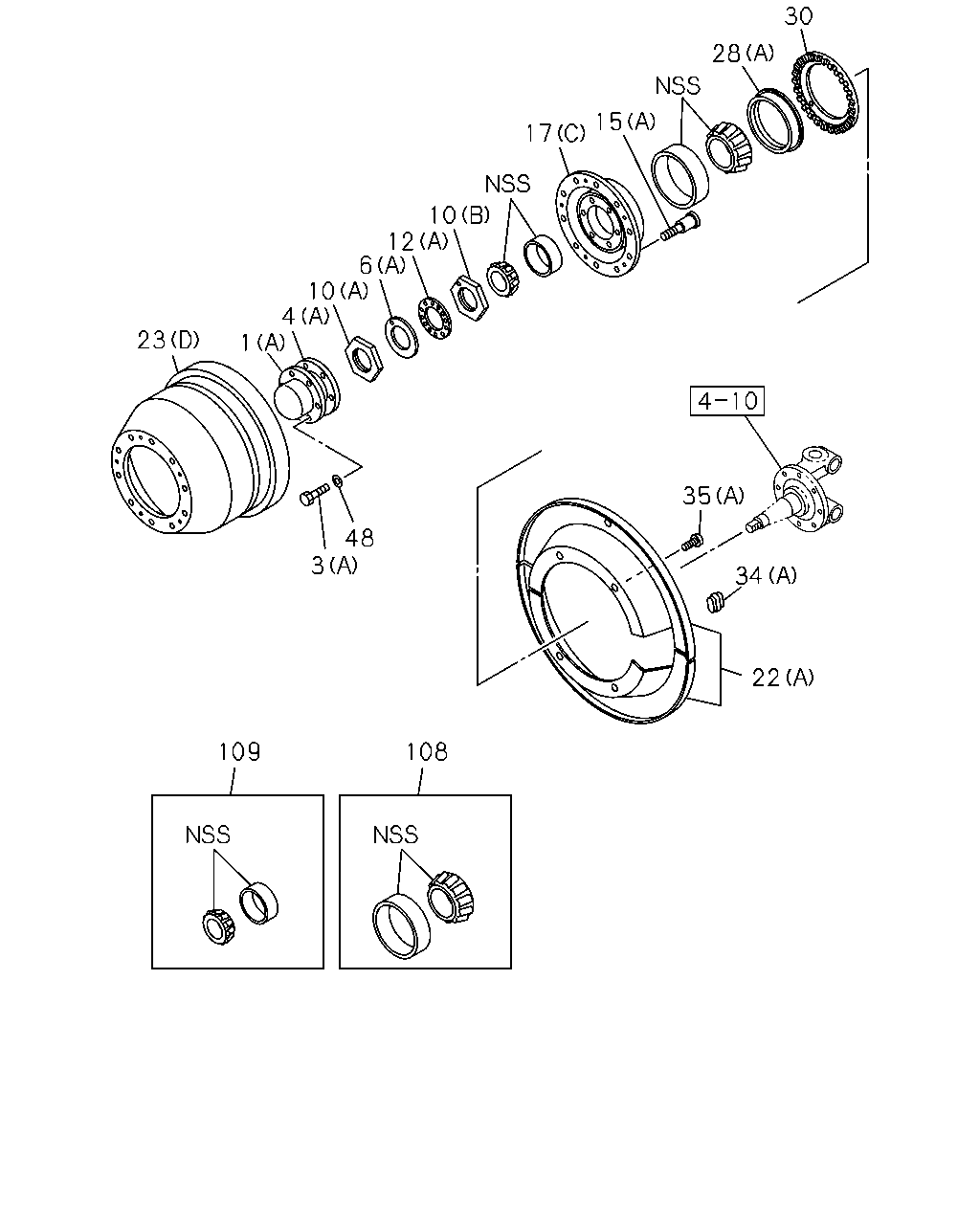

çizim 161720
23 1 4 10 6 12 10 17 15 28 30 35 34 22 108 109 3 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
(A) 		1-42313-028-0 02 1 0801-1507 ●
1 CAP; HUB,FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42313-028-0 02 1 0801-1507 ●
1 CAP; HUB,FRT AXLE
(A) 		8-98329-296-0 02 1 1508- ●
1 CAP; HUB,FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (A) 		8-98329-296-0 02 1 1508- ●
1 CAP; HUB,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=156 		9-42313-123-2 02 1 0801- ●
3 BOLT; HUB CAP,FRT WHEEL
(A) 		1-42319-189-0 12 1 0801- ●
3 BOLT; HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42319-189-0 12 1 0801- ●
3 BOLT; HUB CAP,FRT WHEEL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M8X12 FLANGE 		0-28050-812-0 12 1 0801- ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		1-42319-186-0 02 1 0801-1507 ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42319-186-0 02 1 0801-1507 ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		8-98329-302-0 02 1 1508- ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) (A) 		8-98329-302-0 02 1 1508- ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-42319-185-2 02 1 0801- ●
6 WASHER; LK,FRT HUB
(A) 		1-42329-018-0 02 1 0801- ●
6 WASHER; LK,FRT HUB
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42329-018-0 02 1 0801- ●
6 WASHER; LK,FRT HUB
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48 		8-98084-561-0 02 1 0801- ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 0801- ●
10 NUT; FRT HUB BRG
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42329-016-0 02 1 0801- ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 0801- ●
10 NUT; FRT HUB BRG
FRONT AXLE MERITOR FG941(BFL) (B) 		1-42329-017-0 02 1 0801- ●
10 NUT; FRT HUB BRG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M48 		1-09840-012-5 02 1 0801- ●
12 WASHER; LK,FRT HUB BRG
(A) 		1-42329-015-0 02 1 0801- ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42329-015-0 02 1 0801- ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48 		1-09533-016-0 02 1 0801-0911 ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48 		8-98156-755-0 02 1 0912- ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 0801- ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 0801- ●
15 PIN; WHEEL,FRT AXLE
(A) 		1-42337-063-0 20 1 0801- ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42337-063-0 20 1 0801- ●
15 PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0801- ●
17 HUB; FRT AXLE
(C) 		1-42311-163-0 02 1 1205- ●
17 HUB; FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (C) 		1-42311-163-0 02 1 1205- ●
17 HUB; FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-42312-151-3 02 1 0801- ●
17 HUB; FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-42312-160-0 02 1 0801- ●
22 COVER SET; FRT BRK DRUM
(A) 		1-47151-708-0 02 1 0801- ●
22 COVER SET; FRT BRK DRUM
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47151-708-0 02 1 0801- ●
22 COVER SET; FRT BRK DRUM
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-87831-225-0 02 1 0801- ●
23 DRUM; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) 		1-42315-397-0 02 1 0801- ●
23 DRUM; BRK,FRT
(A) 		1-42315-378-0 02 1 0801-1204 ●
23 DRUM; BRK,FRT
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42315-378-0 02 1 0801-1204 ●
23 DRUM; BRK,FRT
(D) 		1-42315-420-0 02 1 1205- ●
23 DRUM; BRK,FRT
FRONT AXLE MERITOR FG941(BFL) (D) 		1-42315-420-0 02 1 1205- ●
23 DRUM; BRK,FRT
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-42315-365-0 02 1 0801- ●
28 SEAL; OIL,FRT HUB
(A) 		1-09625-636-0 02 1 0801- ●
28 SEAL; OIL,FRT HUB
FRONT AXLE MERITOR FG941(BFL) (A) 		1-09625-636-0 02 1 0801- ●
28 SEAL; OIL,FRT HUB
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=140 		1-09625-041-0 02 1 0801- ●
30 RING; EXCITER,FRT HUB 1-42319-223-0 02 1 1205- ●
30 RING; EXCITER,FRT HUB
FRONT AXLE MERITOR FG941(BFL) 		1-42319-223-0 02 1 1205- ●
30 RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-42319-203-0 02 1 0801- ●
34 COVER; CHECK HOLE,DRUM COVER
(A) 		1-87050-011-0 04 1 0801- ●
34 COVER; CHECK HOLE,DRUM COVER
FRONT AXLE MERITOR FG941(BFL) (A) 		1-87050-011-0 04 1 0801- ●
34 COVER; CHECK HOLE,DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-09333-151-0 04 1 0801- ●
35 BOLT; DRUM COVER
(A) 		1-47159-176-0 12 1 0801- ●
35 BOLT; DRUM COVER
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47159-176-0 12 1 0801- ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65 		1-09000-583-0 04 1 0801-0805 ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65 		1-09000-789-0 04 1 0806- ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) M10X12 		1-47159-187-0 12 1 0801- ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45 		9-92061-845-0 08 1 0801-0805 ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45 		1-09000-790-0 08 1 0806- ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 0801-1507 ●
48 WASHER; LK,HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) 		1-42319-190-0 12 1 0801-1507 ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-41519-055-0 12 1 1508- ●
48 WASHER; LK,HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) 		1-41519-055-0 12 1 1508- ●
108 BEARING SET; HUB,INNER 1-85573-010-0 02 1 0801- ●
108 BEARING SET; HUB,INNER
FRONT AXLE MERITOR FG941(BFL) 		1-85573-010-0 02 1 0801- ●
109 BEARING SET; HUB,OUTER 1-85573-011-0 02 1 0801- ●
109 BEARING SET; HUB,OUTER
FRONT AXLE MERITOR FG941(BFL) 		1-85573-011-0 02 1 0801- ●

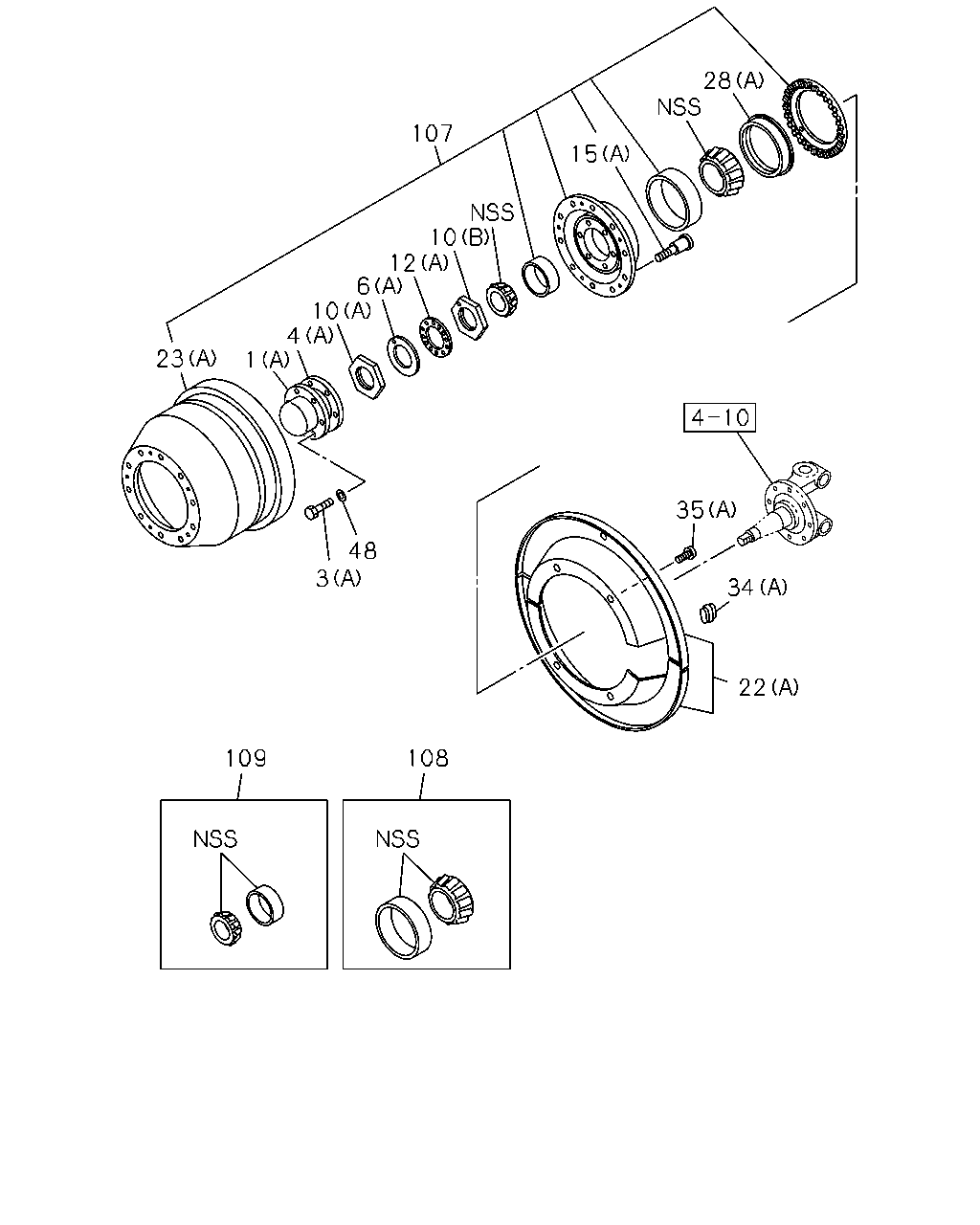

çizim 161923
107 23 1 4 10 6 12 10 48 3 109 108 35 34 22 15 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
(A) 		1-42313-028-0 02 1 0801-1507 ●
1 CAP; HUB,FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42313-028-0 02 1 0801-1507 ●
1 CAP; HUB,FRT AXLE
(A) 		8-98329-296-0 02 1 1508- ●
1 CAP; HUB,FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (A) 		8-98329-296-0 02 1 1508- ●
1 CAP; HUB,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=156 		9-42313-123-2 02 1 0801- ●
3 BOLT; HUB CAP,FRT WHEEL
(A) 		1-42319-189-0 12 1 0801- ●
3 BOLT; HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42319-189-0 12 1 0801- ●
3 BOLT; HUB CAP,FRT WHEEL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M8X12 FLANGE 		0-28050-812-0 12 1 0801- ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		1-42319-186-0 02 1 0801-1507 ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42319-186-0 02 1 0801-1507 ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		8-98329-302-0 02 1 1508- ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) (A) 		8-98329-302-0 02 1 1508- ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-42319-185-2 02 1 0801- ●
6 WASHER; LK,FRT HUB
(A) 		1-42329-018-0 02 1 0801- ●
6 WASHER; LK,FRT HUB
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42329-018-0 02 1 0801- ●
6 WASHER; LK,FRT HUB
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48 		8-98084-561-0 02 1 0801- ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 0801- ●
10 NUT; FRT HUB BRG
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42329-016-0 02 1 0801- ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 0801- ●
10 NUT; FRT HUB BRG
FRONT AXLE MERITOR FG941(BFL) (B) 		1-42329-017-0 02 1 0801- ●
10 NUT; FRT HUB BRG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M48 		1-09840-012-5 02 1 0801- ●
12 WASHER; LK,FRT HUB BRG
(A) 		1-42329-015-0 02 1 0801- ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42329-015-0 02 1 0801- ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48 		1-09533-016-0 02 1 0801-0911 ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48 		8-98156-755-0 02 1 0912- ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 0801- ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 0801- ●
15 PIN; WHEEL,FRT AXLE
(A) 		1-42337-063-0 20 1 0801- ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42337-063-0 20 1 0801- ●
15 PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0801- ●
22 COVER SET; FRT BRK DRUM
(A) 		1-47151-708-0 02 1 0801- ●
22 COVER SET; FRT BRK DRUM
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47151-708-0 02 1 0801- ●
22 COVER SET; FRT BRK DRUM
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-87831-225-0 02 1 0801- ●
23 DRUM; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) 		1-42315-397-0 02 1 0801- ●
23 DRUM; BRK,FRT
(A) 		1-42315-378-0 02 1 0801-1204 ●
23 DRUM; BRK,FRT
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42315-378-0 02 1 0801-1204 ●
23 DRUM; BRK,FRT
(D) 		1-42315-420-0 02 1 1205- ●
23 DRUM; BRK,FRT
FRONT AXLE MERITOR FG941(BFL) (D) 		1-42315-420-0 02 1 1205- ●
23 DRUM; BRK,FRT
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-42315-365-0 02 1 0801- ●
28 SEAL; OIL,FRT HUB
(A) 		1-09625-636-0 02 1 0801- ●
28 SEAL; OIL,FRT HUB
FRONT AXLE MERITOR FG941(BFL) (A) 		1-09625-636-0 02 1 0801- ●
28 SEAL; OIL,FRT HUB
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=140 		1-09625-041-0 02 1 0801- ●
34 COVER; CHECK HOLE,DRUM COVER
(A) 		1-87050-011-0 04 1 0801- ●
34 COVER; CHECK HOLE,DRUM COVER
FRONT AXLE MERITOR FG941(BFL) (A) 		1-87050-011-0 04 1 0801- ●
34 COVER; CHECK HOLE,DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-09333-151-0 04 1 0801- ●
35 BOLT; DRUM COVER
(A) 		1-47159-176-0 12 1 0801- ●
35 BOLT; DRUM COVER
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47159-176-0 12 1 0801- ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65 		1-09000-583-0 04 1 0801-0805 ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65 		1-09000-789-0 04 1 0806- ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) M10X12 		1-47159-187-0 12 1 0801- ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45 		9-92061-845-0 08 1 0801-0805 ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45 		1-09000-790-0 08 1 0806- ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 0801-1507 ●
48 WASHER; LK,HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) 		1-42319-190-0 12 1 0801-1507 ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-41519-055-0 12 1 1508- ●
48 WASHER; LK,HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) 		1-41519-055-0 12 1 1508- ●
107 HUB & DRUM ASM 1-42311-152-0 02 1 0801-1204 ●
107 HUB & DRUM ASM
FRONT AXLE MERITOR FG941(BFL) 		1-42311-152-0 02 1 0801-1204 ●
108 BEARING SET; HUB,INNER 1-85573-010-0 02 1 0801- ●
108 BEARING SET; HUB,INNER
FRONT AXLE MERITOR FG941(BFL) 		1-85573-010-0 02 1 0801- ●
109 BEARING SET; HUB,OUTER 1-85573-011-0 02 1 0801- ●
109 BEARING SET; HUB,OUTER
FRONT AXLE MERITOR FG941(BFL) 		1-85573-011-0 02 1 0801- ●

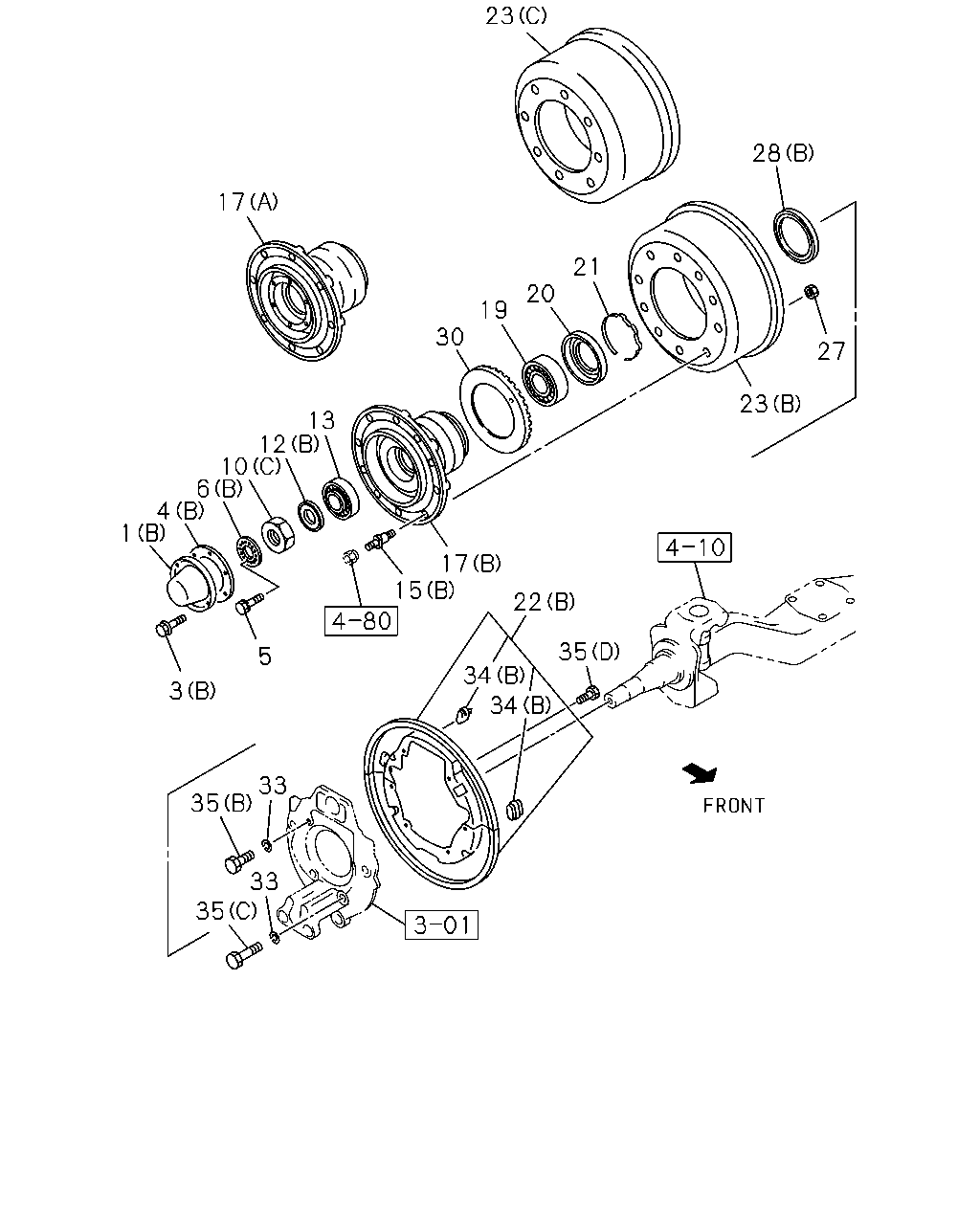

çizim 292071
17 23 28 21 20 19 30 13 12 10 6 4 1 3 5 15 17 23 27 35 22 34 34 33 33 35 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
(A) 		1-42313-028-0 02 1 0801-1507 ●
1 CAP; HUB,FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42313-028-0 02 1 0801-1507 ●
1 CAP; HUB,FRT AXLE
(A) 		8-98329-296-0 02 1 1508- ●
1 CAP; HUB,FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (A) 		8-98329-296-0 02 1 1508- ●
1 CAP; HUB,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=156 		9-42313-123-2 02 1 0801- ●
3 BOLT; HUB CAP,FRT WHEEL
(A) 		1-42319-189-0 12 1 0801- ●
3 BOLT; HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42319-189-0 12 1 0801- ●
3 BOLT; HUB CAP,FRT WHEEL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M8X12 FLANGE 		0-28050-812-0 12 1 0801- ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		1-42319-186-0 02 1 0801-1507 ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42319-186-0 02 1 0801-1507 ●
4 GASKET; HUB CAP,FRT WHEEL
(A) 		8-98329-302-0 02 1 1508- ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE MERITOR FG941(BFL) (A) 		8-98329-302-0 02 1 1508- ●
4 GASKET; HUB CAP,FRT WHEEL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-42319-185-2 02 1 0801- ●
5 BOLT; LK WASHER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M6X16 HEX SOCKET 		8-98084-271-0 04 1 0801-1201 ●
5 BOLT; LK WASHER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M6X16 HEX SOCKET 		8-98200-943-0 04 1 1202- ●
6 WASHER; LK,FRT HUB
(A) 		1-42329-018-0 02 1 0801- ●
6 WASHER; LK,FRT HUB
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42329-018-0 02 1 0801- ●
6 WASHER; LK,FRT HUB
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48 		8-98084-561-0 02 1 0801- ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 0801- ●
10 NUT; FRT HUB BRG
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42329-016-0 02 1 0801- ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 0801- ●
10 NUT; FRT HUB BRG
FRONT AXLE MERITOR FG941(BFL) (B) 		1-42329-017-0 02 1 0801- ●
10 NUT; FRT HUB BRG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M48 		1-09840-012-5 02 1 0801- ●
12 WASHER; LK,FRT HUB BRG
(A) 		1-42329-015-0 02 1 0801- ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42329-015-0 02 1 0801- ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48 		1-09533-016-0 02 1 0801-0911 ●
12 WASHER; LK,FRT HUB BRG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48 		8-98156-755-0 02 1 0912- ●
13 BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) JTEKT 		1-09812-234-0 02 1 0801- ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 0801- ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 0801- ●
15 PIN; WHEEL,FRT AXLE
(A) 		1-42337-063-0 20 1 0801- ●
15 PIN; WHEEL,FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42337-063-0 20 1 0801- ●
15 PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0801- ●
17 HUB; FRT AXLE
(C) 		1-42311-163-0 02 1 1205- ●
17 HUB; FRT AXLE
FRONT AXLE MERITOR FG941(BFL) (C) 		1-42311-163-0 02 1 1205- ●
17 HUB; FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-42312-151-3 02 1 0801- ●
17 HUB; FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-42312-160-0 02 1 0801- ●
19 BEARING; HUB INNER,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) JTEKT 		1-09812-231-0 02 1 0801- ●
20 COVER; HUB BRG INNER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-42319-039-0 02 1 0801- ●
21 RING; SNAP,HUB
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-09587-017-0 02 1 0801- ●
22 COVER SET; FRT BRK DRUM
(A) 		1-47151-708-0 02 1 0801- ●
22 COVER SET; FRT BRK DRUM
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47151-708-0 02 1 0801- ●
22 COVER SET; FRT BRK DRUM
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-87831-225-0 02 1 0801- ●
23 DRUM; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) 		1-42315-397-0 02 1 0801- ●
23 DRUM; BRK,FRT
(A) 		1-42315-378-0 02 1 0801-1204 ●
23 DRUM; BRK,FRT
FRONT AXLE MERITOR FG941(BFL) (A) 		1-42315-378-0 02 1 0801-1204 ●
23 DRUM; BRK,FRT
(D) 		1-42315-420-0 02 1 1205- ●
23 DRUM; BRK,FRT
FRONT AXLE MERITOR FG941(BFL) (D) 		1-42315-420-0 02 1 1205- ●
23 DRUM; BRK,FRT
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-42315-365-0 02 1 0801- ●
27 NUT; WHEEL PIN,FRT AXLE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE 		1-09440-065-0 16 1 0801- ●
27 NUT; WHEEL PIN,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M22 		1-09400-071-0 20 1 0801- ●
28 SEAL; OIL,FRT HUB
(A) 		1-09625-636-0 02 1 0801- ●
28 SEAL; OIL,FRT HUB
FRONT AXLE MERITOR FG941(BFL) (A) 		1-09625-636-0 02 1 0801- ●
28 SEAL; OIL,FRT HUB
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=140 		1-09625-041-0 02 1 0801- ●
30 RING; EXCITER,FRT HUB 1-42319-223-0 02 1 1205- ●
30 RING; EXCITER,FRT HUB
FRONT AXLE MERITOR FG941(BFL) 		1-42319-223-0 02 1 1205- ●
30 RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-42319-203-0 02 1 0801- ●
33 WASHER; LK,DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) ID=18.2 		0-91510-818-0 12 1 0801- ●
34 COVER; CHECK HOLE,DRUM COVER
(A) 		1-87050-011-0 04 1 0801- ●
34 COVER; CHECK HOLE,DRUM COVER
FRONT AXLE MERITOR FG941(BFL) (A) 		1-87050-011-0 04 1 0801- ●
34 COVER; CHECK HOLE,DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-09333-151-0 04 1 0801- ●
35 BOLT; DRUM COVER
(A) 		1-47159-176-0 12 1 0801- ●
35 BOLT; DRUM COVER
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47159-176-0 12 1 0801- ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65 		1-09000-583-0 04 1 0801-0805 ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65 		1-09000-789-0 04 1 0806- ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) M10X12 		1-47159-187-0 12 1 0801- ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45 		9-92061-845-0 08 1 0801-0805 ●
35 BOLT; DRUM COVER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45 		1-09000-790-0 08 1 0806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
