4-01 — PROPELLER SHAFT (#40260) — 313 parça

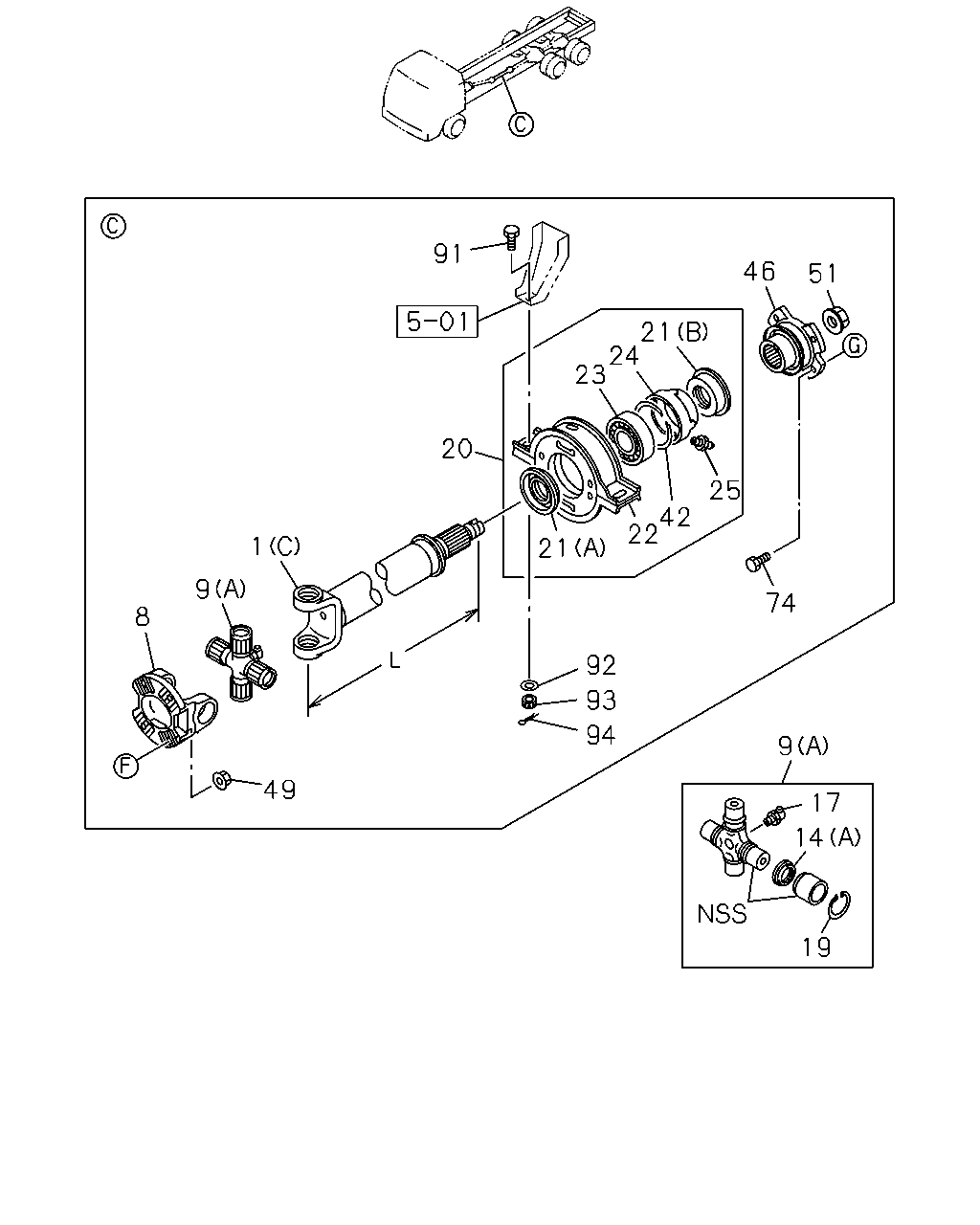

çizim 161565
91 46 51 21 24 23 20 25 42 22 1 21 9 74 8 92 93 94 9 49 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (A) L=1055 		1-37125-393-0 01 1 0809- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1227 		8-98086-976-0 01 1 0801- ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1172 		8-98098-100-0 01 1 0801- ● ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 0801- ● ●
1 SHAFT; PROP
(A) L=1530 		8-98094-192-0 01 1 0801- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (D) L=441 		1-37124-191-0 01 1 0801-0801 ● ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (E) L=435.3 		1-37124-894-0 01 1 0802- ● ● ● ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1195 		8-98094-189-0 01 1 0801- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1310 		1-37125-384-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1360 		1-37125-340-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1465 		1-37125-396-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 17.5"<B5D> (A) L=1395 		1-37125-383-0 01 1 0801- ●
1 SHAFT; PROP
(A) L=1640 		1-37125-293-0 01 1 0801- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) FINAL GEAR 17.5"<B5D> (A) L=1010 		1-37125-339-0 01 1 0801- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0801- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0801- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (C) 		1-37300-090-0 02 1 0801-0801 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (D) 		1-37300-115-0 02 1 0802- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 17.5"<B5D> (B) 		1-37300-100-1 01 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 17.5"<B5D> (B) 		1-37319-004-0 08 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 17.5"<B5D> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0801- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0801- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 0801- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 0801- ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 0801- ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 0801- ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 0801- ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 0801- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 0801- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 0801- ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 0801- ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 0801- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 0801- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 0801- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0801- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0801- ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 0801- ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 0801- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 0801- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 0801- ● ●
49 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0801-0805 ● ●
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 0801- ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 0801- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 0801- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0801- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0801- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0801-1204 ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0801- ● ●
çizim 161567
95 56 9 1 8 128 225 104 9 8 106 106 56 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (A) L=1055 		1-37125-393-0 01 1 0809- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1227 		8-98086-976-0 01 1 0801- ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1172 		8-98098-100-0 01 1 0801- ● ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 0801- ● ●
1 SHAFT; PROP
(A) L=1530 		8-98094-192-0 01 1 0801- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (D) L=441 		1-37124-191-0 01 1 0801-0801 ● ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (E) L=435.3 		1-37124-894-0 01 1 0802- ● ● ● ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1195 		8-98094-189-0 01 1 0801- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1310 		1-37125-384-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1360 		1-37125-340-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1465 		1-37125-396-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 17.5"<B5D> (A) L=1395 		1-37125-383-0 01 1 0801- ●
1 SHAFT; PROP
(A) L=1640 		1-37125-293-0 01 1 0801- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) FINAL GEAR 17.5"<B5D> (A) L=1010 		1-37125-339-0 01 1 0801- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0801- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0801- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (C) 		1-37300-090-0 02 1 0801-0801 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (D) 		1-37300-115-0 02 1 0802- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 17.5"<B5D> (B) 		1-37300-100-1 01 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 17.5"<B5D> (B) 		1-37319-004-0 08 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 17.5"<B5D> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0801- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0801- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0801-0805 ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0801-0805 ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0801- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0801- ● ● ● ●
104 PLUG; SLEEVE YOKE
FINAL GEAR 17.5"<B5D> 		1-09600-049-0 01 1 0801- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 15.5"<B2X> (B) 		1-09380-013-0 01 1 0802- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0801- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 17.5"<B5D> (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0801- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0801- ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 15.5"<B2X> (B) 		1-37247-017-0 01 1 0801-0801 ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 15.5"<B2X> (D) 		1-37247-025-0 01 1 0802- ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 17.5"<B5D> (C) 		8-97603-618-0 01 1 0801- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FINAL GEAR 15.5"<B2X> (B) L=297 		1-37241-142-0 01 1 0802- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=339 		1-37241-140-0 01 1 0801- ● ● ● ●
çizim 161597
95 56 9 8 1 128 225 104 9 8 106 106 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (A) L=1055 		1-37125-393-0 01 1 0809- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1227 		8-98086-976-0 01 1 0801- ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1172 		8-98098-100-0 01 1 0801- ● ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 0801- ● ●
1 SHAFT; PROP
(A) L=1530 		8-98094-192-0 01 1 0801- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (D) L=441 		1-37124-191-0 01 1 0801-0801 ● ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (E) L=435.3 		1-37124-894-0 01 1 0802- ● ● ● ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1195 		8-98094-189-0 01 1 0801- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1310 		1-37125-384-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1360 		1-37125-340-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1465 		1-37125-396-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 17.5"<B5D> (A) L=1395 		1-37125-383-0 01 1 0801- ●
1 SHAFT; PROP
(A) L=1640 		1-37125-293-0 01 1 0801- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) FINAL GEAR 17.5"<B5D> (A) L=1010 		1-37125-339-0 01 1 0801- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0801- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0801- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (C) 		1-37300-090-0 02 1 0801-0801 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (D) 		1-37300-115-0 02 1 0802- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 17.5"<B5D> (B) 		1-37300-100-1 01 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 17.5"<B5D> (B) 		1-37319-004-0 08 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 17.5"<B5D> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0801- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0801- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0801-0805 ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0801-0805 ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0801-0805 ● ● ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ● ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0801- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0801- ● ● ● ●
104 PLUG; SLEEVE YOKE
FINAL GEAR 17.5"<B5D> 		1-09600-049-0 01 1 0801- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 15.5"<B2X> (B) 		1-09380-013-0 01 1 0802- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0801- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 17.5"<B5D> (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0801- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0801- ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 15.5"<B2X> (B) 		1-37247-017-0 01 1 0801-0801 ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 15.5"<B2X> (D) 		1-37247-025-0 01 1 0802- ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 17.5"<B5D> (C) 		8-97603-618-0 01 1 0801- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FINAL GEAR 15.5"<B2X> (B) L=297 		1-37241-142-0 01 1 0802- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=339 		1-37241-140-0 01 1 0801- ● ● ● ●

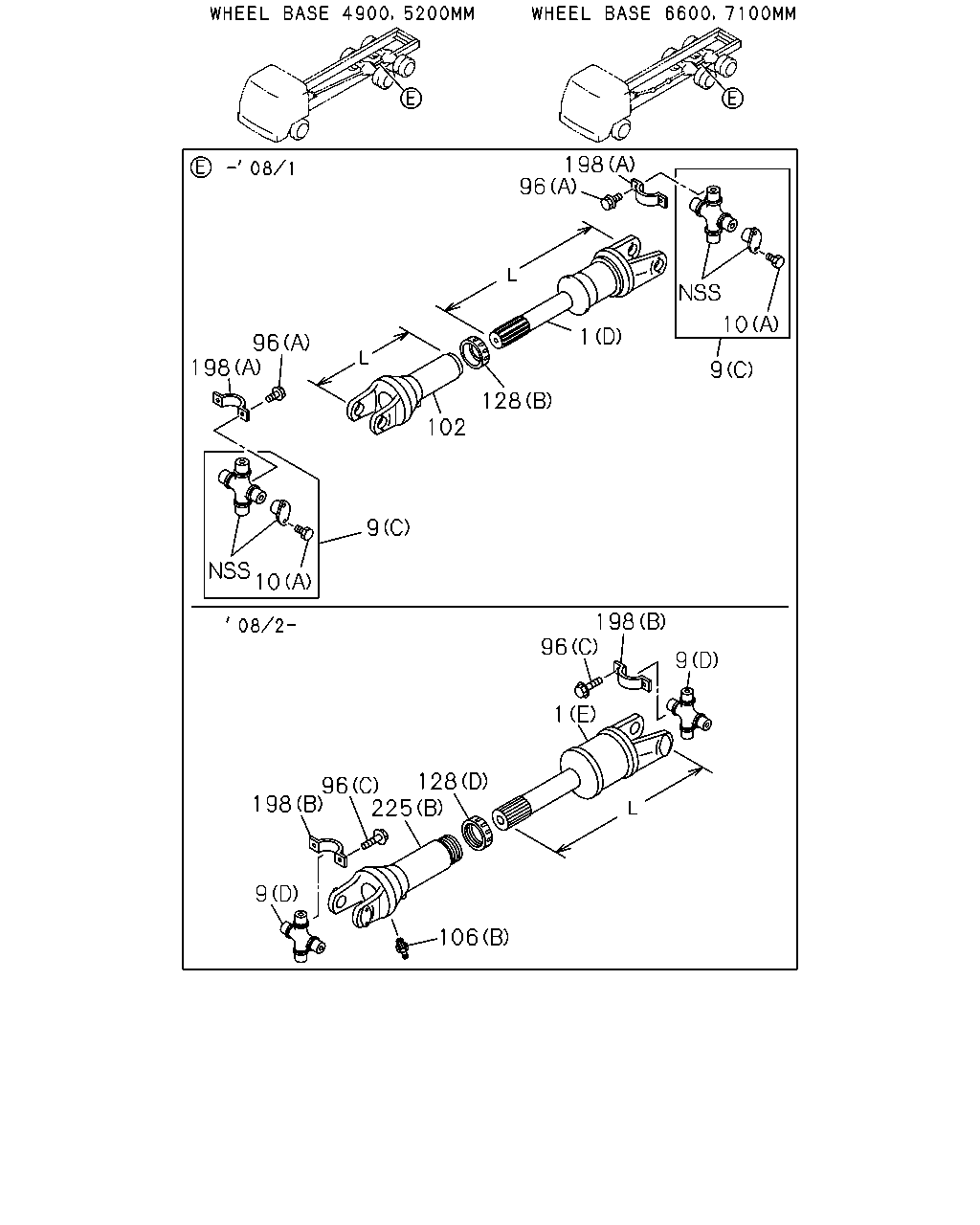

çizim 161604
198 96 10 1 96 198 9 128 102 9 10 198 96 9 1 96 128 198 225 9 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (A) L=1055 		1-37125-393-0 01 1 0809- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1227 		8-98086-976-0 01 1 0801- ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1172 		8-98098-100-0 01 1 0801- ● ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 0801- ● ●
1 SHAFT; PROP
(A) L=1530 		8-98094-192-0 01 1 0801- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (D) L=441 		1-37124-191-0 01 1 0801-0801 ● ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (E) L=435.3 		1-37124-894-0 01 1 0802- ● ● ● ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1195 		8-98094-189-0 01 1 0801- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1310 		1-37125-384-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1360 		1-37125-340-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1465 		1-37125-396-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 17.5"<B5D> (A) L=1395 		1-37125-383-0 01 1 0801- ●
1 SHAFT; PROP
(A) L=1640 		1-37125-293-0 01 1 0801- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) FINAL GEAR 17.5"<B5D> (A) L=1010 		1-37125-339-0 01 1 0801- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (C) 		1-37300-090-0 02 1 0801-0801 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (D) 		1-37300-115-0 02 1 0802- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 17.5"<B5D> (B) 		1-37300-100-1 01 1 0801- ● ● ● ●
10 BOLT; UJT
FINAL GEAR 15.5"<B2X> (A) 		1-09087-046-0 08 1 0801-0801 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (B) M12X45 		9-91066-245-0 04 1 0801-0805 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (B) M12X45 		8-98036-382-0 04 1 0806- ● ● ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 15.5"<B2X> (A) 		1-09088-006-0 08 1 0801-0801 ● ● ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 15.5"<B2X> (C) 		1-09088-009-0 08 1 0802- ● ● ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 17.5"<B5D> (B) M12X45 		8-98036-382-0 08 1 0801- ● ● ● ●
102 YOKE; TRANSFER TO AXLE
FINAL GEAR 15.5"<B2X> L=303.3 		1-37241-094-0 01 1 0801-0801 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 15.5"<B2X> (B) 		1-09380-013-0 01 1 0802- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0801- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 17.5"<B5D> (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0801- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0801- ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 15.5"<B2X> (B) 		1-37247-017-0 01 1 0801-0801 ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 15.5"<B2X> (D) 		1-37247-025-0 01 1 0802- ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 17.5"<B5D> (C) 		8-97603-618-0 01 1 0801- ● ● ● ●
198 PLATE; PROP SHAFT
FINAL GEAR 15.5"<B2X> (A) 		1-37319-009-0 04 1 0801-0801 ● ● ● ●
198 PLATE; PROP SHAFT
FINAL GEAR 15.5"<B2X> (B) 		1-37319-010-0 04 1 0802- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FINAL GEAR 15.5"<B2X> (B) L=297 		1-37241-142-0 01 1 0802- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=339 		1-37241-140-0 01 1 0801- ● ● ● ●

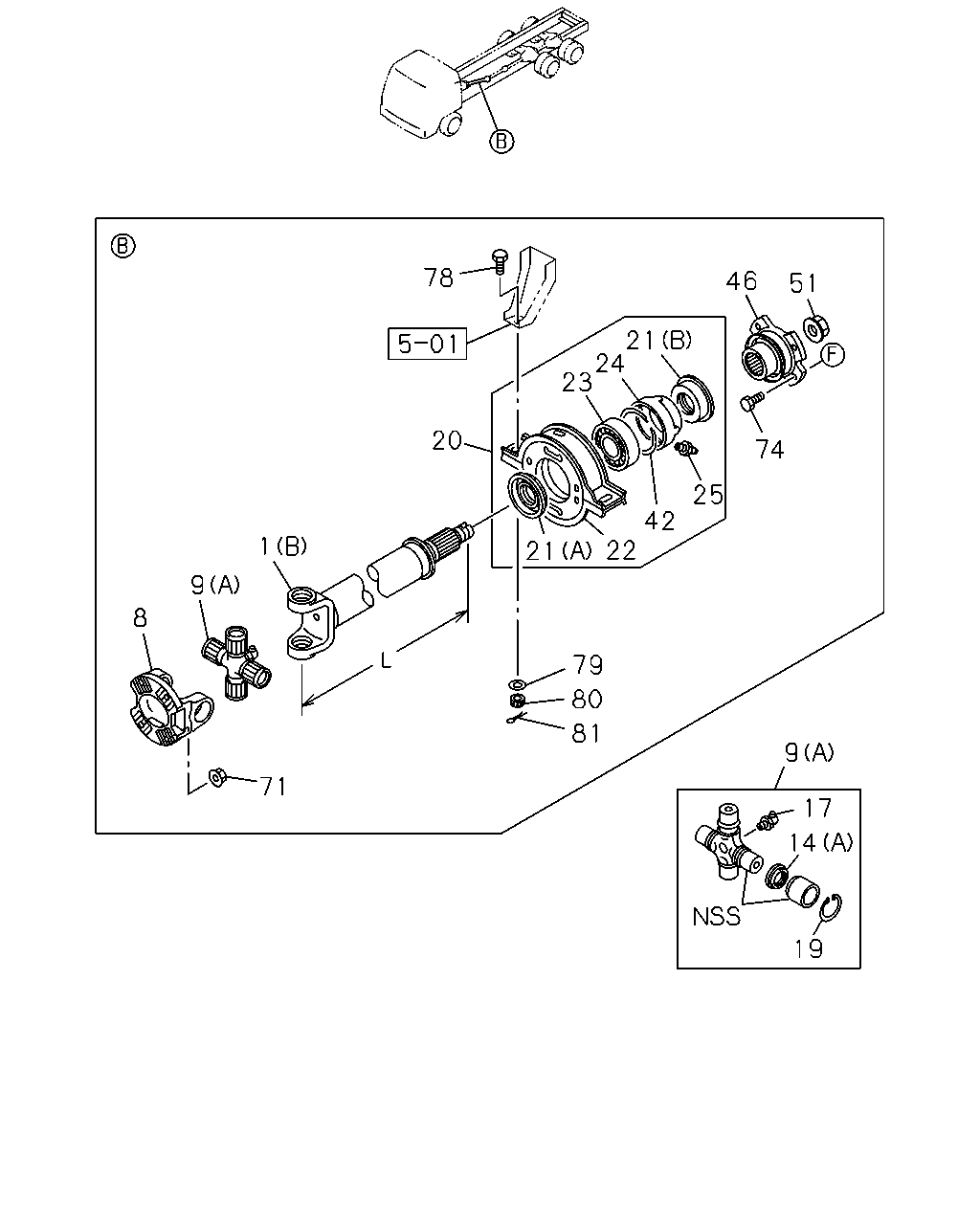

çizim 161628
78 46 51 21 24 23 20 74 25 42 22 1 21 9 8 79 80 81 9 71 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (A) L=1055 		1-37125-393-0 01 1 0809- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1227 		8-98086-976-0 01 1 0801- ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1172 		8-98098-100-0 01 1 0801- ● ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 0801- ● ●
1 SHAFT; PROP
(A) L=1530 		8-98094-192-0 01 1 0801- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (D) L=441 		1-37124-191-0 01 1 0801-0801 ● ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (E) L=435.3 		1-37124-894-0 01 1 0802- ● ● ● ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1195 		8-98094-189-0 01 1 0801- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1310 		1-37125-384-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> ENGINE REAR PTO(SV1) (A) L=1360 		1-37125-340-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 15.5"<B2X> EXC. ENGINE REAR PTO(SV1) (A) L=1465 		1-37125-396-0 01 1 0801- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) FINAL GEAR 17.5"<B5D> (A) L=1395 		1-37125-383-0 01 1 0801- ●
1 SHAFT; PROP
(A) L=1640 		1-37125-293-0 01 1 0801- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) FINAL GEAR 17.5"<B5D> (A) L=1010 		1-37125-339-0 01 1 0801- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0801- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0801- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (C) 		1-37300-090-0 02 1 0801-0801 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (D) 		1-37300-115-0 02 1 0802- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 17.5"<B5D> (B) 		1-37300-100-1 01 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 17.5"<B5D> (B) 		1-37319-004-0 08 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 17.5"<B5D> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0801- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0801- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0801- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 0801- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 0801- ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 0801- ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 0801- ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 0801- ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 0801- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 0801- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 0801- ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 0801- ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 0801- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 0801- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 0801- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0801- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0801- ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 0801- ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 0801- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 0801- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 0801- ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 0801- ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 0801- ● ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0801-0805 ● ● ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 0801- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0801- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0801- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0801-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0801- ● ●

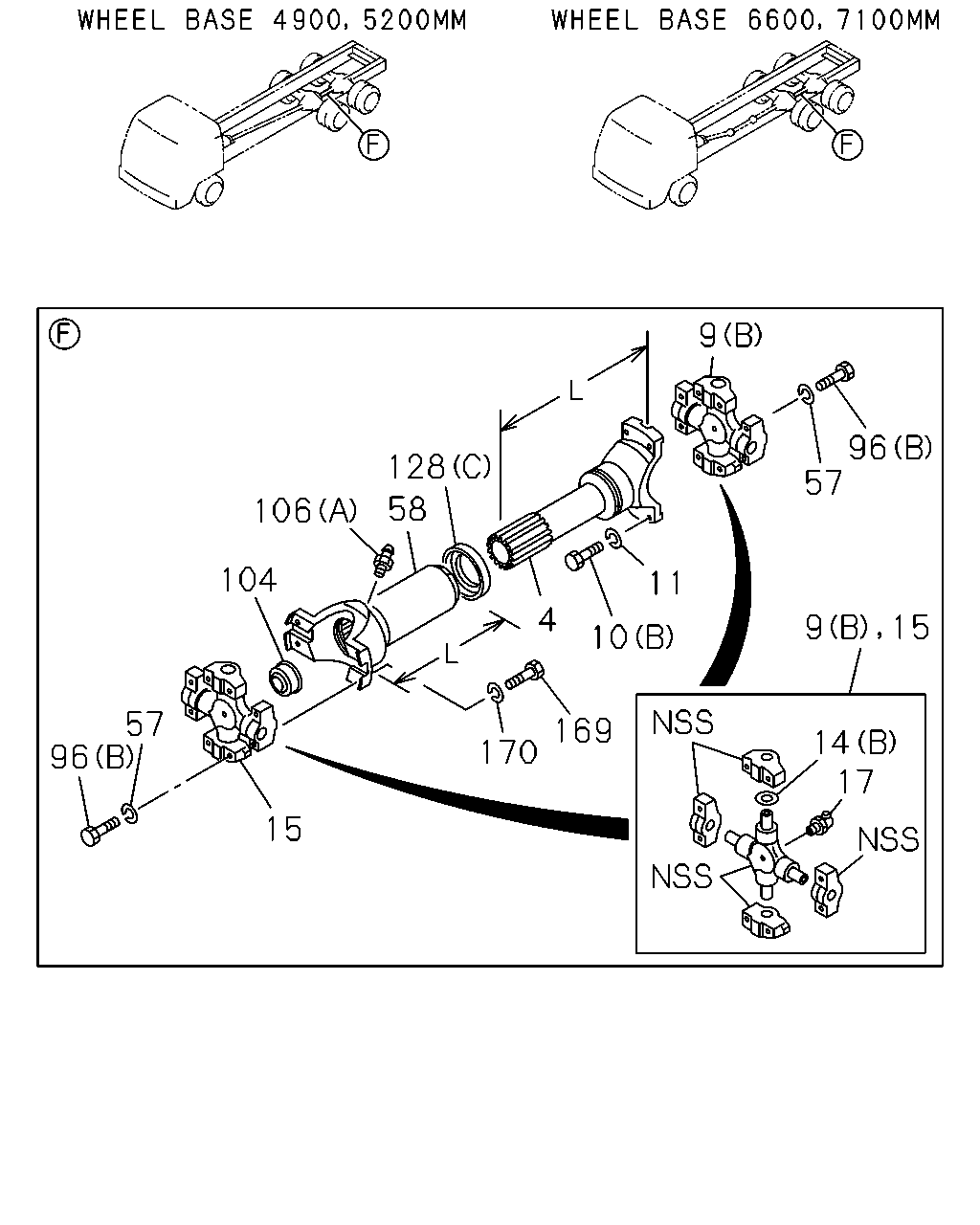

çizim 161956
9 96 57 128 58 106 104 11 4 9 15 10 57 96 169 14 17 170 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 SHAFT; PROP
FINAL GEAR 17.5"<B5D> L=348 		1-37171-127-2 01 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0801- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0801- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (C) 		1-37300-090-0 02 1 0801-0801 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X> (D) 		1-37300-115-0 02 1 0802- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 17.5"<B5D> (B) 		1-37300-100-1 01 1 0801- ● ● ● ●
10 BOLT; UJT
FINAL GEAR 15.5"<B2X> (A) 		1-09087-046-0 08 1 0801-0801 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (B) M12X45 		9-91066-245-0 04 1 0801-0805 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (B) M12X45 		8-98036-382-0 04 1 0806- ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FINAL GEAR 17.5"<B5D> ID=12.2 		0-91510-612-0 04 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0801- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0801- ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 17.5"<B5D> (B) 		1-37319-004-0 08 1 0801- ● ● ● ●
15 UNIVERSAL CENTER
FINAL GEAR 17.5"<B5D> 		1-37300-100-1 01 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 17.5"<B5D> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0801- ● ● ● ●
57 WASHER; LK,YOKE
FINAL GEAR 17.5"<B5D> ID=12.2 		0-91510-612-0 08 1 0801- ● ● ● ●
58 FLANGE; SPLINED
FINAL GEAR 17.5"<B5D> L=265 		1-37245-317-0 01 1 0801- ● ● ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 15.5"<B2X> (A) 		1-09088-006-0 08 1 0801-0801 ● ● ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 15.5"<B2X> (C) 		1-09088-009-0 08 1 0802- ● ● ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 17.5"<B5D> (B) M12X45 		8-98036-382-0 08 1 0801- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0801- ● ● ● ●
104 PLUG; SLEEVE YOKE
FINAL GEAR 17.5"<B5D> 		1-09600-049-0 01 1 0801- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 15.5"<B2X> (B) 		1-09380-013-0 01 1 0802- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0801- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 17.5"<B5D> (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0801- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0801- ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 15.5"<B2X> (B) 		1-37247-017-0 01 1 0801-0801 ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 15.5"<B2X> (D) 		1-37247-025-0 01 1 0802- ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 17.5"<B5D> (C) 		8-97603-618-0 01 1 0801- ● ● ● ●
169 BOLT; YOKE,SLEEVE
FINAL GEAR 17.5"<B5D> M12X45 		9-91066-245-0 04 1 0801-0805 ● ● ● ●
169 BOLT; YOKE,SLEEVE
FINAL GEAR 17.5"<B5D> M12X45 		8-98036-382-0 04 1 0806- ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
FINAL GEAR 17.5"<B5D> ID=12.2 		0-91510-612-0 04 1 0801- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
