◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#4026) — 240 parça

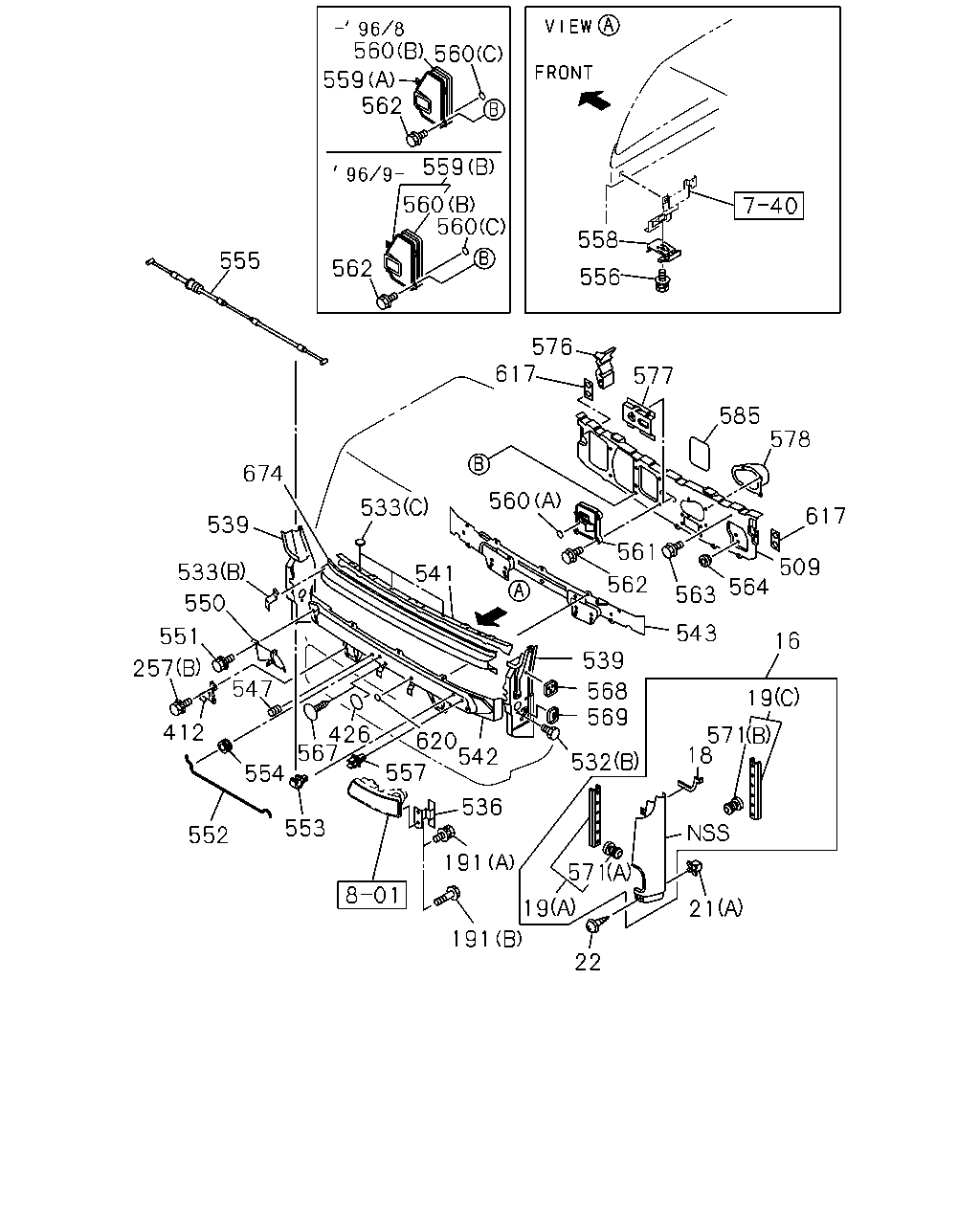

çizim 115757
560 559 562 559 560 558 555 562 556 576 617 577 585 578 674 560 533 617 539 509 561 533 541 562 564 563 550 543 551 16 539 257 547 568 569 19 412 426 567 18 620 542 557 532 554 536 553 552 191 571 19 21 191 22 560 571 560
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-2 01 1 9510- ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-562-3 01 1 9510- ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-590-2 01 1 9510- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9510- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510- ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9510-0003 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0810 ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011- ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-0708 ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-0708 ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0904 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0904 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510- ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 9510- ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 9510- ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 9510- ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 9510- ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0112 ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9805-0112 ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 0201- ● ●
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-214-4 01 1 9510- ● ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-216-4 01 1 9510- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0005- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9510- ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9510-9806 ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510- ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9510- ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9510- ●
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9510- ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9510- ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 9510- ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 9510- ● ●
541 PANEL; FRONT,INNER 1-61480-765-1 01 1 9510- ● ●
542 RAIL; FRT MOUNTING 1-61480-774-7 01 1 9510- ● ●
543 CLOSING; FRT MTG RAIL 1-61480-769-2 01 1 9510- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9510- ● ●
550 LOCK ASM; FRT LID 1-79318-007-5 01 1 9510- ● ●
550 LOCK ASM; FRT LID 1-79318-006-3 01 1 9510- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9510- ● ●
552 STAY; FRT LID 1-71996-046-2 01 1 9510-0205 ● ●
552 STAY; FRT LID 1-71996-311-0 01 1 0206-0706 ● ●
552 STAY; FRT LID 1-71996-353-0 01 1 0707- ● ●
553 CLIP; STAY 8-97031-428-0 01 1 9510- ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9510- ● ●
555 CABLE; FRT LID
L=2242 		1-79348-006-2 01 1 9510- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9510- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9510- ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 9510-9601 ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 9602- ● ●
559 COVER; EVAPOLATOR
(A) 		1-71998-994-1 01 1 9510-9608 ● ●
559 COVER; EVAPOLATOR
(B) 		1-71996-193-1 01 1 9609- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 BLACK 		1-76798-018-0 02 1 9510-9806 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807- ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9510- ● ●
560 SEAL; COVER
(C) OD=25 BLACK 		1-76798-019-0 01 1 9510- ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 01 1 9510-9806 ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807- ● ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 9510- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 9510-9707 ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9708-9807 ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9808-0202 ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9510-9707 ● ●
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807 ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9510- ● ●
567 PLUG; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK 		8-94279-804-0 01 1 9510-9510 ● ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9511-9803 ● ●
567 PLUG; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9804-9804 ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9510- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9510- ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9510- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 9510-0302 ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0303- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9510- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9510- ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 9510- ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 9510- ● ●
577 BRACKET; IDLER 1-62280-202-0 01 1 9510- ● ●
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 9510- ● ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9510- ● ●
617 SEAL; DASH 1-61281-497-1 02 1 9510- ● ●
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 01 1 9803- ● ●
674 PANEL; UPR 1-61480-785-1 01 1 9510- ● ●

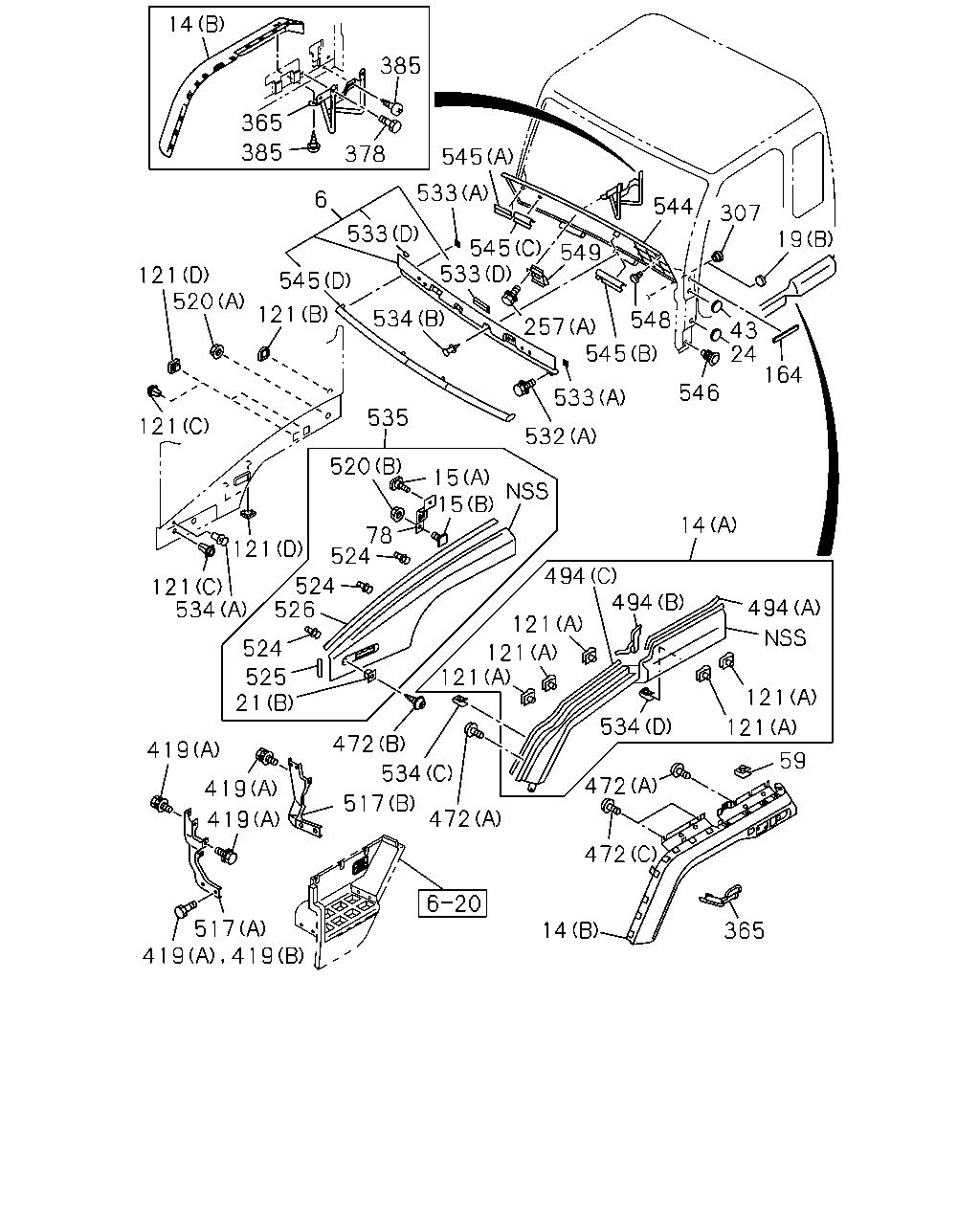

çizim 115760
14 385 365 385 378 545 533 6 544 307 533 19 545 549 533 121 520 545 121 534 548 257 545 43 24 164 533 546 535 121 532 520 15 15 78 524 14 121 494 494 524 526 121 534 494 121 524 121 121 525 21 121 534 121 472 419 59 534 472 419 517 472 419 472 517 14 365 419 419
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65481-556-2 01 1 9510-9807 ● ●
6 PANEL; FRONT 1-65481-744-2 01 1 9808- ● ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9510-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-0 01 1 0210- ● ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9510-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-0 01 1 0210- ● ●
14 FENDER; FRT
(B) 		1-71996-149-5 01 1 9510-9703 ● ●
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 9704- ● ●
14 FENDER; FRT
(B) 		1-71996-148-4 01 1 9510-9703 ● ●
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 9704- ● ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9510- ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9510- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510- ● ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 04 1 9510-9601 ● ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 06 1 9602-9811 ● ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 08 1 9812- ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9510-9903 ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9904- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9510- ● ●
59 GROMMET; SCREW 8-94279-723-0 03 1 9510-9705 ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 9706- ● ●
78 BRACKET; FENDER 1-71268-323-0 01 1 9510- ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 9510- ● ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9510-1009 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-0304 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9510- ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9604-0304 ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9510- ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0904 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0904 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510- ● ●
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9510-9703 ● ●
365 SUPPORT; FENDER 1-71996-077-2 01 1 9510-9510 ● ●
365 SUPPORT; FENDER 1-71996-147-1 01 1 9510- ● ●
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9510- ● ●
385 SCREW; FENDER LWR
M6X22 		1-65481-386-0 02 1 9510-9601 ● ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 02 1 9510-9601 ● ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 9602- ● ●
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9510-0009 ● ●
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904 ● ●
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ●
419 BOLT; STEP
(B) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301 ● ●
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 35 1 9510-9510 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 21 1 9511-9601 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 06 1 9602-9606 ● ●
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9510-9706 ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9707- ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 16 1 9511-9601 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 27 1 9602-9606 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 34 1 9607-9607 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 32 1 9608-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 28 1 9803-9804 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 9805- ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9602- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 02 1 9607-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 07 1 9803-9804 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 9805- ● ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9510-0607 ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 0608-0705 ● ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0706- ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9510- ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9510- ● ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9510-0611 ● ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71996-078-3 01 1 9510- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71998-782-2 01 1 9510-9512 ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9601- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9510- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71998-781-2 01 1 9510-9512 ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9601- ● ●
520 NUT; FENDER
(B) M6 CAP 		1-09984-031-0 02 1 9510-9510 ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9511- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9510- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9510-9803 ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804- ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9510-0409 ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ●
526 FINISHER; FENDER 1-71268-275-1 02 1 9510- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0005- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9510- ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9510-9806 ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9510-9803 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(D) 		1-71996-035-1 18 1 9510-9510 ● ●
534 FASTENER
(D) 		1-71996-035-1 20 1 9511- ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 9510-9602 ● ●
534 FASTENER
(C) 		1-71996-035-1 02 1 9603-9605 ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 9606-0404 ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 0405- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9510- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9510-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9510-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210- ● ●
544 LID; FRT 1-71108-073-3 01 1 9510-9703 ● ●
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-9802 ● ●
544 LID; FRT
CHEV BRAND PACKAGE<PS2> WHITE 		1-71108-118-1 01 1 9803-0004 ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> CHEV BRAND PACKAGE<PS2> WHITE 		1-71108-118-1 01 1 0005- ● ●
544 LID; FRT
CHEV BRAND PACKAGE<PS2> EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-228-3 01 1 0005- ● ●
544 LID; FRT
EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 9803-0004 ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0302 ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) HITACHI CHEMICAL 		1-71108-152-0 01 1 0303- ● ●
544 LID; FRT
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> HITACHI CHEMICAL 		1-71108-152-0 01 1 0303- ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> HITACHI CHEMICAL 		1-71108-152-0 01 1 0303- ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> MITRAS 		1-71108-116-0 01 1 0007-0302 ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) MITRAS 		1-71108-116-0 01 1 0303-0411 ● ●
544 LID; FRT
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> MITRAS 		1-71108-116-0 01 1 0303-0411 ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> MITRAS 		1-71108-116-0 01 1 0303-0411 ●
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD>,CHEV BRAND PACKAGE<PS2> 		1-71108-235-3 01 1 0005-0302 ● ●
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD>,CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) 		1-71108-235-3 01 1 0303- ● ●
544 LID; FRT
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-3 01 1 0303- ●
544 LID; FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FRONT PANEL CARGO FACE<NGD>,EURO2 SPECIFICATION<THN> 		1-71108-235-3 01 1 0303- ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0005- ● ●
545 SEAL; FRT LID
(B) 		1-71996-045-3 01 1 9510-9908 ● ●
545 SEAL; FRT LID
(B) 		1-71996-257-1 01 1 9909- ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9510-0004 ● ●
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9510-9908 ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909- ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9510- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9510- ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9510- ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-060-1 01 1 9510-0301 ● ●
549 BRACKET; STOPPER,FRT LID 8-97589-019-0 01 1 0302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
